Kia Cee'd
Date of manufacture
10/2007 – 11/2010 (Three-door hatchback)
12/2006 – 6/2009 (Five-door hatchback)
8/2007 – 6/2009 (Estate)
Platform
Hyundai-Kia J4
Manufacturing locations
Žilina, Slovakia
Designer
Miklós Kovács
Tags
C-segment
Korean cars
The Kia Cee'd is built on the Hyundai-Kia J4 platform and has been in production since 2006. It offers three body styles - three-door hatchback, five-door hatchback and estate. The engine range includes petrol and diesel units with a maximum power output of 105 kW (2.0 CVVT). The fastest model can reach a top speed of 205 km/h and the best 0-100 km/h acceleration time is 10.1 seconds (2.0 CRDi VGT). The combined fuel consumption of the 1.6 CRDi VGT ISG is 4.2 l/100 km and the CO2 emissions are 110 g/km. The boot capacity is 340 l for the three-door hatchback and 534 l for the estate. The Kia Cee'd has been awarded a 5-star rating from EURONCAP for safety.
Car body style
Three-door hatchback (Pro_cee'd)
Date of manufacture
10/2007 – 11/2010Internal designation

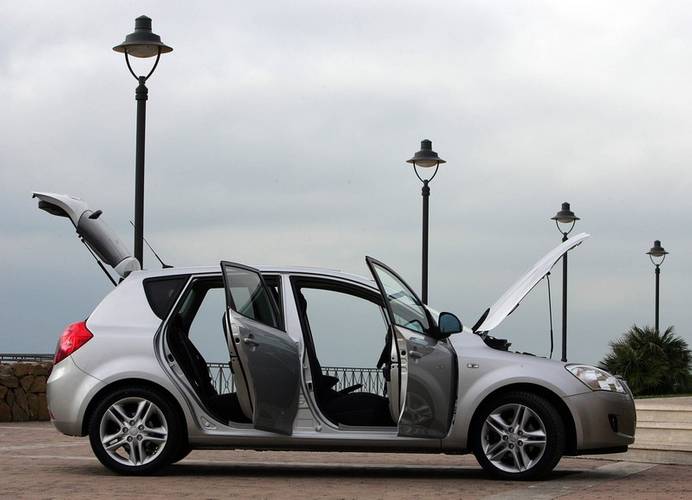

EDFive-door hatchback
Date of manufacture
12/2006 – 6/2009Internal designation
EDEngine size

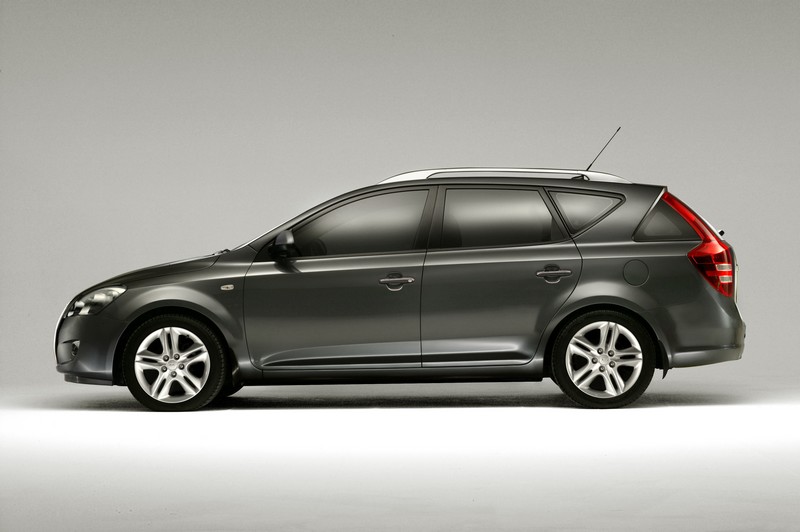

Estate (Sportswagon)
Date of manufacture
8/2007 – 6/2009Internal designation
EDEngine size
Technical data
Three-door hatchback (Pro_cee'd)
| 1.4 CVVT | 1.4 CVVT ISG | 1.4 CVVT | 1.6 CVVT | 1.6 CVVT ISG | 1.6 CVVT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1396 | 1591 | 1591 | 1591 |
| Maximum output / speed [kW/min-1] | 66,2/6000 | 66,2/6000 | 80/6200 | 93/6300 | 93/6300 | 93/6300 |
| Maximum torque [Nm/min-1] | 136,3/5000 | 136,3/5000 | 137/5000 | 154/4200 | 154/4200 | 154/4200 |
| Bore and stroke [mm x mm] | 77,0 x 75,0 | 77,0 x 75,0 | 77,0 x 75,0 | 77,0 x 85,45 | 77,0 x 85,45 | 77,0 x 85,45 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 180 | 180 | 187 | 192 | 192 | 187 |
| Acceleration 0–100 km/h [s] | 13.0 | 13.0 | 11.4 | 10.8 | 10.8 | 11.3-11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.6 | 7.6 | 7.8-8.0 | 7.2 | 8.3-8.9 |
| Out of town [l] | 5.1 | 4.9 | 5.2 | 5.2-5.4 | 5.1 | 5.7-5.8 |
| Combined [l] | 5.8 | 5.5 | 6.1 | 6.1-6.4 | 5.9 | 6.6-6.9 |
| CO2 emissions [g/km] | 139 | 132 | 145 | 146-152 | 139 | 158-165 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1257-1358 | 1257-1358 | 1263-1355 | 1257-1338 | 1257-1338 | 1285-1356 |
| Overall weight [kg] | 1750 | 1750 | 1710 | 1750 | 1750 | 1770 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H |
| Tyre dimensions rear | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4250 | 4250 | 4250 | 4250 | 4250 | 4250 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 725 | 725 | 725 | 725 | 725 | 725 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 CVVT | 2.0 CVVT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1975 | 1975 | 1582 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 105/6000 | 105/6000 | 66/4000 | 66/4000 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 186/4600 | 186/4600 | 235/1750-2500 | 235/1750-2500 | 255/1900-2750 | 255/1900-2750 |
| Bore and stroke [mm x mm] | 82, x 93,5 | 82, x 93,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,0 x 85,45 | 77,0 x 85,45 |
| Compression ratio | 10,1:1 | 10,1:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - |
| - | - | - | - |
| Top speed [km/h] | 205 | 195 | 172 | 172 | 188 | 188 |
| Acceleration 0–100 km/h [s] | 10.3 | 10.3 | 13.5-14.0 | 14.0 | 11.0-11.4 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.2-9.4 | 10.0-10.1 | 5.0-5.7 | 4.7 | 5.3-5.7 | 4.9 |
| Out of town [l] | 5.6-5.9 | 6.0-6.2 | 3.9-4.2 | 3.9 | 4.0-4.2 | 4.0 |
| Combined [l] | 7.0-7.1 | 7.5-7.6 | 4.3-4.7 | 4.2 | 4.5-4.7 | 4.4 |
| CO2 emissions [g/km] | 167-170 | 178-182 | 113-125 | 110 | 118-125 | 115 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1337-1397 | 1350-1410 | 1358-1439 | 1358-1439 | 1358-1439 | 1358-1439 |
| Overall weight [kg] | 1820 | 1820 | 1860 | 1860 | 1860 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | 550/1500 | 550/1400 | 550/1400 | 550/1400 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 195/65 R15 91H | 195/65 R15 91H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H |
| Tyre dimensions rear | 195/65 R15 91H | 195/65 R15 91H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4250 | 4250 | 4250 | 4250 | 4250 | 4250 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 725 | 725 | 725 | 725 | 725 | 725 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi VGT | 2.0 CRDi VGT | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1582 | 1991 | ||||
| Maximum output / speed [kW/min-1] | 85/4000 | 103/3800 | ||||
| Maximum torque [Nm/min-1] | 255/1900-2750 | 305/1800-2500 | ||||
| Bore and stroke [mm x mm] | 77,0 x 85,45 | 82,0 x 93,5 | ||||
| Compression ratio | 17,3:1 | 17,3:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 4 gear automatic | 6 gear manual | ||||
| Drive specifications |
| - | ||||
| Top speed [km/h] | 180 | 205 | ||||
| Acceleration 0–100 km/h [s] | 12.3 | 10.1-10.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.0-7.6 | 7.3-7.4 | ||||
| Out of town [l] | 4.7-4.9 | 4.3-4.4 | ||||
| Combined [l] | 5.6-5.9 | 5.4-5.5 | ||||
| CO2 emissions [g/km] | 147-155 | 142-145 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1365-1446 | 1440-1499 | ||||
| Overall weight [kg] | 1880 | 1920 | ||||
| Maximum trailer weight unbraked/braked [kg] | 550/1300 | 550/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | ||||
| Boot volume [l] | 340 | 340 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 53 | 53 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | ||||
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | ||||
| Tyre dimensions front | 185/65 R15 88H | 195/65 R15 91H | ||||
| Tyre dimensions rear | 185/65 R15 88H | 195/65 R15 91H | ||||
| Wheel size front | 5.5J x 15 | 6.0J x 16 | ||||
| Wheel size rear | 5.5J x 15 | 6.0J x 16 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | - | - | ||||
| Overall length [mm] | 4250 | 4250 | ||||
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | ||||
| Overall height [mm] | 1450 | 1450 | ||||
| Wheelbase [mm] | 2650 | 2650 | ||||
| Front wheel track [mm] | 1546 | 1546 | ||||
| Rear wheel track [mm] | 1544 | 1544 | ||||
| Forward overhang [mm] | 875 | 875 | ||||
| Rear overhang [mm] | 725 | 725 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Five-door hatchback
| 1.4 CVVT | 1.6 CVVT | 1.6 CVVT | 2.0 CVVT | 2.0 CVVT | 1.6 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1591 | 1591 | 1975 | 1975 | 1582 |
| Maximum output / speed [kW/min-1] | 80/6200 | 93/6300 | 93/6300 | 105/6000 | 105/6000 | 66/4000 |
| Maximum torque [Nm/min-1] | 137/5000 | 154/4200 | 154/4200 | 186/4600 | 186/4600 | 235/1750-2500 |
| Bore and stroke [mm x mm] | 77,0 x 75,0 | 77,0 x 85,45 | 77,0 x 85,45 | 82,0 x 93,5 | 82,0 x 93,5 | 77,2 x 84,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,1:1 | 10,1:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 4 gear automatic | 5 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 187 | 192 | 187 | 205 | 195 | 172 |
| Acceleration 0–100 km/h [s] | 11.6 | 10.8 | 11.4 | 10.4 | 10.4 | 13.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 8.0 | 8.9 | 9.2 | 10.1 | 5.7 |
| Out of town [l] | 5.2 | 5.4 | 5.9 | 5.9 | 6.2 | 4.2 |
| Combined [l] | 6.1 | 6.4 | 6.9 | 7.1 | 7.6 | 4.7 |
| CO2 emissions [g/km] | 145 | 152 | 165 | 170 | 182 | 125 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1263-1355 | 1263-1355 | 1291-1373 | 1341-1413 | 1349-1421 | 1367-1468 |
| Overall weight [kg] | 1710 | 1710 | 1730 | 1770 | 1780 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1500 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 195/65 R15 91H | 195/65 R15 91H | 185/65 R15 88H |
| Tyre dimensions rear | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 195/65 R15 91H | 195/65 R15 91H | 185/65 R15 88H |
| Wheel size front | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 |
| Wheel size rear | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4235 | 4235 | 4235 | 4235 | 4235 | 4235 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 865 | 865 | 865 | 865 | 865 | 865 |
| Rear overhang [mm] | 720 | 720 | 720 | 720 | 720 | 720 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi VGT | 1.6 CRDi VGT | 2.0 CRDi VGT | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1582 | 1582 | 1991 | |||
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 103/3800 | |||
| Maximum torque [Nm/min-1] | 255/1900-2750 | 255/1900-2750 | 305/1800-2500 | |||
| Bore and stroke [mm x mm] | 77,0 x 85,45 | 77,0 x 85,45 | 82,0 x 93,5 | |||
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 4 gear automatic | 6 gear manual | |||
| Drive specifications | - |
| - | |||
| Top speed [km/h] | 188 | 180 | 205 | |||
| Acceleration 0–100 km/h [s] | 11.5 | 12.8 | 10.5 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.7 | 7.6 | 7.3 | |||
| Out of town [l] | 4.2 | 4.9 | 4.4 | |||
| Combined [l] | 4.7 | 5.9 | 5.5 | |||
| CO2 emissions [g/km] | 125 | 155 | 145 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1367-1468 | 1374-1475 | 1458-1533 | |||
| Overall weight [kg] | 1820 | 1840 | 1880 | |||
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1300 | 550/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | |||
| Boot volume [l] | 340 | 340 | 340 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 53 | 53 | 53 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | |||
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | |||
| Tyre dimensions front | 185/65 R15 88H | 185/65 R15 88H | 195/65 R15 91H | |||
| Tyre dimensions rear | 185/65 R15 88H | 185/65 R15 88H | 195/65 R15 91H | |||
| Wheel size front | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | |||
| Wheel size rear | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | - | - | - | |||
| Overall length [mm] | 4235 | 4235 | 4235 | |||
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | |||
| Overall height [mm] | 1480 | 1480 | 1480 | |||
| Wheelbase [mm] | 2650 | 2650 | 2650 | |||
| Front wheel track [mm] | 1546 | 1546 | 1546 | |||
| Rear wheel track [mm] | 1544 | 1544 | 1544 | |||
| Forward overhang [mm] | 865 | 865 | 865 | |||
| Rear overhang [mm] | 720 | 720 | 720 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate (Sportswagon)
| 1.4 CVVT | 1.6 CVVT | 1.6 CVVT | 2.0 CVVT | 2.0 CVVT | 1.6 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1591 | 1591 | 1975 | 1975 | 1582 |
| Maximum output / speed [kW/min-1] | 80/6200 | 93/6300 | 93/6300 | 105/6000 | 105/6000 | 66/4000 |
| Maximum torque [Nm/min-1] | 137/5000 | 154/4200 | 154/4200 | 186/4600 | 186/4600 | 235/1750-2500 |
| Bore and stroke [mm x mm] | 77,0 x 75,0 | 77,0 x 85,45 | 77,0 x 85,45 | 82,0 x 93,5 | 82,0 x 93,5 | 77,2 x 84,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,1:1 | 10,1:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 4 gear automatic | 5 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 187 | 192 | 187 | 205 | 195 | 172 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.1 | 11.7 | 10.7 | 10.7 | 14.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 8.1 | 8.9 | 9.7 | 10.3 | 5.9 |
| Out of town [l] | 5.4 | 5.6 | 5.9 | 5.9 | 6.1 | 4.3 |
| Combined [l] | 6.3 | 6.5 | 6.9 | 7.3 | 7.6 | 4.9 |
| CO2 emissions [g/km] | 149 | 154 | 165 | 174 | 182 | 128 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1317-1399 | 1317-1399 | 1334-1417 | 1397-1458 | 1409-1470 | 1419-1502 |
| Overall weight [kg] | 1820 | 1820 | 1840 | 1890 | 1900 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1500 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 534 | 534 | 534 | 534 | 534 | 534 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 195/65 R15 91H | 195/65 R15 91H | 185/65 R15 88H |
| Tyre dimensions rear | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 195/65 R15 91H | 195/65 R15 91H | 185/65 R15 88H |
| Wheel size front | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 |
| Wheel size rear | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4470 | 4470 | 4470 | 4470 | 4470 | 4470 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 865 | 865 | 865 | 865 | 865 | 865 |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi VGT | 1.6 CRDi VGT | 2.0 CRDi VGT | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1582 | 1582 | 1991 | |||
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 103/3800 | |||
| Maximum torque [Nm/min-1] | 255/1900-2750 | 255/1900-2750 | 305/1800-2500 | |||
| Bore and stroke [mm x mm] | 77,0 x 85,45 | 77,0 x 85,45 | 82,0 x 93,5 | |||
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 4 gear automatic | 6 gear manual | |||
| Drive specifications | - |
| - | |||
| Top speed [km/h] | 188 | 180 | 205 | |||
| Acceleration 0–100 km/h [s] | 11.7 | 13.1 | 10.5 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.9 | 7.9 | 7.5 | |||
| Out of town [l] | 4.3 | 5.1 | 4.5 | |||
| Combined [l] | 4.9 | 6.1 | 5.6 | |||
| CO2 emissions [g/km] | 128 | 161 | 149 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1419-1502 | 1427-1510 | 1513-1572 | |||
| Overall weight [kg] | 1920 | 1940 | 1970 | |||
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1300 | 550/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | |||
| Boot volume [l] | 534 | 534 | 534 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1664 | -/1664 | -/1664 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 53 | 53 | 53 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | |||
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | |||
| Tyre dimensions front | 185/65 R15 88H | 185/65 R15 88H | 195/65 R15 91H | |||
| Tyre dimensions rear | 185/65 R15 88H | 185/65 R15 88H | 195/65 R15 91H | |||
| Wheel size front | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | |||
| Wheel size rear | 5.5J x 15 ET47 | 5.5J x 15 ET47 | 5.5J x 15 ET47 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | - | - | - | |||
| Overall length [mm] | 4470 | 4470 | 4470 | |||
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | |||
| Overall height [mm] | 1525 | 1525 | 1525 | |||
| Wheelbase [mm] | 2650 | 2650 | 2650 | |||
| Front wheel track [mm] | 1546 | 1546 | 1546 | |||
| Rear wheel track [mm] | 1544 | 1544 | 1544 | |||
| Forward overhang [mm] | 865 | 865 | 865 | |||
| Rear overhang [mm] | 955 | 955 | 955 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

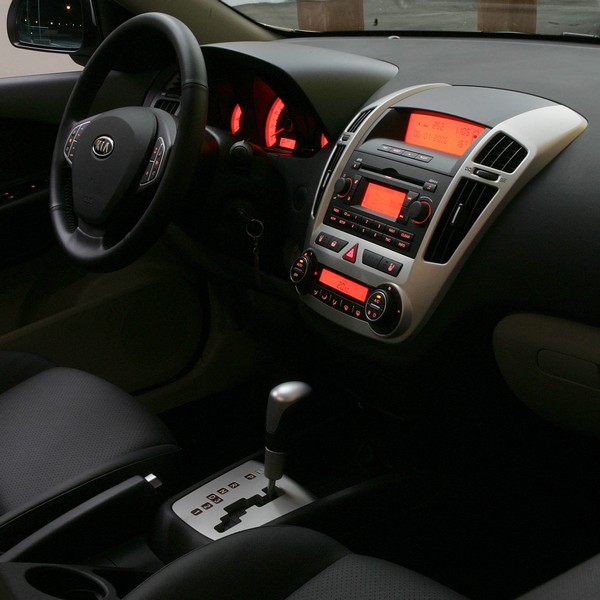

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
