Kia Cee'd
Date of manufacture
2018 – to this day (Five-door hatchback)
2018 – to this day (Estate)
2019 – to this day (Coupé)
Platform
Hyundai-Kia K2
Manufacturing locations
Žilina, Slovakia
Designer
Peter Schreyer
Tags
C-segment
Korean cars
The Kia Cee'd is available in three different body styles - five-door hatchback, estate and coupe. Since 2018, it has been manufactured in Slovakia on the Hyundai-Kia K2 platform. It offers a wide range of engines, from petrol to hybrid plug-in versions, the most powerful of which is the 1.6 T-GDI with a top speed of 230 km/h. The most fuel-efficient 1.6 GDI Plug-in Hybrid engine achieves fuel consumption of 1.1 l/100 km and emissions of 28 g/km. The luggage compartment varies depending on the body type - the estate model has a capacity of 625 litres, the coupe model 594 litres and the five-door hatchback 395 litres. The Kia Cee'd underwent the EURONCAP 2019 safety test, during which it scored 5 out of 5.
Car body style
Five-door hatchback
Date of manufacture
2018 – to this dayInternal designation
CDEstate (Sportswagon)
Date of manufacture
2018 – to this dayInternal designation
CDEngine size

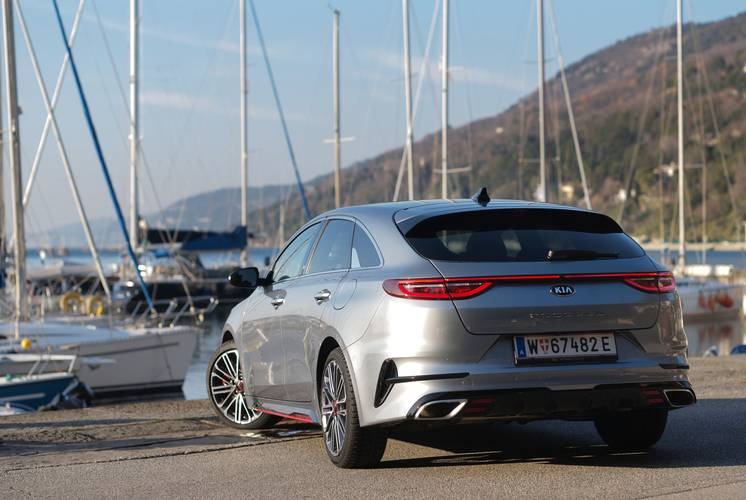

Coupé (ProCeed)
Date of manufacture
2019 – to this dayInternal designation
CD
Technical data
Five-door hatchback
| 1.4 | 1.0 T-GDI | 1.0 T-GDI | 1.4 T-GDI | 1.4 T-GDI | 1.6 T-GDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2019 to | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 998 | 998 | 1353 | 1353 | 1591 |
| Maximum output / speed [kW/min-1] | 73/6000 | 74/4500 | 88/6000 | 103/6000 | 103/6000 | 150/6000 |
| Maximum torque [Nm/min-1] | 134/3500 | 172/1500-4000 | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | 265/1500-4500 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 71,0 x 84,0 | 71,0 x 84,0 | 71,6 x 84,0 | 71,6 x 84,0 | 77,0 x 85,4 |
| Compression ratio | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 183 | 183 | 190 | 210 | 205 | 230 |
| Acceleration 0–100 km/h [s] | 12,6 | 11,8 | 11,1 | 8,9 | 9,2 | 7,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,0-7,9 | 6.5-6.3 | 6,5 | 7,5-7,1 | 6,7-6,6 | 8,4 |
| Out of town [l] | 5,4-5,3 | 4.9-4.5 | 4,9-4,6 | 5,0-4,9 | 5,0-4,8 | 5,8 |
| Combined [l] | 6,4-6,2 | 5.5-5.2 | 5,5-5,3 | 5,9-5,7 | 5,7-5,5 | 6,8 |
| CO2 emissions [g/km] | 145-142 | 126-118 | 126-122 | 135-130 | 129-125 | 155 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | 70 | - | 70 | 72 | 71 | 70 |
| Standby weight [kg] | 1260-1400 | 1297-1427 | 1297-1427 | 1315-1455 | 1345-1497 | 1386-1486 |
| Overall weight [kg] | 1760 | 1800 | 1800 | 1820 | 1850 | 1840 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1200 | 600/1410 | 600/1410 | 600/1410 |
| Maximum front/rear axle load [kg] | 1050/950 | 1050/950 | 1050/950 | 1050/950 | 1050/950 | 1050/950 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 395 [ VDA] | 395 [ VDA] | 395 [ VDA] | 395 [ VDA] | 395 [ VDA] | 395 [ VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1291 | -/1291 | -/1291 | -/1291 | -/1291 | -/1291 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 91H | 195/65 R15 91H | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 ZR18 92Y |
| Tyre dimensions rear | 195/65 R15 91H | 195/65 R15 91H | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 ZR18 92Y |
| Wheel size front | 6.0J x 15 ET46 | 6.0J x 15 ET46 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 7,5J x 18 ET55 |
| Wheel size rear | 6.0J x 15 ET46 | 6.0J x 15 ET46 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 7,5J x 18 ET55 |
| Brake dimensions front | 280 x 23 | 280 x 23 | 288 x 25 | 288 x 25 | 288 x 25 | 320 x 28 |
| Brake dimensions rear | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- |
| Overall length [mm] | 4310 | 4310 | 4310 | 4310 | 4310 | 4310 |
| Overall width without/including mirrors [mm] | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 |
| Overall height [mm] | 1442 | 1447 | 1442 | 1442 | 1442 | 1442 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1555-1559 | 1573-1559 | 1555-1559 | 1555-1559 | 1555-1559 | 1555 |
| Rear wheel track [mm] | 1563-1567 | 1581-1567 | 1563-1567 | 1563-1567 | 1563-1567 | 1563 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 780 | 1070 | 780 | 780 | 780 | 780 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Headroom rear [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
| Front elbow/shoulder width [mm] | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 |
| Rear elbow/shoulder width [mm] | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| 1.6 T-GDI | 1.6 CRDI 115 | 1.6 CRDI 136 | 1.6 CRDI 136 | 1.6 CRDI 136 48V | 1.6 CRDI 136 48V | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 150/6000 | 85/4000 | 100/4000 | 100/4000 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 265/1500-4500 | 280/1500-2750 | 280/1500-3000 | 320/2000-2250 | 280/1500-3000 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 77,0 x 85,4 | 77 x 85,8 | 77 x 85,8 | 77 x 85,8 | 77 x 85,8 | 77 x 85,8 |
| Compression ratio | 9.5:1 | 15,9:1 | 15,9:1 | 15,9:1 | 15,9:1 | 15,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 225 | 192 | 200 | 200 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 7,4 | 10,9 | 10,2 | 9,9 | 10.2 | 9.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,1 | 4,4 | 4,7-4,5 | 4,6-4,4 | 4.2-4.1 | 4.2-4.1 |
| Out of town [l] | 5,7 | 3,7-3,6 | 4,0-3,7 | 4,1-4,0 | 3.8-3.6 | 3.9-3.7 |
| Combined [l] | 6,2 | 4,0-3,9 | 4,3-3,9 | 4,3-4,2 | 4.0-3.8 | 4.0-3.8 |
| CO2 emissions [g/km] | 142 | 104-101 | 111-109 | 111-109 | 103-98 | 104-99 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | 70 | 67 | 72 | 69 | - | - |
| System voltage [V] | - | - | - | - | 48 | 48 |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1413-1513 | 1388-1524 | 1388-1524 | 1415-1563 | 1415-1536 | 1445-1564 |
| Overall weight [kg] | 1870 | 1880 | 1880 | 1900 | 1890 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 600/1410 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | 1050/950 | 1050/950 | 1050/950 | 1050/950 | 1050/950 | 1050/950 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 395 [ VDA] | 395 [ VDA] | 395 [ VDA] | 395 [ VDA] | 357 [ VDA] | 357 [ VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1291 | -/1291 | -/1291 | -/1291 | -/1253 | -/1253 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/40 ZR18 92Y | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 225/40 ZR18 92Y | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7,5J x 18 ET55 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 |
| Wheel size rear | 7,5J x 18 ET55 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 |
| Brake dimensions front | 320 x 28 | 288 x 25 | 288 x 25 | 288 x 25 | 288 x 25 | 288 x 25 |
| Brake dimensions rear | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- |
| Overall length [mm] | 4310 | 4310 | 4310 | 4310 | 4310 | 4310 |
| Overall width without/including mirrors [mm] | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 |
| Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1447 | 1447 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1555 | 1555-1559 | 1555-1559 | 1555-1559 | 1573-1559 | 1573-1559 |
| Rear wheel track [mm] | 1563 | 1563-1567 | 1563-1567 | 1563-1567 | 1581-1567 | 1581-1567 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 780 | 780 | 780 | 780 | 1070 | 1070 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Headroom rear [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
| Front elbow/shoulder width [mm] | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 |
| Rear elbow/shoulder width [mm] | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
Estate (Sportswagon)
| 1.4 | 1.0 T-GDI | 1.0 T-GDI | 1.4 T-GDI | 1.4 T-GDI | 1.6 GDI Plug-in Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2019 | from 2019 to | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol + Electric |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 998 | 998 | 1353 | 1353 | 1580 |
| Maximum output / speed [kW/min-1] | 73/6000 | 74/4500 | 88/6000 | 103/6000 | 103/6000 | 77,2/5700 combustion 44.5/1798-2500 el. 104/5700 total |
| Maximum torque [Nm/min-1] | 134/3500 | 172/1500-4000 | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | 147/4000 combustion 170/0-1798 el. 265/1000-2400 total |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 71,0 x 84,0 | 71,0 x 84,0 | 71,6 x 84,0 | 71,6 x 84,0 | 72.0 x 97.0 |
| Compression ratio | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 13.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 183 | 183 | 190 | 210 | 205 | 171-200 [120 el.] |
| Acceleration 0–100 km/h [s] | 12,9 | 12,0 | 11,3 | 9,1 | 9,4 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,0-7,9 | 6,5-6,3 | 6,5-6,3 | 7,5-7,1 | 6,7-6,6 | - |
| Out of town [l] | 5,4-5,3 | 4,9-4,5 | 4,9-4,6 | 5,0-4,9 | 5,0-4,8 | - |
| Combined [l] | 6,4-6,2 | 5,5-5,2 | 5,5-5,3 | 5,9-5,7 | 5,7-5,5 | 1.3-1.1 [11.3-9.3 kWh] |
| CO2 emissions [g/km] | 145-142 | 126-118 | 126-122 | 135-130 | 129-128 | 30-28 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | 70 | 70 | 70 | 72 | 71 | - |
| System voltage [V] | - | - | - | - | - | 360 |
| Battery type and capacity | - | - | - | - | - | Lithium polymer, 24.7 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 60-55 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | 117 |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1297-1428 | 1334-1465 | 1334-1465 | 1352-1483 | 1382-1525 | 1533-1601 |
| Overall weight [kg] | 1800 | 1840 | 1840 | 1850 | 1880 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1200 | 600/1410 | 600/1410 | 600/1300 |
| Maximum front/rear axle load [kg] | 1050/1000 | 1050/1000 | 1050/1000 | 1050/1000 | 1050/1000 | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 625 [ VDA] | 625 [ VDA] | 625 [ VDA] | 625 [ VDA] | 625 [ VDA] | 437 [ VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1694 | -/1694 | -/1694 | -/1694 | -/1694 | -/1506 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 37 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 91H | 195/65 R15 91H | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 91H | 195/65 R15 91H | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 15 ET46 | 6.0J x 15 ET46 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 |
| Wheel size rear | 6.0J x 15 ET46 | 6.0J x 15 ET46 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 |
| Brake dimensions front | 280 x 23 | 280 x 23 | 288 x 25 | 288 x 25 | 288 x 25 | 305 x 25 |
| Brake dimensions rear | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 284 x 10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- |
| Overall length [mm] | 4600 | 4600 | 4600 | 4600 | 4600 | 4605 |
| Overall width without/including mirrors [mm] | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1559-1573 | 1559-1573 | 1559-1573 | 1559-1573 | 1559-1573 | 1565 |
| Rear wheel track [mm] | 1567-1581 | 1567-1581 | 1567-1581 | 1567-1581 | 1567-1581 | 1573 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 885 |
| Rear overhang [mm] | 1070 | 1070 | 1070 | 1070 | 1070 | 1070 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Headroom rear [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
| Front elbow/shoulder width [mm] | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 |
| Rear elbow/shoulder width [mm] | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| 1.6 CRDI 115 | 1.6 CRDI 136 | 1.6 CRDI 136 | 1.6 CRDI 136 48V | 1.6 CRDI 136 48V | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | |
| Maximum output / speed [kW/min-1] | 85/4000 | 100/4000 | 100/4000 | 100/4000 | 100/4000 | |
| Maximum torque [Nm/min-1] | 280/1500-2750 | 280/1500-3000 | 320/2000-2250 | 280/1500-3000 | 320/2000-2250 | |
| Bore and stroke [mm x mm] | 77 x 85,8 | 77 x 85,8 | 77 x 85,8 | 77 x 85,8 | 77 x 85,8 | |
| Compression ratio | 15,9:1 | 15,9:1 | 15,9:1 | 15,9:1 | 15,9:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | |
| Drive specifications | - | - |
| - |
| |
| Top speed [km/h] | 192 | 200 | 200 | 200 | 200 | |
| Acceleration 0–100 km/h [s] | 11,1 | 10,4 | 10,1 | 10,4 | 10,1 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 4,4 | 4,7-4,5 | 4,6-4,4 | 4.2-4.1 | 4.2-4.1 | |
| Out of town [l] | 3,7-3,6 | 4,0-3,7 | 4,1-4,0 | 3.8-3.6 | 3.9-3.7 | |
| Combined [l] | 4,0-3,9 | 4,3-3,9 | 4,3-4,2 | 4.0-3.8 | 4.0-3.8 | |
| CO2 emissions [g/km] | 104-101 | 111-104 | 111-109 | 103-98 | 104-99 | |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | 67 | 72 | 69 | 72 | 69 | |
| System voltage [V] | - | - | - | 48 | 48 | |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1425-1556 | 1425-1556 | 1452-1583 | 1455-1575 | 1482-1603 | |
| Overall weight [kg] | 1920 | 1920 | 1940 | 1930 | 1960 | |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | |
| Maximum front/rear axle load [kg] | 1050/1000 | 1050/1000 | 1050/1000 | 1050/1000 | 1050/1000 | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 625 [ VDA] | 625 [ VDA] | 625 [ VDA] | 512 [ VDA] | 512 [ VDA] | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1694 | -/1694 | -/1694 | -/1581 | -/1581 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Wheel size front | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | |
| Wheel size rear | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | 6.5J x 16 ET50 | |
| Brake dimensions front | 288 x 25 | 288 x 25 | 288 x 25 | 288 x 25 | 288 x 25 | |
| Brake dimensions rear | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |
| Number of steering wheel turns | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 | |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | |
| Overall length [mm] | 4600 | 4600 | 4600 | 4600 | 4600 | |
| Overall width without/including mirrors [mm] | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | |
| Front wheel track [mm] | 1559-1573 | 1559-1573 | 1559-1573 | 1559-1573 | 1559-1573 | |
| Rear wheel track [mm] | 1567-1581 | 1567-1581 | 1567-1581 | 1567-1581 | 1567-1581 | |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | |
| Rear overhang [mm] | 1070 | 1070 | 1070 | 1070 | 1070 | |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 987 | 987 | 987 | 987 | 987 | |
| Headroom rear [mm] | 968 | 968 | 968 | 968 | 968 | |
| Front elbow/shoulder width [mm] | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | |
| Rear elbow/shoulder width [mm] | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 | 1352/1406 | |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 |
Coupé (ProCeed)
| 1.0 T-GDI | 1.4 T-GDI | 1.4 T-GDI | 1.6 T-GDI | 1.6 T-GDI | 1.6 CRDI 136 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 998 | 1353 | 1353 | 1591 | 1591 | 1598 |
| Maximum output / speed [kW/min-1] | 88/6000 | 103/6000 | 103/6000 | 150/6000 | 150/6000 | 100/4000 |
| Maximum torque [Nm/min-1] | 172/1500-4000 | 242/1500-3200 | 242/1500-3200 | 265/1500-4500 | 265/1500-4500 | 280/1500-3000 |
| Bore and stroke [mm x mm] | 71,0 x 84,0 | 71,6 x 84,0 | 71,6 x 84,0 | 77,0 x 85,4 | 77,0 x 85,4 | 77 x 85,8 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 9.5:1 | 9.5:1 | 15,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 190 | 210 | 205 | 230 | 225 | 200 |
| Acceleration 0–100 km/h [s] | 11,1 | 9,1 | 9,4 | 7,6 | 7,5 | 10,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,5-6,3 | 7,5-7,1 | 6,7-6,6 | 8,4 | 7,1 | 4,7-4,5 |
| Out of town [l] | 4,9-4,5 | 5,0-4,9 | 5,0-4,8 | 5,8 | 5,7 | 4,0-3,7 |
| Combined [l] | 5,5-5,2 | 5,9-5,7 | 5,7-5,5 | 6,8 | 6,2 | 4,3-3,9 |
| CO2 emissions [g/km] | 126-118 | 135-130 | 129-125 | 155 | 142 | 111-104 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | 70 | 72 | 71 | 70 | 70 | 72 |
| Standby weight [kg] | 1360-1466 | 1378-1484 | 1405-1511 | 1411-1513 | 1438-1540 | 1438-1544 |
| Overall weight [kg] | 1820 | 1840 | 1870 | 1870 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1410 | 600/1410 | 600/1410 | 600/1410 | 650/1500 |
| Maximum front/rear axle load [kg] | 1050/1000 | 1050/1000 | 1050/1000 | 1050/1000 | 1050/1000 | 1050/1000 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 594 [ VDA] | 594 [ VDA] | 594 [ VDA] | 594 [ VDA] | 594 [ VDA] | 594 [ VDA] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1545 | -/1545 | -/1545 | -/1545 | -/1545 | -/1545 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | 12 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/45 R17 91 V/W | 225/45 R17 91 V/W | 225/45 R17 91 V/W | 225/40 ZR18 92Y | 225/40 ZR18 92Y | 225/45 R17 91 V/W |
| Tyre dimensions rear | 225/45 R17 91 V/W | 225/45 R17 91 V/W | 225/45 R17 91 V/W | 225/40 ZR18 92Y | 225/40 ZR18 92Y | 225/45 R17 91 V/W |
| Wheel size front | 7,0J x 17 ET53 | 7,0J x 17 ET53 | 7,0J x 17 ET53 | 7,5J x 18 ET55 | 7,5J x 18 ET55 | 7,0J x 17 ET53 |
| Wheel size rear | 7,0J x 17 ET53 | 7,0J x 17 ET53 | 7,0J x 17 ET53 | 7,5J x 18 ET55 | 7,5J x 18 ET55 | 7,0J x 17 ET53 |
| Brake dimensions front | 288 x 25 or 305 x 25 | 288 x 25 or 305 x 25 | 288 x 25 or 305 x 25 | 320 x 28 | 320 x 28 | 288 x 25 or 305 x 25 |
| Brake dimensions rear | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 284 x 10 | 284 x 10 | 272 x 10 or 284 x 10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 | 2,44 |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- |
| Overall length [mm] | 4605 | 4605 | 4605 | 4605 | 4605 | 4605 |
| Overall width without/including mirrors [mm] | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 | 1800/2055 |
| Overall height [mm] | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1555-1559 | 1555-1559 | 1555-1559 | 1555 | 1555 | 1555-1559 |
| Rear wheel track [mm] | 1563-1567 | 1563-1567 | 1563-1567 | 1563 | 1563 | 1563-1567 |
| Forward overhang [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Rear overhang [mm] | 1070 | 1070 | 1070 | 1070 | 1070 | 1070 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Headroom rear [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Front elbow/shoulder width [mm] | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 | 1370/1428 |
| Rear elbow/shoulder width [mm] | 1346/1399 | 1346/1399 | 1346/1399 | 1346/1399 | 1346/1399 | 1346/1399 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/875 | -/875 | -/875 | -/875 | -/875 | -/875 |
| 1.6 CRDI 136 | 1.6 CRDI 136 48V | 1.6 CRDI 136 48V | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1598 | 1598 | 1598 | |||
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | 100/4000 | |||
| Maximum torque [Nm/min-1] | 320/2000-2250 | 280/1500-3000 | 320/2000-2250 | |||
| Bore and stroke [mm x mm] | 77 x 85,8 | 77 x 85,8 | 77 x 85,8 | |||
| Compression ratio | 15,9:1 | 15,9:1 | 15,9:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | |||
| Drive specifications |
| - |
| |||
| Top speed [km/h] | 200 | 200 | 200 | |||
| Acceleration 0–100 km/h [s] | 10,1 | 10,4 | 10,1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 4,6-4,4 | 4,2-4,1 | 4,2-4,1 | |||
| Out of town [l] | 4,1-4,0 | 3.8-3.6 | 3.8-3.6 | |||
| Combined [l] | 4,3-4,2 | 4.0-3.8 | 4.0-3.8 | |||
| CO2 emissions [g/km] | 111-109 | 103-98 | 104-99 | |||
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | 69 | 72 | 69 | |||
| System voltage [V] | - | 48 | 48 | |||
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | |||
| Range with fully charged battery [km] | - | - | - | |||
| Charging time | - | - | - | |||
| Number of modules/cells | - | - | - | |||
| Battery weight [kg] | - | - | - | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 1465-1571 | 1468-1562 | 1495-1589 | |||
| Overall weight [kg] | 1920 | 1920 | 1950 | |||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | |||
| Maximum front/rear axle load [kg] | 1050/1000 | 1050/1000 | 1050/1000 | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | |||
| Boot volume [l] | 594 [ VDA] | 594 [ VDA] | 594 [ VDA] | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1545 | -/1545 | -/1545 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 50 | 50 | |||
| AdBlue tank volume [l] | 12 | 12 | 12 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 225/45 R17 91 V/W | 225/45 R17 91 V/W | 225/45 R17 91 V/W | |||
| Tyre dimensions rear | 225/45 R17 91 V/W | 225/45 R17 91 V/W | 225/45 R17 91 V/W | |||
| Wheel size front | 7,0J x 17 ET53 | 7,0J x 17 ET53 | 7,0J x 17 ET53 | |||
| Wheel size rear | 7,0J x 17 ET53 | 7,0J x 17 ET53 | 7,0J x 17 ET53 | |||
| Brake dimensions front | 288 x 25 or 305 x 25 | 288 x 25 or 305 x 25 | 288 x 25 or 305 x 25 | |||
| Brake dimensions rear | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | 272 x 10 or 284 x 10 | |||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |||
| Number of steering wheel turns | 2,44 | 2,44 | 2,44 | |||
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | |||
| Overall length [mm] | 4605 | 4605 | 4605 | |||
| Overall width without/including mirrors [mm] | 1800/2055 | 1800/2055 | 1800/2055 | |||
| Overall height [mm] | 1422 | 1422 | 1422 | |||
| Wheelbase [mm] | 2650 | 2650 | 2650 | |||
| Front wheel track [mm] | 1555-1559 | 1555-1559 | 1555-1559 | |||
| Rear wheel track [mm] | 1563-1567 | 1563-1567 | 1563-1567 | |||
| Forward overhang [mm] | 885 | 885 | 885 | |||
| Rear overhang [mm] | 1070 | 1070 | 1070 | |||
| Clearance [mm] | 135 | 135 | 135 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 962 | 962 | 962 | |||
| Headroom rear [mm] | 950 | 950 | 950 | |||
| Front elbow/shoulder width [mm] | 1370/1428 | 1370/1428 | 1370/1428 | |||
| Rear elbow/shoulder width [mm] | 1346/1399 | 1346/1399 | 1346/1399 | |||
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | |||
| Legroom rear knees/total [mm] | -/875 | -/875 | -/875 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
