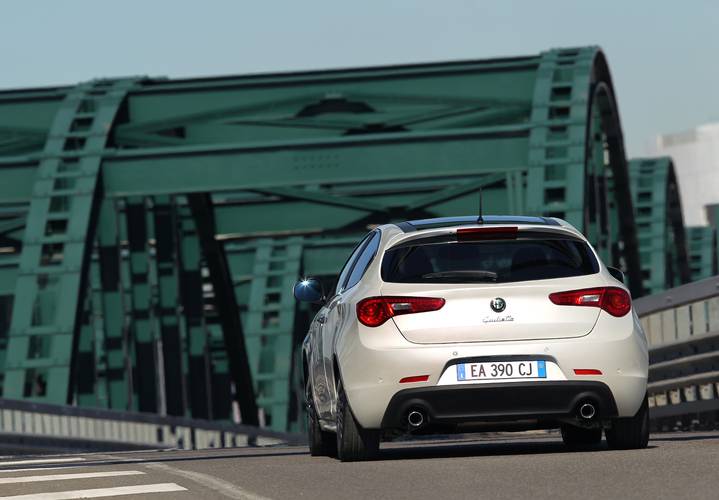

Alfa Romeo Giulietta
Date of manufacture
2010 – 2016 (Five-door hatchback)
Platform
Fiat Compact platform
Manufacturing locations
Cassino, Italy
Designer
Centro Stile Alfa Romeo
Tags
C-segment
Italian cars
The Alfa Romeo Giulietta is a five-door hatchback that has been produced in its home country of Italy since 2010. It is based on the Fiat Compact platform and offers both petrol and diesel engines. The highest performance model is the 1750 TBi 240k Quadrifoglio Verde with 177 kW and the fastest model is the same with a top speed of 244 km/h. The car also has the lowest consumption of 4 l/100 km and emissions of 104 g/km. The trunk has a capacity of 350 l. The EURONCAP safety test gave a rating of 5 out of 5.
Car body style
Five-door hatchback
Date of manufacture
2010 – 2016Internal designation
940
Technical data
Five-door hatchback
| 1,4 T | 1.4 TB 105HP | 1,4 T | 1.4TB 120HP | 1,4 T MultiAir | 1,4T MultiAir 170HP | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1368 | 1368 | 1368 | 1368 |
| Maximum output / speed [kW/min-1] | 77/5000 | 77/5000 | 88/5000 | 88/5000 | 125/5500 | 125/5500 |
| Maximum torque [Nm/min-1] | 206/1750 | 215/2500 | 206/1750 | 215/2500 | 230/2500 | 230/2500 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 |
| Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 185 | 185 | 195 | 195 | 218 | 218 |
| Acceleration 0–100 km/h [s] | 10.6 | 10.6 | 9.4 | 9.4 | 7.8 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 8.3 | 8.4 | 8.3 | 7.8 | 7.6 |
| Out of town [l] | 5.3 | 5.3 | 5.3 | 5.3 | 4.6 | 4.6 |
| Combined [l] | 6.4 | 6.4 | 6.4 | 6.4 | 5.8 | 5.7 |
| CO2 emissions [g/km] | 149 | 148 | 149 | 148 | 134 | 131 |
| Emission standard | EU5 | EU6 | EU5 | EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1280 | 1280 | 1280 | 1290 | 1290 |
| Overall weight [kg] | 1785 | 1785 | 1785 | 1785 | 1795 | 1795 |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | 1100/850 | - | 1100/850 | - | 1100/850 |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 |
| Wheel size rear | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 |
| Brake dimensions front | 281x26 | 281x26 | 281x26 | 281x26 | 305x28 | 305x28 |
| Brake dimensions rear | 264x26 | 264x26 | 264x10 | 264x10 | 264x10 | 264x10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| Overall length [mm] | 4351 | 4351 | 4351 | 4351 | 4351 | 4351 |
| Overall width without/including mirrors [mm] | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | 2634 |
| Front wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | 1554 |
| Rear wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | 1554 |
| Forward overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Rear overhang [mm] | 762 | 762 | 762 | 762 | 762 | 762 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,4 T MultiAir | 1,4T MultiAir 170HP | 1,8 TBi Quadrifoglio Verde | 1750 TBi 240HP Quadrifoglio Verde | 1,6 JTDm | 1,6 JTDm 105HP | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1742 | 1742 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 125/5500 | 125/5500 | 173/5500 | 177/5250 | 77/4000 | 77/4000 |
| Maximum torque [Nm/min-1] | 250/2500 | 250/2500 | 300/1900 | 300/1900 | 280/1750 | 280/1750 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 83,0 x 80,5 | 83,0 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 9,8:1 | 9,8:1 | 9,25:1 | 9,25:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
| - | - |
| Top speed [km/h] | 218 | 218 | 242 | 244 | 185 | 185 |
| Acceleration 0–100 km/h [s] | 7.7 | 7.6 | 6.8 | 6.6 | 11.3 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7 | 6.6 | 10.8 | 9,8 | 5.5 | 5,0 |
| Out of town [l] | 4.3 | 4.3 | 5.8 | 5,3 | 3.7 | 3,4 |
| Combined [l] | 5.2 | 5.1 | 7.6 | 7,0 | 4.4 | 4,0 |
| CO2 emissions [g/km] | 121 | 119 | 177 | 162 | 114 | 104 |
| Emission standard | EU5 | EU6 | EU5 | EU6 | EU5 | EU5+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1310 | 1310 | 1320 | 1320 | 1310 | 1310 |
| Overall weight [kg] | 1795 | 1795 | 1825 | 1825 | 1815 | 1815 |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | 1100/850 | - | 1100/850 | - | 1100/850 |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7Jx16 | 7Jx16 | 7.5Jx17 | 7.5Jx17 | 7Jx16 | 7Jx16 |
| Wheel size rear | 7Jx16 | 7Jx16 | 7.5Jx17 | 7.5Jx17 | 7Jx16 | 7Jx16 |
| Brake dimensions front | 305x28 | 305x28 | 330x28 | 330x28 | 281x26 | 281x26 |
| Brake dimensions rear | 264x10 | 264x10 | 278x12 | 278x12 | 264x10 | 264x10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| Overall length [mm] | 4351 | 4351 | 4351 | 4351 | 4351 | 4351 |
| Overall width without/including mirrors [mm] | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | 2634 |
| Front wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | 1554 |
| Rear wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | 1554 |
| Forward overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Rear overhang [mm] | 762 | 762 | 762 | 762 | 762 | 762 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2,0 JTDm | 2,0 JTDm 150HP | 2,0 JTDm | 2,0 JTDm | 2,0 JTDm 175HP | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1956 | 1956 | 1956 | 1956 | 1956 | |
| Maximum output / speed [kW/min-1] | 103/3750 | 110/3750 | 125/4000 | 125/4000 | 129/3750 | |
| Maximum torque [Nm/min-1] | 320/1500 | 320/1750 | 320/1750 | 320/1750 | 320/1750 | |
| Bore and stroke [mm x mm] | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | |
| Drive specifications | - | - | - |
|
| |
| Top speed [km/h] | 205 | 210 | 218 | 218 | 219 | |
| Acceleration 0–100 km/h [s] | 9.0 | 8,8 | 8.0 | 7.9 | 7.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.6 | 5.0 | 5.8 | 5.3 | 5.2 | |
| Out of town [l] | 3.9 | 3.7 | 4.1 | 4.0 | 3,9 | |
| Combined [l] | 4.5 | 4.2 | 4.7 | 4.5 | 4,4 | |
| CO2 emissions [g/km] | 119 | 110 | 124 | 119 | 116 | |
| Emission standard | EU5 | EU5+ | EU5 | EU5 | EU5+ | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1320 | 1320 | 1320 | 1340 | 1335 | |
| Overall weight [kg] | 1825 | 1825 | 1825 | 1825 | 1840 | |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/600 | |
| Maximum front/rear axle load [kg] | - | 1100/850 | - | - | 1100/850 | |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1045 | -/1045 | -/1045 | -/1045 | -/1045 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Wheel size front | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | |
| Wheel size rear | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | |
| Brake dimensions front | 305x28 | 305x28 | 305x28 | 305x28 | 305x28 | |
| Brake dimensions rear | 264x10 | 264x10 | 264x10 | 264x10 | 264x10 | |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | |
| Overall length [mm] | 4351 | 4351 | 4351 | 4351 | 4351 | |
| Overall width without/including mirrors [mm] | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- | |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | |
| Front wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | |
| Rear wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1554 | |
| Forward overhang [mm] | 955 | 955 | 955 | 955 | 955 | |
| Rear overhang [mm] | 762 | 762 | 762 | 762 | 762 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
