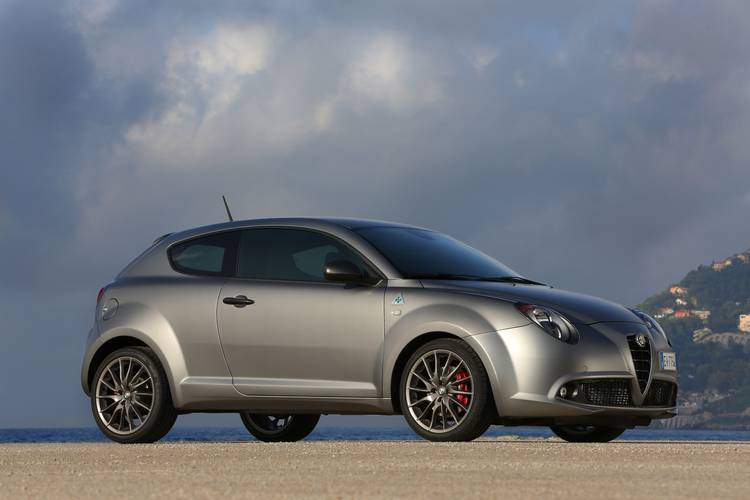

Alfa Romeo MiTo
Date of manufacture
9/2008 – 2016 (Three-door hatchback)
Platform
Fiat Small platform
Manufacturing locations
Turin, Italy
Designer
Juan Manuel Diaz (Centro Stile Alfa Romeo)
Tags
B-segment
Italian cars
The Alfa Romeo MiTo is a three-door sporty hatchback that was launched in 2008. This model from the Italian carmaker is based on the Fiat Small platform and offers a wide range of petrol and diesel engines. The most powerful model is the 1.4 T MultiAir Quadrifoglio Verde with 125 kW of power, reaching a top speed of 219 km/h. On the other hand, the most fuel-efficient engine is the 1.3 JTDm with a combined consumption of 3.5 l/100 km and CO2 emissions of 90 g/km. The luggage compartment has a capacity of 270 liters and the Alfa Romeo MiTo holds the virtual trophy for the best rated safety according to EURONCAP (5 out of 5).
Car body style
Three-door hatchback
Date of manufacture
9/2008 – 2016Internal designation
955
Technical data
Three-door hatchback
| 1,4 MPI | 1,4 MPI | 1,4 MPI | 0.9T TwinAir | 0.9T TwinAir | 1,4 MultiAir | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 2/8 | 2/8 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1368 | 875 | 875 | 1368 |
| Maximum output / speed [kW/min-1] | 51/6000 | 58/6000 | 58/6000 | 62/5500 | 77/5500 | 77/6500 |
| Maximum torque [Nm/min-1] | 115/3000 | 120/4750 | 120/4750 | 110/2500 | 145/2000 | 130/4000 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 80,5 x 86,0 | 80,5 x 86,0 | 72,0 x 84,0 |
| Compression ratio | 11,1:1 | 10,8:1 | 10,8:1 | 10,0:1 | 10,0:1 | 10,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 160 | 165 | 165 | 174 | 184 | 187 |
| Acceleration 0–100 km/h [s] | 14.0 | 13.0 | 12,3 | 12.5 | 11,4 | 10.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 7.3 | 7.7 | 4.9 | 5,0 | 7.5 |
| Out of town [l] | 4.7 | 4.6 | 4.8 | 3.8 | 3.8 | 4.7 |
| Combined [l] | 5.8 | 5.6 | 5,9 | 4.2 | 4.2 | 5.7 |
| CO2 emissions [g/km] | 134 | 130 | 138 | 98 | 99 | 134 |
| Emission standard | EU5 | EU5-EU6 | EU5-EU6 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1065 | 1080 | 1080 | 1130 | 1130 | 1090 |
| Overall weight [kg] | 1625 | 1560 | 1560 | 1690 | 1610 | 1690 |
| Maximum trailer weight unbraked/braked [kg] | 400/500 | 400/500 | 400/500 | 400/500 | 400/500 | 400/500 |
| Maximum front/rear axle load [kg] | - | 850/850 | 850/850 | 850/850 | 850/850 | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | 40/- | 40/- | 40/- | 40/- | 40/- | 40/- |
| Boot volume [l] | 270 | 270 | 270 | 270 | 270 | 270 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Tyre dimensions rear | 185/65 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Wheel size front | - | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 |
| Wheel size rear | - | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 |
| Brake dimensions front | 257x22 | 257x22 | 257x22 | 257x22 | 257x22 | 257x22 |
| Brake dimensions rear | 251x10 | 251x10 | 251x10 | 251x10 | 251x10 | 251x10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
| Overall length [mm] | 4063 | 4063 | 4063 | 4063 | 4063 | 4063 |
| Overall width without/including mirrors [mm] | 1720/- | 1720/- | 1720/- | 1720/- | 1720/- | 1720/- |
| Overall height [mm] | 1446 | 1446 | 1446 | 1446 | 1446 | 1446 |
| Wheelbase [mm] | 2511 | 2511 | 2511 | 2511 | 2511 | 2511 |
| Front wheel track [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Rear wheel track [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Forward overhang [mm] | 904 | 904 | 904 | 904 | 904 | 904 |
| Rear overhang [mm] | 648 | 648 | 648 | 648 | 648 | 648 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,4 T MultiAir | 1,4 T MultiAir | 1,4 T MultiAir | 1,4 T | 1,4 T MultiAir Quadrifoglio Verde | 1,3 JTDm | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1368 | 1368 | 1368 | 1248 |
| Maximum output / speed [kW/min-1] | 99/5000 | 99/5000 | 103/5000 | 114/5500 | 125/5500 | 62/3500 |
| Maximum torque [Nm/min-1] | 206/1750 | 230/1750 | 250/2500 | 230/3000 | 230/2500 | 200/1500 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 70,0 x 82,0 |
| Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 5 gear manual |
| Drive specifications | - |
|
| - | - | - |
| Top speed [km/h] | 207 | 207 | 209 | 215 | 219 | 174 |
| Acceleration 0–100 km/h [s] | 8.4 | 8.2 | 8.1 | 8.0 | 7.5 | 12,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 7.1 | 7.0 | 8.5 | 8.1 | 4,4 |
| Out of town [l] | 4.5 | 4.5 | 4.4 | 5.3 | 4.8 | 2,9 |
| Combined [l] | 5.6 | 5.5 | 5.4 | 6.5 | 6.0 | 3,5 |
| CO2 emissions [g/km] | 129 | 126 | 124 | 153 | 139 | 90 |
| Emission standard | EU5 | EU5 | EU6 | EU5 | EU5 | EU5+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1135 | 1170 | 1170 | 1145 | 1145 | 1150 |
| Overall weight [kg] | 1695 | 1730 | 1650 | 1705 | 1705 | 1710 |
| Maximum trailer weight unbraked/braked [kg] | 400/500 | 400/500 | 400/500 | 400/500 | 400/500 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | 950/850 | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | 40/- | 40/- | 40/- | 40/- | 40/- | 40/- |
| Boot volume [l] | 270 | 270 | 270 | 270 | 270 | 270 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 205/45 R17 | 195/55 R16 |
| Tyre dimensions rear | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 205/45 R17 | 195/55 R16 |
| Wheel size front | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7J x 17 | 7Jx16 |
| Wheel size rear | 7Jx16 | 7Jx16 | 7Jx16 | 7Jx16 | 7J x 17 | 7Jx16 |
| Brake dimensions front | 257x22 | 257x22 | 281x26 | 305x28 | 305x28 | 281x26 |
| Brake dimensions rear | 251x10 | 251x10 | 251x10 | 251x10 | 251x10 | 251x10 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 |
| Overall length [mm] | 4063 | 4063 | 4063 | 4063 | 4063 | 4063 |
| Overall width without/including mirrors [mm] | 1720/- | 1720/- | 1720/- | 1720/- | 1720/- | 1720/- |
| Overall height [mm] | 1446 | 1446 | 1446 | 1446 | 1446 | 1446 |
| Wheelbase [mm] | 2511 | 2511 | 2511 | 2511 | 2511 | 2511 |
| Front wheel track [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Rear wheel track [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Forward overhang [mm] | 904 | 904 | 904 | 904 | 904 | 904 |
| Rear overhang [mm] | 648 | 648 | 648 | 648 | 648 | 648 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,3 JTDm | 1,6 JTDm | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1248 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 70/4000 | 88/3750 | ||||
| Maximum torque [Nm/min-1] | 200/1500 | 320/1750 | ||||
| Bore and stroke [mm x mm] | 70,0 x 82,0 | 79,5 x 80,5 | ||||
| Compression ratio | 16,8:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 180 | 198 | ||||
| Acceleration 0–100 km/h [s] | 11.6 | 9.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.5 | 5,2-5.9 | ||||
| Out of town [l] | 3.6 | 3,7-4.1 | ||||
| Combined [l] | 4.3 | 4,3-4.8 | ||||
| CO2 emissions [g/km] | 112 | 112-126 | ||||
| Emission standard | EU5 | EU5-EU5+ | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1150 | 1205 | ||||
| Overall weight [kg] | 1710 | 1685 | ||||
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 60 | 60 | ||||
| Maximum load on roof/carrier [kg] | 40/- | 40/- | ||||
| Boot volume [l] | 270 | 270 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/950 | -/950 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 4/5 | 4/5 | ||||
| Fuel tank volume [l] | 45 | 45 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.29 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | torsion bar | torsion bar | ||||
| Tyre dimensions front | 195/55 R16 | 195/55 R16 | ||||
| Tyre dimensions rear | 195/55 R16 | 195/55 R16 | ||||
| Wheel size front | 7Jx16 | 7Jx16 | ||||
| Wheel size rear | 7Jx16 | 7Jx16 | ||||
| Brake dimensions front | 281x26 | 281x26 | ||||
| Brake dimensions rear | 251x10 | 251x10 | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.3 | 11.3 | ||||
| Overall length [mm] | 4063 | 4063 | ||||
| Overall width without/including mirrors [mm] | 1720/- | 1720/- | ||||
| Overall height [mm] | 1446 | 1446 | ||||
| Wheelbase [mm] | 2511 | 2511 | ||||
| Front wheel track [mm] | 1483 | 1483 | ||||
| Rear wheel track [mm] | 1475 | 1475 | ||||
| Forward overhang [mm] | 904 | 904 | ||||
| Rear overhang [mm] | 648 | 648 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 960 | 960 | ||||
| Headroom rear [mm] | 920 | 920 | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

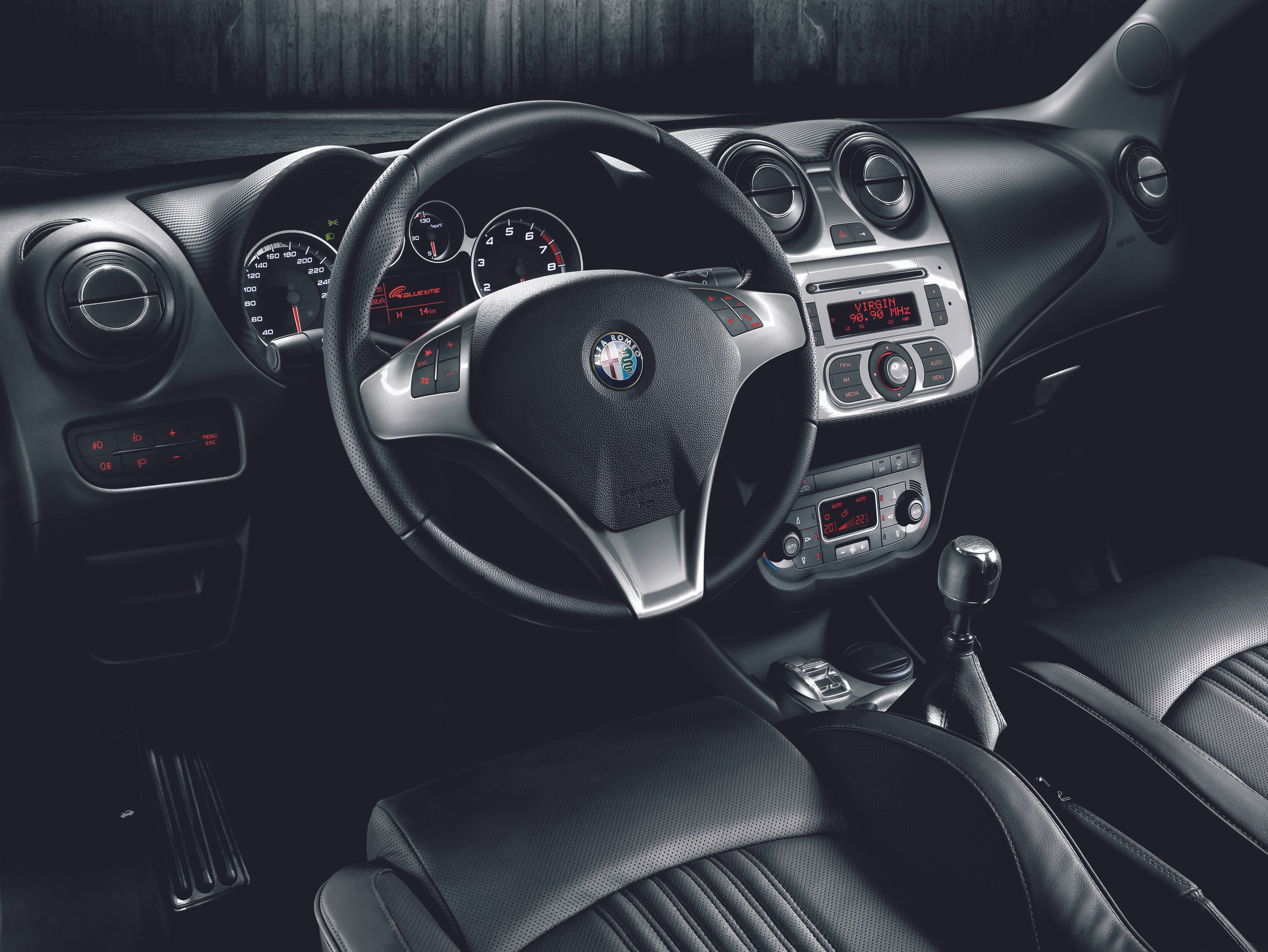

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
