Alfa Romeo Stelvio
Date of manufacture
2016 – to this day (SUV)
Platform
Giorgio
Manufacturing locations
Cassino, Italy
Designer
-
Tags
Large SUV
Italian cars

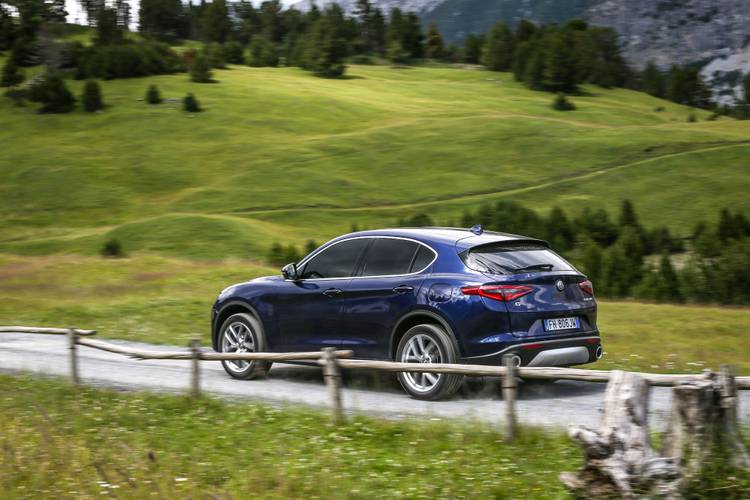

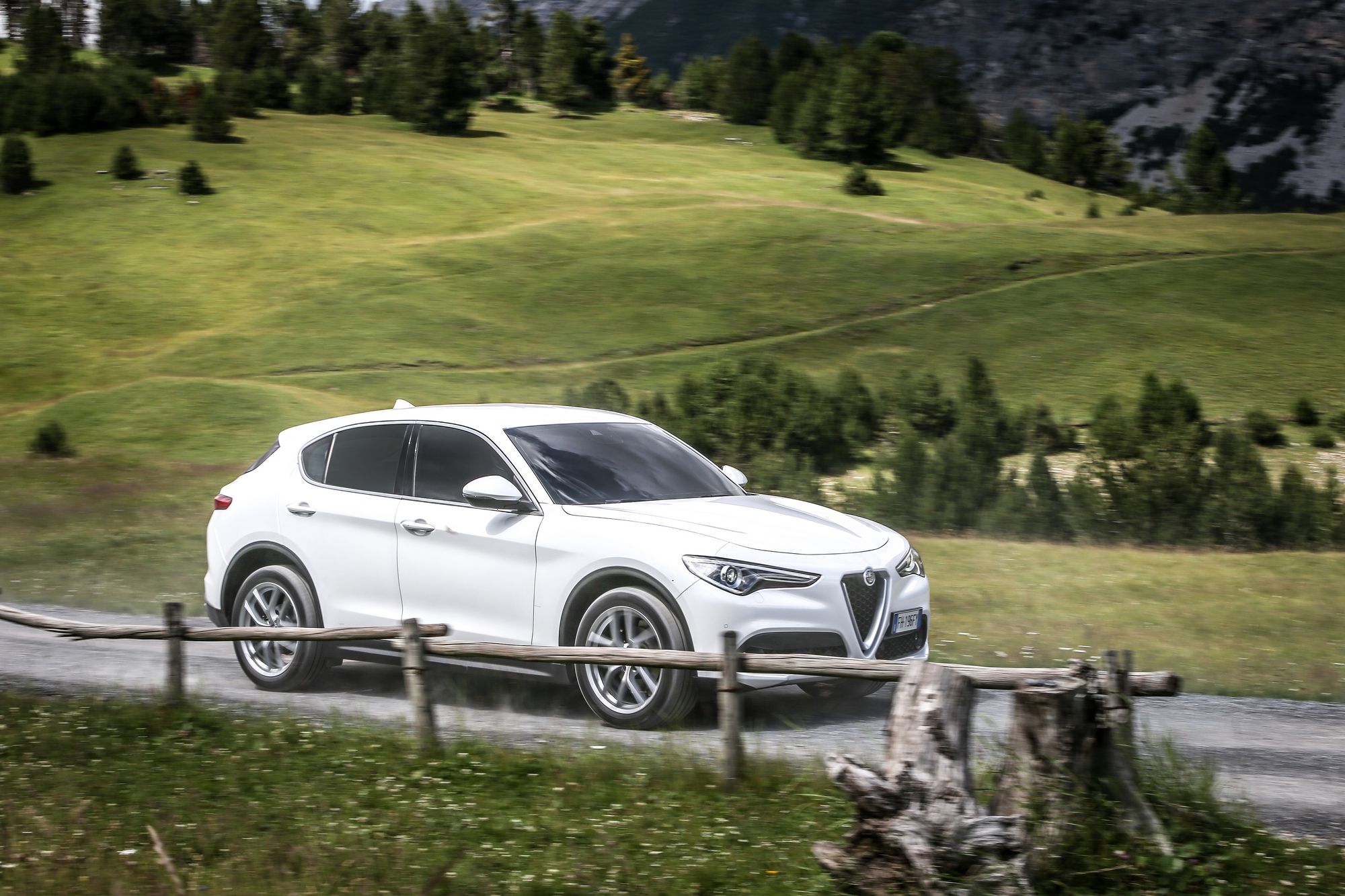

The Alfa Romeo Stelvio is a luxury SUV built on the Giorgio platform. It was released in 2016 and is manufactured in Cassino, Italy. The engine range includes petrol and diesel engines, the most powerful of which is the 2.9 V6 Bi-Turbo Q4 Quadrifoglio with 375 kW, which reaches a top speed of 283 km/h. The most economical model is the 2.2 Diesel 150k with a fuel consumption of 4.7 l/100 km and emissions of 124 g/km. The size of the luggage compartment is 525 l. In the EURONCAP safety tests of the Alfa Romeo Stelvio, the rating was 5 out of 5 according to the 2017 methodology.
Car body style
SUV
Date of manufacture
2016 – to this dayInternal designation
949Engine size
PetrolDiesel
Technical data
SUV
| 2.2 TURBO PETROL 200 HP Q4 | 2.2 TURBO PETROL 200 HP Q4 | 2.2 TURBO PETROL 280 HP Q4 | 2.2 TURBO PETROL 280 HP Q4 | 2.9 V6 BI-TURBO 510HP Q4 Quadrifoglio | 2.9 V6 BI-TURBO 510HP Q4 Quadrifoglio | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 2891 | 2891 |
| Maximum output / speed [kW/min-1] | 147/5250 | 147/4500 | 206/5250 | 206/5250 | 375/6500 | 375/6500 |
| Maximum torque [Nm/min-1] | 330/1750 | 330/1750 | 400/2250 | 400/2250 | 600/2500 | 600/2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 86,5 x 82,0 | 86,5 x 82,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 9,3:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 215 | 215 | 230 | 230 | 283 | 283 |
| Acceleration 0–100 km/h [s] | 7.2 | 7.2 | 5.9 | 5.7 | 3.8 | 3.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 5,6 | - | 4,5 | - | - | - |
| City [l] | 8.9 | 9,9 | 8.9 | 10,1 | 11.7 | 12,3 |
| Out of town [l] | 5.9 | 6,8 | 5.9 | 6,7 | 7.5 | 8,4 |
| Combined [l] | 7.0 | 8,0 | 7.0 | 8,0 | 9.0 | 9,8 |
| CO2 emissions [g/km] | 161 | 185 | 161 | 184 | 210 | 227 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | 228-207 | - | 222-205 | - | 261-261 |
| Emission standard | EU6b | Euro 6D-Temp | EU6b | Euro 6D-Temp | EU6 | Euro 6D-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1660 | 1660 | 1660 | 1660 | 1830 | 1830 |
| Overall weight [kg] | 2300 | 2300 | 2300 | 2300 | 2460 | 2460 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1600 | 750/2300 | 750/2300 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 95/- | 95/- | 95/- | 95/- | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | - | - |
| Boot volume [l] | 525 | 525 | 525 | 525 | 525 | 525 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 255/45 R20 101Y | 255/45 R20 101Y |
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 285/40 R20 104Y | 285/40 R20 104Y |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 9.0J x 20 ET29 | 9.0J x 20 ET29 |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 10J x 20 ET34 | 10J x 20 ET34 |
| Brake dimensions front | 305 x 28 | 305 x 28 | 330 x 28 | 330 x 28 | 390 | 390 |
| Brake dimensions rear | 292 x 22 | 292 x 22 | 320 x 22 | 320 x 22 | 350 | 350 |
| Steering | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | - | - |
| Overall length [mm] | 4687 | 4686 | 4687 | 4686 | 4702 | 4701 |
| Overall width without/including mirrors [mm] | 1903/- | 1903/2163 | 1903/- | 1903/2163 | 1955/- | 1955/2163 |
| Overall height [mm] | 1671 | 1693 | 1671 | 1693 | 1681 | 1689 |
| Wheelbase [mm] | 2818 | 2818 | 2818 | 2818 | 2818 | 2818 |
| Front wheel track [mm] | 1613 | 1613 | 1613 | 1613 | 1622 | 1622 |
| Rear wheel track [mm] | 1653 | 1653 | 1653 | 1653 | 1675 | 1675 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 866 | 866 |
| Rear overhang [mm] | 1008 | 1008 | 1008 | 1008 | 1018 | 1018 |
| Clearance [mm] | 200 | 200 | 200 | 200 | - | - |
| Wading depth [mm] | 480 | 480 | 480 | 480 | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.2 TURBO DIESEL 150HP | 2.2 TURBO DIESEL 160HP | 2.2 TURBO DIESEL 180HP | 2.2 TURBO DIESEL 180HP Q4 | 2.2 TURBO DIESEL 190HP | 2.2 TURBO DIESEL 190HP Q4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 110/4000 | 118/3750 | 133/3750 | 133/3750 | 140/3500 | 140/3500 |
| Maximum torque [Nm/min-1] | 450/1750 | 450/1750 | 450/1750 | 450/1750 | 450/1750 | 450/1750 |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 198 | 198 | 210 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 8.8 | 8.8 | 7.6 | 7.6 | 7.6 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | 6,0 | - | - | - |
| City [l] | 5.5 | 6,1 | 5.5 | 5.5 | 6,1 | 6,7 |
| Out of town [l] | 4.3 | 5,0 | 4.3 | 4.4 | 5,0 | 5,4 |
| Combined [l] | 4.7 | 5,4 | 4.7 | 4.8 | 5,4 | 5,9 |
| CO2 emissions [g/km] | 124 | 142 | 124 | 127 | 142 | 155 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | 177-156 | - | - | 177-156 | 188-162 |
| Emission standard | EU6 | Euro 6D-Temp | EU6 | EU6 | Euro 6D-Temp | Euro 6D-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1604 | 1660 | 1604 | 1659 | 1660 | 1745 |
| Overall weight [kg] | 2275 | 2330 | 2275 | 2330 | 2330 | 2410 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | 750/1700 | 750/2300 | 750/1600 | 750/2300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 95/- | 95/- | 95/- | 95/- | 95/- | 95/- |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 525 | 525 | 525 | 525 | 525 | 525 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | 16,1 | - | - | 16,1 | 16,1 |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 |
| Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 |
| Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 |
| Brake dimensions front | 305 x 28 | 305 x 28 | 305 x 28 | 305 x 28 | 305 x 28 | 305 x 28 |
| Brake dimensions rear | 292 x 22 | 292 x 22 | 292 x 22 | 292 x 22 | 292 x 22 | 292 x 22 |
| Steering | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4687 | 4686 | 4687 | 4687 | 4686 | 4686 |
| Overall width without/including mirrors [mm] | 1903/- | 1903/2163 | 1903/- | 1903/- | 1903/2163 | 1903/2163 |
| Overall height [mm] | 1666 | 1693 | 1666 | 1671 | 1693 | 1693 |
| Wheelbase [mm] | 2818 | 2818 | 2818 | 2818 | 2818 | 2818 |
| Front wheel track [mm] | 1613 | 1613 | 1613 | 1613 | 1613 | 1613 |
| Rear wheel track [mm] | 1653 | 1653 | 1653 | 1653 | 1653 | 1653 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Clearance [mm] | 200 | 200 | 200 | 200 | 200 | 200 |
| Wading depth [mm] | 480 | 480 | 480 | 480 | 480 | 480 |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 987 | 987 | 987 | 987 | 987 | 987 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.2 TURBO DIESEL 210HP Q4 | 2.2 TURBO DIESEL 210HP Q4 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 2143 | 2143 | ||||
| Maximum output / speed [kW/min-1] | 154/3750 | 154/3500 | ||||
| Maximum torque [Nm/min-1] | 450/1750 | 470/1750 | ||||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | ||||
| Compression ratio | 15,5:1 | 15,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 215 | 215 | ||||
| Acceleration 0–100 km/h [s] | 6.6 | 6.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 5,4 | - | ||||
| City [l] | 5.5 | 6,7 | ||||
| Out of town [l] | 4.4 | 5,4 | ||||
| Combined [l] | 4.8 | 5,9 | ||||
| CO2 emissions [g/km] | 127 | 155 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | - | - | ||||
| CO2 emissions [g/km] | - | 188-162 | ||||
| Emission standard | EU6 | Euro 6D-Temp | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1659 | 1745 | ||||
| Overall weight [kg] | 2330 | 2410 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2300 | 750/2300 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 95/- | 95/- | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 525 | 525 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 58 | 58 | ||||
| AdBlue tank volume [l] | - | 16,1 | ||||
| Air resistance [Cd] | 0.32 | 0.32 | ||||
| Front suspension | double wishbone, coil springs | double wishbone, coil springs | ||||
| Rear suspension | double wishbone | double wishbone | ||||
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | ||||
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | ||||
| Wheel size front | 8.0J x 18 | 8.0J x 18 | ||||
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | ||||
| Brake dimensions front | 305 x 28 | 305 x 28 | ||||
| Brake dimensions rear | 292 x 22 | 292 x 22 | ||||
| Steering | Electric variable power steering Dual Drive | Electric variable power steering Dual Drive | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | ||||
| Overall length [mm] | 4687 | 4686 | ||||
| Overall width without/including mirrors [mm] | 1903/- | 1903/2163 | ||||
| Overall height [mm] | 1671 | 1693 | ||||
| Wheelbase [mm] | 2818 | 2818 | ||||
| Front wheel track [mm] | 1613 | 1613 | ||||
| Rear wheel track [mm] | 1653 | 1653 | ||||
| Forward overhang [mm] | 861 | 861 | ||||
| Rear overhang [mm] | 1008 | 1008 | ||||
| Clearance [mm] | 200 | 200 | ||||
| Wading depth [mm] | 480 | 480 | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1020 | 1020 | ||||
| Headroom rear [mm] | 987 | 987 | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
