Audi A1

Date of manufacture

10/2018 – to this day (Five-door hatchback)

2019 – to this day (Crossover)

Platform

MQB platform

Manufacturing locations

Martorell, Spain

Designer

Car body style

Five-door hatchback (Sportback)

Date of manufacture

10/2018 – to this day

Internal designation

Engine size

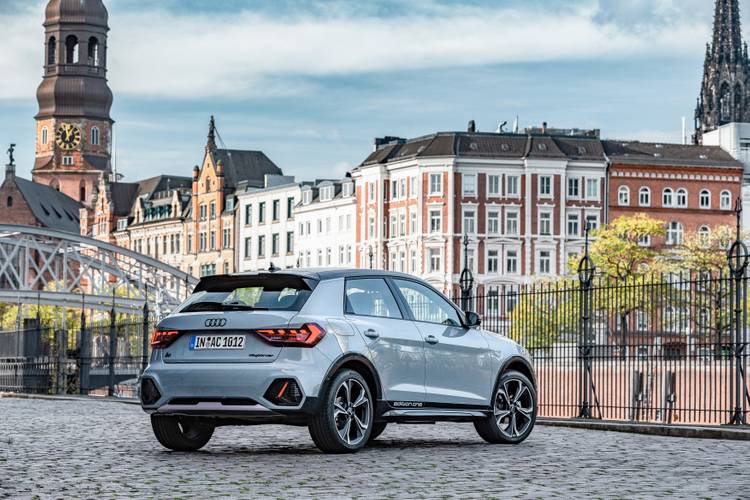

Crossover (citycarver)

Date of manufacture

2019 – to this day

Internal designation

Engine size

25 TFSI 70kW citycarver

30 TFSI 81 kW citycarver

30 TFSI 85 kW citycarver

35 TFSI 110kW citycarver

Euro NCAP

Technical data

Five-door hatchback (Sportback)

	25 TFSI 70kW	25 TFSI 70kW	30 TFSI 81 kW	30 TFSI 81 kW	30 TFSI 85 kW	30 TFSI 85 kW
Date of sale	-	-	from 2020 to	from 2020 to	from to 2020	from to 2020
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	3/12	3/12	3/12	3/12	3/12	3/12
Engine displacement [cm³]	999	999	999	999	999	999
Maximum output / speed [kW/min-1]	70/5000-3500	70/5000-3500	81/5500	81/5500	85/5000-5500	85/5000-5500
Maximum torque [Nm/min-1]	175/2000-3500	175/2000-3500	200/2000-3500	200/2000-3500	200/2000-3500	200/2000-3500
Bore and stroke [mm x mm]	74,5 x 76,4	74,5 x 76,4	74.5 x 76.4	74.5 x 76.4	74,5 x 76,4	74,5 x 76,4
Compression ratio	10,5:1	10,5:1	11.5:1	11.5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged Intercooler variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged Intercooler variable timing of intake and exhaust valves start&stop system	direct injection FSI operation of engine in the Miller cycle turbo-supercharged Intercooler variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection FSI operation of engine in the Miller cycle turbo-supercharged Intercooler variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection turbo-supercharged Intercooler variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged Intercooler variable timing of intake and exhaust valves start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	seven-speed dual-clutch automatic gearbox S tronic	-	seven-speed dual-clutch automatic gearbox S tronic	-	seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	191-193	191-193	203	200	203	203
Acceleration 0–100 km/h [s]	10,8-11,0	11,1-11,5	10.5	10.6	9,5	9,4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6,0-5,8	5,9-5,6	6.1-6.0	5.5-5.4	6,1-5,9	6,0-5,8
Out of town [l]	4,2-3,9	4,3-4,2	4.3-4.1	4.5-4.4	4,2-4,1	4,3-4,2
Combined [l]	4,8-4,6	4,9-4,7	4.9-4.8	4.9-4.8	4,9-4,8	4,9-4,8
CO2 emissions [g/km]	111-106	112-107	113-110	111-109	112-108	113-108

Low speed [l]	-	-	6,7	7,5	-	-
Medium speed [l]	-	-	5,2	5,6	-	-
High speed [l]	-	-	4,6	5,0	-	-
Extra high speed [l]	-	-	5,5	5,8	-	-
Combined speed [l]	6,0-5,6	6,6-6,1	5,8-5,3	6,1-5,7	6,1-5,5	6,5-6,1
CO2 emissions [g/km]	136-127	149-138	132-121	139-130	138-125	147-137

Emission standard	Euro 6 - Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-ISC-FCM	Euro 6d-ISC-FCM	Euro 6 - Euro 6d-TEMP	Euro 6 - Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	69.4	69.6	69.9	70.6	-	-
Driving noise [dB]	65	67	69	69	-	-

Standby weight [kg]	1165-1175	1200	1180	1205	1180	1200
Overall weight [kg]	1630-1660	1675-1705	1655	1680	1655	1680
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-	-
Maximum front/rear axle load [kg]	855/820	900/820	880/820	905/820	880/805	905/805
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	335	335	335	335	335	335
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1090	-/1090	-/1090	-/1090	-/1090	-/1090
Boot length [mm]	760	760	760	760	760	760
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	668	668	668	668	668	668
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-/994	-/994	-/994	-/994	-/994	-/994

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	40	40	40	40	40	40
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.31	0.31	0.31	0.31	0.31	0.31
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with torsion bar	twist beam axle with torsion bar	twist beam axle with torsion bar	twist beam axle with torsion bar	twist beam axle with torsion bar	twist beam axle with torsion bar
Tyre dimensions front	185/65 R15	185/65 R15	185/65 R15 92 V XL	185/65 R15 92 V XL	185/65 R15	185/65 R15
Tyre dimensions rear	185/65 R15	185/65 R15	185/65 R15 92 V XL	185/65 R15 92 V XL	185/65 R15	185/65 R15
Wheel size front	5,5J x 15	5,5J x 15	5.5J x 15	5.5J x 15	5,5J x 15	5,5J x 15
Wheel size rear	5,5J x 15	5,5J x 15	5.5J x 15	5.5J x 15	5,5J x 15	5,5J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,5/-	10,5/-	10.6/-	10.6/-	10,5/-	10,5/-

Overall length [mm]	4029	4029	4029	4029	4029	4029
Overall width without/including mirrors [mm]	1740/1940	1740/1940	1740/1940	1740/1940	1740/1940	1740/1940
Overall height [mm]	1433	1433	1433	1433	1409	1409
Wheelbase [mm]	2563	2563	2563	2563	2563	2563
Front wheel track [mm]	1524	1524	1524	1524	1524	1524
Rear wheel track [mm]	1501	1501	1501	1501	1501	1501
Forward overhang [mm]	788	788	788	788	788	788
Rear overhang [mm]	678	678	678	678	678	678
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	16.50	16.50	16.50	16.50	-	-
Approach angle rear [°]	12.40	12.40	12.40	12.40	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1019	1019	1019	1019	1019	1019
Headroom rear [mm]	944	944	944	944	944	944
Front elbow/shoulder width [mm]	1424/1373	1424/1373	1424/1373	1424/1373	1424/1373	1424/1373
Rear elbow/shoulder width [mm]	1380/1315	1380/1315	1380/1315	1380/1315	1380/1315	1380/1315
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	35 TFSI 110kW	40 TFSI 147kW
Date of sale	-	from to 2020
Engine type	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1498	1984
Maximum output / speed [kW/min-1]	110/5000-6000	147/4400-6000
Maximum torque [Nm/min-1]	250/1500-3500	320/1500-4400
Bore and stroke [mm x mm]	74,5 x 85,9	82,5 x 92,8
Compression ratio	10,5:1	11,7:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection turbo-supercharged Intercooler technology COD (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system	direct injection engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable lift of intake valves variable timing of intake and exhaust valves start&stop system

Drive axle	Front	4x4
Gearbox	7 gear automatic	6 gear automatic
Drive specifications	seven-speed dual-clutch automatic gearbox S tronic	six-speed dual-clutch automatic gearbox S tronic all-wheel drive quattro

Top speed [km/h]	217-222	235
Acceleration 0–100 km/h [s]	7,7-7,9	6,5
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	5,9-6,5	8,2
Out of town [l]	4.5-4.2	4,8-4,7
Combined [l]	5,1-5,0	6,0
CO2 emissions [g/km]	117-114	137-136

Low speed [l]	-	-
Medium speed [l]	-	-
High speed [l]	-	-
Extra high speed [l]	-	-
Combined speed [l]	6,5-6,2	-
CO2 emissions [g/km]	148-141	-

Emission standard	Euro 6 - Euro 6d-TEMP	Euro 6 - Euro 6d-TEMP
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	75.5	-
Driving noise [dB]	68	-

Standby weight [kg]	1240-1245	1335
Overall weight [kg]	1705-1710	1775
Maximum trailer weight unbraked/braked [kg]	-	-
Maximum front/rear axle load [kg]	935/815	975/850
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	75/-	75/-

Boot volume [l]	335	335
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1090	-/1090
Boot length [mm]	760	760
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	668	668
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-/994	-/994

Number of doors	4	4
Number of seats	5	5
Fuel tank volume [l]	40	40
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.31	0.31
Front suspension	MacPherson	MacPherson
Rear suspension	twist beam axle with torsion bar	twist beam axle with torsion bar
Tyre dimensions front	195/55 R17	215/45 R17 91W
Tyre dimensions rear	195/55 R17	215/45 R17 91W
Wheel size front	6,5J x 16	7,5J x 17
Wheel size rear	6,5J x 16	7,5J x 17
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10,5/-	10,5/-

Overall length [mm]	4029	4029
Overall width without/including mirrors [mm]	1740/1940	1740/1940
Overall height [mm]	1433	1409
Wheelbase [mm]	2563	2563
Front wheel track [mm]	1524	1524
Rear wheel track [mm]	1501	1501
Forward overhang [mm]	788	788
Rear overhang [mm]	678	678
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	16.50	-
Approach angle rear [°]	12.40	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1019	1019
Headroom rear [mm]	944	944
Front elbow/shoulder width [mm]	1424/1373	1424/1373
Rear elbow/shoulder width [mm]	1380/1315	1380/1315
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Crossover (citycarver)

	25 TFSI 70kW citycarver	30 TFSI 81 kW citycarver	30 TFSI 81 kW citycarver	30 TFSI 85 kW citycarver	30 TFSI 85 kW citycarver	35 TFSI 110kW citycarver
Date of sale	-	from 2020 to	from 2020 to	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	3/12	3/12	3/12	3/12	3/12	4/16
Engine displacement [cm³]	999	999	999	999	999	1498
Maximum output / speed [kW/min-1]	70/5000-3500	81/5500	81/5500	85/5000-5500	85/5000-5500	110/5000-6000
Maximum torque [Nm/min-1]	175/2000-3500	200/2000-3500	200/2000-3500	200/2000-3500	200/2000-3500	250/1500-3500
Bore and stroke [mm x mm]	74,5 x 76,4	74.5 x 76.4	74.5 x 76.4	74,5 x 76,4	74,5 x 76,4	74,5 x 85,9
Compression ratio	10,5:1	11.5:1	11.5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged Intercooler variable timing of intake and exhaust valves start&stop system particulate filter	direct injection FSI turbo-supercharged Intercooler variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection FSI turbo-supercharged Intercooler variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection turbo-supercharged Intercooler variable timing of intake and exhaust valves start&stop system particulate filter	direct injection turbo-supercharged Intercooler variable timing of intake and exhaust valves start&stop system particulate filter	direct injection turbo-supercharged Intercooler technology COD (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system Gasoline Particulate Filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	-	-	seven-speed dual-clutch automatic gearbox S tronic	-	seven-speed dual-clutch automatic gearbox S tronic	-

Top speed [km/h]	187	194	191	198	198	220
Acceleration 0–100 km/h [s]	11,2	10.5	10.5	9,9	9,9	8,2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6,6	6,0-5,9	5,7-5,6	6,6,-6,4	6,1-6,0	6,5-6,4
Out of town [l]	4,4	4,6-4,4	4,6-4,5	4,6-4,5	4,7-4,6	4,8-4,6
Combined [l]	5,2	5,1-5,0	5,0-4,9	5,4-5,2	5,2-5,1	5,5-5,3
CO2 emissions [g/km]	119	117-113	115-112	122-118	119-117	124-120

Low speed [l]	-	7,0	7,4	-	-	-
Medium speed [l]	-	5,3	6,0	-	-	-
High speed [l]	-	4,8	5,4	-	-	-
Extra high speed [l]	-	6,1	6,5	-	-	-
Combined speed [l]	6,0-5,9	6,0-5,7	6,5-6,2	6,4-6,1	6,7-6,4	6,5-6,2
CO2 emissions [g/km]	136-133	137-128	148-141	146-137	152-145	148-141

Emission standard	Euro 6d-TEMP	Euro 6d-ISC-FCM	Euro 6d-ISC-FCM	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1205	1220	1250	1215	1245	1275
Overall weight [kg]	1655	1675	1695	1680	1710	1730
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-	-
Maximum front/rear axle load [kg]	870/835	-	-	890/835	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	335	335	335	335	335	335
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1090	-/1090	-/1090	-/1090	-/1090	-/1090
Boot length [mm]	760	760	760	760	760	760
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	724	724	724	724	724	724
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-/994	-/994	-/994	-/994	-/994	-/994

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	40	40	40	40	40	40
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.34	0.34	0.34	0.34	0.34	0.34
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with torsion bar	twist beam axle with torsion bar	twist beam axle with torsion bar	twist beam axle with torsion bar	twist beam axle with torsion bar	twist beam axle with torsion bar
Tyre dimensions front	205/60 R 16 92H	205/60 R 16 92H	205/60 R 16 92H	205/60 R 16 92H	205/60 R 16 92H	205/60 R 16 92H
Tyre dimensions rear	205/60 R 16 92H	205/60 R 16 92H	205/60 R 16 92H	205/60 R 16 92H	205/60 R 16 92H	205/60 R 16 92H
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6,5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6,5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,6/-	10.6/-	10.6/-	10,6/-	10,6/-	10,6/-

Overall length [mm]	4046	4046	4046	4046	4046	4046
Overall width without/including mirrors [mm]	1756/1940	1756/1940	1756/1940	1756/1940	1756/1940	1756/1940
Overall height [mm]	1459	1459	1459	1459	1459	1459
Wheelbase [mm]	2566	2566	2566	2566	2566	2566
Front wheel track [mm]	1523	1523	1523	1523	1523	1523
Rear wheel track [mm]	1505	1505	1505	1505	1505	1505
Forward overhang [mm]	793	793	793	793	793	793
Rear overhang [mm]	687	687	687	687	687	687
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1019	1019	1019	1019	1019	1019
Headroom rear [mm]	944	944	944	944	944	944
Front elbow/shoulder width [mm]	1424/1373	1424/1373	1424/1373	1424/1373	1424/1373	1424/1373
Rear elbow/shoulder width [mm]	1380/1315	1380/1315	1380/1315	1380/1315	1380/1315	1380/1315
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	35 TFSI 110kW citycarver
Date of sale	-
Engine type	Ignition supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1498
Maximum output / speed [kW/min-1]	110/5000-6000
Maximum torque [Nm/min-1]	250/1500-3500
Bore and stroke [mm x mm]	74,5 x 85,9
Compression ratio	10,5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection turbo-supercharged Intercooler technology COD (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system Gasoline Particulate Filter

Drive axle	Front
Gearbox	7 gear automatic
Drive specifications	seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	220
Acceleration 0–100 km/h [s]	8,2
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	6,6-6,5
Out of town [l]	4,7-4,6
Combined [l]	5,4-5,3
CO2 emissions [g/km]	122-120

Low speed [l]	-
Medium speed [l]	-
High speed [l]	-
Extra high speed [l]	-
Combined speed [l]	6,7-6,4
CO2 emissions [g/km]	151-144

Emission standard	Euro 6d-TEMP
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1280
Overall weight [kg]	1740
Maximum trailer weight unbraked/braked [kg]	-
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	75/-

Boot volume [l]	335
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1090
Boot length [mm]	760
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	1000/-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	724
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-/994

Number of doors	4
Number of seats	5
Fuel tank volume [l]	40
AdBlue tank volume [l]	-
Air resistance [Cd]	0.34
Front suspension	MacPherson
Rear suspension	twist beam axle with torsion bar
Tyre dimensions front	205/60 R 16 92H
Tyre dimensions rear	205/60 R 16 92H
Wheel size front	6,5J x 16
Wheel size rear	6,5J x 16
Brake dimensions front	-
Brake dimensions rear	-
Steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10,6/-

Overall length [mm]	4046
Overall width without/including mirrors [mm]	1756/1940
Overall height [mm]	1459
Wheelbase [mm]	2566
Front wheel track [mm]	1523
Rear wheel track [mm]	1505
Forward overhang [mm]	793
Rear overhang [mm]	687
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	1019
Headroom rear [mm]	944
Front elbow/shoulder width [mm]	1424/1373
Rear elbow/shoulder width [mm]	1380/1315
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

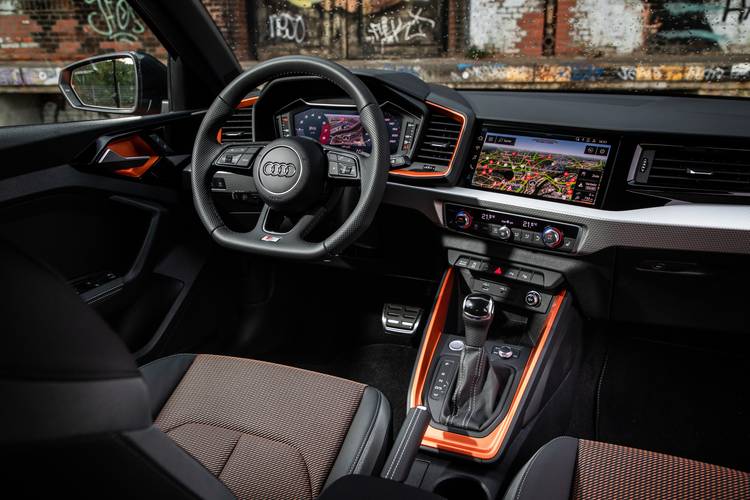

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.

Audi A1

Date of manufacture

Platform

Manufacturing locations

Designer

Tags

Car body style

Five-door hatchback (Sportback)

Crossover (citycarver)

Euro NCAP

Technical data

Five-door hatchback (Sportback)

Crossover (citycarver)

Gallery
