Audi A3

A3 8V 2016

Date of manufacture

2016 – 2017 (Three-door hatchback)

2016 – 2020 (Five-door hatchback)

2016 – to this day (Sedan)

2016 – to this day (Convertible)

Platform

Volkswagen Group MQB

Manufacturing locations

Ingolstadt, Germany

Győr, Hungary

Designer

Dany Garand

Tags

C-segment

German cars

The Audi A3 has been produced since 2016 and is available in four different body styles - three-door hatchback, five-door hatchback, sedan and cabriolet. The vehicle is built on the Volkswagen Group MQB platform and offers a wide range of power units - petrol, diesel and hybrid or plug-in hybrid. The most powerful model is the RS3 294 kW with 294 kW of power and a top speed of 250 km/h. It accelerates to 100 km/h in 4.1 seconds. The most economical model is the 1.4 TFSI e-tron 150 kW with a combined consumption of 2.2 l/100 km and CO2 emissions of 50 g/km. The volume of the luggage compartment varies depending on the body type - 365 l for the three-door hatchback, 380 l for the five-door hatchback, 425 l for the sedan and 320 l for the cabriolet. The safety of the vehicle was tested by the EURONCAP methodology in 2012 and received a rating of 5 out of 5.

Car body style

Three-door hatchback

after upgrade (facelift)

Date of manufacture

2016 – 2017

Internal designation

8V

Engine size

Petrol

1.4 TFSI 110 kW ultra

1.4 TFSI 110 kW ultra

2.0 TFSI 140 kW quattro

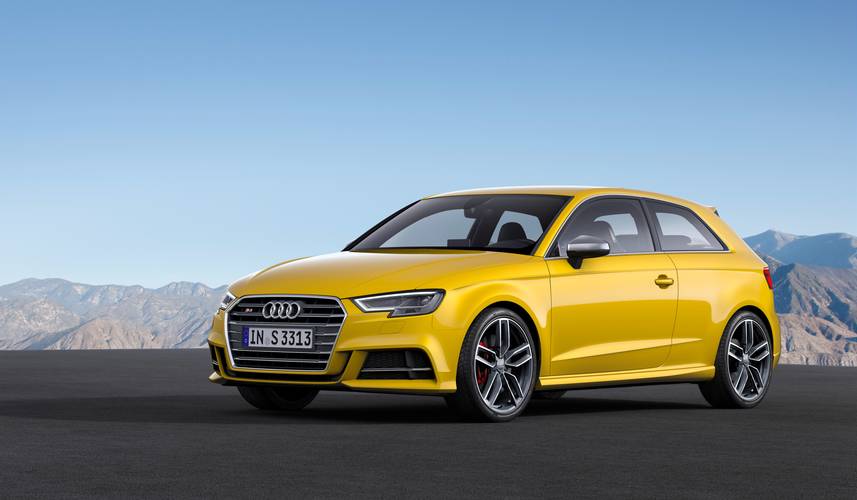

S3 228 kW quattro

S3 228 kW quattro

Diesel

2.0 TDI 110 kW quattro

2.0 TDI 135 kW quattro

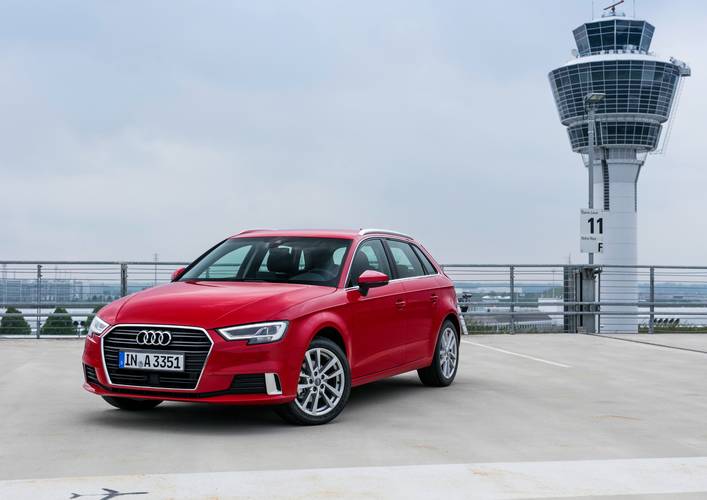

Five-door hatchback (Sportback)

after upgrade (facelift)

Date of manufacture

2016 – 2020

Internal designation

8V

Engine size

Petrol

1.4 TFSI g-tron 81 kW

1.4 TFSI g-tron 81 kW

30 96 kW g-tron

1.4 TFSI 110 kW ultra

1.4 TFSI 110 kW ultra

1.5 TFSI 110 kW

1.5 TFSI 110 kW

2.0 TFSI 140 kW

2.0 TFSI 140 kW

2.0 TFSI 140 kW quattro

40 TFSI 140 kW quattro

Gasoline Particulate Filter S3 221 kW quattro

S3 228 kW quattro

S3 228 kW quattro

Gasoline Particulate Filter RS3 294 kW

Petrol + Electric

1.4 TFSI e-tron 150 kW

40 e-tron 150 kW

Diesel

2.0 TDI 110 kW quattro

2.0 TDI 135 kW quattro

2.0 TDI 135 kW quattro

40 TDI 135 kW quattro

Sedan

after upgrade (facelift)

Date of manufacture

2016 – to this day

Internal designation

8V

Engine size

Petrol

1.4 TFSI 110 kW ultra

1.4 TFSI 110 kW ultra

1.5 TFSI 110 kW

1.5 TFSI 110 kW

2.0 TFSI 140 kW

2.0 TFSI 140 kW

2.0 TFSI 140 kW quattro

40 TFSI 140 kW quattro

Gasoline Particulate Filter S3 221 kW quattro

S3 228 kW quattro

S3 228 kW quattro

Gasoline Particulate Filter RS3 294 kW

Diesel

2.0 TDI 110 kW quattro

2.0 TDI 135 kW quattro

2.0 TDI 135 kW quattro

40 TDI 135 kW quattro

Convertible

after upgrade (facelift)

Date of manufacture

2016 – to this day

Internal designation

8V

Engine size

Petrol

1.4 TFSI 110 kW ultra

1.4 TFSI 110 kW ultra

1.5 TFSI 110 kW

1.5 TFSI 110 kW

2.0 TFSI 140 kW

2.0 TFSI 140 kW

2.0 TFSI 140 kW quattro

40 TFSI 140 kW quattro

Gasoline Particulate Filter S3 221 kW quattro

S3 228 kW quattro

Diesel

2.0 TDI 110 kW quattro

2.0 TDI 135 kW quattro

2.0 TDI 135 kW quattro

Euro NCAP

pre-facelift version (2012)

Technical data

Three-door hatchback

	1.0 TFSI 85 kW	1.0 TFSI 85 kW	1.4 TFSI 110 kW ultra	1.4 TFSI 110 kW ultra	2.0 TFSI 140 kW quattro	S3 228 kW quattro
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	3/12	3/12	4/16	4/16	4/16	4/16
Engine displacement [cm³]	999	999	1395	1395	1984	1984
Maximum output / speed [kW/min-1]	85/5000-5500	85/5000-5500	110/5000-6000	110/5000-6000	140/4200-6000	228/5800-6500
Maximum torque [Nm/min-1]	200/2000-3500	200/2000-3500	250/1500-3500	250/1500-3500	320/1500-4100	380/1850-5700
Bore and stroke [mm x mm]	74,5 x 75,4	74,5 x 75,4	74,5 x 80,0	74,5 x 80,0	82,5 x 92,8	82,5 x 92,8
Compression ratio	10,5:1	10,5:1	10,0:1	10,0:1	11,7:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system

Drive axle	Front	Front	Front	Front	4x4	4x4
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	7 gear automatic	6 gear manual
Drive specifications	-	seven-speed dual-clutch automatic gearbox S tronic	hydraulically operated single-disc dry clutch	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro

Top speed [km/h]	206	206	220	220	236	250
Acceleration 0–100 km/h [s]	9,7	9,7	8.1	8.1	6,1	5,2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5,8-5,5	5,7-5,4	6,0-5,6	6,0-5,7	7,4-7,2	9,2-9,1
Out of town [l]	4,2-3,9	4,3-4,0	4,3-3,9	4,4-4,1	5,1-4,9	5,9-5,8
Combined [l]	4,8-4,5	4,8-4,5	4,9-4,5	5,0-4,7	6,0-5,8	7,1-7,0
CO2 emissions [g/km]	110-104	110-104	112-105	114-109	137-133	163-162

Emission standard	Euro 6	Euro 6	EU6	EU6	Euro 6	Euro 6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1225	1245	1275	1280	1430	1480
Overall weight [kg]	1710	1730	1760	1765	1915	1965
Maximum trailer weight unbraked/braked [kg]	610/1300	620/1300	630/1500	640/1500	710/1600	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

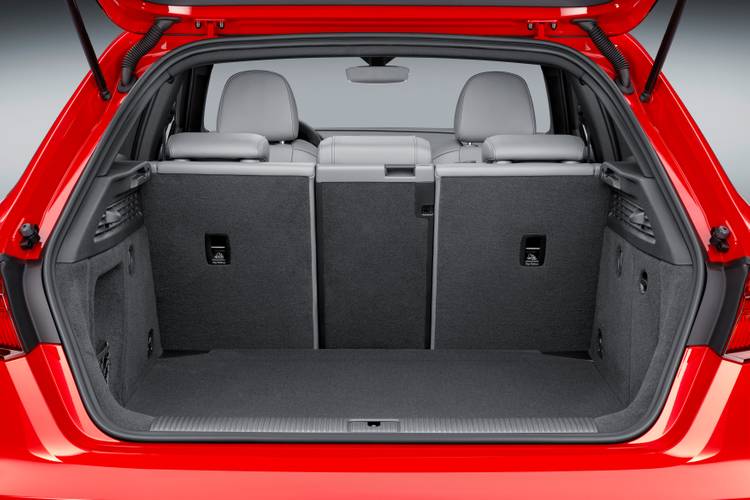

Boot volume [l]	365	365	365	365	325	325

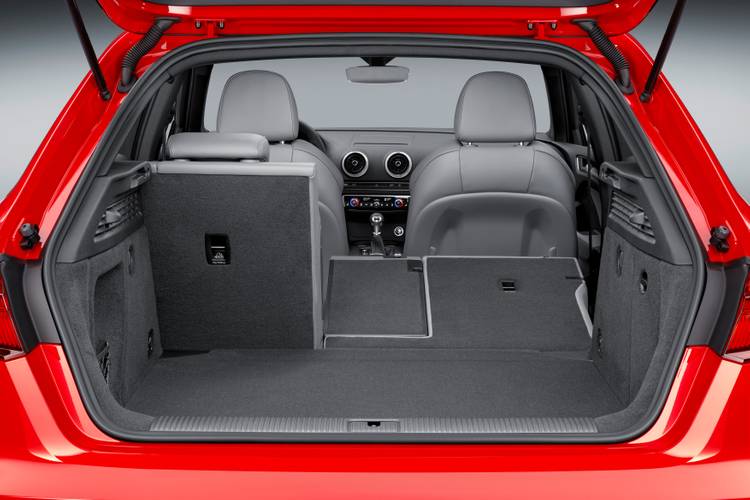

Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1100	-/1100	-/1100	-/1100	-/1060	-/1060
Boot length [mm]	770	770	770	770	770	770
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	690	690	690	690	690	668
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	958/-	958/-	958/-	958/-	958/-	958/-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	245/40 R18
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	245/40 R18
Wheel size front	6.5J x 16	6.5Jx16	6.5Jx16	6.5Jx16	6.5J x 16	7,5J x 18
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7,5J x 18
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,7/-	10,7/-	10,7/-	10,7/-	10,7/-	10,7/-

Overall length [mm]	4241	4241	4241	4241	4241	4252
Overall width without/including mirrors [mm]	1777/1966	1777/1966	1777/1966	1777/1966	1777/1966	1777/1966
Overall height [mm]	1424	1424	1424	1424	1424	1401
Wheelbase [mm]	2602	2602	2602	2602	2602	2596
Front wheel track [mm]	1543	1543	1543	1543	1543	1535
Rear wheel track [mm]	1514	1514	1514	1514	1514	1510
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	769	769	769	769	769	786
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1020	1020	1020	1020	1020	1020
Headroom rear [mm]	951	951	951	951	951	951
Front elbow/shoulder width [mm]	1464/1392	1464/1392	1464/1392	1464/1392	1464/1392	1464/1392
Rear elbow/shoulder width [mm]	1411/1343	1411/1343	1411/1343	1411/1343	1411/1343	1411/1343
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	S3 228 kW quattro	1.6 TDI 81kW	1.6 TDI 81 kW	2.0 TDI 110 kW	2.0 TDI 110 kW	2.0 TDI 110 kW quattro
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1984	1598	1598	1968	1968	1968
Maximum output / speed [kW/min-1]	228/5500-6500	81/3250-4000	81/3250-4000	110/3500-4000	110/3500-4000	110/3500-4000
Maximum torque [Nm/min-1]	400/2000-5400	250/1500-3000	250/1500-3000	340/1750-3000	340/1750-3000	340/1750-3000
Bore and stroke [mm x mm]	82,5 x 92,8	79,5 x 80,5	79,5 x 80,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	9,3:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation

Drive axle	4x4	Front	Front	Front	Front	4x4
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS

Top speed [km/h]	250	200	200	218	218	214
Acceleration 0–100 km/h [s]	4,5	10.7	10.7	8.5	8.2	8.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8,2-8,1	4,9-4,3	4,6-4,3	5,2-4,9	5,5-5,2	5,9-5,6
Out of town [l]	5,5-5,4	3,8-3,5	3,8-3,5	3,9-3,5	4,3-4,0	4,4-4,1
Combined [l]	6,5-6,4	4,2-3,8	4,1-3,8	4,4-4,0	4,7-4,4	5,0-4,7
CO2 emissions [g/km]	149-146	109-99	107-99	111-105	122-116	128-122

Emission standard	Euro 6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1505	1310	1330	1350	1370	1435
Overall weight [kg]	1990	1795	1815	1835	1855	1920
Maximum trailer weight unbraked/braked [kg]	-	650/1500	660/1500	670/1600	680/1600	710/1800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	325	365	365	365	365	325
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1060	-/1100	-/1100	-/1100	-/1100	-/1060
Boot length [mm]	770	770	770	770	770	770
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	668	690	690	690	690	690
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	958/-	958/-	958/-	958/-	958/-	958/-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	50	50	50	50	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0,34	-	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	four-link	four-link	four-link
Tyre dimensions front	245/40 R18	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	245/40 R18	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	7,5J x 18	6.5J x 16	6.5J x 16	6.5Jx16	6.5Jx16	6.5J x 16
Wheel size rear	7,5J x 18	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,7/-	10,7/-	10,7/-	10,7/-	10,7/-	10,7/-

Overall length [mm]	4252	4241	4241	4241	4241	4241
Overall width without/including mirrors [mm]	1777/1966	1777/1966	1777/1966	1777/1966	1777/1966	1777/1966
Overall height [mm]	1401	1424	1424	1424	1424	1424
Wheelbase [mm]	2596	2602	2602	2602	2602	2602
Front wheel track [mm]	1535	1543	1543	1543	1543	1543
Rear wheel track [mm]	1510	1514	1514	1514	1514	1514
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	786	769	769	769	769	769
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1020	1020	1020	1020	1020	1020
Headroom rear [mm]	951	951	951	951	951	951
Front elbow/shoulder width [mm]	1464/1392	1464/1392	1464/1392	1464/1392	1464/1392	1464/1392
Rear elbow/shoulder width [mm]	1411/1343	1411/1343	1411/1343	1411/1343	1411/1343	1411/1343
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI 135 kW quattro
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1968
Maximum output / speed [kW/min-1]	135/3500-4000
Maximum torque [Nm/min-1]	380/1750-3250
Bore and stroke [mm x mm]	81,0 x 95,5
Compression ratio	15,8:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation

Drive axle	4x4
Gearbox	6 gear automatic
Drive specifications	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS six-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	230
Acceleration 0–100 km/h [s]	6,8
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	5,7-5,4
Out of town [l]	4,6-4,4
Combined [l]	5,0-4,8
CO2 emissions [g/km]	131-127

Emission standard	EU6
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1470
Overall weight [kg]	1955
Maximum trailer weight unbraked/braked [kg]	730/1800
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	75
Maximum load on roof/carrier [kg]	75/-

Boot volume [l]	325
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1060
Boot length [mm]	770
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	1000/-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	690
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	958/-

Number of doors	3
Number of seats	5
Fuel tank volume [l]	55
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link
Tyre dimensions front	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W
Wheel size front	6.5J x 16
Wheel size rear	6.5J x 16
Brake dimensions front	-
Brake dimensions rear	-
Steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10,7/-

Overall length [mm]	4241
Overall width without/including mirrors [mm]	1777/1966
Overall height [mm]	1424
Wheelbase [mm]	2602
Front wheel track [mm]	1543
Rear wheel track [mm]	1514
Forward overhang [mm]	870
Rear overhang [mm]	769
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	1020
Headroom rear [mm]	951
Front elbow/shoulder width [mm]	1464/1392
Rear elbow/shoulder width [mm]	1411/1343
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Five-door hatchback (Sportback)

	1.4 TFSI g-tron 81 kW	1.4 TFSI g-tron 81 kW	1.0 TFSI 85 kW	1.0 TFSI 85 kW	30 TFSI 85 kW	30 TFSI 85 kW
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	3/12	3/12	3/12	3/12
Engine displacement [cm³]	1395	1395	999	999	999	999
Maximum output / speed [kW/min-1]	81/4800-6000	81/4800-6000	85/5000-5500	85/5000-5500	85/5000-5500	85/5000-5500
Maximum torque [Nm/min-1]	200/1500-3500	200/1500-3500	200/2000-3500	200/2000-3500	200/1500-3500	200/1500-3500
Bore and stroke [mm x mm]	74,5 x 80,0	74,5 x 80,0	74,5 x 75,4	74,5 x 75,4	74,5 x 75,4	74,5 x 75,4
Compression ratio	10,0:1	10,0:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves combustion of petrol or CNG start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves combustion of petrol or CNG start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	seven-speed dual-clutch automatic gearbox S tronic	-	seven-speed dual-clutch automatic gearbox S tronic	-	seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	197	197	206	206	206	206
Acceleration 0–100 km/h [s]	10,8	10,8	9,9	9,9	9,9	9,9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7,2-6,9 [4,6-4,4 kg]	6,6-6,3 [4,6-4,2 kg]	5,8-5,5	5,7-5,4	6,2-6,1	5,7-5,4
Out of town [l]	4,6-4,3 [3,0-2,8 kg]	4,7-4,4 [2,9-2,7 kg]	4,2-3,9	4,3-4,0	4,3-4,2	4,3-4,0
Combined [l]	5,5-5,2 [3,6-3,4 kg]	5,4-5,1 [3,5-3,3 kg]	4,8-4,5	4,8-4,5	5,0-4,9	4,8-4,5
CO2 emissions [g/km]	128-121 [98-92 CNG]	124-117 [95-89 CNG]	110-104	110-104	114-111	110-104

Low speed [l]	-	-	-	-	7,0	-
Medium speed [l]	-	-	-	-	5,5	-
High speed [l]	-	-	-	-	4,9	-
Extra high speed [l]	-	-	-	-	5,9	-
Combined speed [l]	-	-	-	-	5,6	-
CO2 emissions [g/km]	-	-	-	-	128	-

Emission standard	EU6	EU6	Euro 6	Euro 6	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1335	1355	1255	1275	1265	1275
Overall weight [kg]	1800	1820	1740	1760	1770	1760
Maximum trailer weight unbraked/braked [kg]	660/1300	670/1300	620/1300	630/1300	630/1300	630/1300
Maximum front/rear axle load [kg]	-	-	925/940	925/940	925/940	925/940
Maximum vertical load on the tow bar [kg]	50	50	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	280	280	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1120	-/1120	-/1220	-/1220	-/1220	-/1220
Boot length [mm]	778	778	778	778	778	778
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	679	679	679	679	679	679
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	955/-	955/-	955/-	955/-	955/-	955/-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50 [14,4 kg]	50 [14,4 kg]	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar
Tyre dimensions front	205/55 R16	205/55 R16	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/55 R16	205/55 R16	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4313	4313	4313	4313	4313	4313
Overall width without/including mirrors [mm]	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966
Overall height [mm]	1426	1426	1426	1426	1426	1426
Wheelbase [mm]	2637	2637	2637	2637	2637	2637
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	806	806	806	806	806	806
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	955	955	955	955	955	955
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	30 96 kW g-tron	1.4 TFSI 110 kW ultra	1.4 TFSI 110 kW ultra	1.5 TFSI 110 kW	1.5 TFSI 110 kW	35 TFSI 110 kW
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1498	1395	1395	1498	1498	1498
Maximum output / speed [kW/min-1]	96/5000-6000	110/5000-6000	110/5000-6000	110/5000-6000	110/5000-6000	110/5000-6000
Maximum torque [Nm/min-1]	200/1400-4000	250/1500-3500	250/1500-3500	250/1500-3500	250/1500-3500	250/1500-3500
Bore and stroke [mm x mm]	74,5 x 85,9	74,5 x 80,0	74,5 x 80,0	74,5 x 85,9	74,5 x 85,9	74,5 x 85,9
Compression ratio	12,5:1	10,0:1	10,0:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbocharger with variable blade geometry variable timing of intake valves operation of engine in the Miller cycle combustion of petrol or CNG start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	hydraulically operated single-disc dry clutch	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-

Top speed [km/h]	211	220	220	220	220	220
Acceleration 0–100 km/h [s]	9,4	8.2	8.2	8.2	8.2	8.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6,9-6,8 [4,4 kg]	6,1-5,7	6,2-5,9	6,5-6,3	6,2-6,0	6,8-6,6
Out of town [l]	4,5-4,4 [2,9 kg]	4,4-4,0	4,5-4,2	4,6-4,3	4,4-4,1	4,3-4,2
Combined [l]	5,4-5,3 [3,5 kg]	5,0-4,6	5,1-4,8	5,3-5,0	5,1-4,8	5,0-4,9
CO2 emissions [g/km]	- [95 CNG]	115-107	116-111	120-114	116-110	114-111

Low speed [l]	-	-	-	-	-	8,3
Medium speed [l]	-	-	-	-	-	6,2
High speed [l]	-	-	-	-	-	5,5
Extra high speed [l]	-	-	-	-	-	6,5
Combined speed [l]	-	-	-	-	-	6,4
CO2 emissions [g/km]	-	-	-	-	-	145

Emission standard	Euro 6d-TEMP	EU6	EU6	EU6	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1385	1305	1315	1305	1315	1325
Overall weight [kg]	1880	1790	1800	1790	1800	1840
Maximum trailer weight unbraked/braked [kg]	690/1300	650/1500	650/1500	650/1500	650/1500	660/1500
Maximum front/rear axle load [kg]	980/1010	-	-	-	-	965/970
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	280	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1120	-/1220	-/1220	-/1220	-/1220	-/1220
Boot length [mm]	778	778	778	778	778	778
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	679	679	679	679	679	679
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	955/-	955/-	955/-	955/-	955/-	955/-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	9 [17,3 kg]	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0,33	-	-	-	-	0,32
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	rigid with trailing arms and torsion bar	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4313	4313	4313	4313	4313	4313
Overall width without/including mirrors [mm]	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966
Overall height [mm]	1426	1426	1426	1426	1426	1426
Wheelbase [mm]	2637	2637	2637	2637	2637	2637
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	806	806	806	806	806	806
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	955	955	955	955	955	955
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	35 TFSI 110 kW	2.0 TFSI 140 kW	2.0 TFSI 140 kW	2.0 TFSI 140 kW quattro	40 TFSI 140 kW quattro	Gasoline Particulate Filter S3 221 kW quattro
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1498	1984	1984	1984	1984	1984
Maximum output / speed [kW/min-1]	110/5000-6000	140/4200-6000	140/4200-6000	140/4200-6000	140/4200-6000	221/5300-6500
Maximum torque [Nm/min-1]	250/1500-3500	320/1500-4100	320/1500-4100	320/1500-4100	320/1500-4100	400/2000-5200
Bore and stroke [mm x mm]	74,5 x 85,9	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8
Compression ratio	10,5:1	11,7:1	11,7:1	11,7:1	11,7:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Gasoline Particulate Filter start&stop system

Drive axle	Front	Front	Front	4x4	4x4	4x4
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	220	244	244	236	236	250
Acceleration 0–100 km/h [s]	8.2	6,9	6,8	6,2	6,2	4,7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6,6-6,5	7,6-7,3	7,4-7,1	7,4-7,1	8,4-8,2	8,8-8,7
Out of town [l]	4,5-4,3	4,8-4,5	5,0-4,7	5,1-4,8	5,5-5,2	5,9-5,7
Combined [l]	5,3-5,1	5,8-5,5	5,9-5,6	6,0-5,7	6,6-6,3	7,0-6,8
CO2 emissions [g/km]	121-116	132-123	132-126	137-130	149-144	158-155

Low speed [l]	8,7	-	-	-	10,3	11,0
Medium speed [l]	6,3	-	-	-	7,5	8,1
High speed [l]	5,5	-	-	-	6,3	6,9
Extra high speed [l]	6,4	-	-	-	7,1	7,7
Combined speed [l]	6,4	-	-	-	7,3	8,0
CO2 emissions [g/km]	145	-	-	-	166	181

Emission standard	Euro 6d-TEMP	Euro 6	Euro 6	Euro 6	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1345	1370	1390	1460	1490	1565
Overall weight [kg]	1855	1845	1875	1945	1995	2045
Maximum trailer weight unbraked/braked [kg]	670/1500	680/1600	690/1600	730/1600	740/1600	-
Maximum front/rear axle load [kg]	980/970	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	380	380	380	340	340	340
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1220	-/1220	-/1220	-/1180	-/1180	-/1180
Boot length [mm]	778	778	778	778	778	778
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	679	679	679	679	679	655
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	955/-	955/-	955/-	955/-	955/-	955/-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0,32	-	-	-	0,33	0,34
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	245/40 R18 92 Y xl
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	245/40 R18 92 Y xl
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7,5J x 18
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7,5J x 18
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4313	4313	4313	4313	4313	4322
Overall width without/including mirrors [mm]	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966
Overall height [mm]	1426	1426	1426	1426	1426	1404
Wheelbase [mm]	2637	2637	2637	2637	2637	2631
Front wheel track [mm]	1543	1543	1543	1543	1543	1535
Rear wheel track [mm]	1514	1514	1514	1514	1514	1511
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	806	806	806	806	806	821
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	955	955	955	955	955	955
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	S3 228 kW quattro	S3 228 kW quattro	RS3 294 kW	Gasoline Particulate Filter RS3 294 kW	1.4 TFSI e-tron 150 kW	40 e-tron 150 kW
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Petrol + Electric	Petrol + Electric
Number of cylinders/valves	4/16	4/16	5/20	5/20	4/16	4/16
Engine displacement [cm³]	1984	1984	2480	2480	1395	1395
Maximum output / speed [kW/min-1]	228/5800-6500	228/5500-6500	294/5850-7000	294/5850-7000	110/5000-6000 75 el. 150 total	110/5000-6000 80 el. 150 total
Maximum torque [Nm/min-1]	380/1850-5700	400/2000-5400	480/1950-5850	480/1950-5850	250/1600-3500 330 el. 350 total	250/1600-3500 330 el. 350 total
Bore and stroke [mm x mm]	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	74,5 x 80,0	74,5 x 80,0
Compression ratio	9,3:1	9,3:1	10,0:1	10,0:1	10,0:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system	direct injection turbo-supercharged Intercooler variable valve timing start&stop system brake energy recuperation	direct injection turbo-supercharged Intercooler variable valve timing Gasoline Particulate Filter start&stop system brake energy recuperation	Plug‐in Hybrid direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system brake energy recuperation	Plug‐in Hybrid direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation

Drive axle	4x4	4x4	4x4	4x4	Front	Front
Gearbox	6 gear manual	7 gear automatic	7 gear automatic	7 gear automatic	6 gear automatic	6 gear automatic
Drive specifications	permanent all-wheel drive quattro	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS dual-clutch automatic gearbox S tronic	six-speed dual-clutch automatic gearbox S tronic	six-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	250	250	250	250	222 [130 el.]	222 [140 el.]
Acceleration 0–100 km/h [s]	5,3	4,6	4.1	4.1	7,6	7,6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	9,2-9,1	8,3-8,2	11,4-11,3	11,3	-	-
Out of town [l]	5,9-5,8	5,6-5,5	6,7-6,6	6,9	-	-
Combined [l]	7,1-7,0	6,6-6,5	8,4-8,3	8,5	2,0-1,9 [12,7-12,2 kWh]	2,0-1,9 [12,7-12,2 kWh]
CO2 emissions [g/km]	163-162	152-149	192-189	194	46-43	46-43

Low speed [l]	-	-	-	14,2	-	-
Medium speed [l]	-	-	-	9,8	-	-
High speed [l]	-	-	-	8,1	-	-
Extra high speed [l]	-	-	-	8,6	-	-
Combined speed [l]	-	-	-	9,5	2,2-1,8	2,2-1,8
CO2 emissions [g/km]	-	-	-	214	50-41	50-41

Emission standard	Euro 6	Euro 6	EU6	Euro 6d-TEMP	Euro 6d-ISC	Euro 6d-ISC
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	-	-
Battery type and capacity	-	-	-	-	Lithium-Ionen-Akkumulator, 8,8 A⋅h	Lithium-Ionen-Akkumulator, 8,8 A⋅h
Range with fully charged battery [km]	-	-	-	-	35-40	35-40
Charging time	-	-	-	-	-	-
Number of modules/cells	-	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	1505	1540	1585	1605	1630	1630
Overall weight [kg]	1990	2025	-	2065	2055	2055
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	750/1400	750/1400
Maximum front/rear axle load [kg]	1045/1050	1080/1045	-	1070/995	-	1070/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	340	340	335	335	280	280
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1180	-/1180	-/1175	-/1175	-/1120	-/1120
Boot length [mm]	778	778	778	778	764	764
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	655	655	663	663	675	678
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	955/-	955/-	955/-	955/-	955/-	955/-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	40	40
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0,34	0,34	0,34	0,34	0,32	0,32
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link, stabiliser bar	four-link, stabiliser bar	four-link, stabiliser bar	four-link, stabiliser bar
Tyre dimensions front	245/40 R18	245/40 R18	235/35 R19 91 Y XL	235/35 R19 91 Y XL	205/55 R16	205/55 R16
Tyre dimensions rear	245/40 R18	245/40 R18	235/35 R19 91 Y XL	235/35 R19 91 Y XL	205/55 R16	205/55 R16
Wheel size front	7,5J x 18	7,5J x 18	8J x 19	8J x 19	6.5 J x 16	6.5 J x 16
Wheel size rear	7,5J x 18	7,5J x 18	8J x 19	8J x 19	6.5 J x 16	6.5 J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	11,0/-	11,0/-	10,9/-	10,9/-

Overall length [mm]	4322	4322	4335	4335	4311	4311
Overall width without/including mirrors [mm]	1785/1966	1785/1966	1800/1966	1800/1966	1785/1966	1785/1966
Overall height [mm]	1404	1404	1411	1411	1426	1426
Wheelbase [mm]	2631	2631	2631	2631	2630	2630
Front wheel track [mm]	1535	1535	1559	1559	1543	1543
Rear wheel track [mm]	1511	1511	1514	1514	1514	1514
Forward overhang [mm]	870	870	886	886	868	868
Rear overhang [mm]	821	821	818	818	813	813
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	955	955	955	955	954	954
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 TDI 81kW	1.6 TDI 81 kW	1.6 TDI 85 kW	1.6 TDI 85 kW	30 TDI 85 kW	30 TDI 85 kW
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1598	1598	1598	1598
Maximum output / speed [kW/min-1]	81/3250-4000	81/3250-4000	85/3250-4000	85/3250-4000	85/3250-4000	85/3250-4000
Maximum torque [Nm/min-1]	250/1500-3000	250/1500-3000	250/1500-3000	250/1500-3000	250/1750-3200	250/1750-3200
Bore and stroke [mm x mm]	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge

Top speed [km/h]	200	200	202	202	205	205
Acceleration 0–100 km/h [s]	10.7	10.7	10.4	10.4	10.4	10,4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	4,9-4,3	4,6-4,3	4,7-4,5	4,4-4,1	5,2-5,0	4,3-4,2
Out of town [l]	3,8-3,5	3,8-3,5	3,9-3,7	4,0-3,7	4,1-4,0	3,8-3,7
Combined [l]	4,2-3,8	4,1-3,8	4,2-4,0	4,1-3,9	4,5-4,4	4,0-3,9
CO2 emissions [g/km]	109-99	107-99	111-106	109-103	118-114	105-103

Low speed [l]	-	-	-	-	5,9	-
Medium speed [l]	-	-	-	-	5,1	-
High speed [l]	-	-	-	-	4,6	-
Extra high speed [l]	-	-	-	-	5,6	-
Combined speed [l]	-	-	-	-	5,2	-
CO2 emissions [g/km]	-	-	-	-	137	-

Emission standard	EU6	EU6	EU6	EU6	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1335	1360	1335	1360	1365	1385
Overall weight [kg]	1820	1845	1820	1845	1875	1900
Maximum trailer weight unbraked/braked [kg]	660/1500	680/1500	660/1500	680/1500	680/1500	690/1500
Maximum front/rear axle load [kg]	-	-	-	-	1015/955	1035/955
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1220	-/1220	-/1220	-/1220	-/1220	-/1220
Boot length [mm]	778	778	778	778	778	778
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	679	679	679	679	679	679
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	955/-	955/-	955/-	955/-	955/-	955/-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	13	13
Air resistance [Cd]	-	-	-	-	0,32	0,32
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4313	4313	4313	4313	4313	4313
Overall width without/including mirrors [mm]	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966
Overall height [mm]	1426	1426	1426	1426	1426	1426
Wheelbase [mm]	2637	2637	2637	2637	2637	2637
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	806	806	806	806	806	806
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	955	955	955	955	955	955
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI 110 kW	2.0 TDI 110 kW	2.0 TDI 110 kW	2.0 TDI 110 kW quattro	35 TDI 110 kW	35 TDI 110 kW
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1968	1968	1968	1968	1968	1968
Maximum output / speed [kW/min-1]	110/3500-4000	110/3500-4000	110/3500-4000	110/3500-4000	110/3500-4000	110/3500-4000
Maximum torque [Nm/min-1]	340/1750-3000	340/1750-3000	340/1750-3000	340/1750-3000	340/1750-3000	340/1750-3000
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Front	Front	Front	4x4	Front	Front
Gearbox	6 gear manual	6 gear automatic	7 gear automatic	6 gear manual	6 gear manual	7 gear automatic
Drive specifications	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	seven-speed dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS	-	seven-speed dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge

Top speed [km/h]	218	218	218	214	218	218
Acceleration 0–100 km/h [s]	8.6	8.3	8.1	8.3	8.6	8.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5,2-4,9	5,5-5,2	5,3-5,1	5,9-5,6	5,4-5,3	5,3-5,2
Out of town [l]	3,9-3,5	4,3-4,0	4,1-3,8	4,4-4,1	3,9-3,7	4,8-4,5
Combined [l]	4,4-4,0	4,7-4,4	4,6-4,3	5,0-4,7	4,5-4,3	4,6-4,4
CO2 emissions [g/km]	111-105	122-116	119-112	128-122	117-113	120-115

Low speed [l]	-	-	-	-	6,3	7,2
Medium speed [l]	-	-	-	-	5,0	5,3
High speed [l]	-	-	-	-	4,3	4,6
Extra high speed [l]	-	-	-	-	5,1	5,3
Combined speed [l]	-	-	-	-	5,0	5,4
CO2 emissions [g/km]	-	-	-	-	131	141

Emission standard	EU6	EU6	EU6	EU6	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1380	1395	1415	1465	1415	1440
Overall weight [kg]	1865	1880	1900	1950	1900	1955
Maximum trailer weight unbraked/braked [kg]	690/1600	690/1600	700/1600	730/1800	700/1600	720/1600
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	380	380	380	340	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1220	-/1220	-/1220	-/1180	-/1220	-/1220
Boot length [mm]	778	778	778	778	778	778
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	679	679	679	679	679	679
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	955/-	955/-	955/-	955/-	955/-	955/-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	55	50	50
AdBlue tank volume [l]	-	-	-	-	13	13
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4313	4313	4313	4313	4313	4313
Overall width without/including mirrors [mm]	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966	1785/1966
Overall height [mm]	1426	1426	1426	1426	1426	1426
Wheelbase [mm]	2637	2637	2637	2637	2637	2637
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	806	806	806	806	806	806
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021	1021	1021
Headroom rear [mm]	955	955	955	955	955	955
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344	1422/1344
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI 135 kW	2.0 TDI 135 kW quattro	2.0 TDI 135 kW quattro	40 TDI 135 kW quattro
Date of sale	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1968	1968	1968	1968
Maximum output / speed [kW/min-1]	135/3500-4000	135/3500-4000	135/3500-4000	135/3500-4000
Maximum torque [Nm/min-1]	380/1750-3250	380/1750-3250	380/1750-3250	380/1750-3250
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	15,8:1	15,8:1	15,8:1	15,8:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Front	4x4	4x4	4x4
Gearbox	6 gear manual	6 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	-	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS six-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	234	230	230	230
Acceleration 0–100 km/h [s]	7,4	6,9	6,8	6,8
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	5,4-5,2	5,7-5,4	5,7-5,5	6,1-5,8
Out of town [l]	4,1-3,9	4,6-4,3	4,7-4,4	4,8-4,5
Combined [l]	4,6-4,4	5,0-4,8	5,1-4,8	5,3-5,0
CO2 emissions [g/km]	121-116	131-124	133-126	138-131

Low speed [l]	-	-	-	7,9
Medium speed [l]	-	-	-	6,3
High speed [l]	-	-	-	5,6
Extra high speed [l]	-	-	-	6,1
Combined speed [l]	-	-	-	6,2
CO2 emissions [g/km]	-	-	-	164

Emission standard	EU6	EU6	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1390	1500	1525	1550
Overall weight [kg]	1875	1985	2010	2010
Maximum trailer weight unbraked/braked [kg]	690/1600	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-

Boot volume [l]	380	340	340	340
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1220	-/1180	-/1180	-/1180
Boot length [mm]	778	778	778	778
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	679	679	679	679
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	955/-	955/-	955/-	955/-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	50	55	55	55
AdBlue tank volume [l]	-	-	-	12
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	225/45 R17 91Y
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	225/45 R17 91Y
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	7,5 J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	7,5 J x 17
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4313	4313	4313	4313
Overall width without/including mirrors [mm]	1785/1966	1785/1966	1785/1966	1785/1966
Overall height [mm]	1426	1426	1426	1426
Wheelbase [mm]	2637	2637	2637	2637
Front wheel track [mm]	1543	1543	1543	1543
Rear wheel track [mm]	1514	1514	1514	1514
Forward overhang [mm]	870	870	870	870
Rear overhang [mm]	806	806	806	806
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	1021	1021	1021	1021
Headroom rear [mm]	955	955	955	955
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1422/1344	1422/1344	1422/1344	1422/1344
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Sedan

	1.0 TFSI 85 kW	1.0 TFSI 85 kW	30 TFSI 85 kW	30 TFSI 85 kW	1.4 TFSI 110 kW ultra	1.4 TFSI 110 kW ultra
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	3/12	3/12	3/12	3/12	4/16	4/16
Engine displacement [cm³]	999	999	999	999	1395	1395
Maximum output / speed [kW/min-1]	85/5000-5500	85/5000-5500	85/5000-5500	85/5000-5500	110/5000-6000	110/5000-6000
Maximum torque [Nm/min-1]	200/2000-3500	200/2000-3500	200/1500-3500	200/1500-3500	250/1500-3500	250/1500-3500
Bore and stroke [mm x mm]	74,5 x 75,4	74,5 x 75,4	74,5 x 75,4	74,5 x 75,4	74,5 x 80,0	74,5 x 80,0
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,0:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	seven-speed dual-clutch automatic gearbox S tronic	-	seven-speed dual-clutch automatic gearbox S tronic	hydraulically operated single-disc dry clutch	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge

Top speed [km/h]	211	211	211	211	224	224
Acceleration 0–100 km/h [s]	9,9	9,9	9,9	9,9	8.2	8.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5,8-5,5	5,6-6,4	6,2-6,1	6,0-5,9	6,1-5,7	6,1-5,8
Out of town [l]	4,1-3,8	4,2-3,9	4,3-4,0	4,9-4,7	4,3-3,9	4,3-4,0
Combined [l]	4,7-4,4	4,7-4,4	5,0-4,8	5,3-5,1	5,0-4,6	5,0-4,7
CO2 emissions [g/km]	109-103	109-103	113-109	120-117	114-106	114-109

Low speed [l]	-	-	7,0	-	-	-
Medium speed [l]	-	-	5,4	-	-	-
High speed [l]	-	-	4,8	-	-	-
Extra high speed [l]	-	-	5,7	-	-	-
Combined speed [l]	-	-	5,5	-	-	-
CO2 emissions [g/km]	-	-	126	-	-	-

Emission standard	Euro 6	Euro 6	Euro 6d-TEMP	Euro 6d-TEMP	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1260	1280	1275	1290	1310	1320
Overall weight [kg]	1735	1755	1765	1785	1785	1795
Maximum trailer weight unbraked/braked [kg]	630/1300	640/1300	630/1300	640/1300	650/1500	660/1500
Maximum front/rear axle load [kg]	-	-	925/945	950/945	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	425	425	425	425	425	425
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/880	-/880	-/880	-/880	-/880	-/880
Boot length [mm]	951	951	951	951	951	951
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	688	688	688	688	688	688
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	942/-	942/-	942/-	942/-	942/-	942/-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4458	4458	4458	4458	4458	4458
Overall width without/including mirrors [mm]	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960
Overall height [mm]	1416	1416	1416	1416	1416	1416
Wheelbase [mm]	2637	2637	2637	2637	2637	2637
Front wheel track [mm]	1555	1555	1555	1555	1555	1555
Rear wheel track [mm]	1526	1526	1526	1526	1526	1526
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	951	951	951	951	951	951
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1006	1006	1006	1006	1006	1006
Headroom rear [mm]	924	924	924	924	924	924
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.5 TFSI 110 kW	1.5 TFSI 110 kW	35 TFSI 110 kW	35 TFSI 110 kW	2.0 TFSI 140 kW	2.0 TFSI 140 kW
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1498	1498	1498	1498	1984	1984
Maximum output / speed [kW/min-1]	110/5000-6000	110/5000-6000	110/5000-6000	110/5000-6000	140/4200-6000	140/4200-6000
Maximum torque [Nm/min-1]	250/1500-3500	250/1500-3500	250/1500-3500	250/1500-3500	320/1500-4100	320/1500-4100
Bore and stroke [mm x mm]	74,5 x 85,9	74,5 x 85,9	74,5 x 85,9	74,5 x 85,9	82,5 x 92,8	82,5 x 92,8
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	11,7:1	11,7:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	224	224	224	224	250	250
Acceleration 0–100 km/h [s]	8.2	8.2	8.2	8.2	6,9	6,8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6,4-6,3	6,2-6,0	6,8-6,6	6,6-6,5	7,6-7,3	7,4-7,1
Out of town [l]	4,5-4,2	4,3-4,0	4,6-4,3	4,4-4,2	4,7-4,4	4,9-4,6
Combined [l]	5,2-5,0	5,1-4,8	5,4-5,1	5,2-5,0	5,8-5,5	5,8-5,5
CO2 emissions [g/km]	119-113	115-109	124-117	120-115	131-125	131-125

Low speed [l]	-	-	8,3	8,6	-	-
Medium speed [l]	-	-	6,0	6,1	-	-
High speed [l]	-	-	5,3	5,3	-	-
Extra high speed [l]	-	-	6,2	6,1	-	-
Combined speed [l]	-	-	6,2	6,2	-	-
CO2 emissions [g/km]	-	-	140	141	-	-

Emission standard	EU6	EU6	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6	Euro 6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1315	1325	1335	1355	1375	1395
Overall weight [kg]	1790	1800	1835	1850	1840	1870
Maximum trailer weight unbraked/braked [kg]	650/1500	660/1500	660/1500	670/1500	680/1600	690/1600
Maximum front/rear axle load [kg]	-	-	965/975	980/975	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	425	425	425	425	425	425
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/880	-/880	-/880	-/880	-/880	-/880
Boot length [mm]	951	951	951	951	951	951
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	688	688	688	688	688	688
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	942/-	942/-	942/-	942/-	942/-	942/-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	0,29	0,29	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4458	4458	4458	4458	4458	4458
Overall width without/including mirrors [mm]	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960
Overall height [mm]	1416	1416	1416	1416	1416	1416
Wheelbase [mm]	2637	2637	2637	2637	2637	2637
Front wheel track [mm]	1555	1555	1555	1555	1555	1555
Rear wheel track [mm]	1526	1526	1526	1526	1526	1526
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	951	951	951	951	951	951
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1006	1006	1006	1006	1006	1006
Headroom rear [mm]	924	924	924	924	924	924
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TFSI 140 kW quattro	40 TFSI 140 kW quattro	Gasoline Particulate Filter S3 221 kW quattro	S3 228 kW quattro	S3 228 kW quattro	RS3 294 kW
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	5/20
Engine displacement [cm³]	1984	1984	1984	1984	1984	2480
Maximum output / speed [kW/min-1]	140/4200-6000	140/4200-6000	221/5300-6500	228/5800-6500	228/5500-6500	294/5850-7000
Maximum torque [Nm/min-1]	320/1500-4100	320/1500-4100	400/2000-5200	380/1850-5700	400/2000-5400	480/1950-5850
Bore and stroke [mm x mm]	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8
Compression ratio	11,7:1	11,7:1	9,3:1	9,3:1	9,3:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift Gasoline Particulate Filter start&stop system	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system	direct injection turbo-supercharged Intercooler variable valve timing start&stop system brake energy recuperation

Drive axle	4x4	4x4	4x4	4x4	4x4	4x4
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	6 gear manual	7 gear automatic	7 gear automatic
Drive specifications	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS dual-clutch automatic gearbox S tronic

Top speed [km/h]	242	242	250	250	250	250
Acceleration 0–100 km/h [s]	6,2	6,2	4,7	5,3	4,6	4.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7,4-7,2	8,4-8,2	8,8-8,7	9,2-9,1	8,3-8,2	11,4-11,3
Out of town [l]	5,0-4,8	5,4-5,1	5,9-5,8	5,9-5,8	5,5-5,4	6,7-6,6
Combined [l]	5,9-5,7	6,5-6,3	6,9-6,8	7,1-7,0	6,5-6,4	8,4-8,3
CO2 emissions [g/km]	136-132	148-142	158-155	163-162	151-148	191-188

Low speed [l]	-	10,3	11,0	-	-	-
Medium speed [l]	-	7,5	8,1	-	-	-
High speed [l]	-	6,2	6,8	-	-	-
Extra high speed [l]	-	6,9	7,6	-	-	-
Combined speed [l]	-	7,3	7,9	-	-	-
CO2 emissions [g/km]	-	164	179	-	-	-

Emission standard	Euro 6	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6	Euro 6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1480	1495	1570	1505	1545	1590
Overall weight [kg]	1940	1990	2045	1980	2020	-
Maximum trailer weight unbraked/braked [kg]	740/1600	740/1600	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	1050/1045	1085/1035	-
Maximum vertical load on the tow bar [kg]	75	75	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	425	425	390	390	390	315
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/880	-/880	-/845	-/845	-/845	-/770
Boot length [mm]	951	951	951	951	951	951
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	688	688	664	664	664	672
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	942/-	942/-	942/-	942/-	942/-	942/-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	0,31	0,31	0,31	0,33
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link	four-link	four-link, stabiliser bar
Tyre dimensions front	205/60 R16 91W	225/45 R17 91Y	245/40 R18 92 Y xl	245/40 R18	245/40 R18	235/35 R19 91 Y XL
Tyre dimensions rear	205/60 R16 91W	225/45 R17 91Y	245/40 R18 92 Y xl	245/40 R18	245/40 R18	235/35 R19 91 Y XL
Wheel size front	6.5J x 16	7,5J x 17	7,5J x 18	7,5J x 18	7,5J x 18	8J x 19
Wheel size rear	6.5J x 16	7,5J x 17	7,5J x 18	7,5J x 18	7,5J x 18	8J x 19
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	11,0/-	11,0/-	11,0/-	11,0/-

Overall length [mm]	4458	4458	4466	4466	4466	4479
Overall width without/including mirrors [mm]	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960	1802/1960
Overall height [mm]	1416	1416	1392	1392	1392	1399
Wheelbase [mm]	2637	2637	2631	2631	2631	2631
Front wheel track [mm]	1555	1555	1551	1551	1551	1559
Rear wheel track [mm]	1526	1526	1526	1526	1526	1528
Forward overhang [mm]	870	870	870	870	870	886
Rear overhang [mm]	951	951	965	965	965	962
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1006	1006	1006	1006	1006	1006
Headroom rear [mm]	924	924	924	924	924	924
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	Gasoline Particulate Filter RS3 294 kW	1.6 TDI 81kW	1.6 TDI 81 kW	1.6 TDI 85 kW	1.6 TDI 85 kW	30 TDI 85 kW
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	5/20	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2480	1598	1598	1598	1598	1598
Maximum output / speed [kW/min-1]	294/5850-7000	81/3250-4000	81/3250-4000	85/3250-4000	85/3250-4000	85/3250-4000
Maximum torque [Nm/min-1]	480/1950-5850	250/1500-3000	250/1500-3000	250/1500-3000	250/1500-3000	250/1750-3200
Bore and stroke [mm x mm]	82,5 x 92,8	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5
Compression ratio	10,0:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged Intercooler variable valve timing Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	4x4	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS dual-clutch automatic gearbox S tronic	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-

Top speed [km/h]	250	203	203	205	205	211
Acceleration 0–100 km/h [s]	4.1	10.7	10.7	10.4	10.4	10.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11,3	4,8-4,2	4,5-4,2	4,7-4,5	4,4-4,1	5,2-5,0
Out of town [l]	6,9	3,7-3,4	3,7-3,4	3,8-3,6	4,0-3,7	4,0-3,8
Combined [l]	8,5	4,1-3,7	4,0-3,7	4,1-4,0	4,1-3,9	4,4-4,2
CO2 emissions [g/km]	194	108-98	106-98	108-104	108-102	117-112

Low speed [l]	14,2	-	-	-	-	5,9
Medium speed [l]	9,8	-	-	-	-	5,1
High speed [l]	8,1	-	-	-	-	4,5
Extra high speed [l]	8,6	-	-	-	-	5,4
Combined speed [l]	9,4	-	-	-	-	5,1
CO2 emissions [g/km]	213	-	-	-	-	135

Emission standard	Euro 6d-TEMP	EU6	EU6	EU6	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1610	1340	1380	1345	1370	1375
Overall weight [kg]	2060	1815	1840	1820	1845	1870
Maximum trailer weight unbraked/braked [kg]	-	670/1500	680/1500	670/1500	680/1500	680/1500
Maximum front/rear axle load [kg]	1070/990	-	-	-	-	1010/960
Maximum vertical load on the tow bar [kg]	-	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	315	425	425	425	425	425
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/770	-/880	-/880	-/880	-/880	-/880
Boot length [mm]	951	951	951	951	951	951
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	672	688	688	688	688	688
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	942/-	942/-	942/-	942/-	942/-	942/-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	13
Air resistance [Cd]	0,33	-	-	-	-	0,29
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link, stabiliser bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar
Tyre dimensions front	235/35 R19 91 Y XL	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	235/35 R19 91 Y XL	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	8J x 19	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	8J x 19	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11,0/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4479	4458	4458	4458	4458	4458
Overall width without/including mirrors [mm]	1802/1960	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960
Overall height [mm]	1399	1416	1416	1416	1416	1416
Wheelbase [mm]	2631	2637	2637	2637	2637	2637
Front wheel track [mm]	1559	1555	1555	1555	1555	1555
Rear wheel track [mm]	1528	1526	1526	1526	1526	1526
Forward overhang [mm]	886	870	870	870	870	870
Rear overhang [mm]	962	951	951	951	951	951
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1006	1006	1006	1006	1006	1006
Headroom rear [mm]	924	924	924	924	924	924
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	30 TDI 85 kW	2.0 TDI 110 kW	2.0 TDI 110 kW	2.0 TDI 110 kW	2.0 TDI 110 kW quattro	35 TDI 110 kW
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1968	1968	1968	1968	1968
Maximum output / speed [kW/min-1]	85/3250-4000	110/3500-4000	110/3500-4000	110/3500-4000	110/3500-4000	110/3500-4000
Maximum torque [Nm/min-1]	250/1750-3200	340/1750-3000	340/1750-3000	340/1750-3000	340/1750-3000	340/1750-3000
Bore and stroke [mm x mm]	79,5 x 80,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	4x4	Front
Gearbox	7 gear automatic	6 gear manual	6 gear automatic	7 gear automatic	6 gear manual	6 gear manual
Drive specifications	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	seven-speed dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS	-

Top speed [km/h]	211	224	224	224	220	224
Acceleration 0–100 km/h [s]	10,4	8.6	8.3	8.1	8.3	8.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	4,3-4,2	5,2-4,9	5,5-5,2	5,3-5,1	5,8-5,6	5,4-5,3
Out of town [l]	3,7-3,6	3,9-3,5	4,3-4,0	4,1-3,8	4,4-4,2	3,8-3,6
Combined [l]	3,9-3,8	4,4-4,0	4,7-4,4	4,6-4,3	4,9-4,7	4,4-4,2
CO2 emissions [g/km]	104-101	110-104	121-115	119-112	129-124	116-111

Low speed [l]	-	-	-	-	-	6,3
Medium speed [l]	-	-	-	-	-	5,0
High speed [l]	-	-	-	-	-	4,3
Extra high speed [l]	-	-	-	-	-	4,9
Combined speed [l]	-	-	-	-	-	4,9
CO2 emissions [g/km]	-	-	-	-	-	129

Emission standard	Euro 6d-TEMP	EU6	EU6	EU6	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1395	1385	1395	1425	1470	1425
Overall weight [kg]	1895	1860	1870	1900	1945	1900
Maximum trailer weight unbraked/braked [kg]	690/1500	690/1600	690/1600	710/1600	730/1800	710/1600
Maximum front/rear axle load [kg]	1035/960	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	425	425	425	425	425	425
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/880	-/880	-/880	-/880	-/880	-/880
Boot length [mm]	951	951	951	951	951	951
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	688	688	688	688	688	688
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	942/-	942/-	942/-	942/-	942/-	942/-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	55	50
AdBlue tank volume [l]	13	-	-	-	-	13
Air resistance [Cd]	0,29	-	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	rigid with trailing arms and torsion bar	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4458	4458	4458	4458	4458	4458
Overall width without/including mirrors [mm]	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960
Overall height [mm]	1416	1416	1416	1416	1416	1416
Wheelbase [mm]	2637	2637	2637	2637	2637	2637
Front wheel track [mm]	1555	1555	1555	1555	1555	1555
Rear wheel track [mm]	1526	1526	1526	1526	1526	1526
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	951	951	951	951	951	951
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1006	1006	1006	1006	1006	1006
Headroom rear [mm]	924	924	924	924	924	924
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	35 TDI 110 kW	2.0 TDI 135 kW	2.0 TDI 135 kW quattro	2.0 TDI 135 kW quattro	40 TDI 135 kW quattro
Date of sale	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1968	1968	1968	1968	1968
Maximum output / speed [kW/min-1]	110/3500-4000	135/3500-4000	135/3500-4000	135/3500-4000	135/3500-4000
Maximum torque [Nm/min-1]	340/1750-3000	380/1750-3250	380/1750-3250	380/1750-3250	380/1750-3250
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,2:1	15,8:1	15,8:1	15,8:1	15,8:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Front	Front	4x4	4x4	4x4
Gearbox	7 gear automatic	6 gear manual	6 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	seven-speed dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS six-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	224	241	237	237	237
Acceleration 0–100 km/h [s]	8.1	7,4	6,9	6,8	6,8
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	5,3-5,2	5,4-5,2	5,7-5,5	5,7-5,6	6,0-5,8
Out of town [l]	4,1-3,9	4,1-3,9	4,6-4,4	4,7-4,5	4,7-4,4
Combined [l]	4,5-4,3	4,6-4,4	5,0-4,8	5,1-4,9	5,2-4,9
CO2 emissions [g/km]	119-114	120-115	131-127	133-129	136-130

Low speed [l]	7,2	-	-	-	7,9
Medium speed [l]	5,3	-	-	-	6,3
High speed [l]	4,6	-	-	-	5,5
Extra high speed [l]	5,2	-	-	-	6,0
Combined speed [l]	5,3	-	-	-	6,1
CO2 emissions [g/km]	139	-	-	-	161

Emission standard	Euro 6d-TEMP	EU6	EU6	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1450	1395	1505	1530	1555
Overall weight [kg]	1950	1870	1980	2005	2005
Maximum trailer weight unbraked/braked [kg]	720/1600	690/1600	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	425	425	425	425	425
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/880	-/880	-/880	-/880	-/880
Boot length [mm]	951	951	951	951	951
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	688	688	688	688	688
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	942/-	942/-	942/-	942/-	942/-

Number of doors	4	4	4	4	4
Number of seats	5	5	5	5	5
Fuel tank volume [l]	50	50	55	55	55
AdBlue tank volume [l]	13	-	-	-	12
Air resistance [Cd]	-	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	225/45 R17 91Y
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	225/45 R17 91Y
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7,5 J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7,5 J x 17
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4458	4458	4458	4458	4458
Overall width without/including mirrors [mm]	1796/1960	1796/1960	1796/1960	1796/1960	1796/1960
Overall height [mm]	1416	1416	1416	1416	1416
Wheelbase [mm]	2637	2637	2637	2637	2637
Front wheel track [mm]	1555	1555	1555	1555	1555
Rear wheel track [mm]	1526	1526	1526	1526	1526
Forward overhang [mm]	870	870	870	870	870
Rear overhang [mm]	951	951	951	951	951
Clearance [mm]	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1006	1006	1006	1006	1006
Headroom rear [mm]	924	924	924	924	924
Front elbow/shoulder width [mm]	1453/1392	1453/1392	1453/1392	1453/1392	1453/1392
Rear elbow/shoulder width [mm]	1423/1345	1423/1345	1423/1345	1423/1345	1423/1345
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Convertible

	1.4 TFSI 85 kW	1.4 TFSI 85 kW	1.4 TFSI 110 kW ultra	1.4 TFSI 110 kW ultra	1.5 TFSI 110 kW	1.5 TFSI 110 kW
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1395	1395	1395	1395	1498	1498
Maximum output / speed [kW/min-1]	85/5000-6000	85/5000-6000	110/5000-6000	110/5000-6000	110/5000-6000	110/5000-6000
Maximum torque [Nm/min-1]	200/1400-3500	200/1400-3500	250/1500-3500	250/1500-3500	250/1500-3500	250/1500-3500
Bore and stroke [mm x mm]	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0	74,5 x 85,9	74,5 x 85,9
Compression ratio	10,0:1	10,0:1	10,0:1	10,0:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	seven-speed dual-clutch automatic gearbox S tronic	hydraulically operated single-disc dry clutch	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge

Top speed [km/h]	203	203	222	222	222	222
Acceleration 0–100 km/h [s]	10,6	10,6	8.9	8.9	8.9	8.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7,1-6,9	6,6-6,3	6,3-5,9	6,4-6,1	6,6-6,4	6,4-6,2
Out of town [l]	4,7-4,4	4,7-4,4	4,5-4,1	4,6-4,3	4,7-4,4	4,6-4,3
Combined [l]	5,6-5,3	5,4-5,1	5,2-4,8	5,2-4,9	5,4-5,2	5,3-5,0
CO2 emissions [g/km]	126-120	123-116	119-110	119-114	124-118	120-114

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1430	1450	1450	1470	1455	1470
Overall weight [kg]	1855	1875	1775	1890	1880	1895
Maximum trailer weight unbraked/braked [kg]	710/1400	720/1400	720/1500	730/1500	720/1500	730/1500
Maximum front/rear axle load [kg]	950/985	970/985	-	-	965/1000	985/1000
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	320 [280 folded roof]	320 [280 folded roof]	320 [280 folded roof]	320 [280 folded roof]	320 [280 folded roof]	320 [280 folded roof]
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/680	-/680	-/680	-/680	-/680	-/680
Boot length [mm]	984	984	984	984	984	984
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	685	685	685	685	685	685
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	945/-	945/-	945/-	945/-	945/-	945/-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0,31	0,31	-	-	0,30	0,30
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4423	4423	4423	4423	4423	4423
Overall width without/including mirrors [mm]	1793/1960	1793/1960	1793/1960	1793/1960	1793/1960	1793/1960
Overall height [mm]	1409	1409	1409	1409	1409	1409
Wheelbase [mm]	2595	2595	2595	2595	2595	2595
Front wheel track [mm]	1555	1555	1555	1555	1555	1555
Rear wheel track [mm]	1526	1526	1526	1526	1526	1526
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	958	958	958	958	958	958
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1000	1000	1000	1000	1000	1000
Headroom rear [mm]	921	921	921	921	921	921
Front elbow/shoulder width [mm]	1468/1392	1468/1392	1468/1392	1468/1392	1468/1392	1468/1392
Rear elbow/shoulder width [mm]	1203/1162	1203/1162	1203/1162	1203/1162	1203/1162	1203/1162
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	35 TFSI 110 kW	35 TFSI 110 kW	2.0 TFSI 140 kW	2.0 TFSI 140 kW	2.0 TFSI 140 kW quattro	40 TFSI 140 kW quattro
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1498	1498	1984	1984	1984	1984
Maximum output / speed [kW/min-1]	110/5000-6000	110/5000-6000	140/4200-6000	140/4200-6000	140/4200-6000	140/4200-6000
Maximum torque [Nm/min-1]	250/1500-3500	250/1500-3500	320/1500-4100	320/1500-4100	320/1500-4100	320/1500-4100
Bore and stroke [mm x mm]	74,5 x 85,9	74,5 x 85,9	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8
Compression ratio	10,5:1	10,5:1	11,7:1	11,7:1	11,7:1	11,7:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology cylinder on demand (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system	direct and indirect injection system engine operation in B cycle (modified Miller cycle) turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of intake valves Audi valvelift start&stop system

Drive axle	Front	Front	Front	Front	4x4	4x4
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	-	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	222	222	250	250	242	242
Acceleration 0–100 km/h [s]	8.9	8.9	7,3	7,3	6,9	6,9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7,0-6,8	6,8-6,8	7,8-7,5	7,7-7,4	7,8-7,6	8,6-8,4
Out of town [l]	4,8-4,5	4,6-4,4	4,9-4,6	5,1-4,8	5,4-5,2	5,8-5,4
Combined [l]	5,3-5,3	5,4-5,2	6,0-5,7	6,1-5,8	6,3-6,1	6,8-6,5
CO2 emissions [g/km]	128-122	124-119	136-130	138-131	144-139	155-148

Low speed [l]	8,4	8,7	-	-	-	10,6
Medium speed [l]	6,3	6,5	-	-	-	7,9
High speed [l]	5,5	5,6	-	-	-	6,5
Extra high speed [l]	6,5	6,4	-	-	-	7,2
Combined speed [l]	6,4	6,5	-	-	-	7,6
CO2 emissions [g/km]	145	147	-	-	-	171

Emission standard	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6	Euro 6	Euro 6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1480	1500	1525	1550	1645	1665
Overall weight [kg]	1880	1895	1930	1965	2055	2065
Maximum trailer weight unbraked/braked [kg]	740/1500	750/1500	750/1600	750/1600	750/1600	750/1600
Maximum front/rear axle load [kg]	965/980	975/995	-	-	1065/1070	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	320 [280 folded roof]	320 [280 folded roof]	320 [280 folded roof]	320 [280 folded roof]	285 [245 folded roof]	285 [245 folded roof]
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/680	-/680	-/680	-/680	-/645	-/645
Boot length [mm]	984	984	984	984	984	984
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	685	685	685	685	685	685
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	945/-	945/-	945/-	945/-	945/-	945/-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	50	50	50	50	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0,31	0,31	-	-	0,31	0,31
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	225/45 R17 91Y
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	225/45 R17 91Y
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7,5J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7,5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4423	4423	4423	4423	4423	4423
Overall width without/including mirrors [mm]	1793/1960	1793/1960	1793/1960	1793/1960	1793/1960	1793/1960
Overall height [mm]	1409	1409	1409	1409	1409	1409
Wheelbase [mm]	2595	2595	2595	2595	2595	2595
Front wheel track [mm]	1555	1555	1555	1555	1555	1555
Rear wheel track [mm]	1526	1526	1526	1526	1526	1526
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	958	958	958	958	958	958
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1000	1000	1000	1000	1000	1000
Headroom rear [mm]	921	921	921	921	921	921
Front elbow/shoulder width [mm]	1468/1392	1468/1392	1468/1392	1468/1392	1468/1392	1468/1392
Rear elbow/shoulder width [mm]	1203/1162	1203/1162	1203/1162	1203/1162	1203/1162	1203/1162
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	Gasoline Particulate Filter S3 221 kW quattro	S3 228 kW quattro	2.0 TDI 110 kW	2.0 TDI 110 kW	2.0 TDI 110 kW	2.0 TDI 110 kW quattro
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1984	1984	1968	1968	1968	1968
Maximum output / speed [kW/min-1]	221/5300-6500	228/5500-6500	110/3500-4000	110/3500-4000	110/3500-4000	110/3500-4000
Maximum torque [Nm/min-1]	400/2000-5200	400/2000-5400	340/1750-3000	340/1750-3000	340/1750-3000	340/1750-3000
Bore and stroke [mm x mm]	82,5 x 92,8	82,5 x 92,8	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	9,3:1	9,3:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves Gasoline Particulate Filter start&stop system	direct and indirect injection system turbo-supercharged Intercooler variable timing of intake and exhaust valves variable lift of exhaust valves start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation

Drive axle	4x4	4x4	Front	Front	Front	4x4
Gearbox	7 gear automatic	7 gear automatic	6 gear manual	6 gear automatic	7 gear automatic	6 gear manual
Drive specifications	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	-	dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	seven-speed dual-clutch automatic gearbox S tronic steering wheel gearbox control subject to a surcharge	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS

Top speed [km/h]	250	250	224	224	224	220
Acceleration 0–100 km/h [s]	5,2	5,1	8.9	8.8	8.7	8.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	9,1-9,0	8,5-8,4	5,4-5,1	5,7-5,4	5,4-5,2	5,9-5,7
Out of town [l]	6,2-6,1	5,8-5,7	4,1-3,7	4,5-4,2	4,3-4,0	4,5-4,3
Combined [l]	7,3-7,1	6,8-6,7	4,6-4,2	4,9-4,6	4,7-4,4	5,0-4,8
CO2 emissions [g/km]	166-162	156-153	117-110	127-120	122-115	132-127

Low speed [l]	11,3	-	-	-	-	-
Medium speed [l]	8,5	-	-	-	-	-
High speed [l]	7,2	-	-	-	-	-
Extra high speed [l]	8,0	-	-	-	-	-
Combined speed [l]	8,3	-	-	-	-	-
CO2 emissions [g/km]	188	-	-	-	-	-

Emission standard	Euro 6d-TEMP	Euro 6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1740	1710	1525	1555	1575	1615
Overall weight [kg]	2110	2075	1960	1980	2000	2040
Maximum trailer weight unbraked/braked [kg]	-	-	750/1600	750/1600	740/1600	750/1800
Maximum front/rear axle load [kg]	-	1085/1080	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	75	75	75	75
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	285 [245 folded roof]	285 [245 folded roof]	320 [280 folded roof]	320 [280 folded roof]	320 [280 folded roof]	285 [245 folded roof]
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/645	-/645	-/680	-/680	-/680	-/645
Boot length [mm]	984	984	984	984	984	984
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	665	665	685	685	685	685
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	945/-	945/-	945/-	945/-	945/-	945/-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	55	55	50	50	50	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	0,33	-	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	245/40 R18 92 Y xl	245/40 R18	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	245/40 R18 92 Y xl	245/40 R18	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	7,5J x 18	7,5J x 18	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	7,5J x 18	7,5J x 18	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4431	4431	4423	4423	4423	4423
Overall width without/including mirrors [mm]	1793/1960	1793/1960	1793/1960	1793/1960	1793/1960	1793/1960
Overall height [mm]	1388	1388	1409	1409	1409	1409
Wheelbase [mm]	2596	2596	2595	2595	2595	2595
Front wheel track [mm]	1535	1535	1555	1555	1555	1555
Rear wheel track [mm]	1510	1510	1526	1526	1526	1526
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	965	965	958	958	958	958
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1000	1000	1000	1000	1000	1000
Headroom rear [mm]	921	921	921	921	921	921
Front elbow/shoulder width [mm]	1468/1392	1468/1392	1468/1392	1468/1392	1468/1392	1468/1392
Rear elbow/shoulder width [mm]	1203/1162	1203/1162	1203/1162	1203/1162	1203/1162	1203/1162
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI 135 kW	2.0 TDI 135 kW quattro	2.0 TDI 135 kW quattro
Date of sale	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16
Engine displacement [cm³]	1968	1968	1968
Maximum output / speed [kW/min-1]	135/3500-4000	135/3500-4000	135/3500-4000
Maximum torque [Nm/min-1]	380/1750-3250	380/1750-3250	380/1750-3250
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	15,8:1	15,8:1	15,8:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter cartridge catalytic converter start&stop system brake energy recuperation

Drive axle	Front	4x4	4x4
Gearbox	6 gear manual	6 gear automatic	7 gear automatic
Drive specifications	-	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS six-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro with electronically controlled multi-plate clutch electronic differential lock EDS seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	241	237	237
Acceleration 0–100 km/h [s]	7,9	7,6	7,4
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	5,7-5,5	6,0-5,8	6,0-5,8
Out of town [l]	4,3-4,1	4,8-4,6	4,9-4,7
Combined [l]	4,8-4,6	5,2-5,0	5,3-5,1
CO2 emissions [g/km]	125-120	136-132	138-134

Emission standard	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1555	1670	1685
Overall weight [kg]	1980	2095	2110
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	320 [280 folded roof]	285 [245 folded roof]	285 [245 folded roof]
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/680	-/645	-/645
Boot length [mm]	984	984	984
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	685	685	685
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	945/-	945/-	945/-

Number of doors	2	2	2
Number of seats	4	4	4
Fuel tank volume [l]	50	55	55
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	four-link	four-link	four-link
Tyre dimensions front	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Tyre dimensions rear	205/60 R16 91W	205/60 R16 91W	205/60 R16 91W
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-
Brake dimensions rear	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-

Overall length [mm]	4423	4423	4423
Overall width without/including mirrors [mm]	1793/1960	1793/1960	1793/1960
Overall height [mm]	1409	1409	1409
Wheelbase [mm]	2595	2595	2595
Front wheel track [mm]	1555	1555	1555
Rear wheel track [mm]	1526	1526	1526
Forward overhang [mm]	870	870	870
Rear overhang [mm]	958	958	958
Clearance [mm]	-	-	-
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	1000	1000	1000
Headroom rear [mm]	921	921	921
Front elbow/shoulder width [mm]	1468/1392	1468/1392	1468/1392
Rear elbow/shoulder width [mm]	1203/1162	1203/1162	1203/1162
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Gallery

Audi A3 8V facelift 2016 interior

Audi A3 8V facelift 2016 front seats

Audi A3 8V facelift 2016 rear seats

Audi A3 8V facelift 2016 dimensions

Audi A3 Sportback 8V facelift 2016 boot

Audi A3 Sportback 8V facelift 2016 boot volume 380 l

Audi A3 Sportback 8V facelift 2016 dimensions

Audi A3 e-tron 8V facelift 2017 dimensions

Audi A3 sedan 8V facelift 2016 boot

Audi A3 sedan 8v facelift 2016 dimensions

Audi A3 8v facelift 2016 convertible

Audi A3 8v facelift 2017 convertible

Audi A3 8v facelift 2018 convertible

Audi A3 Cabrio 8v facelift 2016 dimensions

Audi S3 8V facelift 2016 convertible

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
