Audi A4
Date of manufacture
2012 – 2015 (Sedan)
2012 – 2015 (Estate)
Platform
Volkswagen Group B8 (MLB/MLP)
Manufacturing locations
Ingolstadt, Germany
Neckarsulm, Germany
Designer
Julian Höenig
Ingo Von Bargen
Tags
D-segment
German cars
The Audi A4 has been manufactured since 2012 and is made in Germany. The car offers both sedan and estate body styles. It is based on the Volkswagen Group B8 (MLB/MLP) platform and offers a wide range of engines – petrol and diesel. The most powerful model is the RS4 with 331 kW, the top speed is 250 km/h and the best acceleration 0-100 km/h in 4.7 seconds. The most fuel-efficient engine is the 2.0 TDI with 4.2 l/100 km consumption and 109 g/km emissions. The estate body offers a luggage capacity of 490 l, while the sedan model offers 480 l. In terms of safety, the Audi A4 was tested by EURONCAP in 2009 and achieved a rating of 5 out of 5 points.
Car body style

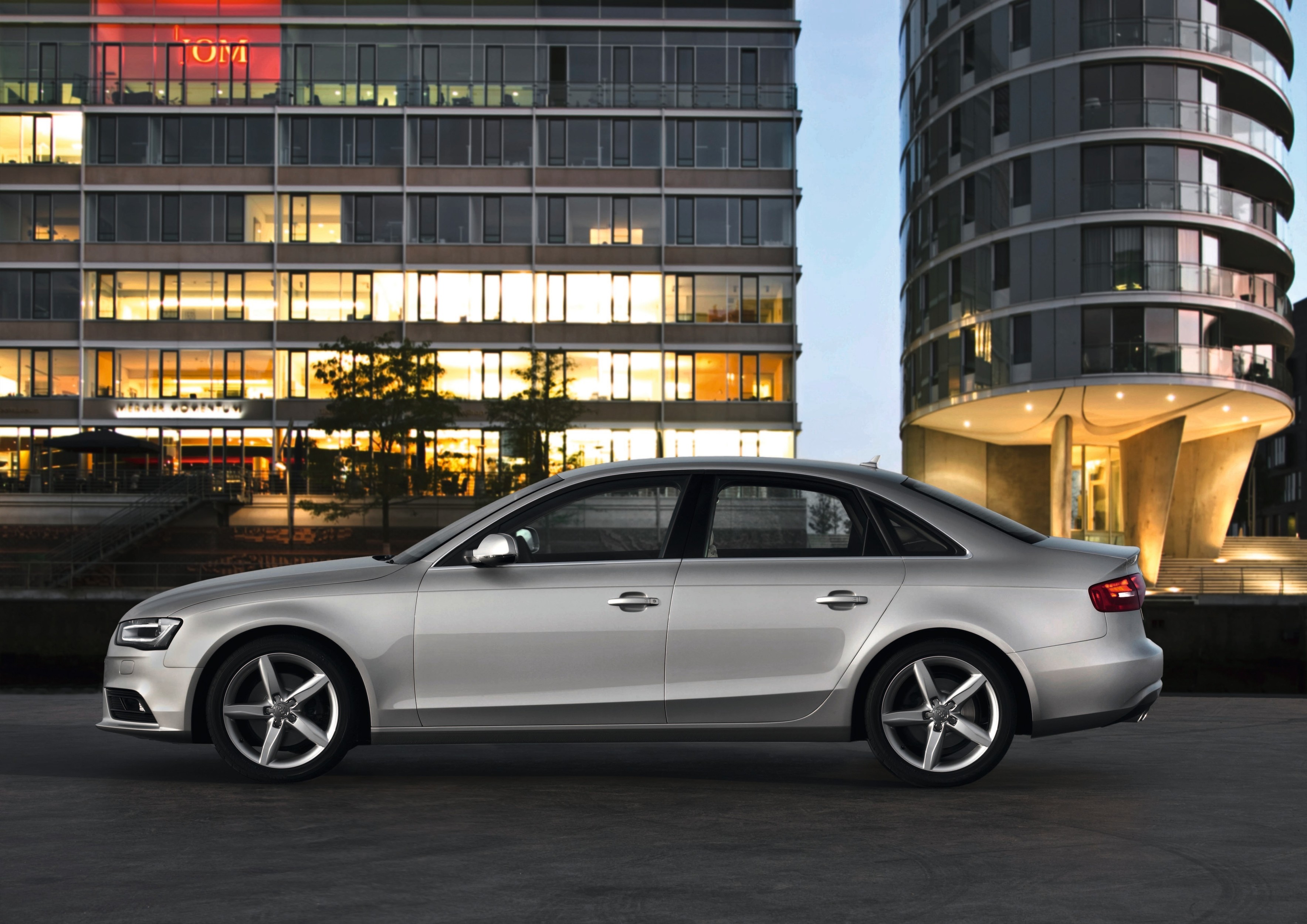

Sedan
after upgrade (facelift)
Date of manufacture
2012 – 2015Internal designation
B8/8KEngine size
Petrol
Diesel

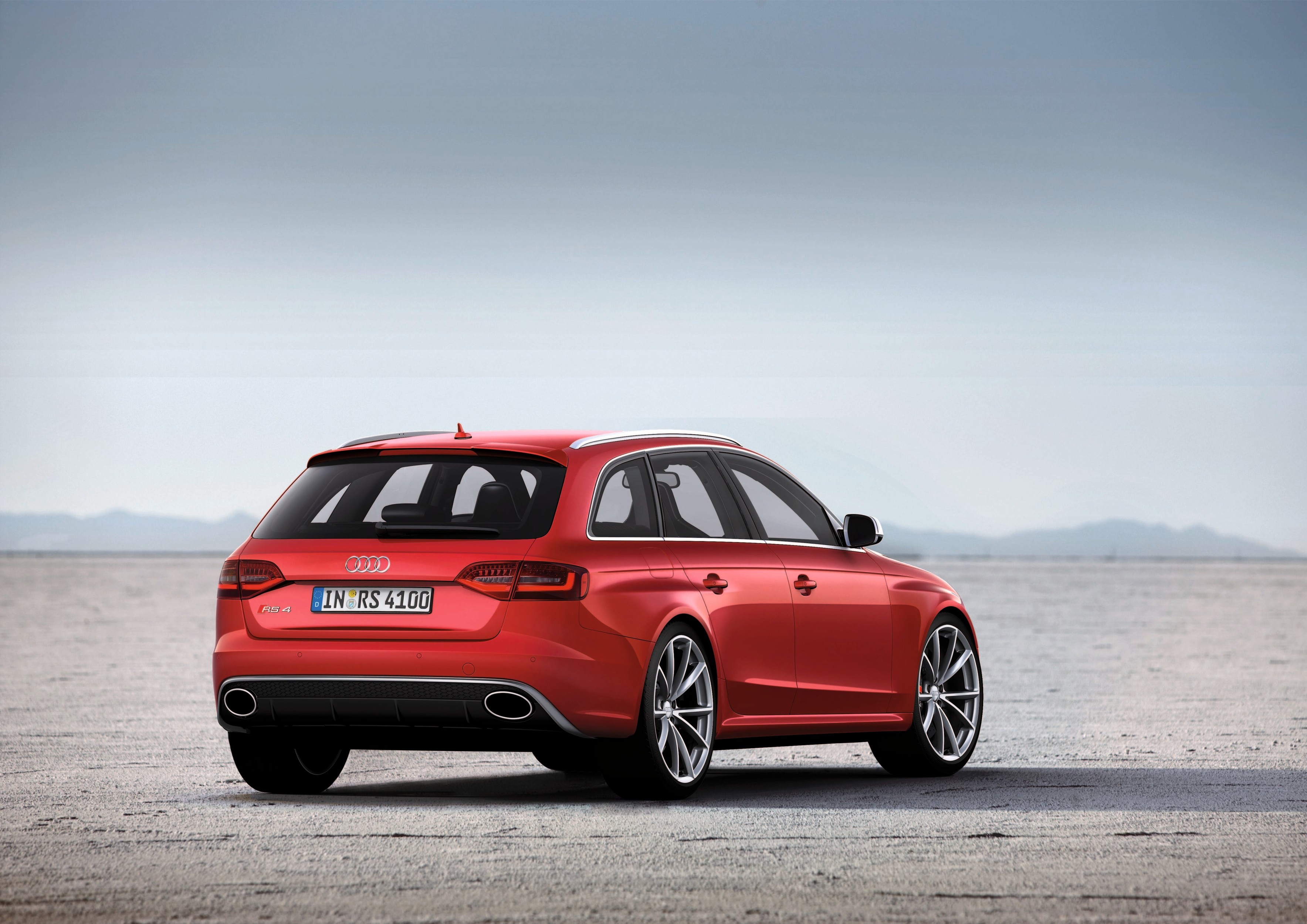

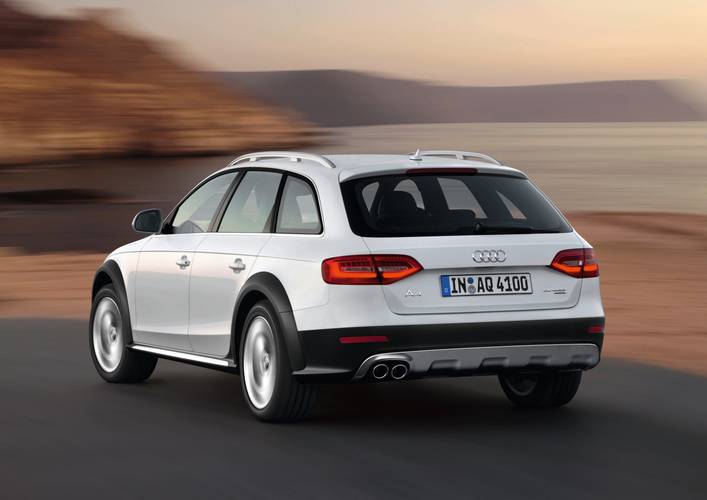

Estate (Avant)
after upgrade (facelift)
Date of manufacture
2012 – 2015Internal designation
B8/8KEngine size
Petrol
Diesel
Technical data
Sedan
| 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI quattro | 2.0 TFSI flexible fuel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1798 | 1798 | 1798 | 1984 |
| Maximum output / speed [kW/min-1] | 88/3650-6200 | 88/3650-6200 | 125/3800-6200 | 125/3800-6200 | 125/3800-6200 | 132/4000-6000 |
| Maximum torque [Nm/min-1] | 230/1500-3650 | 230/1500-3650 | 320/1400-3700 | 320/1400-3700 | 320/1400-3700 | 320/1500-3900 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 208 | 200 | 230 | 225 | 229 | 236 |
| Acceleration 0–100 km/h [s] | 10.5 | 10.5 | 8.1 | 8.3 | 7.9 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 7.6 | 7.4 | 6.9 | 8.1 | 8.2 (11.1 E85) |
| Out of town [l] | 5.3 | 5.4 | 4.8 | 5.1 | 5.2 | 5.1 (6.6 E85) |
| Combined [l] | 6.5 | 6.2 | 5.7 | 5.8 | 6.2 | 6.2 (8.5 E85) |
| CO2 emissions [g/km] | 151 | 144 | 134 | 134 | 144 | 144 (139 E85) |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1540 | 1505 | 1545 | 1580 | 1505 |
| Overall weight [kg] | 1980 | 2015 | 1980 | 2020 | 2055 | 1680 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1300 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/962 | -/962 | -/962 | -/962 | -/962 | -/962 |
| Boot length [mm] | 1067 | 1067 | 1067 | 1067 | 1067 | 1067 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 673 | 673 | 673 | 673 | 673 | 673 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 977/- | 977/- | 977/- | 977/- | 977/- | 977/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 61 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4701 | 4701 | 4701 | 4701 | 4701 | 4701 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI flexible fuel quattro | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI quattro | 2.0 TFSI quattro | 2.0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 132/4000-6000 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 | 165/4500-6250 |
| Maximum torque [Nm/min-1] | 320/1500-3900 | 350/1500-4200 | 350/1500-4200 | 350/1500-4200 | 350/1500-4200 | 350/1500-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | - | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 232 | 250 | 240 | 246 | 245 | 250 |
| Acceleration 0–100 km/h [s] | 7.7 | 6.9 | 6.9 | 6.5 | 6.5 | 6,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 (12.4 E85) | 8.3 | 7.7 | 8.9 | 8.8 | 7,8 |
| Out of town [l] | 5.5 (7.7 E85) | 5.1 | 5.0 | 5.6 | 5.8 | 4,8 |
| Combined [l] | 6.8 (9.4 E85) | 6.3 | 6.0 | 6.8 | 7.0 | 5,9 |
| CO2 emissions [g/km] | 159 (154 E85) | 144 | 140 | 159 | 159 | 138 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1525 | 1560 | 1605 | 1645 | 1525 |
| Overall weight [kg] | 2080 | 2000 | 2035 | 2080 | 2120 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/962 | -/962 | -/962 | -/962 | -/962 | -/962 |
| Boot length [mm] | 1067 | 1067 | 1067 | 1067 | 1067 | 1067 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 673 | 673 | 673 | 673 | 673 | 673 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 977/- | 977/- | 977/- | 977/- | 977/- | 977/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 63 | 63 | 61 | 61 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4701 | 4701 | 4701 | 4701 | 4701 | 4701 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI | 2.0 TFSI quattro | 2.0 TFSI quattro | 3.0 TFSI quattro | 3.0 TFSI quattro | S4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 2995 | 2995 | 2995 |
| Maximum output / speed [kW/min-1] | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 | 200/4780-6500 | 200/4780-6500 | 245/5500-6500 |
| Maximum torque [Nm/min-1] | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 | 400/2150-4780 | 400/2150-4780 | 440/2900-5300 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 10,5:1 | 11,0:1 | 10,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 1 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 242 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.9 | 6.4 | 6.4 | 5.4 | 5.9 | 5.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 8.8 | 8.5 | 10.7 | 9,9 | 10.7 |
| Out of town [l] | 5.0 | 5.3 | 5.6 | 6.6 | 6,1 | 6.6 |
| Combined [l] | 5.8 | 6.6 | 6.7 | 8.1 | 7,5 | 8.1 |
| CO2 emissions [g/km] | 136 | 152 | 155 | 190 | 174 | 190 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1560 | 1605 | 1645 | 1740 | 1735 | 1780 |
| Overall weight [kg] | 2035 | 2080 | 2120 | 2215 | 2210 | 2255 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1700 | 750/1700 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | 1105/1190 | - | 1185/1150 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/962 | -/962 | -/962 | -/962 | -/962 | -/962 |
| Boot length [mm] | 1067 | 1067 | 1067 | 1067 | 1067 | 1067 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 673 | 673 | 673 | 673 | 673 | 652 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 977/- | 977/- | 977/- | 977/- | 977/- | 977/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | 0,32 | 0,29 | 0,29 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 245/40 R18 | 245/40 R18 | 245/40 R18 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 245/40 R18 | 245/40 R18 | 245/40 R18 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx18 | 8Jx18 | 8Jx18 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx18 | 8Jx18 | 8Jx18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4701 | 4701 | 4701 | 4701 | 4701 | 4716 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1406 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2811 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1539 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 868 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1037 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S4 | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2995 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 245/5500-6500 | 88/4000 | 100/4200 | 105/4200 | 105/4200 | 105/4200 |
| Maximum torque [Nm/min-1] | 440/2900-5300 | 290/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 84,5 x 89,0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 11.0:1 | - | - | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications |
| - | - | - |
|
|
| Top speed [km/h] | 250 | 205 | 215 | 216 | 210 | 215 |
| Acceleration 0–100 km/h [s] | 5.0 | 10.5 | 9.3 | 9.2 | 9.1 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.1 | 5.4 | 5.2 | 5.4 | 5.7 | 6.1 |
| Out of town [l] | 6.2 | 4.0 | 3.7 | 4.0 | 4.4 | 4.5 |
| Combined [l] | 7,7 | 4.5 | 4.3 | 4.5 | 4.8 | 5.1 |
| CO2 emissions [g/km] | 178 | 115 | 112 | 119 | 127 | 136 |
| Emission standard | EU6 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1780 | 1560 | 1550 | 1555 | 1590 | 1635 |
| Overall weight [kg] | 2255 | 2035 | 2025 | 2030 | 2065 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1300 | 750/1300 | 750/1600 | 750/1700 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/962 | -/962 | -/962 | -/962 | -/962 | -/962 |
| Boot length [mm] | 1067 | 1067 | 1067 | 1067 | 1067 | 1067 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 652 | 673 | 673 | 673 | 673 | 673 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 977/- | 977/- | 977/- | 977/- | 977/- | 977/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 63 | 63 | 63 | 63 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 245/40 R18 | 225/55 R16 | 205/60 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 245/40 R18 | 225/55 R16 | 205/60 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 8Jx18 | 7.5Jx16 | 7Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 8Jx18 | 7.5Jx16 | 7Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4716 | 4701 | 4701 | 4701 | 4701 | 4701 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1406 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2811 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1552 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1539 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 868 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1037 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI quattro | 2.0 TDI clean diesel | 2.0 TDI clean diesel | 2.0 TDI clean diesel quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/4200 | 110/4200 | 110/4200 | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 216 | 210 | 215 | 216 | 210 | 215 |
| Acceleration 0–100 km/h [s] | 9.2 | 9.1 | 9.3 | 9.2 | 9.1 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5.7 | 6.1 | 5.3 | 5,3 | 5,6 |
| Out of town [l] | 4.0 | 4.4 | 4.5 | 3,8 | 4,1 | 4,2 |
| Combined [l] | 4.5 | 4.8 | 5.1 | 4,4 | 4,6 | 4,7 |
| CO2 emissions [g/km] | 119 | 127 | 136 | 114 | 119 | 124 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1555 | 1590 | 1635 | 1615 | 1650 | 1690 |
| Overall weight [kg] | 2030 | 2065 | 2110 | 2090 | 2125 | 2165 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1700 | 750/1600 | 750/1600 | 750/1700 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/962 | -/962 | -/962 | -/962 | -/962 | -/962 |
| Boot length [mm] | 1067 | 1067 | 1067 | 1067 | 1067 | 1067 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 673 | 673 | 673 | 673 | 673 | 673 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 977/- | 977/- | 977/- | 977/- | 977/- | 977/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 61 | 63 | 63 | 61 |
| AdBlue tank volume [l] | - | - | - | 20 | 20 | 20 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4701 | 4701 | 4701 | 4701 | 4701 | 4701 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI quattro | 2.0 TDI quattro | 2.0 TDI clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 120/4200 | 130/4200 | 130/4200 | 130/4200 | 130/4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | - | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
|
|
| - |
| Top speed [km/h] | 225 | 230 | 222 | 228 | 225 | 240 |
| Acceleration 0–100 km/h [s] | 8,4 | 8.2 | 7.9 | 7.8 | 7.9 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5.5 | 5.7 | 6.1 | 6.4 | 5,4 |
| Out of town [l] | 3.8 | 4.1 | 4.4 | 4.5 | 4.7 | 3,9 |
| Combined [l] | 4.4 | 4.6 | 4.8 | 5.1 | 5.3 | 4,5 |
| CO2 emissions [g/km] | 115 | 120 | 127 | 134 | 139 | 117 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1550 | 1555 | 1595 | 1635 | 1670 | 1615 |
| Overall weight [kg] | 2025 | 2030 | 2070 | 2110 | 2145 | 2090 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1600 | 750/1700 | 750/1600 | 750/1700 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/962 | -/962 | -/962 | -/962 | -/962 | -/962 |
| Boot length [mm] | 1067 | 1067 | 1067 | 1067 | 1067 | 1067 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 673 | 673 | 673 | 673 | 673 | 673 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 977/- | 977/- | 977/- | 977/- | 977/- | 977/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 61 | 61 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | 20 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 205/60 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 205/60 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 7Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 7Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4701 | 4701 | 4701 | 4701 | 4701 | 4701 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI clean diesel | 2.0 TDI clean diesel quattro | 2.0 TDI clean diesel quattro | 3.0 TDI | 3.0 TDI | 3.0 TDI quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 150/3750-4500 | 150/3750-4500 | 180/4000-4500 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1250-3500 | 400/1250-3500 | 500/1400-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 16,8:1 | 16,8:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 230 | 235 | 235 | 244 | 235 | 250 |
| Acceleration 0–100 km/h [s] | 7,8 | 7,4 | 7,3 | 7.7 | 7.1 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3 | 5,9 | 5,9 | 6.4 | 5.5 | 7.2 |
| Out of town [l] | 4,1 | 4,4 | 4,5 | 4.3 | 4.6 | 4.9 |
| Combined [l] | 4,5 | 4,9 | 5,0 | 5.1 | 4.9 | 5.8 |
| CO2 emissions [g/km] | 119 | 128 | 132 | 133 | 129 | 152 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1650 | 1690 | 1730 | 1650 | 1665 | 1715 |
| Overall weight [kg] | 2125 | 2165 | 2205 | 2125 | 2140 | 2190 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | 750/1700 | 750/1600 | 750/1700 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | 1170/1080 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/962 | -/962 | -/962 | -/962 | -/962 | -/962 |
| Boot length [mm] | 1067 | 1067 | 1067 | 1067 | 1067 | 1067 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 673 | 673 | 673 | 673 | 673 | 673 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 977/- | 977/- | 977/- | 977/- | 977/- | 977/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 61 | 61 | 63 | 63 | 61 |
| AdBlue tank volume [l] | 20 | 20 | 20 | - | - | - |
| Air resistance [Cd] | - | - | - | 0,28 | 0,28 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4701 | 4701 | 4701 | 4701 | 4701 | 4701 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro | 3.0 TDI clean diesel quattro | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2967 | 2967 | ||||
| Maximum output / speed [kW/min-1] | 180/4000-4500 | 180/4000-4500 | ||||
| Maximum torque [Nm/min-1] | 500/1400-3250 | 580/1750-2500 | ||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | ||||
| Compression ratio | - | 16,8:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5.9 | 5.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.8 | 6.8 | ||||
| Out of town [l] | 5.1 | 5.0 | ||||
| Combined [l] | 5.7 | 5.7 | ||||
| CO2 emissions [g/km] | 149 | 149 | ||||
| Emission standard | EU5 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1755 | 1805 | ||||
| Overall weight [kg] | 2230 | 2280 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | ||||
| Maximum front/rear axle load [kg] | - | 1215/1175 | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 90/- | 90/- | ||||
| Boot volume [l] | 480 | 480 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/962 | -/962 | ||||
| Boot length [mm] | 1067 | 1067 | ||||
| Boot length with rear seats folded [mm] | 1768 | 1768 | ||||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 673 | 673 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | 977/- | 977/- | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 61 | 61 | ||||
| AdBlue tank volume [l] | - | 20 | ||||
| Air resistance [Cd] | - | 0,29 | ||||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | ||||
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | ||||
| Tyre dimensions front | 225/55 R16 | 245/40 R18 | ||||
| Tyre dimensions rear | 225/55 R16 | 245/40 R18 | ||||
| Wheel size front | 7.5Jx16 | 8J x 18 | ||||
| Wheel size rear | 7.5Jx16 | 8J x 18 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electric variable power steering | Electric variable power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | ||||
| Overall length [mm] | 4701 | 4701 | ||||
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | ||||
| Overall height [mm] | 1427 | 1427 | ||||
| Wheelbase [mm] | 2808 | 2808 | ||||
| Front wheel track [mm] | 1564 | 1564 | ||||
| Rear wheel track [mm] | 1551 | 1551 | ||||
| Forward overhang [mm] | 862 | 862 | ||||
| Rear overhang [mm] | 1031 | 1031 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1015 | 1015 | ||||
| Headroom rear [mm] | 952 | 952 | ||||
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | ||||
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate (Avant)
| 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI quattro | 2.0 TFSI flexible fuel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1798 | 1798 | 1798 | 1984 |
| Maximum output / speed [kW/min-1] | 88/3650-6200 | 88/3650-6200 | 125/3800-6200 | 125/3800-6200 | 125/3800-6200 | 132/4000-6000 |
| Maximum torque [Nm/min-1] | 230/1500-3650 | 230/1500-3650 | 320/1400-3700 | 320/1400-3700 | 320/1400-3700 | 320/1500-3900 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 200 | 191 | 222 | 215 | 220 | 228 |
| Acceleration 0–100 km/h [s] | 10.8 | 10.8 | 8.3 | 8.3 | 8.1 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 7.6 | 7.7 | 7.0 | 8.1 | 8.2 (11.3 E85) |
| Out of town [l] | 5.5 | 5.7 | 5.2 | 5.4 | 5.5 | 5.3 (7.3 E85) |
| Combined [l] | 6.6 | 6.4 | 6.1 | 6.0 | 6.5 | 6.4 (8.8 E85) |
| CO2 emissions [g/km] | 154 | 149 | 141 | 139 | 149 | 149 (144 E85) |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1600 | 1565 | 1605 | 1635 | 1575 |
| Overall weight [kg] | 2060 | 2095 | 2060 | 2100 | 2130 | 2070 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1300 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | 1065/1140 | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 631 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 61 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | 0,31 | 0,31 | 0,31 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4699 | 4699 | 4699 | 4699 | 4699 | 4699 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1436 | 1436 | 1436 | 1436 | 1436 | 1436 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI flexible fuel | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI quattro | 2.0 TFSI quattro | 2.0 TFSI allroad | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 132/4000-6000 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 |
| Maximum torque [Nm/min-1] | 320/1500-3900 | 350/1500-4200 | 350/1500-4200 | 350/1500-4200 | 350/1500-4200 | 350/1500-4200 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | - | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 224 | 242 | 232 | 238 | 237 | 230 |
| Acceleration 0–100 km/h [s] | 7.9 | 7.1 | 7.2 | 6.6 | 6.6 | 6.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 (12.4 E85) | 8.2 | 7.7 | 9.0 | 8.7 | 9.1 |
| Out of town [l] | 5.8 (7.9 E85) | 5.3 | 5.4 | 5.8 | 6.0 | 6.1 |
| Combined [l] | 6.9 (9.5 E85) | 6.4 | 6.2 | 7.0 | 7.1 | 7.2 |
| CO2 emissions [g/km] | 162 (157 E85) | 149 | 144 | 162 | 163 | 169 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1650 | 1580 | 1615 | 1650 | 1685 | 1685 |
| Overall weight [kg] | 2145 | 2075 | 2110 | 2145 | 2180 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1500 | 750/1500 | 750/1700 | 750/1500 | 750/1700 |
| Maximum front/rear axle load [kg] | - | 1050/1135 | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 631 | 668 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 63 | 63 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | 0,32 | 0,32 | - | - | 0,34 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4699 | 4699 | 4699 | 4699 | 4699 | 4721 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1841/2006 |
| Overall height [mm] | 1436 | 1436 | 1436 | 1436 | 1436 | 1495 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2805 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1583 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1574 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 883 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1033 |
| Clearance [mm] | - | - | - | - | - | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI allroad | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI quattro | 2.0 TFSI quattro | 2.0 TFSI allroad | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 155/4300-6000 | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 |
| Maximum torque [Nm/min-1] | 350/1500-4200 | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 230 | 245 | 234 | 240 | 240 | 234 |
| Acceleration 0–100 km/h [s] | 6.8 | 7.0 | 7.2 | 6.5 | 6.5 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 | 8.0 | 7.4 | 8.8 | 8.6 | 9.0 |
| Out of town [l] | 6.3 | 5.5 | 5.2 | 5.5 | 5.9 | 5.9 |
| Combined [l] | 7.3 | 6.1 | 6.0 | 6.7 | 6.9 | 7.0 |
| CO2 emissions [g/km] | 169 | 143 | 140 | 154 | 159 | 164 |
| Emission standard | EU5 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1725 | 1580 | 1615 | 1650 | 1685 | 1685 |
| Overall weight [kg] | 2220 | 2075 | 2110 | 2145 | 2180 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 1105/1210 | - | - | - | 1105/1190 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 668 | 631 | 631 | 631 | 631 | 668 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 63 | 63 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,34 | - | - | - | 0,32 | 0,34 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 |
| Wheel size front | 8Jx17 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 |
| Wheel size rear | 8Jx17 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4721 | 4699 | 4699 | 4699 | 4699 | 4721 |
| Overall width without/including mirrors [mm] | 1841/2006 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1841/2006 |
| Overall height [mm] | 1495 | 1436 | 1436 | 1436 | 1436 | 1495 |
| Wheelbase [mm] | 2805 | 2808 | 2808 | 2808 | 2808 | 2805 |
| Front wheel track [mm] | 1583 | 1564 | 1564 | 1564 | 1564 | 1583 |
| Rear wheel track [mm] | 1574 | 1551 | 1551 | 1551 | 1551 | 1574 |
| Forward overhang [mm] | 883 | 862 | 862 | 862 | 862 | 883 |
| Rear overhang [mm] | 1033 | 1029 | 1029 | 1029 | 1029 | 1033 |
| Clearance [mm] | 180 | - | - | - | - | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI allroad | 3.0 TFSI quattro | 3.0 TFSI quattro | S4 | S4 | RS4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 |
| Engine displacement [cm³] | 1984 | 2995 | 2995 | 2995 | 2995 | 4163 |
| Maximum output / speed [kW/min-1] | 165/4500-6250 | 200/4780-6500 | 200/4780-6500 | 245/5500-6500 | 245/5500-6500 | 331/8250 |
| Maximum torque [Nm/min-1] | 350/1500-4500 | 400/2150-4780 | 400/2150-4780 | 440/2900-5300 | 440/2900-5300 | 430/4000-6000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 92,8 |
| Compression ratio | 9,6:1 | 10,3:1 | 11,0:1 | 10,3:1 | 11,0:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 234 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.1 | 6,1 | 5.1 | 5.1 | 4.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 11.2 | 10,1 | 11.2 | 10,1 | 14.6 |
| Out of town [l] | 6.1 | 6.8 | 6,4 | 6.8 | 6,4 | 8.5 |
| Combined [l] | 7.1 | 8.4 | 7,8 | 8.4 | 7,8 | 10.7 |
| CO2 emissions [g/km] | 164 | 197 | 179 | 197 | 180 | 249 |
| Emission standard | EU6 | EU5 | EU6 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1725 | 1790 | 1790 | 1825 | 1825 | 1870 |
| Overall weight [kg] | 2220 | 2285 | 2285 | 2320 | 2320 | 2345 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | - |
| Maximum front/rear axle load [kg] | 1105/1210 | 1185/1215 | 1185/1215 | 1175/1225 | 1175/1225 | 1210/1210 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 668 | 631 | 631 | 631 | 631 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,34 | 0,32 | 0,32 | 0,33 | 0,33 | 0,34 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 245/40 R18 | 245/40 R18 | 245/40 R18 | 245/40 R18 | 265/35 R19 98Y XL |
| Tyre dimensions rear | 225/55 R17 | 245/40 R18 | 245/40 R18 | 245/40 R18 | 245/40 R18 | 265/35 R19 98Y XL |
| Wheel size front | 8Jx17 | 8Jx18 | 8Jx18 | 8Jx18 | 8Jx18 | 9J x 19 |
| Wheel size rear | 8Jx17 | 8Jx18 | 8Jx18 | 8Jx18 | 8Jx18 | 9J x 19 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Rack & pinion |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4721 | 4699 | 4699 | 4719 | 4719 | 4719 |
| Overall width without/including mirrors [mm] | 1841/2006 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1850/- |
| Overall height [mm] | 1495 | 1436 | 1436 | 1415 | 1415 | 1416 |
| Wheelbase [mm] | 2805 | 2808 | 2808 | 2811 | 2811 | 2813 |
| Front wheel track [mm] | 1583 | 1564 | 1564 | 1552 | 1552 | 1599 |
| Rear wheel track [mm] | 1574 | 1551 | 1551 | 1539 | 1539 | 1586 |
| Forward overhang [mm] | 883 | 862 | 862 | 868 | 868 | 884 |
| Rear overhang [mm] | 1033 | 1029 | 1029 | 1040 | 1040 | 1022 |
| Clearance [mm] | 180 | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 88/4000 | 100/4200 | 100/1500-3000 | 105/4200 | 105/4200 | 105/4200 |
| Maximum torque [Nm/min-1] | 290/1750-2500 | 320/1750-2500 | 320/1500-3000 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | - | 15,5:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 197 | 208 | 208 | 208 | 200 | 207 |
| Acceleration 0–100 km/h [s] | 10.9 | 9.6 | 9.6 | 9.5 | 9.5 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.3 | 4,9 | 5.6 | 5.6 | 6.1 |
| Out of town [l] | 4.2 | 3.9 | 3,8 | 4.2 | 4.5 | 4.7 |
| Combined [l] | 4.7 | 4.4 | 4,2 | 4.7 | 4.9 | 5.3 |
| CO2 emissions [g/km] | 123 | 116 | 109 | 124 | 129 | 138 |
| Emission standard | EU5 | EU5 | EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1610 | 1670 | 1610 | 1650 | 1675 |
| Overall weight [kg] | 2110 | 2105 | 2165 | 2105 | 2145 | 2170 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1300 | 750/1300 | 750/1600 | 750/1700 | 750/1600 |
| Maximum front/rear axle load [kg] | 1080/1140 | - | 1105/1160 | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 631 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 61 |
| AdBlue tank volume [l] | - | - | 20 | - | - | - |
| Air resistance [Cd] | 0,31 | - | 0,30 | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 205/60 R16 | 205/60 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 205/60 R16 | 205/60 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 7.5Jx16 | 7Jx16 | 7Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 7.5Jx16 | 7Jx16 | 7Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4699 | 4699 | 4699 | 4699 | 4699 | 4699 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 |
| Overall height [mm] | 1436 | 1436 | 1436 | 1436 | 1436 | 1436 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI allroad | 2.0 TDI | 2.0 TDI | 2.0 TDI quattro | 2.0 TDI allroad | 2.0 TDI clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 105/4200 | 110/4200 | 110/4200 | 110/4200 | 110/4200 | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1500-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 200 | 208 | 200 | 207 | 200 | 208 |
| Acceleration 0–100 km/h [s] | 9,7 | 9.5 | 9.5 | 9.6 | 9.7 | 9,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,9 | 5.6 | 5.6 | 6.1 | 6.9 | 5.4 |
| Out of town [l] | 5,2 | 4.2 | 4.5 | 4.7 | 5.2 | 4,1 |
| Combined [l] | 5,8 | 4.7 | 4.9 | 5.3 | 5.8 | 4,6 |
| CO2 emissions [g/km] | 152 | 124 | 129 | 138 | 152 | 119 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1705 | 1610 | 1650 | 1675 | 1705 | 1670 |
| Overall weight [kg] | 2200 | 2105 | 2145 | 2170 | 2200 | 2165 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | 750/1700 | 750/1600 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | 1095/1210 | 1075/1140 | - | - | 1095/1210 | 1105/1160 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 668 | 631 | 631 | 631 | 668 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 63 | 63 | 61 | 61 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | 20 |
| Air resistance [Cd] | 0,34 | 0,31 | 0,31 | 0,31 | 0,34 | 0,31 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 | 225/55 R16 |
| Wheel size front | 8Jx17 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 | 7.5Jx16 |
| Wheel size rear | 8Jx17 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4721 | 4699 | 4699 | 4699 | 4721 | 4699 |
| Overall width without/including mirrors [mm] | 1841/2006 | 1826/2040 | 1826/2040 | 1826/2040 | 1841/2006 | 1826/2040 |
| Overall height [mm] | 1495 | 1436 | 1436 | 1436 | 1495 | 1436 |
| Wheelbase [mm] | 2805 | 2808 | 2808 | 2808 | 2805 | 2808 |
| Front wheel track [mm] | 1583 | 1564 | 1564 | 1564 | 1583 | 1564 |
| Rear wheel track [mm] | 1574 | 1551 | 1551 | 1551 | 1574 | 1551 |
| Forward overhang [mm] | 883 | 862 | 862 | 862 | 883 | 862 |
| Rear overhang [mm] | 1033 | 1029 | 1029 | 1029 | 1033 | 1029 |
| Clearance [mm] | 180 | - | - | - | 180 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI clean diesel | 2.0 TDI clean diesel quattro | 2.0 TDI clean diesel allroad | 2.0 TDI | 2.0 TDI | 2.0 TDI clean diesel allroad | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 | 120/4200 | 120/3000-4200 | 120/3000-4200 |
| Maximum torque [Nm/min-1] | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 | 380/1750-2500 | 400/1750-2750 | 400/1750-2750 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | - | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 1 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 200 | 207 | 200 | 216 | 216 | 215 |
| Acceleration 0–100 km/h [s] | 9.5 | 9.6 | 9.7 | 8,7 | 8,6 | 8,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,4 | 5,7 | 6,3 | 5,4 | 5,1 | 6,5 |
| Out of town [l] | 4,3 | 4,3 | 4,8 | 4,0 | 4,0 | 5,1 |
| Combined [l] | 4,7 | 4,8 | 5,4 | 4,5 | 4,4 | 5,6 |
| CO2 emissions [g/km] | 124 | 127 | 139 | 120 | 114 | 149 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1705 | 1730 | 1765 | 1610 | 1675 | 1805 |
| Overall weight [kg] | 2200 | 2225 | 2260 | 2105 | 2170 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | 750/1700 | 750/1300 | 750/1300 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | 1125/1235 | - | 1110/1170 | 1160/1240 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 631 | 631 | 668 | 631 | 631 | 668 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 61 | 61 | 63 | 63 | 61 |
| AdBlue tank volume [l] | 20 | 20 | 20 | - | 20 | 20 |
| Air resistance [Cd] | 0,31 | 0,31 | 0,34 | - | 0,31 | 0,34 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R17 | 205/60 R16 | 205/60 R16 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R17 | 205/60 R16 | 205/60 R16 | 225/55 R17 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 8Jx17 | 7Jx16 | 7Jx16 | 8Jx17 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 8Jx17 | 7Jx16 | 7Jx16 | 8Jx17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4699 | 4699 | 4721 | 4699 | 4699 | 4721 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1841/2006 | 1826/2040 | 1826/2040 | 1841/2006 |
| Overall height [mm] | 1436 | 1436 | 1495 | 1436 | 1436 | 1495 |
| Wheelbase [mm] | 2808 | 2808 | 2805 | 2808 | 2808 | 2805 |
| Front wheel track [mm] | 1564 | 1564 | 1583 | 1564 | 1564 | 1583 |
| Rear wheel track [mm] | 1551 | 1551 | 1574 | 1551 | 1551 | 1574 |
| Forward overhang [mm] | 862 | 862 | 883 | 862 | 862 | 883 |
| Rear overhang [mm] | 1029 | 1029 | 1033 | 1029 | 1029 | 1033 |
| Clearance [mm] | - | - | 180 | - | - | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI quattro | 2.0 TDI quattro | 2.0 TDI allroad | 2.0 TDI allroad | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 130/4200 | 130/4200 | 130/4200 | 130/4200 | 130/4200 | 130/4200 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 222 | 211 | 222 | 218 | 215 | 210 |
| Acceleration 0–100 km/h [s] | 8.4 | 8.4 | 7.9 | 8.0 | 8.2 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7 | 5.6 | 6.3 | 6.5 | 6.9 | 7.0 |
| Out of town [l] | 4.3 | 4.5 | 4.7 | 4.9 | 5.3 | 5.4 |
| Combined [l] | 4.8 | 4.9 | 5.3 | 5.5 | 5.8 | 6.0 |
| CO2 emissions [g/km] | 126 | 129 | 139 | 144 | 153 | 156 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1610 | 1650 | 1675 | 1715 | 1705 | 1745 |
| Overall weight [kg] | 2105 | 2145 | 2170 | 2210 | 2200 | 2240 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1700 | 750/1600 | 750/1700 | 750/1700 | 750/1900 |
| Maximum front/rear axle load [kg] | 1075/1140 | 1105/1140 | - | - | 1095/1210 | 1130/1210 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 668 | 668 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,32 | 0,32 | - | - | 0,34 | 0,34 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 | 8Jx17 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 | 8Jx17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4699 | 4699 | 4699 | 4699 | 4721 | 4721 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1841/2006 | 1841/2006 |
| Overall height [mm] | 1436 | 1436 | 1436 | 1436 | 1495 | 1495 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2805 | 2805 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1583 | 1583 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1574 | 1574 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 883 | 883 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1033 | 1033 |
| Clearance [mm] | - | - | - | - | 180 | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI clean diesel | 2.0 TDI clean diesel | 2.0 TDI clean diesel quattro | 2.0 TDI clean diesel quattro | 2.0 TDI clean diesel allroad | 2.0 TDI clean diesel allroad | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 232 | 222 | 229 | 230 | 223 | 215 |
| Acceleration 0–100 km/h [s] | 7,9 | 8,3 | 7,6 | 7,4 | 7,6 | 7,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,6 | 5,4 | 6,0 | 6,1 | 6,5 | 6,5 |
| Out of town [l] | 4,2 | 4,3 | 4,5 | 4,7 | 5,0 | 5,1 |
| Combined [l] | 4,7 | 4,7 | 5,1 | 5,2 | 5,6 | 5,6 |
| CO2 emissions [g/km] | 123 | 124 | 132 | 137 | 145 | 149 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1670 | 1705 | 1730 | 1775 | 1765 | 1805 |
| Overall weight [kg] | 2165 | 2200 | 2225 | 2270 | 2260 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1700 | 750/1600 | 750/1700 | 750/1700 | 750/1900 |
| Maximum front/rear axle load [kg] | 1105/1160 | 1135/1170 | - | - | - | 1160/1240 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 668 | 668 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | 20 | 20 | 20 | 20 | 20 | 20 |
| Air resistance [Cd] | 0,32 | 0,32 | - | - | 0,34 | 0,34 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4699 | 4699 | 4699 | 4699 | 4721 | 4721 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1841/2006 | 1841/2006 |
| Overall height [mm] | 1436 | 1436 | 1436 | 1436 | 1495 | 1495 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2805 | 2805 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1583 | 1583 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1574 | 1574 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 883 | 883 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1033 | 1033 |
| Clearance [mm] | - | - | - | - | 180 | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI | 3.0 TDI | 3.0 TDI quattro | 3.0 TDI quattro | 3.0 TDI allroad | 3.0 TDI clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 150/3750-4500 | 150/3750-4500 | 180/4000-4500 | 180/4000-4500 | 180/4000-4500 | 180/4000-4500 |
| Maximum torque [Nm/min-1] | 400/1250-3500 | 400/1250-3500 | 500/1400-3250 | 500/1400-3250 | 500/1400-3250 | 580/1750-2500 |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 16,8:1 | 16,8:1 | - | - | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 235 | 230 | 250 | 250 | 237 | 250 |
| Acceleration 0–100 km/h [s] | 7.9 | 7.3 | 6.3 | 6.1 | 6.2 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 5.7 | 7.3 | 7.0 | 7.2 | 6.9 |
| Out of town [l] | 4.4 | 4.8 | 5.1 | 5.2 | 5.5 | 5.2 |
| Combined [l] | 5.2 | 5.1 | 5.9 | 5.9 | 6.2 | 5.9 |
| CO2 emissions [g/km] | 135 | 135 | 154 | 154 | 161 | 154 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1695 | 1715 | 1755 | 1800 | 1825 | 1855 |
| Overall weight [kg] | 2190 | 2210 | 2250 | 2295 | 2320 | 2350 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1700 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | 1215/1240 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 | -/1430 |
| Boot length [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Boot length with rear seats folded [mm] | 1768 | 1768 | 1768 | 1768 | 1768 | 1768 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/773 | -/773 | -/773 | -/773 | -/773 | -/773 |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 668 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 | 902/1007 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | 20 |
| Air resistance [Cd] | - | - | - | - | 0,34 | 0,32 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 | 245/40 R18 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R17 | 245/40 R18 |
| Wheel size front | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 | 8,0J x 18 |
| Wheel size rear | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 7.5Jx16 | 8Jx17 | 8,0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4699 | 4699 | 4699 | 4699 | 4721 | 4699 |
| Overall width without/including mirrors [mm] | 1826/2040 | 1826/2040 | 1826/2040 | 1826/2040 | 1841/2006 | 1826/2040 |
| Overall height [mm] | 1436 | 1436 | 1436 | 1436 | 1495 | 1436 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2805 | 2808 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1583 | 1564 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1574 | 1551 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 883 | 862 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1033 | 1029 |
| Clearance [mm] | - | - | - | - | 180 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 | 1463/1410 |
| Rear elbow/shoulder width [mm] | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 | 1442/1380 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI clean diesel allroad | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2967 | |||||
| Maximum output / speed [kW/min-1] | 180/4000-4500 | |||||
| Maximum torque [Nm/min-1] | 580/1750-2500 | |||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | |||||
| Compression ratio | 16,8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 237 | |||||
| Acceleration 0–100 km/h [s] | 6.2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.1 | |||||
| Out of town [l] | 5.4 | |||||
| Combined [l] | 6.0 | |||||
| CO2 emissions [g/km] | 159 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1870 | |||||
| Overall weight [kg] | 2365 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | |||||
| Maximum front/rear axle load [kg] | 1215/1250 | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 90/- | |||||
| Boot volume [l] | 490 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1430 | |||||
| Boot length [mm] | 1027 | |||||
| Boot length with rear seats folded [mm] | 1768 | |||||
| Boot width between wheels/max [mm] | 1000/- | |||||
| Boot height to headliner/ceiling [mm] | -/773 | |||||
| Loading edge height [mm] | 668 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 902/1007 | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 61 | |||||
| AdBlue tank volume [l] | 20 | |||||
| Air resistance [Cd] | 0,34 | |||||
| Front suspension | five-link, stabiliser bar | |||||
| Rear suspension | double wishbone with stabiliser | |||||
| Tyre dimensions front | 225/55 R17 | |||||
| Tyre dimensions rear | 225/55 R17 | |||||
| Wheel size front | 8Jx17 | |||||
| Wheel size rear | 8Jx17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electric variable power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.5/- | |||||
| Overall length [mm] | 4721 | |||||
| Overall width without/including mirrors [mm] | 1841/2006 | |||||
| Overall height [mm] | 1495 | |||||
| Wheelbase [mm] | 2805 | |||||
| Front wheel track [mm] | 1583 | |||||
| Rear wheel track [mm] | 1574 | |||||
| Forward overhang [mm] | 883 | |||||
| Rear overhang [mm] | 1033 | |||||
| Clearance [mm] | 180 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1026 | |||||
| Headroom rear [mm] | 971 | |||||
| Front elbow/shoulder width [mm] | 1463/1410 | |||||
| Rear elbow/shoulder width [mm] | 1442/1380 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
