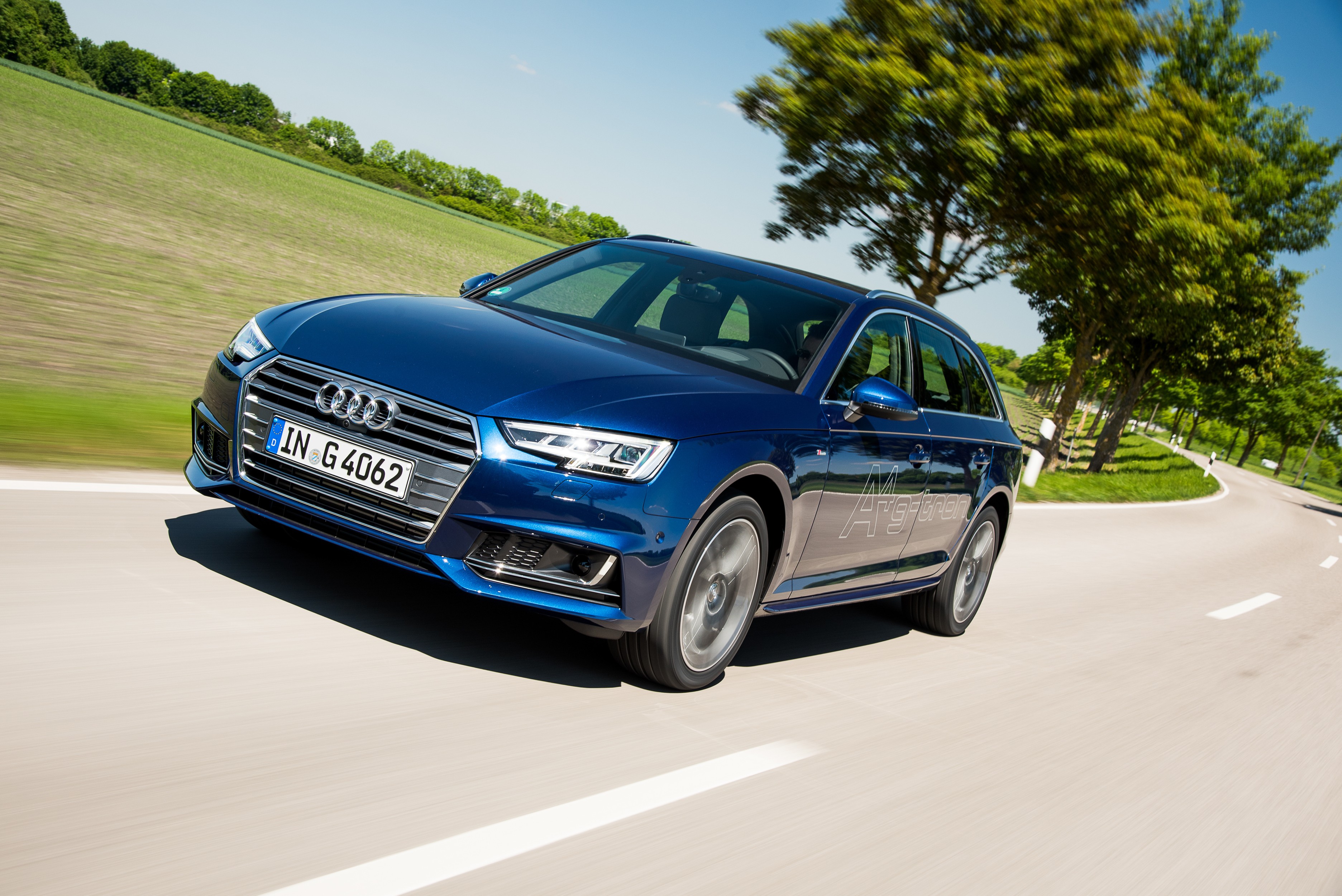

Audi A4
Date of manufacture
2015 – 2019 (Sedan)
2015 – 2019 (Estate)
Platform
Volkswagen Group MLBevo
Manufacturing locations
Ingolstadt, Germany
Neckarsulm, Germany
Designer
Frank Rimili
Rüdiger Müller
Tags
D-segment
German cars
The Audi A4 has been manufactured since 2015 and is made in Germany. It is built on the Volkswagen Group MLBevo platform and offers a wide range of petrol and diesel engines. The most powerful model is the RS4 2.9 TFSI 331 kW, which reaches a top speed of 250 km/h and the best acceleration 0-100 km/h in 4.1 seconds. The most fuel-efficient engine is the 2.0 TDI 110 kW ultra with a combined consumption of 3.8 l/100 km and CO2 emissions of 99 g/km. The sedan version has a boot capacity of 480 l, while the estate version has 505 l. The Audi A4 underwent the EURONCAP safety tests in 2015 and received a rating of 5 out of 5.
Car body style
Sedan
Date of manufacture
2015 – 2019Internal designation
B9/8WEngine size
Petrol
Diesel
Estate (Avant)
Date of manufacture
2015 – 2019Internal designation
B9/8WEngine size
Petrol
Diesel
Technical data
Sedan
| 1.4 TFSI 110 kW | 1.4 TFSI 110 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | 2.0 TFSI 140 kW Ultra | 2.0 TFSI 140 kW Ultra | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 110/3900-6000 | 110/3900-6000 | 140/4200-6000 | 140/4200-6000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 270/1350-3900 | 270/1350-3900 | 320/1450-4200 | 320/1450-4200 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,0:1 | 10,0:1 | 11,7:1 | 11,7:1 | 11,7:1 | 11,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 210 | 224 | 225 | 240 | 240 |
| Acceleration 0–100 km/h [s] | 8,7 | 8,5 | 8,6 | 8,9 | 7,2 | 7,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,0-6,6 | 7,1-6,4 | 7,8-7,6 | 7,5-7,3 | 7,5-7,0 | 7,0-6,2 |
| Out of town [l] | 4,8-4,3 | 4,7-4,1 | 5,0-4,7 | 5,0-4,7 | 5,0-4,4 | 4,7-4,0 |
| Combined [l] | 5,5-5,1 | 5,6-4,9 | 6,0-5,8 | 5,9-5,7 | 5,9-5,4 | 5,6-4,8 |
| CO2 emissions [g/km] | 131-119 | 129-114 | 137-131 | 135-129 | 134-122 | 126-109 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1450 | 1485 | 1510 | 1455-1480 | 1480-1505 |
| Overall weight [kg] | 1890 | 1945 | 2000 | 2035 | 1960-1985 | 1985-2020 |
| Maximum trailer weight unbraked/braked [kg] | 690/1400 | 720/1500 | 740/1400 | 750/1500 | 720-740/1500 | 740-750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | -/965 |
| Boot length [mm] | 1081 | 1081 | 1081 | 1081 | 1081 | 1081 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4726 | 4726 | 4726 | 4726 | 4726 | 4726 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 40 TFSI 140 kW | 40 TFSI 140 kW | 45 TFSI 180 kW | 45 TFSI 180 kW quattro | 2.0 TFSI 185 kW | 2.0 TFSI 185 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 140/4200-6000 | 180/5000-6500 | 180/5000-6500 | 185/5000-6000 | 185/5000-6000 |
| Maximum torque [Nm/min-1] | 320/1450-4200 | 320/1450-4200 | 370/1600-4300 | 370/1600-4300 | 370/1600-4500 | 370/1600-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 11,7:1 | 11,7:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 241 | 241 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7,2 | 7,3 | 6,3 | 5,8 | 6,3 | 6,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,6-7,3 | 7,7-7,6 | - | - | 7,5-7,4 | 8,6-8,1 |
| Out of town [l] | 5,1-4,8 | 5,1-4,9 | - | - | 5,2,-4,7 | 5,6-5,3 |
| Combined [l] | 6,0-5,7 | 5,9 | 5,9-5,8 | 6,5-6,3 | 6,0-5,7 | 6,7-6,3 |
| CO2 emissions [g/km] | 137-131 | 137-133 | 137-132 | 146-142 | 137-129 | 153-143 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1495 | 1520 | 1545 | 1615 | 1500-1530 | 1570-1590 |
| Overall weight [kg] | 2010 | 2040 | 2045 | 2110 | 2000-2025 | 2065-2085 |
| Maximum trailer weight unbraked/braked [kg] | 740/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | -/965 |
| Boot length [mm] | 1081 | 1081 | 1081 | 1081 | 1081 | 1081 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 58 | 54 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4726 | 4726 | 4726 | 4726 | 4726 | 4726 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI 185 kW quattro | S4 3.0 TFSI 260 kW quattro | 2.0 TDI 90 kW | 2.0 TDI 90 kW | 2.0 TDI 110 kW | 2.0 TDI 110 kW ultra | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 2995 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 185/5000-6000 | 260/5400-6400 | 90/3500-4000 | 90/3500-4000 | 110/3250-4200 | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 370/1600-4500 | 500/1370-4500 | 270/1500-3000 | 270/1500-3000 | 320/1500-3250 | 320/1500-3250 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 84,5 x 89,0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 11,2:1 | 16,0:1 | 16,0:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 8 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
| - | - |
| Top speed [km/h] | 250 | 250 | 205 | 204 | 221 | 210 |
| Acceleration 0–100 km/h [s] | 5,8 | 4,7 | 10,5 | 10,2 | 8,9 | 8,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9-7,7 | 9,9-9,8 | 4,9-4,4 | 5,1-4,7 | 5,0-4,6 | 4,5-4,4 |
| Out of town [l] | 5,6-5,0 | 6,1-5,9 | 3,8-3,3 | 3,9-3,5 | 3,9-3,4 | 3,4-3,3 |
| Combined [l] | 6,5-5,9 | 7,5-7,3 | 4,2-3,7 | 4,3-3,9 | 4,2-3,8 | 3,8-3,7 |
| CO2 emissions [g/km] | 139-136 | 170-166 | 110-97 | 112-101 | 111-99 | 99-95 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1585-1605 | 1705 | 1505 | 1540 | 1505 | 1505 |
| Overall weight [kg] | 2080-2100 | 2200 | 2030 | 2065 | 2030 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1900 | 750/1300 | 750/1500 | 750/1700 | 750/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | -/965 |
| Boot length [mm] | 1081 | 1081 | 1081 | 1081 | 1081 | 1081 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 661 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] |
| AdBlue tank volume [l] | - | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 245/40 R18 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 225/50 R17 | 245/40 R18 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 7.5J x 17 | 8J x 18 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7.5J x 17 | 8J x 18 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4726 | 4745 | 4726 | 4726 | 4726 | 4726 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1427 | 1404 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2820 | 2825 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1565 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1546 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 887 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1026 | 1033 | 1026 | 1026 | 1026 | 1026 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 110 kW ultra | 2.0 TDI 110 kW | 35 TDI 110 kW | 2.0 TDI 110 kW quattro | 2.0 TDI 120 kW quattro | 2.0 TDI 140 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 | 120/3000-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 | 400/1750-2750 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,0:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 210 | 219 | 219 | 219 | 223 | 240 |
| Acceleration 0–100 km/h [s] | 8,7 | 8,7 | 8,9 | 8,8 | 7,8 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,7-4,6 | 5,1-4,8 | 5,0-4,9 | 5,1-5,0 | 5,3-5,1 | 5,4-5,1 |
| Out of town [l] | 3,5-3,4 | 3,9-3,6 | 4,3-4,0 | 3,9-3,7 | 4,3-3,9 | 4,1-3,8 |
| Combined [l] | 3,9-3,8 | 4,3-4,0 | 4,6-4,3 | 4,3-4,2 | 4,6-4,3 | 4,5-4,3 |
| CO2 emissions [g/km] | 101-99 | 112-104 | 120-113 | 113-109 | 121-113 | 118-111 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1545 | 1540 | 1540 | 1615 | 1650 | 1525 |
| Overall weight [kg] | 2070 | 2065 | 2085 | 2125 | 2160 | 2045 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1700 | 750/1700 | 750/1800 | 750/1800 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | -/965 |
| Boot length [mm] | 1081 | 1081 | 1081 | 1081 | 1081 | 1081 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 54 | 58 | 58 | 40 [54 subject to a surcharge] |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4726 | 4726 | 4726 | 4726 | 4726 | 4726 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 140 kW | 2.0 TDI 140 kW ultra | 2.0 TDI 140 kW ultra | 40 TDI 140 kW | 2.0 TDI 140 kW quattro | 2.0 TDI 140 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 237 | 210 | 210 | 241 | 236 | 235 |
| Acceleration 0–100 km/h [s] | 7,7 | 7,7 | 7,7 | 7,7 | 7,2 | 7,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,0-4,8 | 4,8-4,7 | 4,7-4,6 | 5,1-4,9 | 5,4-5,3 | 5,3-5,1 |
| Out of town [l] | 3,9-3,7 | 3,5-3,4 | 3,5-3,4 | 4,2-4,0 | 4,2-4,0 | 4,3-4,0 |
| Combined [l] | 4,3-4,1 | 3,9-3,8 | 4,0-3,9 | 4,5-4,3 | 4,6-4,5 | 4,6-4,4 |
| CO2 emissions [g/km] | 113-107 | 102-99 | 103-101 | 120-114 | 119-116 | 121-114 |
| Emission standard | EU6 | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1555 | 1505 | 1545 | 1555 | 1615 | 1650 |
| Overall weight [kg] | 2075 | 2040 | 2070 | 2090 | 2125 | 2160 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1400 | 750/1400 | 750/1700 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | -/965 |
| Boot length [mm] | 1081 | 1081 | 1081 | 1081 | 1081 | 1081 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 54 | 58 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4726 | 4726 | 4726 | 4726 | 4726 | 4726 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 40 TDI 140 kW quattro | 3.0 TDI 160 kW | 3.0 TDI 160 kW quattro | 45 TDI 170 kW quattro | 3.0 TDI 200 kW quattro | 50 TDI 210 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 2967 | 2967 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 160/4000-5000 | 160/4000-5000 | 170/3250-4750 | 200/3250-4250 | 210/3500-4000 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1250-3750 | 400/1250-3750 | 500/1750-3250 | 600/1500-3000 | 620/2250-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 16,8:1 | 16,8:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 235 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7,4 | 6,6 | 6,3 | 6,0 | 5,3 | 5,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,9-5,8 | 4,9-4,8 | 5,1-4,9 | - | 5,8-5,6 | - |
| Out of town [l] | 4,8-4,6 | 4,3-4,0 | 4,7-4,4 | - | 5,1-4,8 | - |
| Combined [l] | 5,2-5,0 | 4,5-4,2 | 4,8-4,6 | 4,8-4,6 | 5,4-5,1 | 5,4-5,1 |
| CO2 emissions [g/km] | 138-133 | 117-109 | 127-119 | 127-119 | 141-133 | 141-133 |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1650 | 1615 | 1695 | 1765 | 1735 | 1765 |
| Overall weight [kg] | 2160 | 2110 | 2190 | 2260 | 2230 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1700 | 750/1800 | 750/1800 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/965 | -/965 | -/965 | -/965 | -/965 | -/965 |
| Boot length [mm] | 1081 | 1081 | 1081 | 1081 | 1081 | 1081 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4726 | 4726 | 4726 | 4726 | 4726 | 4726 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Estate (Avant)
| 1.4 TFSI 110 kW | 1.4 TFSI 110 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | 2.0 TFSI 140 kW Ultra | 2.0 TFSI 140 kW Ultra | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 110/3900-6000 | 110/3900-6000 | 140/4200-6000 | 140/4200-6000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 270/1350-3900 | 270/1350-3900 | 320/1450-4200 | 320/1450-4200 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,0:1 | 10,0:1 | 11,7:1 | 11,7:1 | 11,7:1 | 11,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 210 | 219 | 220 | 236 | 238 |
| Acceleration 0–100 km/h [s] | 9,0 | 8,9 | 8,9 | 9,2 | 7,5 | 7,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,3-6,8 | 7,2-6,7 | 7,8-7,6 | 7,5-7,3 | 7,6-7,5 | 7,2-6,8 |
| Out of town [l] | 5,0-4,5 | 4,8-4,3 | 5,1-4,8 | 5,1-4,8 | 5,0-4,6 | 5,0-4,4 |
| Combined [l] | 5,8-5,3 | 5,7-5,2 | 6,1-5,8 | 6,0-5,7 | 5,9-5,6 | 5,8-5,3 |
| CO2 emissions [g/km] | 139-124 | 131-119 | 139-132 | 137-131 | 135-128 | 131-119 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1445 | 1490 | 1540 | 1570 | 1535 | 1565 |
| Overall weight [kg] | 1960 | 2005 | 2065 | 2100 | 2060 | 2095 |
| Maximum trailer weight unbraked/braked [kg] | 720/1400 | 740/1500 | 750/1400 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 630 | 630 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4725 | 4725 | 4725 | 4725 | 4725 | 4725 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1434 | 1434 | 1434 | 1434 | 1434 | 1434 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 40 TFSI 140 kW | 40 TFSI 140 kW | 45 TFSI 180 kW | 45 TFSI 180 kW quattro | 45 TFSI 180 kW allroad quattro | 2.0 TFSI 185 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 140/4200-6000 | 180/5000-6500 | 180/5000-6500 | 180/5000-6500 | 185/5000-6000 |
| Maximum torque [Nm/min-1] | 320/1450-4200 | 320/1450-4200 | 370/1600-4300 | 370/1600-4300 | 370/1600-4300 | 370/1600-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 11,7:1 | 11,7:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 236 | 241 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7,5 | 7,3 | 6,5 | 6,0 | 6,0 | 6,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,6-7,3 | 7,6-7,5 | - | - | - | 7,6-7,5 |
| Out of town [l] | 5,2-4,9 | 5,2-4,9 | - | - | - | 5,3-5,1 |
| Combined [l] | 6,1-5,8 | 6,0-5,9 | 6,1-6,0 | 6,6-6,5 | 6,8-6,6 | 6,1-6,0 |
| CO2 emissions [g/km] | 138-132 | 137-135 | 139-135 | 150-146 | 154-149 | 139-135 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1550 | 1580 | 1600 | 1660 | 1660 | 1585 |
| Overall weight [kg] | 2080 | 2155 | 2120 | 2175 | 2175 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 630 | 630 | 663 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 58 | 58 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/55 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/55 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4725 | 4725 | 4725 | 4725 | 4750 | 4725 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1434 | 1434 | 1434 | 1434 | 1493 | 1434 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2818 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1578 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1566 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 894 | 880 |
| Rear overhang [mm] | 1025 | 1025 | 1025 | 1025 | 1038 | 1025 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI 185 kW quattro | 2.0 TFSI 185 kW quattro | 2.0 TFSI 185 kW allroad quattro | S4 3.0 TFSI 260 kW quattro | RS4 2.9 TFSI 331 kW | 2.0 TFSI g-tron | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 2995 | 2894 | 1984 |
| Maximum output / speed [kW/min-1] | 185/5000-6000 | 185/5000-6000 | 185/5000-6000 | 260/5400-6400 | 331/5700-6700 | 125/4450-6000 |
| Maximum torque [Nm/min-1] | 370/1600-4500 | 370/1600-4500 | 370/1600-4500 | 500/1370-4500 | 600/1900-5000 | 270/1650-4400 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 | 84,5 x 86,0 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 11,2:1 | 10,0:1 | 12,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 250 | 250 | 246 | 250 | 250 | 223 |
| Acceleration 0–100 km/h [s] | 6,1 | 6,0 | 6,1 | 4,9 | 4,1 | 8,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,5-8,3 | 8,0-7,9 | 8,7-7,9 | 10,1-10,0 | 11,6-11,5 | 8,3-8,0 [5,7-5,5 kg] |
| Out of town [l] | 5,7-5,4 | 5,8-5,6 | 6,0-5,7 | 6,3-6,1 | 7,2 | 5,4-4,9 [3,6-3,3 kg] |
| Combined [l] | 6,7-6,5 | 6,6-6,5 | 6,8-6,5 | 7,6-7,5 | 8,8 | 6,5-6,0 [4,4-4,0 kg] |
| CO2 emissions [g/km] | 153-147 | 150-146 | 154-148 | 175-171 | 200-199 | 147-136 [117-109 CNG] |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1625 | 1650 | 1675 | 1750 | 1790 | 1635 |
| Overall weight [kg] | 2140 | 2165 | 2190 | 2265 | 2305 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1900 | 750/1900 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1415 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 663 | 607 | 600 | 644 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 25 [19 kg] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/55 R17 | 245/40 R18 | 265/35 R19 | - |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/55 R17 | 245/40 R18 | 265/35 R19 | - |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 9J x 19 | - |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 9J x 19 | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,7/- | 11,6/- |
| Overall length [mm] | 4725 | 4725 | 4750 | 4745 | 4781 | 4725 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1866/2022 | 1842/2022 |
| Overall height [mm] | 1434 | 1434 | 1493 | 1411 | 1404 | 1442 |
| Wheelbase [mm] | 2820 | 2820 | 2818 | 2825 | 2826 | 2818 |
| Front wheel track [mm] | 1572 | 1572 | 1578 | 1565 | 1580 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1566 | 1546 | 1575 | 1555 |
| Forward overhang [mm] | 880 | 880 | 894 | 887 | 918 | 880 |
| Rear overhang [mm] | 1025 | 1025 | 1038 | 1033 | 1037 | 1027 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI g-tron | 2.0 TDI 90 kW | 2.0 TDI 90 kW | 2.0 TDI 110 kW | 2.0 TDI 110 kW | 35 TDI 110 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 125/4450-6000 | 90/3500-4000 | 90/3500-4000 | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 270/1650-4400 | 270/1500-3000 | 270/1500-3000 | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 12,6:1 | 16,0:1 | 16,0:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 221 | 200 | 198 | 215 | 213 | 213 |
| Acceleration 0–100 km/h [s] | 8,4 | 10,9 | 10,6 | 9,2 | 9,0 | 9,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,5-7,1 [5,3-5,1 kg] | 5,0-4,6 | 5,2-4,8 | 5,1-4,8 | 5,2-4,9 | 5,0-4,9 |
| Out of town [l] | 5,2-4,6 [3,5-3,1 kg] | 4,0-3,5 | 4,0-3,6 | 4,0-3,6 | 4,0-3,7 | 4,4-4,1 |
| Combined [l] | 6,0-5,5 [4,2-3,8 kg] | 4,3-3,9 | 4,4-4,0 | 4,3-4,0 | 4,4-4,1 | 4,6-4,4 |
| CO2 emissions [g/km] | 137-126 [111-102 CNG] | 115-102 | 115-104 | 116-104 | 115-106 | 121-114 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1670 | 1550 | 1600 | 1550 | 1600 | 1595 |
| Overall weight [kg] | 2135 | 2095 | 2145 | 2095 | 2145 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1300 | 750/1500 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 415 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1415 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 644 | 630 | 630 | 630 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 25 [19 kg] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 54 |
| AdBlue tank volume [l] | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | - | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | - | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | - | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | - | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4725 | 4725 | 4725 | 4725 | 4725 | 4725 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1442 | 1434 | 1434 | 1434 | 1434 | 1434 |
| Wheelbase [mm] | 2818 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1027 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating |   | - | - | - | - | - |
| Clean Air Index | 8.7/10 | - | - | - | - | - |
| Energy Efficiency Index | 4.7/10 | - | - | - | - | - |
| GHG index | - | - | - | - | - | - |
| 2.0 TDI 110 kW ultra | 2.0 TDI 110 kW ultra | 2.0 TDI 110 kW quattro | 2.0 TDI 110 kW allroad quattro | 2.0 TDI 120 kW quattro | 2.0 TDI 120 kW allroad quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 | 120/3000-4200 | 120/3000-4200 |
| Maximum torque [Nm/min-1] | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 | 400/1750-2750 | 400/1750-2750 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 210 | 210 | 214 | 205 | 218 | 210 |
| Acceleration 0–100 km/h [s] | 9,2 | 9,0 | 9,1 | 9,1 | 8,0 | 8,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,7-4,5 | 4,8-4,7 | 5,3-5,1 | 5,9-5,8 | 5,4-5,1 | 5,7-5,5 |
| Out of town [l] | 3,6-3,4 | 3,6-3,5 | 4,1-3,8 | 4,6-4,4 | 4,4,-4,0 | 4,8-4,6 |
| Combined [l] | 4,0-3,8 | 4,0-3,9 | 4,5-4,3 | 5,1-4,9 | 4,7-4,4 | 5,1-4,9 |
| CO2 emissions [g/km] | 104-99 | 104-102 | 118-112 | 133-127 | 123-115 | 134-128 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1555 | 1600 | 1660 | 1690 | 1690 | 1715 |
| Overall weight [kg] | 2100 | 2145 | 2190 | 2220 | 2220 | 2245 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1400 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 630 | 663 | 630 | 663 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/55 R17 | 205/60 R16 | 225/55 R17 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 225/55 R17 | 205/60 R16 | 225/55 R17 |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7J x 16 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7J x 16 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4725 | 4725 | 4725 | 4750 | 4725 | 4750 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1434 | 1434 | 1434 | 1493 | 1434 | 1493 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2818 | 2820 | 2818 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1578 | 1572 | 1578 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1566 | 1555 | 1566 |
| Forward overhang [mm] | 880 | 880 | 880 | 894 | 880 | 894 |
| Rear overhang [mm] | 1025 | 1025 | 1025 | 1038 | 1025 | 1038 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 140 kW | 2.0 TDI 140 kW | 40 TDI 140 kW | 2.0 TDI 140 kW ultra | 2.0 TDI 140 kW ultra | 2.0 TDI 140 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 235 | 231 | 231 | 210 | 210 | 230 |
| Acceleration 0–100 km/h [s] | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,4-5,1 | 5,0-4,9 | 5,1-4,9 | 5,0-4,9 | 4,8-4,7 | 5,6-5,4 |
| Out of town [l] | 4,1-3,9 | 4,1-3,8 | 4,3-4,1 | 3,7-3,6 | 3,6-3,5 | 4,3-4,1 |
| Combined [l] | 4,6-4,4 | 4,4,-4,2 | 4,6-4,4 | 4,1-4,0 | 4,1-4,0 | 4,8-4,6 |
| CO2 emissions [g/km] | 121-114 | 116-109 | 121-115 | 106-104 | 106-104 | 124-119 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1590 | 1605 | 1605 | 1575 | 1605 | 1665 |
| Overall weight [kg] | 2130 | 2145 | 2160 | 2120 | 2150 | 2195 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1400 | 750/1400 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 630 | 630 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 54 | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4725 | 4725 | 4725 | 4725 | 4725 | 4725 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1434 | 1434 | 1434 | 1434 | 1434 | 1434 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 140 kW quattro | 40 TDI 140 kW quattro | 2.0 TDI 140 kW allroad quattro | 2.0 TDI 140 kW allroad quattro | 3.0 TDI 160 kW | 3.0 TDI 160 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 160/4000-5000 | 160/4000-5000 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1250-3750 | 400/1250-3750 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 230 | 230 | 222 | 220 | 245 | 245 |
| Acceleration 0–100 km/h [s] | 7,4 | 7,6 | 7,6 | 7,8 | 6,7 | 6,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,4-5,2 | 5,9-5,8 | 6,0-5,8 | 5,7-5,5 | 5,0-4,9 | 5,2-5,0 |
| Out of town [l] | 4,4-4,1 | 4,9-4,7 | 4,8-4,5 | 4,8-4,6 | 4,5-4,1 | 4,8-4,4 |
| Combined [l] | 4,7-4,5 | 5,3-5,1 | 5,2-5,0 | 5,1-4,9 | 4,6-4,4 | 4,9-4,7 |
| CO2 emissions [g/km] | 123-116 | 140-134 | 136-130 | 134-128 | 121-114 | 129-123 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1690 | 1690 | 1690 | 1715 | 1670 | 1735 |
| Overall weight [kg] | 2220 | 2225 | 2220 | 2245 | 2185 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1700 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 663 | 663 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 54 | 58 | 58 | 54 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/55 R17 | 225/55 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/55 R17 | 225/55 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4725 | 4725 | 4750 | 4750 | 4725 | 4725 |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 |
| Overall height [mm] | 1434 | 1434 | 1493 | 1493 | 1434 | 1434 |
| Wheelbase [mm] | 2820 | 2820 | 2818 | 2818 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1578 | 1578 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1566 | 1566 | 1555 | 1555 |
| Forward overhang [mm] | 880 | 880 | 894 | 894 | 880 | 880 |
| Rear overhang [mm] | 1025 | 1025 | 1038 | 1038 | 1025 | 1025 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI 160 kW allroad quattro | 45 TDI 170 kW quattro | 3.0 TDI 200 kW quattro | 3.0 TDI 200 kW allroad quattro | 50 TDI 210 kW quattro | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | 2967 | |
| Maximum output / speed [kW/min-1] | 160/4000-5000 | 170/3250-4750 | 200/3250-4250 | 200/3250-4250 | 210/3500-4000 | |
| Maximum torque [Nm/min-1] | 400/1250-3750 | 500/1750-3250 | 600/1500-3000 | 600/1500-3000 | 620/2250-3000 | |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | |
| Compression ratio | 16,8:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 231 | 249 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 6,6 | 6,1 | 5,4 | 5,5 | 5,3 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5,6-5,4 | - | 6,0-5,8 | 6,1-5,9 | - | |
| Out of town [l] | 5,2-5,0 | - | 5,4-5,0 | 5,5-5,2 | - | |
| Combined [l] | 5,3-5,1 | 4,9-4,7 | 5,6-5,3 | 5,7-5,5 | 5,6-5,3 | |
| CO2 emissions [g/km] | 143-137 | 129-123 | 146-138 | 150-143 | 146-138 | |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1765 | 1805 | 1770 | 1805 | 1805 | |
| Overall weight [kg] | 2280 | 2320 | 2285 | 2320 | 2335 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/8900 | 750/1900 | 750/1900 | 750/1900 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 663 | 630 | 630 | 663 | 630 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | |
| Tyre dimensions front | 225/55 R17 | 225/50 R17 | 225/50 R17 | 225/55 R17 | 225/50 R17 | |
| Tyre dimensions rear | 225/55 R17 | 225/50 R17 | 225/50 R17 | 225/55 R17 | 225/50 R17 | |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | |
| Overall length [mm] | 4750 | 4725 | 4725 | 4750 | 4725 | |
| Overall width without/including mirrors [mm] | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | 1842/2022 | |
| Overall height [mm] | 1493 | 1434 | 1434 | 1493 | 1434 | |
| Wheelbase [mm] | 2818 | 2820 | 2820 | 2818 | 2820 | |
| Front wheel track [mm] | 1578 | 1572 | 1572 | 1578 | 1572 | |
| Rear wheel track [mm] | 1566 | 1555 | 1555 | 1566 | 1555 | |
| Forward overhang [mm] | 894 | 880 | 880 | 894 | 880 | |
| Rear overhang [mm] | 1038 | 1025 | 1025 | 1038 | 1025 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
