Audi A5
Date of manufacture
2019 – to this day (Coupé)
2019 – to this day (Liftback)
2019 – to this day (Convertible)
Platform
MLBevo platform
Manufacturing locations
Ingolstadt, Germany
Neckarsulm, Germany
Designer
-
Tags
D-segment
German cars
Convertible
The Audi A5 is a luxury vehicle that has been manufactured since 2019. Germany is the country of origin of this car and it is built on the MLBevo platform. The powertrain offering includes petrol, diesel and hybrid engines. The highest performance is achieved by the RS5 331 kW quattro with a top speed of 250 km/h and the best acceleration 0-100 km/h in 3.9 seconds. The most fuel-efficient engine is the 40 g-tronic 125 kW with a combined consumption of 4.3 kg/100 km and CO2 emissions of 117 g/km. The Audi A5 has three body variants - coupe, liftback and cabriolet - and offers a luggage compartment size of 450 l for the liftback and coupe, and 370 l for the cabriolet. In 2015, this car underwent EURONCAP safety tests and received a rating of 5 out of 5.
Car body style

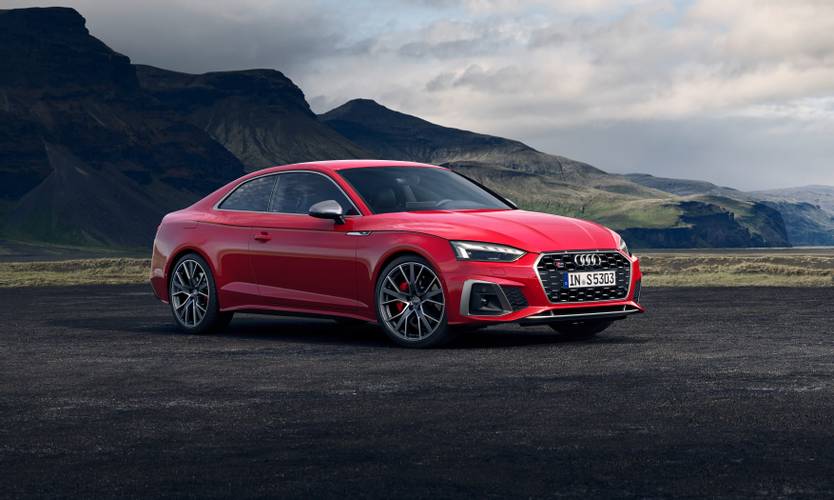

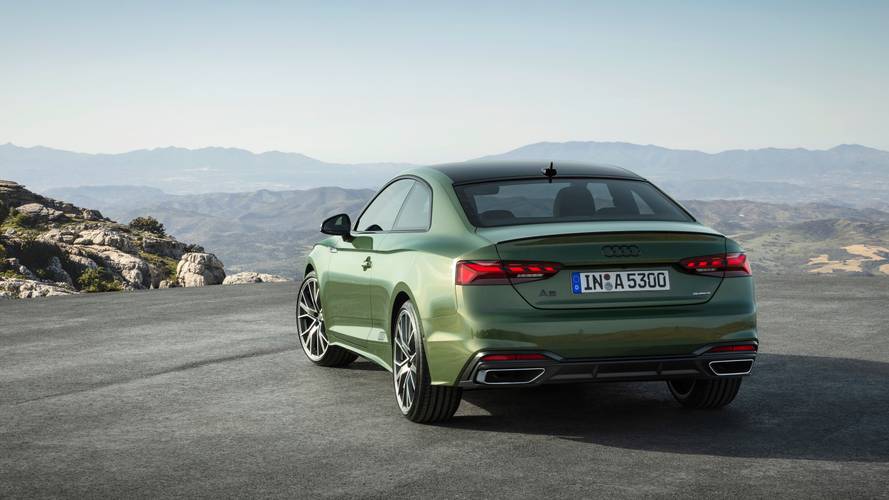

Coupé
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
F5 (8W6)Engine size
PetrolPetrol + Electric
DieselDiesel + Electric

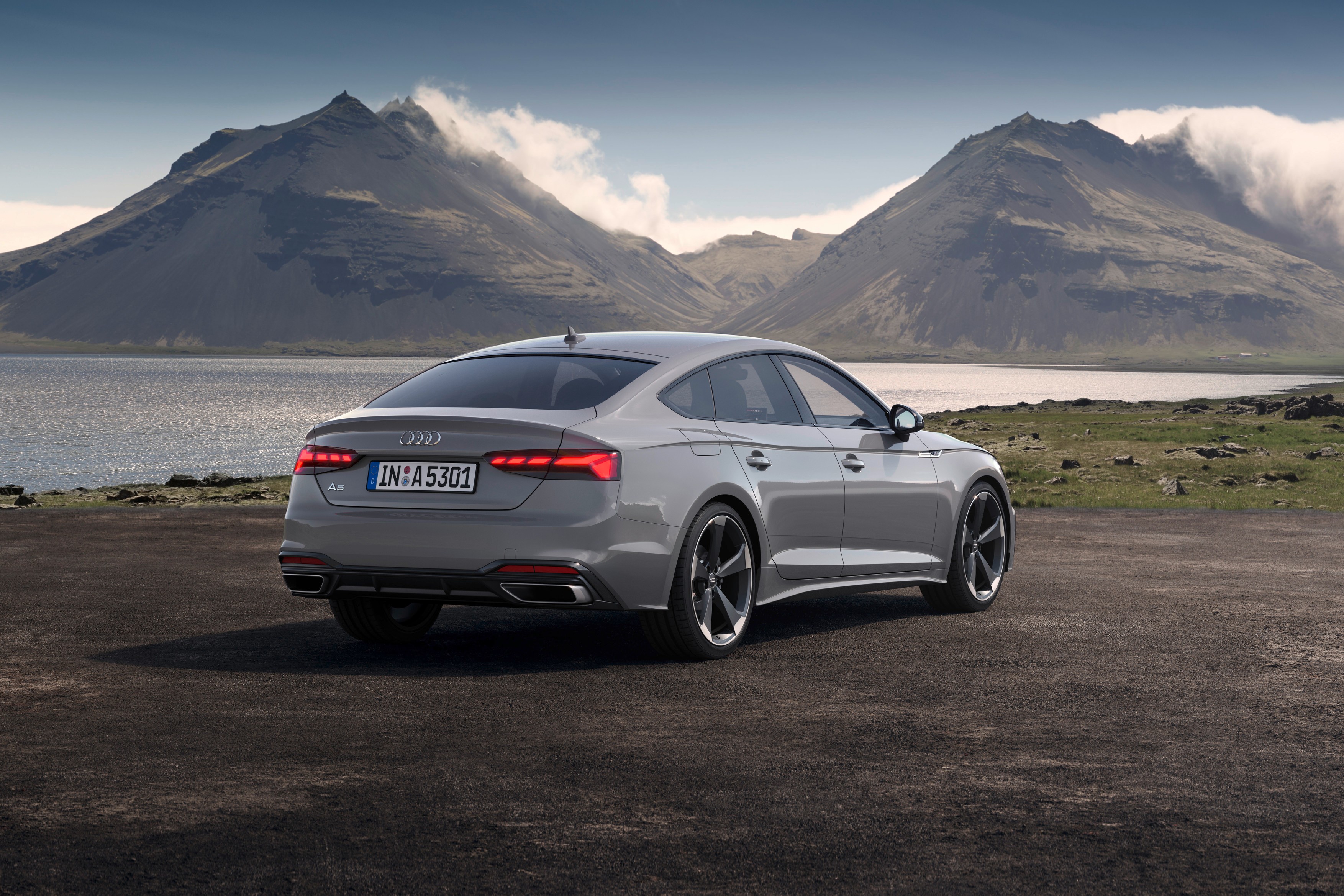

Liftback (Sportback)
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
F5 (8W6)Engine size
PetrolPetrol + Electric
DieselDiesel + Electric
Convertible
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
F5 (8W6)Engine size
Technical data
Coupé

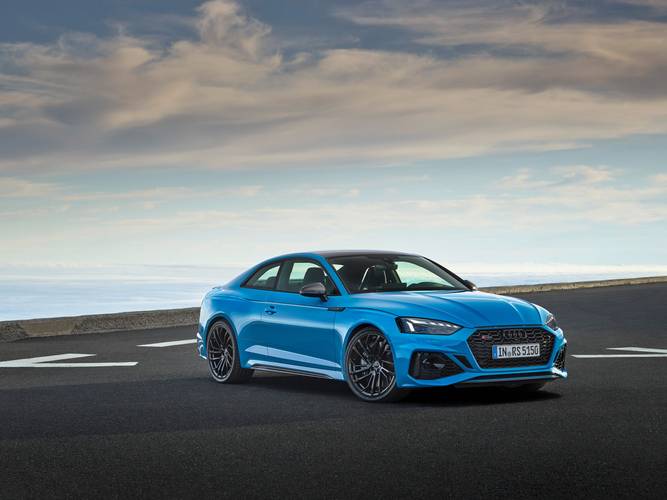

| RS5 331kW quattro | 35 TFSI 110 kW | 35 TFSI 110 kW | 40 TFSI 140 kW | 40 TFSI 150 kW | 40 TFSI 150 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 10/2020 to | from 10/2020 to | - | from 10/2020 to | from 10/2020 to |
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2894 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 331/5700-6700 | 110/4000-6000 | 110/4000-6000 | 140/4200-6000 | 150/4475-6000 | 150/4475-6000 |
| Maximum torque [Nm/min-1] | 600/1900-5000 | 270/1300-3850 | 270/1300-3850 | 320/1450-4200 | 320/1450-4475 | 320/1450-4475 |
| Bore and stroke [mm x mm] | 84.5 x 86.0 | 82.5 x 92.8 | 82.5 x 92.8 | 82.5 x 92.8 | 82.5 x 92.8 | 82.5 x 92.8 |
| Compression ratio | 10.0:1 | 12.2:1 | 12.2:1 | 11,7:1 | 12.2:1 | 12.2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 250 | 210, 226 unlimited | 210, 225 unlimited | 241 | 210 | 210, 240 unlimited |
| Acceleration 0–100 km/h [s] | 3.9 | 8.7 | 8.9 | 7,3 | 7.1 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.1 | 8.0-7.6 | 7.5-7.2 | 7,7-7,4 | 7.3-7.1 | 7.9-7.5 |
| Out of town [l] | 7.4 | 5.0-4.6 | 5.0-4.6 | 5,1-4,7 | 5.1-4.7 | 5.3-4.7 |
| Combined [l] | 9.1 | 6.1-5.7 | 5.9-5.6 | 5,9-5,8 | 5.9-5.6 | 6.2-5.7 |
| CO2 emissions [g/km] | 208 | 139-130 | 135-127 | 136-131 | 136-128 | 142-132 |
| Low speed [l] | 13,7 | 7,9 | 8,3 | - | 8,7 | 9,0 |
| Medium speed [l] | 9,7 | 6,2 | 6,3 | - | 6,4 | 6,6 |
| High speed [l] | 7,9 | 5,2 | 5,2 | - | 5,1 | 5,2 |
| Extra high speed [l] | 8,4 | 5,8 | 5,8 | - | 5,7 | 5,8 |
| Combined speed [l] | 9,3 | 6,0 | 6,1 | 7,3-6,5 | 7,0-6,0 | 7,1-6,2 |
| CO2 emissions [g/km] | 210 | 136 | 138 | 167-148 | 159-137 | 161-141 |
| Emission standard | EU6 DG | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-TEMPEVAP- ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 86.4 | 70.3 | 70.7 | - | 70.1 | 70.0 |
| Driving noise [dB] | 71 | 68 | 69 | - | 68 | 68 |
| System voltage [V] | - | 12 | 12 | 12 | 12 | 12 |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1707 | 1515 | 1550 | 1530 | 1560 | 1635 |
| Overall weight [kg] | 2207 | 1935 | 1970 | 1965 | 1975 | 2035 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/1400 | 750/1500 | 750/1500 | 750/1500 | 750/1700 |
| Maximum front/rear axle load [kg] | 1202/1095 | 1010/1025 | 1050/1030 | - | 1045/1030 | 1055/1080 |
| Maximum vertical load on the tow bar [kg] | - | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 410 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 660 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 955/- | 955/- | 955/- | 955/- | 955/- | 955/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 58 | 54 | 54 | 54 | 54 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 265/35 ZR 1998 Y XL | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 |
| Tyre dimensions rear | 265/35 ZR 1998 Y XL | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 |
| Wheel size front | 9,0J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 9,0J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |

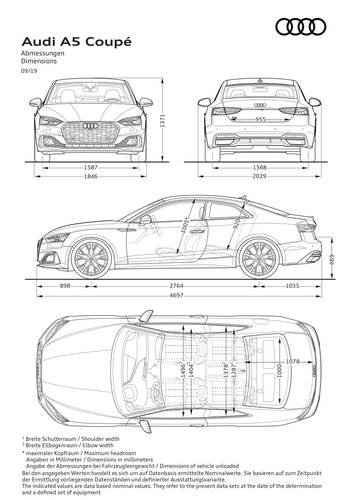

| Overall length [mm] | 4723 | 4697 | 4697 | 4697 | 4697 | 4697 |
| Overall width without/including mirrors [mm] | 1866/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 |
| Overall height [mm] | 1372 | 1371 | 1371 | 1371 | 1371 | 1371 |
| Wheelbase [mm] | 2766 | 2764 | 2764 | 2764 | 2764 | 2764 |
| Front wheel track [mm] | 1598 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1588 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | - | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | - | 1035 | 1035 | 1035 | 1035 | 1035 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.00 | 12.50 | 12.50 | 12.50 | 12.50 | 12.50 |
| Approach angle rear [°] | 12.60 | 12.90 | 12.90 | 12.90 | 12.90 | 12.90 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 45 TFSI 180 kW quattro | 45 TFSI 195 kW quattro | 40 TDI 140 kW | 40 TDI 140 kW quattro | 45 TDI 170 kW quattro | 50 TDI 210 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 10/2020 to | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 1968 | 1968 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 180/5000-6000 | 195/5250-6500 | 140/3800-4200 | 140/3800-4200 | 170/3250-4750 | 210/3500-4000 |
| Maximum torque [Nm/min-1] | 370/1600-4300 | 370/1600-4500 | 400/1750-3000 | 400/1750-3000 | 500/1750-3250 | 620/2250-3000 |
| Bore and stroke [mm x mm] | 82.5 x 92.8 | 82.5 x 92.8 | 81.0 x 95.5 | 81.0 x 95.5 | 83.0 x 91.4 | 83.0 x 91.4 |
| Compression ratio | 9.6:1 | 9.6:1 | 15.5:1 | 15.5:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 210 | 210 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.8 | 5.5 | 7,7 | 7,4 | 6,0 | 5.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,6-8,4 | 9.2-8.9 | 5,1-4,8 | - | 6,8-6,5 | - |
| Out of town [l] | 5,6-5,2 | 6.0-5.5 | 4,2-3,8 | - | 4,6-4,3 | - |
| Combined [l] | 6,7-6,4 | 7.2-6.8 | 4,5-4,2 | 5,2-4,8 | 5,4-5,1 | 6,0-5,6 |
| CO2 emissions [g/km] | 152-145 | 164-155 | 118-109 | 137-128 | 142-134 | 158-147 |
| Low speed [l] | - | 10,9 | - | - | - | - |
| Medium speed [l] | - | 7,8 | - | - | - | - |
| High speed [l] | - | 6,4 | - | - | - | - |
| Extra high speed [l] | - | 7,1 | - | - | - | - |
| Combined speed [l] | 7,9-7,2 | 8,3-7,3 | 5,8-5,1 | 6,4-5,7 | 7,2-6,5 | 7,5-6,6 |
| CO2 emissions [g/km] | 180-164 | 189-167 | 153-133 | 167-148 | 188-169 | 195-173 |
| Emission standard | Euro 6d-TEMPEVAP- ISC | EU6 | Euro 6d-TEMPEVAP- ISC | Euro 6d-TEMPEVAP- ISC | Euro 6d-TEMPEVAP- ISC | Euro 6d-TEMPEVAP- ISC |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | 69.2 | - | - | - | - |
| Driving noise [dB] | - | 67 | - | - | - | - |
| System voltage [V] | 12 | 12 | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1635 | 1565 | 1645 | 1735 | 1735 |
| Overall weight [kg] | 2035 | 2050 | 2015 | 2085 | 2200 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1800 | 750/1800 | 750/1900 |
| Maximum front/rear axle load [kg] | - | 1070/1085 | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 955/- | 955/- | 955/- | 955/- | 955/- | 955/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 58 | 58 | 40/54 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 24 | 24 |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 |
| Tyre dimensions rear | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4697 | 4697 | 4697 | 4697 | 4697 | 4697 |
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 |
| Overall height [mm] | 1371 | 1371 | 1371 | 1371 | 1371 | 1371 |
| Wheelbase [mm] | 2764 | 2764 | 2764 | 2764 | 2764 | 2764 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.50 | 12.50 | 12.50 | 12.50 | 12.50 | 12.50 |
| Approach angle rear [°] | 12.90 | 12.90 | 12.90 | 12.90 | 12.90 | 12.90 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 35 TDI 120 kW | 35 TDI 120 kW | 40 TDI 150 kW | 40 TDI 150 kW quattro | 50 TDI 210 kW quattro | S5 TDI 255 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 10/2020 to | from 10/2020 to | from 10/2020 to | from 10/2020 to | - |
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 120/3250-4200 | 120/3250-4200 | 150/3800-4200 | 150/3800-4200 | 210/3500-4000 | 255/3850-3850 |
| Maximum torque [Nm/min-1] | 380/1500-2750 | 370/1500-3000 | 400/1750-3250 | 400/1750-3250 | 620/1750-3000 | 700/2500-3100 |
| Bore and stroke [mm x mm] | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 83.0 x 91.4 | 83.0 x 91.4 |
| Compression ratio | 16.0:1 | 16.0:1 | 15.5:1 | 15.5:1 | 16.3:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 210 | 210, 228 unlimited | 210, 249 unlimited | 210, 249 unlimited | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8,2 | 8,2 | 7,4 | 6,9 | 5.2 | 4.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,5-4,2 | 5,1-4,9 | 5,5-5,3 | 5,6-5,4 | 8.0-7.6 | 7.2 |
| Out of town [l] | 3,8-3,4 | 3,8-3,4 | 4,4-4,0 | 4,3-3,9 | 5.1-4.8 | 5.6-5.5 |
| Combined [l] | 4,1-3,7 | 4,3-4,0 | 4,8-4,5 | 4,8-4,4 | 6.2-5.8 | 6.2-6.1 |
| CO2 emissions [g/km] | 107-98 | 113-104 | 126-117 | 126-117 | 162-153 | 161-160 |
| Low speed [l] | - | 6,2 | - | - | 10,3 | - |
| Medium speed [l] | - | 4,6 | - | - | 7,2 | - |
| High speed [l] | - | 4,0 | - | - | 5,3 | - |
| Extra high speed [l] | - | 4,6 | - | - | 5,8 | - |
| Combined speed [l] | 5,7-5,0 | 5,4-4,7 | 5,7-5,0 | 5,8-5,1 | 7,2-6,4 | - |
| CO2 emissions [g/km] | 148-131 | 142-122 | 150-130 | 151-132 | 188-167 | - |
| Emission standard | Euro 6d-Temp-Evap-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | EU 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | 71.6 | - | 72.5 | 85.9 |
| Driving noise [dB] | - | - | 68 | - | 68 | 71 |
| System voltage [V] | 12 | 12 | 12 | 12 | 48 | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1565 | 1570 | 1655 | 1805 | 1845 |
| Overall weight [kg] | 2010 | 2010 | 2015 | 2085 | 2240 | 2270 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1800 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | 1190/1140 | 1215/1165 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | - |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 666 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 955/- | 955/- | 955/- | 955/- | 955/- | 955/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 40/54 | 40/54 | 40/54 | 58 | 58 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 24 | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 245/40 R 1897 Y XL (Extra Load |
| Tyre dimensions rear | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 245/40 R 1897 Y XL (Extra Load |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4697 | 4697 | 4697 | 4697 | 4697 | 4705 |
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 |
| Overall height [mm] | 1371 | 1371 | 1371 | 1371 | 1371 | 1368 |
| Wheelbase [mm] | 2764 | 2764 | 2764 | 2764 | 2764 | 2765 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | - |
| Rear overhang [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.50 | 12.50 | 12.50 | 12.50 | 12.50 | - |
| Approach angle rear [°] | 12.90 | 12.90 | 12.90 | 12.90 | 12.90 | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Liftback (Sportback)
| RS5 331 kW quattro | 40 g-tronic 125 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | 40 TFSI 140 kW | 40 TFSI 150 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 10/2020 to | from 10/2020 to | - | from 10/2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2894 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 331/5700-6700 | 125/4450-6000 | 110/4000-6000 | 110/4000-6000 | 140/4200-6000 | 150/4475-6000 |
| Maximum torque [Nm/min-1] | 600/1900-5000 | 270/1650-4400 | 270/1300-3850 | 270/1300-3850 | 320/1450-4200 | 320/1450-4475 |
| Bore and stroke [mm x mm] | 84,5 x 86,0 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,0:1 | 12,6:1 | 12,2:1 | 12,2:1 | 11,7:1 | 12,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 250 | 210, 228 unlimited | 210, 226 unlimited | 210, 223 unlimited | 241 | 210, 244 unlimited |
| Acceleration 0–100 km/h [s] | 3,9 | 8,4 | 8,8 | 9,1 | 7,5 | 7,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12,2 | [5,2 kg] | 8,0-7,6 | 7,5-7,2 | 7,7-7,4 | 7,4-7,1 |
| Out of town [l] | 7,4 | [3,0 kg] | 5,1-4,6 | 5,1-4,6 | 5,1-4,7 | 5,2-4,7 |
| Combined [l] | 9,2 | [3,8 kg] | 6,1-5,7 | 6,0-5,6 | 5,9-5,8 | 6,0-5,6 |
| CO2 emissions [g/km] | 209 | 104 | 141-131 | 136-127 | 137-131 | 137-128 |
| Low speed [l] | 13,9 | [6,4 kg] | 8,1 | 8,4 | - | 8,8 |
| Medium speed [l] | 9,9 | [4,4 kg] | 6,3 | 6,4 | - | 6,5 |
| High speed [l] | 8,1 | [3,7 kg] | 5,2 | 5,3 | - | 5,2 |
| Extra high speed [l] | 8,6 | [3,9 kg] | 5,9 | 5,8 | - | 5,7 |
| Combined speed [l] | 9,4 | [4,3 kg] | 6,9-6,0 | 7,1-6,1 | 7,4-6,6 | 7,1-6,1 |
| CO2 emissions [g/km] | 214 | 117 | 158-137 | 162-139 | 169-150 | 162-139 |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-TEMPEVAP- ISC | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 86,4 | 70,1 | 70,3 | 70,7 | - | 70,1 |
| Driving noise [dB] | 71 | 67 | 68 | 69 | - | 68 |
| System voltage [V] | - | - | 12 | 12 | 12 | 12 |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1795 | 1650 | 1550 | 1585 | 1565 | 1590 |
| Overall weight [kg] | 2322 | 2130 | 2045 | 2080 | 2065 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/1500 | 750/1400 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1237/1200 | 1105/1180 | 1045/1110 | 1080/1115 | - | 1080/1115 |
| Maximum vertical load on the tow bar [kg] | - | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 465 | 390 | 465 | 465 | 465 | 465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1280 | -/1200 | -/1280 | -/1280 | -/1280 | -/1280 |
| Boot length [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 680 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | 951/- | 951/- | 951/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 7 [17,3 kg] | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,32 | 0,26 | 0,26 | 0,26 | 0,26 | 0,26 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 265/35 ZR 19 98 Y XL | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 265/35 ZR 19 98 Y XL | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 9,0J x 19 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 9,0J x 19 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4783 | 4757 | 4757 | 4757 | 4757 | 4757 |
| Overall width without/including mirrors [mm] | 1866/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 |
| Overall height [mm] | 1399 | 1406 | 1386 | 1386 | 1386 | 1386 |
| Wheelbase [mm] | 2826 | 2824 | 2824 | 2824 | 2824 | 2824 |
| Front wheel track [mm] | 1598 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1588 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | - | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | - | 1035 | 1035 | 1035 | 1035 | 1035 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12,2 | 10,7 | 12,2 | 12,2 | 12,2 | 12,2 |
| Approach angle rear [°] | 12,7 | 12,4 | 12,7 | 12,7 | 12,7 | 12,7 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 |
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 40 TFSI 150 kW quattro | 45 TFSI 180 kW quattro | 45 TFSI 195 kW quattro | 40 TDI 140 kW | 40 TDI 140 kW quattro | 45 TDI 170 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | from 10/2020 to | - | from 10/2020 to | - | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1968 | 1968 | 2967 |
| Maximum output / speed [kW/min-1] | 150/4475-6000 | 180/5000-6500 | 195/5250-6500 | 140/3800-4200 | 140/3800-4200 | 170/3250-4750 |
| Maximum torque [Nm/min-1] | 320/1450-4475 | 370/1600-4300 | 370/1600-4500 | 400/1750-3000 | 400/1750-3000 | 500/1750-3250 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 |
| Compression ratio | 12,2:1 | 9,6:1 | 9,6:1 | 15,5:1 | 15,5:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 210, 241 unlimited | 250 | 250 | 241 | 235 | 250 |
| Acceleration 0–100 km/h [s] | 6,8 | 6,0 | 5,6 | 7,9 | 7,6 | 6,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9-7,5 | 8,6-8,4 | 9,2-8,9 | 5,1-4,8 | 5.9-5.6 | 6,8-6,5 |
| Out of town [l] | 5,3-4,7 | 5,7-5,1 | 6,0-5,5 | 4,2-3,8 | 4.8-4.4 | 4,6-4,3 |
| Combined [l] | 6,3-5,8 | 6,8-6,3 | 7,2-6,8 | 4,5-4,2 | 5,2-4,8 | 5,4-5,1 |
| CO2 emissions [g/km] | 143-132 | 153-144 | 165-155 | 119-109 | 137-128 | 143-134 |
| Low speed [l] | 9,1 | - | 11,0 | - | - | - |
| Medium speed [l] | 6,7 | - | 7,9 | - | - | - |
| High speed [l] | 5,3 | - | 6,4 | - | - | - |
| Extra high speed [l] | 5,8 | - | 7,2 | - | - | - |
| Combined speed [l] | 7,2-6,3 | 8,0-7,3 | 8,4-7,4 | 6,0-5,1 | 6,4-5,7 | 7,3-6,5 |
| CO2 emissions [g/km] | 164-143 | 182-165 | 191-168 | 156-134 | 169-150 | 191-170 |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-TEMPEVAP- ISC | Euro 6d-ISC-FCM | Euro 6d-TEMPEVAP- ISC | Euro 6d-TEMPEVAP- ISC | Euro 6d-TEMPEVAP- ISC |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 70,0 | - | 69,2 | - | - | - |
| Driving noise [dB] | 68 | - | 67 | - | - | - |
| System voltage [V] | 12 | 12 | 12 | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1660 | 1670 | 1670 | 1595 | 1680 | 1775 |
| Overall weight [kg] | 2160 | 2175 | 2175 | 2125 | 2200 | 2310 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1095/1165 | 1105/1170 | 1105/1170 | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 465 | 465 | 465 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1280 | -/1280 | -/1280 | -/1280 | -/1280 | -/1280 |
| Boot length [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | 951/- | 951/- | 951/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 58 |
| AdBlue tank volume [l] | - | - | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | 0,26 | 0,26 | 0,26 | 0,26 | 0,26 | 0,25 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4757 | 4757 | 4757 | 4757 | 4757 | 4757 |
| Overall width without/including mirrors [mm] | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 |
| Overall height [mm] | 1386 | 1386 | 1386 | 1386 | 1386 | 1386 |
| Wheelbase [mm] | 2824 | 2824 | 2824 | 2824 | 2824 | 2824 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12,2 | 12,2 | 12,2 | 12,2 | 12,2 | 12,2 |
| Approach angle rear [°] | 12,7 | 12,7 | 12,7 | 12,7 | 12,7 | 12,7 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 |
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 50 TDI 210 kW quattro | 35 TDI 120 kW | 35 TDI 120 kW | 40 TDI 150 kW | 40 TDI 150 kW quattro | 50 TDI 210 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 10/2020 to | from 10/2020 to | from 10/2020 to | from 10/2020 to |
| Engine type | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 2967 | 1968 | 1968 | 1968 | 1968 | 2967 |
| Maximum output / speed [kW/min-1] | 210/3500-4000 | 120/3250-4200 | 120/3250-4200 | 150/3800-4200 | 150/3800-4200 | 210/3500-4000 |
| Maximum torque [Nm/min-1] | 620/2250-3000 | 380/1500-2750 | 370/1500-3000 | 400/1750-3250 | 400/1750-3250 | 620/1750-3000 |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 15,5:1 | 15,5:1 | 16,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 226 | 210, 226 unlimited | 210, 249 unlimited | 210, 242 unlimited | 250 |
| Acceleration 0–100 km/h [s] | 5,3 | 8,4 | 8,4 | 7,4 | 7,0 | 5,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,2-6,8 | 4,5-4,2 | 5,2-4,9 | 5,5-5,3 | 5,6-5,4 | 8,0-7,6 |
| Out of town [l] | 5,4-4,9 | 3,9-3,4 | 3,8-3,4 | 4,4-4,0 | 4,3-3,9 | 5,2-4,8 |
| Combined [l] | 6,0-5,6 | 4,1-3,7 | 4,3-4,0 | 4,8-4,5 | 4,8-4,4 | 6,2-5,8 |
| CO2 emissions [g/km] | 158-147 | 108-98 | 114-105 | 127-118 | 127-117 | 163-154 |
| Low speed [l] | - | - | 6,3 | 6,7 | 6,8 | 10,3 |
| Medium speed [l] | - | - | 4,7 | 5,1 | 5,2 | 7,3 |
| High speed [l] | - | - | 4,1 | 4,3 | 4,3 | 5,4 |
| Extra high speed [l] | - | - | 4,7 | 5,0 | 5,1 | 5,9 |
| Combined speed [l] | 7,5-6,7 | 5,7-5,1 | 5,5-4,7 | 5,8-5,0 | 5,9-5,1 | 7,3-6,4 |
| CO2 emissions [g/km] | 197-174 | 150-132 | 144-123 | 152-131 | 153-134 | 190-168 |
| Emission standard | Euro 6d-Temp-Evap-ISC | Euro 6d-Temp-Evap-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | 72,6 | 70,4 | 70,4 | 72,5 |
| Driving noise [dB] | - | - | 68 | 68 | 68 | 68 |
| System voltage [V] | - | 12 | 12 | 12 | 12 | 48 |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1845 | 1600 | 1595 | 1605 | 1690 | 1845 |
| Overall weight [kg] | 2355 | 2120 | 2120 | 2125 | 2210 | 2355 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1700 | 750/1700 | 750/1700 | 750/1800 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | 1105/1135 | - | 1125/1200 | 1125/1235 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1280 | -/1280 | -/1280 | -/1280 | -/1280 | -/1280 |
| Boot length [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | 951/- | 951/- | 951/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 58 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | 0,25 | 0,26 | 0,26 | 0,26 | - | 0,25 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4757 | 4757 | 4757 | 4757 | 4757 | 4757 |
| Overall width without/including mirrors [mm] | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 |
| Overall height [mm] | 1386 | 1386 | 1386 | 1386 | 1386 | 1386 |
| Wheelbase [mm] | 2824 | 2824 | 2824 | 2824 | 2824 | 2824 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12,2 | 12,2 | 12,2 | 12,2 | 12,2 | 12,2 |
| Approach angle rear [°] | 12,7 | 12,7 | 12,7 | 12,7 | 12,7 | 12,7 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 |
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S5 TDI 255 kW quattro | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged + Electric | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2967 | |||||
| Maximum output / speed [kW/min-1] | 255/3850-3850 | |||||
| Maximum torque [Nm/min-1] | 700/2500-3100 | |||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | |||||
| Compression ratio | 15,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 4,9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7,2-7,2 | |||||
| Out of town [l] | 5,5-5,6 | |||||
| Combined [l] | 6,1-6,2 | |||||
| CO2 emissions [g/km] | 160-162 | |||||
| Emission standard | Euro 6d-ISC-FCM | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | 85,9 | |||||
| Driving noise [dB] | 71 | |||||
| System voltage [V] | 48 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | |||||
| Range with fully charged battery [km] | - | |||||
| Charging time | - | |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 1880 | |||||
| Overall weight [kg] | 2380 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | |||||
| Maximum front/rear axle load [kg] | 1250/1250 | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 90/- | |||||
| Boot volume [l] | 430 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | 1072 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1000/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 666 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 951/- | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 58 | |||||
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | |||||
| Air resistance [Cd] | 0,29 | |||||
| Front suspension | five-link, stabiliser bar | |||||
| Rear suspension | five-link, stabiliser bar | |||||
| Tyre dimensions front | 245/40 R 18 97 Y XL | |||||
| Tyre dimensions rear | 245/40 R 18 97 Y XL | |||||
| Wheel size front | 8,5J x 18 | |||||
| Wheel size rear | 8,5J x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical variable effect power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11,7/- | |||||
| Overall length [mm] | 4757 | |||||
| Overall width without/including mirrors [mm] | 1843/2029 | |||||
| Overall height [mm] | 1395 | |||||
| Wheelbase [mm] | 2825 | |||||
| Front wheel track [mm] | 1587 | |||||
| Rear wheel track [mm] | 1568 | |||||
| Forward overhang [mm] | 898 | |||||
| Rear overhang [mm] | 1035 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 12,2 | |||||
| Approach angle rear [°] | 12,7 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1015 | |||||
| Headroom rear [mm] | 945 | |||||
| Front elbow/shoulder width [mm] | 1477/1414 | |||||
| Rear elbow/shoulder width [mm] | 1448/1385 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Convertible
| S5 260 kW quattro | 35 TFSI 110 kW | 40 TFSI 140 kW | 40 TFSI 150 kW | 40 TFSI 150 kW quattro | 45 TFSI 180 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 10/2020 to | from 10/2020 to | - |
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2995 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 260/5400-6400 | 110/4000-6000 | 140/4200-6000 | 150/4475-6000 | 150/4475-6000 | 180/5000-6000 |
| Maximum torque [Nm/min-1] | 500/1370-4500 | 270/1300-3850 | 320/1450-4200 | 320/1450-4475 | 320/1450-4475 | 370/1600-4300 |
| Bore and stroke [mm x mm] | 84.5 x 89.0 | 82.5 x 92.8 | 82.5 x 92.8 | 82.5 x 92.8 | 82.5 x 92.8 | 82.5 x 92.8 |
| Compression ratio | 11.2:1 | 12.2:1 | 11,7:1 | 12.2:1 | 12.2:1 | 9.6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 219 | 237 | 237 | 234 | 250 |
| Acceleration 0–100 km/h [s] | 4,9 | 9.8 | 7.9 | 7.5 | 7.1 | 6,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.8-10.7 | 7.9-7.6 | 7,7-7,4 | 7.7-7.4 | 8.2-7.8 | 8,8-8,6 |
| Out of town [l] | 6.8-6.7 | 5.4-4.9 | 5,4-4,9 | 5.5-5.1 | 5.6-5.0 | 6,0-5,5 |
| Combined [l] | 8.2 | 6.3-5.9 | 6,2-5,9 | 6.3-5.9 | 6.5-6.0 | 7,0-6,6 |
| CO2 emissions [g/km] | 188-187 | 144-134 | 140-134 | 145-135 | 150-138 | 160-150 |
| Low speed [l] | 13,8 | 8,8 | - | 9,2 | 9,6 | - |
| Medium speed [l] | 9,3 | 6,9 | - | 7,1 | 7,2 | - |
| High speed [l] | 7,7 | 5,9 | - | 5,8 | 5,8 | - |
| Extra high speed [l] | 8,3 | 6,5 | - | 6,4 | 6,4 | - |
| Combined speed [l] | 9,0 | 7,3-5,9 | - | 7,4-6,5 | 7,5-6,6 | - |
| CO2 emissions [g/km] | 205 | 165-149 | - | 168-149 | 170-150 | - |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-Temp-Evap-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-Temp-Evap-ISC |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 84.2 | 70.7 | - | 70.1 | 70.0 | - |
| Driving noise [dB] | 68 | 69 | - | 68 | 68 | - |
| System voltage [V] | - | 12 | 12 | 12 | 12 | 12 |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1915 | 1740 | 1730 | 1745 | 1815 | 1810 |
| Overall weight [kg] | 2340 | 2165 | 2160 | 2170 | 2220 | 2235 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1500 | 750/1500 | 750/1500 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 1210/1245 | 1110/1170 | - | 1105/1170 | 1120/1220 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 375 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 664 | 666 | 666 | 666 | 666 | 666 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 953/- | 953/- | 953/- | 953/- | 953/- | 953/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | - | 54 | 54 | 54 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 245/40 R 18 97 Y xl | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 |
| Tyre dimensions rear | 245/40 R 18 97 Y xl | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 | 225/50 R 17 |
| Wheel size front | 8.5J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 8.5J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4705 | 4697 | 4697 | 4697 | 4697 | 4697 |
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 |
| Overall height [mm] | 1382 | 1384 | 1384 | 1384 | 1384 | 1384 |
| Wheelbase [mm] | 2765 | 2764 | 2764 | 2764 | 2764 | 2764 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 883 | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | 1044 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.80 | 13.20 | 13.20 | 13.20 | 13.20 | 13.20 |
| Approach angle rear [°] | 12.40 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 45 TFSI 195 kW quattro | 35 TDI 120 kW | 35 TDI 120 kW | 40 TDI 140 kW | 40 TDI 140 kW quattro | 50 TDI 210 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | from 10/2020 to | - | from 10/2020 to | - | - | - |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1984 | 1968 | 1968 | 1968 | 1968 | 2967 |
| Maximum output / speed [kW/min-1] | 195/5250-6500 | 120/3250-4200 | 120/3250-4200 | 140/3800-4200 | 140/3800-4200 | 210/3750-4000 |
| Maximum torque [Nm/min-1] | 370/1600-4500 | 380/1500-2750 | 370/1500-3000 | 400/1750-3000 | 400/1750-3000 | 620/1500-3000 |
| Bore and stroke [mm x mm] | 82.5 x 92.8 | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 83,0 x 91,4 |
| Compression ratio | 9.6:1 | 16.0:1 | 16.0:1 | 15.5:1 | 15.5:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 222 | 222 | 241 | 233 | 250 |
| Acceleration 0–100 km/h [s] | 6,0 | 9,0 | 9,0 | 8.4 | 8,0 | 5,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5-9.1 | 5,1-4,6 | 5,4-5,2 | 5.4-5.2 | - | - |
| Out of town [l] | 6.3-5.8 | 4,2-3,7 | 4,1-3,7 | 4.6-4.1 | - | - |
| Combined [l] | 7.4-7.0 | 4,9-4,5 | 4,6-4,2 | 4.9-4.5 | 6,6-6,0 | 7,8-7,0 |
| CO2 emissions [g/km] | 170-160 | 118-106 | 120-11,2 | 128-118 | 173-158 | 203-184 |
| Low speed [l] | 11,3 | - | 6,8 | - | - | - |
| Medium speed [l] | 8,3 | - | 5,1 | - | - | - |
| High speed [l] | 6,8 | - | 4,6 | - | - | - |
| Extra high speed [l] | 7,7 | - | 5,2 | - | - | - |
| Combined speed [l] | 8,7-7,8 | - | 5,6-5,0 | - | - | - |
| CO2 emissions [g/km] | 198-178 | - | 147-132 | - | - | - |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-TEMPEVAP- ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-Temp-Evap-ISC |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 69.2 | - | 76.0 | 74.2 | - | - |
| Driving noise [dB] | 67 | - | 70 | 68 | - | - |
| System voltage [V] | 12 | 12 | 12 | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1830 | 1760 | 1755 | 1765 | 1835 | 1935 |
| Overall weight [kg] | 2245 | 2170 | 2170 | 2215 | 2280 | 2380 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1800 | 750/1900 |
| Maximum front/rear axle load [kg] | 1135/1225 | - | 1130/1190 | 1135/1190 | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 370 | 370 | 370 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 666 | 666 | 666 | 666 | 666 | 666 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 953/- | 953/- | 953/- | 953/- | 953/- | 953/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 58 | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 58 | 58 |
| AdBlue tank volume [l] | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R 17 | 225/50 R17 94 Y | 225/50 R17 94 Y | 225/50 R17 94 Y | 225/50 R17 94 Y | 225/50 R 17 |
| Tyre dimensions rear | 225/50 R 17 | 225/50 R17 94 Y | 225/50 R17 94 Y | 225/50 R17 94 Y | 225/50 R17 94 Y | 225/50 R 17 |
| Wheel size front | 7.5J x 17 | 7.5Jx17 | 7.5Jx17 | 7.5Jx17 | 7.5Jx17 | 7.5Jx17 |
| Wheel size rear | 7.5J x 17 | 7.5Jx17 | 7.5Jx17 | 7.5Jx17 | 7.5Jx17 | 7.5Jx17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4697 | 4697 | 4697 | 4697 | 4697 | 4697 |
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 |
| Overall height [mm] | 1384 | 1384 | 1384 | 1384 | 1384 | 1384 |
| Wheelbase [mm] | 2764 | 2764 | 2764 | 2764 | 2764 | 2764 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.20 | - | - | - | - | 13.20 |
| Approach angle rear [°] | 12.70 | - | - | - | - | 12.70 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 40 TDI 150 kW | 40 TDI 150 kW quattro | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 10/2020 to | from 10/2020 to | ||||
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1968 | 1968 | ||||
| Maximum output / speed [kW/min-1] | 150/3800-4200 | 150/3800-4200 | ||||
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3250 | ||||
| Bore and stroke [mm x mm] | 81.0 x 95.5 | 81.0 x 95.5 | ||||
| Compression ratio | 15.5:1 | 15.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 243 | 237 | ||||
| Acceleration 0–100 km/h [s] | 7,9 | 7.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5,8-5,6 | 5.8-5.6 | ||||
| Out of town [l] | 4,7-4,3 | 4.6-4.1 | ||||
| Combined [l] | 5,1-4,8 | 5.0-4.6 | ||||
| CO2 emissions [g/km] | 135-125 | 133-122 | ||||
| Low speed [l] | 7,1 | 7,0 | ||||
| Medium speed [l] | 5,6 | 5,6 | ||||
| High speed [l] | 4,7 | 4,8 | ||||
| Extra high speed [l] | 5,5 | 5,7 | ||||
| Combined speed [l] | 6,0-5,4 | 6,1-5,4 | ||||
| CO2 emissions [g/km] | 158-140 | 159-142 | ||||
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | 70.4 | ||||
| Driving noise [dB] | - | 68 | ||||
| System voltage [V] | 12 | 12 | ||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | ||||
| Range with fully charged battery [km] | - | - | ||||
| Charging time | - | - | ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 1765 | 1845 | ||||
| Overall weight [kg] | 2180 | 2270 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1800 | ||||
| Maximum front/rear axle load [kg] | 1135/1190 | 1150/1250 | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 380 | 370 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | 1079 | 1079 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 666 | 666 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | 953/- | 953/- | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 40 [54 subject to a surcharge] | 58 | ||||
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | ||||
| Air resistance [Cd] | 0.28 | 0.28 | ||||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | ||||
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | ||||
| Tyre dimensions front | 225/50 R17 94 Y | 225/50 R 17 | ||||
| Tyre dimensions rear | 225/50 R17 94 Y | 225/50 R 17 | ||||
| Wheel size front | 7.5Jx17 | 7.5Jx17 | ||||
| Wheel size rear | 7.5Jx17 | 7.5Jx17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | ||||
| Overall length [mm] | 4697 | 4697 | ||||
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | ||||
| Overall height [mm] | 1384 | 1384 | ||||
| Wheelbase [mm] | 2764 | 2764 | ||||
| Front wheel track [mm] | 1587 | 1587 | ||||
| Rear wheel track [mm] | 1568 | 1568 | ||||
| Forward overhang [mm] | 898 | 898 | ||||
| Rear overhang [mm] | 1035 | 1035 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | 13.20 | ||||
| Approach angle rear [°] | - | 12.70 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1015 | 1015 | ||||
| Headroom rear [mm] | 923 | 923 | ||||
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | ||||
| Rear elbow/shoulder width [mm] | 1243/1190 | 1243/1190 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
