Audi A6
Date of manufacture
2008 – 2010 (Sedan)
2008 – 2011 (Estate)
Platform
Volkswagen Group C6 platform
Manufacturing locations
Neckarsulm, Germany
Designer
Walter de Silva, Satoshi Wada
Tags
E-segment
German cars
The Audi A6 is available in two body styles - sedan and estate. This car has been manufactured in Germany since 2008 on the Volkswagen Group C6 platform. The engine range includes petrol and diesel units, the most powerful version RS6 has 426 kW and reaches a top speed of 250 km/h with the best acceleration 0-100 km/h in 4.5 seconds. The most economical model 2.0 TDI e has a combined fuel consumption of 5.3 l/100 km and CO2 emissions of 139 g/km. The sedan has a boot capacity of 546 l, while the estate offers a luggage space of 565 l. In terms of safety, the Audi A6 has been rated 5 out of 5 by EURONCAP.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2008 – 2010Internal designation

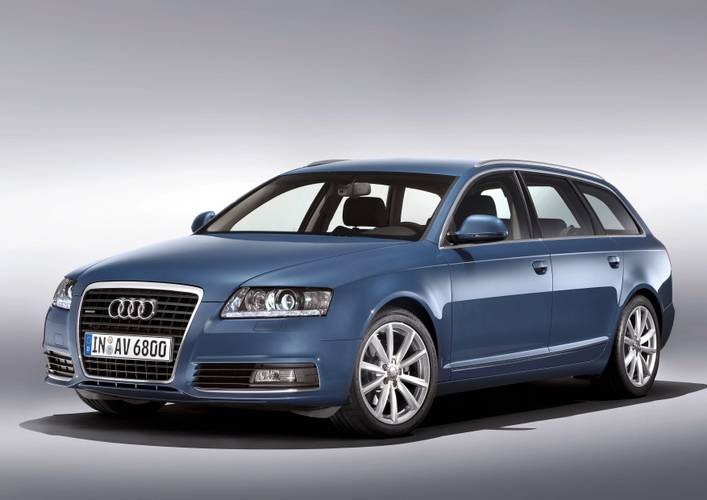

4F Estate (Avant)
after upgrade (facelift)
Date of manufacture
2008 – 2011Internal designation
4F
Technical data
Sedan
| 2.0 TFSI | 2.0 TFSI | 2.8 FSI | 2.8 FSI | 2.8 FSI | 2.8 FSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 2773 | 2773 | 2773 | 2773 |
| Maximum output / speed [kW/min-1] | 125/4300-6000 | 125/4300-6000 | 140/5000-6800 | 140/5000-6800 | 140/5000-6800 | 162/5750-6800 |
| Maximum torque [Nm/min-1] | 280/1800-4200 | 280/1800-4200 | 280/3000-4500 | 280/3000-4500 | 280/3000-4500 | 280/3000-5000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 82,4 | 84,5 x 82,4 | 84,5 x 82,4 | 84,5 x 82,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 228 | 224 | 238 | 233 | 237 | 240 |
| Acceleration 0–100 km/h [s] | 8.2 | 8.5 | 8.2 | 8.3 | 8.4 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.2 | 10.4 | 12.0 | 12.0 | 12.4 | 11.8 |
| Out of town [l] | 5.9 | 6.1 | 6.1 | 6.3 | 6.5 | 6.4 |
| Combined [l] | 7.5 | 7.7 | 8.2 | 8.4 | 8.7 | 8.4 |
| CO2 emissions [g/km] | 174 | 179 | 191 | 195 | 204 | 196 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1595 | 1625 | 1625 | 1645 | 1715 | 1645 |
| Overall weight [kg] | 2100 | 2130 | 2130 | 2150 | 2220 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1500 | 750/1600 | 750/1900 | 750/1800 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 546 | 546 | 546 | 546 | 546 | 546 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 |
| Boot length with rear seats folded [mm] | 1231 | 1231 | 1231 | 1231 | 1231 | 1231 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | -/500 | -/500 | -/500 | -/500 |
| Loading edge height [mm] | 716 | 716 | 716 | 716 | 716 | 716 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 923/- | 923/- | 923/- | 923/- | 923/- | 923/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 80 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Wheel size front | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4927 | 4927 | 4927 | 4927 | 4927 | 4927 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2843 | 2843 | 2843 | 2843 | 2843 | 2843 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Rear overhang [mm] | 1090 | 1090 | 1090 | 1090 | 1090 | 1090 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1033 | 1033 | 1033 | 1033 | 1033 | 1033 |
| Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Front elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Rear elbow/shoulder width [mm] | 1421/- | 1421/- | 1421/- | 1421/- | 1421/- | 1421/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.8 FSI | 3.0 TFSI | 4.2 FSI | RS6 | 2.0 TDI e | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Petrol | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 10/40 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2773 | 2995 | 4163 | 4991 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 162/5750-6800 | 213/4850-6800 | 257/6800 | 426/6250-6700 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 280/3000-5000 | 420/2500-4850 | 440/3500 | 650/1500-6250 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 84,5 x 82,4 | 84,5 x 89,1 | 84,5 x 92,8 | 84,5 x 89,0 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 240 | 250 | 250 | 250 | 208 | 204 |
| Acceleration 0–100 km/h [s] | 7.7 | 5.9 | 5.9 | 4.5 | 10.3 | 9.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.7 | 13.2 | 14.8 | 20.3 | 7.0 | 7.3 |
| Out of town [l] | 6.9 | 7.1 | 7.5 | 10.2 | 4.3 | 4.9 |
| Combined [l] | 9.0 | 9.4 | 10.2 | 13.9 | 5.3 | 5.8 |
| CO2 emissions [g/km] | 212 | 219 | 244 | 331 | 139 | 151 |
| Emission standard | EU5 | EU5 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1755 | 1800 | 1845 | - | 1625 | 1650 |
| Overall weight [kg] | 2260 | 2305 | 2350 | 2565 | 2130 | 2155 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/2100 | - | 750/1500 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | - | 100/- | 100/- |
| Boot volume [l] | 546 | 546 | 546 | 546 | 546 | 546 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | -/750 |
| Boot length [mm] | 1990 | 1990 | 1990 | - | 1990 | 1990 |
| Boot length with rear seats folded [mm] | 1231 | 1231 | 1231 | - | 1231 | 1231 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | - | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | -/500 | - | -/500 | -/500 |
| Loading edge height [mm] | 716 | 716 | 716 | 716 | - | 716 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 923/- | 923/- | 923/- | 923/- | 923/- | 923/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | four-link | four-link | - | four-link | four-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | - | double wishbone | double wishbone |
| Tyre dimensions front | 245/45 R17 | 245/45 R17 | 245/45 R17 | 255/40 R19 | 205/60 R16 | 225/55 R16 |
| Tyre dimensions rear | 245/45 R17 | 245/45 R17 | 245/45 R17 | 255/40 R19 | 205/60 R16 | 225/55 R16 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 9J x 19 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 9J x 19 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4927 | 4927 | 4916 | 4928 | 4916 | 4916 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1889/- | 1855/- | 1855/- |
| Overall height [mm] | 1459 | 1459 | 1459 | 1456 | 1459 | 1459 |
| Wheelbase [mm] | 2843 | 2843 | 2843 | 2846 | 2843 | 2843 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1614 | 1612 | 1612 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1637 | 1618 | 1618 |
| Forward overhang [mm] | 994 | 994 | 994 | - | 994 | 994 |
| Rear overhang [mm] | 1090 | 1090 | 1090 | - | 1090 | 1090 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1033 | 1033 | 1033 | - | 1033 | 1033 |
| Headroom rear [mm] | 960 | 960 | 960 | - | 960 | 960 |
| Front elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | - | 1450/- | 1450/- |
| Rear elbow/shoulder width [mm] | 1421/- | 1421/- | 1421/- | - | 1421/- | 1421/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.7 TDI | 2.7 TDI | 2.7 TDI | 3.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 2698 | 2698 | 2698 | 2967 |
| Maximum output / speed [kW/min-1] | 125/4200 | 125/4200 | 140/3500-4400 | 140/3500-4400 | 140/3500-4400 | 176/4000-4400 |
| Maximum torque [Nm/min-1] | 350/1750-2500 | 350/1750-2500 | 380/1400-3500 | 380/1400-3500 | 450/1750-2250 | 450/1400-3500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 83,1 | 83,0 x 83,1 | 83,0 x 83,1 | 83,0 x 91,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 225 | 218 | 232 | 227 | 230 | 250 |
| Acceleration 0–100 km/h [s] | 8.9 | 8.9 | 7.9 | 7.9 | 8.2 | 6.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 | 7.3 | 8.3 | 8.0 | 9.4 | 8.9 |
| Out of town [l] | 4.7 | 5.0 | 5.0 | 5.5 | 5.8 | 5.4 |
| Combined [l] | 5.7 | 5.8 | 6.2 | 6.4 | 7.1 | 6.7 |
| CO2 emissions [g/km] | 149 | 153 | 164 | 169 | 189 | 179 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1640 | 1665 | 1710 | 1735 | 1840 | 1835 |
| Overall weight [kg] | 2145 | 2170 | 2215 | 2240 | 2345 | 2340 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1800 | 750/1900 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 546 | 546 | 546 | 546 | 546 | 546 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | -/750 |
| Boot length [mm] | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 |
| Boot length with rear seats folded [mm] | 1231 | 1231 | 1231 | 1231 | 1231 | 1231 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | -/500 | -/500 | -/500 | -/500 |
| Loading edge height [mm] | 716 | 716 | 716 | 716 | 716 | 716 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 923/- | 923/- | 923/- | 923/- | 923/- | 923/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Wheel size front | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4916 | 4916 | 4916 | 4916 | 4916 | 4916 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2843 | 2843 | 2843 | 2843 | 2843 | 2843 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Rear overhang [mm] | 1090 | 1090 | 1090 | 1090 | 1090 | 1090 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1033 | 1033 | 1033 | 1033 | 1033 | 1033 |
| Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Front elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Rear elbow/shoulder width [mm] | 1421/- | 1421/- | 1421/- | 1421/- | 1421/- | 1421/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2967 | |||||
| Maximum output / speed [kW/min-1] | 176/4000-4400 | |||||
| Maximum torque [Nm/min-1] | 500/1500-3000 | |||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 6.8 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 9.3 | |||||
| Out of town [l] | 5.8 | |||||
| Combined [l] | 7.1 | |||||
| CO2 emissions [g/km] | 189 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1860 | |||||
| Overall weight [kg] | 2365 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 85 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 546 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | |||||
| Boot length [mm] | 1990 | |||||
| Boot length with rear seats folded [mm] | 1231 | |||||
| Boot width between wheels/max [mm] | -/1050 | |||||
| Boot height to headliner/ceiling [mm] | -/500 | |||||
| Loading edge height [mm] | 716 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 923/- | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 80 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | four-link | |||||
| Rear suspension | double wishbone | |||||
| Tyre dimensions front | 245/45 R17 | |||||
| Tyre dimensions rear | 245/45 R17 | |||||
| Wheel size front | 7.5J x 17 | |||||
| Wheel size rear | 7.5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.9 | |||||
| Overall length [mm] | 4916 | |||||
| Overall width without/including mirrors [mm] | 1855/- | |||||
| Overall height [mm] | 1459 | |||||
| Wheelbase [mm] | 2843 | |||||
| Front wheel track [mm] | 1612 | |||||
| Rear wheel track [mm] | 1618 | |||||
| Forward overhang [mm] | 994 | |||||
| Rear overhang [mm] | 1090 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1033 | |||||
| Headroom rear [mm] | 960 | |||||
| Front elbow/shoulder width [mm] | 1450/- | |||||
| Rear elbow/shoulder width [mm] | 1421/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate (Avant)
| 2.0 TFSI | 2.0 TFSI | 2.8 FSI | 2.8 FSI | 2.8 FSI | 2.8 FSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 2773 | 2773 | 2773 | 2773 |
| Maximum output / speed [kW/min-1] | 125/4300-6000 | 125/4300-6000 | 140/5000-6800 | 140/5000-6800 | 140/5000-6800 | 162/5750-6800 |
| Maximum torque [Nm/min-1] | 280/1800-4200 | 280/1800-4200 | 280/3000-4500 | 280/3000-4500 | 280/3000-4500 | 280/3000-5000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 82,4 | 84,5 x 82,4 | 84,5 x 82,4 | 84,5 x 82,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 1. gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 224 | 220 | 232 | 227 | 237 | 235 |
| Acceleration 0–100 km/h [s] | 8.5 | 8.8 | 8.5 | 8.6 | 8.7 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.2 | 10.5 | 12.0 | 12.1 | 12.4 | 12.0 |
| Out of town [l] | 5.9 | 6.2 | 6.2 | 6.5 | 6.5 | 6.5 |
| Combined [l] | 7.5 | 7.8 | 8.3 | 8.6 | 8.7 | 8.5 |
| CO2 emissions [g/km] | 174 | 181 | 194 | 199 | 204 | 197 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1665 | 1695 | 1695 | 1715 | 1775 | 1715 |
| Overall weight [kg] | 2220 | 2250 | 2250 | 2270 | 2330 | 2270 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1500 | 750/1600 | 750/1900 | 750/1800 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 |
| Boot length [mm] | 1147 | 1147 | 1147 | 1147 | 1147 | 1147 |
| Boot length with rear seats folded [mm] | 1941 | 1941 | 1941 | 1941 | 1941 | 1941 |
| Boot width between wheels/max [mm] | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- |
| Boot height to headliner/ceiling [mm] | -/771 | -/771 | -/771 | -/771 | -/771 | -/771 |
| Loading edge height [mm] | 633 | 633 | 633 | 633 | 633 | 633 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 957/1061 | 957/1061 | 957/1061 | 957/1061 | 957/1061 | 957/1061 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 80 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Wheel size front | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4927 | 4927 | 4927 | 4927 | 4927 | 4927 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Wheelbase [mm] | 2843 | 2843 | 2843 | 2843 | 2843 | 2843 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Rear overhang [mm] | 1090 | 1090 | 1090 | 1090 | 1090 | 1090 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Front elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Rear elbow/shoulder width [mm] | 1421/- | 1421/- | 1421/- | 1421/- | 1421/- | 1421/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.8 FSI | 3.0 TFSI | 3.0 TFSI allroad | 4.2 FSI | 4.2 FSI allroad | RS6 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 10/40 |
| Engine displacement [cm³] | 2773 | 2995 | 2995 | 4163 | 4163 | 4991 |
| Maximum output / speed [kW/min-1] | 162/5750-6800 | 213/4850-6800 | 213/4850-6800 | 257/6800 | 257/6800 | 426/6250-6700 |
| Maximum torque [Nm/min-1] | 280/3000-5000 | 420/2500-4850 | 420/2500-4850 | 440/3500 | 440/3500 | 650/1500-6250 |
| Bore and stroke [mm x mm] | 84,5 x 82,4 | 84,5 x 89,1 | 84,5 x 89,1 | 84,5 x 92,8 | - | 84,5 x 89,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6. gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 235 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.9 | 6.1 | 6.3 | 6.1 | 6.3 | 4.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.8 | 13.3 | 13.3 | 14.8 | 15.3 | 20.4 |
| Out of town [l] | 7.0 | 7.2 | 7.6 | 7.5 | 8.1 | 10.3 |
| Combined [l] | 9.1 | 9.5 | 9.7 | 10.2 | 10.8 | 14.0 |
| CO2 emissions [g/km] | 214 | 223 | 225 | 244 | 257 | 333 |
| Emission standard | EU5 | EU5 | EU5 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1815 | 1865 | 1840 | 1905 | 1880 | - |
| Overall weight [kg] | 2370 | 2420 | 2470 | 2460 | 2510 | 2655 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | - | 750/2100 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | - | 100/- | - | - |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 |
| Boot length [mm] | 1147 | 1147 | - | 1147 | - | - |
| Boot length with rear seats folded [mm] | 1941 | 1941 | - | 1941 | - | - |
| Boot width between wheels/max [mm] | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- |
| Boot height to headliner/ceiling [mm] | -/771 | -/771 | -/771 | -/771 | -/771 | -/771 |
| Loading edge height [mm] | 633 | 633 | 633 | 633 | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 957/1061 | 957/1061 | 957/1061 | 957/1061 | 957/1061 | 957/1061 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | four-link | - | four-link | - | - |
| Rear suspension | double wishbone | double wishbone | - | double wishbone | - | - |
| Tyre dimensions front | 245/45 R17 | 245/45 R17 | 225/55 R17 | 225/50 R17 | 245/45 R 18 | 255/40 R 19 |
| Tyre dimensions rear | 245/45 R17 | 245/45 R17 | 225/55 R17 | 225/50 R17 | 245/45 R 18 | 255/40 R 19 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8J x 17 | 7.5J x 17 | 8J x 18 | 9J x 19 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8J x 17 | 7.5J x 17 | 8J x 18 | 9J x 19 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | - | 11.9 | - | 11.9 |
| Overall length [mm] | 4927 | 4927 | 4934 | 4916 | 4934 | 4928 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1862/- | 1855/- | 1862/- | 1889/- |
| Overall height [mm] | 1463 | 1463 | 1504 | 1463 | 1504 | 1460 |
| Wheelbase [mm] | 2843 | 2843 | 2833 | 2843 | 2833 | 2846 |
| Front wheel track [mm] | 1612 | 1612 | 1596 | 1612 | 1596 | 1614 |
| Rear wheel track [mm] | 1618 | 1618 | 1587 | 1618 | 1587 | 1637 |
| Forward overhang [mm] | 994 | 994 | - | 994 | - | - |
| Rear overhang [mm] | 1090 | 1090 | - | 1090 | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | - | 1030 | - | - |
| Headroom rear [mm] | 978 | 978 | - | 978 | - | - |
| Front elbow/shoulder width [mm] | 1450/- | 1450/- | - | 1450/- | - | - |
| Rear elbow/shoulder width [mm] | 1421/- | 1421/- | - | 1421/- | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI e | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.7 TDI | 2.7 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 2698 | 2698 |
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | 125/4200 | 125/4200 | 140/3500-4400 | 140/3500-4400 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 350/1750-2500 | 350/1750-2500 | 380/1400-3500 | 380/1400-3500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 83,1 | 83,0 x 83,1 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 204 | 200 | 221 | 214 | 228 | 223 |
| Acceleration 0–100 km/h [s] | 10.7 | 10.2 | 9.2 | 9.2 | 8.2 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0 | 7.5 | 7.5 | 7.4 | 8.3 | 8.1 |
| Out of town [l] | 4.3 | 5.0 | 4.8 | 5.0 | 5.0 | 5.6 |
| Combined [l] | 5.3 | 5.9 | 5.8 | 5.9 | 6.2 | 6.5 |
| CO2 emissions [g/km] | 139 | 155 | 152 | 154 | 164 | 172 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1695 | 1720 | 1710 | 1735 | 1780 | 1810 |
| Overall weight [kg] | 2250 | 2275 | 2265 | 2290 | 2335 | 2365 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 |
| Boot length [mm] | 1147 | 1147 | 1147 | 1147 | 1147 | 1147 |
| Boot length with rear seats folded [mm] | 1941 | 1941 | 1941 | 1941 | 1941 | 1941 |
| Boot width between wheels/max [mm] | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- |
| Boot height to headliner/ceiling [mm] | -/771 | -/771 | -/771 | -/771 | -/771 | -/771 |
| Loading edge height [mm] | 633 | 633 | 633 | 633 | 633 | 633 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 957/1061 | 957/1061 | 957/1061 | 957/1061 | 957/1061 | 957/1061 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 205/60 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 245/45 R17 | 245/45 R17 |
| Tyre dimensions rear | 205/60 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 245/45 R17 | 245/45 R17 |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4916 | 4916 | 4916 | 4916 | 4916 | 4916 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Wheelbase [mm] | 2843 | 2843 | 2843 | 2843 | 2843 | 2843 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Rear overhang [mm] | 1090 | 1090 | 1090 | 1090 | 1090 | 1090 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Front elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Rear elbow/shoulder width [mm] | 1421/- | 1421/- | 1421/- | 1421/- | 1421/- | 1421/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.7 TDI | 2.7 TDI allroad | 3.0 TDI | 3.0 TDI | 3.0 TDI allroad | 3.0 TDI allroad | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2698 | 2698 | 2967 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3500-4400 | 140/3500-4400 | 176/4000-4400 | 176/4000-4400 | 176/4000-4400 | 176/4000-4400 |
| Maximum torque [Nm/min-1] | 450/1750-2250 | 450/1750-4400 | 450/1400-3500 | 500/1500-3000 | 500/1400-3500 | 500/1400-3500 |
| Bore and stroke [mm x mm] | 83,0 x 83,1 | 83,0 x 83,1 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 226 | 218 | 245 | 245 | 233 | 233 |
| Acceleration 0–100 km/h [s] | 8.4 | 8.8 | 6.8 | 7.0 | 7.2 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 9.9 | 8.9 | 9.3 | 9.4 | 9.7 |
| Out of town [l] | 5.8 | 6.2 | 5.4 | 5.8 | 5.9 | 6.2 |
| Combined [l] | 7.1 | 7.5 | 6.7 | 7.1 | 7.2 | 7.5 |
| CO2 emissions [g/km] | 189 | 199 | 179 | 189 | 189 | 199 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1900 | 1870 | 1895 | 1910 | 1865 | 1880 |
| Overall weight [kg] | 2455 | 2500 | 2450 | 2475 | 2495 | 2510 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | - | 750/1800 | 750/1900 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | - | 100/- | 100/- | - | - |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 |
| Boot length [mm] | 1147 | - | 1147 | 1147 | - | - |
| Boot length with rear seats folded [mm] | 1941 | - | 1941 | 1941 | - | - |
| Boot width between wheels/max [mm] | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- | 1051/- |
| Boot height to headliner/ceiling [mm] | -/771 | -/771 | -/771 | -/771 | -/771 | -/771 |
| Loading edge height [mm] | 633 | 633 | 633 | 633 | 633 | 633 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 957/1061 | 957/1061 | 957/1061 | 957/1061 | 957/1061 | 957/1061 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | - | four-link | four-link | - | - |
| Rear suspension | double wishbone | - | double wishbone | double wishbone | - | - |
| Tyre dimensions front | 245/45 R17 | 225/55 R17 | 245/45 R17 | 245/45 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 245/45 R17 | 225/55 R17 | 245/45 R17 | 245/45 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.5J x 17 | 8J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 7.5J x 17 | 8J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | - | 11.9 | 11.9 | - | - |
| Overall length [mm] | 4916 | 4934 | 4916 | 4916 | 4934 | 4934 |
| Overall width without/including mirrors [mm] | 1855/- | 1862/- | 1855/- | 1855/- | 1862/- | 1862/- |
| Overall height [mm] | 1463 | 1504 | 1463 | 1463 | 1504 | 1504 |
| Wheelbase [mm] | 2843 | 2833 | 2843 | 2843 | 2862 | 2862 |
| Front wheel track [mm] | 1612 | 1596 | 1612 | 1612 | 1596 | 1596 |
| Rear wheel track [mm] | 1618 | 1587 | 1618 | 1618 | 1587 | 1587 |
| Forward overhang [mm] | 994 | - | 994 | 994 | - | - |
| Rear overhang [mm] | 1090 | - | 1090 | 1090 | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | - | 1030 | 1030 | - | - |
| Headroom rear [mm] | 978 | - | 978 | 978 | - | - |
| Front elbow/shoulder width [mm] | 1450/- | - | 1450/- | 1450/- | - | - |
| Rear elbow/shoulder width [mm] | 1421/- | - | 1421/- | 1421/- | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

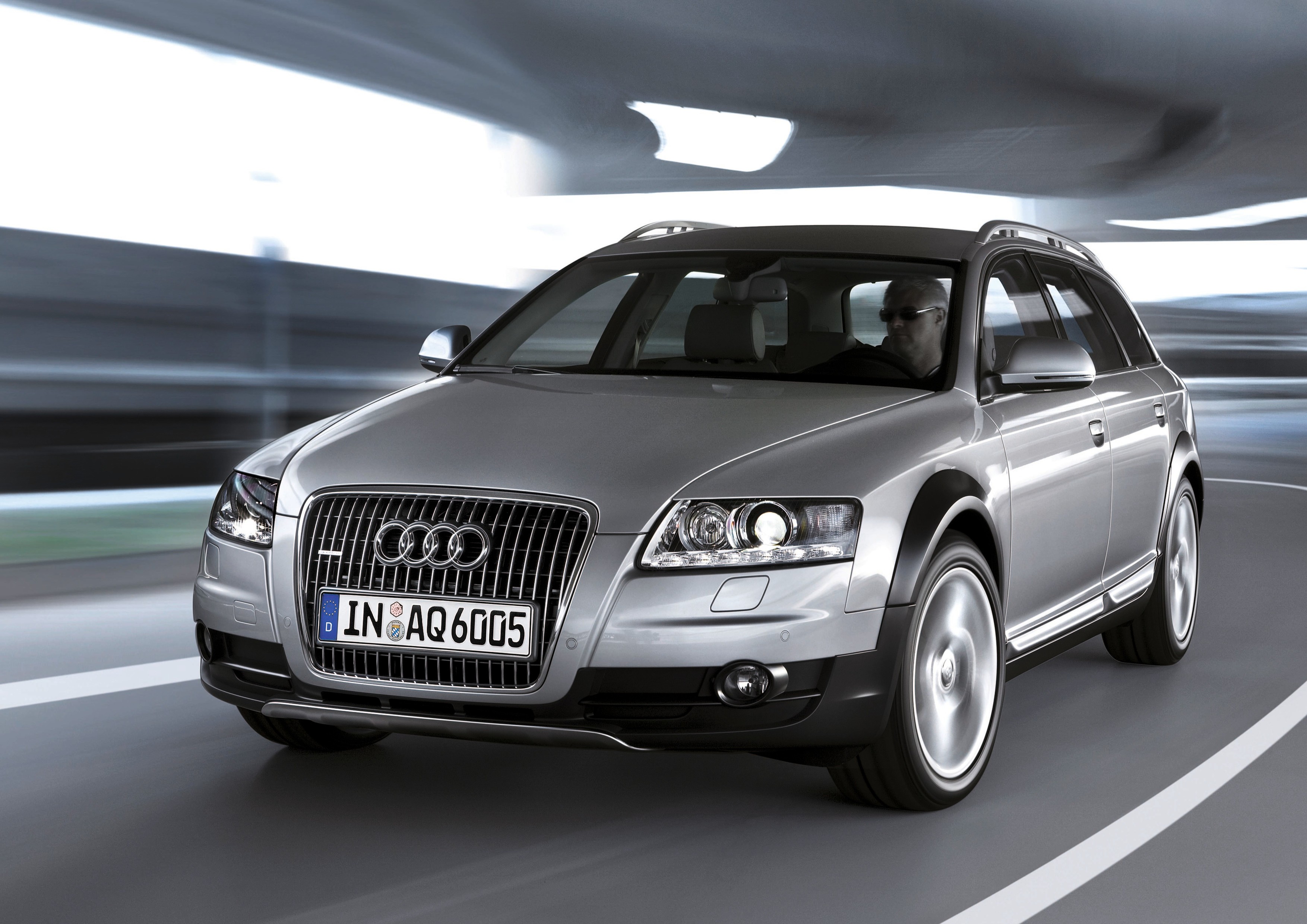

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
