Audi A6
Date of manufacture
11/2010 – 2015 (Sedan)
5/2011 – 2015 (Estate)
Platform
Volkswagen Group MLB platform
Manufacturing locations
Neckarsulm, Germany
Designer
Jurgen Loffler
Tags
E-segment
German cars
The Audi A6 has been produced since 2010 and its country of origin is Germany. It is available in two body styles - sedan and estate - built on the Volkswagen Group MLB platform. The engine range includes petrol, diesel and hybrid engines with the highest power of 412 kW in the RS6 model. The fastest variant reaches a maximum speed of 250 km/h and the best acceleration 0-100 km/h in 3.9 seconds. The 2.0 TDI ultra engine has the lowest consumption of 4.4 l/100 km and CO2 emissions of 114 g/km. The sedan has a trunk capacity of 530 l, the estate 565 l. In terms of safety, the car received a 5-star rating out of 5 from EURONCAP in 2011.
Car body style
Sedan
Date of manufacture
11/2010 – 2015Internal designation

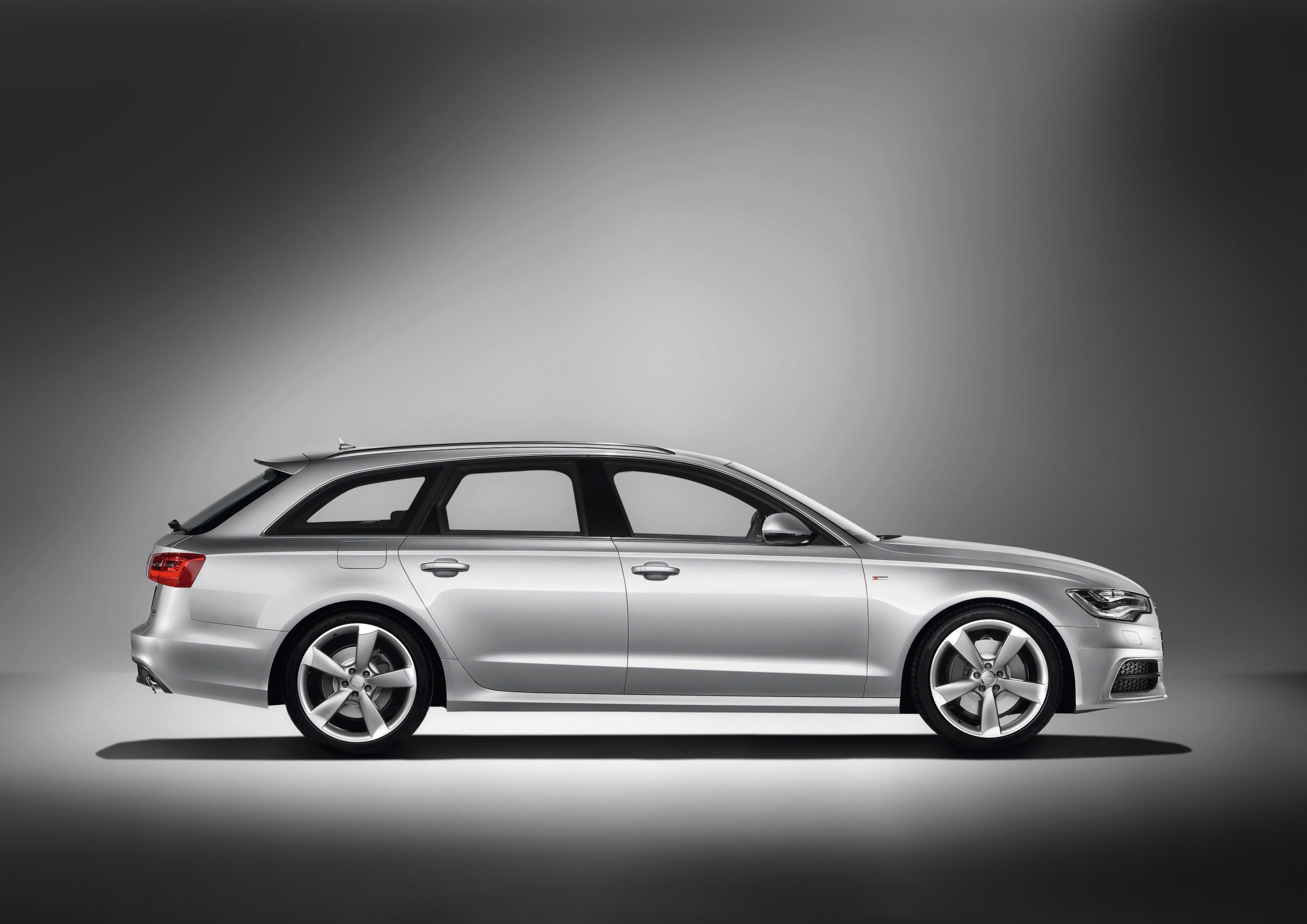

C7Estate (Avant)
Date of manufacture
5/2011 – 2015Internal designation
C7Engine size
Petrol
Diesel
Technical data
Sedan
| 2.0 TFSI | 2.0 TFSI | 2.8 FSI | 2.8 FSI | 2.8 FSI quattro | 3.0 TFSI quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 2773 | 2773 | 2773 | 2995 |
| Maximum output / speed [kW/min-1] | 132/4000-6000 | 132/4000-6000 | 150/5250-6500 | 150/5250-6500 | 150/5250-6500 | 220/5250-6500 |
| Maximum torque [Nm/min-1] | 320/1500-3900 | 320/1500-3900 | 280/3000-5000 | 280/3000-5000 | 280/3000-5000 | 440/2900-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 92,8 | 84,5 x 92,8 | 84,5 x 92,8 | 84,5 x 89,1 |
| Compression ratio | - | - | - | - | - | 10,3 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 232 | 226 | 242 | 240 | 240 | 250 |
| Acceleration 0–100 km/h [s] | 8.1 | 8.3 | 7.9 | 7.7 | 8.1 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 8.1 | 10.5 | 9.6 | 10.7 | 10.8 |
| Out of town [l] | 5.4 | 5.4 | 6.0 | 6.1 | 6.5 | 6.6 |
| Combined [l] | 6.5 | 6.4 | 7.7 | 7.4 | 8.0 | 8.2 |
| CO2 emissions [g/km] | 151 | 149 | 177 | 172 | 187 | 190 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1640 | 1645 | 1685 | 1755 | 1815 |
| Overall weight [kg] | 2120 | 2145 | 2150 | 2190 | 2290 | 2350 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1500 | 750/1700 | 750/1900 | 750/1900 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/995 | -/995 | -/995 | -/995 | -/995 | -/995 |
| Boot length [mm] | 1176 | 1176 | 1176 | 1176 | 1176 | 1176 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 674 | 674 | 674 | 674 | 674 | 674 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 949/- | 949/- | 949/- | 949/- | 949/- | 949/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 75 | 75 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/55 R17 |
| Tyre dimensions rear | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/55 R17 |
| Wheel size front | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 8J x 17 |
| Wheel size rear | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 8J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4915 | 4915 | 4915 | 4915 | 4915 | 4915 |
| Overall width without/including mirrors [mm] | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2912 | 2912 | 2912 | 2912 | 2912 | 2912 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 912 | 912 | 912 | 912 | 912 | 912 |
| Rear overhang [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TFSI quattro | S6 | A6 hybrid | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2012 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2995 | 3993 | 1984 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 228/5500-6500 | 309/5500-6400 | 155/4300-6000 40 el. 180 total | 100/4200 | 100/4200 | 130/4200 |
| Maximum torque [Nm/min-1] | 440/2900-4500 | 550/1400-5200 | 350/1500-4200 210 el. 480 total | 350/1750-2500 | 350/1750-2500 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 84,5 x 89,1 | 84,5 x 89,0 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,3 | 10,1:1 | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 250 | 250 | 240 | 209 | 205 | 228 |
| Acceleration 0–100 km/h [s] | 5.5 | 4.6 | 7.5 | 10.3 | 10.1 | 8.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.8 | 13.4 | 6.2 | 6.0 | 6.0 | 6.0 |
| Out of town [l] | 6.6 | 7.5 | 6.2 | 4.4 | 4.4 | 4.4 |
| Combined [l] | 8.2 | 9.6 | 6.2 | 4.9 | 5.0 | 4.9 |
| CO2 emissions [g/km] | 190 | 225 | 145 | 129 | 132 | 129 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 1.3 kWh | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1815 | 1970 | 1845 | 1650 | 1660 | 1650 |
| Overall weight [kg] | 2350 | 2505 | 2320 | 2155 | 2165 | 2155 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/1500 | 750/1800 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | - | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 375 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/995 | -/995 | -/995 | -/995 | -/995 | -/995 |
| Boot length [mm] | 1176 | 1176 | 1106 | 1176 | 1176 | 1176 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 674 | 659 | 674 | 674 | 674 | 674 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 949/- | 949/- | 949/- | 949/- | 949/- | 949/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 75 | 73 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 255/40 R19 | 225/55 R17 | 225/60 R16 | 225/60 R16 | 225/60 R16 |
| Tyre dimensions rear | 225/55 R17 | 255/40 R19 | 225/55 R17 | 225/60 R16 | 225/60 R16 | 225/60 R16 |
| Wheel size front | 8J x 17 | 8.5J x 19 | 8J x 17 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 |
| Wheel size rear | 8J x 17 | 8.5J x 19 | 8J x 17 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 |
| Brake dimensions front | - | 400x38 | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4915 | 4931 | 4915 | 4915 | 4915 | 4915 |
| Overall width without/including mirrors [mm] | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- |
| Overall height [mm] | 1455 | 1440 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2912 | 2916 | 2912 | 2912 | 2912 | 2912 |
| Front wheel track [mm] | 1627 | 1615 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1618 | 1606 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 912 | 919 | 912 | 912 | 912 | 912 |
| Rear overhang [mm] | 1091 | 1096 | 1091 | 1091 | 1091 | 1091 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI ultra | 2.0 TDI ultra | 3.0 TDI | 3.0 TDI | 3.0 TDI quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 130/4200 | 140/3800-4200 | 140/3800-4200 | 150/3750-4500 | 150/3750-4500 | 150/3750-4500 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 400/1750-3000 | 400/1750-3000 | 400/1250-3500 | 400/1250-3500 | 400/1250-3500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 84,5 x 89,1 | 84,5 x 89,1 | 84,5 x 89,1 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 1 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 222 | 232 | 232 | 242 | 240 | 240 |
| Acceleration 0–100 km/h [s] | 8.2 | 8.4 | 8.2 | 7.6 | 7.2 | 7,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 5,2 | 5.1 | 6.5 | 5.8 | 6.7 |
| Out of town [l] | 4.4 | 4.0 | 3.9 | 4.4 | 4.6 | 5.0 |
| Combined [l] | 5,0 | 4.5 | 4.4 | 5.3 | 5.1 | 5.7 |
| CO2 emissions [g/km] | 132 | 117 | 114 | 139 | 133 | 149 |
| Emission standard | EU5 | EU6 | EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1660 | 1700 | 1735 | 1700 | 1720 | 1795 |
| Overall weight [kg] | 2165 | 2205 | 2240 | 2205 | 2225 | 2330 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | - | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/995 | -/995 | -/995 | -/995 | -/995 | -/995 |
| Boot length [mm] | 1176 | 1176 | 1176 | 1176 | 1176 | 1176 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 674 | 674 | 674 | 674 | 674 | 674 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 949/- | 949/- | 949/- | 949/- | 949/- | 949/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 73 | 73 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 |
| Tyre dimensions rear | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 |
| Wheel size front | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 |
| Wheel size rear | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4915 | 4915 | 4915 | 4915 | 4915 | 4915 |
| Overall width without/including mirrors [mm] | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2912 | 2912 | 2912 | 2912 | 2912 | 2912 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 912 | 912 | 912 | 912 | 912 | 912 |
| Rear overhang [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro | 3.0 TDI quattro clean diesel | 3.0 TDI quattro | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2967 | 2967 | 2967 | |||
| Maximum output / speed [kW/min-1] | 180/4000-4500 | 180/4000-4500 | 230/3900-4500 | |||
| Maximum torque [Nm/min-1] | 580/1750-2500 | 580/1750-2500 | 650/1450-2800 | |||
| Bore and stroke [mm x mm] | 84,5 x 89,1 | 84,5 x 89,1 | 84,5 x 89,1 | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 6.1 | 6.2 | 5.1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.2 | 7.3 | 7.9 | |||
| Out of town [l] | 5.2 | 5.1 | 5.5 | |||
| Combined [l] | 5.9 | 5.9 | 6.3 | |||
| CO2 emissions [g/km] | 156 | 156 | 166 | |||
| Emission standard | EU5 | EU6 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1795 | 1835 | 1865 | |||
| Overall weight [kg] | 2330 | 2370 | 2400 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2100 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 530 | 530 | 530 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/995 | -/995 | -/995 | |||
| Boot length [mm] | 1176 | 1176 | 1176 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 674 | 674 | 674 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 949/- | 949/- | 949/- | |||
| Number of doors | 4 | 4 | 4 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 75 | 73 | 75 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | |||
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | |||
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | |||
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | |||
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | |||
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | |||
| Overall length [mm] | 4915 | 4915 | 4915 | |||
| Overall width without/including mirrors [mm] | 1874/- | 1874/- | 1874/- | |||
| Overall height [mm] | 1455 | 1455 | 1455 | |||
| Wheelbase [mm] | 2912 | 2912 | 2912 | |||
| Front wheel track [mm] | 1627 | 1627 | 1627 | |||
| Rear wheel track [mm] | 1618 | 1618 | 1618 | |||
| Forward overhang [mm] | 912 | 912 | 912 | |||
| Rear overhang [mm] | 1091 | 1091 | 1091 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1046 | 1046 | 1046 | |||
| Headroom rear [mm] | 962 | 962 | 962 | |||
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | |||
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate (Avant)
| 2.0 TFSI | 2.0 TFSI | 2.8 FSI | 2.8 FSI | 2.8 FSI quattro | 3.0 TFSI quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 2773 | 2773 | 2773 | 2995 |
| Maximum output / speed [kW/min-1] | 132/4000-6000 | 132/4000-6000 | 150/5250-6500 | 150/5250-6500 | 150/5250-6500 | 220/5250-6500 |
| Maximum torque [Nm/min-1] | 320/1500-3900 | 320/1500-3900 | 280/3000-5000 | 280/3000-5000 | 280/3000-5000 | 440/2900-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 92,8 | 84,5 x 92,8 | 84,5 x 92,8 | 84,5 x 89,1 |
| Compression ratio | - | - | - | - | - | 10,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 224 | 218 | 232 | 230 | 230 | 250 |
| Acceleration 0–100 km/h [s] | 8.4 | 8.6 | 8.1 | 7.9 | 8.3 | 5.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 8.2 | 10.5 | 9.6 | 10.7 | 10.8 |
| Out of town [l] | 5.5 | 5.5 | 6.0 | 6.1 | 6.5 | 6.6 |
| Combined [l] | 6.6 | 6.5 | 7.7 | 7.4 | 8.0 | 8.2 |
| CO2 emissions [g/km] | 154 | 152 | 177 | 172 | 187 | 190 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1680 | 1705 | 1705 | 1735 | 1805 | 1865 |
| Overall weight [kg] | 2235 | 2260 | 2260 | 2290 | 2360 | 2420 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1500 | 750/1700 | 750/1900 | 750/1900 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 632 | 632 | 632 | 632 | 632 | 632 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1050/883 | 1050/883 | 1050/883 | 1050/883 | 1050/883 | 1050/883 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 75 | 75 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/55 R17 |
| Tyre dimensions rear | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/55 R17 |
| Wheel size front | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 8J x 17 |
| Wheel size rear | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 8J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4926 | 4926 | 4926 | 4926 | 4926 | 4926 |
| Overall width without/including mirrors [mm] | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2912 | 2912 | 2912 | 2912 | 2912 | 2912 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 912 | 912 | 912 | 912 | 912 | 912 |
| Rear overhang [mm] | 1102 | 1102 | 1102 | 1102 | 1102 | 1102 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TFSI quattro | 3.0 TFSI allroad quattro | S6 | RS6 | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2013 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2995 | 2995 | 3993 | 3993 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 228/5500-6500 | 228/5500-6500 | 309/5500-6400 | 412/5700-6600 | 100/4200 | 100/4200 |
| Maximum torque [Nm/min-1] | 440/2900-4500 | 440/2900-4500 | 550/1400-5200 | 700/1750-5500 | 350/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 84,5 x 89,1 | 84,5 x 89,1 | 84,5 x 89,0 | 84,5 x 89,0 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,1:1 | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 204 | 200 |
| Acceleration 0–100 km/h [s] | 5.6 | 5.9 | 4.7 | 3.9 | 10.6 | 10.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.8 | 11.8 | 13.4 | 13.9 | 6.1 | 6.1 |
| Out of town [l] | 6.6 | 7.1 | 7.5 | 7.5 | 4.5 | 4.5 |
| Combined [l] | 8.2 | 8.9 | 9.7 | 9.8 | 5.0 | 5.1 |
| CO2 emissions [g/km] | 190 | 206 | 226 | 229 | 132 | 135 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1865 | 1930 | 2025 | 2010 | 1715 | 1725 |
| Overall weight [kg] | 2420 | 2505 | 2580 | 2565 | 2270 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2500 | 750/2100 | 750/2100 | 750/1800 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | - | 85 | - | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 632 | 624/684 | 616 | - | 632 | 632 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1050/883 | 1050/883 | 1050/883 | 1050/883 | 1050/883 | 1050/883 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 4/5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser and air suspension | double wishbone with stabiliser and air suspension | double wishbone with stabiliser and air suspension | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 235/55 R 18 | 255/40 R19 | 275/35 R20 | 225/60 R16 | 225/60 R16 |
| Tyre dimensions rear | 225/55 R17 | 235/55 R 18 | 255/40 R19 | 275/35 R20 | 225/60 R16 | 225/60 R16 |
| Wheel size front | 8J x 17 | 8J x 18 | 8.5J x 19 | 9.5J x 20 | 7.5J x 16 | 7.5J x 16 |
| Wheel size rear | 8J x 17 | 8J x 18 | 8.5J x 19 | 9.5J x 20 | 7.5J x 16 | 7.5J x 16 |
| Brake dimensions front | - | - | 400x38 | 390 x 36 | - | - |
| Brake dimensions rear | - | - | - | 356 x 22 | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4926 | 4940 | 4934 | 4979 | 4926 | 4926 |
| Overall width without/including mirrors [mm] | 1874/- | 1898/- | 1874/- | 1936/- | 1874/- | 1874/- |
| Overall height [mm] | 1461 | 1452 | 1446 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2912 | 2905 | 2916 | 2915 | 2912 | 2912 |
| Front wheel track [mm] | 1627 | 1631 | 1615 | 1636 | 1627 | 1627 |
| Rear wheel track [mm] | 1618 | 1696 | 1606 | 1663 | 1618 | 1618 |
| Forward overhang [mm] | 912 | 920 | 919 | 939 | 912 | 912 |
| Rear overhang [mm] | 1102 | 1115 | 1099 | 1125 | 1102 | 1102 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI ultra | 2.0 TDI ultra | 3.0 TDI | 3.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 130/4200 | 130/4200 | 140/3800-4200 | 140/3800-4200 | 150/3750-4500 | 150/3750-4500 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1750-2500 | 400/1750-3000 | 400/1750-3000 | 400/1250-3500 | 400/1250-3500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 84,5 x 89,1 | 84,5 x 89,1 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 222 | 216 | 226 | 226 | 232 | 230 |
| Acceleration 0–100 km/h [s] | 9.0 | 8.5 | 8.7 | 8.5 | 7.9 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1 | 6.1 | 5.3 | 5.3 | 6.5 | 5.9 |
| Out of town [l] | 4.5 | 4.5 | 4.1 | 4.1 | 4.4 | 4.7 |
| Combined [l] | 5.0 | 5.1 | 4.6 | 4.6 | 5.3 | 5.2 |
| CO2 emissions [g/km] | 132 | 135 | 119 | 119 | 139 | 136 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1715 | 1725 | 1765 | 1800 | 1765 | 1780 |
| Overall weight [kg] | 2270 | 2280 | 2320 | 2355 | 2320 | 2335 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1600 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 632 | 632 | 632 | 632 | 632 | 632 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1050/883 | 1050/883 | 1050/883 | 1050/883 | 1050/883 | 1050/883 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 73 | 73 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 |
| Tyre dimensions rear | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 | 225/60 R16 |
| Wheel size front | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 |
| Wheel size rear | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 | 7.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4926 | 4926 | 4926 | 4926 | 4926 | 4926 |
| Overall width without/including mirrors [mm] | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- | 1874/- |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2912 | 2912 | 2912 | 2912 | 2912 | 2912 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 912 | 912 | 912 | 912 | 912 | 912 |
| Rear overhang [mm] | 1102 | 1102 | 1102 | 1102 | 1102 | 1102 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro | 3.0 TDI allroad quattro | 3.0 TDI quattro | 3.0 TDI allroad quattro | 3.0 TDI quattro clean diesel | 3.0 TDI allroad quattro clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 150/3750-4500 | 150/3750-4500 | 180/4000-4500 | 180/4000-4500 | 180/4000-4500 | 180/4000-4500 |
| Maximum torque [Nm/min-1] | 400/1250-3500 | 400/1250-3500 | 580/1750-2500 | 580/1750-2500 | 580/1750-2500 | 580/1750-2500 |
| Bore and stroke [mm x mm] | 84,5 x 89,1 | 84,5 x 89,1 | 84,5 x 89,1 | 84,5 x 89,1 | 84,5 x 89,1 | 84,5 x 89,1 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 230 | 223 | 243 | 236 | 243 | 236 |
| Acceleration 0–100 km/h [s] | 7.2 | 7.5 | 6.3 | 6.6 | 6.4 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 7.0 | 7.2 | 7.4 | 7.3 | 7.4 |
| Out of town [l] | 5.1 | 5.5 | 5.2 | 5.6 | 5.1 | 5.6 |
| Combined [l] | 5.8 | 6.1 | 5.9 | 6.3 | 5.9 | 6.3 |
| CO2 emissions [g/km] | 152 | 159 | 156 | 165 | 156 | 165 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1865 | 1930 | 1865 | 1930 | 1900 | 1955 |
| Overall weight [kg] | 2420 | 2505 | 2420 | 2505 | 2455 | 2530 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2500 | 750/2000 | 750/2500 | 750/2000 | 750/2500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 632 | 624/684 | 632 | 624/684 | 632 | 624/684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1050/883 | 1050/883 | 1050/883 | 1050/883 | 1050/883 | 1050/883 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 73 | 73 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser and air suspension | double wishbone with stabiliser | double wishbone with stabiliser and air suspension | double wishbone with stabiliser | double wishbone with stabiliser and air suspension |
| Tyre dimensions front | 225/60 R16 | 235/55 R 18 | 225/55 R17 | 235/55 R 18 | 225/55 R17 | 235/55 R 18 |
| Tyre dimensions rear | 225/60 R16 | 235/55 R 18 | 225/55 R17 | 235/55 R 18 | 225/55 R17 | 235/55 R 18 |
| Wheel size front | 7.5J x 16 | 8J x 18 | 8J x 17 | 8J x 18 | 8J x 17 | 8J x 18 |
| Wheel size rear | 7.5J x 16 | 8J x 18 | 8J x 17 | 8J x 18 | 8J x 17 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4926 | 4940 | 4926 | 4940 | 4926 | 4940 |
| Overall width without/including mirrors [mm] | 1874/- | 1898/- | 1874/- | 1898/- | 1874/- | 1898/- |
| Overall height [mm] | 1461 | 1452 | 1461 | 1452 | 1461 | 1452 |
| Wheelbase [mm] | 2912 | 2905 | 2912 | 2905 | 2912 | 2905 |
| Front wheel track [mm] | 1627 | 1631 | 1627 | 1631 | 1627 | 1631 |
| Rear wheel track [mm] | 1618 | 1696 | 1618 | 1696 | 1618 | 1696 |
| Forward overhang [mm] | 912 | 920 | 912 | 920 | 912 | 920 |
| Rear overhang [mm] | 1102 | 1115 | 1102 | 1115 | 1102 | 1115 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro | 3.0 TDI allroad quattro | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2967 | 2967 | ||||
| Maximum output / speed [kW/min-1] | 230/3900-4500 | 230/3900-4500 | ||||
| Maximum torque [Nm/min-1] | 650/1450-2800 | 650/1450-2800 | ||||
| Bore and stroke [mm x mm] | 84,5 x 89,1 | 84,5 x 89,1 | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5.3 | 5.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.9 | 7.9 | ||||
| Out of town [l] | 5.5 | 6.0 | ||||
| Combined [l] | 6.3 | 6.7 | ||||
| CO2 emissions [g/km] | 166 | 176 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1930 | 1985 | ||||
| Overall weight [kg] | 2485 | 2560 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 565 | 565 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | ||||
| Boot length [mm] | 1181 | 1181 | ||||
| Boot length with rear seats folded [mm] | 1966 | 1966 | ||||
| Boot width between wheels/max [mm] | -/1050 | -/1050 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 632 | 624/684 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 702 | 702 | ||||
| Boot opening width min/max [mm] | 1050/883 | 1050/883 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 75 | 75 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | ||||
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser and air suspension | ||||
| Tyre dimensions front | 225/55 R17 | 235/55 R 18 | ||||
| Tyre dimensions rear | 225/55 R17 | 235/55 R 18 | ||||
| Wheel size front | 8J x 17 | 8J x 18 | ||||
| Wheel size rear | 8J x 17 | 8J x 18 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.9 | 11.9 | ||||
| Overall length [mm] | 4926 | 4940 | ||||
| Overall width without/including mirrors [mm] | 1874/- | 1898/- | ||||
| Overall height [mm] | 1461 | 1452 | ||||
| Wheelbase [mm] | 2912 | 2905 | ||||
| Front wheel track [mm] | 1627 | 1631 | ||||
| Rear wheel track [mm] | 1618 | 1696 | ||||
| Forward overhang [mm] | 912 | 920 | ||||
| Rear overhang [mm] | 1102 | 1115 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1046 | 1046 | ||||
| Headroom rear [mm] | 985 | 985 | ||||
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | ||||
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
