Audi A6
Date of manufacture
2015 – 2018 (Estate)
2015 – 2018 (Sedan)
Platform
Volkswagen Group MLB platform
Manufacturing locations
Neckarsulm, Germany
Designer
Jurgen Loffler
Tags
E-segment
German cars

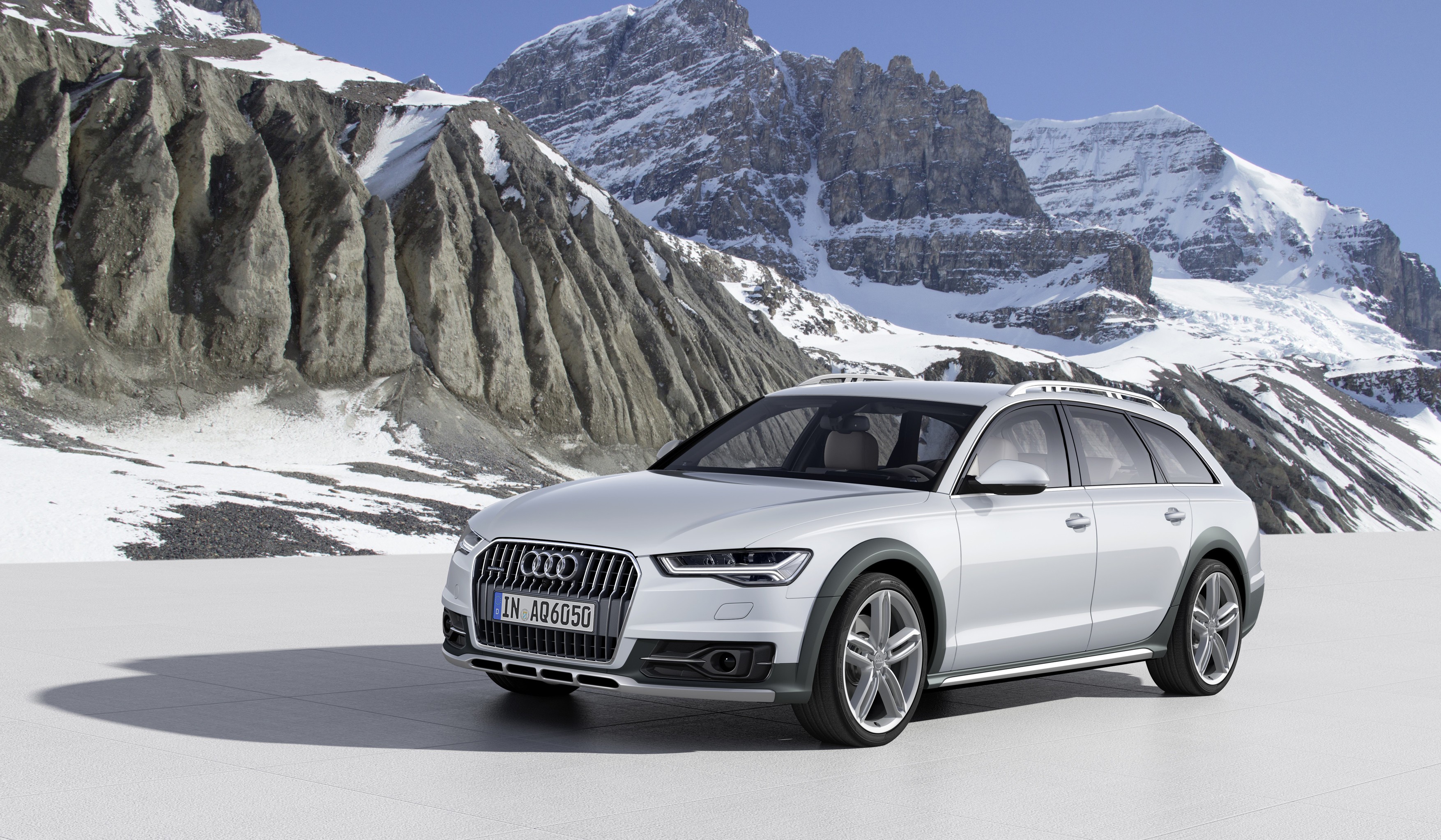

The Audi A6 has been in production since 2015 and is built on the Volkswagen Group MLB platform. It offers petrol and diesel engines, with the most powerful RS6 Performance quattro 445 kW reaching a top speed of 280 km/h and the best 0-100 km/h acceleration in 3.7 seconds. The 2.0 TDI ultra 140 kW models have the lowest combined fuel consumption of 4.4 l/100 km and CO2 emissions of 116 g/km. The sedan version has a luggage compartment volume of 530 l, while the estate has 565 l. The Audi A6 successfully passed the EURONCAP safety tests in 2011, receiving a rating of 5 out of 5.
Car body style
Estate (Avant)
after upgrade (facelift)
Date of manufacture
2015 – 2018Internal designation
C7Engine size
PetrolDiesel
Sedan
after upgrade (facelift)
Date of manufacture
2015 – 2018Internal designation
C7Engine size
PetrolDiesel
Technical data
Estate (Avant)
| 1.8 TFSI 140 kW | 1.8 TFSI ultra 140 kW | 2.0 TFSI 185 kW | 2.0 TFSI quattro 185 kW | 3.0 TFSI quattro 245 kW | 3.0 TFSI Allroad 245 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 2995 | 2995 |
| Maximum output / speed [kW/min-1] | 140/4200-6200 | 140/4200-6200 | 185/5000-6000 | 185/5000-6000 | 245/5500-6500 | 245/5500-6500 |
| Maximum torque [Nm/min-1] | 320/1400-4100 | 320/1400-4100 | 370/1600-4500 | 370/1600-4500 | 440/2900-5300 | 440/2900-5300 |
| Bore and stroke [mm x mm] | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 | 84,5 x 89,0 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 10,8:1 | 10,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 226 | 226 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8,2 | 8,2 | 6,9 | 6,7 | 5,3 | 5,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9-7,8 | 7,2-7,0 | 7,5-7,3 | 8,6-8,5 | 10,1-9,9 | 10,1 |
| Out of town [l] | 5,5-5,3 | 5,3-5,0 | 5,4-5,1 | 6,2-6,0 | 6,5-6,2 | 6,7 |
| Combined [l] | 6,4-6,2 | 6,0-5,7 | 6,2-5,9 | 7,1-6,9 | 7,8-7,6 | 8,0 |
| CO2 emissions [g/km] | 149-143 | 142-134 | 146-138 | 163-157 | 182-177 | 185 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 73 | - | - | 77 | 73 | - |
| Driving noise [dB] | 72 | - | - | 71 | 72 | - |
| Standby weight [kg] | 1675 | 1710 | 1735 | 1800 | 1890 | 1945 |
| Overall weight [kg] | 2230 | 2265 | 2290 | 2355 | 2445 | 2505 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1700 | 750/1700 | 750/1700 | 750/2100 | 750/2500 |
| Maximum front/rear axle load [kg] | 1080/1260 | - | - | 1175/1325 | 1255/1325 | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 632 | 632 | 632 | 632 | 632 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 883/1031 | 883/1031 | 883/1031 | 883/1031 | 883/1031 | 883/1031 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 75 | 75 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,3 | - | - | - | 0,30 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- |
| Overall length [mm] | 4943 | 4943 | 4943 | 4943 | 4943 | 4938 |
| Overall width without/including mirrors [mm] | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 | 1898/2086 |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1452-1512 |
| Wheelbase [mm] | 2912 | 2912 | 2912 | 2912 | 2912 | 2905 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1631 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1596 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 920 |
| Rear overhang [mm] | 1101 | 1101 | 1101 | 1101 | 1101 | 1113 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S6 quattro 331 kW | RS6 quattro 412 kW | RS6 Performance quattro 445 kW | 2.0 TDI ultra 110 kW | 2.0 TDI ultra 110 kW | 2.0 TDI ultra 140 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 3993 | 3993 | 3993 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 331/5800-6400 | 412/5700-6600 | 445/6100-6800 | 110/3000-4200 | 110/3000-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 550/1400-5700 | 700/1750-5500 | 700/1750-5500 750/2500-5500 overboost | 350/1500-3000 | 350/1500-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,1:1 | 9,3:1 | 9,3:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 250 | 250 [280,305 subject to a surcharge] | 250 [280,305 subject to a surcharge] | 209 | 209 | 226 |
| Acceleration 0–100 km/h [s] | 4,6 | 3,9 | 3,7 | 9,8 | 9,9 | 8,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13,5-13,4 | 13,4 | 13,4 | 5,5-5,3 | 5,1-4,9 | 5,5-5,3 |
| Out of town [l] | 7,3-7,1 | 7,4 | 7,4 | 4,2-4,0 | 4,3-4,1 | 4,2-4,0 |
| Combined [l] | 9,6-9,4 | 9,6 | 9,6 | 4,7-4,5 | 4,6-4,4 | 4,7-4,5 |
| CO2 emissions [g/km] | 224-219 | 223 | 223 | 124-117 | 121-114 | 124-118 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | 71 | 71 | - | - | - |
| Driving noise [dB] | - | 70 | 70 | - | - | - |
| Standby weight [kg] | 2035 | 2025 | 2025 | 1765 | 1800 | 1765 |
| Overall weight [kg] | 2590 | 2580 | 2580 | 2320 | 2355 | 2320 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/1800 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 606 | 631 | 631 | 632 | 632 | 632 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 883/1031 | 883/1031 | 883/1031 | 883/1031 | 883/1031 | 883/1031 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 65 [75 subject to a surcharge] | 65 [75 subject to a surcharge] | 73 | 73 | 73 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | 0,352 | 0,352 | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 255/40 R19 | 275/35 ZR20 102Y XL | 275/35 ZR20 102Y XL | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 255/40 R19 | 275/35 ZR20 102Y XL | 275/35 ZR20 102Y XL | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 8,5J x 19 | 9,5x20 ET21 | 9,5x20 ET21 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Wheel size rear | 8,5J x 19 | 9,5x20 ET21 | 9,5x20 ET21 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- |
| Overall length [mm] | 4942 | 4979 | 4979 | 4943 | 4943 | 4943 |
| Overall width without/including mirrors [mm] | 1874/2086 | 1936/2086 | 1936/2086 | 1874/2086 | 1874/2086 | 1874/2086 |
| Overall height [mm] | 1436 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2917 | 2915 | 2915 | 2912 | 2912 | 2912 |
| Front wheel track [mm] | 1615 | 1662 | 1662 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1607 | 1663 | 1663 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 924 | 939 | 939 | 925 | 925 | 925 |
| Rear overhang [mm] | 1101 | 1125 | 1125 | 1101 | 1101 | 1101 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI ultra 140 kW | 2.0 TDI Allroad 140 kW | 2.0 TDI quattro 140 kW | 3.0 TDI 160 kW | 3.0 TDI quattro 160 kW | 3.0 TDI Allroad 160 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 160/4000-5000 | 160/3250-5000 | 160/3250-5000 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1250-3750 | 500/1250-3000 | 500/1250-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 16,8:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 226 | 221 | 230 | 237 | 237 | 231 |
| Acceleration 0–100 km/h [s] | 8,5 | 7,9 | 7,9 | 7,3 | 6,8 | 7,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,1-4,9 | 6,5-6,2 | 6,0-5,9 | 5,1-4,9 | 6,0-5,8 | 6,5-6,2 |
| Out of town [l] | 4,3-4,1 | 5,6-5,4 | 4,8-4,6 | 4,6-4,4 | 5,1-4,9 | 5,6-5,7 |
| Combined [l] | 4,6-4,4 | 6,0-5,7 | 5,2-5,1 | 4,8-4,6 | 5,4-5,3 | 6,0-5,7 |
| CO2 emissions [g/km] | 121-114 | 155-149 | 138-133 | 124-119 | 143-138 | 155-149 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | 68 | 70 | - |
| Driving noise [dB] | - | - | - | 72 | 70 | - |
| Standby weight [kg] | 1800 | 1965 | 1885 | 1835 | 1905 | 1965 |
| Overall weight [kg] | 2355 | 2520 | 2440 | 2390 | 2460 | 2520 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2500 | 750/1900 | 750/2000 | 750/2000 | 750/2500 |
| Maximum front/rear axle load [kg] | - | - | - | 1235/1295 | 1260/1350 | - |
| Maximum vertical load on the tow bar [kg] | 85 | 100 | 85 | 85 | 85 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 632 | 684 | 632 | 632 | 632 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 883/1031 | 883/1031 | 883/1031 | 883/1031 | 883/1031 | 883/1031 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 73 | 73 | 73 | 73 | 73 | 73 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- |
| Overall length [mm] | 4943 | 4938 | 4943 | 4943 | 4943 | 4938 |
| Overall width without/including mirrors [mm] | 1874/2086 | 1898/2086 | 1874/2086 | 1874/2086 | 1874/2086 | 1898/2086 |
| Overall height [mm] | 1461 | 1452-1512 | 1461 | 1461 | 1461 | 1452-1512 |
| Wheelbase [mm] | 2912 | 2905 | 2912 | 2912 | 2912 | 2905 |
| Front wheel track [mm] | 1627 | 1631 | 1627 | 1627 | 1627 | 1631 |
| Rear wheel track [mm] | 1618 | 1596 | 1618 | 1618 | 1618 | 1596 |
| Forward overhang [mm] | 925 | 920 | 925 | 925 | 925 | 920 |
| Rear overhang [mm] | 1101 | 1113 | 1101 | 1101 | 1101 | 1113 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro 200 kW | 3.0 TDI Allroad 200 kW | 3.0 TDI quattro 235 kW | 3.0 TDI Allroad 235 kW | 3.0 TDI competition quattro 240 kW | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | 2967 | |
| Maximum output / speed [kW/min-1] | 200/3500-4250 | 200/3500-4250 | 235/3900-4600 | 235/3900-4600 | 240/4000-4500 | |
| Maximum torque [Nm/min-1] | 580/1250-3250 | 580/1250-3250 | 650/1400-2800 | 650/1400-2800 | 650/1400-2800 | |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | |
| Compression ratio | 16,0:1 | 16,0:1 | 15,5:1 | 15,5:1 | 15,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 5,7 | 6,2 | 5,2 | 5,5 | 5,2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6,2-6,0 | 6,4 | 7,7-7,5 | 7,7 | 7,7-7,5 | |
| Out of town [l] | 5,0-4,8 | 5,2 | 5,7-5,5 | 5,8 | 5,7-5,5 | |
| Combined [l] | 5,4-5,2 | 5,6 | 6,4-6,2 | 6,5 | 6,4-6,2 | |
| CO2 emissions [g/km] | 144-137 | 149 | 169-163 | 172 | 169-164 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | - | - | - | - | 71 | |
| CO2 emissions [g/km] | - | - | - | - | 70 | |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | 84 | - | - | |
| Driving noise [dB] | - | - | 74 | - | - | |
| Standby weight [kg] | 1910 | 1970 | 1975 | 2030 | 2005 | |
| Overall weight [kg] | 2465 | 2525 | 2530 | 2585 | 2560 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2500 | 750/2100 | 750/2500 | 750/2100 | |
| Maximum front/rear axle load [kg] | 1250/1370 | - | 1300/1375 | - | 1300/1375 | |
| Maximum vertical load on the tow bar [kg] | 85 | 100 | 85 | 100 | 85 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1680 | -/1680 | -/1680 | -/1680 | -/1680 | |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | |
| Boot length with rear seats folded [mm] | 1966 | 1966 | 1966 | 1966 | 1966 | |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 632 | 684 | 632 | 684 | 632 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | |
| Boot opening width min/max [mm] | 883/1031 | 883/1031 | 883/1031 | 883/1031 | 883/1031 | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 73 | 73 | 73 | 73 | 73 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0,3 | - | 0,3 | - | - | |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- | |
| Overall length [mm] | 4943 | 4938 | 4943 | 4938 | 4943 | |
| Overall width without/including mirrors [mm] | 1874/2086 | 1898/2086 | 1874/2086 | 1898/2086 | 1874/2086 | |
| Overall height [mm] | 1461 | 1452-1512 | 1461 | 1452-1512 | 1461 | |
| Wheelbase [mm] | 2912 | 2905 | 2912 | 2905 | 2912 | |
| Front wheel track [mm] | 1627 | 1631 | 1627 | 1631 | 1627 | |
| Rear wheel track [mm] | 1618 | 1596 | 1618 | 1596 | 1618 | |
| Forward overhang [mm] | 925 | 920 | 925 | 920 | 925 | |
| Rear overhang [mm] | 1101 | 1113 | 1101 | 1113 | 1101 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Sedan
| 1.8 TFSI 140 kW | 1.8 TFSI ultra 140 kW | 2.0 TFSI 185 kW | 2.0 TFSI quattro 185 kW | 3.0 TFSI quattro 245 kW | S6 quattro 331 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 8/32 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 2995 | 3993 |
| Maximum output / speed [kW/min-1] | 140/4200-6200 | 140/4200-6200 | 185/5000-6000 | 185/5000-6000 | 245/5500-6500 | 331/5800-6400 |
| Maximum torque [Nm/min-1] | 320/1400-4100 | 320/1400-4100 | 370/1600-4500 | 370/1600-4500 | 440/2900-5300 | 550/1400-5700 |
| Bore and stroke [mm x mm] | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 | 84,5 x 89,0 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 10,8:1 | 10,1:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 233 | 233 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7,9 | 7,9 | 6,7 | 6,5 | 5,1 | 4,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,7-7,5 | 7,2-6,9 | 7,5-7,3 | 8,4-8,3 | 10,0-9,8 | 13,3-13,1 |
| Out of town [l] | 5,2-5,0 | 5,2-4,8 | 5,3-4,9 | 6,0-5,8 | 6,3-6,0 | 7,1-6,9 |
| Combined [l] | 6,1-5,9 | 5,9-5,6 | 6,1-5,8 | 6,9-6,7 | 7,6-7,4 | 9,4-9,2 |
| CO2 emissions [g/km] | 143-137 | 138-130 | 142-134 | 158-153 | 177-172 | 217-214 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1610 | 1645 | 1670 | 1735 | 1825 | 1970 |
| Overall weight [kg] | 2115 | 2150 | 2175 | 2270 | 2360 | 2505 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1700 | 750/1700 | 750/1700 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/995 | -/995 | -/995 | -/995 | -/995 | -/995 |
| Boot length [mm] | 1176 | 1176 | 1176 | 1176 | 1176 | 1176 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 674 | 674 | 674 | 674 | 674 | 649 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 949/- | 949/- | 949/- | 949/- | 949/- | 949/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 75 | 75 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 255/40 R19 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 255/40 R19 |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,5J x 19 |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,5J x 19 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- |
| Overall length [mm] | 4932 | 4932 | 4932 | 4932 | 4932 | 4931 |
| Overall width without/including mirrors [mm] | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1430 |
| Wheelbase [mm] | 2912 | 2912 | 2912 | 2912 | 2912 | 2917 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1625 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1607 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 924 |
| Rear overhang [mm] | 1095 | 1095 | 1095 | 1095 | 1095 | 1090 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI ultra 110 kW | 2.0 TDI ultra 110 kW | 2.0 TDI ultra 140 kW | 2.0 TDI ultra 140 kW | 2.0 TDI quattro 140 kW | 3.0 TDI 160 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 2967 |
| Maximum output / speed [kW/min-1] | 110/3000-4200 | 110/3000-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 160/4000-5000 |
| Maximum torque [Nm/min-1] | 350/1500-3000 | 350/1500-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1250-3750 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 214 | 214 | 232 | 232 | 230 | 245 |
| Acceleration 0–100 km/h [s] | 9,5 | 9,6 | 8,4 | 8,2 | 7,7 | 7,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3-5,1 | 4,9-4,7 | 5,4-5,1 | 4,9-4,7 | 5,8-5,7 | 5,0-4,8 |
| Out of town [l] | 4,0-3,8 | 4,1-3,9 | 4,0-3,8 | 4,1-3,9 | 4,6-4,4 | 4,4-4,2 |
| Combined [l] | 4,5-4,3 | 4,4-4,2 | 4,5-4,3 | 4,4-4,2 | 5,0-4,9 | 4,6-4,4 |
| CO2 emissions [g/km] | 119-112 | 116-109 | 119-113 | 116-109 | 133-128 | 120-115 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1700 | 1735 | 1700 | 1735 | 1820 | 1770 |
| Overall weight [kg] | 2205 | 2240 | 2205 | 2240 | 2355 | 2275 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | 85 | 85 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/995 | -/995 | -/995 | -/995 | -/995 | -/995 |
| Boot length [mm] | 1176 | 1176 | 1176 | 1176 | 1176 | 1176 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 674 | 674 | 674 | 674 | 674 | 674 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 949/- | 949/- | 949/- | 949/- | 949/- | 949/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 73 | 73 | 73 | 73 | 73 | 73 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- |
| Overall length [mm] | 4932 | 4932 | 4932 | 4932 | 4932 | 4932 |
| Overall width without/including mirrors [mm] | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2912 | 2912 | 2912 | 2912 | 2912 | 2912 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1618 | 1618 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Rear overhang [mm] | 1095 | 1095 | 1095 | 1095 | 1095 | 1095 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 |
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro 160 kW | 3.0 TDI quattro 200 kW | 3.0 TDI quattro 235 kW | 3.0 TDI competition quattro 240 kW | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | ||
| Maximum output / speed [kW/min-1] | 160/3250-5000 | 200/3500-4250 | 235/3900-4600 | 240/4000-4500 | ||
| Maximum torque [Nm/min-1] | 500/1250-3000 | 580/1250-3250 | 650/1400-2800 | 650/1400-2800 | ||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | ||
| Compression ratio | 16,8:1 | 16,0:1 | 15,5:1 | 15,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 245 | 250 | 250 | 250 | ||
| Acceleration 0–100 km/h [s] | 6,6 | 5,5 | 5,0 | 4,9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6,2-6,0 | 6,0-5,9 | 7,5-7,3 | 7,5-7,3 | ||
| Out of town [l] | 5,1-4,9 | 4,8-4,6 | 5,5-5,3 | 5,5-5,3 | ||
| Combined [l] | 5,5-5,3 | 5,2-5,0 | 6,2-6,0 | 6,2-6,0 | ||
| CO2 emissions [g/km] | 144-138 | 138-132 | 164-159 | 164-159 | ||
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1840 | 1845 | 1910 | 1940 | ||
| Overall weight [kg] | 2375 | 2380 | 2445 | 2475 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2100 | 750/2100 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 85 | 85 | 85 | 85 | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 530 | 530 | 530 | 530 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/995 | -/995 | -/995 | -/995 | ||
| Boot length [mm] | 1176 | 1176 | 1176 | 1176 | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | -/1050 | -/1050 | -/1050 | -/1050 | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 674 | 674 | 674 | 674 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | 949/- | 949/- | 949/- | 949/- | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 73 | 73 | 73 | 73 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | ||
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | ||
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | ||
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | ||
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | ||
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | ||
| Overall length [mm] | 4932 | 4932 | 4932 | 4932 | ||
| Overall width without/including mirrors [mm] | 1874/2086 | 1874/2086 | 1874/2086 | 1874/2086 | ||
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | ||
| Wheelbase [mm] | 2912 | 2912 | 2912 | 2912 | ||
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | ||
| Rear wheel track [mm] | 1618 | 1618 | 1618 | 1618 | ||
| Forward overhang [mm] | 925 | 925 | 925 | 925 | ||
| Rear overhang [mm] | 1095 | 1095 | 1095 | 1095 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1046 | 1046 | 1046 | 1046 | ||
| Headroom rear [mm] | 962 | 962 | 962 | 962 | ||
| Front elbow/shoulder width [mm] | 1527/1460 | 1527/1460 | 1527/1460 | 1527/1460 | ||
| Rear elbow/shoulder width [mm] | 1491/1429 | 1491/1429 | 1491/1429 | 1491/1429 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
