Audi Q3
Date of manufacture
2014 – 2018 (Small SUV)
Platform
Volkswagen Group A5 (PQ35)
Manufacturing locations
Martorell, Spain
Designer
Julian Hoenig
Tags
Small SUV
German cars

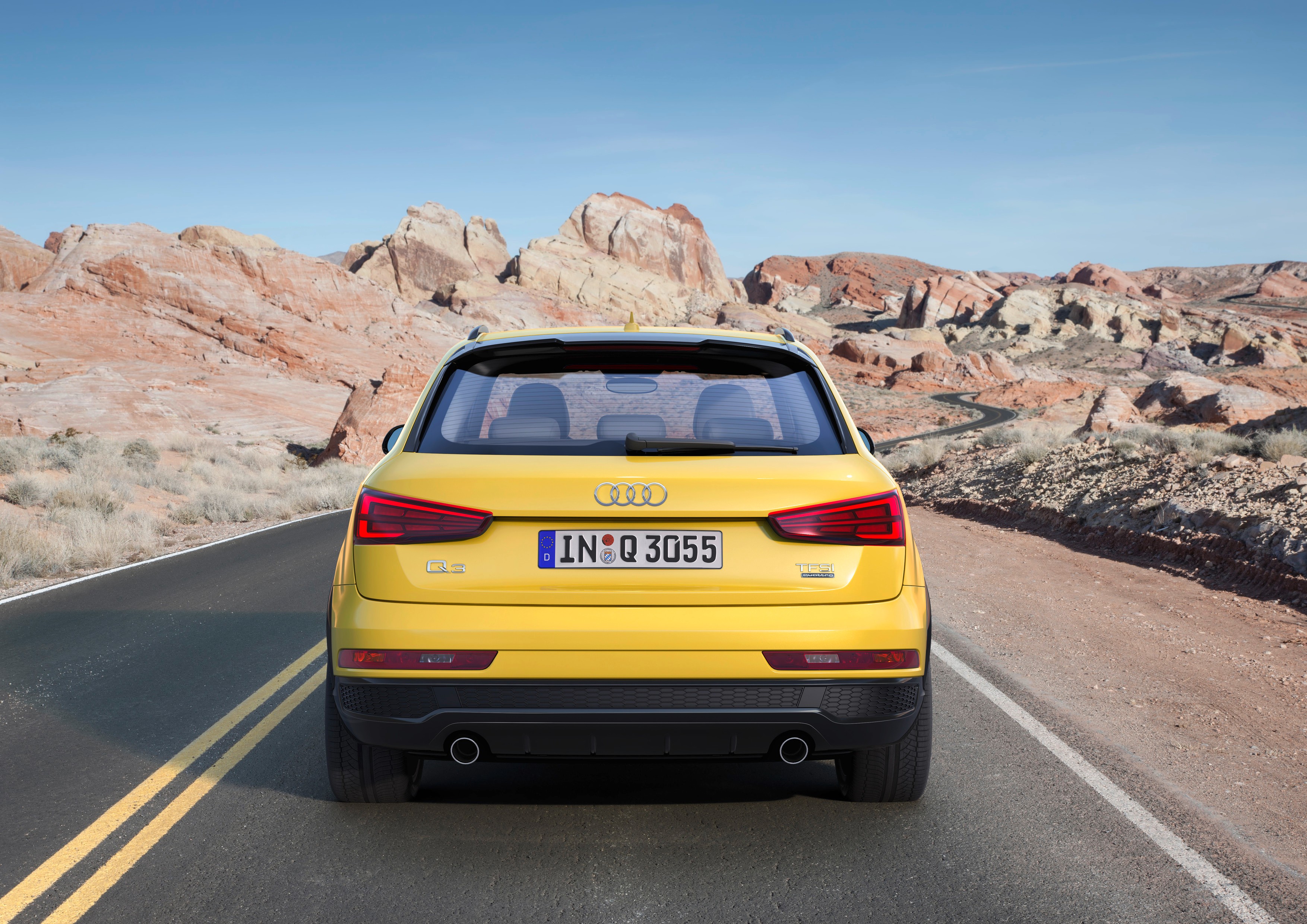

The Audi Q3 is a small SUV that was launched in 2014. The vehicle is manufactured in Spain and has a Volkswagen Group A5 (PQ35) chassis. The engine range includes petrol and diesel engines. The most powerful model is the RS Q3 270 kW Performance with a top speed of 250 km/h and the best acceleration from 0-100 km/h in 4.4 seconds. Fuel consumption is 4.2 l/100 km for the 2.0 TDI ultra 110 kW with CO2 emissions of 109 g/km. The 460 l luggage compartment was tested by EURONCAP and achieved a rating of 5 out of 5 for safety.
Car body style
Small SUV
after upgrade (facelift)
Date of manufacture
2014 – 2018Internal designation
8UEngine size
PetrolDiesel
Technical data
Small SUV
| 1.4 TFSI 92 kW | 1.4 TFSI 110 kW | 1.4 TFSI ultra 110 kW | 1.4 TFSI 110 kW | 1.4 TFSI 110 kW | 2.0 TFSI quattro 132 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1395 | 1395 | 1984 |
| Maximum output / speed [kW/min-1] | 92/5000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 132/4000-6000 |
| Maximum torque [Nm/min-1] | 220/1500-4000 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 320/1500-3900 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 92,8 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear automatic | 7 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 194 | 204 | 204 | 204 | 204 | 217 |
| Acceleration 0–100 km/h [s] | 10,8 | 9,2 | 9,2 | 8,9 | 8,9 | 7,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,4-7,1 | 7,4-7,1 | 6,8-6,6 | 7,7-7,2 | 7,4-7,1 | 8,4-7,8 |
| Out of town [l] | 5,3-5,0 | 5,3-5,0 | 5,2-4,9 | 5,7-5,1 | 5,5-5,1 | 6,3-5,7 |
| Combined [l] | 6,1-5,8 | 6,1-5,8 | 5,8-5,5 | 7,0-6,5 | 6,2-5,8 | 7,0-6,5 |
| CO2 emissions [g/km] | 141-133 | 141-133 | 134-127 | 147-136 | 143-135 | 161-150 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 70 | - | - | - | 68 | 73 |
| Driving noise [dB] | 72 | - | - | - | 72 | 70 |
| Standby weight [kg] | 1460 | 1460 | 1460 | 1480 | 1480 | 1615 |
| Overall weight [kg] | 1985 | 1985 | 1985 | 2005 | 2005 | 2140 |
| Maximum trailer weight unbraked/braked [kg] | 730/1800 | 730/1800 | 730/1800 | 740/1800 | 740/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | 1060/1025 | 1140/1085 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1365 | -/1365 | -/1365 | -/1365 | -/1365 | -/1365 |
| Boot length [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Boot length with rear seats folded [mm] | 1632 | 1632 | 1632 | 1632 | 1632 | 1632 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 781 | 781 | 781 | 781 | 781 | 781 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 675 | 675 | 675 | 675 | 675 | 675 |
| Boot opening width min/max [mm] | 1067/- | 1067/- | 1067/- | 1067/- | 1067/- | 1067/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | 0,32 | 0,32 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V |
| Tyre dimensions rear | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V |
| Wheel size front | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 |
| Wheel size rear | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,8/- | 11,8/- | 11,8/- | 11,8/- | 11,8/- | 11,8/- |
| Overall length [mm] | 4388 | 4388 | 4388 | 4388 | 4388 | 4388 |
| Overall width without/including mirrors [mm] | 1831/2019 | 1831/2019 | 1831/2019 | 1831/2019 | 1831/2019 | 1831/2019 |
| Overall height [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2603 | 2603 | 2603 | 2603 | 2603 | 2603 |
| Front wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 |
| Rear elbow/shoulder width [mm] | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI quattro 162 kW | RS Q3 250 kW | RS Q3 270 kW Performance | 2.0 TDI 88 kW | 2.0 TDI 88 kW | 2.0 TDI ultra 110 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2016 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 5/20 | 5/20 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 2480 | 2480 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 162/4500-6200 | 250/5300-6700 | 270/5550-6800 | 88/3250-4500 | 88/3250-4500 | 110/3500 |
| Maximum torque [Nm/min-1] | 350/1500-4400 | 450/1600-5300 | 465/1625-5550 | 290/3250-2750 | 290/1750-2500 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 10,0:1 | 10,0:1 | 16,0:1 | 16,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 233 | 250 | 250 | 190 | 190 | 204 |
| Acceleration 0–100 km/h [s] | 6,4 | 4,8 | 4,4 | 10,9 | 10,9 | 9,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,6-8,1 | 11,8-11,6 | 11,8-11,6 | 5,5-5,2 | 6,2-5,9 | 4,8 |
| Out of town [l] | 6,5-5,9 | 6,8-6,6 | 6,8-6,6 | 4,4-4,1 | 4,7-4,3 | 3,9 |
| Combined [l] | 7,2-6,7 | 8,6-8,4 | 8,6-8,4 | 4,8-4,5 | 5,3-4,9 | 4,2 |
| CO2 emissions [g/km] | 168-154 | 203-198 | 203-198 | 126-117 | 139-128 | 109 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 73 | - | - | 68 | - | - |
| Driving noise [dB] | 70 | - | - | 71 | - | - |
| Standby weight [kg] | 1640 | 1730 | 1730 | 1560 | 1590 | 1560 |
| Overall weight [kg] | 2165 | 2215 | 2215 | 2085 | 2115 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1900 | 750/1900 | 750/1800 | 750/2000 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | 1120/1050 | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 356 | 356 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1365 | -/1261 | -/1261 | -/1365 | -/1365 | -/1365 |
| Boot length [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Boot length with rear seats folded [mm] | 1632 | 1632 | 1632 | 1632 | 1632 | 1632 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 781 | 771 | 771 | 781 | 781 | 781 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 675 | 675 | 675 | 675 | 675 | 675 |
| Boot opening width min/max [mm] | 1067/- | 1067/- | 1067/- | 1067/- | 1067/- | 1067/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | 12 | 12 | 12 |
| Air resistance [Cd] | - | - | - | 0,32 | - | - |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V |
| Tyre dimensions rear | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V |
| Wheel size front | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 |
| Wheel size rear | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,8/- | 11,8/- | 11,8/- | 11,8/- | 11,8/- | 11,8/- |
| Overall length [mm] | 4388 | 4411 | 4411 | 4388 | 4388 | 4388 |
| Overall width without/including mirrors [mm] | 1831/2019 | 1841/2019 | 1841/2019 | 1831/2019 | 1831/2019 | 1831/2019 |
| Overall height [mm] | 1608 | 1598 | 1598 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2603 | 2603 | 2603 | 2603 | 2603 | 2603 |
| Front wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Rear wheel track [mm] | 1575 | 1577 | 1577 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 905 | 927 | 927 | 905 | 905 | 905 |
| Rear overhang [mm] | 880 | 881 | 881 | 880 | 880 | 880 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 |
| Rear elbow/shoulder width [mm] | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 110 kW | 2.0 TDI 110 kW | 2.0 TDI quattro 110 kW | 2.0 TDI quattro 110 kW | 2.0 TDI quattro 135 kW | 2.0 TDI quattro 135 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 110/3500 | 110/3500 | 135/3500 | 135/3500 |
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 380/1750-3000 | 380/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 15,8:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 204 | 204 | 204 | 204 | 219 | 219 |
| Acceleration 0–100 km/h [s] | 9,6 | 9,3 | 9,3 | 9,3 | 7,9 | 7,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3-5,0 | 6,2-5,9 | 6,0-5,6 | 6,3-5,9 | 6,7-6,4 | 6,6-6,3 |
| Out of town [l] | 4,4-4,1 | 4,7-4,3 | 4,8-4,5 | 4,8-4,4 | 4,9-4,6 | 4,9-4,5 |
| Combined [l] | 4,7-4,4 | 5,3-4,9 | 5,2-4,9 | 5,3-5,0 | 5,6-5,3 | 5,5-5,2 |
| CO2 emissions [g/km] | 124-116 | 139-128 | 138-127 | 140-129 | 146-138 | 144-136 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | 73 | - | 71 | 71 |
| Driving noise [dB] | - | - | 70 | - | 71 | 71 |
| Standby weight [kg] | 1560 | 1590 | 1645 | 1680 | 1680 | 1700 |
| Overall weight [kg] | 2085 | 2115 | 2170 | 2205 | 2205 | 2225 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | 750/1800 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | 1145/1110 | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1365 | -/1365 | -/1365 | -/1365 | -/1365 | -/1365 |
| Boot length [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Boot length with rear seats folded [mm] | 1632 | 1632 | 1632 | 1632 | 1632 | 1632 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 781 | 781 | 781 | 781 | 781 | 781 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 675 | 675 | 675 | 675 | 675 | 675 |
| Boot opening width min/max [mm] | 1067/- | 1067/- | 1067/- | 1067/- | 1067/- | 1067/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | 64 |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | - | - | 0,32 | - | - | - |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V |
| Tyre dimensions rear | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V |
| Wheel size front | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 |
| Wheel size rear | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 | 6,5J x 16 ET33 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,8/- | 11,8/- | 11,8/- | 11,8/- | 11,8/- | 11,8/- |
| Overall length [mm] | 4388 | 4388 | 4388 | 4388 | 4388 | 4388 |
| Overall width without/including mirrors [mm] | 1831/2019 | 1831/2019 | 1831/2019 | 1831/2019 | 1831/2019 | 1831/2019 |
| Overall height [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2603 | 2603 | 2603 | 2603 | 2603 | 2603 |
| Front wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 | 1474/1417 |
| Rear elbow/shoulder width [mm] | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 | 1426/1362 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

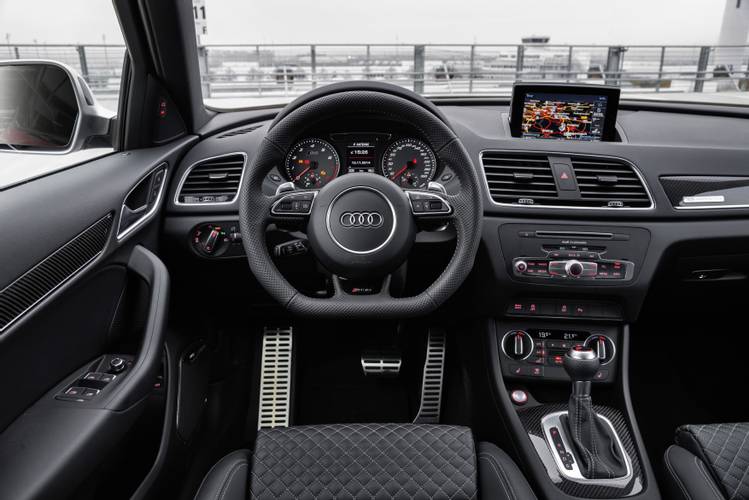

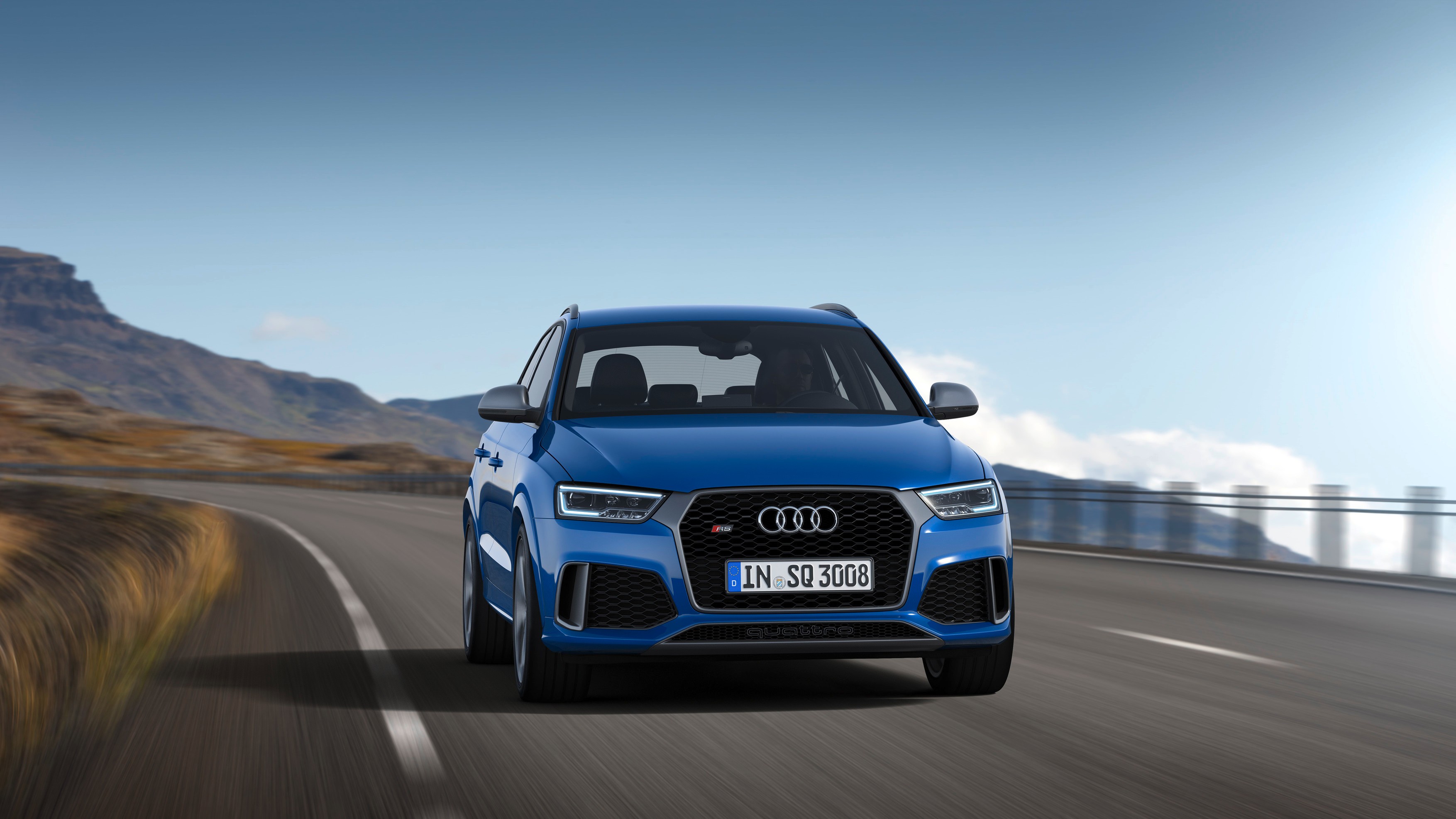

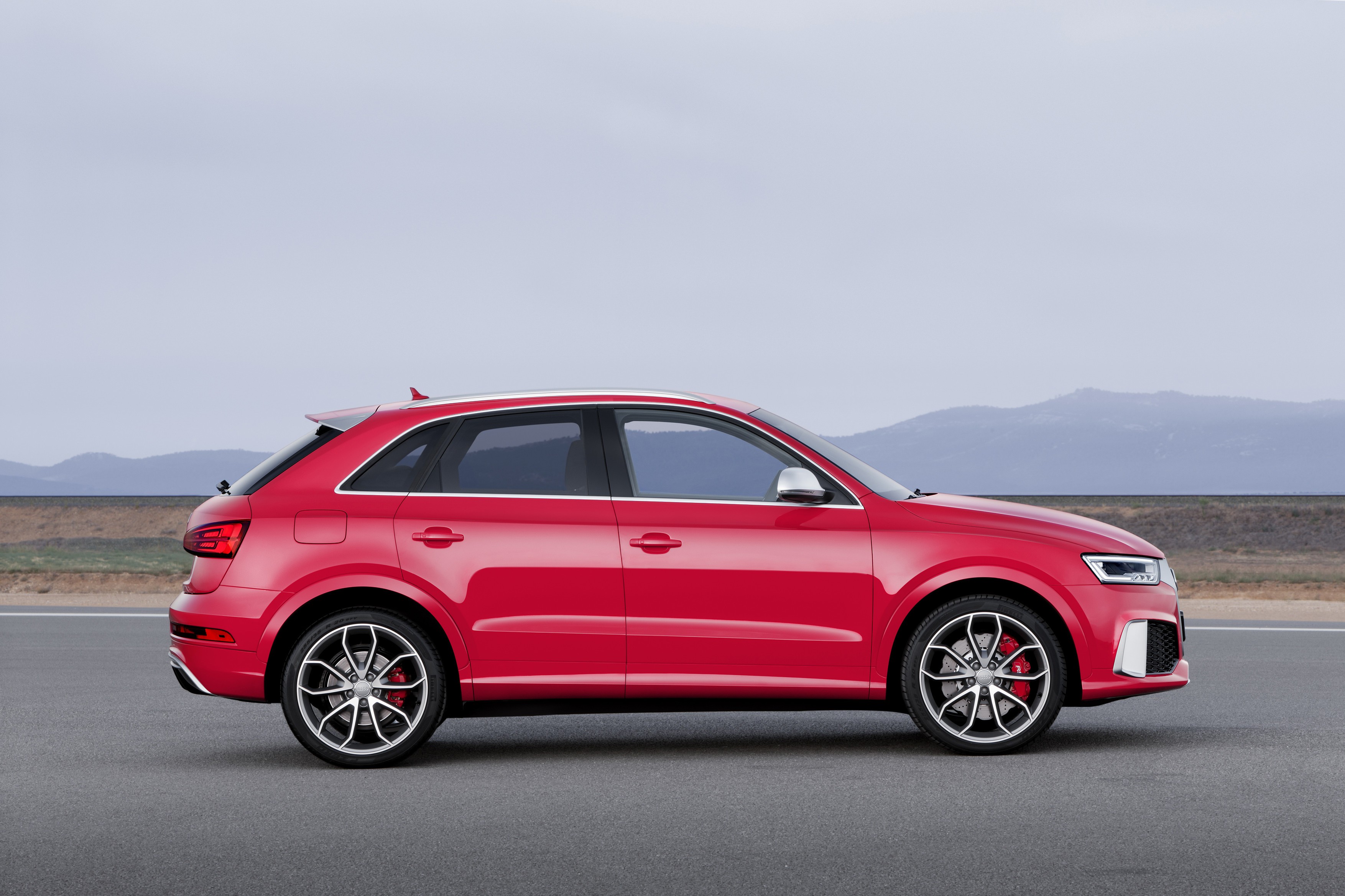

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
