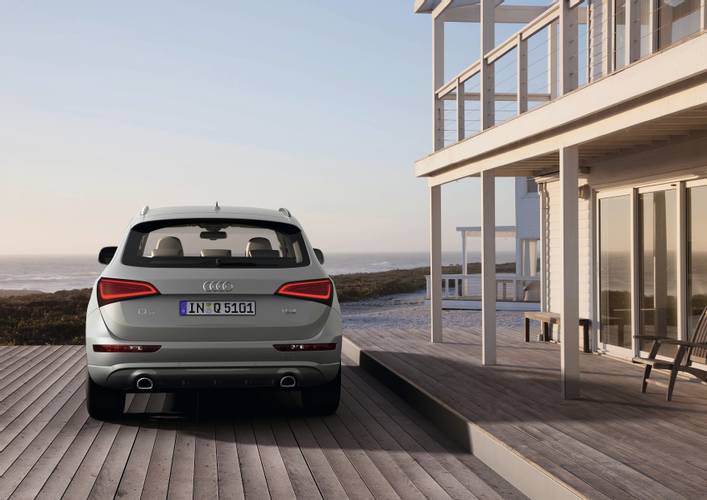

Audi Q5
Date of manufacture
2012 – 2016 (SUV)
Platform
MLB/MLP
Manufacturing locations
Ingolstadt, Germany
Designer
Christian Winkelmann
Tags
Compact SUV
German cars
The Audi Q5, produced since 2012 and built on the MLB/MLP platform, boasts a wide range of engine options, from petrol to hybrid power units. The most powerful model is the SQ5 quattro 240 kW with a top speed of 250 km/h and the best acceleration from 0-100 km/h in 5.1 seconds. The economical 2.0 TDI ultra 110 kW consumes only 5.2 l/100 km and emits 135 g CO2/km. There is also a spacious luggage compartment with a capacity of 540 l. The Audi Q5 underwent EURONCAP safety tests in 2009 and received a rating of 5 out of 5.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
2012 – 2016Internal designation
8R Engine size
PetrolPetrol + ElectricDiesel
Technical data
SUV
| 2.0 TFSI 132 kW | 2.0 TFSI quattro 132 kW | 2.0 TFSI quattro 165 kW | 2.0 TFSI quattro 165 kW | 3.0 TFSI quattro 200 kW | Q5 hybrid quattro 180 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 2995 | 1984 |
| Maximum output / speed [kW/min-1] | 132/4000-6000 | 132/4000-6000 | 165/4500-6250 | 165/4500-6250 | 200/4780-6500 | 155/4300-6000 40 el. 180 total |
| Maximum torque [Nm/min-1] | 320/1500-3900 | 320/1500-3900 | 350/1500-4500 | 350/1500-4500 | 400/2150-4780 | 350/1500-4500 480 total |
| Bore and stroke [mm x mm] | 82,5x92,8 | 82,5x92,8 | 82,5x92,8 | 82,5x92,8 | 89,0x84,5 | 82,5x92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 10,3:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 210 | 205 | 222 | 222 | 234 | 225 |
| Acceleration 0–100 km/h [s] | 8.5 | 8,2 | 7.4 | 7.1 | 5.9 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,8-9.3 | 8,7-8,5 | 9,8-9.3 | 9.6-8,5 | 11.4 | 6.6 |
| Out of town [l] | 6,9-6.4 | 6,8-6,5 | 6,9-6.4 | 6.9-6,5 | 6.9 | 7.1 |
| Combined [l] | 7,9-7.5 | 7,5-7,2 | 7,9-7.5 | 7.9-7,2 | 8.5 | 6.9 |
| CO2 emissions [g/km] | 181-174 | 174-168 | 181-174 | 184-168 | 199 | 159 |
| Emission standard | EU5/EU6 | EU6 | EU5/EU6 | EU5/EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 74 | 74 | - | 74 | 72 | - |
| Driving noise [dB] | 73 | 71 | - | 71 | 75 | 73 |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 1.3 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1795-1805 | 1845 | 1795-1805 | 1830-1845 | 1915 | 1985 |
| Overall weight [kg] | 2330-2340 | 2400 | 2330-2340 | 2365-2380 | 2450 | 2490 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2400 | 750/2000 |
| Maximum front/rear axle load [kg] | 1160/1300 | - | - | - | - | 1220/1350 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1560 | -/1560 | -/1560 | -/1560 | -/1560 | -/1480 |
| Boot length [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 694 | 694 | 694 | 694 | 694 | 694 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1079/- | 1079/- | 1079/- | 1079/- | 1079/- | 1079/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 75 | 72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,34 | - | - | - | - | - |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/60 R18 | 235/55 R19 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/60 R18 | 235/55 R19 |
| Wheel size front | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx18 | 8Jx19 |
| Wheel size rear | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx18 | 8Jx19 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 |
| Overall length [mm] | 4629 | 4629 | 4629 | 4629 | 4629 | 4629 |
| Overall width without/including mirrors [mm] | 1598/- | 1598/- | 1598/- | 1598/- | 1598/- | 1598/- |
| Overall height [mm] | 1655 | 1655 | 1655 | 1655 | 1655 | 1625 |
| Wheelbase [mm] | 2807 | 2807 | 2807 | 2807 | 2807 | 2812 |
| Front wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1625 |
| Rear wheel track [mm] | 1614 | 1614 | 1614 | 1614 | 1614 | 1620 |
| Forward overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Rear overhang [mm] | 927 | 927 | 927 | 927 | 927 | 922 |
| Clearance [mm] | 200 | 200 | 200 | 200 | 200 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Approach angle rear [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Transition angle [°] | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| Climbing rate [°] | 31 | 31 | 31 | 31 | 31 | 31 |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Headroom rear [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Front elbow/shoulder width [mm] | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 |
| Rear elbow/shoulder width [mm] | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 105 kW | 2.0 TDI 105 kW | 2.0 TDI 110 kW | 2.0 TDI ultra 110 kW | 2.0 TDI quattro 110 kW | 2.0 TDI quattro 110 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 105/4200 | 105/4200 | 110/4200 | 110/3250-4200 | 110/4200 | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1500-3250 | 320/1750-2500 | 320/1500-3250 |
| Bore and stroke [mm x mm] | 81,0x95,5 | 81,0x95,5 | 81,0x95,5 | 81,0x95,5 | 81,0x95,5 | 81,0x95,5 |
| Compression ratio | 16,5:1 | 16,0:1 | 16,2:1 | 15,5:1 | 16,0:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 192 | 190 | 192 | 192 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 10.9 | 10.8 | 10.9 | 10.9 | 10.8 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 6.8 | 6.0 | 5,8-5,5 | 6.8 | 6,7-6,4 |
| Out of town [l] | 4.9 | 5.4 | 4.9 | 4.9-4,6 | 5.4 | 5,3-5,0 |
| Combined [l] | 5.3 | 5.9 | 5.3 | 5,2-4,9 | 5.9 | 5,8-5,5 |
| CO2 emissions [g/km] | 139 | 154 | 139 | 135-129 | 154 | 152-144 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | 74 | - | 67 | 69 | 67 |
| Driving noise [dB] | - | 69 | - | 74 | 74 | 73 |
| Standby weight [kg] | 1755 | 1830 | 1755 | 1830 | 1830 | 1895 |
| Overall weight [kg] | 2260 | 2365 | 2260 | 2335 | 2365 | 2430 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1800 | 750/1700 | 750/1700 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | 1180/1300 | - | 1190/1245 | 1180/1300 | 1200/1335 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1560 | -/1560 | -/1560 | -/1560 | -/1560 | -/1560 |
| Boot length [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 694 | 694 | 694 | 694 | 694 | 694 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1079/- | 1079/- | 1079/- | 1079/- | 1079/- | 1079/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 75 | 75 |
| AdBlue tank volume [l] | - | - | - | 23 | - | 23 |
| Air resistance [Cd] | - | 0,33 | - | 0,34 | 0,34 | 0,34 |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 |
| Wheel size rear | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 |
| Overall length [mm] | 4629 | 4629 | 4629 | 4629 | 4629 | 4629 |
| Overall width without/including mirrors [mm] | 1598/- | 1598/- | 1598/- | 1598/- | 1598/- | 1598/- |
| Overall height [mm] | 1627 | 1655 | 1627 | 1627 | 1655 | 1655 |
| Wheelbase [mm] | 2812 | 2807 | 2812 | 2812 | 2807 | 2807 |
| Front wheel track [mm] | 1625 | 1617 | 1625 | 1625 | 1617 | 1617 |
| Rear wheel track [mm] | 1620 | 1614 | 1620 | 1620 | 1614 | 1614 |
| Forward overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Rear overhang [mm] | 922 | 927 | 922 | 922 | 927 | 927 |
| Clearance [mm] | - | 200 | - | - | 200 | 200 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Approach angle rear [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Transition angle [°] | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| Climbing rate [°] | 31 | 31 | 31 | 31 | 31 | 31 |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Headroom rear [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Front elbow/shoulder width [mm] | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 |
| Rear elbow/shoulder width [mm] | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI quattro 120 kW | 2.0 TDI quattro 130 kW | 2.0 TDI quattro 130 kW clean diesel | 2.0 TDI quattro 140 kW | 2.0 TDI quattro 140 kW | 3.0 TDI quattro 180 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 2967 |
| Maximum output / speed [kW/min-1] | 120/3000-4200 | 130/4200 | 130/4200 | 140/3800-4200 | 140/3800-4200 | 180/4000-4500 |
| Maximum torque [Nm/min-1] | 400/1750-2750 | 380/1750-2500 | 380/1750-2500 | 400/1750-300 | 400/1750-300 | 580/1750-2500 |
| Bore and stroke [mm x mm] | 81,0x95,5 | 81,0x95,5 | 81,0x95,5 | 81,0x95,5 | 81,0x95,5 | 83,0x91,4 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 15,5:1 | 15,5:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 196 | 204 | 200 | 210 | 210 | 225 |
| Acceleration 0–100 km/h [s] | 9.7-10,1 | 9.0 | 9.0 | 8,4 | 8,4 | 6.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,1-6,5 | 6.8 | 7,1-6,8 | 6,8-6,5 | 6,7-6,5 | 7.1 |
| Out of town [l] | 5,6-5,3 | 5.4 | 5,6-5,5 | 5,4-5,1 | 5,6-5,3 | 6.0 |
| Combined [l] | 6,1-5,7 | 5.9 | 6,1-6,0 | 5,9-5,6 | 6,0-5,7 | 6.4 |
| CO2 emissions [g/km] | 159-149 | 154 | 159-157 | 153-146 | 157-149 | 169 |
| Emission standard | EU5-EU6 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 70 | 74 | 74 | - | 67 | 70 |
| Driving noise [dB] | 69 | 69 | 69 | - | 73 | 75 |
| Standby weight [kg] | 1935 | 1830 | 1895 | 1895 | 1935 | 1935 |
| Overall weight [kg] | 2470 | 2365 | 2430 | 2430 | 2470 | 2470 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/200 | 750/2000 | 750/2400 |
| Maximum front/rear axle load [kg] | - | 1180/1300 | 1125/1340 | 1200/1335 | 1250/1330 | 1280/1320 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1560 | -/1560 | -/1560 | -/1560 | -/1560 | -/1560 |
| Boot length [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 694 | 694 | 694 | 694 | 694 | 694 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1079/- | 1079/- | 1079/- | 1079/- | 1079/- | 1079/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 75 | 75 |
| AdBlue tank volume [l] | 23 | - | 23 | 23 | 23 | - |
| Air resistance [Cd] | 0,33 | 0,33 | 0,33 | 0,34 | 0,34 | 0,33 |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 |
| Wheel size rear | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 | 8Jx17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 | 11.6 |
| Overall length [mm] | 4629 | 4629 | 4629 | 4629 | 4629 | 4629 |
| Overall width without/including mirrors [mm] | 1598/- | 1598/- | 1598/- | 1598/- | 1598/- | 1598/- |
| Overall height [mm] | 1655 | 1655 | 1655 | 1655 | 1655 | 1655 |
| Wheelbase [mm] | 2807 | 2807 | 2807 | 2807 | 2807 | 2807 |
| Front wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1617 |
| Rear wheel track [mm] | 1614 | 1614 | 1614 | 1614 | 1614 | 1614 |
| Forward overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Rear overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Clearance [mm] | 200 | 200 | 200 | 200 | 200 | 200 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Approach angle rear [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Transition angle [°] | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| Climbing rate [°] | 31 | 31 | 31 | 31 | 31 | 31 |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Headroom rear [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Front elbow/shoulder width [mm] | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 |
| Rear elbow/shoulder width [mm] | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro 190 kW | SQ5 quattro 230 kW | SQ5 quattro 230 kW | SQ5 quattro 240 kW | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | ||
| Maximum output / speed [kW/min-1] | 190/4 000-4 500 | 230/3900-4500 | 230/3900-4500 | 240/3900-4500 | ||
| Maximum torque [Nm/min-1] | 580/1750-2500 | 650/1450-2800 | 650/1450-2800 | 650/1450-2800 | ||
| Bore and stroke [mm x mm] | 83,0x91,4 | 83,0x91,4 | 83,0x91,4 | 83,0x91,4 | ||
| Compression ratio | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 230 | 250 | 250 | 250 | ||
| Acceleration 0–100 km/h [s] | 6.2 | 5.1 | 5.2 | 5.1 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6,9-6,5 | 7.6 | 8,0 | 8,0 | ||
| Out of town [l] | 5,9-5,6 | 6.4 | 5,9 | 5,9 | ||
| Combined [l] | 6,2-5,9 | 6.8 | 6,6 | 6,6 | ||
| CO2 emissions [g/km] | 163-154 | 179 | 174 | 174 | ||
| Emission standard | EU6 | EU5 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | 69 | 85 | 85 | 85 | ||
| Driving noise [dB] | 69 | 75 | 75 | 75 | ||
| Standby weight [kg] | 1955 | 1995 | 2075 | 2075 | ||
| Overall weight [kg] | 2490 | 2530 | 2585 | 2585 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2400 | 750/2400 | ||
| Maximum front/rear axle load [kg] | 1275/1335 | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 540 | 540 | 540 | 540 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1560 | -/1560 | -/1560 | -/1560 | ||
| Boot length [mm] | 926 | 926 | 926 | 926 | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 694 | 694 | 694 | 694 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | 1079/- | 1079/- | 1079/- | 1079/- | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | ||
| AdBlue tank volume [l] | 23 | - | 23 | 23 | ||
| Air resistance [Cd] | 0,34 | 0,35 | 0,35 | 0,35 | ||
| Front suspension | five-link | five-link | five-link | five-link | ||
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Tyre dimensions front | 235/65 R17 | 255/45 R20 | 255/45 R20 | 255/45 R20 | ||
| Tyre dimensions rear | 235/65 R17 | 255/45 R20 | 255/45 R20 | 255/45 R20 | ||
| Wheel size front | 8Jx17 | 8.5Jx20 | 8.5Jx20 | 8.5Jx20 | ||
| Wheel size rear | 8Jx17 | 8.5Jx20 | 8.5Jx20 | 8.5Jx20 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.6 | 11.6 | 11.6 | 11.6 | ||
| Overall length [mm] | 4629 | 4644 | 4644 | 4644 | ||
| Overall width without/including mirrors [mm] | 1598/- | 1911/- | 1911/- | 1911/- | ||
| Overall height [mm] | 1655 | 1624 | 1624 | 1624 | ||
| Wheelbase [mm] | 2807 | 2813 | 2813 | 2813 | ||
| Front wheel track [mm] | 1617 | 1638 | 1638 | 1638 | ||
| Rear wheel track [mm] | 1614 | 1632 | 1632 | 1632 | ||
| Forward overhang [mm] | 895 | 896 | 896 | 896 | ||
| Rear overhang [mm] | 927 | 935 | 935 | 935 | ||
| Clearance [mm] | 200 | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 25 | - | - | - | ||
| Approach angle rear [°] | 25 | - | - | - | ||
| Transition angle [°] | 17.6 | - | - | - | ||
| Climbing rate [°] | 31 | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1043 | 1043 | 1043 | 1043 | ||
| Headroom rear [mm] | 990 | 990 | 990 | 990 | ||
| Front elbow/shoulder width [mm] | 1527/1465 | 1527/1465 | 1527/1465 | 1527/1465 | ||
| Rear elbow/shoulder width [mm] | 1494/1432 | 1494/1432 | 1494/1432 | 1494/1432 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
