Audi Q7
Date of manufacture
2015 – 2019 (SUV)
Platform
MLBevo
Manufacturing locations
Bratislava, Slovakia
Designer
-
Tags
Large SUV
German cars
The Audi Q7 is the only body style of SUV produced since 2015 in Slovakia. Built on the MLBevo platform, it offers a choice of petrol, diesel and hybrid engines. The highest performance is achieved by the SQ7 4.0 TDI quattro 320 kW 7-seater (320 kW), with a maximum speed of 250 km/h and the best acceleration from 0-100 km/h in 4.8 seconds. The plug-in hybrid version Q7 e-tron quattro 275 kW has the lowest consumption of 1.9 l/100 km and emissions of 50 g/km. The luggage compartment with a capacity of 650 l received a 5 out of 5 rating from EURONCAP for safety in 2015.
Car body style
SUV
Date of manufacture
2015 – 2019Internal designation
4MEngine size
PetrolDiesel
Technical data
SUV
| 3.0 TFSI quattro 245 kW 5 seats | 3.0 TFSI quattro 245 kW 7 seats | 3.0 TDI quattro 160 kW 5 seats | 3.0 TDI quattro 160 kW 7 seats | 45 TDI quattro 170 kW 5 seats | 45 TDI quattro 170 kW 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to 2018 | from 2015 to 2018 | from 2015 to 2018 | from 2015 to 2018 | from 2018 to 2019 | from 2018 to 2019 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2995 | 2995 | 2967 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 245/5500-6500 | 245/5500-6500 | 160/3250-4750 | 160/3250-4750 | 170/3250-4750 | 170/3250-4750 |
| Maximum torque [Nm/min-1] | 440/2900-5300 | 440/2900-5300 | 500/1250-3000 | 500/1250-3000 | 500/1750-3250 | 500/1750-3250 |
| Bore and stroke [mm x mm] | 89,0 x 84,5 | 89,0 x 84,5 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 10,8:1 | 10,8:1 | 16,8:1 | 16,8:1 | 16.0:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 216 | 216 | 229 | 229 |
| Acceleration 0–100 km/h [s] | 6.1 | 6.1 | 7,1 | 7,3 | 7,1 | 7,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4-9.7 | 9.4-9.7 | 6,4-6,1 | 6,6-6,3 | 7,2-7,1 | 7,6-7,5 |
| Out of town [l] | 6.8-7.2 | 6.8-7.2 | 5,7-5,1 | 5,9-5,3 | 6,4-6,2 | 6,6-6,4 |
| Combined [l] | 7.7-8.1 | 7.7-8.1 | 6,0-5,5 | 6,2-5,7 | 6,7-6,5 | 7,0-6,8 |
| CO2 emissions [g/km] | 179-189 | 179-189 | 157-144 | 141-148 | 175-172 | 181-178 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2045 | 2105 | 2070 | 2135 | 2145 | 2210 |
| Overall weight [kg] | 2740 | 2910 | 2765 | 2940 | 2815 | 2990 |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 [750/3500 pneumatic suspension] | 750/2800 [750/3500 pneumatic suspension] | 750/2700 [750/3500 pneumatic suspension] | 750/2800 [750/3500 pneumatic suspension] | 750/2700 [750/3500 pneumatic suspension] | 750/2800 [750/3500 pneumatic suspension] |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 890 | 295 | 890 | 295 | 890 | 295 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2075 | -/1955 | -/2075 | -/1955 | -/2075 | -/1955 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |

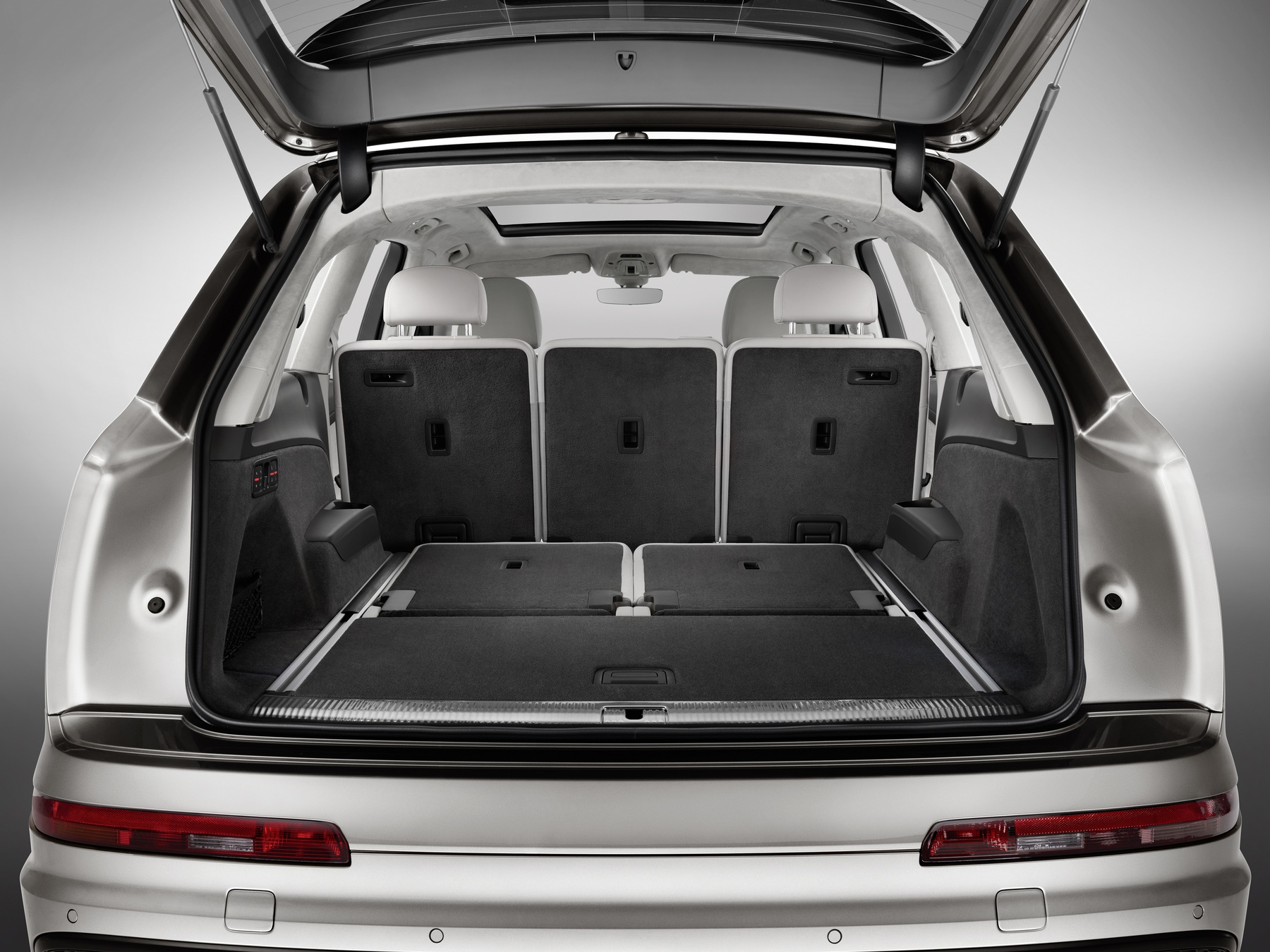

| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1179 | 515 | 1179 | 515 | 1179 | 515 |
| Boot length with rear seats folded [mm] | 2031 | 2031 | 2031 | 2031 | 2031 | 2031 |
| Boot width between wheels/max [mm] | -/1086 | -/1255 | -/1086 | -/1255 | -/1086 | -/1255 |
| Boot height to headliner/ceiling [mm] | -/789 | -/756 | -/789 | -/756 | -/789 | -/756 |
| Loading edge height [mm] | 788 [693 pneumatic suspension] | 787 [693 pneumatic suspension] | 788 [693 pneumatic suspension] | 787 [693 pneumatic suspension] | 788 [693 pneumatic suspension] | 787 [693 pneumatic suspension] |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1219/- | 1219/- | 1219/- | 1219/- | 1219/- | 1219/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 85 | 85 | 75 | 75 | 85 | 85 |
| AdBlue tank volume [l] | - | - | 24 | 24 | 24 | 24 |
| Air resistance [Cd] | 0.333 | 0.333 | 0.325 | 0.325 | 0.325 | 0.325 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 |
| Tyre dimensions rear | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- |
| Overall length [mm] | 5052 | 5052 | 5052 | 5052 | 5052 | 5052 |
| Overall width without/including mirrors [mm] | 1968/- | 1968/- | 1968/- | 1968/- | 1968/- | 1968/- |
| Overall height [mm] | 1741 | 1740 | 1741 | 1740 | 1741 | 1740 |
| Wheelbase [mm] | 2994 | 2994 | 2994 | 2994 | 2994 | 2994 |
| Front wheel track [mm] | 1679 | 1679 | 1679 | 1679 | 1679 | 1679 |
| Rear wheel track [mm] | 1691 | 1691 | 1691 | 1691 | 1691 | 1691 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Clearance [mm] | 210 [245 pneumatic suspension] | 210 [245 pneumatic suspension] | 210 [245 pneumatic suspension] | 210 [245 pneumatic suspension] | 210 [245 pneumatic suspension] | 210 [245 pneumatic suspension] |
| Wading depth [mm] | 500 [535 pneumatic suspension] | 500 [535 pneumatic suspension] | 500 [535 pneumatic suspension] | 500 [535 pneumatic suspension] | 500 [535 pneumatic suspension] | 500 [535 pneumatic suspension] |
| Approach angle front [°] | 22,7 [25,4 pneumatic suspension] | 22,7 [25,4 pneumatic suspension] | 22,7 [25,4 pneumatic suspension] | 22,7 [25,4 pneumatic suspension] | 22,7 [25,4 pneumatic suspension] | 22,7 [25,4 pneumatic suspension] |
| Approach angle rear [°] | 20,3 [21,9 pneumatic suspension] | 20,3 [21,9 pneumatic suspension] | 20,3 [21,9 pneumatic suspension] | 20,3 [21,9 pneumatic suspension] | 20,3 [21,9 pneumatic suspension] | 20,3 [21,9 pneumatic suspension] |
| Transition angle [°] | 17,7 [20,7 pneumatic suspension] | 17,7 [20,7 pneumatic suspension] | 17,7 [20,7 pneumatic suspension] | 17,7 [20,7 pneumatic suspension] | 17,7 [20,7 pneumatic suspension] | 17,7 [20,7 pneumatic suspension] |
| Climbing rate [°] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Headroom rear [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Front elbow/shoulder width [mm] | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 |
| Rear elbow/shoulder width [mm] | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 917 | - | 917 | - | 917 |
| Third row elbow/shoulder width [mm] | - | 1255 | - | 1255 | - | 1255 |
| 3.0 TDI quattro 200 kW 5 seats | 3.0 TDI quattro 200 kW 7 seats | 50 TDI quattro 210 kW 5 seats | 50 TDI quattro 210 kW 7 seats | SQ7 4.0 TDI quattro 320 kW 5 seats | SQ7 4.0 TDI quattro 320 kW 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to 2018 | from 2015 to 2018 | from 2018 to 2019 | from 2018 to 2019 | from 2016 to | from 2016 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | 3956 | 3956 |
| Maximum output / speed [kW/min-1] | 200/3250-4250 | 200/3250-4250 | 210/3500-4000 | 210/3500-4000 | 320/3750-5000 | 320/3750-5000 |
| Maximum torque [Nm/min-1] | 600/1500-3000 | 600/1500-3000 | 600/250-3250 | 600/250-3250 | 900/1000-3250 | 900/1000-3250 |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 16,0:1 | 16,0:1 | 16.3:1 | 16.3:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 234 | 234 | 241 | 241 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.3 | 6.5 | 6.3 | 6.5 | 4,8 | 4,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,7-6,3 | 6,8-6,5 | 7,2 | 7,7-7,6 | 8,6-8,4 | 8,7-8,4 |
| Out of town [l] | 6,0-5,6 | 6,1-5,7 | 6,3-6,2 | 6,5-6,3 | 6,9-6,5 | 6,9-6,5 |
| Combined [l] | 6,2-5,9 | 6,4-6,0 | 6,6 | 6,9-6,8 | 7,5-7,2 | 7,6-7,2 |
| CO2 emissions [g/km] | 164-154 | 168-158 | 174-172 | 180-177 | 198-189 | 199-190 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | 76,9 | 76,9 |
| Driving noise [dB] | - | - | - | - | 69 | 69 |
| Standby weight [kg] | 2070 | 2135 | 2145 | 2210 | 2345 | 2405 |
| Overall weight [kg] | 2765 | 2940 | 2815 | 2990 | 3030 | 3200 |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 [750/3500 pneumatic suspension] | 750/2800 [750/3500 pneumatic suspension] | 750/2700 [750/3500 pneumatic suspension] | 750/2800 [750/3500 pneumatic suspension] | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] | 140 | 140 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 890 | 295 | 890 | 295 | 890 | 295 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2075 | -/1955 | -/2075 | -/1955 | -/2075 | -/1955 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1179 | 515 | 1179 | 515 | 1179 | 515 |
| Boot length with rear seats folded [mm] | 2031 | 2031 | 2031 | 2031 | 2020 | 2020 |
| Boot width between wheels/max [mm] | -/1086 | -/1255 | -/1086 | -/1255 | -/1086 | -/1255 |
| Boot height to headliner/ceiling [mm] | -/789 | -/756 | -/789 | -/756 | -/789 | -/756 |
| Loading edge height [mm] | 788 [693 pneumatic suspension] | 787 [693 pneumatic suspension] | 788 [693 pneumatic suspension] | 787 [693 pneumatic suspension] | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1219/- | 1219/- | 1219/- | 1219/- | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 75 | 75 | 85 | 85 | 85 | 85 |
| AdBlue tank volume [l] | 24 | 24 | 24 | 24 | 24 | 24 |
| Air resistance [Cd] | 0.325 | 0.325 | 0.325 | 0.325 | 0.33 | 0.33 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | 85/45 R20 112 Y | 285/45 R20 112 Y |
| Tyre dimensions rear | 255/60 R18 | 255/60 R18 | 255/60 R18 | 255/60 R18 | 85/45 R20 112 Y | 285/45 R20 112 Y |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 9.0J x 20 | 9.0J x 20 |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 9.0J x 20 | 9.0J x 20 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- |
| Overall length [mm] | 5052 | 5052 | 5052 | 5052 | 5069 | 5069 |
| Overall width without/including mirrors [mm] | 1968/- | 1968/- | 1968/- | 1968/- | 1968/2212 | 1968/2212 |
| Overall height [mm] | 1741 | 1740 | 1741 | 1740 | 1741 | 1741 |
| Wheelbase [mm] | 2994 | 2994 | 2994 | 2994 | 2996 | 2996 |
| Front wheel track [mm] | 1679 | 1679 | 1679 | 1679 | 1679 | 1679 |
| Rear wheel track [mm] | 1691 | 1691 | 1691 | 1691 | 1679 | 1679 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1080 | 1080 | 1080 | 1080 | 1095 | 1095 |
| Clearance [mm] | 210 [245 pneumatic suspension] | 210 [245 pneumatic suspension] | 210 [245 pneumatic suspension] | 210 [245 pneumatic suspension] | 245 | 245 |
| Wading depth [mm] | 500 [535 pneumatic suspension] | 500 [535 pneumatic suspension] | 500 [535 pneumatic suspension] | 500 [535 pneumatic suspension] | 535 | 535 |
| Approach angle front [°] | 22,7 [25,4 pneumatic suspension] | 22,7 [25,4 pneumatic suspension] | 22,7 [25,4 pneumatic suspension] | 22,7 [25,4 pneumatic suspension] | 20,1 | 20,1 |
| Approach angle rear [°] | 20,3 [21,9 pneumatic suspension] | 20,3 [21,9 pneumatic suspension] | 20,3 [21,9 pneumatic suspension] | 20,3 [21,9 pneumatic suspension] | 19,0 | 19,0 |
| Transition angle [°] | 17,7 [20,7 pneumatic suspension] | 17,7 [20,7 pneumatic suspension] | 17,7 [20,7 pneumatic suspension] | 17,7 [20,7 pneumatic suspension] | 14,9 | 14,9 |
| Climbing rate [°] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Headroom rear [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Front elbow/shoulder width [mm] | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 |
| Rear elbow/shoulder width [mm] | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 917 | - | 917 | - | 917 |
| Third row elbow/shoulder width [mm] | - | 1255 | - | 1255 | - | 1255 |
| Q7 e-tron quattro 275 kW | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2019 | |||||
| Engine type | Diesel supercharged + Electric | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2967 | |||||
| Maximum output / speed [kW/min-1] | 190/3250-4500 94 el. 275 total | |||||
| Maximum torque [Nm/min-1] | 600/1250-300 350 el. 700 el. | |||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 230 [135 el.] | |||||
| Acceleration 0–100 km/h [s] | 6,2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | - | |||||
| Out of town [l] | - | |||||
| Combined [l] | 1,9-1,8 [19,0-18,1 el.] | |||||
| CO2 emissions [g/km] | 50-48 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 308 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 17,3 kWh | |||||
| Range with fully charged battery [km] | 56 | |||||
| Charging time | - | |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 2520 | |||||
| Overall weight [kg] | 3185 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2800 [750/3500 pneumatic suspension] | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 115 [140 pneumatic suspension] | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 650 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1835 | |||||
| Boot length [mm] | 1179 | |||||
| Boot length with rear seats folded [mm] | 2031 | |||||
| Boot width between wheels/max [mm] | -/1086 | |||||
| Boot height to headliner/ceiling [mm] | -/789 | |||||
| Loading edge height [mm] | 788 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 1219/- | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 75 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.325 | |||||
| Front suspension | five-link, stabiliser bar | |||||
| Rear suspension | five-link, stabiliser bar | |||||
| Tyre dimensions front | 255/60 R18 | |||||
| Tyre dimensions rear | 255/60 R18 | |||||
| Wheel size front | 8.0J x 18 | |||||
| Wheel size rear | 8.0J x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical variable effect power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.4/- | |||||
| Overall length [mm] | 5051 | |||||
| Overall width without/including mirrors [mm] | 1968/2012 | |||||
| Overall height [mm] | 1741 | |||||
| Wheelbase [mm] | 2994 | |||||
| Front wheel track [mm] | 1679 | |||||
| Rear wheel track [mm] | 1691 | |||||
| Forward overhang [mm] | 975 | |||||
| Rear overhang [mm] | 1082 | |||||
| Clearance [mm] | 210 [245 pneumatic suspension] | |||||
| Wading depth [mm] | 500 [535 pneumatic suspension] | |||||
| Approach angle front [°] | 22,7 [25,4 pneumatic suspension] | |||||
| Approach angle rear [°] | 20,3 [21,9 pneumatic suspension] | |||||
| Transition angle [°] | 17,7 [20,7 pneumatic suspension] | |||||
| Climbing rate [°] | 60 | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1071 | |||||
| Headroom rear [mm] | 1016 | |||||
| Front elbow/shoulder width [mm] | 1571/1512 | |||||
| Rear elbow/shoulder width [mm] | 1561/1485 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
