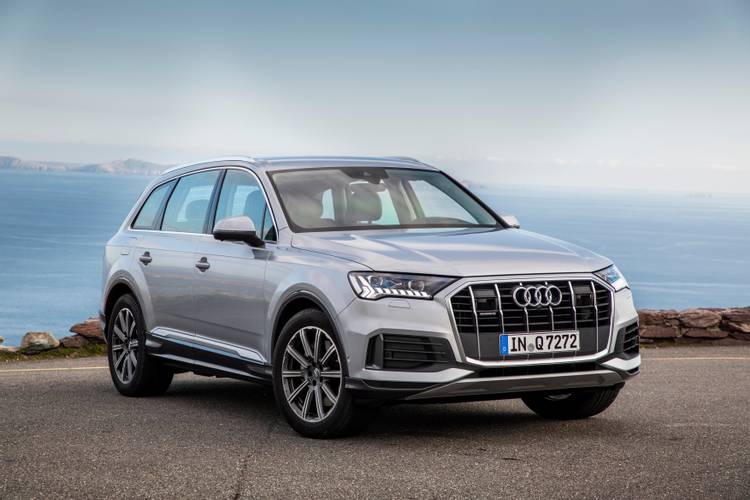

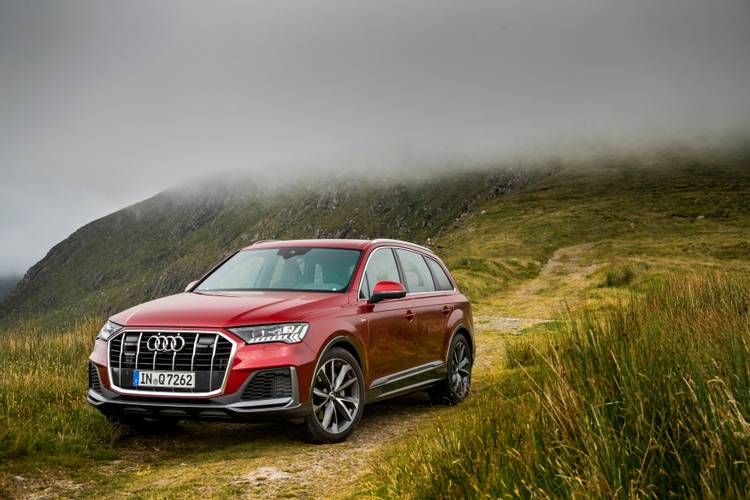

Audi Q7
Date of manufacture
2019 – to this day (Large SUV)
Platform
MLBevo
Manufacturing locations
Bratislava, Slovakia
Designer
-
Tags
Large SUV
German cars
The Audi Q7 is a large SUV that has been manufactured in Slovakia since 2019. It is built on the MLBevo platform and offers hybrid or plug-in hybrid versions with only hybrid type power units. The most powerful model SQ7 TFSI 373 kW 7-seater reaches a maximum speed of 250 km/h and accelerates from 0-100 km/h in 4.1 seconds. The most economical variant 60 TFSI e quattro 340 kW has a combined consumption of 2.7 l/100 km and CO2 emissions of 62 g/km. The car's trunk has a capacity of 650 l. During EURONCAP safety tests, the Audi Q7 received a rating of 5 out of 5 according to the 2019 methodology.
Car body style
Large SUV
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
4MEngine size
Petrol + Electric
Technical data
Large SUV
| 55 TFSI quattro 5 seats | 55 TFSI quattro 7 seats | 55 TFSI quattro 5 seats | 55 TFSI quattro 7 seats | SQ7 TFSI 373 kW 5 seats | SQ7 TFSI 373 kW 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to 2020 | from 2019 to 2020 | from 2020 to | from 2020 to | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2995 | 2995 | 2995 | 2995 | 3996 | 3996 |
| Maximum output / speed [kW/min-1] | 250/5000-6400 | 250/5000-6400 | 250/5200-6400 | 250/5200-6400 | 373/5500 | 373/5500 |
| Maximum torque [Nm/min-1] | 500/1370-4500 | 500/1370-4500 | 500/1370-4500 | 500/1370-4500 | 770/2000-4000 | 770/2000-4000 |
| Bore and stroke [mm x mm] | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 86,0 x 86,0 | 86,0 x 86,0 |
| Compression ratio | 11,2:1 | 11,2:1 | 11,2:1 | 11,2:1 | 10,1:1 | 10,1:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5,9 | 5,9 | 5.6 | 5,6 | 4,1 | 4,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11,0-10,9 | 11,2 | 11.2-11.1 | 11,3-11,2 | 16,5-16,4 | 16,5-16,4 |
| Out of town [l] | 7,7-7,4 | 7,9-7,6 | 7.5-7.1 | 7,6-7,3 | 9,6-9,5 | 9,6-9,5 |
| Combined [l] | 8,9-8,7 | 9,1-8,9 | 8.8-8.6 | 9,0-8,7 | 12,1-12,0 | 12,1-12,1 |
| CO2 emissions [g/km] | 204-199 | 208-203 | 202-195 | 205-199 | 277-276 | 278-176 |
| Low speed [l] | 14,3 | - | 14,1 | 14,1 | 19,5 | 19,5 |
| Medium speed [l] | 10,2 | - | 10,4 | 10,4 | 12,0 | 12,0 |
| High speed [l] | 8,7 | - | 8,7 | 8,7 | 10,0 | 10,0 |
| Extra high speed [l] | 10,4 | - | 10,2 | 10,2 | 10,5 | 10,5 |
| Combined speed [l] | 10,3 | - | 10,3 | 10,3 | 11,8 | 11,8 |
| CO2 emissions [g/km] | 234 | - | 234 | 234 | 269 | 269 |
| Emission standard | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 75,9 | 75,9 | 74.4 | 74,4 | 80,7 | 80,7 |
| Driving noise [dB] | 67 | 67 | 66 | 66 | 68 | 68 |
| System voltage [V] | 48 | 48 | 48 | 48 | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2130 | 2215 | 2155 | 2215 | 2275 | 2340 |
| Overall weight [kg] | 2800 | 2950 | 2830 | 2985 | 2925 | 3095 |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 [750/3500 pneumatic suspension] | 750/3500 | - | - | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | 1445/1490 | 1445/1650 | 1445/1490 | 1445/1650 | 1530/1590 | - |
| Maximum vertical load on the tow bar [kg] | 115 [140 pneumatic suspension] | 140 | 115 [140 pneumatic suspension] | 140 | 140 | 140 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 865 | - | 865 | - | 803 | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2050 | -/1925 | -/2050 | -/1925 | -/1990 | -/1890 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1179 | 515 | 1179 | 515 | 1179 | 515 |
| Boot length with rear seats folded [mm] | 2031 | 2031 | 2031 | 2031 | 2031 | 2031 |
| Boot width between wheels/max [mm] | 1086/- | 1086/- | 1086/- | 1086/- | 1086/- | 1086/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 788 | 788 | 788 | 788 | 785 | 785 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1219/- | 1219/- | 1219/- | 1219/- | 1219/- | 1219/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 85 | 85 | 85 | 85 | 85 | 85 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,34 | 0,34 | 0.34 | 0,34 | 0,33 | 0,33 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension |
| Tyre dimensions front | 255/60 R 18 108 Y | 255/60 R 18 108 Y | 255/60 R18 108 Y | 255/60 R18 108 Y | 285/45 R 20 112 Y | 285/45 R 20 112 Y |
| Tyre dimensions rear | 255/60 R 18 108 Y | 255/60 R 18 108 Y | 255/60 R18 108 Y | 255/60 R18 108 Y | 285/45 R 20 112 Y | 285/45 R 20 112 Y |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 9.0J x 20 | 9.0J x 20 |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 9.0J x 20 | 9.0J x 20 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12,5/- | 12,5/- | 12,5/- | 12,5/- | 12,5/- | 12,5/- |
| Overall length [mm] | 5063 | 5063 | 5063 | 5063 | 5067 | 5067 |
| Overall width without/including mirrors [mm] | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 |
| Overall height [mm] | 1741 | 1741 | 1741 | 1741 | 1743 | 1743 |
| Wheelbase [mm] | 2995 | 2995 | 2995 | 2995 | 2996 | 2996 |
| Front wheel track [mm] | 1679 | 1679 | 1679 | 1679 | 1663 | 1663 |
| Rear wheel track [mm] | 1691 | 1691 | 1691 | 1691 | 1663 | 1663 |
| Forward overhang [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Rear overhang [mm] | 1091 | 1091 | 1091 | 1091 | 1094 | 1094 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15,6 | 24,2 | 15,6 | 24,2 | 20,6 | 20,6 |
| Approach angle rear [°] | 24,1 | 24,1 | 24,1 | 24,1 | 19,7 | 19,7 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Headroom rear [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Front elbow/shoulder width [mm] | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 |
| Rear elbow/shoulder width [mm] | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 917 | - | 917 | - | 917 |
| Third row elbow/shoulder width [mm] | - | 1255/1255 | - | 1255/1255 | - | 1255/1255 |
| 55 TFSI e quattro 280 kW | 55 TFSI e quattro 280 kW | 60 TFSI e quattro 335 kW | 60 TFSI e quattro 340 kW | 45 TDI quattro 5 seats | 45 TDI quattro 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to 2020 | from 2020 to | from 2019 to 2020 | from 2020 to | from 2019 to 2020 | from 2019 to 2020 |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2995 | 2995 | 2995 | 2995 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 250/5300-6400 combustion 94 el. 280 total | 250/5300-6400 combustion 94 el. 280 total | 250/5300-6400 combustion 94 el. 335 total | 250/5300-6400 combustion 100 el. 340 total | 170/3250-4750 | 170/3250-4750 |
| Maximum torque [Nm/min-1] | 450/1340-5300 combustion 350 el. 600 total | 450/1340-5300 combustion 350 el. 600 total | 450/1340-5300 combustion 350 el. 700 total | 450/1340-5300 combustion 400 el. 700 total | 500/1750-3250 | 500/1750-3250 |
| Bore and stroke [mm x mm] | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 89,0 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 11,2:1 | 11,2:1 | 11,2:1 | 11,2:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 240 | 240 | 240 | 240 | 229 | 229 |
| Acceleration 0–100 km/h [s] | 5,9 | 5,8 | 5,7 | 5,4 | 7,1 | 7,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | 7,9-7,7 | 8,0-7,9 |
| Out of town [l] | - | - | - | - | 6,4-6,3 | 6,5-6,4 |
| Combined [l] | 3,0-2,8 [22,4-21,9 kWh] | - | 3,0-2,8 [22,9-22,2 kWh] | - | 6,9-6,8 | 7,1-6,9 |
| CO2 emissions [g/km] | 69-64 | - | 69-64 | - | 182-179 | 186-183 |
| Low speed [l] | - | - | - | - | - | 10,3 |
| Medium speed [l] | - | - | - | - | - | 8,5 |
| High speed [l] | - | - | - | - | - | 7,2 |
| Extra high speed [l] | - | - | - | - | - | 8,5 |
| Combined speed [l] | 3,9-3,1 | 2,7-2,6 [22,6-21,7 el.] | 3,9-3,2 | 2,7-2,6 [22,6-21,7 el.] | - | 8,3 |
| CO2 emissions [g/km] | 87-71 | 62-59 | 87-73 | 62-59 | - | 218 |
| Emission standard | Euro 6d-TEMP-EVAP-ISC | Euro 6d-ISC-FCM | Euro 6d-TEMP-EVAP-ISC | Euro 6d-ISC-FCM | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | 72,8 | - | 72,8 | 70,2 | 70,2 |
| Driving noise [dB] | - | 67 | - | 67 | 70 | 70 |
| System voltage [V] | 308 | 308 | 308 | 308 | 48 | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 17.3 kWh | Lithium-Ionen-Akkumulator, 17.9 kWh | Lithium-Ionen-Akkumulator, 17.3 kWh | Lithium-Ionen-Akkumulator, 17.9 kWh | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h |
| Range with fully charged battery [km] | 43-39 | 44-48 | 42-39 | 44-47 | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | 14/168 | 14/168 | 14/168 | 14/168 | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2525 | 2450 | 2535 | 2460 | 2165 | 2240 |
| Overall weight [kg] | 3145 | 3025 | 3145 | 3035 | 2830 | 3015 |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 [750/3500 pneumatic suspension] | 750/2700 [750/3500 pneumatic suspension] | 750/3500 | 750/3500 | 750/2700 [750/3500 pneumatic suspension] | 750/3500 |
| Maximum front/rear axle load [kg] | - | 1510/1610 | - | 1510/1700 | 1475/1530 | 1475/1705 |
| Maximum vertical load on the tow bar [kg] | 115 [140 pneumatic suspension] | 115 [140 pneumatic suspension] | 140 | 140 | 115 [140 pneumatic suspension] | 140 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 650 | 650 | 650 | 650 | 865 | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | -/1835 | - | -/1835 | -/2050 | -/1925 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1179 | 1179 | 1179 | 1179 | 1179 | 515 |
| Boot length with rear seats folded [mm] | 2031 | 2031 | 2031 | 2031 | 2031 | 2031 |
| Boot width between wheels/max [mm] | 1086/- | 1086/- | 1086/- | 1086/- | 1086/- | 1086/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 788 | 788 | 788 | 788 | 788 | 788 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1219/- | 1219/- | 1219/- | 1219/- | 1219/- | 1219/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 7 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 75 | 75 |
| AdBlue tank volume [l] | - | - | - | - | 24 | 24 |
| Air resistance [Cd] | - | 0,34 | - | 0,33 | 0,34 | 0,34 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension |
| Tyre dimensions front | 255/55 R 19 111 V xl | 255/55 R 19 111 V xl | 285/45 R 20 112 Y xl | 285/45 R 20 112 Y xl | 235/65 R 18 106 W | 235/65 R 18 106 W |
| Tyre dimensions rear | 255/55 R 19 111 V xl | 255/55 R 19 111 V xl | 285/45 R 20 112 Y xl | 285/45 R 20 112 Y xl | 235/65 R 18 106 W | 235/65 R 18 106 W |
| Wheel size front | 8,5 J x 19 | 8,5 J x 19 | 9,0 J x 20 | 9,0 J x 20 | 8.0J x 18 | 8.0J x 18 |
| Wheel size rear | 8,5 J x 19 | 8,5 J x 19 | 9,0 J x 20 | 9,0 J x 20 | 8.0J x 18 | 8.0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12,5/- | 12,5/- | 12,5/- | 12,5/- | 12,5/- | 12,5/- |
| Overall length [mm] | 5063 | 5063 | 5063 | 5063 | 5063 | 5063 |
| Overall width without/including mirrors [mm] | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 |
| Overall height [mm] | 1741 | 1741 | 1741 | 1741 | 1741 | 1741 |
| Wheelbase [mm] | 2995 | 2995 | 2995 | 2995 | 2995 | 2995 |
| Front wheel track [mm] | 1679 | 1679 | 1679 | 1679 | 1679 | 1679 |
| Rear wheel track [mm] | 1690 | 1690 | 1690 | 1690 | 1691 | 1691 |
| Forward overhang [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Rear overhang [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15,6 | 17,5 [26,1 pneumatic suspension] | 23,3 | 23,3 | 15,6 | 23,0 |
| Approach angle rear [°] | 24,1 | 23,3 [23,8 pneumatic suspension] | 23,8 | 23,8 | 24,1 | 20,8 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Headroom rear [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Front elbow/shoulder width [mm] | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 |
| Rear elbow/shoulder width [mm] | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | - | - | - | - | 917 |
| Third row elbow/shoulder width [mm] | - | - | - | - | - | 1255/1255 |
| 45 TDI quattro 5 seats | 45 TDI quattro 7 seats | 50 TDI quattro 5 seats | 50 TDI quattro 7 seats | 50 TDI quattro 5 seats | 50 TDI quattro 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | from 2019 to 2020 | from 2019 to 2020 | from 2020 to | from 2020 to |
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 170/3500-5000 | 170/3500-5000 | 210/3500-4000 | 210/3500-4000 | 210/3500-4000 | 210/3500-4000 |
| Maximum torque [Nm/min-1] | 500/1500-3000 | 500/1500-3000 | 600/2250-3250 | 600/2250-3250 | 600/1750-3250 | 600/1750-3250 |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 226 | 226 | 241 | 241 | 241 | 241 |
| Acceleration 0–100 km/h [s] | 7.1 | 7.1 | 6,3 | 6,5 | 6.1 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7-8.5 | 8.8-8.7 | 7,3-7,2 | 7,5-7,4 | 8.8-8.7 | 9.0-8.8 |
| Out of town [l] | 6.1-5.9 | 6.1-6.0 | 6,4-6,3 | 6,6-6,4 | 6.2-5.9 | 6.3-6.0 |
| Combined [l] | 7.0-6.9 | 7.1-7.0 | 6,8-6,6 | 6,9-6,8 | 7.1-6.9 | 7.3-7.1 |
| CO2 emissions [g/km] | 185-181 | 188-183 | 178-174 | 181-178 | 188-182 | 192-186 |
| Low speed [l] | 10,8 | 10,8 | - | 10,2 | 10,7 | 10,7 |
| Medium speed [l] | 8.1 | 8.1 | - | 8,6 | 8,2 | 8,2 |
| High speed [l] | 6,6 | 6,6 | - | 7,2 | 6,7 | 6,7 |
| Extra high speed [l] | 7,9 | 7,9 | - | 8,6 | 7,9 | 7,9 |
| Combined speed [l] | 7,9 | 7,9 | - | 8,4 | 8,0 | 8,0 |
| CO2 emissions [g/km] | 208 | 208 | - | 220 | 209 | 209 |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76.3 | 76.3 | 70,2 | 70,2 | 73.4 | 73.4 |
| Driving noise [dB] | 70 | 70 | 70 | 70 | 70 | 70 |
| System voltage [V] | 48 | 48 | 48 | 48 | 48 | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2195 | 2275 | 2165 | 2240 | 2195 | 2275 |
| Overall weight [kg] | 2850 | 3015 | 2830 | 3015 | 2850 | 3015 |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 [750/3500 pneumatic suspension] | 750/3500 | 750/2700 [750/3500 pneumatic suspension] | 750/3500 | 750/2700 [750/3500 pneumatic suspension] | 750/3500 |
| Maximum front/rear axle load [kg] | 1475/1530 | 1475/1720 | 1475/1530 | 1475/1705 | 1475/1530 | 1475/1720 |
| Maximum vertical load on the tow bar [kg] | 115 [140 pneumatic suspension] | 140 | 115 [140 pneumatic suspension] | 140 | 115 [140 pneumatic suspension] | 140 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 865 | - | 865 | - | 865 | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2050 | -/1925 | -/2050 | -/1925 | -/2050 | -/1925 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1179 | 515 | 1179 | 515 | 1179 | 515 |
| Boot length with rear seats folded [mm] | 2031 | 2031 | 2031 | 2031 | 2031 | 2031 |
| Boot width between wheels/max [mm] | 1086/- | 1086/- | 1086/- | 1086/- | 1086/- | 1086/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 788 | 788 | 788 | 788 | 788 | 788 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1219/- | 1219/- | 1219/- | 1219/- | 1219/- | 1219/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 75 | 75 |
| AdBlue tank volume [l] | 24 | 24 | 24 | 24 | 24 | 24 |
| Air resistance [Cd] | 0.32 | 0.32 | 0,34 | 0,34 | 0.33 | 0.33 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar | five-link, stabiliser bar, pneumatic suspension |
| Tyre dimensions front | 235/65 R 18 106 W | 235/65 R 18 106 W | 255/60 R 18 108 Y | 255/60 R 18 108 Y | 255/60 R18 108 Y | 255/60 R18 108 Y |
| Tyre dimensions rear | 235/65 R 18 106 W | 235/65 R 18 106 W | 255/60 R 18 108 Y | 255/60 R 18 108 Y | 255/60 R18 108 Y | 255/60 R18 108 Y |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12,5/- | 12,5/- | 12,5/- | 12,5/- | 12,5/- | 12,5/- |
| Overall length [mm] | 5063 | 5063 | 5063 | 5063 | 5063 | 5063 |
| Overall width without/including mirrors [mm] | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 | 1970/2212 |
| Overall height [mm] | 1741 | 1741 | 1741 | 1741 | 1741 | 1741 |
| Wheelbase [mm] | 2995 | 2995 | 2995 | 2995 | 2995 | 2995 |
| Front wheel track [mm] | 1679 | 1679 | 1679 | 1679 | 1679 | 1679 |
| Rear wheel track [mm] | 1691 | 1691 | 1691 | 1691 | 1691 | 1691 |
| Forward overhang [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Rear overhang [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15,6 | 26,1 | 15,6 | 23,0 | 15,6 | 26,1 |
| Approach angle rear [°] | 24,1 | 23.9 | 24,1 | 20,8 | 24,1 | 23.9 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1071 | 1071 | 1071 | 1071 | 1071 | 1071 |
| Headroom rear [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Front elbow/shoulder width [mm] | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 | 1571/1512 |
| Rear elbow/shoulder width [mm] | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 | 1561/1485 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 917 | - | 917 | - | 917 |
| Third row elbow/shoulder width [mm] | - | 1255/1255 | - | 1255/1255 | - | 1255/1255 |
| SQ7 TDI 320 kW 5 seats | SQ7 TDI 320 kW 7 seats | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | ||||
| Number of cylinders/valves | 8/32 | 8/32 | ||||
| Engine displacement [cm³] | 3956 | 3956 | ||||
| Maximum output / speed [kW/min-1] | 320/3750-4750 | 320/3750-4750 | ||||
| Maximum torque [Nm/min-1] | 900/1250-3250 | 900/1250-3250 | ||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 4,8 | 4,8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 8,6-8,4 | 8,6-8,4 | ||||
| Out of town [l] | 7,0-6,8 | 7,0-6,8 | ||||
| Combined [l] | 7,6-7,4 | 7,6-7,4 | ||||
| CO2 emissions [g/km] | 200-194 | 200-194 | ||||
| Emission standard | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | 76,9 | 76,9 | ||||
| Driving noise [dB] | 69 | 69 | ||||
| Standby weight [kg] | 2395 | 2460 | ||||
| Overall weight [kg] | 3050 | 2155 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | ||||
| Maximum front/rear axle load [kg] | 1600/1630 | 1600/1730 | ||||
| Maximum vertical load on the tow bar [kg] | 140 | 140 | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 803 | - | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1990 | -/1890 | ||||
| Boot volume, third row of seats [l] | - | - | ||||
| Boot volume, third row seats folded [l] | - | - | ||||
| Boot length [mm] | 1179 | 515 | ||||
| Boot length with rear seats folded [mm] | 2031 | 2031 | ||||
| Boot width between wheels/max [mm] | 1086/- | 1086/- | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 790 | 790 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | 1219/- | 1219/- | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 7 | ||||
| Fuel tank volume [l] | 85 | 85 | ||||
| AdBlue tank volume [l] | 24 | 24 | ||||
| Air resistance [Cd] | 0,33 | 0,33 | ||||
| Front suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | ||||
| Rear suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | ||||
| Tyre dimensions front | 285/45 R 20 112 Y | 285/45 R 20 112 Y | ||||
| Tyre dimensions rear | 285/45 R 20 112 Y | 285/45 R 20 112 Y | ||||
| Wheel size front | 9.0J x 20 | 9.0J x 20 | ||||
| Wheel size rear | 9.0J x 20 | 9.0J x 20 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 12,5/- | 12,5/- | ||||
| Overall length [mm] | 5067 | 5067 | ||||
| Overall width without/including mirrors [mm] | 1970/2212 | 1970/2212 | ||||
| Overall height [mm] | 1743 | 1743 | ||||
| Wheelbase [mm] | 2996 | 2996 | ||||
| Front wheel track [mm] | 1663 | 1663 | ||||
| Rear wheel track [mm] | 1663 | 1663 | ||||
| Forward overhang [mm] | 977 | 977 | ||||
| Rear overhang [mm] | 1094 | 1094 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 23,9 | 23,7 | ||||
| Approach angle rear [°] | 21,5 | 21,5 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1071 | 1071 | ||||
| Headroom rear [mm] | 1016 | 1016 | ||||
| Front elbow/shoulder width [mm] | 1571/1512 | 1571/1512 | ||||
| Rear elbow/shoulder width [mm] | 1561/1485 | 1561/1485 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - | ||||
| Third row of seats, headroom [mm] | - | 917 | ||||
| Third row elbow/shoulder width [mm] | - | 1255/1255 |

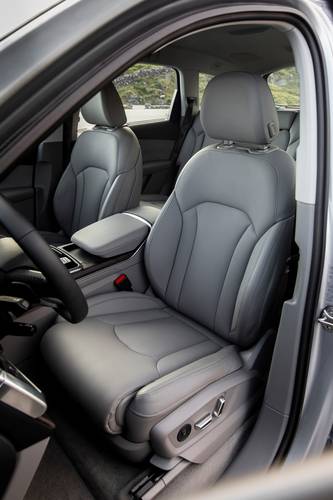

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
