Audi TT
Date of manufacture
2010 – 2014 (Coupé)
2010 – 2014 (Roadster)
Platform
Volkswagen Group A5 (PQ35)
Manufacturing locations
Győr, Hungary
Designer
Walter de'Silva
Tags
S-segment
German cars
The Audi TT is a modern sports car that is produced as a coupe and roadster. It was released to the market in 2010 and its production state is Hungary. It is built on the Volkswagen Group A5 (PQ35) platform. The engine range includes petrol and diesel engines, the most powerful model being the TT RS plus with 265 kW. It can reach a maximum speed of 280 km/h and the fastest 0-100 km/h in 4.1 seconds. The most economical version 2.0 TDI has a combined consumption of 5.3 l/100 km and CO2 emissions of 139 g/km. The coupe offers 292 liters of luggage space, the roadster 250 liters.
Car body style
Coupé
after upgrade (facelift)
Date of manufacture
2010 – 2014Internal designation
8J Technical data
Coupé
| 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | TTS | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 118/4500-6200 | 118/4500-6200 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 | 200/6000 |
| Maximum torque [Nm/min-1] | 250/1500-4500 | 250/1500-4500 | 350/1600-4200 | 350/1600-4200 | 350/1600-4200 | 350/2500-5000 |
| Bore and stroke [mm x mm] | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 226 | 226 | 245 | 245 | 243 | 250 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.2 | 6.2 | 6.1 | 5.7 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.5 | 8.4 | 8.9 | 9.9 | 9.9 | 10.8 |
| Out of town [l] | 5.2 | 5.2 | 5.2 | 5.4 | 5.7 | 6.2 |
| Combined [l] | 6.4 | 6.4 | 6.6 | 7.1 | 7.2 | 7.9 |
| CO2 emissions [g/km] | 149 | 147 | 154 | 164 | 169 | 184 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | 85 |
| Driving noise [dB] | - | - | - | - | - | 75 |
| Standby weight [kg] | 1335 | 1355 | 1355 | 1375 | 1455 | 1470-1485 |
| Overall weight [kg] | 1660 | 1680 | 1680 | 1700 | 1780 | 1795-1810 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | 980/885 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 292 | 292 | 292 | 292 | 292 | 292 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/700 | -/700 | -/700 | -/700 | -/700 | -/700 |
| Boot length [mm] | 816 | 816 | 816 | 816 | 816 | 816 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/382 | -/382 | -/382 | -/382 | -/382 | -/382 |
| Loading edge height [mm] | 790 | 790 | 790 | 790 | 790 | 780 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 900/- | 900/- | 900/- | 900/- | 900/- | 900/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | 0,31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar |
| Tyre dimensions front | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 245/40 R18 93Y |
| Tyre dimensions rear | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 245/40 R18 93Y |
| Wheel size front | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 9,0J x 18 ET52 |
| Wheel size rear | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 9,0J x 18 ET52 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | 2,9 | 2,9 | 2,9 | 2,9 | 2,9 | 2,9 |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4198 | 4198 | 4198 | 4198 | 4198 | 4198 |
| Overall width without/including mirrors [mm] | 1842/- | 1842/- | 1842/- | 1842/- | 1842/- | 1842/- |
| Overall height [mm] | 1353 | 1353 | 1353 | 1353 | 1353 | 1345 |
| Wheelbase [mm] | 2468 | 2468 | 2468 | 2468 | 2468 | 2468 |
| Front wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1555 |
| Rear wheel track [mm] | 1548 | 1548 | 1548 | 1548 | 1548 | 1546 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 819 | 819 | 819 | 819 | 819 | 819 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 829 | 829 | 829 | 829 | 829 | 829 |
| Front elbow/shoulder width [mm] | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 |
| Rear elbow/shoulder width [mm] | 1292/1206 | 1292/1206 | 1292/1206 | 1292/1206 | 1292/1206 | 1292/1206 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| TTS | TT RS | TT RS | TT RS plus | TT RS plus | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2012 to 2014 | from 2012 to 2014 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 5/20 | 5/20 | 5/20 | 5/20 | 4/16 |
| Engine displacement [cm³] | 1984 | 2480 | 2480 | 2480 | 2480 | 1968 |
| Maximum output / speed [kW/min-1] | 200/6000 | 250/5400-6500 | 250/5400-6500 | 265/5500-6700 | 265/5500-6700 | 125/4200 |
| Maximum torque [Nm/min-1] | 350/2500-5000 | 450/1600-5300 | 450/1600-5300 | 465/1650-5400 | 465/1650-5400 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 |
| Compression ratio | 9,8:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 280 | 280 | 226 |
| Acceleration 0–100 km/h [s] | 5.3 | 4.6 | 4.3 | 4.3 | 4.1 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.6 | 12.6 | 12.3 | 12.6 | 12.3 | 7.0 |
| Out of town [l] | 6.0 | 6.8 | 6.3 | 6.8 | 6.3 | 4.3 |
| Combined [l] | 7.7 | 9.0 | 8.5 | 9.0 | 8.5 | 5.3 |
| CO2 emissions [g/km] | 179 | 209 | 197 | 209 | 197 | 139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | 87 | 71 |
| Driving noise [dB] | - | - | - | - | 72 | 73 |
| Standby weight [kg] | 1505 | 1525 | 1550 | 1525 | 1550 | 1465 |
| Overall weight [kg] | 1830 | 1850 | 1875 | 1850 | 1875 | 1790 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | 1060/860 | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 292 | 290 | 290 | 290 | 290 | 292 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/700 | -/700 | -/700 | -/700 | -/700 | -/700 |
| Boot length [mm] | 816 | 816 | 816 | 816 | 816 | 816 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/382 | -/382 | -/382 | -/382 | -/382 | -/382 |
| Loading edge height [mm] | 780 | 790 | 790 | 790 | 790 | 790 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 900/- | 900/- | 900/- | 900/- | 900/- | 900/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,31 | 0,32 | 0,32 | 0,32 | 0,32 | 0,30 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar |
| Tyre dimensions front | 245/40 R18 93Y | 245/40 R18 93Y | 245/40 R18 93Y | 255/35 R19 96Y | 255/35 R19 96Y | 225/55 R16 95W |
| Tyre dimensions rear | 245/40 R18 93Y | 245/40 R18 93Y | 245/40 R18 93Y | 255/35 R19 96Y | 255/35 R19 96Y | 225/55 R16 95W |
| Wheel size front | 9,0J x 18 ET52 | 9,0J x 18 ET52 | 9,0J x 18 ET52 | 9,0J x 19 ET52 | 9,0J x 19 ET52 | 7,5J x 16 ET45 |
| Wheel size rear | 9,0J x 18 ET52 | 9,0J x 18 ET52 | 9,0J x 18 ET52 | 9,0J x 19 ET52 | 9,0J x 19 ET52 | 7,5J x 16 ET45 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | 2,9 | 2,9 | 2,9 | 2,9 | 2,9 | 2,9 |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4198 | 4198 | 4198 | 4198 | 4198 | 4198 |
| Overall width without/including mirrors [mm] | 1842/- | 1842/- | 1842/- | 1842/- | 1842/- | 1842/- |
| Overall height [mm] | 1345 | 1342 | 1342 | 1342 | 1342 | 1353 |
| Wheelbase [mm] | 2468 | 2468 | 2468 | 2468 | 2468 | 2468 |
| Front wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1562 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1548 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 819 | 819 | 819 | 819 | 819 | 819 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 990 | 990 | 990 | 990 | 989 |
| Headroom rear [mm] | 829 | 829 | 829 | 829 | 829 | 829 |
| Front elbow/shoulder width [mm] | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 |
| Rear elbow/shoulder width [mm] | 1292/1206 | 1292/1206 | 1292/1206 | 1292/1206 | 1292/1206 | 1292/1206 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 125/4200 | |||||
| Maximum torque [Nm/min-1] | 350/1750-2500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 224 | |||||
| Acceleration 0–100 km/h [s] | 7.5 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.0 | |||||
| Out of town [l] | 4.7 | |||||
| Combined [l] | 5.5 | |||||
| CO2 emissions [g/km] | 144 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1490 | |||||
| Overall weight [kg] | 1815 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 292 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/700 | |||||
| Boot length [mm] | 816 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1000/- | |||||
| Boot height to headliner/ceiling [mm] | -/382 | |||||
| Loading edge height [mm] | 790 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 900/- | |||||
| Number of doors | 3 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0,30 | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | four-link, stabiliser bar | |||||
| Tyre dimensions front | 225/55 R16 95W | |||||
| Tyre dimensions rear | 225/55 R16 95W | |||||
| Wheel size front | 7,5J x 16 ET45 | |||||
| Wheel size rear | 7,5J x 16 ET45 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical variable effect power steering | |||||
| Number of steering wheel turns | 2,9 | |||||
| Turning diameter track/circumference [m] | 10.9/- | |||||
| Overall length [mm] | 4198 | |||||
| Overall width without/including mirrors [mm] | 1842/- | |||||
| Overall height [mm] | 1353 | |||||
| Wheelbase [mm] | 2468 | |||||
| Front wheel track [mm] | 1562 | |||||
| Rear wheel track [mm] | 1548 | |||||
| Forward overhang [mm] | 911 | |||||
| Rear overhang [mm] | 819 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 989 | |||||
| Headroom rear [mm] | 829 | |||||
| Front elbow/shoulder width [mm] | 1432/1352 | |||||
| Rear elbow/shoulder width [mm] | 1292/1206 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

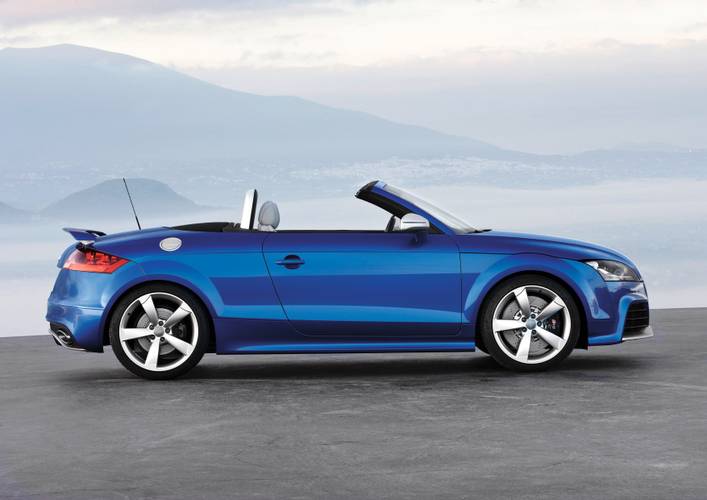

Roadster
| 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | TTS | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 118/4500-6200 | 118/4500-6200 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 | 200/6000 |
| Maximum torque [Nm/min-1] | 250/1500-4500 | 250/1500-4500 | 350/1600-4200 | 350/1600-4200 | 350/1600-4200 | 350/2500-5000 |
| Bore and stroke [mm x mm] | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 223 | 223 | 242 | 242 | 240 | 250 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.4 | 6.3 | 6.2 | 5.9 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 8.6 | 9.0 | 10.0 | 10.2 | 10.9 |
| Out of town [l] | 5.3 | 5.3 | 5.4 | 5.6 | 5.7 | 6.4 |
| Combined [l] | 6.5 | 6.6 | 6.7 | 7.2 | 7.4 | 8.1 |
| CO2 emissions [g/km] | 152 | 152 | 156 | 168 | 172 | 189 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1380 | 1395 | 1390 | 1395 | 1500 | 1550 |
| Overall weight [kg] | 1625 | 1640 | 1635 | 1640 | 1745 | 1795 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 250 | 250 | 250 | 250 | 250 | 250 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/245 | -/245 | -/245 | -/245 | -/245 | -/245 |
| Loading edge height [mm] | 790 | 790 | 790 | 790 | 790 | 780 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 856/- | 856/- | 856/- | 856/- | 856/- | 856/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | 0,33 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar |
| Tyre dimensions front | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 245/40 R18 93Y |
| Tyre dimensions rear | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 225/55 R16 95W | 245/40 R18 93Y |
| Wheel size front | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 9J x 18 ET52 |
| Wheel size rear | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 7,5J x 16 ET45 | 9J x 18 ET52 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | 2,9 | 2,9 | 2,9 | 2,9 | 2,9 | 2,9 |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4198 | 4198 | 4198 | 4198 | 4198 | 4198 |
| Overall width without/including mirrors [mm] | 1842/- | 1842/- | 1842/- | 1842/- | 1842/- | 1842/- |
| Overall height [mm] | 1358 | 1358 | 1358 | 1358 | 1358 | 1350 |
| Wheelbase [mm] | 2468 | 2468 | 2468 | 2468 | 2468 | 2468 |
| Front wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1555 |
| Rear wheel track [mm] | 1548 | 1548 | 1548 | 1548 | 1548 | 1546 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 819 | 819 | 819 | 819 | 819 | 819 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| TTS | TT RS | TT RS | TT RS plus | TT RS plus | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2012 to 2014 | from 2012 to 2014 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 5/20 | 5/20 | 5/20 | 5/20 | 4/16 |
| Engine displacement [cm³] | 1984 | 2480 | 2480 | 2480 | 2480 | 1968 |
| Maximum output / speed [kW/min-1] | 200/6000 | 250/5400-6500 | 250/5400-6500 | 265/5500-6700 | 265/5500-6700 | 125/4200 |
| Maximum torque [Nm/min-1] | 350/2500-5000 | 450/1600-5300 | 450/1600-5300 | 465/1650-5400 | 465/1650-5400 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 |
| Compression ratio | 9,8:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 280 | 280 | 223 |
| Acceleration 0–100 km/h [s] | 5.5 | 4.7 | 4.4 | 4.4 | 4.2 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.8 | 12.8 | 12.4 | 12.8 | 12.4 | 7.2 |
| Out of town [l] | 6.2 | 7.0 | 6.4 | 7.0 | 6.4 | 4.5 |
| Combined [l] | 7.9 | 9.1 | 8.6 | 9.1 | 8.6 | 5.5 |
| CO2 emissions [g/km] | 184 | 212 | 199 | 212 | 199 | 144 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 85 | - | - | - | - | - |
| Driving noise [dB] | 73 | - | - | - | - | - |
| Standby weight [kg] | 1570 | 1585 | 1610 | 1585 | 1610 | 1505 |
| Overall weight [kg] | 1815 | 1830 | 1855 | 1830 | 1855 | 1750 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1005/865 | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 250 | 250 | 250 | 250 | 250 | 250 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/245 | -/245 | -/245 | -/245 | -/245 | -/245 |
| Loading edge height [mm] | 780 | 790 | 790 | 790 | 790 | 790 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 856/- | 856/- | 856/- | 856/- | 856/- | 856/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,33 | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar |
| Tyre dimensions front | 245/40 R18 93Y | 245/40 R18 93Y | 245/40 R18 93Y | 255/35 R19 96Y | 255/35 R19 96Y | 225/55 R16 95W |
| Tyre dimensions rear | 245/40 R18 93Y | 245/40 R18 93Y | 245/40 R18 93Y | 255/35 R19 96Y | 255/35 R19 96Y | 225/55 R16 95W |
| Wheel size front | 9J x 18 ET52 | 9,0J x 18 ET52 | 9,0J x 18 ET52 | 9,0J x 19 ET52 | 9,0J x 19 ET52 | 7.5 J x 16 |
| Wheel size rear | 9J x 18 ET52 | 9,0J x 18 ET52 | 9,0J x 18 ET52 | 9,0J x 19 ET52 | 9,0J x 19 ET52 | 7.5 J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | 2,9 | 2,9 | 2,9 | 2,9 | 2,9 | 2,9 |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4198 | 4198 | 4198 | 4198 | 4198 | 4198 |
| Overall width without/including mirrors [mm] | 1842/- | 1842/- | 1842/- | 1842/- | 1842/- | 1842/- |
| Overall height [mm] | 1350 | 1348 | 1348 | 1348 | 1348 | 1358 |
| Wheelbase [mm] | 2468 | 2468 | 2468 | 2468 | 2468 | 2468 |
| Front wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1562 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1548 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 819 | 819 | 819 | 819 | 819 | 819 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 | 1432/1352 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 125/4200 | |||||
| Maximum torque [Nm/min-1] | 350/1750-2500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 222 | |||||
| Acceleration 0–100 km/h [s] | 7.7 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.1 | |||||
| Out of town [l] | 4.8 | |||||
| Combined [l] | 5.6 | |||||
| CO2 emissions [g/km] | 146 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1535 | |||||
| Overall weight [kg] | 1780 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 250 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | 1001 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1000/- | |||||
| Boot height to headliner/ceiling [mm] | -/245 | |||||
| Loading edge height [mm] | 790 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 856/- | |||||
| Number of doors | 2 | |||||
| Number of seats | 2 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | four-link, stabiliser bar | |||||
| Tyre dimensions front | 225/55 R16 95W | |||||
| Tyre dimensions rear | 225/55 R16 95W | |||||
| Wheel size front | 7,5J x 16 ET45 | |||||
| Wheel size rear | 7,5J x 16 ET45 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical variable effect power steering | |||||
| Number of steering wheel turns | 2,9 | |||||
| Turning diameter track/circumference [m] | 10.9/- | |||||
| Overall length [mm] | 4198 | |||||
| Overall width without/including mirrors [mm] | 1842/- | |||||
| Overall height [mm] | 1358 | |||||
| Wheelbase [mm] | 2468 | |||||
| Front wheel track [mm] | 1562 | |||||
| Rear wheel track [mm] | 1548 | |||||
| Forward overhang [mm] | 911 | |||||
| Rear overhang [mm] | 819 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 990 | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | 1432/1352 | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
