BMW 1
Date of manufacture
2007 – 2012 (Three-door hatchback)
2007 – 2011 (Five-door hatchback)
2011 – 2013 (Coupé)
2011 – 2013 (Convertible)
Platform
-
Manufacturing locations
Leipzig, Germany
Regensburg, Germany
Designer
Christopher Chapman
Tags
C-segment
German cars

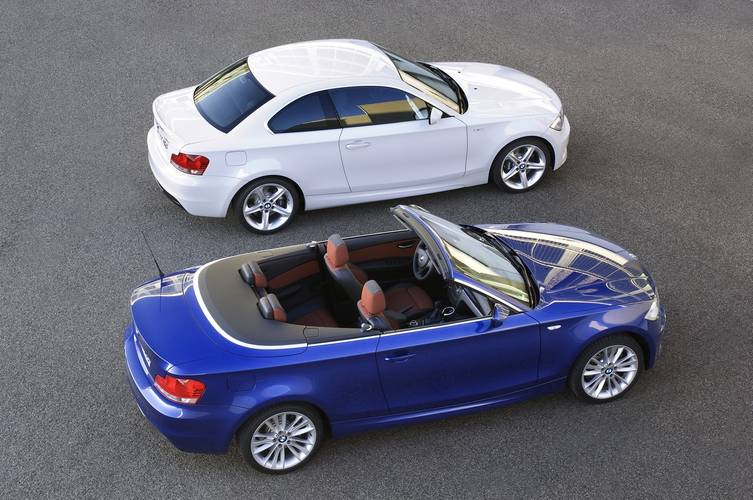

The BMW 1 model has body versions of three-door hatchback, five-door hatchback, coupe and convertible. The car has been produced since 2007. The country of manufacture of the car is Germany. The engine list includes petrol and diesel engines. The most powerful unit (250 kW) is the M Coupe. The highest speed of the M Coupe is 250 km/h. The 116d has the lowest consumption of 4.4 l/100 km and emissions reach 118 g/km. The three-door hatchback model has a luggage compartment size of 330 l. The five-door hatchback model has a luggage compartment size of 330 l. The coupe model offers a luggage compartment size of 370 l. The convertible model offers a luggage compartment size of 260-305 l.
Car body style
Three-door hatchback
Date of manufacture
2007 – 2012Internal designation
E81Five-door hatchback
after upgrade (facelift)
Date of manufacture
2007 – 2011Internal designation
E87 Coupé
after upgrade (facelift)
Date of manufacture
2011 – 2013Internal designation
E82 Technical data
Three-door hatchback
| 116i | 116i | 116i | 116i | 118i | 118i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1599 | 1599 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 90/6000 | 90/6000 | 90/6000 | 90/6000 | 105/6000 | 105/6000 |
| Maximum torque [Nm/min-1] | 160/4250 | 160/4250 | 185/3000-4250 | 185/3000-4250 | 190/4250 | 190/4250 |
| Bore and stroke [mm x mm] | 75,7 x 82,0 | 75,7 x 82,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 204 | 202 | 204 | 202 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 10.1 | 11.1 | 9.8 | 10.7 | 8.7 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 | 8.3 | 7.9 | 8.7 | 7.9 | 8.7 |
| Out of town [l] | 4.8 | 5.3 | 5.1 | 5.4 | 5.1 | 5.4 |
| Combined [l] | 5.8 | 6.4 | 6.1 | 6.6 | 6.1 | 6.6 |
| CO2 emissions [g/km] | 139 | 152 | 143 | 154 | 143 | 154 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU5 | EU5 | EU4/EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1330 | 1355 | 1320 | 1350 | 1340 | 1365 |
| Overall weight [kg] | 1755 | 1780 | 1745 | 1775 | 1765 | 1790 |
| Maximum trailer weight unbraked/braked [kg] | 650/1200 | 650/1200 | 650/1200 | 650/1200 | 670/1200 | 670/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.3 | 0.3 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H |
| Tyre dimensions rear | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 |
| Brake dimensions front | 284 x 22 | 284 x 22 | 284 x 22 | 284 x 22 | 292 x 22 | 292 x 22 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 296 x 10.5 | 296 x 10.5 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4239 | 4239 | 4239 | 4239 | 4239 | 4239 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Rear wheel track [mm] | 1497 | 1497 | 1497 | 1497 | 1497 | 1497 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 120i | 120i | 130i | 130i | 130i | 130i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 2996 | 2996 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 125/6700 | 125/6700 | 190/6600 | 190/6600 | 195/6600 | 195/6600 |
| Maximum torque [Nm/min-1] | 210/4250 | 210/4250 | 310/2600-3000 | 310/2600-3000 | 315/2750 | 315/2750 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 224 | 222 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.7 | 8.3 | 6.0 | 6.2 | 6.0 | 6.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 8.9 | 12.4 | 12.5 | 12.2 | 12.3 |
| Out of town [l] | 5.4 | 5.3 | 6.3 | 6.2 | 6.0 | 6.0 |
| Combined [l] | 6.6 | 6.6 | 8.5 | 8.5 | 8.3 | 8.3 |
| CO2 emissions [g/km] | 153 | 155 | 199 | 199 | 197 | 198 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1365 | 1385 | 1450 | 1475 | 1450 | 1475 |
| Overall weight [kg] | 1790 | 1810 | 1875 | 1900 | 1875 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 680/1200 | 725/1200 | 725/1200 | 725/1200 | 725/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/50 R17 W | 205/50 R17 W | 205/50 R17 W | 205/50 R17 W |
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/50 R17 W | 205/50 R17 W | 205/50 R17 W | 205/50 R17 W |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 17 | 7 J x 17 | 7 J x 17 | 7 J x 17 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 17 | 7 J x 17 | 7 J x 17 | 7 J x 17 |
| Brake dimensions front | 300 x 24 | 300 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 296 x 10.5 | 296 x 10.5 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4239 | 4239 | 4239 | 4239 | 4239 | 4239 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1480 | 1480 | 1474 | 1474 | 1474 | 1474 |
| Rear wheel track [mm] | 1493 | 1493 | 1487 | 1487 | 1487 | 1487 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 116d | 118d | 118d | 120d | 120d | 123d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 85/4000 | 105/4000 | 105/4000 | 130/4000 | 130/4000 | 150/4400 |
| Maximum torque [Nm/min-1] | 260/1750-2500 | 300/1750-2500 | 300/1750-2500 | 350/1750-3000 | 350/1750-3000 | 400/2000-2250 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 200 | 210 | 210 | 228 | 226 | 238 |
| Acceleration 0–100 km/h [s] | 10.2 | 8.9 | 9.0 | 7.5 | 7.7 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 5.4 | 6.7 | 5.9 | 6.7 | 6.4 |
| Out of town [l] | 3.9 | 4.0 | 4.5 | 4.1 | 4.5 | 4.4 |
| Combined [l] | 4.4 | 4.5 | 5.3 | 4.7 | 5.3 | 5.1 |
| CO2 emissions [g/km] | 118 | 119 | 140 | 125 | 140 | 135 |
| Emission standard | EU4 | EU5 | EU5 | EU5 | EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1370 | 1385 | 1410 | 1440 | 1445 | 1485 |
| Overall weight [kg] | 1820 | 1820 | 1845 | 1865 | 1870 | 1910 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 690/1200 | 690/1200 | 720/1200 | 720/1200 | 740/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 205/55 R16 87V | 205/55 R16 87V | 205/50 R17 89W |
| Tyre dimensions rear | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 205/55 R16 87V | 205/55 R16 87V | 205/50 R17 89W |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 17 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 17 |
| Brake dimensions front | 284 x 22 | 292 x 22 | 292 x 22 | 300 x 24 | 300 x 24 | 330 x 24 |
| Brake dimensions rear | 280 x 10 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4239 | 4239 | 4239 | 4239 | 4239 | 4239 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1484 | 1484 | 1484 | 1480 | 1480 | 1474 |
| Rear wheel track [mm] | 1497 | 1497 | 1497 | 1493 | 1493 | 1487 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 123d | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1995 | |||||
| Maximum output / speed [kW/min-1] | 150/4400 | |||||
| Maximum torque [Nm/min-1] | 400/2000-2250 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Rear | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 236 | |||||
| Acceleration 0–100 km/h [s] | 7.0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.9 | |||||
| Out of town [l] | 4.7 | |||||
| Combined [l] | 5.5 | |||||
| CO2 emissions [g/km] | 148 | |||||
| Emission standard | EU4/EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | - | |||||
| Overall weight [kg] | - | |||||
| Maximum trailer weight unbraked/braked [kg] | 740/1200 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 330 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 3 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 51 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.31 | |||||
| Front suspension | - | |||||
| Rear suspension | - | |||||
| Tyre dimensions front | 205/50 R17 89W | |||||
| Tyre dimensions rear | 205/50 R17 89W | |||||
| Wheel size front | 7 J x 17 | |||||
| Wheel size rear | 7 J x 17 | |||||
| Brake dimensions front | 330 x 24 | |||||
| Brake dimensions rear | 300 x 20 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.7 | |||||
| Overall length [mm] | 4239 | |||||
| Overall width without/including mirrors [mm] | 1748/- | |||||
| Overall height [mm] | 1421 | |||||
| Wheelbase [mm] | 2660 | |||||
| Front wheel track [mm] | 1474 | |||||
| Rear wheel track [mm] | 1487 | |||||
| Forward overhang [mm] | 751 | |||||
| Rear overhang [mm] | 828 | |||||
| Clearance [mm] | 145 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 966 | |||||
| Headroom rear [mm] | 969 | |||||
| Front elbow/shoulder width [mm] | 1423/- | |||||
| Rear elbow/shoulder width [mm] | 1398/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Five-door hatchback
| 116i | 116i | 116i | 116i | 118i | 118i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1599 | 1599 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 90/6000 | 90/6000 | 90/6000 | 90/6000 | 105/6000 | 105/6000 |
| Maximum torque [Nm/min-1] | 160/4250 | 160/4250 | 185/3000-4250 | 185/3000-4250 | 190/4250 | 190/4250 |
| Bore and stroke [mm x mm] | 75,7 x 82,0 | 75,7 x 82,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 204 | 202 | 204 | 202 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 10.2 | 11.2 | 9.9 | 10.8 | 8.8 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 | 8.3 | 7.9 | 8.7 | 7.9 | 8.7 |
| Out of town [l] | 4.8 | 5.3 | 5.1 | 5.4 | 5.1 | 5.4 |
| Combined [l] | 5.8 | 6.4 | 6.1 | 6.6 | 6.1 | 6.6 |
| CO2 emissions [g/km] | 139 | 152 | 143 | 154 | 143 | 154 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU5 | EU5 | EU4/EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1340 | 1365 | 1330 | 1360 | 1350 | 1375 |
| Overall weight [kg] | 1765 | 1790 | 1755 | 1785 | 1775 | 1800 |
| Maximum trailer weight unbraked/braked [kg] | 650/1200 | 650/1200 | 650/1200 | 650/1200 | 670/1200 | 670/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.3 | 0.3 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H |
| Tyre dimensions rear | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 |
| Brake dimensions front | 284 x 22 | 284 x 22 | 284 x 22 | 284 x 22 | 292 x 22 | 292 x 22 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 296 x 10.5 | 296 x 10.5 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4239 | 4239 | 4239 | 4239 | 4239 | 4239 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Rear wheel track [mm] | 1497 | 1497 | 1497 | 1497 | 1497 | 1497 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 120i | 120i | 130i | 130i | 130i | 130i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 2996 | 2996 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 125/6700 | 125/6700 | 190/6600 | 190/6600 | 195/6600 | 195/6600 |
| Maximum torque [Nm/min-1] | 210/4250 | 210/4250 | 310/2600-3000 | 310/2600-3000 | 315/2750 | 315/2750 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 224 | 222 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.8 | 8.4 | 6.1 | 6.3 | 6.1 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 8.9 | 12.4 | 12.5 | 12.2 | 12.3 |
| Out of town [l] | 5.4 | 5.3 | 6.3 | 6.2 | 6.0 | 6.0 |
| Combined [l] | 6.6 | 6.6 | 8.5 | 8.5 | 8.3 | 8.3 |
| CO2 emissions [g/km] | 153 | 155 | 199 | 199 | 197 | 198 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1375 | 1395 | 1460 | 1485 | 1460 | 1485 |
| Overall weight [kg] | 1800 | 1820 | 1885 | 1910 | 1885 | 1910 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 680/1200 | 725/1200 | 725/1200 | 725/1200 | 725/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/50 R17 W | 205/50 R17 W | 205/50 R17 W | 205/50 R17 W |
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/50 R17 W | 205/50 R17 W | 205/50 R17 W | 205/50 R17 W |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 17 | 7 J x 17 | 7 J x 17 | 7 J x 17 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 17 | 7 J x 17 | 7 J x 17 | 7 J x 17 |
| Brake dimensions front | 300 x 24 | 300 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 296 x 10.5 | 296 x 10.5 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4239 | 4239 | 4239 | 4239 | 4239 | 4239 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1480 | 1480 | 1474 | 1474 | 1474 | 1474 |
| Rear wheel track [mm] | 1493 | 1493 | 1487 | 1487 | 1487 | 1487 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 116d | 118d | 118d | 120d | 120d | 123d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 85/4000 | 105/4000 | 105/4000 | 130/4000 | 130/4000 | 150/4400 |
| Maximum torque [Nm/min-1] | 260/1750-2500 | 300/1750-2500 | 300/1750-2500 | 350/1750-3000 | 350/1750-3000 | 400/2000-2250 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 200 | 210 | 210 | 228 | 226 | 238 |
| Acceleration 0–100 km/h [s] | 10.3 | 9.0 | 9.1 | 7.6 | 7.8 | 7.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 5.4 | 6.7 | 5.9 | 6.7 | 6.4 |
| Out of town [l] | 3.9 | 4.0 | 4.5 | 4.1 | 4.5 | 4.4 |
| Combined [l] | 4.4 | 4.5 | 5.3 | 4.7 | 5.3 | 5.1 |
| CO2 emissions [g/km] | 118 | 119 | 140 | 125 | 140 | 135 |
| Emission standard | EU4 | EU5 | EU5 | EU5 | EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1380 | 1395 | 1420 | 1450 | 1455 | 1495 |
| Overall weight [kg] | 1830 | 1830 | 1855 | 1875 | 1880 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 690/1200 | 690/1200 | 720/1200 | 720/1200 | 740/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 205/55 R16 87V | 205/55 R16 87V | 205/50 R17 89W |
| Tyre dimensions rear | 195/55 R16 H | 195/55 R16 H | 195/55 R16 H | 205/55 R16 87V | 205/55 R16 87V | 205/50 R17 89W |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 17 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 17 |
| Brake dimensions front | 284 x 22 | 292 x 22 | 292 x 22 | 300 x 24 | 300 x 24 | 330 x 24 |
| Brake dimensions rear | 280 x 10 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4239 | 4239 | 4239 | 4239 | 4239 | 4239 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1484 | 1484 | 1484 | 1480 | 1480 | 1474 |
| Rear wheel track [mm] | 1497 | 1497 | 1497 | 1493 | 1493 | 1487 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 123d | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1995 | |||||
| Maximum output / speed [kW/min-1] | 150/4400 | |||||
| Maximum torque [Nm/min-1] | 400/2000-2250 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Rear | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 236 | |||||
| Acceleration 0–100 km/h [s] | 7.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.9 | |||||
| Out of town [l] | 4.7 | |||||
| Combined [l] | 5.5 | |||||
| CO2 emissions [g/km] | 148 | |||||
| Emission standard | EU4/EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | - | |||||
| Overall weight [kg] | - | |||||
| Maximum trailer weight unbraked/braked [kg] | 740/1200 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 330 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 51 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.31 | |||||
| Front suspension | - | |||||
| Rear suspension | - | |||||
| Tyre dimensions front | 205/50 R17 89W | |||||
| Tyre dimensions rear | 205/50 R17 89W | |||||
| Wheel size front | 7 J x 17 | |||||
| Wheel size rear | 7 J x 17 | |||||
| Brake dimensions front | 330 x 24 | |||||
| Brake dimensions rear | 300 x 20 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.7 | |||||
| Overall length [mm] | 4239 | |||||
| Overall width without/including mirrors [mm] | 1748/- | |||||
| Overall height [mm] | 1421 | |||||
| Wheelbase [mm] | 2660 | |||||
| Front wheel track [mm] | 1474 | |||||
| Rear wheel track [mm] | 1487 | |||||
| Forward overhang [mm] | 751 | |||||
| Rear overhang [mm] | 828 | |||||
| Clearance [mm] | 145 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 966 | |||||
| Headroom rear [mm] | 969 | |||||
| Front elbow/shoulder width [mm] | 1423/- | |||||
| Rear elbow/shoulder width [mm] | 1398/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Coupé
| 120i | 120i | 125i | 125i | 135i | 135i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 2996 | 2996 | 2979 | 2979 |
| Maximum output / speed [kW/min-1] | 125/6700 | 125/6700 | 160/6100 | 160/6100 | 225/5800-6000 | 225/5800-6000 |
| Maximum torque [Nm/min-1] | 210/4250 | 210/4250 | 270/2500-4250 | 270/2500-4250 | 400/1200-5000 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 85,0 x 88,0 | 85,0 x 88,0 | 84,0 x 89,6 | 84,0 x 89,6 |
| Compression ratio | 12,0:1 | 12,0:1 | 10,7:1 | 10,7:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 224 | 222 | 245 | 243 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.8 | 8.4 | 6.4 | 7.0 | 5.3 | 5.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.5 | 8.9 | 11.8 | 11.6 | 12.1 | 11.7 |
| Out of town [l] | 5.3 | 5.3 | 5.9 | 6.1 | 6.4 | 6.7 |
| Combined [l] | 6.5 | 6.6 | 8.1 | 8.1 | 8.5 | 8.5 |
| CO2 emissions [g/km] | 152 | 154 | 189 | 189 | 198 | 198 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1375 | 1395 | 1450 | 1470 | 1530 | 1545 |
| Overall weight [kg] | 1740 | 1760 | 1815 | 1835 | 1895 | 1910 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 680/1200 | 700/1200 | 700/1200 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.33 | 0.33 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/50 R17 W | 205/50 R17 W | 215/40 R18 Y | 215/40 R18 Y |
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/50 R17 W | 205/50 R17 W | 245/35 R18 Y | 245/35 R18 Y |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 17 | 7 J x 17 | 7.5 J x 18 | 7.5 J x 18 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 17 | 7 J x 17 | 8.5 J x 18 | 8.5 J x 18 |
| Brake dimensions front | 300 x 24 | 300 x 24 | 330 x 24 | 330 x 24 | 338 x 26 | 338 x 26 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 324 x 22 | 324 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4360 | 4360 | 4360 | 4360 | 4360 | 4360 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1408 | 1408 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1480 | 1480 | 1474 | 1474 | 1470 | 1470 |
| Rear wheel track [mm] | 1513 | 1513 | 1507 | 1507 | 1497 | 1497 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 949 | 949 | 949 | 949 | 949 | 949 |
| Clearance [mm] | 147 | 147 | 147 | 147 | 132 | 132 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Headroom rear [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M Coupe | 118d | 118d | 120d | 120d | 123d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2979 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 250/5900 | 105/4000 | 105/4000 | 130/4000 | 130/4000 | 150/4400 |
| Maximum torque [Nm/min-1] | 450/1500-4500 | 300/1750-2500 | 300/1750-2500 | 350/1750-3000 | 350/1750-3000 | 400/2000-2250 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 250 | 210 | 210 | 228 | 226 | 238 |
| Acceleration 0–100 km/h [s] | 4.9 | 9.0 | 9.1 | 7.6 | 7.8 | 7.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.6 | 5.3 | 6.7 | 5.9 | 6.7 | 6.4 |
| Out of town [l] | 7.3 | 4.0 | 4.5 | 4.0 | 4.5 | 4.3 |
| Combined [l] | 9.6 | 4.5 | 5.3 | 4.7 | 5.3 | 5.1 |
| CO2 emissions [g/km] | 224 | 118 | 140 | 124 | 140 | 134 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1590 | 1395 | 1420 | 1445 | 1455 | 1490 |
| Overall weight [kg] | 1900 | 1760 | 1785 | 1810 | 1820 | 1855 |
| Maximum trailer weight unbraked/braked [kg] | - | 690/1200 | 690/1200 | 720/1200 | 720/1200 | 740/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 53 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.37 | 0.3 | 0.3 | 0.31 | 0.31 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 245/35 R19 Y | 195/55 R16 H | 195/55 R16 H | 205/55 R16 87V | 205/55 R16 87V | 205/50 R17 89W |
| Tyre dimensions rear | 265/35 R19 Y | 195/55 R16 H | 195/55 R16 H | 205/55 R16 87V | 205/55 R16 87V | 205/50 R17 89W |
| Wheel size front | 9 J x 19 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 17 |
| Wheel size rear | 10 J x 19 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 17 |
| Brake dimensions front | 360 x 30 | 292 x 22 | 292 x 22 | 300 x 24 | 300 x 24 | 330 x 24 |
| Brake dimensions rear | 350 x 24 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4380 | 4360 | 4360 | 4360 | 4360 | 4360 |
| Overall width without/including mirrors [mm] | 1803/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1420 | 1423 | 1423 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1541 | 1484 | 1484 | 1480 | 1480 | 1474 |
| Rear wheel track [mm] | 1541 | 1517 | 1517 | 1513 | 1513 | 1507 |
| Forward overhang [mm] | - | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | - | 949 | 949 | 949 | 949 | 949 |
| Clearance [mm] | 120 | 147 | 147 | 147 | 147 | 147 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Headroom rear [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- | 1398/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 123d | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1995 | |||||
| Maximum output / speed [kW/min-1] | 150/4400 | |||||
| Maximum torque [Nm/min-1] | 400/2000-2250 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Rear | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 236 | |||||
| Acceleration 0–100 km/h [s] | 7.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.9 | |||||
| Out of town [l] | 4.7 | |||||
| Combined [l] | 5.5 | |||||
| CO2 emissions [g/km] | 145 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1495 | |||||
| Overall weight [kg] | 1860 | |||||
| Maximum trailer weight unbraked/braked [kg] | 740/1200 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 370 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 2 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 51 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.31 | |||||
| Front suspension | - | |||||
| Rear suspension | - | |||||
| Tyre dimensions front | 205/50 R17 89W | |||||
| Tyre dimensions rear | 205/50 R17 89W | |||||
| Wheel size front | 7 J x 17 | |||||
| Wheel size rear | 7 J x 17 | |||||
| Brake dimensions front | 330 x 24 | |||||
| Brake dimensions rear | 300 x 20 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.7 | |||||
| Overall length [mm] | 4360 | |||||
| Overall width without/including mirrors [mm] | 1748/- | |||||
| Overall height [mm] | 1423 | |||||
| Wheelbase [mm] | 2660 | |||||
| Front wheel track [mm] | 1474 | |||||
| Rear wheel track [mm] | 1507 | |||||
| Forward overhang [mm] | 751 | |||||
| Rear overhang [mm] | 949 | |||||
| Clearance [mm] | 147 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 962 | |||||
| Headroom rear [mm] | 943 | |||||
| Front elbow/shoulder width [mm] | 1423/- | |||||
| Rear elbow/shoulder width [mm] | 1398/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Convertible
| 118i | 118i | 120i | 120i | 125i | 125i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 105/6000 | 105/6000 | 125/6700 | 125/6700 | 160/6100 | 160/6100 |
| Maximum torque [Nm/min-1] | 190/4250 | 190/4250 | 210/4250 | 210/4250 | 270/2500-4250 | 270/2500-4250 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 208 | 220 | 218 | 238 | 236 |
| Acceleration 0–100 km/h [s] | 9.3 | 10.1 | 8.4 | 9.0 | 6.8 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 9.1 | 8.8 | 9.4 | 12.0 | 11.8 |
| Out of town [l] | 5.4 | 5.6 | 5.6 | 5.6 | 6.2 | 6.3 |
| Combined [l] | 6.5 | 6.9 | 6.8 | 7.0 | 8.3 | 8.3 |
| CO2 emissions [g/km] | 152 | 162 | 158 | 163 | 194 | 194 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1535 | 1505 | 1535 | 1585 | 1615 |
| Overall weight [kg] | 1870 | 1900 | 1870 | 1900 | 1950 | 1980 |
| Maximum trailer weight unbraked/braked [kg] | 670/1200 | 670/1200 | 680/1200 | 680/1200 | 700/1200 | 700/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 260-305 | 260-305 | 260-305 | 260-305 | 260-305 | 260-305 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 195/55 R16 H | 195/55 R16 H | 205/55 R16 V | 205/55 R16 V | 205/50 R17 W | 205/50 R17 W |
| Tyre dimensions rear | 195/55 R16 H | 195/55 R16 H | 205/55 R16 V | 205/55 R16 V | 205/50 R17 W | 205/50 R17 W |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 17 | 7 J x 17 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 17 | 7 J x 17 |
| Brake dimensions front | 292 x 22 | 292 x 22 | 300 x 24 | 300 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 22 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4360 | 4360 | 4360 | 4360 | 4360 | 4360 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1411 | 1411 | 1411 | 1411 | 1411 | 1411 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1484 | 1484 | 1480 | 1480 | 1474 | 1474 |
| Rear wheel track [mm] | 1517 | 1517 | 1513 | 1513 | 1507 | 1507 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 949 | 949 | 949 | 949 | 949 | 949 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Headroom rear [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 135i | 135i | 118d | 118d | 120d | 120d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2979 | 2979 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 225/5800-6000 | 225/5800-6000 | 105/4000 | 105/4000 | 130/4000 | 130/4000 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 300/1750-2500 | 300/1750-2500 | 350/1750-3000 | 350/1750-3000 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 250 | 250 | 208 | 208 | 222 | 220 |
| Acceleration 0–100 km/h [s] | 5.6 | 5.5 | 9.5 | 9.6 | 8.1 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.2 | 11.8 | 5.7 | 6.9 | 6.2 | 6.9 |
| Out of town [l] | 6.5 | 6.8 | 4.3 | 4.7 | 4.3 | 4.7 |
| Combined [l] | 8.6 | 8.6 | 4.8 | 5.5 | 5.0 | 5.5 |
| CO2 emissions [g/km] | 200 | 200 | 127 | 145 | 132 | 145 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1665 | 1685 | 1560 | 1575 | 1590 | 1600 |
| Overall weight [kg] | 2030 | 2050 | 1925 | 1940 | 1955 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 690/1200 | 690/1200 | 720/1200 | 720/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 260-305 | 260-305 | 260-305 | 260-305 | 260-305 | 260-305 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 53 | 53 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 215/40 R18 Y | 215/40 R18 Y | 195/55 R16 H | 195/55 R16 H | 205/55 R16 87V | 205/55 R16 87V |
| Tyre dimensions rear | 245/35 R18 Y | 245/35 R18 Y | 195/55 R16 H | 195/55 R16 H | 205/55 R16 87V | 205/55 R16 87V |
| Wheel size front | 7.5 J x 18 | 7.5 J x 18 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 8.5 J x 18 | 8.5 J x 18 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | 338 x 26 | 338 x 26 | 292 x 22 | 292 x 22 | 300 x 24 | 300 x 24 |
| Brake dimensions rear | 324 x 22 | 324 x 22 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4360 | 4360 | 4360 | 4360 | 4360 | 4360 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1411 | 1411 | 1411 | 1411 | 1411 | 1411 |
| Wheelbase [mm] | 2660 | 2660 | 2660 | 2660 | 2660 | 2660 |
| Front wheel track [mm] | 1474 | 1474 | 1484 | 1484 | 1480 | 1480 |
| Rear wheel track [mm] | 1507 | 1507 | 1517 | 1517 | 1513 | 1513 |
| Forward overhang [mm] | 751 | 751 | 751 | 751 | 751 | 751 |
| Rear overhang [mm] | 949 | 949 | 949 | 949 | 949 | 949 |
| Clearance [mm] | 121 | 121 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Headroom rear [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Rear elbow/shoulder width [mm] | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 123d | 123d | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 150/4400 | 150/4400 | ||||
| Maximum torque [Nm/min-1] | 400/2000-2250 | 400/2000-2250 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Rear | Rear | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 230 | 230 | ||||
| Acceleration 0–100 km/h [s] | 7.5 | 7.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.6 | 7.1 | ||||
| Out of town [l] | 4.5 | 4.8 | ||||
| Combined [l] | 5.3 | 5.7 | ||||
| CO2 emissions [g/km] | 139 | 149 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1615 | - | ||||
| Overall weight [kg] | 1980 | - | ||||
| Maximum trailer weight unbraked/braked [kg] | 740/1200 | 740/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 260-305 | 260-305 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 51 | 51 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.34 | 0.34 | ||||
| Front suspension | - | - | ||||
| Rear suspension | - | - | ||||
| Tyre dimensions front | 205/50 R17 89W | 205/50 R17 89W | ||||
| Tyre dimensions rear | 205/50 R17 89W | 205/50 R17 89W | ||||
| Wheel size front | 7 J x 17 | 7 J x 17 | ||||
| Wheel size rear | 7 J x 17 | 7 J x 17 | ||||
| Brake dimensions front | 330 x 24 | 330 x 24 | ||||
| Brake dimensions rear | 300 x 20 | 300 x 20 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.7 | 10.7 | ||||
| Overall length [mm] | 4360 | 4360 | ||||
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | ||||
| Overall height [mm] | 1411 | 1411 | ||||
| Wheelbase [mm] | 2660 | 2660 | ||||
| Front wheel track [mm] | 1474 | 1474 | ||||
| Rear wheel track [mm] | 1507 | 1507 | ||||
| Forward overhang [mm] | 751 | 751 | ||||
| Rear overhang [mm] | 949 | 949 | ||||
| Clearance [mm] | 140 | 140 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 980 | 980 | ||||
| Headroom rear [mm] | 940 | 940 | ||||
| Front elbow/shoulder width [mm] | 1423/- | 1423/- | ||||
| Rear elbow/shoulder width [mm] | 1092/- | 1092/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
