BMW 1
Date of manufacture
12/2011 – 2015 (Three-door hatchback)
11/2010 – 2015 (Five-door hatchback)
Platform
-
Manufacturing locations
Leipzig, Germany
Regensburg, Germany
Designer
Nicolas Huet
Tags
C-segment
German cars
The BMW 1 is available in two body versions: three-door hatchback and five-door hatchback. The car was first produced in Germany in 2010. The engine range includes petrol and diesel variants, the most powerful model being the 135i xDrive with 235 kW. The top speed is 250 km/h. The 116d EfficientDynamics Edition has the lowest consumption of 3.8 l/100 km and emissions of 99 g/km. The trunk of the three-door body has a capacity of 360 l, as does the five-door model. In 2012, the BMW 1 received a 5 out of 5 rating from EURONCAP for safety.
Car body style

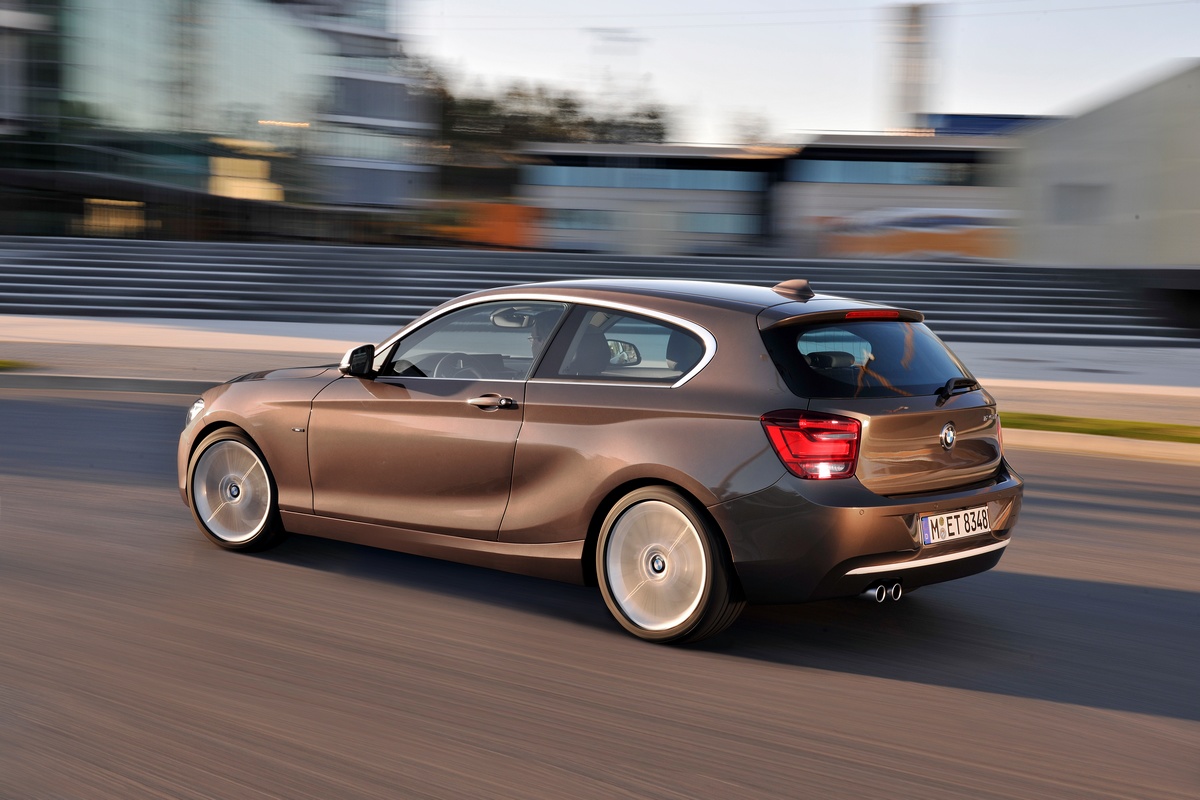

Three-door hatchback
Date of manufacture
12/2011 – 2015Internal designation
F21
Technical data
Three-door hatchback
| 114i | 116i | 116i | 118i | 118i | 125i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1997 |
| Maximum output / speed [kW/min-1] | 75/4000 | 100/4400 | 100/4400 | 125/4800 | 125/4800 | 160/5000 |
| Maximum torque [Nm/min-1] | 180/1100 | 220/1350 | 220/1350 | 250/1500-4500 | 250/1500-4500 | 310/1350-4800 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 84,0 x 90,1 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 195 | 210 | 210 | 225 | 222 | 245 |
| Acceleration 0–100 km/h [s] | 11.2 | 8.5 | 8.7 | 7.4 | 7.2 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 14,8 | 10,6 | 10,6 | 8,8 | 8,8 | 7,5 |
| City [l] | 7.1-7.4 | 7.0-7.3 | 7.2-7.4 | 7.4-7.7 | 7.1-7.4 | 8.6 |
| Out of town [l] | 4.5-4.7 | 4.5-4.7 | 4.6-4.8 | 4.7-4.8 | 4.6-4.8 | 5.4 |
| Combined [l] | 5.5-5.7 | 5.4-5.6 | 5.6-5.8 | 5.7-5.9 | 5.6-5.8 | 6.6 |
| CO2 emissions [g/km] | 127-132 | 125-131 | 129-134 | 132-137 | 129-134 | 154 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1370 | 1370 | 1390 | 1375 | 1390 | 1425 |
| Overall weight [kg] | 1825 | 1825 | 1845 | 1830 | 1845 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 650/1200 | 650/1200 | 650/1200 | 670/1200 | 670/1200 | 680/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.32 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 195/55 R16H | 195/55 R16H | 195/55 R16H | 195/55 R16V | 195/55 R16V | 205/50 R17 W |
| Tyre dimensions rear | 195/55 R16H | 195/55 R16H | 195/55 R16H | 195/55 R16V | 195/55 R16V | 205/50 R17 W |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 17 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4324 | 4324 | 4324 | 4324 | 4324 | 4324 |
| Overall width without/including mirrors [mm] | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Rear elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 125i | 135i | 135i | 135i xDrive | 114d | 116d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 2979 | 2979 | 2979 | 1598 | 1995 |
| Maximum output / speed [kW/min-1] | 160/5000 | 235/5800 | 235/5800 | 235/5800 | 70/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 310/1350-4800 | 450/1300-4500 | 450/1300-4500 | 450/1300-4500 | 235/1500-2750 | 260/1750-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | - | 84,0 x 90,0 |
| Compression ratio | 10,0:1 | 10,2:1 | 10,2:1 | 10,2:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
|
| - | - |
| Top speed [km/h] | 243 | 250 | 250 | 250 | 185 | 200 |
| Acceleration 0–100 km/h [s] | 6.2 | 5.1 | 4.9 | 4.7 | 12.2 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7,5 | 5,0 | 5,0 | 5,0 | 15,2 | 11,7 |
| City [l] | 8.5 | 10.9 | 10.3 | 10.8 | 4.9-5.0 | 5.1-5.3 |
| Out of town [l] | 5.1 | 6.4 | 5.9 | 6.1 | 3.7-3.8 | 3.6-3.8 |
| Combined [l] | 6.3 | 8.0 | 7.5 | 7.8 | 4.1-4.3 | 4.1-4.3 |
| CO2 emissions [g/km] | 148 | 188 | 175 | 182 | 109-112 | 109-114 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1445 | 1500 | 1515 | 1590 | 1390 | 1390 |
| Overall weight [kg] | 1900 | 1955 | 1970 | 2045 | 1845 | 1845 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | - | - | - | - | 690/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.33 | 0.33 | 0.33 | 0.3 | 0.3 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 205/50 R17 W | 225/40 R18 Y | 225/40 R18 Y | 225/40 R18 Y | 195/55 R16 H | 195/55 R16 V |
| Tyre dimensions rear | 205/50 R17 W | 245/35 R18 Y | 245/35 R18 Y | 245/35 R18 Y | 195/55 R16 H | 195/55 R16 V |
| Wheel size front | 7 J x 17 | 7.5 J x 18 | 7.5 J x 18 | 7.5 J x 18 | 6.5 J x 16 | 6.5 J x 16 |
| Wheel size rear | 7 J x 17 | 8 J x 18 | 8 J x 18 | 8 J x 18 | 6.5 J x 16 | 6.5 J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4324 | 4340 | 4340 | 4340 | 4324 | 4324 |
| Overall width without/including mirrors [mm] | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 |
| Overall height [mm] | 1421 | 1411 | 1411 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 |
| Front wheel track [mm] | 1535 | 1512 | 1512 | 1512 | 1535 | 1535 |
| Rear wheel track [mm] | 1569 | 1532 | 1532 | 1532 | 1569 | 1569 |
| Forward overhang [mm] | 765 | 767 | 767 | 765 | 765 | 765 |
| Rear overhang [mm] | 869 | 883 | 883 | 869 | 869 | 869 |
| Clearance [mm] | 140 | 130 | 1 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Rear elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 116d | 116d EfficientDynamics Edition | 118d | 118d | 118d xDrive | 120d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 105/4000 | 105/4000 | 105/4000 | 135/4000 |
| Maximum torque [Nm/min-1] | 260/1750-2500 | 260/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 380/1750-2750 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - | - |
|
| - |
| Top speed [km/h] | 200 | 195 | 212 | 212 | 210 | 228 |
| Acceleration 0–100 km/h [s] | 10.3 | 10.5 | 8.9 | 8.6 | 8.9 | 7.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 11,7 | 14,2 | 9,3 | 9,3 | 9,3 | 7,2 |
| City [l] | 5.0-5.3 | 5.4.4 | 5.1-5.4 | 5.1-5.3 | 5.4-5.6 | 5.4-5.6 |
| Out of town [l] | 3.6-3.8 | 3.4 | 3.6-3.8 | 3.7-3.9 | 4.1-4.3 | 3.7-3.9 |
| Combined [l] | 4.1-4.4 | 3.8 | 4.1-4.4 | 4.2-4.4 | 4.6-4.8 | 4.3-4.5 |
| CO2 emissions [g/km] | 109-115 | 99 | 109-115 | 110-116 | 121-126 | 114-119 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1420 | 1390 | 1395 | 1420 | 1485 | 1425 |
| Overall weight [kg] | 1875 | 1845 | 1850 | 1875 | 1940 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 690/1200 | - | 690/1200 | 690/1200 | 690/1200 | 710/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.31 | 0.3 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 195/55 R16 V | 205/55 R16 V | 195/55 R16 V | 195/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Tyre dimensions rear | 195/55 R16 V | 205/55 R16 V | 195/55 R16 V | 195/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Wheel size front | 6.5 J x 16 | 7 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 6.5 J x 16 | 7 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4324 | 4324 | 4324 | 4324 | 4324 | 4324 |
| Overall width without/including mirrors [mm] | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Rear elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 120d | 120d xDrive | 125d | 125d | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | ||
| Maximum output / speed [kW/min-1] | 135/4000 | 135/4000 | 160/4400 | 160/4400 | ||
| Maximum torque [Nm/min-1] | 380/1750-2750 | 380/1750-2750 | 450/1500-2500 | 450/1500-2500 | ||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | ||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | 4x4 | Rear | Rear | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | ||
| Drive specifications |
|
| - |
| ||
| Top speed [km/h] | 228 | 225 | 240 | 240 | ||
| Acceleration 0–100 km/h [s] | 7.1 | 7.2 | 6.5 | 6.3 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | 7,2 | 7,2 | 6,5 | 6,5 | ||
| City [l] | 4.9-5.2 | 5.8-5.9 | 6.0 | 5.7 | ||
| Out of town [l] | 3.8-3.9 | 4.0-4.1 | 4.2 | 4.2 | ||
| Combined [l] | 4.2-4.4 | 4.7-4.8 | 4.9 | 4.7 | ||
| CO2 emissions [g/km] | 110-116 | 123-126 | 128 | 124 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1445 | 1500 | 1470 | 1485 | ||
| Overall weight [kg] | 1900 | 1955 | 1925 | 1940 | ||
| Maximum trailer weight unbraked/braked [kg] | 710/1200 | 710/1200 | 740/1200 | 740/1200 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 360 | 360 | 360 | 360 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 3 | 3 | 3 | 3 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.3 | 0.31 | 0.31 | 0.31 | ||
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | ||
| Rear suspension | five-link | five-link | five-link | five-link | ||
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/55 R16 W | 205/55 R16 W | ||
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/55 R16 W | 205/55 R16 W | ||
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | ||
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | ||
| Overall length [mm] | 4324 | 4324 | 4324 | 4324 | ||
| Overall width without/including mirrors [mm] | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | ||
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | ||
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | ||
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | ||
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | ||
| Forward overhang [mm] | 765 | 765 | 765 | 765 | ||
| Rear overhang [mm] | 869 | 869 | 869 | 869 | ||
| Clearance [mm] | 140 | 140 | 140 | 140 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | ||
| Headroom rear [mm] | 972 | 972 | 972 | 972 | ||
| Front elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | ||
| Rear elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

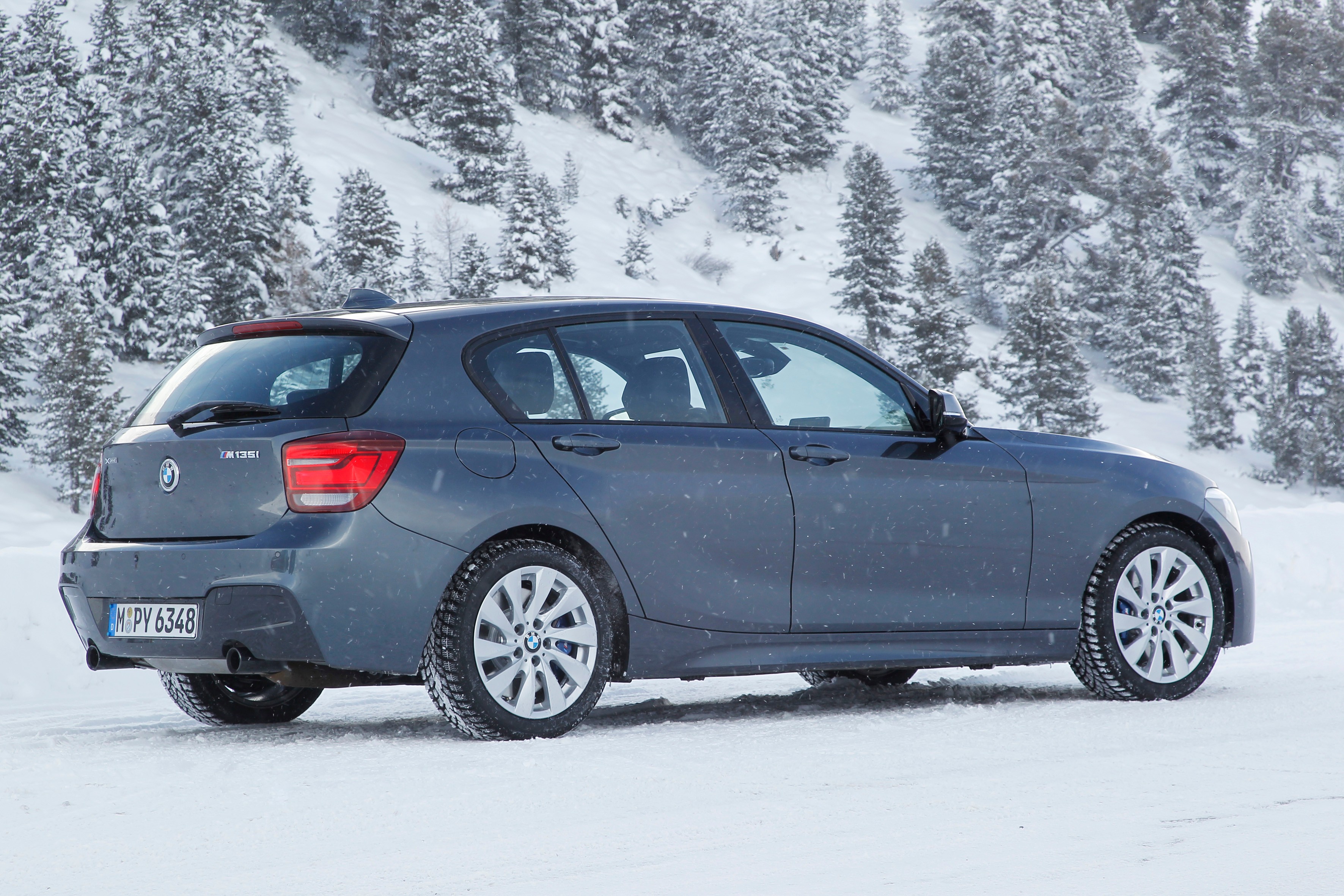

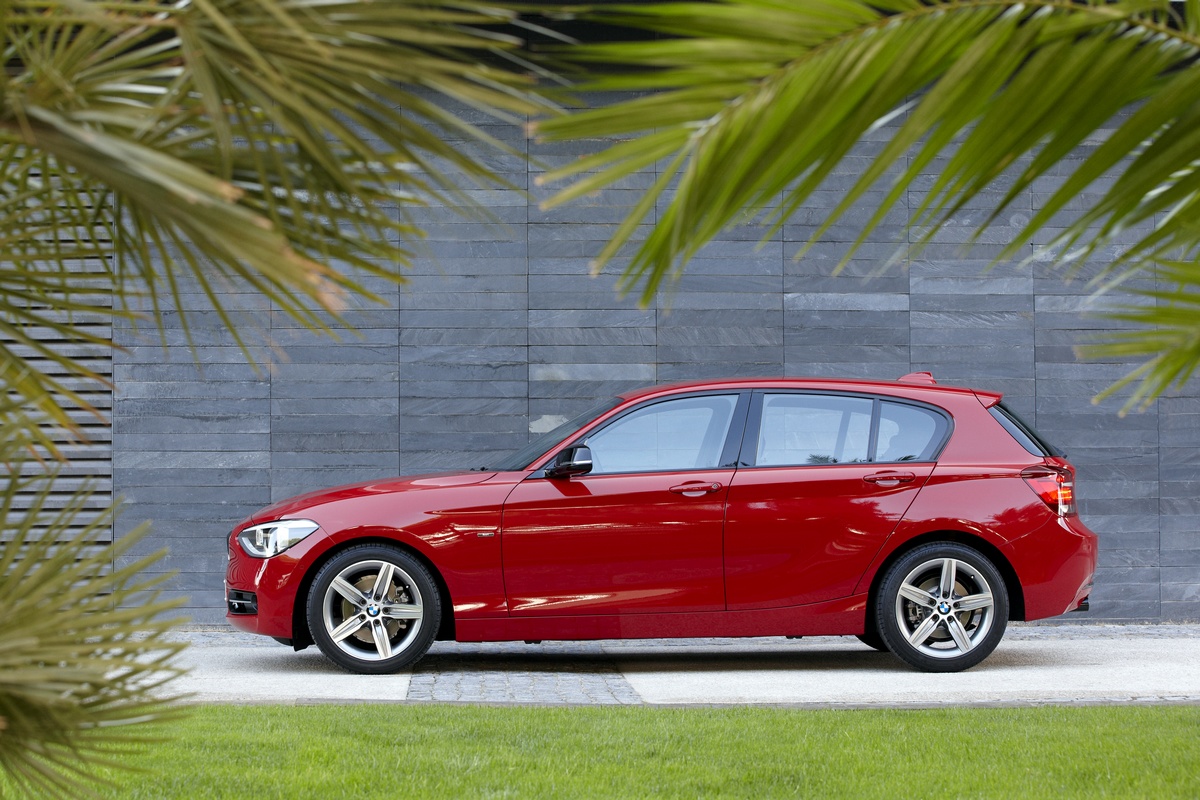

Five-door hatchback
| 114i | 116i | 116i | 118i | 118i | 125i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1997 |
| Maximum output / speed [kW/min-1] | 75/4000 | 100/4400 | 100/4400 | 125/4800 | 125/4800 | 160/5000 |
| Maximum torque [Nm/min-1] | 180/1100 | 220/1350 | 220/1350 | 250/1500-4500 | 250/1500-4500 | 310/1350-4800 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 84,0 x 90,1 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 195 | 210 | 210 | 225 | 222 | 245 |
| Acceleration 0–100 km/h [s] | 11.2 | 8.5 | 8.7 | 7.4 | 7.2 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 14,8 | 10,6 | 10,6 | 8,8 | 8,8 | 7,5 |
| City [l] | 7.1-7.4 | 7.0-7.3 | 7.2-7.4 | 7.4-7.7 | 7.1-7.4 | 8.6 |
| Out of town [l] | 4.5-4.7 | 4.5-4.7 | 4.6-4.8 | 4.7-4.8 | 4.6-4.8 | 5.4 |
| Combined [l] | 5.5-5.7 | 5.4-5.6 | 5.6-5.8 | 5.7-5.9 | 5.6-5.8 | 6.6 |
| CO2 emissions [g/km] | 127-132 | 125-131 | 129-134 | 132-137 | 129-134 | 154 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1375 | 1375 | 1395 | 1380 | 1395 | 1430 |
| Overall weight [kg] | 1830 | 1830 | 1850 | 1835 | 1850 | 1885 |
| Maximum trailer weight unbraked/braked [kg] | 650/1200 | 650/1200 | 650/1200 | 670/1200 | 670/1200 | 680/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.32 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 195/55 R16H | 195/55 R16H | 195/55 R16H | 195/55 R16V | 195/55 R16V | 205/50 R17 W |
| Tyre dimensions rear | 195/55 R16H | 195/55 R16H | 195/55 R16H | 195/55 R16V | 195/55 R16V | 205/50 R17 W |
| Wheel size front | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 17 |
| Wheel size rear | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| Overall length [mm] | 4324 | 4324 | 4324 | 4324 | 4324 | 4324 |
| Overall width without/including mirrors [mm] | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Rear elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 125i | 135i | 135i | 135i xDrive | 114d | 116d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 2979 | 2979 | 2979 | 1598 | 1995 |
| Maximum output / speed [kW/min-1] | 160/5000 | 235/5800 | 235/5800 | 235/5800 | 70/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 310/1350-4800 | 450/1300-4500 | 450/1300-4500 | 450/1300-4500 | 235/1500-2750 | 260/1750-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | - | 84,0 x 90,0 |
| Compression ratio | 10,0:1 | 10,2:1 | 10,2:1 | 10,2:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
|
| - | - |
| Top speed [km/h] | 243 | 250 | 250 | 250 | 185 | 200 |
| Acceleration 0–100 km/h [s] | 6.2 | 5.1 | 4.9 | 4.7 | 12.2 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7,5 | 5,0 | 5,0 | 5,0 | 15,2 | 11,7 |
| City [l] | 8.5 | 10.9 | 10.3 | 10.8 | 4.9-5.0 | 5.1-5.3 |
| Out of town [l] | 5.1 | 6.4 | 5.9 | 6.1 | 3.7-3.8 | 3.6-3.8 |
| Combined [l] | 6.3 | 8.0 | 7.5 | 7.8 | 4.1-4.3 | 4.1-4.3 |
| CO2 emissions [g/km] | 148 | 188 | 175 | 182 | 109-112 | 109-114 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1450 | 1505 | 1520 | 1595 | 1395 | 1395 |
| Overall weight [kg] | 1905 | 1960 | 1975 | 2050 | 1850 | 1850 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | - | - | - | - | 690/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.33 | 0.33 | 0.33 | 0.3 | 0.3 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 205/50 R17 W | 225/40 R18 Y | 225/40 R18 Y | 225/40 R18 Y | 195/55 R16 H | 195/55 R16 V |
| Tyre dimensions rear | 205/50 R17 W | 245/35 R18 Y | 245/35 R18 Y | 245/35 R18 Y | 195/55 R16 H | 195/55 R16 V |
| Wheel size front | 7 J x 17 | 7.5 J x 18 | 7.5 J x 18 | 7.5 J x 18 | 6.5 J x 16 | 6.5 J x 16 |
| Wheel size rear | 7 J x 17 | 8 J x 18 | 8 J x 18 | 8 J x 18 | 6.5 J x 16 | 6.5 J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| Overall length [mm] | 4324 | 4340 | 4340 | 4340 | 4324 | 4324 |
| Overall width without/including mirrors [mm] | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 |
| Overall height [mm] | 1421 | 1411 | 1411 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 |
| Front wheel track [mm] | 1535 | 1512 | 1512 | 1512 | 1535 | 1535 |
| Rear wheel track [mm] | 1569 | 1532 | 1532 | 1532 | 1569 | 1569 |
| Forward overhang [mm] | 765 | 767 | 767 | 765 | 765 | 765 |
| Rear overhang [mm] | 869 | 883 | 883 | 869 | 869 | 869 |
| Clearance [mm] | 140 | 130 | 1 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Rear elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 116d | 116d EfficientDynamics Edition | 118d | 118d | 118d xDrive | 120d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 105/4000 | 105/4000 | 105/4000 | 135/4000 |
| Maximum torque [Nm/min-1] | 260/1750-2500 | 260/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 380/1750-2750 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - | - |
|
| - |
| Top speed [km/h] | 200 | 195 | 212 | 212 | 210 | 228 |
| Acceleration 0–100 km/h [s] | 10.3 | 10.5 | 8.9 | 8.6 | 8.9 | 7.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 11,7 | 14,2 | 9,3 | 9,3 | 9,3 | 7,2 |
| City [l] | 5.0-5.3 | 5.4.4 | 5.1-5.4 | 5.1-5.3 | 5.4-5.6 | 5.4-5.6 |
| Out of town [l] | 3.6-3.8 | 3.4 | 3.6-3.8 | 3.7-3.9 | 4.1-4.3 | 3.7-3.9 |
| Combined [l] | 4.1-4.4 | 3.8 | 4.1-4.4 | 4.2-4.4 | 4.6-4.8 | 4.3-4.5 |
| CO2 emissions [g/km] | 109-115 | 99 | 109-115 | 110-116 | 121-126 | 114-119 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1425 | 1395 | 1400 | 1425 | 1490 | 1430 |
| Overall weight [kg] | 1880 | 1850 | 1855 | 1880 | 1945 | 1885 |
| Maximum trailer weight unbraked/braked [kg] | 690/1200 | - | 690/1200 | 690/1200 | 690/1200 | 710/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.31 | 0.3 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 195/55 R16 V | 205/55 R16 V | 195/55 R16 V | 195/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Tyre dimensions rear | 195/55 R16 V | 205/55 R16 V | 195/55 R16 V | 195/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Wheel size front | 6.5 J x 16 | 7 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 6.5 J x 16 | 7 J x 16 | 6.5 J x 16 | 6.5 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| Overall length [mm] | 4324 | 4324 | 4324 | 4324 | 4324 | 4324 |
| Overall width without/including mirrors [mm] | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Rear overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Rear elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 120d | 120d xDrive | 125d | 125d | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | ||
| Maximum output / speed [kW/min-1] | 135/4000 | 135/4000 | 160/4400 | 160/4400 | ||
| Maximum torque [Nm/min-1] | 380/1750-2750 | 380/1750-2750 | 450/1500-2500 | 450/1500-2500 | ||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | ||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | 4x4 | Rear | Rear | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | ||
| Drive specifications |
|
| - |
| ||
| Top speed [km/h] | 228 | 225 | 240 | 240 | ||
| Acceleration 0–100 km/h [s] | 7.1 | 7.2 | 6.5 | 6.3 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | 7,2 | 7,2 | 6,5 | 6,5 | ||
| City [l] | 4.9-5.2 | 5.8-5.9 | 6.0 | 5.7 | ||
| Out of town [l] | 3.8-3.9 | 4.0-4.1 | 4.2 | 4.2 | ||
| Combined [l] | 4.2-4.4 | 4.7-4.8 | 4.9 | 4.7 | ||
| CO2 emissions [g/km] | 110-116 | 123-126 | 128 | 124 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1450 | 1505 | 1475 | 1490 | ||
| Overall weight [kg] | 1905 | 1960 | 1930 | 1945 | ||
| Maximum trailer weight unbraked/braked [kg] | 710/1200 | 710/1200 | 740/1200 | 740/1200 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 360 | 360 | 360 | 360 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.3 | 0.31 | 0.31 | 0.31 | ||
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | ||
| Rear suspension | five-link | five-link | five-link | five-link | ||
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/55 R16 W | 205/55 R16 W | ||
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/55 R16 W | 205/55 R16 W | ||
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | ||
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.9 | 10.9 | 10.9 | 10.9 | ||
| Overall length [mm] | 4324 | 4324 | 4324 | 4324 | ||
| Overall width without/including mirrors [mm] | 1765/1984 | 1765/1984 | 1765/1984 | 1765/1984 | ||
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | ||
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | ||
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | ||
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | ||
| Forward overhang [mm] | 765 | 765 | 765 | 765 | ||
| Rear overhang [mm] | 869 | 869 | 869 | 869 | ||
| Clearance [mm] | 140 | 140 | 140 | 140 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | ||
| Headroom rear [mm] | 972 | 972 | 972 | 972 | ||
| Front elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | ||
| Rear elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

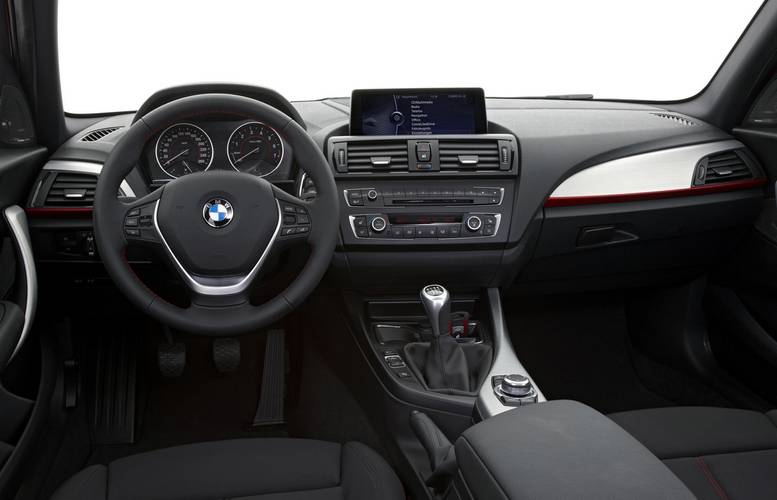

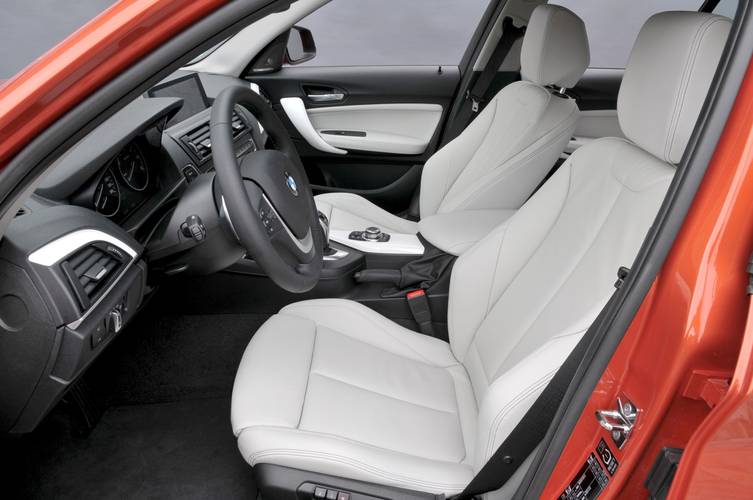

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
