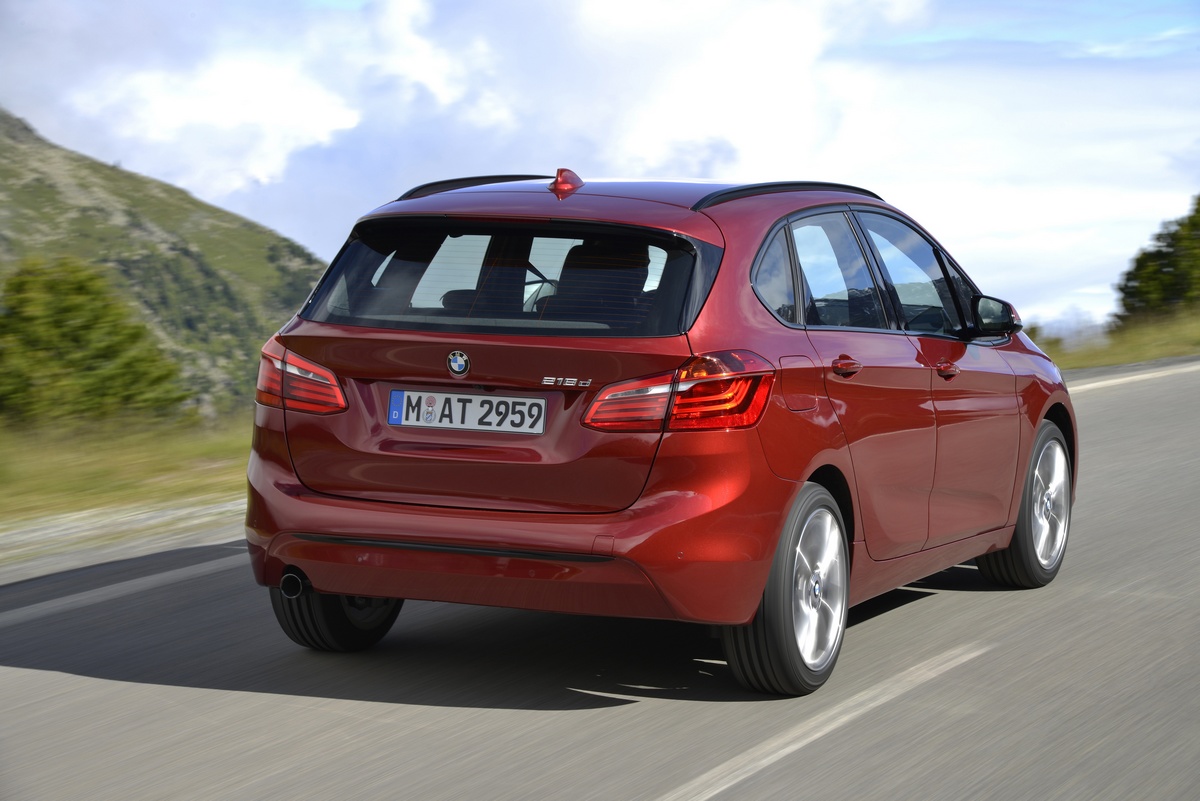

BMW 2 Active Tourer & Gran Tourer
Date of manufacture
7/2014 – 2018 (MPV)
2015 – 2018 (Medium MPV)
Platform
BMW UKL2
Manufacturing locations
Leipzig, Germany
Designer
Michael de Bono
Tags
Mid-size MPV
German cars

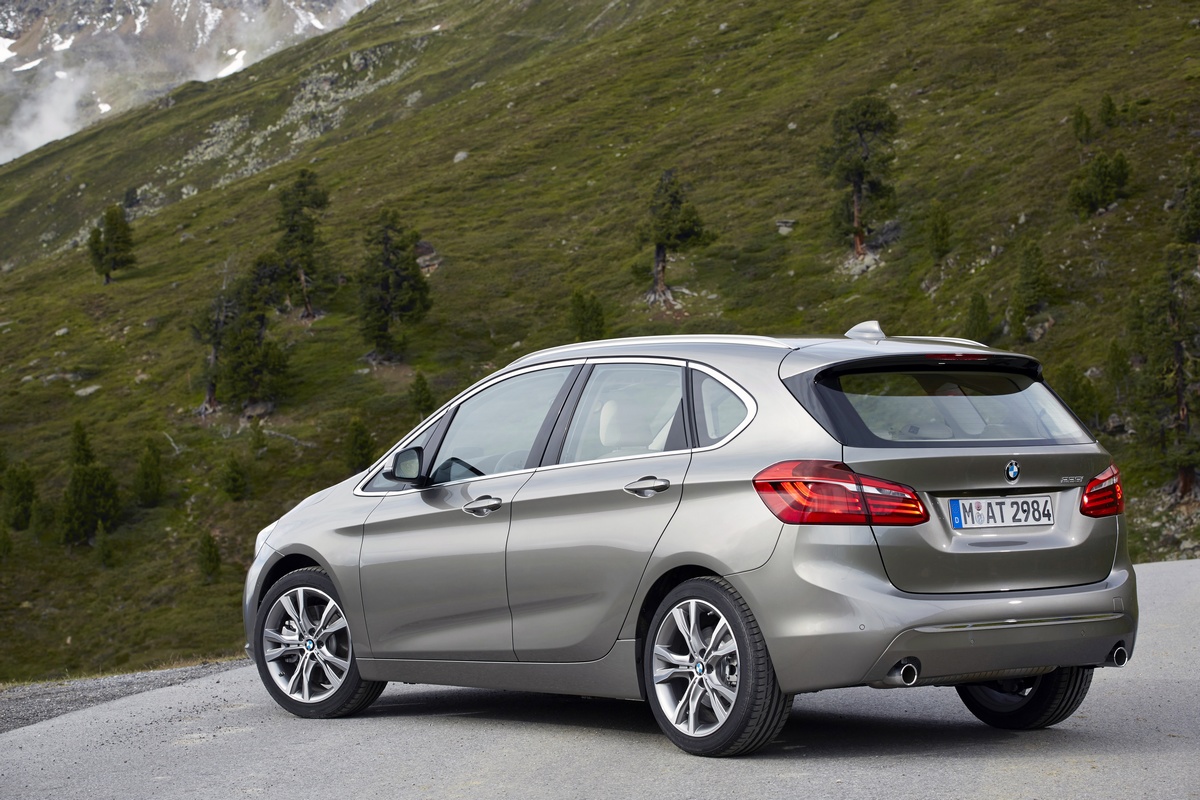

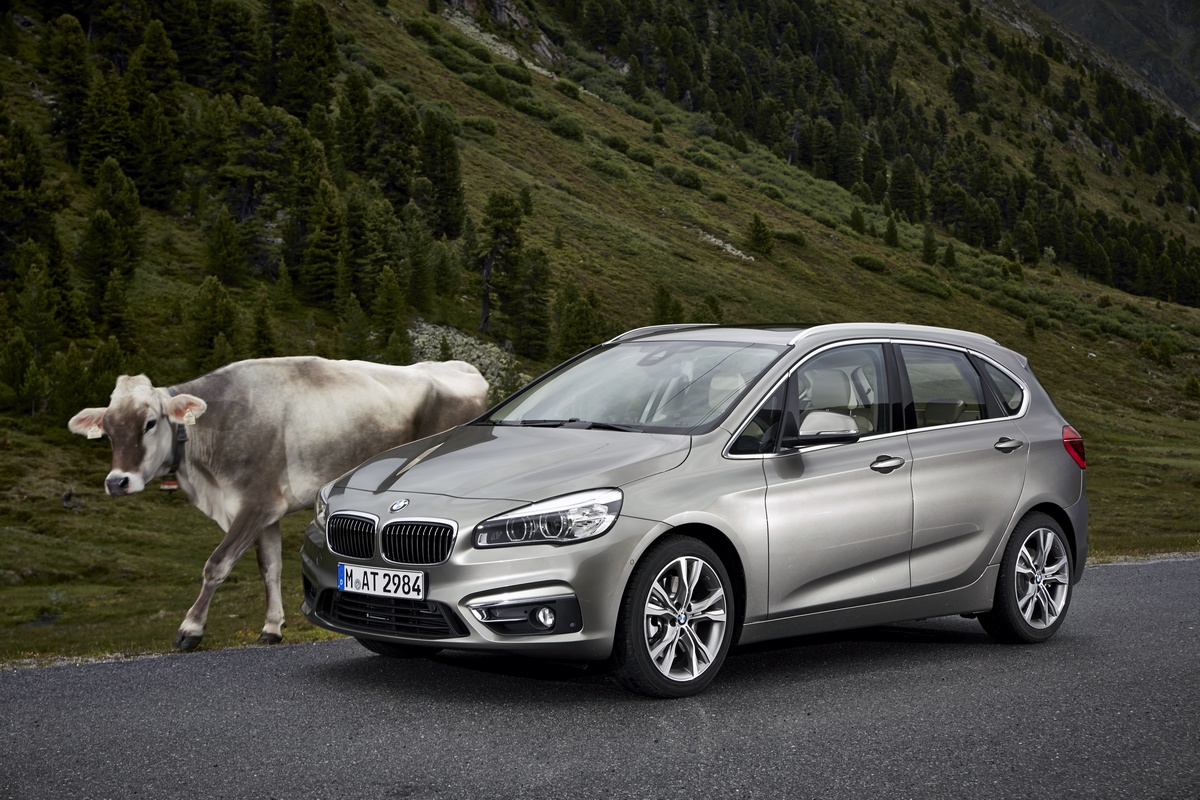

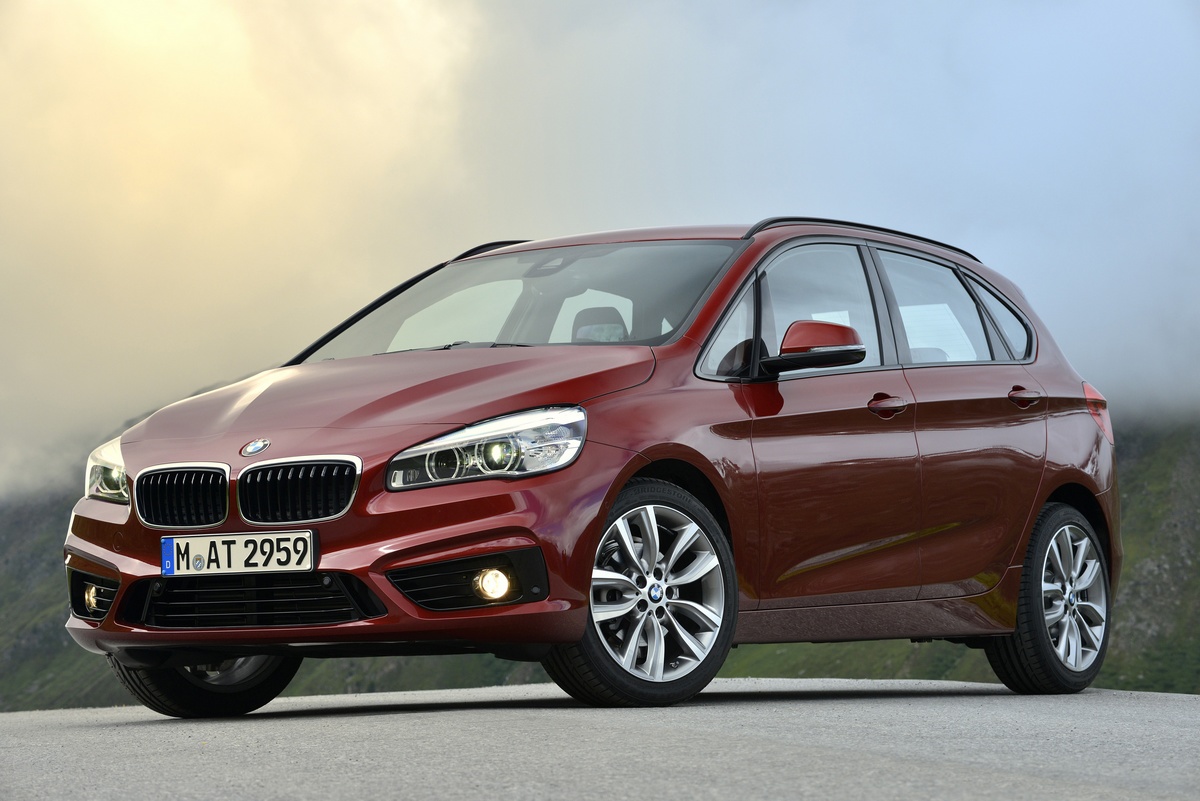

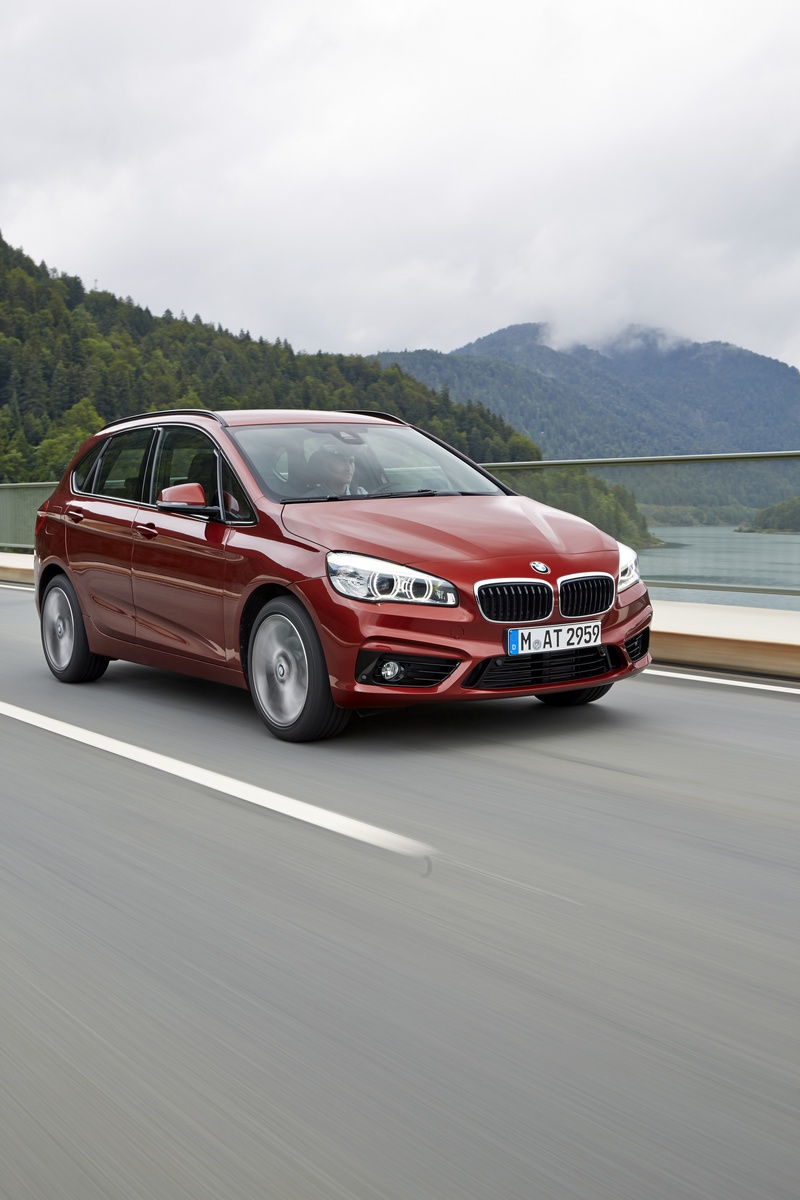

The BMW 2 Active Tourer & Gran Tourer is manufactured as an MPV and mid-size MPV. The vehicle has been produced since 2014. The country of manufacture of the vehicle is Germany. The vehicle is based on the BMW UKL2 platform. The model can also be purchased in a plug-in hybrid version. The power unit range has gasoline, diesel and hybrid engines. The maximum power of the model 225i xDrive is 170 kW. The highest speed is achieved by the BMW 225i version, reaching 238 km/h. The BMW 225xe has the lowest combined consumption of 2.1 l/100 km. CO2 emissions are 46 g/km. The MPV body vehicle offers a luggage compartment size of 468 l. The mid-size MPV body vehicle has a luggage compartment size of 645-805 l. During EURONCAP safety tests, the car received a rating of 5 out of 5. Tested according to the methodology of 2014.
Car body style
MPV (Active Tourer)
Date of manufacture
7/2014 – 2018Internal designation
F45Engine size

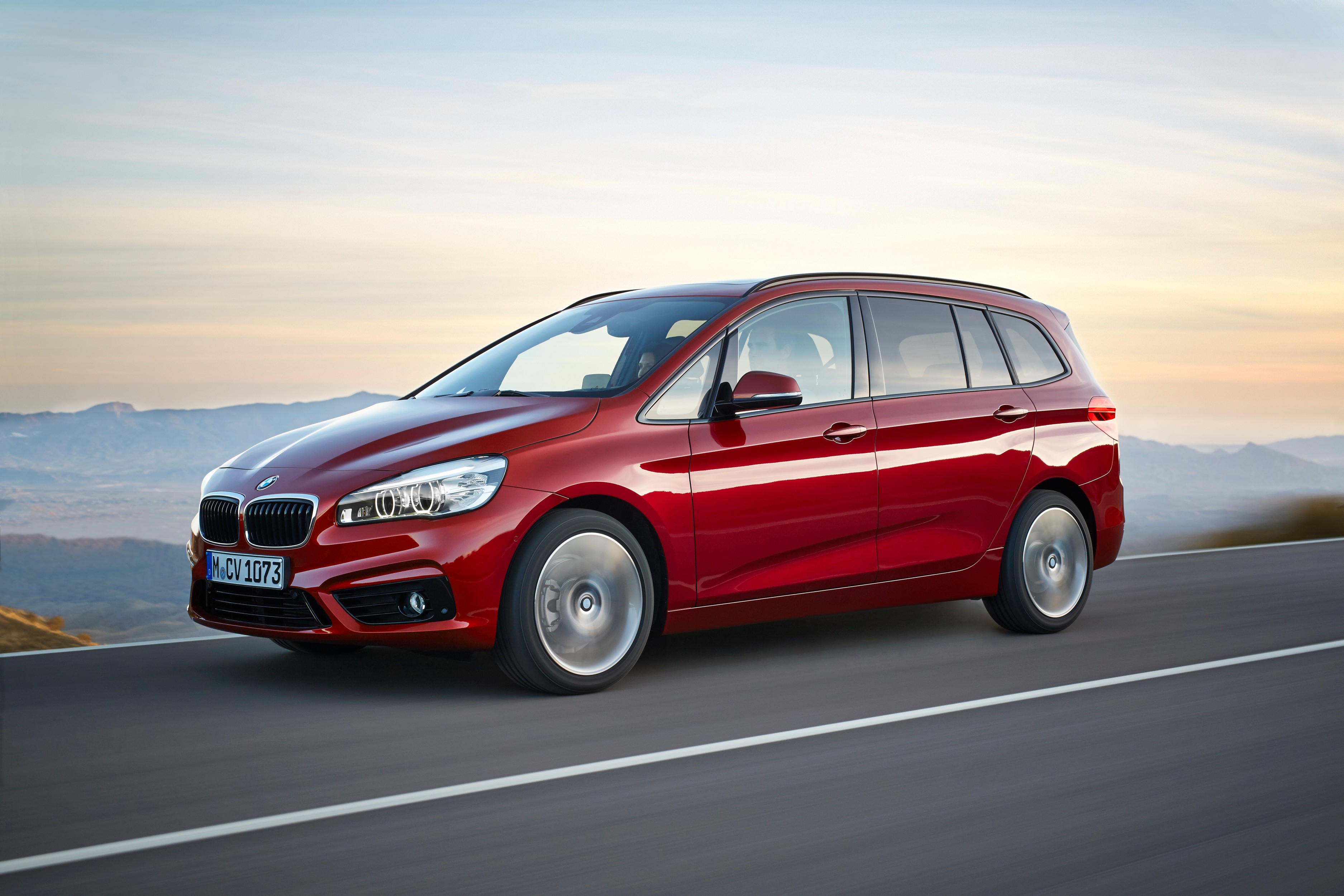

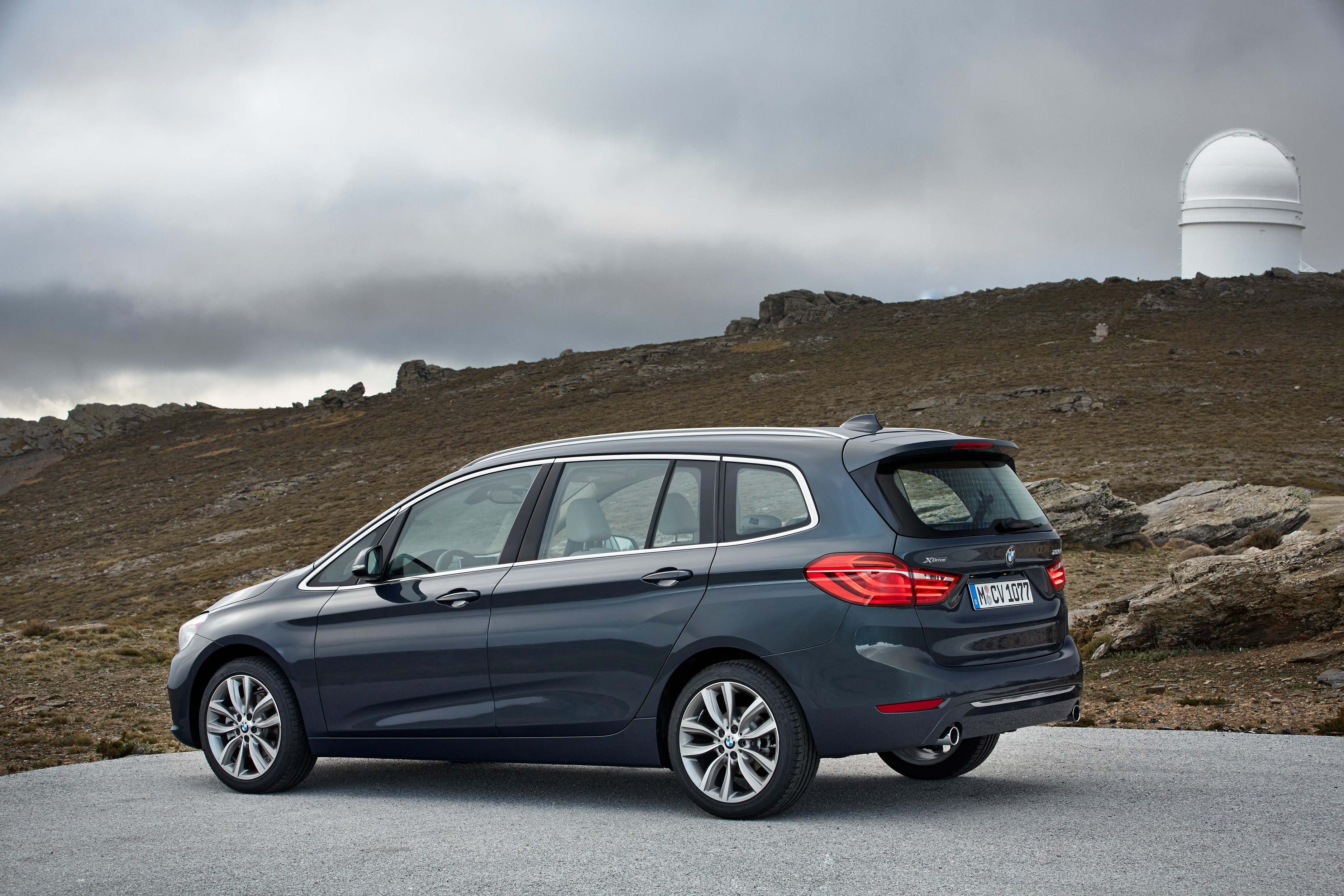

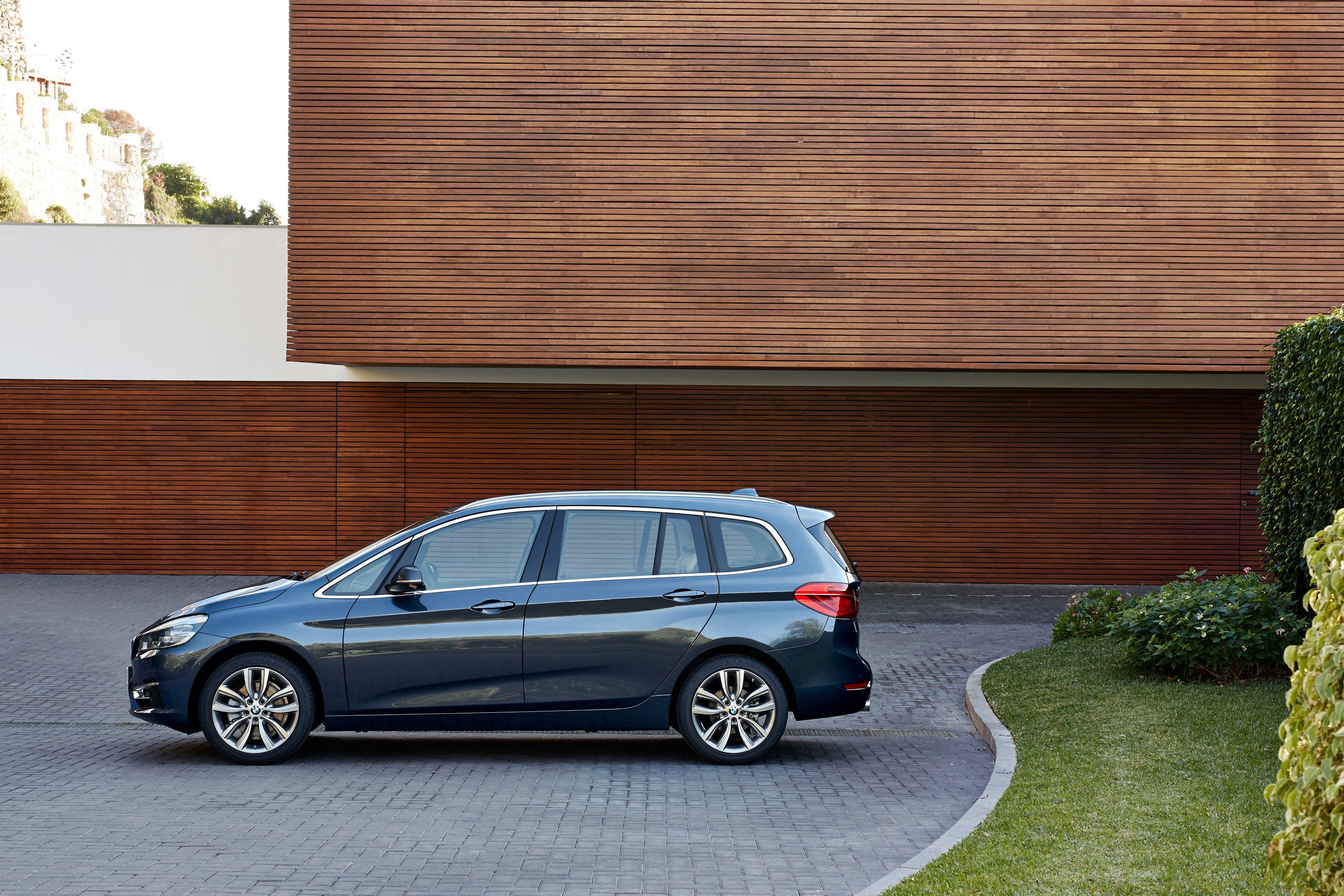

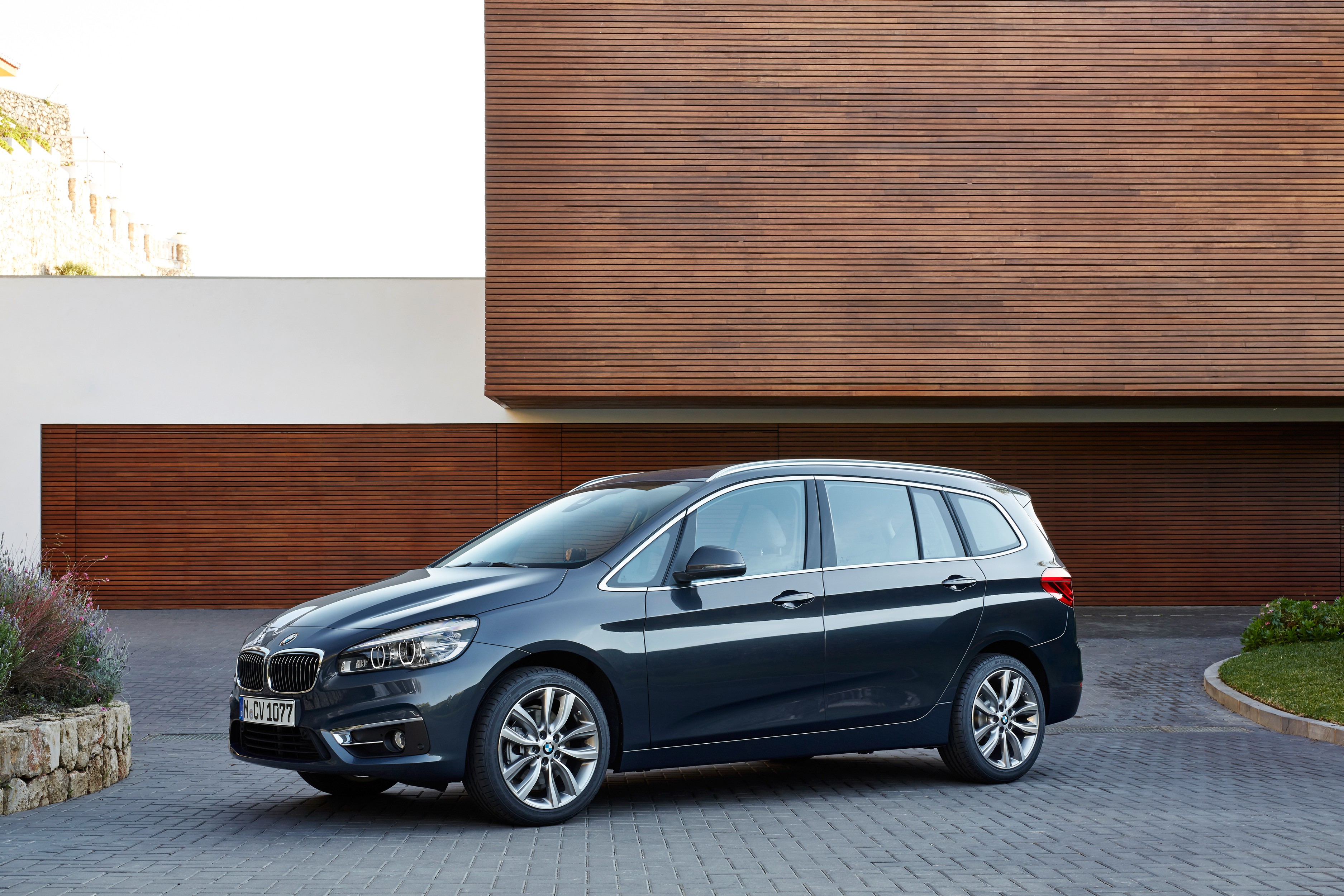

Medium MPV (Gran Tourer )
Date of manufacture
2015 – 2018Internal designation
F46 Engine size
Technical data
MPV (Active Tourer)
| 218i | 218i | 220i | 220i | 225i | 225i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 100/4500-6000 | 100/4500-6000 | 141/4700-6000 | 141/4700-6000 | 170/4750-6000 | 170/4750-6000 |
| Maximum torque [Nm/min-1] | 220/1250 | 220/1250 | 280/1250 | 280/1250 | 350/1250 | 350/1250 |
| Bore and stroke [mm x mm] | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | 4,25 | 4,25 | 5,25 | 5,25 | 5,25 | 5,25 |
| Coolant volume [l] | 6,4 | 6,5 | - | - | 6,8 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 205 | 205 | 230 | 225 | 238 | 235 |
| Acceleration 0–100 km/h [s] | 9.3 | 9.2 | 7.5 | 7.4 | 6.6 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,5-6,1 | 6.5-6.3 | 8,0-7.7 | 7,2-7.0 | 7.6-7,3 | 8,3-8.1 |
| Out of town [l] | 4,6-4,3 | 4.6-4.4 | 5,0-4.8 | 4,9-4.8 | 5.1-4.9 | 5,5-5.4 |
| Combined [l] | 5,3-4.9 | 5.3-5.1 | 6,1-5.9 | 5,8-5.6 | 6.0-5,8 | 6,5-6.4 |
| CO2 emissions [g/km] | 124-115 | 124-119 | 142-137 | 134-130 | 139-135 | 152-148 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1415 | 1445 | 1475 | 1505 | 1505 | 1585 |
| Overall weight [kg] | 1870 | 1910 | 1930 | 1960 | 1970 | 2045 |
| Maximum trailer weight unbraked/braked [kg] | 695/1300 | 695/1300 | 730/1500 | 730/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 970/930 | 1015/930 | 1020/930 | 1055/930 | 1060/930 | 1105/980 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

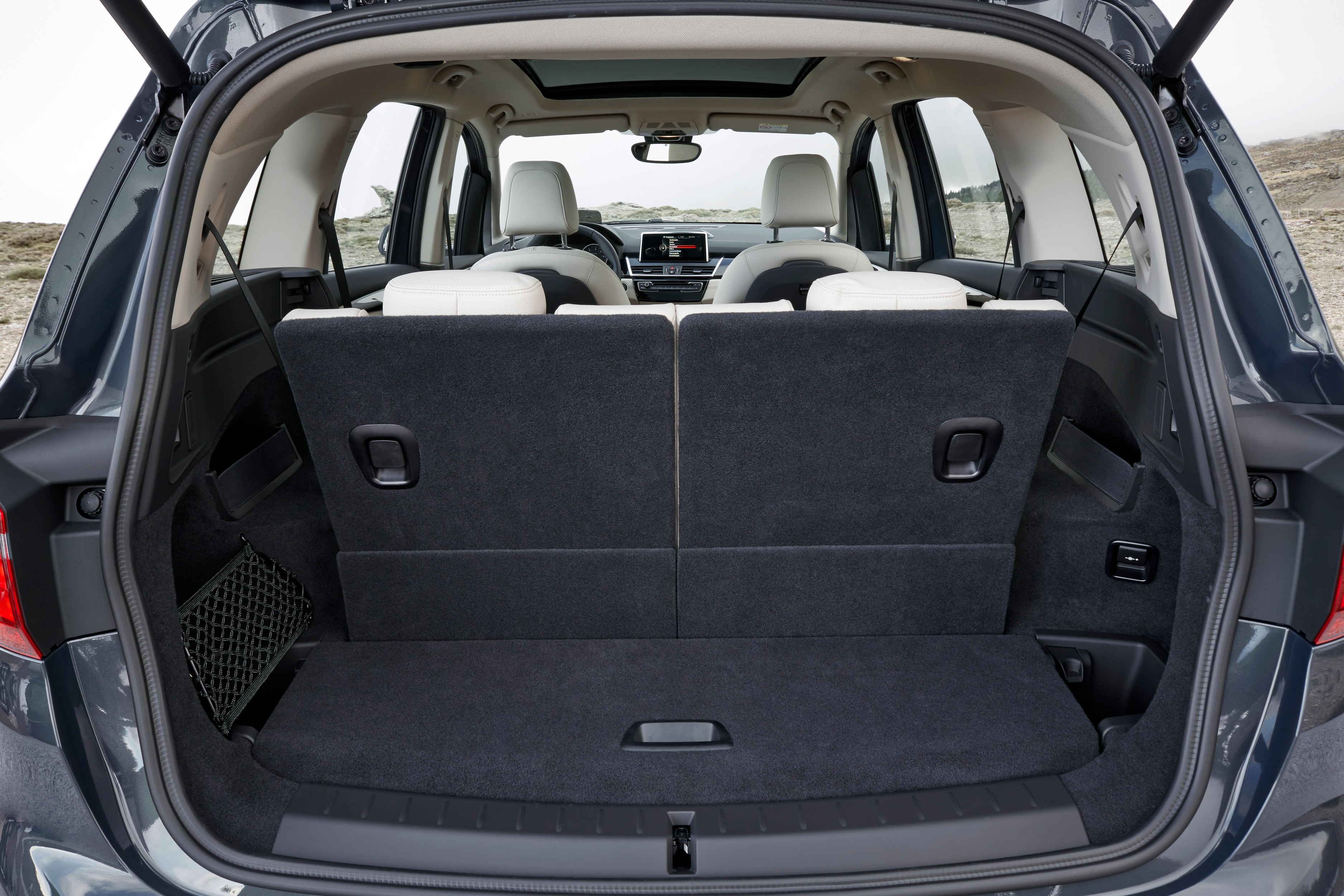

| Boot volume [l] | 468 | 468 | 468 | 468 | 468 | 468 |

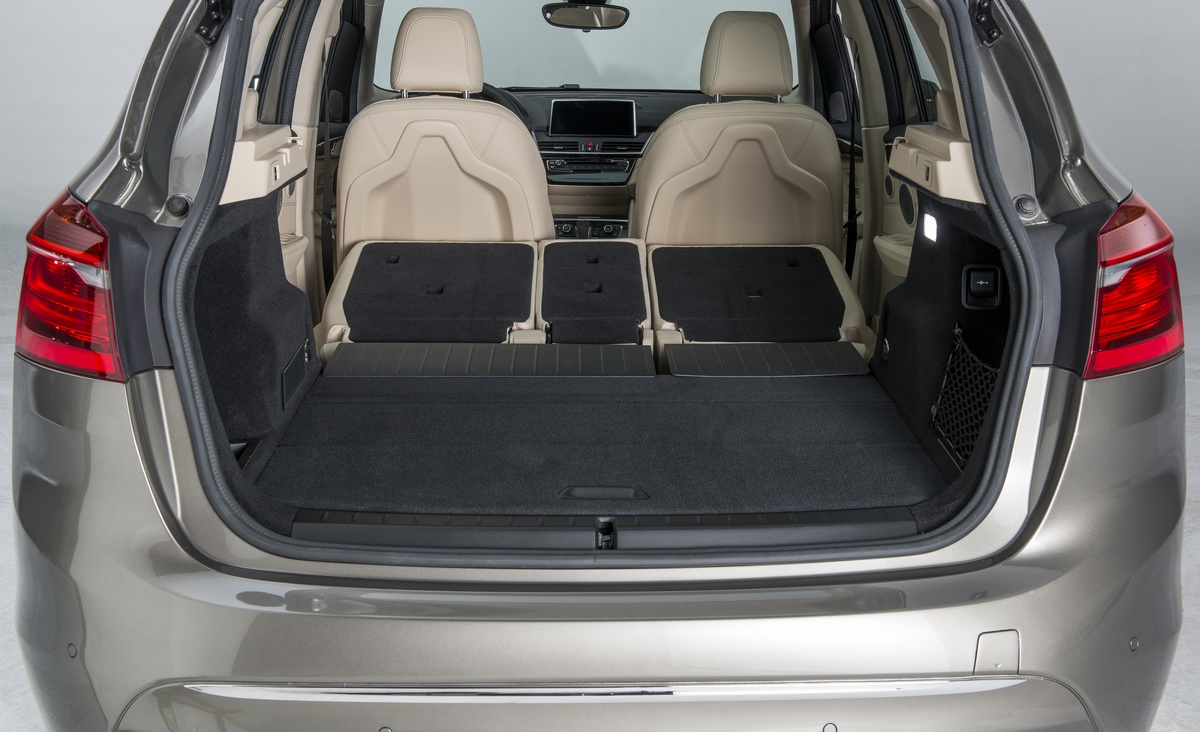

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/55 R17 91W | 205/55 R17 91W |
| Tyre dimensions rear | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/55 R17 91W | 205/55 R17 91W |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4342 | 4342 | 4342 | 4342 | 4342 | 4342 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1557 | 1557 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1558 | 1558 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 824 | 824 | 824 | 824 | 824 | 824 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| BMW 225xe | 214d | 216d | 216d | 218d | 218d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1496 | 1496 | 1496 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 100/4400 65/4000 el. 165 total | 70/4000 | 85/4000 | 85/4000 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 220/162/1250-4300 165/0-3000 el. | 220/1750-2250 | 270/1750 | 270/1750 | 330/1750-2250 | 330/1750-2250 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 11.0:1 | 16.5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 4.25 | 4.4 | 4,4 | 4,4 | 5,0 | 5,0 |
| Coolant volume [l] | - | 6.4 | - | - | 8,1 | 8,2 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 202 [125 el.] | 185 | 195 | 190 | 208 | 210 |
| Acceleration 0–100 km/h [s] | 6.7 | 12.9 | 10.6 | 10.6 | 8.9 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 14.7 | - | - | - | - |
| City [l] | - | 4.6-4.4 | 4,6-4.4 | 4,7-4,4 | 5.1-4.8 | 4.9-4.7 |
| Out of town [l] | - | 3.6-3.4 | 3,6-3.4 | 3,8-3,6 | 3.9-3.7 | 4.0-3.8 |
| Combined [l] | 2.1–2.0 [11.9-11.8 el.] | 3.9-3.8 | 3,9-3.8 | 4,1-3,9 | 4.3-4.1 | 4.3-4.1 |
| CO2 emissions [g/km] | 49-46 | 104-99 | 104-99 | 108-103 | 109-114 | 114-109 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 293 | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 7,6 kWh | - | - | - | - | - |
| Range with fully charged battery [km] | 41 | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1735 | 1425 | 1440 | 1470 | 1450 | 1485 |
| Overall weight [kg] | 2180 | 1895 | 1905 | 1920 | 1920 | 1955 |
| Maximum trailer weight unbraked/braked [kg] | - | 705/1200 | 705/1300 | 705/1300 | 725/1300 | 725/1300 |
| Maximum front/rear axle load [kg] | 1080/1160 | 1000/930 | - | - | 1025/930 | 1060/930 |
| Maximum vertical load on the tow bar [kg] | - | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 400 | 468 | 468 | 468 | 468 | 468 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1350 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 36 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.26 | 0.26 | 0.26 | 0.28 | 0.28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 91W | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V |
| Tyre dimensions rear | 205/55 R17 91W | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V |
| Wheel size front | 7.5J x 17 | 7J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.5J x 17 | 7J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4342 | 4342 | 4342 | 4342 | 4342 | 4342 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1556 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1557 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1558 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 824 | 824 | 824 | 824 | 824 | 824 |
| Clearance [mm] | 167 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 218d xDrive | 218d xDrive | 220d | 220d | 220d xDrive | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | |
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 140/4000 | 140/4000 | 140/4000 | |
| Maximum torque [Nm/min-1] | 330/1750-2250 | 330/1750-2250 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | - | - | 5.0 | 5.0 | 5.0 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | Front | Front | 4x4 | |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
| - |
|
| |
| Top speed [km/h] | 208 | 208 | 227 | 224 | 222 | |
| Acceleration 0–100 km/h [s] | 8.6 | 8.8 | 7.6 | 7.5 | 7.3 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6,0-5,8 | 5,4-5,2 | 5,3-5.2 | 5,0-4.8 | 5,5-5.2 | |
| Out of town [l] | 4,3-4,1 | 4,5-4,3 | 4,1-3.9 | 4,1-4,0 | 4,6-4.3 | |
| Combined [l] | 4,9-4,7 | 4,8-4,6 | 4,5-4.4 | 4,4-4.3 | 4,9-4.6 | |
| CO2 emissions [g/km] | 129-124 | 127-122 | 119-115 | 117-113 | 126-122 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1540 | 160 | 1480 | 1505 | 1585 | |
| Overall weight [kg] | 2010 | 2030 | 1955 | 1975 | 2045 | |
| Maximum trailer weight unbraked/braked [kg] | 725/1600 | 725/1600 | 750/1500 | 750/1500 | 750/1500 | |
| Maximum front/rear axle load [kg] | - | - | 1060/930 | 1080/930 | 1105/980 | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 468 | 468 | 468 | 468 | 468 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.28 | 0.28 | 0.27 | 0.27 | 0.28 | |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | |
| Tyre dimensions rear | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | |
| Overall length [mm] | 4342 | 4342 | 4342 | 4342 | 4342 | |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | |
| Overall height [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | |
| Rear overhang [mm] | 824 | 824 | 824 | 824 | 824 | |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | |
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

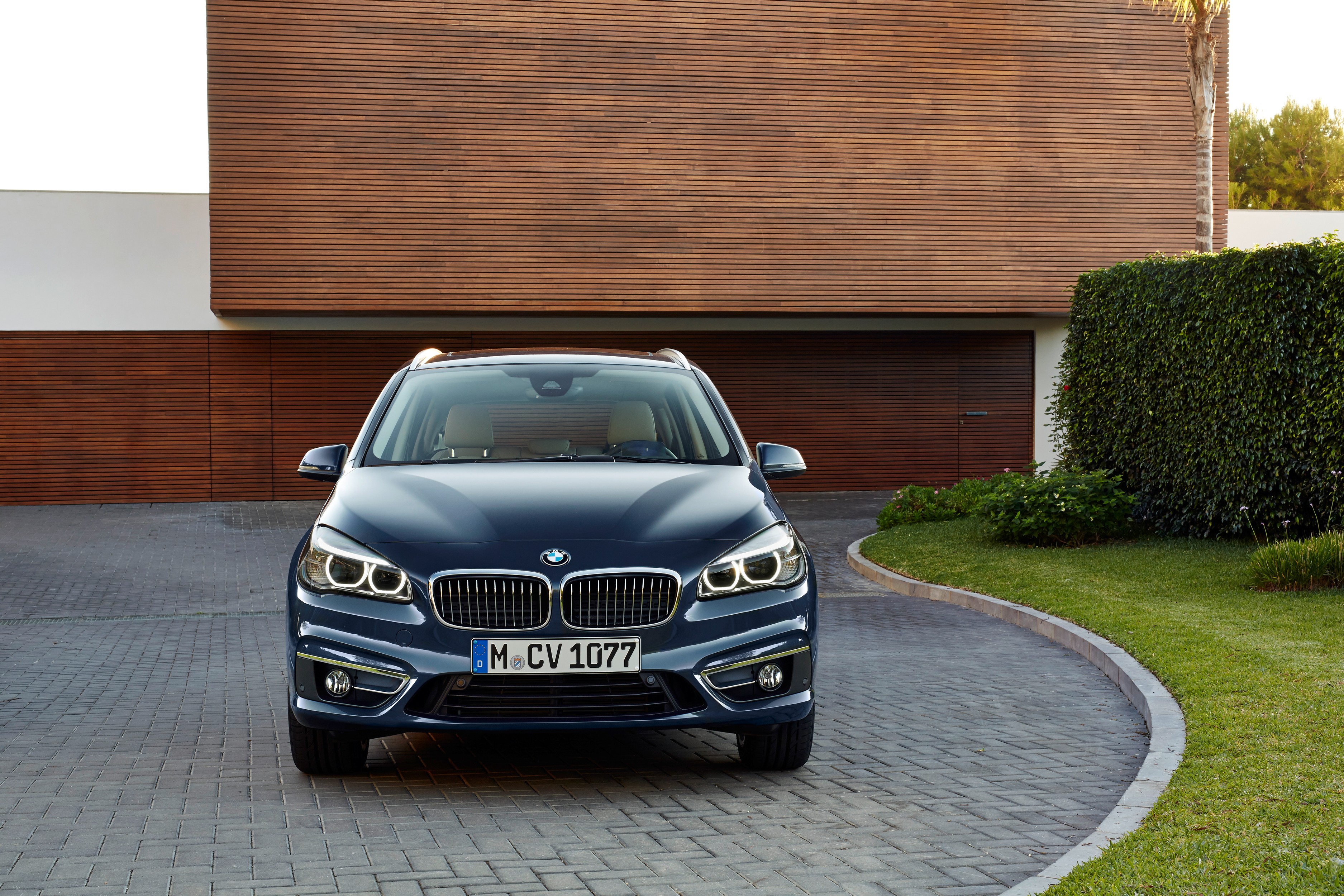

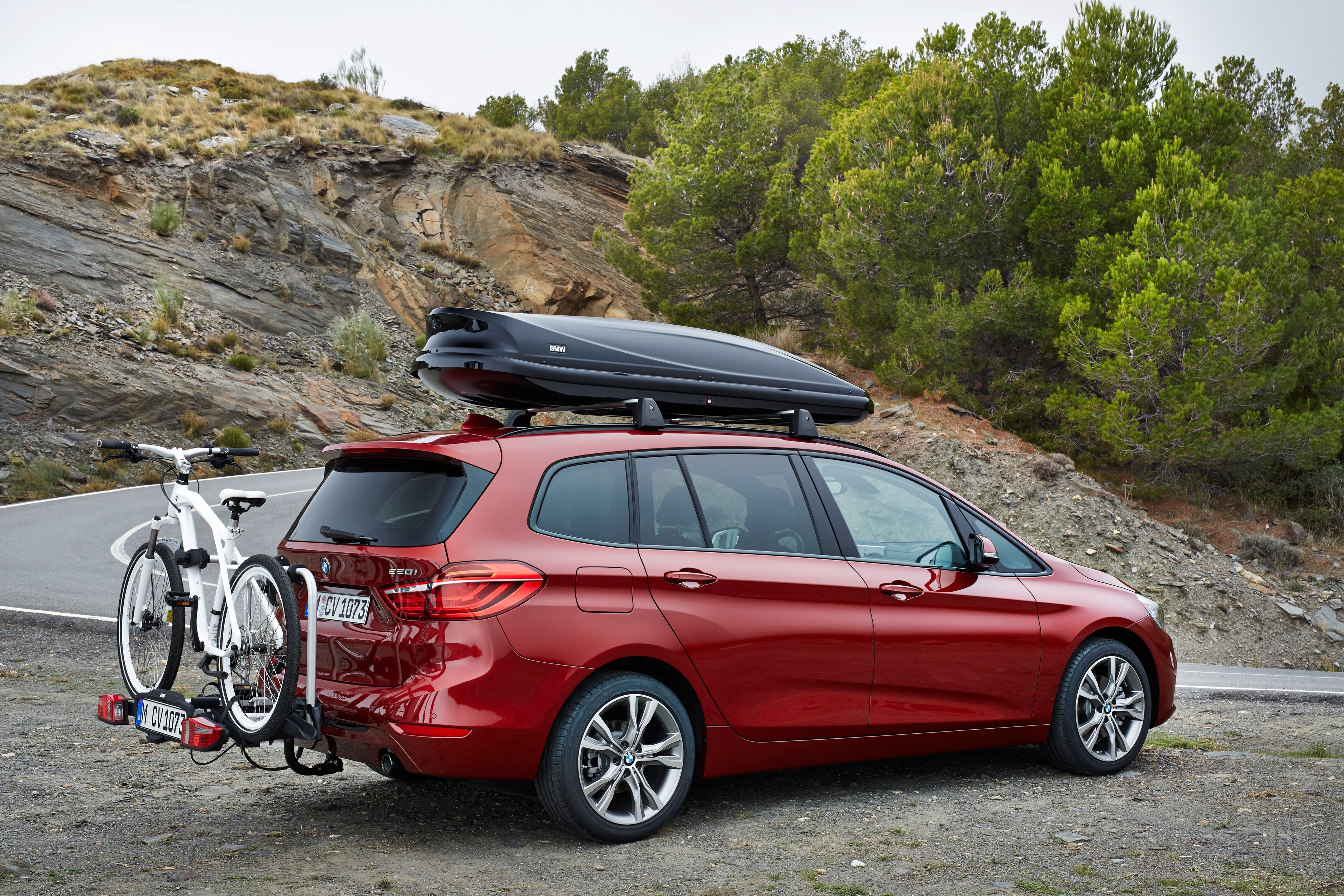

Medium MPV (Gran Tourer )
| 218i | 218i | 220i | 220i | 214d | 216d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1499 | 1499 | 1998 | 1998 | 1496 | 1496 |
| Maximum output / speed [kW/min-1] | 100/4500-6000 | 100/4500-6000 | 141/4700-6000 | 141/4700-6000 | 70/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 220/1250 | 220/1250 | 280/1250 | 280/1250 | 220/1750-2250 | 270/1750 |
| Bore and stroke [mm x mm] | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 4,25 | 4,25 | 5,25 | 5,25 | 4,4 | 4,4 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 205 | 203 | 223 | 222 | 180 | 192 |
| Acceleration 0–100 km/h [s] | 9,5 | 9,5 | 7,7 | 7,6 | 13,5 | 11,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 11,1 | - | 8,9 | - | 15,7 | 12,1 |
| City [l] | 6,6-6,3 | 6,7-6,4 | 8,1-7,9 | 7,5-7,3 | 4,7-4,5 | 4,7-4,5 |
| Out of town [l] | 4,7-4,4 | 4,8-4,6 | 5,4-5,2 | 5,3-5,1 | 3,8-3,6 | 3,8-3,6 |
| Combined [l] | 5,4-5,1 | 5,5-5,2 | 6,4-6,2 | 6,1-5,9 | 4,1-3,9 | 4,1-3,9 |
| CO2 emissions [g/km] | 125-119 | 128-122 | 149-144 | 142-137 | 109-104 | 109-104 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1470 | 1500 | 1530 | 1570 | 1495 | 1495 |
| Overall weight [kg] | 2040 | 2065 | 2100 | 2130 | 2060 | 2070 |
| Maximum trailer weight unbraked/braked [kg] | 735/1500 | 735/1500 | 750/1500 | 750/1500 | 750/1400 | 750/1500 |
| Maximum front/rear axle load [kg] | 1015/1040/ | 1045/1040 | 1060/1050 | 1090/1050 | 1025/1045 | 1030/1045 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 645-805 | 645-805 | 645-805 | 645-805 | 645-805 | 645-805 |

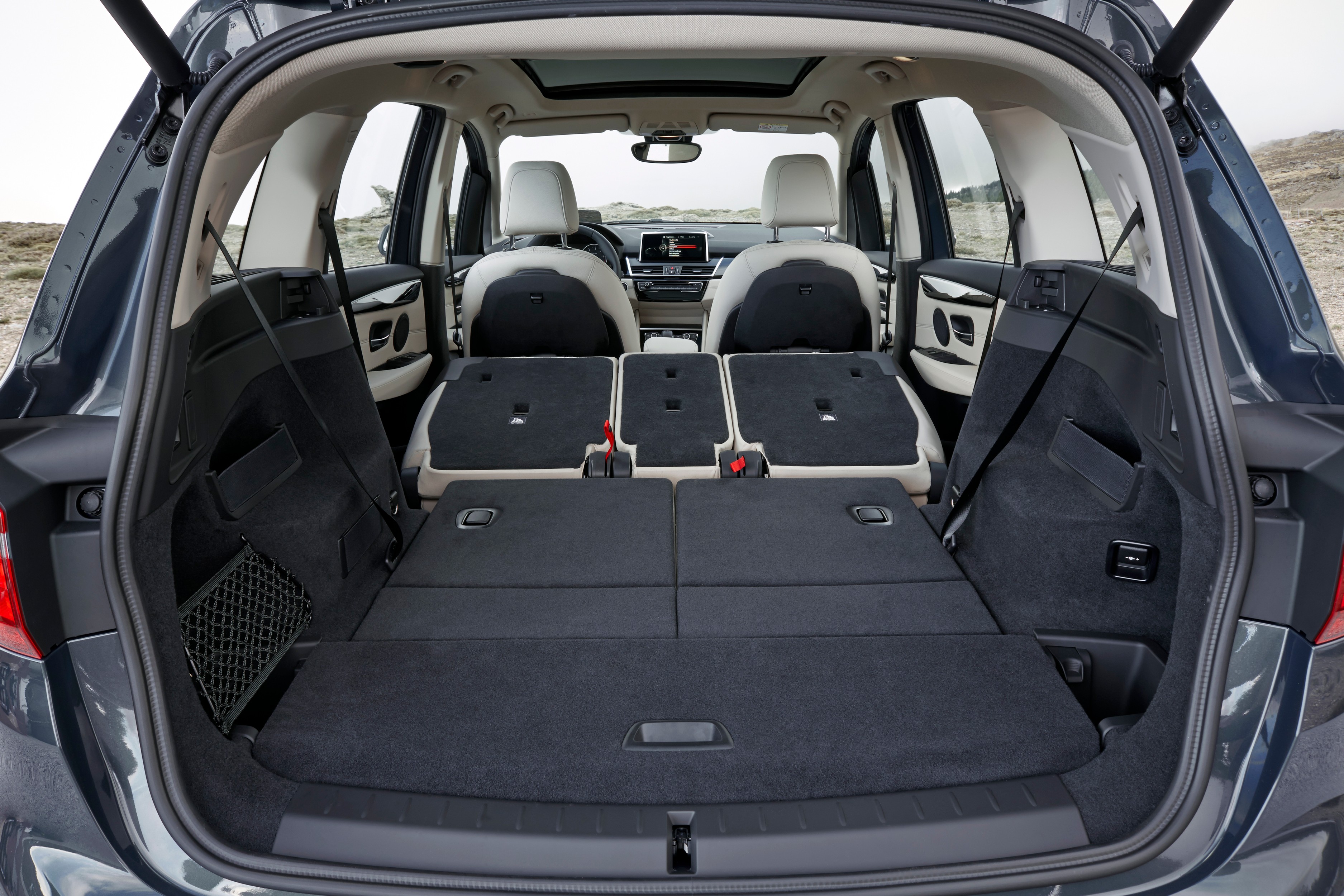

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] |
| Fuel tank volume [l] | 51 | 51 | 61 | 61 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,28 | 0,28 | 0,31 | 0,31 | 0,28 | 0,28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92V | 205/60 R16 92V | 205/55 R17 91W | 205/55 R17 91W | 205/60 R16 92V | 205/60 R16 92V |
| Tyre dimensions rear | 205/60 R16 92V | 205/60 R16 92V | 205/55 R17 91W | 205/55 R17 91W | 205/60 R16 92V | 205/60 R16 92V |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,5J x 17 | 7,5J x 17 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,5J x 17 | 7,5J x 17 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11.7/- |
| Overall length [mm] | 4556 | 4556 | 4556 | 4556 | 4556 | 4556 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2780 | 2780 | 2780 | 2780 | 2780 | 2780 |
| Front wheel track [mm] | 1561 | 1561 | 1557 | 1557 | 1561 | 1561 |
| Rear wheel track [mm] | 1562 | 1562 | 1558 | 1558 | 1562 | 1562 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Third row elbow/shoulder width [mm] | 1190/- | 1190/- | 1190/- | 1190/- | 1190/- | 1190/- |
| 216d | 218d | 218d | 218d xDrive | 218d xDrive | 220d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1496 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 85/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 270/1750 | 330/1750-2250 | 330/1750-2250 | 330/1750-2250 | 330/1750-2250 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 4,4 | 5,0 | 5,0 | 5.0 | 5.0 | 5,0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 192 | 205 | 207 | 205 | 205 | 222 |
| Acceleration 0–100 km/h [s] | 10,9 | 9,3 | 9,3 | 8.9 | 9.1 | 7,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 9,8 | - | 9.2 | - | 7,3 |
| City [l] | 4,7-4,5 | 5,3-5,1 | 5,1-4,9 | 6,2-6,0 | 5,5-5,3 | 5,5-5,3 |
| Out of town [l] | 4,0-3,8 | 4,1-3,9 | 4,2-4,0 | 4,4-4,2 | 4,6-4,4 | 4,3-4,1 |
| Combined [l] | 4,3-4,0 | 4,5-4,3 | 4,5-4,3 | 5,2-4,9 | 5,1-4,7 | 4,7-4,5 |
| CO2 emissions [g/km] | 112-106119 | -114 | 119-114 | 136-128 | 133-124 | 124-119 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1525 | 1555 | 1605 | 1615 | 1550 |
| Overall weight [kg] | 2090 | 2090 | 2120 | 2175 | 2195 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1600 | 750/1600 | 750/1500 |
| Maximum front/rear axle load [kg] | 1060/1045 | 1060/1045 | 1090/1045 | 1100/1085 | 1120/1085 | 1080/1055 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 645-805 | 645-805 | 645-805 | 645-805 | 645-805 | 645-805 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 71 | 5 |
| Number of seats | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,28 | 0,28 | 0,28 | 0.29 | 0.29 | 0,30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/55 R17 91W |
| Tyre dimensions rear | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/55 R17 91W |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7J x 16 | 7J x 16 | 7,5J x 17 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7J x 16 | 7J x 16 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11,7/- |
| Overall length [mm] | 4556 | 4556 | 4556 | 4556 | 4556 | 4556 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2780 | 2780 | 2780 | 2780 | 2780 | 2780 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1557 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1558 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Third row elbow/shoulder width [mm] | 1190/- | 1190/- | 1190/- | 1190/- | 1190/- | 1190/- |
| 220d | 220d xDrive | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | ||||
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | 5,0 | 5,0 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 220 | 218 | ||||
| Acceleration 0–100 km/h [s] | 7,8 | 7,6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5,2-5,0 | 5,7-5,5 | ||||
| Out of town [l] | 4,3-4,1 | 4,7-4,5 | ||||
| Combined [l] | 4,6-4,4 | 5,1-4,9 | ||||
| CO2 emissions [g/km] | 122-117 | 133-128 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1570 | 1640 | ||||
| Overall weight [kg] | 2140 | 2210 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1600 | ||||
| Maximum front/rear axle load [kg] | 1100/1055 | 1130/1110 | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 645-805 | 645-805 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1905 [1820 seven seats] | -/1905 [1820 seven seats] | ||||
| Boot volume, third row of seats [l] | - | - | ||||
| Boot volume, third row seats folded [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 [7 subject to a surcharge] | 5 [7 subject to a surcharge] | ||||
| Fuel tank volume [l] | 51 | 61 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0,30 | 0,31 | ||||
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 205/55 R17 91W | 205/55 R17 91W | ||||
| Tyre dimensions rear | 205/55 R17 91W | 205/55 R17 91W | ||||
| Wheel size front | 7,5J x 17 | 5J x 17 | ||||
| Wheel size rear | 7,5J x 17 | 5J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electric power steering EPS | Electric power steering EPS | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11,7/- | 11.7/- | ||||
| Overall length [mm] | 4556 | 4556 | ||||
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | ||||
| Overall height [mm] | 1608 | 1608 | ||||
| Wheelbase [mm] | 2780 | 2780 | ||||
| Front wheel track [mm] | 1557 | 1557 | ||||
| Rear wheel track [mm] | 1558 | 1558 | ||||
| Forward overhang [mm] | 848 | 848 | ||||
| Rear overhang [mm] | 928 | 928 | ||||
| Clearance [mm] | 165 | 165 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1078 | 1078 | ||||
| Headroom rear [mm] | 1003 | 1003 | ||||
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | ||||
| Rear elbow/shoulder width [mm] | 1471/- | 1471/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - | ||||
| Third row of seats, headroom [mm] | 900 | 900 | ||||
| Third row elbow/shoulder width [mm] | 1190/- | 1190/- |

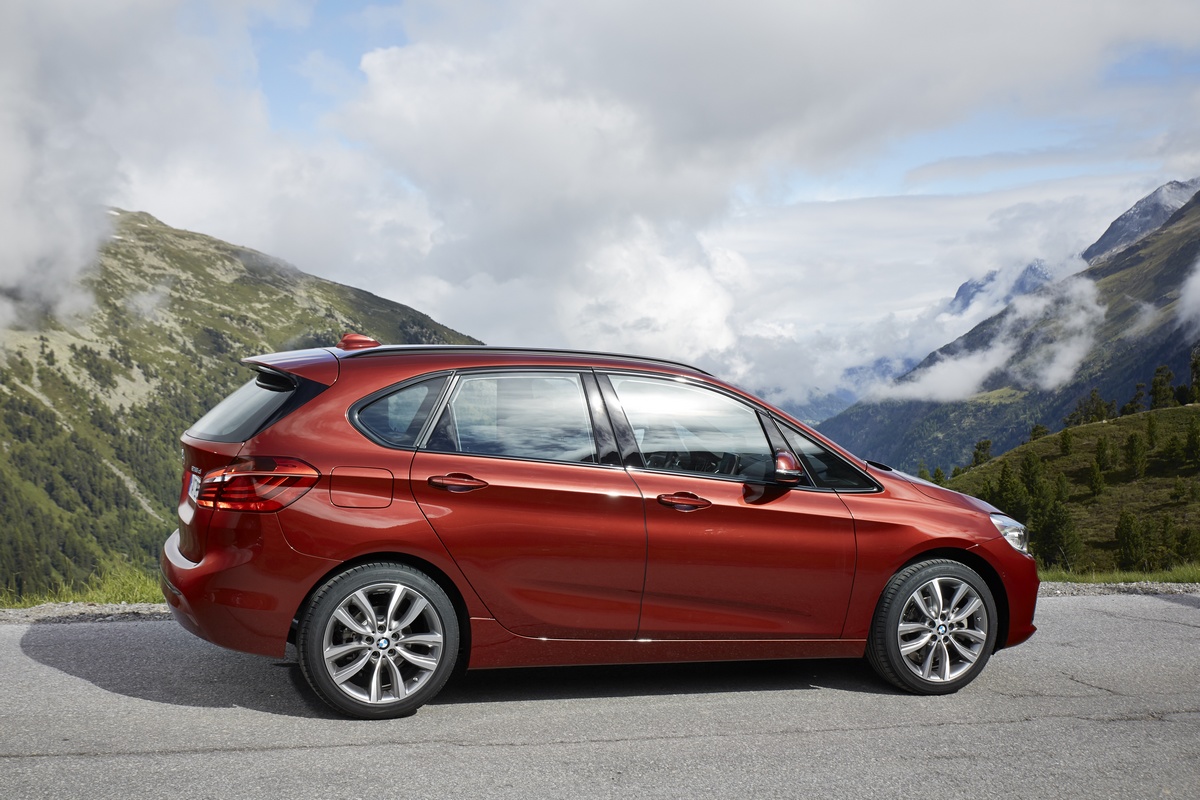

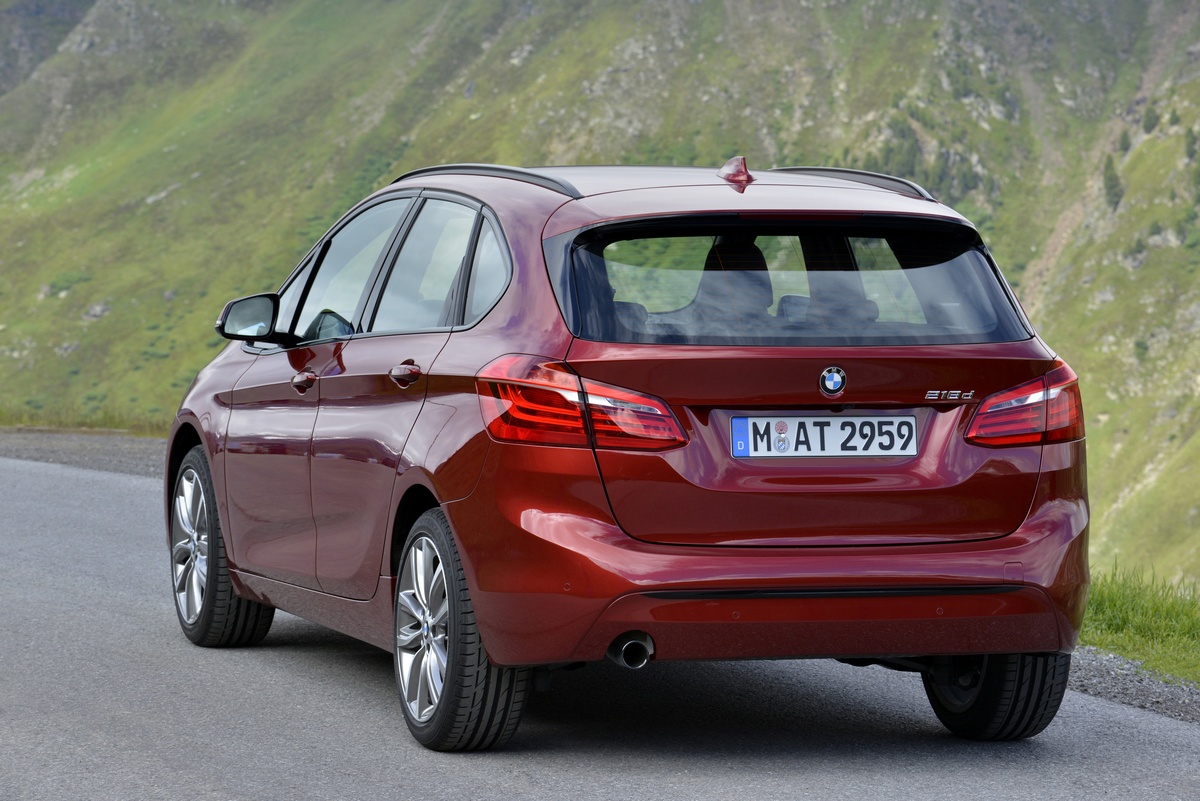

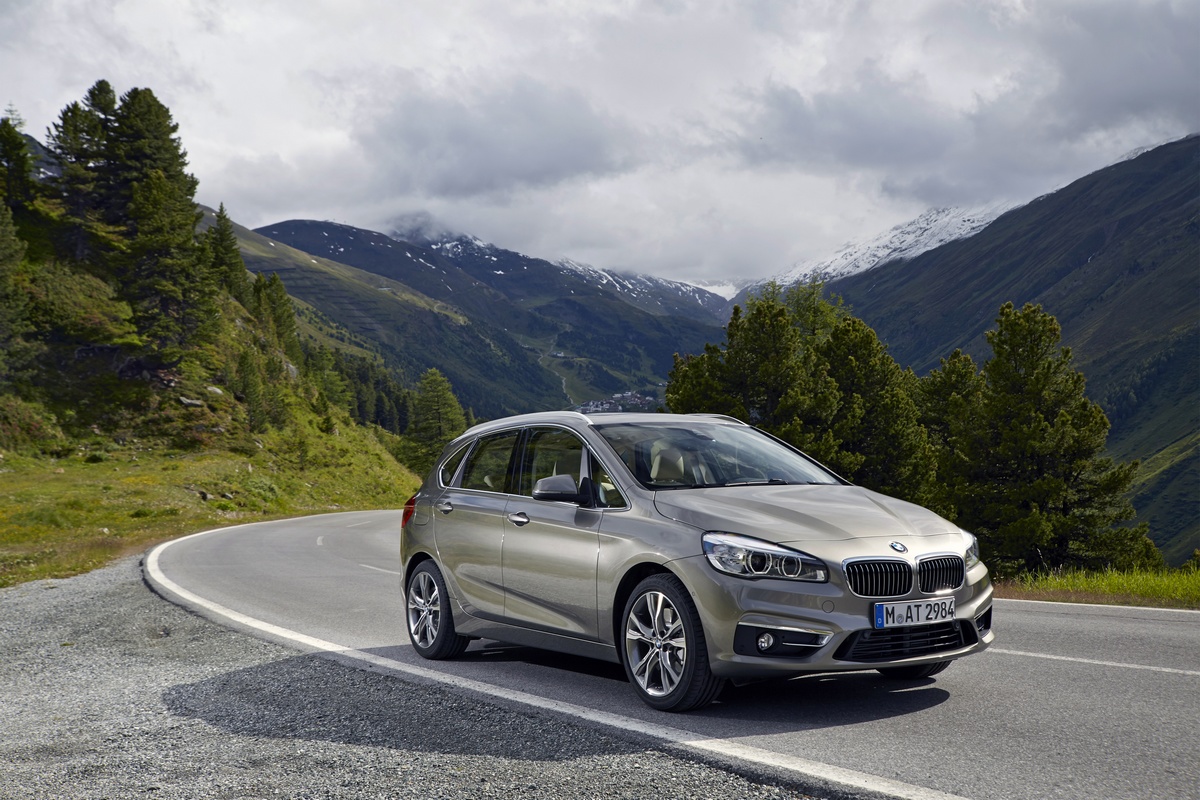

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
