BMW 2 Active Tourer & Gran Tourer
Date of manufacture
2018 – to this day (MPV)
2018 – to this day (Medium SUV)
Platform
BMW UKL2
Manufacturing locations
Leipzig, Germany
Designer
Michael de Bono
Tags
Mid-size MPV
German cars

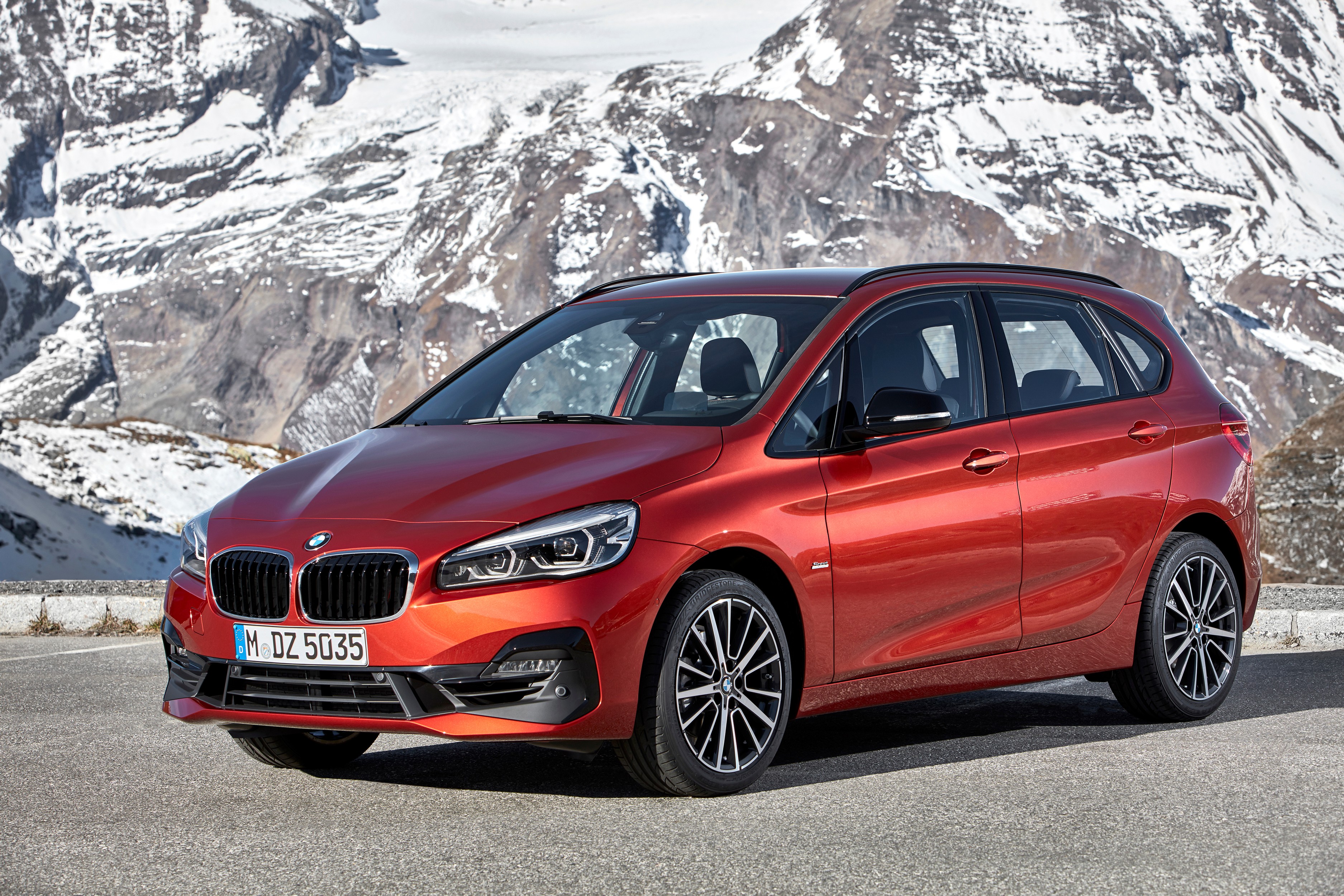

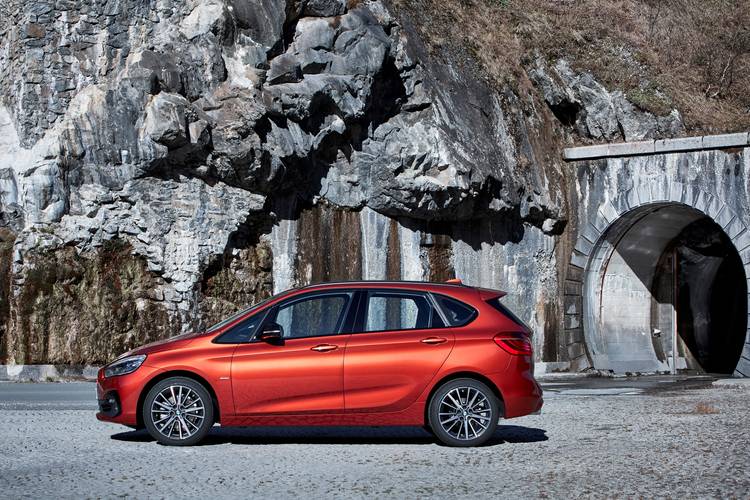

BMW 2 Active Tourer & Gran Tourer is a new car that was developed and started production in 2018. This MPV or mid-SUV body model is built on the BMW UKL2 platform and can be powered by petrol, diesel or hybrid engines. The highest performance is offered by the 225i xDrive (170 kW) with a maximum speed of 235 km/h. The most efficient variant is the 225xe with a combined consumption of 1.5 l/100 km and CO2 emissions of 41 g/km. The MPV body model offers a luggage capacity of 468 l, while the SUV model offers 560 l. In terms of safety, this car earned a 5 out of 5 rating from EURONCAP in 2014.
Car body style
MPV (Active Tourer )
after upgrade (facelift)
Date of manufacture
2018 – to this dayInternal designation
F45Engine size
Medium SUV (Gran Tourer )
after upgrade (facelift)
Date of manufacture
2018 – to this dayInternal designation
F46
Technical data
MPV (Active Tourer )
| 216i | 218i | 218i | 220i | 225i xDrive | 225xe | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 3/12 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1998 | 1998 | 1499 |
| Maximum output / speed [kW/min-1] | 80/4300-6500 | 103/4500-6500 | 103/4500-6500 | 141/5000-6000 | 170/5000-6000 | 92/5000-5500 70 el. 162 total |
| Maximum torque [Nm/min-1] | 190/1380 -3800 | 220/1480-4200 | 220/1480-4200 | 280/1350-4600 | 350/258/1350-4500 | 220/1500-3800 165/0-3000 el. |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 10.2:1 | 11.0:1 |
| Oil volume [l] | 4.25 | 4.25 | 4.25 | 5.25 | 5.25 | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 8 gear automatic | 6 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 190 | 205 | 205 | 229 | 235 | 202 [135 el.] |
| Acceleration 0–100 km/h [s] | 11.3 | 9.3 | 9.3 | 7.4 | 6.3 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0 | 7.3 | 7.1 | 6.9 | 7.9-7.6 | - |
| Out of town [l] | 5.0 | 4.9 | 5.0 | 5.3 | 5.6-5.2 | - |
| Combined [l] | 5.8 | 5.8 | 5.8 | 5.8 | 6.4-6.1 | 1,5 [13,5 kWh] |
| CO2 emissions [g/km] | 132 | 132 | 132 | 133 | 147-139 | 41 |
| Emission standard | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6 | EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 293 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 8.8 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 52-55 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1425 | 1430/1460 | 1430/1460 | 1480 | 1595 | 1735 |
| Overall weight [kg] | 1910 | 1935 | 1945 | 1970 | 2090 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 695/1100 | 695/1300 | 695/1300 | 730/1500 | 750/1600 | - |
| Maximum front/rear axle load [kg] | 985/ 970 | 990/970 | 1020/965 | 1045/ 965 | 1090/1035 | 1080/1160 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 468 | 468 | 468 | 468 | 468 | 400 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1350 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 4 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 36 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.28 | 0.28 | 0.28 | 0.31 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/55 R17 95 W | 205/55 R17 95W XL |
| Tyre dimensions rear | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/55 R17 95 W | 205/55 R17 95W XL |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7,5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7,5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4354 | 4354 | 4354 | 4354 | 4354 | 4354 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1556 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1557 | 1561 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1558 | 1562 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 824 | 824 | 824 | 824 | 824 | 824 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 167 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Headroom rear [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 225xe | 216d | 216d | 218d | 218d | 218d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1496 | 1496 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 100/4400 65/4000 el. 165 total | 85/4000 | 85/4000 | 110/4000 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 220/162/1250-4300 165/0-3000 el. | 270/1750 -2250 | 270/1750 -2250 | 350/1750 -2500 | 350/1750 -2500 | 350/1750 -2500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11.0:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 4.25 | 4.8 | 4.8 | 5.5 | 5.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 202 [125 el.] | 195 | 194 | 210 | 210 | 209 |
| Acceleration 0–100 km/h [s] | 6.7 | 11.1 | 11.1 | 9.0 | 9.1 | 8.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 4.9 | 4.6 | 5.2 | 5.2 | 6.0 |
| Out of town [l] | - | 3.9 | 4.1 | 4.1 | 4.1 | 4.5 |
| Combined [l] | 2,5-2,3 [13.7-13.4 kWh] | 4.3 | 4.3 | 4.5 | 4.5 | 5.1 |
| CO2 emissions [g/km] | 57-52 | 112 | 113 | 119 | 119 | 133 |
| Emission standard | EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 293 | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 7,6 kWh | - | - | - | - | - |
| Range with fully charged battery [km] | 41 | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1735 | 1495 | 1505 | 1520 | 1555 | 1595 |
| Overall weight [kg] | 2180 | 1965 | 1975 | 2010 | 2040 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | - | 705/1300 | 705/1300 | 725/1300 | 725/1300 | 750/1600 |
| Maximum front/rear axle load [kg] | 1080/ 1160 | 1030/1005 | 1050/1000 | 1055/995 | 1090/ 995 | 1090/1040 |
| Maximum vertical load on the tow bar [kg] | - | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 400 | 468 | 468 | 468 | 468 | 468 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1350 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 36 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | 12,5 | 12,5 | 12,5 | 12,5 | 12,5 |
| Air resistance [Cd] | 0.29 | 0.27 | 0.27 | 0.27 | 0.27 | 0.28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 95V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL |
| Tyre dimensions rear | 205/55 R17 95V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL |
| Wheel size front | 7.5J x 17 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7.5J x 17 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4354 | 4354 | 4354 | 4354 | 4354 | 4354 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1556 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 824 | 824 | 824 | 824 | 824 | 824 |
| Clearance [mm] | 167 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Headroom rear [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 218d xDrive | 220d | 220d xDrive | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | |||
| Maximum output / speed [kW/min-1] | 110/4000 | 140/4000 | 140/4000 | |||
| Maximum torque [Nm/min-1] | 350/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 | |||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | |||
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | |||
| Oil volume [l] | 5.5 | 5.5 | 5.5 | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | Front | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 209 | 224 | 222 | |||
| Acceleration 0–100 km/h [s] | 9.0 | 7.6 | 7.5 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.3 | 5.0 | 5.4 | |||
| Out of town [l] | 4.4 | 4.1 | 4.3 | |||
| Combined [l] | 4.7 | 4.4 | 4.7 | |||
| CO2 emissions [g/km] | 124 | 117 | 124 | |||
| Emission standard | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1615 | 1545 | 1615 | |||
| Overall weight [kg] | 2100 | 2045 | 2105 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 735/1500 | 750/1600 | |||
| Maximum front/rear axle load [kg] | 1110/1035 | 1090/ 995 | 1110/ 1035 | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 468 | 468 | 468 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 51 | 51 | 51 | |||
| AdBlue tank volume [l] | 12,5 | 12,5 | 12,5 | |||
| Air resistance [Cd] | 0.28 | 0.27 | 0.28 | |||
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | |||
| Tyre dimensions rear | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | |||
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | |||
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | |||
| Overall length [mm] | 4354 | 4354 | 4354 | |||
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | |||
| Overall height [mm] | 1555 | 1555 | 1555 | |||
| Wheelbase [mm] | 2670 | 2670 | 2670 | |||
| Front wheel track [mm] | 1561 | 1561 | 1561 | |||
| Rear wheel track [mm] | 1562 | 1562 | 1562 | |||
| Forward overhang [mm] | 860 | 860 | 860 | |||
| Rear overhang [mm] | 824 | 824 | 824 | |||
| Clearance [mm] | 165 | 165 | 165 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1040 | 1040 | 1040 | |||
| Headroom rear [mm] | 983 | 983 | 983 | |||
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | |||
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Medium SUV (Gran Tourer )
| 216i | 216i 7 seats | 218i | 218i 7 seats | 218i | 218i 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 80/4300-6500 | 80/4300-6500 | 103/4500-6500 | 103/4500-6500 | 103/4500-6500 | 103/4500-6500 |
| Maximum torque [Nm/min-1] | 190/1380 -3800 | 190/1380 -3800 | 220/1480-4200 | 220/1480-4200 | 220/1480-4200 | 220/1480-4200 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 188 | 188 | 205 | 205 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.9 | 9.5 | 9.5 | 9.6 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1 | 7.4 | 7.3 | 7.3 | 7.2 | 7.2 |
| Out of town [l] | 5.1 | 5.3 | 5.0 | 5.2 | 5.2 | 5.3 |
| Combined [l] | 5.9 | 6.1 | 5.9 | 6.0 | 6.0 | 6.0 |
| CO2 emissions [g/km] | 134 | 139 | 134 | 137 | 137 | 137 |
| Emission standard | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1485 | 1535 | 1490/1515 | 1540 | 1490/1515 | 1565 |
| Overall weight [kg] | 2055 | 2160 | 2060 | 2155 | 2090 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 730/1100 | 730/1100 | 735/1500 | 735/1500 | 735/1500 | 735/1500 |
| Maximum front/rear axle load [kg] | 1010/ 1055 | 1010/ 1210 | 1015 | 1015/ 1210 | 1045/ 1055 | 1015/ 1210 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 645 | 560 | 645 | 560 | 645 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1905 | -/1820 | -/1905 | -/1820 | -/1905 | -/1820 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL |
| Tyre dimensions rear | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4568 | 4568 | 4568 | 4568 | 4568 | 4568 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2780 | 2780 | 2780 | 2780 | 2780 | 2780 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Clearance [mm] | 165 | 167 | 165 | 167 | 165 | 167 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 900 | - | 900 | - | 900 |
| Third row elbow/shoulder width [mm] | - | 1190/- | - | 1190/- | - | 1190/- |
| 220i | 220i 7 seats | 216d | 216d 7 seats | 216d | 216d 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1998 | 1998 | 1496 | 1496 | 1496 | 1496 |
| Maximum output / speed [kW/min-1] | 141/5000-6000 | 141/5000-6000 | 85/4000 | 85/4000 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 280/1350-4600 | 280/1350-4600 | 270/1750 -2250 | 270/1750 -2250 | 270/1750 -2250 | 270/1750 -2250 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11.0:1 | 11.0:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.25 | 5.25 | 4.8 | 4.8 | 4.8 | 4.8 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
| - | - |
|
|
| Top speed [km/h] | 222 | 222 | 192 | 192 | 192 | 192 |
| Acceleration 0–100 km/h [s] | 7.6 | 7.8 | 11.5 | 11.8 | 11.5 | 11.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 7.2 | 4.9 | 4.9 | 4.7 | 4.7 |
| Out of town [l] | 5.5 | 5.5 | 4.1 | 4.1 | 4.3 | 4.3 |
| Combined [l] | 6.1 | 6.1 | 4.4 | 4.4 | 4.4 | 4.5 |
| CO2 emissions [g/km] | 139 | 139 | 116 | 116 | 117 | 117 |
| Emission standard | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1560 | 1610 | 1555/1575 | 1605 | 1555/1575 | 1615 |
| Overall weight [kg] | 2140 | 2235 | 2130 | 2215 | 2155 | 2225 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | - | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1075/ 1065 | 1080/ 1220 | 1055/ 1090 | 1055/ 1240 | 1075/1090 | 1075/1240 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 645 | 560 | 645 | 560 | 645 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1905 | -/1820 | -/1905 | -/1820 | -/1905 | -/1820 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | 12,5 | 12,5 | 12,5 | 12,5 |
| Air resistance [Cd] | 0.32 | 0.32 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL |
| Tyre dimensions rear | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL | 205/60 R16 96V XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4568 | 4568 | 4568 | 4568 | 4568 | 4568 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2780 | 2780 | 2780 | 2780 | 2780 | 2780 |
| Front wheel track [mm] | 1557 | 1557 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1558 | 1558 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Clearance [mm] | 165 | 167 | 165 | 167 | 165 | 167 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 900 | - | 900 | - | 900 |
| Third row elbow/shoulder width [mm] | - | 1190/- | - | 1190/- | - | 1190/- |
| 218d | 218d 7 seats | 218d | 218d 7 seats | 218d xDrive | 218d xDrive 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 350/1750 -2500 | 350/1750 -2500 | 350/1750 -2500 | 350/1750 -2500 | 350/1750 -2500 | 350/1750 -2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 207 | 207 | 207 | 207 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 9.4 | 9.6 | 9.4 | 9.6 | 9.1 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 5.3 | 5.2 | 5.3 | 5.9 | 5.9 |
| Out of town [l] | 4.2 | 4.2 | 4.2 | 4.4 | 4.8 | 4.8 |
| Combined [l] | 4.6 | 4.6 | 4.6 | 4.7 | 5.2 | 5.2 |
| CO2 emissions [g/km] | 120 | 121 | 121 | 125 | 137 | 137 |
| Emission standard | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1595/1615 | 1645 | 1595/1615 | 1675 | 1665/1685 | 1715 |
| Overall weight [kg] | 2170 | 2270 | 2205 | 2300 | 2245 | 2340 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | 1090/ 1090 | 1090/ 1245 | 1130/ 1090 | 1125/ 1240 | 1125/ 1130 | 1125/ 1285 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 645 | 560 | 645 | 560 | 645 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1905 | -/1820 | -/1905 | -/1820 | -/1905 | -/1820 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | 12,5 | 12,5 | 12,5 | 12,5 | 12,5 | 12,5 |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL |
| Tyre dimensions rear | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4568 | 4568 | 4568 | 4568 | 4568 | 4568 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2780 | 2780 | 2780 | 2780 | 2780 | 2780 |
| Front wheel track [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Clearance [mm] | 165 | 167 | 165 | 167 | 165 | 167 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 900 | - | 900 | - | 900 |
| Third row elbow/shoulder width [mm] | - | 1190/- | - | 1190/- | - | 1190/- |
| 218d xDrive | 218d xDrive 7 seats | 220d | 220d 7 seats | 220d xDrive | 220d xDrive 7 seats | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 350/1750 -2500 | 350/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 205 | 205 | 220 | 220 | 218 | 218 |
| Acceleration 0–100 km/h [s] | 9.4 | 9.6 | 8.0 | 8.2 | 7.8 | 8.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5.4 | 5.1 | 5.1 | 5.4 | 5.4 |
| Out of town [l] | 4.5 | 4.5 | 4.3 | 4.3 | 4.6 | 4.6 |
| Combined [l] | 4.8 | 4.8 | 4.6 | 4.6 | 4.8 | 4.9 |
| CO2 emissions [g/km] | 127 | 127 | 121 | 122 | 128 | 129 |
| Emission standard | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP | EU6d - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1665/1685 | 1735 | 1630 | 1680 | 1690 | 1740 |
| Overall weight [kg] | 2265 | 2360 | 2220 | 2315 | 2280 | 2375 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1500 | - | 750/1600 | - |
| Maximum front/rear axle load [kg] | 1150/1125 | 1150/1280 | 1125/ 1100 | 1125/ 1250 | 1145/ 1140 | 1145/ 1290 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 645 | 560 | 645 | 560 | 645 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1905 | -/1820 | -/1905 | -/1820 | -/1905 | -/1820 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | 12,5 | 12,5 | 12,5 | 12,5 | 12,5 | 12,5 |
| Air resistance [Cd] | 0.29 | 0.29 | 0.30 | 0.30 | 0.31 | 0.31 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL |
| Tyre dimensions rear | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL | 205/55 R17 95W XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4568 | 4568 | 4568 | 4568 | 4568 | 4568 |
| Overall width without/including mirrors [mm] | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 | 1800/2038 |
| Overall height [mm] | 1608 | 1608 | 1608 | 1608 | 1608 | 1608 |
| Wheelbase [mm] | 2780 | 2780 | 2780 | 2780 | 2780 | 2780 |
| Front wheel track [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Clearance [mm] | 165 | 167 | 165 | 167 | 165 | 167 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | 900 | - | 900 | - | 900 |
| Third row elbow/shoulder width [mm] | - | 1190/- | - | 1190/- | - | 1190/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
