BMW 3

3 F30 F34 F31 2015

Date of manufacture

2015 – 2018 (Sedan)

2016 – 2020 (Liftback)

2015 – 2019 (Estate)

Platform

-

Manufacturing locations

Munich, Germany

Regensburg, Germany

Dingolfing, Germany

Designer

Christopher Weil

Jean-Francois Huet

Page Beermann

Tags

D-segment

German cars

The BMW 3 has been manufactured since 2015 and its country of origin is Germany. It is available in three body styles: sedan, liftback and estate. Plug-in hybrid vehicles and engines are available, including petrol, diesel and hybrid engines. The highest power is achieved by the M3 CS F80 (338 kW) with a maximum speed of 280 km/h. The most economical model is the 330e with a combined consumption of 1.9 l/100 km and CO2 emissions of 44 g/km. The sedan has a luggage compartment volume of 480 l, the estate 495 l and the liftback 520 l. The BMW 3 has successfully passed the EURONCAP 2012 safety tests and has been rated 5 out of 5 points.

Car body style

Sedan

after upgrade (facelift)

Date of manufacture

2015 – 2018

Internal designation

F30

Engine size

Petrol

Petrol + Electric

Diesel

320d EfficientDynamics Edition

320d EfficientDynamics Edition

Liftback (Gran Turismo)

after upgrade (facelift)

Date of manufacture

2016 – 2020

Internal designation

F34

Engine size

Petrol

Diesel

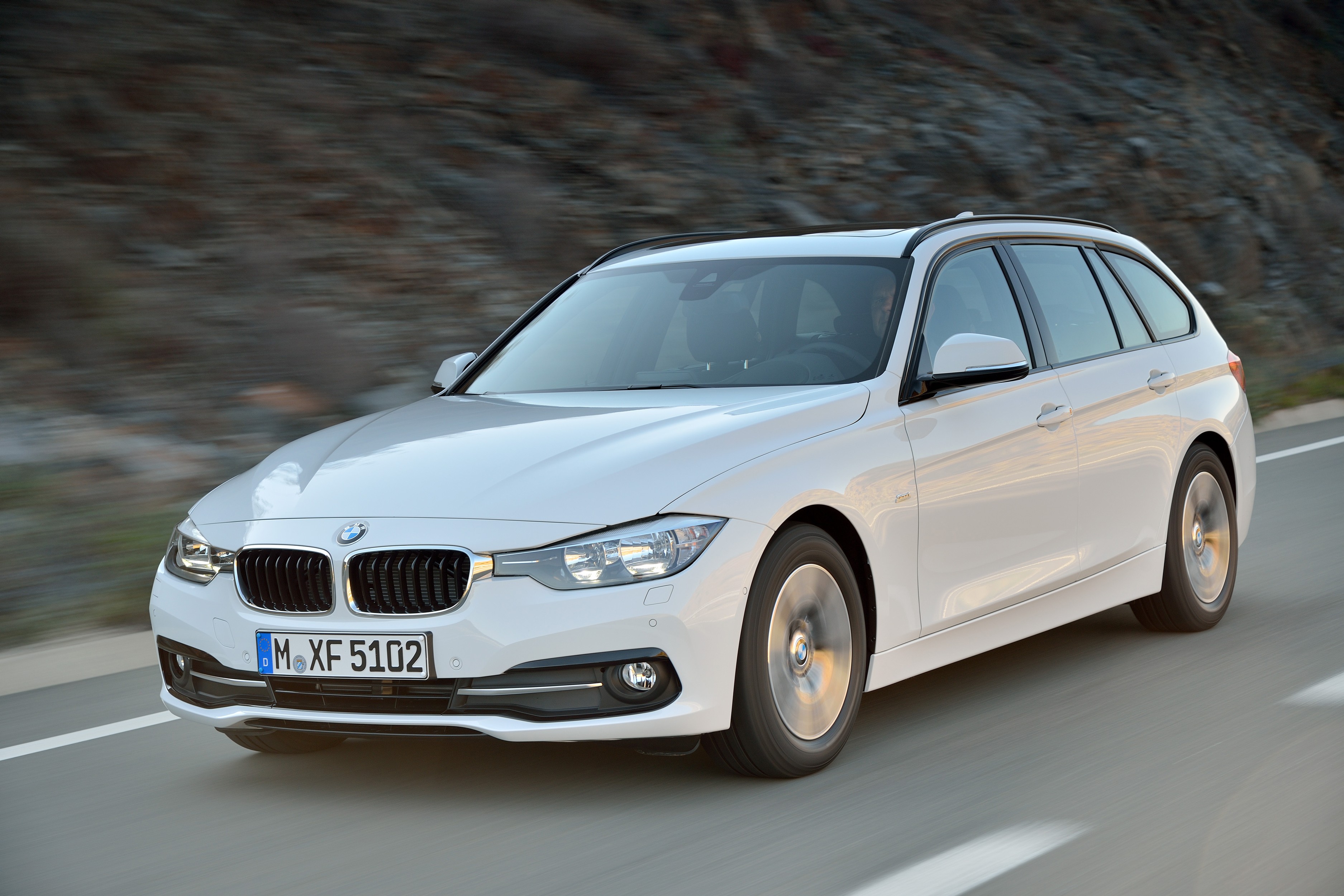

Estate (Touring)

after upgrade (facelift)

Date of manufacture

2015 – 2019

Internal designation

F31

Engine size

Petrol

Diesel

320d EfficientDynamics Edition

320d EfficientDynamics Edition

320d EfficientDynamics Edition

320d EfficientDynamics Edition

Euro NCAP

pre-facelift version (2012)

Technical data

Sedan

	318i	318i	320i	320i	320i xDrive	320i xDrive
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	3/12	3/12	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1499	1499	1998	1998	1998	1998
Maximum output / speed [kW/min-1]	100/4400-6000	100/4400-6000	135/5000-6500	135/5000-6500	135/5000-6500	135/5000-6500
Maximum torque [Nm/min-1]	220/1250-4300	220/1250-4300	290/1350-4250	270/1350-4600	270/1350-4600	270/1350-4600
Bore and stroke [mm x mm]	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6
Compression ratio	11.0:1	11.0:1	11.0:1	11.0:1	11.0:1	11.0:1
Oil volume [l]	4.25	4.25	5.25	5.25	5.25	5.25
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	eight-speed automatic gearbox Steptronic	-	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	210	210	235	235	232	230
Acceleration 0–100 km/h [s]	8.9	9.1	7.2	7.3	7.5	7.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	11.5	-	9.2	-	8.9	-

City [l]	7.0-6.4	6.7-6.2	7.9-7.3	7.6-6.9	9.0-8.4	8.0-7.4
Out of town [l]	4.7-4.3	4.6-4.3	4.8-4.5	4.7-4.4	5.5-5.2	5.0-4.7
Combined [l]	5.5-5.1	5.4-5.0	5.9-5.5	5.8-5.3	6.8-6.4	6.1-5.7
CO2 emissions [g/km]	129-119	126-116	138-128	134-124	159-149	142-132

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1475	1500	1505	1525	1595	1605
Overall weight [kg]	1975	2000	2005	2025	2095	2105
Maximum trailer weight unbraked/braked [kg]	695/1300	695/1300	695/1700	695/1800	750/1700	750/1800
Maximum front/rear axle load [kg]	905/1155	905/1155	935/1155	935/1155	990/1180	990/1180
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.27	0.28	0.28	0.28	0.28	0.28
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92H	205/60 R16 92H	205/60 R16 92V	205/60 R16 92V	205/60 R16 92W	205/60 R16 92W
Tyre dimensions rear	205/60 R16 92H	205/60 R16 92H	205/60 R16 92V	205/60 R16 92V	205/60 R16 92W	205/60 R16 92W
Wheel size front	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16
Wheel size rear	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.3/-	11.3/-	11.7/-	11.7/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1429	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1543	1542	1542
Rear wheel track [mm]	1583	1583	1583	1583	1582	1582
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	140	140	145	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	330i	330i	330i xDrive	340i	340i	340i xDrive
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	6/24	6/24	6/24
Engine displacement [cm³]	1998	1998	1998	2998	2998	2998
Maximum output / speed [kW/min-1]	185/5200-6500	185/5200-6500	185/5200-6500	240/5500-6500	240/5500-6500	240/5500-6500
Maximum torque [Nm/min-1]	350/1450-4800	350/1450-4800	350/1450-4800	450/1380-5000	450/1380-5000	450/1380-5000
Bore and stroke [mm x mm]	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6
Compression ratio	10.2:1	10.2:1	10.2:1	11.0:1	11.0:1	11.0:1
Oil volume [l]	5.25	5.25	5.25	6.5	6.5	6.5
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	4x4	Rear	Rear	4x4
Gearbox	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual
Drive specifications	-	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive

Top speed [km/h]	250	250	250	250	250	250
Acceleration 0–100 km/h [s]	5.9	5.8	5.8	5.2	5.1	5.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	6.9	-	-	5.2	-	5.5

City [l]	8.4-7.9	7.4-7.0	7.8-7.5	10.4-10.0	9.1-8.6	10.7-10.4
Out of town [l]	5.4-5.1	4.9-4.7	5.2-5.0	6.1-5.9	5.5-5.3	6.3-6.1
Combined [l]	6.5-6.1	5.8-5.5	6.2-5.9	7.7-7.4	6.8-6.5	7.9-7.7
CO2 emissions [g/km]	151-143	136-129	144-138	179-172	159-152	185-179

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1545	1570	1640	1605	1615	1675
Overall weight [kg]	2045	2055	2115	2090	2100	2150
Maximum trailer weight unbraked/braked [kg]	745/1800	745/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	945/1180	945/1180	1010/1170	990/1175	990/1175	1055/1180
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0.29	0.29	0.29	0.30
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Tyre dimensions rear	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Wheel size front	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17
Wheel size rear	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.7/-	11.3/-	11.3/-	11.7/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1434	1429	1429	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1531	1531	1531	1531	1531	1531
Rear wheel track [mm]	1572	1572	1570	1572	1572	1570
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	145	140	140	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	340i xDrive	M3 F80	M3 F80	M3 CS F80	330e	316d
Date of sale	-	-	-	from 5/2018 to	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Petrol supercharged + Electric	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24	4/16	4/16
Engine displacement [cm³]	2998	2979	2979	2979	1998	1995
Maximum output / speed [kW/min-1]	240/5500-6500	317/5500-7300	317/5500-7300	338/6250	135/5000-6500 65/2500 el. 185 total	85/4000
Maximum torque [Nm/min-1]	450/1380-5000	550/1850-5500	550/1850-5500	600/4000-5380	290/1350-4250 250/0-2500 el. 420 total	270/1250-2750
Bore and stroke [mm x mm]	82.0 x 94.6	84,0 x 89,6	84,0 x 89,6	84,0 x 89,6	82.0 x 94.6	84.0 x 90.0
Compression ratio	11.0:1	10,2:1	10,2:1	10,2:1	11.0:1	16.5:1
Oil volume [l]	6.5	6,5	6,5	7,0	5.25	5.0
Coolant volume [l]	-	13,9	13,9	10,0	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection supercharging by twin turbochargers variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection supercharging by twin turbochargers variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection supercharging by twin turbochargers variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	Plug‐in Hybrid direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	4x4	Rear	Rear	Rear	Rear	Rear
Gearbox	8 gear automatic	6 gear manual	7 gear automatic	7 gear automatic	8 gear automatic	6 gear manual
Drive specifications	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-	dual-clutch automatic gearbox Drivelogic	dual-clutch automatic gearbox Drivelogic	eight-speed automatic gearbox Steptronic	-

Top speed [km/h]	250	250	250	280	225 [120 el.]	205
Acceleration 0–100 km/h [s]	4.9	4.3	4.1	3,9	6,1	10.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	4,2	4,3	4,3	-	11.8

City [l]	9.7-9.2	12.0	11.1	11.2	-	5.1-4.6
Out of town [l]	5.9-5.6	6.9	6.7	6.9	-	3.8-3.5
Combined [l]	7.3-6.9	8.8	8.3	8.5	2,1-1,9 [11,9-11,0 el.]	4.3-3.9
CO2 emissions [g/km]	169-162	204	194	198	49-44	113-102

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	293	-
Battery type and capacity	-	-	-	-	Lithium-Ionen-Akkumulator, 5.7 kWh	-
Range with fully charged battery [km]	-	-	-	-	37-40	-
Charging time	-	-	-	-	to 100%, 3 hodiny, charger 230V to 80%, 1.6 hodiny, charger 3.7 kWh (16A/230 V)	-
Number of modules/cells	-	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	1690	1595	1635	1660	1735	1495
Overall weight [kg]	2165	2100	2100	2100	2195	1995
Maximum trailer weight unbraked/braked [kg]	750/1800	-	-	-	-	745/1700
Maximum front/rear axle load [kg]	1055/1180	990/1170	990/1170	990/1170	1000/1260	910/1150
Maximum vertical load on the tow bar [kg]	75	-	-	-	-	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	445	370	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	41	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.30	0.34	0.34	0.355	0.27	0.26
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	255/40 ZR18 95Y	255/40 ZR18 95Y	265/35 ZR19 98Y	205/60 R16 92W	205/60 R16 92H
Tyre dimensions rear	225/50 R17 94W	275/40 ZR18 99Y	275/40 ZR18 99Y	285/30 ZR20 99Y	205/60 R16 92W	205/60 R16 92H
Wheel size front	7.5J x 17	9 J x 18	9 J x 18	9 J x 19	7.0J x 16	7.0J x 16
Wheel size rear	7.5J x 17	10 J x 18	10 J x 18	10 J x 20	7.0J x 16	7.0J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	-	-	-	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.7/-	12.2	12.2	12.2	11.3/-	11.3/-

Overall length [mm]	4633	4671	4671	4671	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1877/-	1877/-	1877/-	1811/2031	1811/2031
Overall height [mm]	1434	1430	1430	1424	1429	1429
Wheelbase [mm]	2810	2812	2812	2812	2810	2810
Front wheel track [mm]	1531	1579	1579	1579	1543	1543
Rear wheel track [mm]	1570	1603	1603	1604	1583	1583
Forward overhang [mm]	779	811	811	811	779	779
Rear overhang [mm]	1044	1048	1048	1048	1044	1044
Clearance [mm]	145	120	120	119	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	316d	318d	318d	318d xDrive	320d EfficientDynamics Edition	320d EfficientDynamics Edition
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	85/4000	110/4000	110/4000	110/4000	120/4000	120/4000
Maximum torque [Nm/min-1]	270/1250-2750	320/1500-3000	320/1500-3000	320/1500-3000	400/1750-2250	400/1750-2250
Bore and stroke [mm x mm]	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5.0	5.0	5.0	5.0	5.0	5.0
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	4x4	Rear	Rear
Gearbox	8 gear automatic	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	eight-speed automatic gearbox Steptronic	-	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-	eight-speed automatic gearbox Steptronic

Top speed [km/h]	204	215	212	212	230	225
Acceleration 0–100 km/h [s]	10.6	8.6	8.4	8.8	7.9	7.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	9.9	-	9.9	8.9	-

City [l]	5.1-4.6	5.3-4.9	5.3-4.8	5.9-5.4	5.2-4.7	5.0-4.6
Out of town [l]	3.8-3.5	3.9-3.5	3.9-3.6	4.2-3.9	3.8-3.4	3.6-3.3
Combined [l]	4.3-3.9	4.4-4.0	4.4-4.0	4.8-4.5	4.3-3.9	4.1-3.8
CO2 emissions [g/km]	113-102	116-106	116-106	127-117	113-102	109-99

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1505	1505	1525	1575	1495	1505
Overall weight [kg]	2005	2050	2070	2075	1970	1980
Maximum trailer weight unbraked/braked [kg]	745/1700	745/1600	745/1800	750/1600	n.b. /n.b	n.b. /n.b
Maximum front/rear axle load [kg]	910/1150	920/1210	920/1210	965/1170	915/1140	915/1140
Maximum vertical load on the tow bar [kg]	75	75	75	75	n.b	n.b
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.26	0.26	0.26	0.27	0.24	0.24
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92H	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Tyre dimensions rear	205/60 R16 92H	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Wheel size front	7.0J x 16	7.0Jx 16	7.0Jx 16	7.0J x 16	7.0J x 16	7.0J x 16
Wheel size rear	7.0J x 16	7.0Jx 16	7.0Jx 16	7.0J x 16	7.0J x 16	7.0J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.3/-	11.7/-	11.3/-	11.3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1434	1416	1416
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1542	1543	1543
Rear wheel track [mm]	1583	1583	1583	1582	1586	1586
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	140	145	127	127
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320d	320d	320d xDrive	320d xDrive	325d	325d
Date of sale	-	-	-	-	from to 1/2016	from to 1/2016
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	140/4000	140/4000	140/4000	140/4000	160/4400	160/4400
Maximum torque [Nm/min-1]	400/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500	450/1500-2500	450/1500-2500
Bore and stroke [mm x mm]	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5.0	5.0	5.0	5.0	5.2	5.2
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	4x4	4x4	Rear	Rear
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	eight-speed automatic gearbox Steptronic	-	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-	eight-speed automatic gearbox Steptronic

Top speed [km/h]	235	230	233	228	245	245
Acceleration 0–100 km/h [s]	7.3	7.2	7.4	7.3	6.8	6.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	7.5	-	8.1	-	-	-

City [l]	5.3-4.9	5.2-4.8	5.8-5.3	5.5-5.1	6.2-6.1	5.8-5.7
Out of town [l]	3.9-3.5	3.9-3.6	4.2-3.9	4.2-3.8	4.3-4.3	4.2-4.0
Combined [l]	4.4-4.0	4.4-4.0	4.8-4.4	4.7-4.3	5.0-4.9	4.8-4.6
CO2 emissions [g/km]	116-106	116-106	126-116	123-112	132-129	125-122

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1505	1525	1590	1610	1550	1565
Overall weight [kg]	2005	2025	2090	2110	2035	2050
Maximum trailer weight unbraked/braked [kg]	745/1600	745/1600	750/1600	750/1600	750/1800	750/1800
Maximum front/rear axle load [kg]	925/1145	925/1145	990/1180	990/1180	955/1160	955/1160
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.26	0.26	0.27	0.27	0.28	0.28
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	225/50 R17 94W	225/50 R17 94W
Tyre dimensions rear	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	225/50 R17 94W	225/50 R17 94W
Wheel size front	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.5J x 17	7.5J x 17
Wheel size rear	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.5J x 17	7.5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.7/-	11.7/-	11.3/-	11.3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1434	1434	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1542	1542	1531	1531
Rear wheel track [mm]	1583	1583	1582	1582	1572	1572
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	145	145	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	325d	325d	330d	330d xDrive	335d xDrive
Date of sale	from 1/2016 to	from 1/2016 to	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	6/24	6/24	6/24
Engine displacement [cm³]	1995	1995	2993	2993	2993
Maximum output / speed [kW/min-1]	165/4400	165/4400	190/4000	190/4000	230/4400
Maximum torque [Nm/min-1]	450/1500-3000	450/1500-3000	560/1500-3000	560/1500-3000	630/1500-2500
Bore and stroke [mm x mm]	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5.0	5.0	6.5	6.5	6.5
Coolant volume [l]	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	245	245	250	250	250
Acceleration 0–100 km/h [s]	6.5	6.1	5.6	5.3	4.8
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	6.4	-	-	-	-

City [l]	5,9-5,6	5,4-5,0	6.0-5.8	6.1-6.0	6.5-6.4
Out of town [l]	4,3-4,0	4,3-4,1	4.6-4.3	4.8-4.8	4.9-4.9
Combined [l]	4,9-4,6	4,7-4,4	5.0-4.9	5.3-5.2	5.5-5.4
CO2 emissions [g/km]	129-121	124-116	131-129	139-137	145-143

Emission standard	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1570	1580	1615	1690	1705
Overall weight [kg]	2055	2065	2090	2165	2180
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	960/1180	96 /1180	990/1170	1050/1180	1060/1190
Maximum vertical load on the tow bar [kg]	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	4	4	4	4	4
Number of seats	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0,28	0,28	0.28	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Tyre dimensions rear	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Wheel size front	7,5J x 17	7,5J x 17	7.5J x 17	7.5J x 17	7.5J x 17
Wheel size rear	7,5J x 17	7,5J x 17	7.5J x 17	7.5J x 17	7.5J x 17
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.3/-	11.7/-	11.7/-

Overall length [mm]	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810
Front wheel track [mm]	1531	1531	1531	1531	1531
Rear wheel track [mm]	1572	1572	1572	1570	1570
Forward overhang [mm]	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044
Clearance [mm]	140	140	140	145	145
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Liftback (Gran Turismo)

	320i	320i	320i	320i xDrive	320i xDrive	320i xDrive
Date of sale	from to 6/2018	from to 6/2018	from 6/2018 to	from to 6/2018	from to 6/2018	from 6/2018 to
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1998	1998	1998	1998
Maximum output / speed [kW/min-1]	135/5000	135/5000	135/5000	135/5000	135/5000	135/5000
Maximum torque [Nm/min-1]	290/1350-4250	270/1350-4600	270/1350-4600	270/1350-4600	270/1350-4600	270/1350-4600
Bore and stroke [mm x mm]	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6
Compression ratio	11.0:1	11.0:1	11.0:1	11.0:1	11.0:1	11.0:1
Oil volume [l]	5.25	5.25	5.25	5.25	5.25	5.25
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	4x4	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic	8 gear automatic
Drive specifications	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	230	229	229	227	224	224
Acceleration 0–100 km/h [s]	8.0	8.1	8.1	8.1	8.4	8.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	10.6	-	-	10.3	-	-

City [l]	8.1-7.7	7.3-6.9	7,8-7,7	9.0-8.6	8.1-7.8	8.1-8,0
Out of town [l]	5.4-5.1	5.4-5.1	5,4-5,3	5.9-5.6	5.7-5.4	6,0-5,9
Combined [l]	6.4-6.1	6.1-5.8	6,3-6,2	7.1-6.7	6.6-6.3	6,8-6,7
CO2 emissions [g/km]	146-139	139-132	139-132	161-154	151-144	156-152

Emission standard	EU6	EU6	Euro 6d-TEMP	EU6	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1655	1675	1675	1735	1750	1750
Overall weight [kg]	2155	2170	2170	2230	2245	2245
Maximum trailer weight unbraked/braked [kg]	695/1400	695/1500	695/1500	750/1700	750/1700	750/1700
Maximum front/rear axle load [kg]	970/1255	970/1255	970/1255	1030/1275	1030/1275	1030/1275
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0.29	0.29	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Tyre dimensions rear	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Wheel size front	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Wheel size rear	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.8/-	11.8/-	11.8/-	12.3/-	12.3/-	12.3/-

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	330i	330i	330i xDrive	330i xDrive	340i	340i
Date of sale	from to 6/2018	from 6/2018 to	from to 6/2018	from 6/2018 to	from to 6/2018	from 6/2018 to
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	6/24	6/24
Engine displacement [cm³]	1998	1998	1998	1998	2998	2998
Maximum output / speed [kW/min-1]	185/5200	185/5200	185/5200	185/5200	240/5500	240/5500
Maximum torque [Nm/min-1]	350/1450-4800	350/1450-4800	350/1450-4800	350/1450-4800	450/1380-5000	450/1380-5000
Bore and stroke [mm x mm]	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6	82.0 x 94.6
Compression ratio	10.2:1	10.2:1	10.2:1	10.2:1	11.0:1	11.0:1
Oil volume [l]	1620/1695	1620/1695	5.25	5.25	1660/1735	1660/1735
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	4x4	4x4	Rear	Rear
Gearbox	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic

Top speed [km/h]	250	250	250	250	250	250
Acceleration 0–100 km/h [s]	6.1	6.1	6.2	6.2	5.1	5.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.7-7.3	8,0-7,6	8.3-7.9	8,5-8,3	9.8-9.5	9,7-9,5
Out of town [l]	5.3-5.0	5,6	5.7-5.4	6,3-6,2	5.8-5.5	6,4-6,3
Combined [l]	6.2-5.9	6,5-6,3	6.7-6.3	7,1-7,0	7.3-7.0	7,6-7,5
CO2 emissions [g/km]	141-134	147-144	152-145	161-159	166-159	173-170

Emission standard	EU6	Euro 6d-TEMP	EU6	Euro 6d-TEMP	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1695	1700	1760	1765	1735	1735
Overall weight [kg]	2190	2190	2255	2255	2230	2230
Maximum trailer weight unbraked/braked [kg]	745/1600	745/1600	750/1700	750/1700	750/1700	750/1700
Maximum front/rear axle load [kg]	975/1275	975/1275	1030/1275	1030/1275	1010/1275	1010/1275
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0.29	0.29	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W
Tyre dimensions rear	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W
Wheel size front	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Wheel size rear	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.8/-	11.8/-	12.3/-	12.3/-	11.8/-	11.8/-

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	340i xDrive	340i xDrive	318d	318d	318d	318d
Date of sale	from to 6/2018	from 6/2018 to	from to 6/2018	from 6/2018 to	from to 6/2018	from 6/2018 to
Engine type	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2998	2998	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	240/5500	240/5500	110/4000	110/4000	110/4000	110/4000
Maximum torque [Nm/min-1]	450/1380-5000	450/1380-5000	320/1500-3000	320/1500-3000	320/1500-3000	320/1500-3000
Bore and stroke [mm x mm]	82.0 x 94.6	82.0 x 94.6	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0
Compression ratio	11.0:1	11.0:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	6.5	6.5	5.0	5.0	5.0	5.0
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	4x4	4x4	Rear	Rear	Rear	Rear
Gearbox	8 gear automatic	8 gear automatic	6 gear manual	6 gear manual	8 gear automatic	8 gear automatic
Drive specifications	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic

Top speed [km/h]	250	250	210	210	210	210
Acceleration 0–100 km/h [s]	5.0	5.0	9.3	9.4	9.2	9.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	10.8	-	-	-

City [l]	10.1-9.6	10,6-10,4	5.6-5.3	5,8-5,7	5.2-4.9	5,4-5,3
Out of town [l]	6.3-6.0	6,6-6,5	4.1-4.0	4,4-4,3	4.1-3.9	4,5-4,3
Combined [l]	7.7-7.4	8,1-7,9	4.7-4.5	4,9-4,8	4.5-4.3	4,8-4,7
CO2 emissions [g/km]	175-168	184-180	123-117	129-126	119-112	128-124

Emission standard	EU6	Euro 6d-TEMP	EU6	Euro 6c/Euro 6d-TEMP	EU6	Euro 6c/Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1800	1805	1645	1690	1670	1715
Overall weight [kg]	2295	2295	2140	2185	2165	2210
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	745/1600	745/1600	745/1600	745/1600
Maximum front/rear axle load [kg]	1010/1275	1010/1275	965/1260	-	965/1260	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	57	57	57	57
AdBlue tank volume [l]	-	-	-	21,9	-	21,9
Air resistance [Cd]	0.29	0.29	0.28	0.28	0.28	0.28
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97W	225/55 R17 97W	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Tyre dimensions rear	225/55 R17 97W	225/55 R17 97W	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Wheel size front	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Wheel size rear	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	12.3/-	12.3/-	11.8/-	11.8/-	11.8/-	11.8/-

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320d	320d	320d	320d	320d xDrive	320d xDrive
Date of sale	from to 6/2018	from 6/2018 to	from to 6/2018	from 6/2018 to	from to 6/2018	from to 6/2018
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	140/4000	140/4000	140/4000	140/4000	140/4000	140/4000
Maximum torque [Nm/min-1]	400/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500
Bore and stroke [mm x mm]	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5.0	5.0	5.0	5.0	5.0	5.0
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	-	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	230	230	226	226	230	225
Acceleration 0–100 km/h [s]	7.8	7.9	7.7	7.8	7.8	7.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	8.6	-	8,6	-	8,9	-

City [l]	5.7-5.5	6,1	5.4-5.0	5.4	6.0-5.7	5.6-5.3
Out of town [l]	4.3-4.1	4,6-4,5	4.1-3.9	4,8-4,6	4.5-4.3	4.3-4.1
Combined [l]	4.8-4.6	5,2-5,0	4.6-4.3	5,0-4,9	5.1-4.8	4.8-4.5
CO2 emissions [g/km]	127-120	136-133	120-113	131-128	133-126	126-119

Emission standard	EU6	Euro 6c/Euro 6d-TEMP	EU6	Euro 6c/Euro 6d-TEMP	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1655	1705	1670	1725	1720	1735
Overall weight [kg]	2150	2200	2165	2220	2215	2230
Maximum trailer weight unbraked/braked [kg]	745/1600	745/1600	745/1600	745/1600	750/1600	750/1600
Maximum front/rear axle load [kg]	965/1260	-	965/1260	-	1020/1280	1020/1280
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	21,9	-	21,9	-	-
Air resistance [Cd]	0.28	0.28	0.28	0.28	0.28	0.28
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Tyre dimensions rear	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Wheel size front	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Wheel size rear	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.8/-	11.8/-	11.8/-	11.8/-	12.3/-	12.3/-

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320d xDrive	325d	330d	330d	330d xDrive	330d xDrive
Date of sale	from 6/2018 to	from to 6/2018	from to 6/2018	from 6/2018 to	from to 6/2018	from 6/2018 to
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	6/24	6/24	6/24	6/24
Engine displacement [cm³]	1995	1995	2993	2993	2993	2993
Maximum output / speed [kW/min-1]	140/4000	160/4400	190/4000	190/4000	190/4000	190/4000
Maximum torque [Nm/min-1]	400/1750-2500	450/1500-2500	560/1500-3000	560/1500-3000	560/1500-3000	560/1500-3000
Bore and stroke [mm x mm]	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5.0	5.0	57	57	57	57
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	4x4	Rear	Rear	Rear	4x4	4x4
Gearbox	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	225	240	250	250	250	250
Acceleration 0–100 km/h [s]	7.8	6.4	5.7	5.7	5.4	5.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6,1-6,0	5.5-5.3	6.3-6.1	6,7-6,6	6.6-6.4	7,1
Out of town [l]	4,9-4,8	4.7-4.4	4.7-4.6	5,2-5,1	5.0-4.8	5,4-5,3
Combined [l]	5,3-5,2	5.0-4.7	5.3-5.1	5,8-5,6	5.6-5.4	6,0-5,9
CO2 emissions [g/km]	141-138	131-124	139-135	152-148	146-142	158-156

Emission standard	Euro 6c/Euro 6d-TEMP	EU6	EU6	Euro 6c	EU6	Euro 6c
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1790	1705	1735	1790	1805	1845
Overall weight [kg]	2285	2200	2230	2285	2300	2340
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	990/1280	1030/1260	-	1080/1280	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	21,9	-	-	21,9	-	21,9
Air resistance [Cd]	0.28	0.29	0.29	0.29	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97V	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W
Tyre dimensions rear	225/55 R17 97V	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W
Wheel size front	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Wheel size rear	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17	8.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	12.3/-	11,8/-	11,8/-	11,8/-	12,3/-	12,3/-

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	335d xDrive	335d xDrive
Date of sale	from to 6/2018	from 6/2018 to
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24
Engine displacement [cm³]	2993	2993
Maximum output / speed [kW/min-1]	230/4400	230/4400
Maximum torque [Nm/min-1]	630/1500-2500	630/1500-2500
Bore and stroke [mm x mm]	84.0 x 90.0	84.0 x 90.0
Compression ratio	16.5:1	16.5:1
Oil volume [l]	57	57
Coolant volume [l]	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	4x4	4x4
Gearbox	8 gear automatic	8 gear automatic
Drive specifications	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	250	250
Acceleration 0–100 km/h [s]	4.9	4.9
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	6.7-6.6	7,7,-7,6
Out of town [l]	5.2-5.1	5,6-5,5
Combined [l]	5.7-5.6	6,4-6,3
CO2 emissions [g/km]	151-148	168-165

Emission standard	EU6	Euro 6c
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1820	1855
Overall weight [kg]	2315	2350
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800
Maximum front/rear axle load [kg]	1095/1280	-
Maximum vertical load on the tow bar [kg]	75	75
Maximum load on roof/carrier [kg]	75/-	75/-

Boot volume [l]	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	4	4
Number of seats	5	5
Fuel tank volume [l]	57	57
AdBlue tank volume [l]	57	21,9
Air resistance [Cd]	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link
Tyre dimensions front	225/55 R17 97W	225/55 R17 97W
Tyre dimensions rear	225/55 R17 97W	225/55 R17 97W
Wheel size front	8.0J x 17	8.0J x 17
Wheel size rear	8.0J x 17	8.0J x 17
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	12,3/-	12,3/-

Overall length [mm]	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047
Overall height [mm]	1508	1508
Wheelbase [mm]	2920	2920
Front wheel track [mm]	1541	1541
Rear wheel track [mm]	1586	1586
Forward overhang [mm]	803	803
Rear overhang [mm]	1101	1101
Clearance [mm]	165	165
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1048	1048
Headroom rear [mm]	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Estate (Touring)

	318i	318i	318i	318i	320i	320i
Date of sale	from to 7/2018	-	from to 7/2018	-	from to 7/2018	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	3/12	3/12	3/12	3/12	4/16	4/16
Engine displacement [cm³]	1499	1499	1499	1499	1998	1998
Maximum output / speed [kW/min-1]	100/4400-6000	100/4400-6000	100/4400-6000	100/4400-6000	135/5000-6500	135/5000-6500
Maximum torque [Nm/min-1]	220/1250-4300	220/1250-4300	220/1250-4300	220/1250-4300	290/1350-4250	290/1350-4250
Bore and stroke [mm x mm]	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0
Compression ratio	11.0:1	11.0:1	11.0:1	11.0:1	11.0:1	11.0:1
Oil volume [l]	4.25	4.25	4.25	4.25	5.25	5.25
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	6 gear manual
Drive specifications	-	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	-	-

Top speed [km/h]	210	210	210	210	230	230
Acceleration 0–100 km/h [s]	9.2	9.2	9.3	9.3	7.5	7.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	11.9	11.9	-	-	9.9	9.9

City [l]	7.4-6.8	7,8	7.2-6.6	7,6-7,4	8.4-7.8	8,6
Out of town [l]	5.0-4.6	5,5-5,4	5.0-4.6	5,4-5,2	5.1-4.8	5,6-5,5
Combined [l]	5.9-5.4	6,4-6,3	5.8-5.3	6,2-6,0	6.3-5.9	6,7-6,6
CO2 emissions [g/km]	137-126	146-143	134-124	140-136	147-137	153-151

Emission standard	EU6	Euro 6d-TEMP	EU6	Euro 6d-TEMP	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1545	1545	1565	1565	1585	1585
Overall weight [kg]	2065	2065	2085	2090	2105	2105
Maximum trailer weight unbraked/braked [kg]	695/1300	695/1300	695/1300	695/1300	695/1700	695/1700
Maximum front/rear axle load [kg]	900/1240	900/1240	900/1240	900/1240	925/1250	925/1250
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.30	0.30	0.31	0.31	0.31	0.31
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92W	205/60 R16 92W
Tyre dimensions rear	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92W	205/60 R16 92W
Wheel size front	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16
Wheel size rear	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.3/-	11.3/-	11.3/-	11.3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1429	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1583	1583	1583	1583	1583	1583
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320i	320i	320i xDrive	320i xDrive	320i xDrive	330i
Date of sale	from to 7/2018	-	from to 7/2018	from to 7/2018	-	from to 7/2018
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1998	1998	1998	1998
Maximum output / speed [kW/min-1]	135/5000-6500	135/5000-6500	135/5000-6500	135/5000-6500	135/5000-6500	185/5200-6500
Maximum torque [Nm/min-1]	270/1350-4600	270/1350-4600	270/1350-4600	270/1350-4600	270/1350-4600	350/1450-4800
Bore and stroke [mm x mm]	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0
Compression ratio	11.0:1	11.0:1	11.0:1	11.0:1	11.0:1	10.2:1
Oil volume [l]	5.25	5.25	5.25	5.25	5.25	5.25
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	4x4	4x4	4x4	Rear
Gearbox	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual
Drive specifications	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-

Top speed [km/h]	228	228	225	223	223	250
Acceleration 0–100 km/h [s]	7.5	7.5	7.7	7.9	7.9	6,0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	9.4	-	-	7.4

City [l]	7.8-7.3	7,7-7,5	9.5-9.0	8.5-8.0	8,0-7,9	8.7-8.3
Out of town [l]	4.8-4.5	5,4-5,3	6.0-5.5	5.3-5.0	6,0-5,9	5.6-5.3
Combined [l]	5.9-5.5	6,2-6,1	7.3-6.8	6.5-6.1	6,7-6,6	6.7-6.4
CO2 emissions [g/km]	138-129	142-140	169-159	151-141	154-151	157-149

Emission standard	EU6	Euro 6d-TEMP	EU6	EU6	Euro 6d-TEMP	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1595	1595	1675	1685	1685	1615
Overall weight [kg]	2115	2115	2175	2185	2185	2115
Maximum trailer weight unbraked/braked [kg]	695/1700	695/1700	750/1700	750/1700	750/1700	745/1800
Maximum front/rear axle load [kg]	925/1250	925/1250	990/1255	990/1255	990/1255	945/1250
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.30	0.30	0.31	0.31	0.31	0.32
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	225/50 R17 98W
Tyre dimensions rear	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	225/50 R17 98W
Wheel size front	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.5J x 17
Wheel size rear	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.7/-	11.7/-	11.7/-	11.3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1434	1434	1434	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1542	1542	1542	1531
Rear wheel track [mm]	1583	1583	1582	1582	1582	1572
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	145	145	145	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	330i	330i	330i xDrive	330i xDrive	340i	340i
Date of sale	from to 7/2018	-	from to 7/2018	-	from to 7/2018	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	6/24	6/24
Engine displacement [cm³]	1998	1998	1998	1998	2998	2998
Maximum output / speed [kW/min-1]	185/5200-6500	185/5200-6500	185/5200-6500	185/5200-6500	240/5500-6500	240/5500-6500
Maximum torque [Nm/min-1]	350/1450-4800	350/1450-4800	350/1450-4800	350/1450-4800	450/1380-5000	450/1380-5000
Bore and stroke [mm x mm]	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0
Compression ratio	10.2:1	10.2:1	10.2:1	10.2:1	11.0:1	11.0:1
Oil volume [l]	5.25	5.25	5.25	5.25	6,5	6,5
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	4x4	4x4	Rear	Rear
Gearbox	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-	eight-speed automatic gearbox Steptronic

Top speed [km/h]	250	250	250	250	250	250
Acceleration 0–100 km/h [s]	5,9	5,9	6,0	6,0	5.1	5.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.7-7.3	7,5	8.3-7.8	8,0	9.3-9.0	9,7
Out of town [l]	5.2-4.9	5,7	5.5-5.2	6,0	5.7-5.5	6,4
Combined [l]	6.1-5.8	6,3	6.5-6.2	6,7	7.0-6.8	7,7
CO2 emissions [g/km]	143-135	145	152-144	154	164-158	174

Emission standard	EU6	Euro 6d-TEMP	EU6	Euro 6d-TEMP	EU6	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1640	1640	1705	1705	1690	1690
Overall weight [kg]	2125	2135	2180	2195	2175	2200
Maximum trailer weight unbraked/braked [kg]	745/1800	745/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	945/1250	-	1005/1240	-	990/1250	990/1250
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.32	0.32	0.32	0.32	0.32	0.32
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W
Tyre dimensions rear	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W
Wheel size front	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17
Wheel size rear	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.7/-	11.7/-	11,3/-	11,3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1434	1434	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1531	1531	1531	1531	1531	1531
Rear wheel track [mm]	1572	1572	1570	1570	1572	1572
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	145	145	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	340i	340i xDrive	340i xDrive	340i xDrive	316d	316d
Date of sale	from to 7/2018	from to 7/2018	from to 7/2018	-	from to 7/2018	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24	4/16	4/16
Engine displacement [cm³]	2998	2998	2998	2998	1995	1995
Maximum output / speed [kW/min-1]	240/5500-6500	240/5500-6500	240/5500-6500	240/5500-6500	85/4000	85/4000
Maximum torque [Nm/min-1]	450/1380-5000	450/1380-5000	450/1380-5000	450/1380-5000	270/1250-2750	270/1250-2750
Bore and stroke [mm x mm]	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	94.6 x 82.0	90.0 x 84.0	90.0 x 84.0
Compression ratio	11.0:1	11.0:1	11.0:1	11.0:1	16.5:1	16.5:1
Oil volume [l]	6,5	6,5	6,5	6,5	5.0	5.0
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation SCR catalytic converter with AdBlue additive injection

Drive axle	Rear	4x4	4x4	4x4	Rear	Rear
Gearbox	8 gear automatic	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	6 gear manual
Drive specifications	eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-	-

Top speed [km/h]	250	250	250	250	200	200
Acceleration 0–100 km/h [s]	5.1	5.0	5.0	5.0	11.2	11.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	12.8	-

City [l]	9.3-9.0	10.1-9.6	10.1-9.6	10,7	5.5-4.9	5.5-5,3
Out of town [l]	5.7-5.5	6.1-5.8	6.1-5.8	6,9	4.0-3.7	4,4-4,1
Combined [l]	7.0-6.8	7.6-7.2	7.6-7.2	8,3	4.6-4.1	4,8-4,6
CO2 emissions [g/km]	164-158	176-168	176-168	189	120-109	126-120

Emission standard	EU6	EU6	EU6	Euro 6d-TEMP	EU6	Euro 6c/Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1690	1755	1755	1760	1570	1615
Overall weight [kg]	2175	2230	2230	2235	2090	2135
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	745/1600	745/1600
Maximum front/rear axle load [kg]	990/1250	1050/1250	1050/1250	1050/1250	925/1255	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	57	57
AdBlue tank volume [l]	-	-	-	-	-	21,9
Air resistance [Cd]	0.32	0.32	0.32	0.32	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	205/60 R16 92H	205/60 R16 92H
Tyre dimensions rear	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	205/60 R16 92H	205/60 R16 92H
Wheel size front	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.0J x 16	7.0J x 16
Wheel size rear	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17	7.0J x 16	7.0J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11,3/-	11,7/-	11,7/-	11,7/-	11.3/-	11.3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1434	1434	1434	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1531	1531	1531	1531	1543	1543
Rear wheel track [mm]	1572	1570	1570	1570	1583	1583
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	145	145	145	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	316d	316d	318d	318d	318d	318d
Date of sale	from to 7/2018	-	from to 7/2018	-	from to 7/2018	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	85/4000	85/4000	110/4000	110/4000	110/4000	110/4000
Maximum torque [Nm/min-1]	270/1250-2750	270/1250-2750	320/1500-3000	320/1500-3000	320/1500-3000	320/1500-3000
Bore and stroke [mm x mm]	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5.0	5.0	5.0	5.0	5.0	5.0
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	8 gear automatic	8 gear automatic	6 gear manual	6 gear manual	8 gear automatic	8 gear automatic
Drive specifications	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	-	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic

Top speed [km/h]	198	198	210	210	210	210
Acceleration 0–100 km/h [s]	11.1	11.3	8.9	9,0	8.8	8.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	10.3	10.3	-	-

City [l]	5.5-5.0	5,3-5,2	5.6-5.2	5,5-5,2	5.4-4.9	5,3-5,2
Out of town [l]	4.0-3.6	4,4-4,2	4.0-3.8	4,3-4,1	4.0-3.7	4,4-4,2
Combined [l]	4.6-4.1	4,7-4,6	4.6-4.3	4,7-4,5	4.5-4.1	4,7-4,6
CO2 emissions [g/km]	120-109	124-120	122-112	125-118	119-109	124-121

Emission standard	EU6	Euro 6c/Euro 6d-TEMP	EU6	Euro 6c/Euro 6d-TEMP	EU6	Euro 6c/Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1585	1645	1575	1615	1595	1645
Overall weight [kg]	2105	2165	2140	2135	2160	2165
Maximum trailer weight unbraked/braked [kg]	745/1600	745/1600	745/1600	745/1600	745/1800	745/1800
Maximum front/rear axle load [kg]	925/1255	-	920/1260	-	920/1260	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	21,9	-	21,9	-	21,9
Air resistance [Cd]	0.29	0.29	0.29	0.29	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92H	205/60 R16 92H	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W
Tyre dimensions rear	205/60 R16 92H	205/60 R16 92H	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W
Wheel size front	7.0J x 16	7.0J x 16	7.0Jx 16	7.0Jx 16	7.0Jx 16	7.0Jx 16
Wheel size rear	7.0J x 16	7.0J x 16	7.0Jx 16	7.0Jx 16	7.0Jx 16	7.0Jx 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.3/-	11.3/-	11.3/-	11.3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1429	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1583	1583	1583	1583	1583	1583
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	318d xDrive	320d EfficientDynamics Edition	320d EfficientDynamics Edition	320d EfficientDynamics Edition	320d EfficientDynamics Edition	320d
Date of sale	from to 7/2018	from to 7/2018	-	from to 7/2018	-	from to 7/2018
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	110/4000	120/4000	120/4000	120/4000	120/4000	140/4000
Maximum torque [Nm/min-1]	320/1500-3000	400/1750-2250	400/1750-2250	400/1750-2250	400/1750-2250	400/1750-2500
Bore and stroke [mm x mm]	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5.0	5,0	5,0	5,0	5,0	5.0
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	4x4	Rear	Rear	Rear	Rear	Rear
Gearbox	8 gear automatic	6 gear manual	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual
Drive specifications	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	-	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	-

Top speed [km/h]	206	222	222	222	222	230
Acceleration 0–100 km/h [s]	9.2	8,2	8,3	8,1	8,2	7.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	10.6	9,4	9,4	-	-	7.9

City [l]	6.2-5.7	5.5–5.0	5,4-5,3	5.3–4.8	5,4-5,2	5.7-5.2
Out of town [l]	4.4-4.1	3.9–3.6	4,3-4,1	3,9-3,5	4,5-4,2	4.1-3.8
Combined [l]	5.1-4.7	4.5–4.1	4,7-4,5	4,4-4,0	4,8-4,6	4.7-4.3
CO2 emissions [g/km]	133-123	118–107	125-119	116-104	127-120	123-113

Emission standard	EU6	EU6	Euro 6c/Euro 6d-TEMP	EU6	Euro 6c/Euro 6d-TEMP	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1645	1575	1635	1585	1645	1585
Overall weight [kg]	2145	2050	2110	2060	2130	2105
Maximum trailer weight unbraked/braked [kg]	750/1600	-	745/1800	745/1800	-	745/1600
Maximum front/rear axle load [kg]	975/1250	920/1225	-	920/1225	-	930/1260
Maximum vertical load on the tow bar [kg]	75	-	-	-	-	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	21,9	-	21,9	-
Air resistance [Cd]	0.30	-	-	-	-	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W
Tyre dimensions rear	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W
Wheel size front	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16
Wheel size rear	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.7/-	11,3/-	11,3/-	11,3/-	11,3/-	11.3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1434	1429	1429	1429	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1542	-	-	-	-	1543
Rear wheel track [mm]	1582	-	-	-	-	1583
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	145	-	-	-	-	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320d	320d	320d	320d xDrive	320d xDrive	320d xDrive
Date of sale	-	from to 7/2018	-	from to 7/2018	from to 7/2018	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	140/4000	140/4000	140/4000	140/4000	140/4000	140/4000
Maximum torque [Nm/min-1]	400/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500
Bore and stroke [mm x mm]	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5,0	5,0	5.0	5.05.0	5.05.0	5.05.0
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	4x4	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic	8 gear automatic
Drive specifications	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	-	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	230	226	226	228	222	222
Acceleration 0–100 km/h [s]	7.7	7.4	7.5	7,6	7,6	7,7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	7.9	8,6	-	-

City [l]	5,8-5,6	5,4-4.9	5,4-5,3	6,1-5,7	5,8-5,4	6,0-5,9
Out of town [l]	4,5-4,2	4,0-3.7	4,9-4,6	4,4-4,1	4,4-4,0	4,9-4,7
Combined [l]	5,0-4,8	4,5-4.1	5,1-4,8	5,0-4,7	4,9-4,5	5,3-5,1
CO2 emissions [g/km]	131-125	119-109	133-127	133-123	129-119	140-136

Emission standard	Euro 6c/Euro 6d-TEMP	EU6	Euro 6c/Euro 6d-TEMP	EU6	EU6	Euro 6c/Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1645	1605	1655	1655	1680	1725
Overall weight [kg]	2165	2125	2175	2155	2180	2225
Maximum trailer weight unbraked/braked [kg]	745/1800	745/1800	745/1600	750/1600	750/1800	750/1800
Maximum front/rear axle load [kg]	-	930/1260	-	990/1260	990/1260	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	21,9	-	21,9	-	-	21,9
Air resistance [Cd]	0.29	0.29	0.29	0.28	0.28	0.28
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W
Tyre dimensions rear	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W
Wheel size front	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16
Wheel size rear	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16	7.0J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11,3/-	11,3/-	11.3/-	11.7/-	11.7/-	11.7/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1434	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1583	1583	1583	1586	1586	1586
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	140	145	145	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	325d	325d	325d	325d	330d	330d
Date of sale	from to 1/2016	from to 1/2016	from 1/2016 to 7/2018	from 1/2016 to 7/2018	from to 7/2018	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	6/24	6/24
Engine displacement [cm³]	1995	1995	1995	1995	2993	2993
Maximum output / speed [kW/min-1]	160/4400	160/4400	165/4400	165/4400	190/4000	190/4000
Maximum torque [Nm/min-1]	450/1500-2500	450/1500-2500	450/1500-3000	450/1500-3000	560/1500-3000	560/1500-3000
Bore and stroke [mm x mm]	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	5.2	5.2	5.0	5.0	6.5	6.5
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	-	eight-speed automatic gearbox Steptronic	-	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic	eight-speed automatic gearbox Steptronic

Top speed [km/h]	238	238	240	240	250	250
Acceleration 0–100 km/h [s]	6.9	6.7	6.7	6.3	5.6	5.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	7.2	-	6.7	-	-	-

City [l]	6.4-6.3	6.0-5.9	6.3-5,9	5.7-5,3	6.1-5.9	6,6
Out of town [l]	4.5-4.4	4.3-4.3	4.6-4,3	4.6-4,3	4.8-4.7	5,1
Combined [l]	5.2-5.1	4.9-4.8	5.2-4,9	5.0-4,7	5.3-5.1	5,6
CO2 emissions [g/km]	137-134	130-127	137-129	131-123	138-135	148

Emission standard	EU6	EU6	EU6	EU6	EU6	Euro 6c
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1615	1635	1640	1650	1685	1735
Overall weight [kg]	2100	2120	2125	2135	2160	2220
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	950/1245	950/1245	965/1255	965/1255	1000/1245	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	21,9
Air resistance [Cd]	0.31	0.31	0.31	0.31	0.31	0.31
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W
Tyre dimensions rear	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W
Wheel size front	7.5J x 17	7.5J x 17	7,5J x 17	7,5J x 17	7.5J x 17	7.5J x 17
Wheel size rear	7.5J x 17	7.5J x 17	7,5J x 17	7,5J x 17	7.5J x 17	7.5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/-	11.3/-	11.3/-	11.3/-	11.3/-	11.3/-

Overall length [mm]	4633	4633	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1429	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1531	1531	1531	1531	1531	1531
Rear wheel track [mm]	1572	1572	1572	1572	1572	1572
Forward overhang [mm]	779	779	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044	1044	1044
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	330d xDrive	330d xDrive	335d xDrive	335d xDrive
Date of sale	from to 7/2018	-	from to 7/2018	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24
Engine displacement [cm³]	2993	2993	2993	2993
Maximum output / speed [kW/min-1]	190/4000	190/4000	230/4400	230/4400
Maximum torque [Nm/min-1]	560/1500-3000	560/1500-3000	630/1500-2500	630/1500-2500
Bore and stroke [mm x mm]	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0	90.0 x 84.0
Compression ratio	16.5:1	16.5:1	16.5:1	16.5:1
Oil volume [l]	6.5	6.5	6.5	6.5
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	4x4	4x4	4x4	4x4
Gearbox	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	250	250	250	250
Acceleration 0–100 km/h [s]	5.4	5.4	4.9	4.9
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	6.4-6.2	7,1	6.8-6.7	7,6
Out of town [l]	5.0-4.9	5,3	5.2-5.1	5,5
Combined [l]	5.5-5.4	6,0	5.7-5.6	6,3
CO2 emissions [g/km]	145-142	157	151-148	165

Emission standard	EU6	Euro 6c	EU6	Euro 6c
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1755	1795	1770	1810
Overall weight [kg]	2230	2290	2245	2295
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	1050/1255	-	1060/1260	-
Maximum vertical load on the tow bar [kg]	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	57	57	57	57
AdBlue tank volume [l]	-	21,9	-	21,9
Air resistance [Cd]	0.32	0.32	0.32	0.32
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W
Tyre dimensions rear	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W	225/50 R17 98W
Wheel size front	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17
Wheel size rear	7.5J x 17	7.5J x 17	7.5J x 17	7.5J x 17
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS	Electric power steering EPS
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	11.7/-	11.7/-	11.7/-	11.7/-

Overall length [mm]	4633	4633	4633	4633
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1434	1434	1434	1434
Wheelbase [mm]	2810	2810	2810	2810
Front wheel track [mm]	1531	1531	1531	1531
Rear wheel track [mm]	1570	1570	1570	1570
Forward overhang [mm]	779	779	779	779
Rear overhang [mm]	1044	1044	1044	1044
Clearance [mm]	145	145	145	145
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

BMW 3 F30 facelift 2015 boot

BMW 3 F30 facelift 2015 rear folding seats

BMW 3 F31 Touring facelift 2015 interior

BMW 3 F31 Touring facelift 2015 front seats

BMW 3 F31 Touring facelift 2015 rear seats

BMW 3 F34 Gran turismo facelift 2016 rear seats

BMW 3 F34 Gran turismo facelift 2016 boot

BMW 3 F34 Gran turismo facelift 2016 rear folding seats

BMW M3 F80 facelift 2016 interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
