BMW 3
Date of manufacture
10/2018 – to this day (Sedan)
2019 – to this day (Estate)
Platform
-
Manufacturing locations
Munich, Germany
Designer
Alexey Kezha
Marc Michael Markefka
Tags
D-segment
German cars
BMW's new model 3 comes in sedan and estate body styles. This vehicle has been developed and manufactured in Germany since 2018. The engine range includes petrol, diesel and hybrid variants, with the most powerful being the M3 G80 Competition (375 kW). The fastest model is also the M3 G80 Competition with a top speed of 250 km/h. The hybrid and plug-in hybrid models 330e have the lowest consumption of 1.5 l/100 km and emissions of 35 g/km. In the sedan version, the trunk size is 480 l, while in the estate it is 500 l. The model 3 has been rated 5 out of 5 in the EURONCAP safety tests according to the 2019 methodology.
Car body style

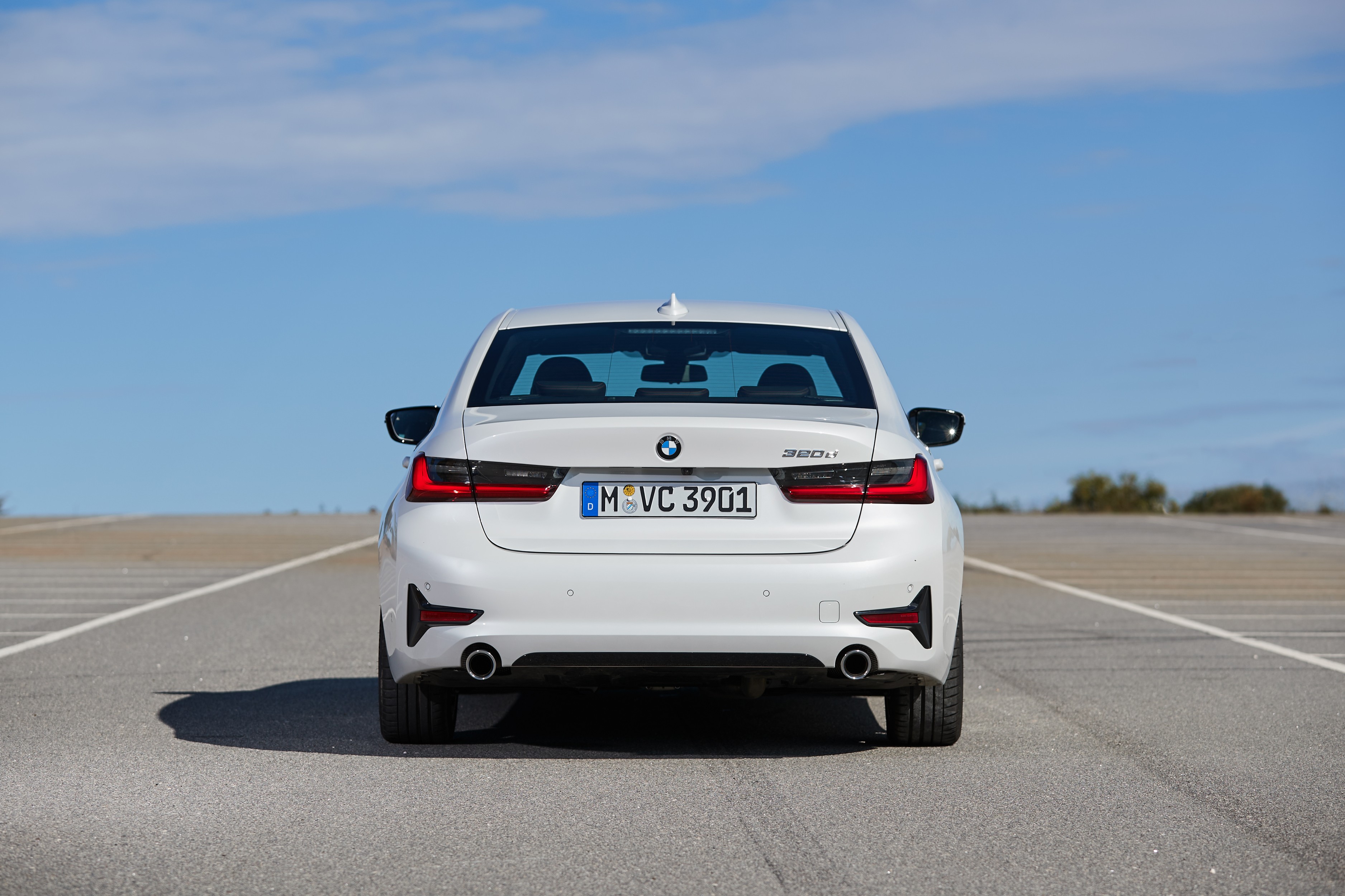

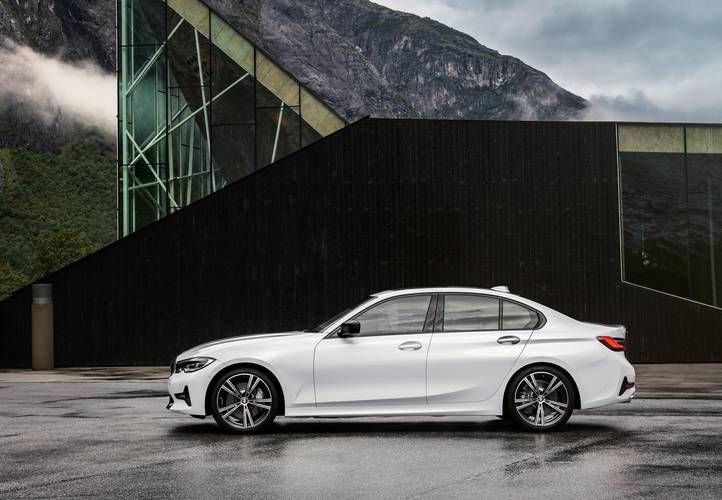

Sedan
Date of manufacture
10/2018 – to this dayInternal designation
G20Engine size

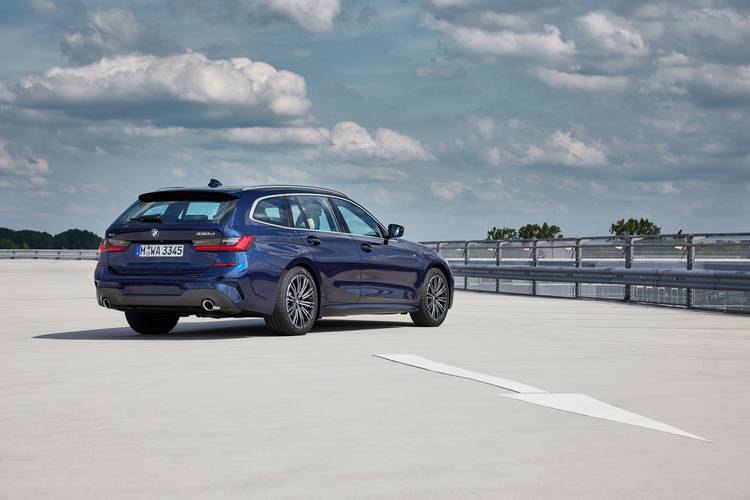

Estate (Touring)
Date of manufacture
2019 – to this dayInternal designation
G21Engine size
Technical data
Sedan

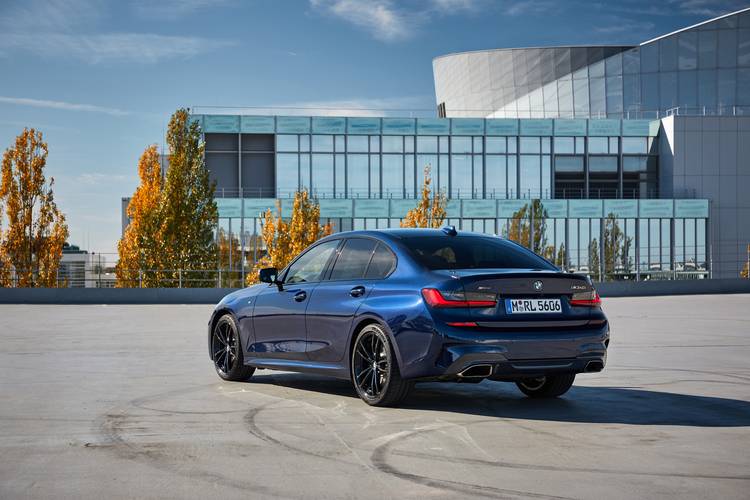

| 318i | 320i | 320i xDrive | 330i | 330i xDrive | M340i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 2998 |
| Maximum output / speed [kW/min-1] | 115/4500 -6500 | 135/5000-6500 | 135/5000-6500 | 190/5000-6500 | 190/5000-6500 | 275/5500-6500 |
| Maximum torque [Nm/min-1] | 250/1300-4300 | 300/1350- 4000 | 300/1350- 4000 | 400/1550- 4400 | 400/1550- 4400 | 500/1850- 5000 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0 :1 | 11.0 :1 | 10.2 :1 | 10.2 :1 | 10.2 :1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 223 | 235 | 230 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.4 | 7.1 | 7.6 | 5.9 | 5.6 | 4.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0-6.7 | 7.1-6.6 | 7,8-7.0 | 7.7-7.1 | 7.9-7.2 | 9.6-8,5 |
| Out of town [l] | 4.9-4.4 | 5.2-4.5 | 5.6-5.2 | 5.2-4,8 | 5.7-5.1 | 6.1-5.5 |
| Combined [l] | 5.7-5.3 | 5.9-5.3 | 6.3-5.9 | 6.1-5.6 | 6.5-5,9 | 7.4-6,6 |
| CO2 emissions [g/km] | 130-120 | 134-120 | 145-134 | 139-129 | 147-135 | 168-152 |
| Emission standard | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1535 | 1615 | 1545 | 1640 | 1745 |
| Overall weight [kg] | 2050 | 2050 | 2130 | 2060 | 2155 | 2245 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1600 | 750/1800 | 750/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 965/1150 | 965/1150 | 1050/1185 | 985/1160 | 1055/1195 | 1115/1230 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

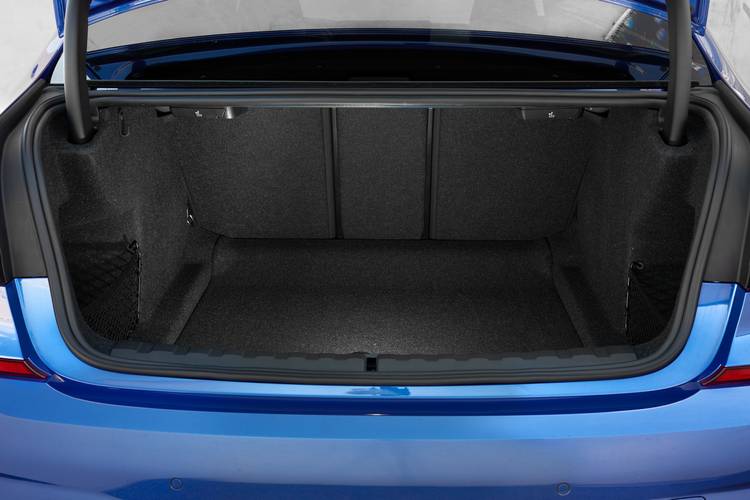

| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |

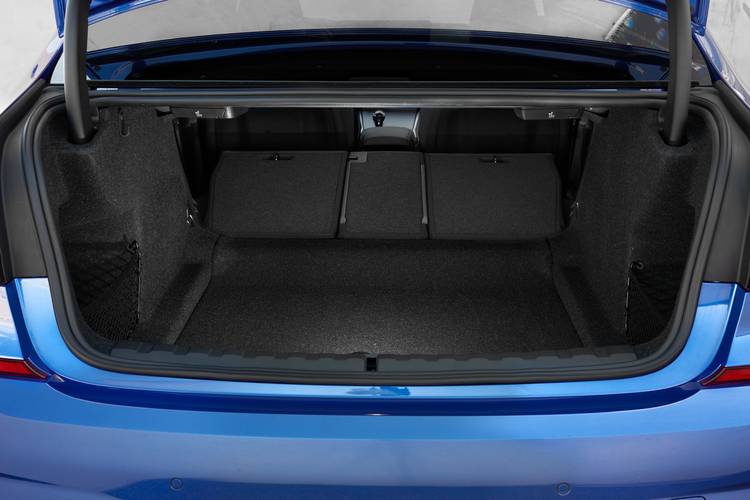

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.24 | 0.25 | 0.25 | 0.24 | 0.25 | 0.26 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 205/60 R16 96W XL | 205/60 R16 96W XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/45 R18 95Y XL |
| Tyre dimensions rear | 205/60 R16 96W XL | 205/60 R16 96W XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 255/40 R18 99Y XL |
| Wheel size front | 6.5Jx 16 | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 |
| Wheel size rear | 6.5Jx 16 | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4 /- | 12.0 /- | 11.4 /- | 12.0 /- | 12.0 /- |
| Overall length [mm] | 4709 | 4709 | 4709 | 4709 | 4709 | 4713 |
| Overall width without/including mirrors [mm] | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 |
| Overall height [mm] | 1435 | 1435 | 1445 | 1435 | 1445 | 1440 |
| Wheelbase [mm] | 2851 | 2851 | 2851 | 2851 | 2851 | 2851 |
| Front wheel track [mm] | 1589 | 1589 | 1573 | 1589 | 1573 | 1583 |
| Rear wheel track [mm] | 1604 | 1604 | 1567 | 1604 | 1567 | 1567 |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 136 | 136 | 135 | 136 | 135 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |

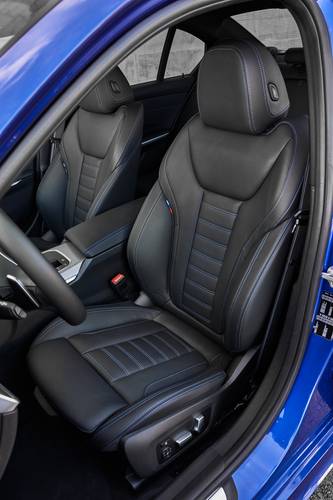

| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- |
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M3 G80 | M3 G80 Competition | 330e | 330e | 330e xDrive | 318d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2020 | from 2020 to | from 2020 to | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2993 | 2993 | 1998 | 1998 | 1998 | 1995 |
| Maximum output / speed [kW/min-1] | 353/6250 | 375/6250 | 135/5000-6500 83/3170 el. 185 (215 XtraBoost) total | 135/5000-6500 83/3170 el. 185 (215 XtraBoost) total | 135/5000-6500 83/3170 el. 185 (215 XtraBoost) total | 110/4000 |
| Maximum torque [Nm/min-1] | 550/2650-6130 | 650/2750-5500 | 300/1350- 4000 265/0-3170 el. 420 total | 300/1350- 4000 265/0-3170 el. 420 total | 300/1350- 4000 265/0-3170 el. 420 total | 320/1500- 3000 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 |
| Compression ratio | 9.3:1 | 9.3:1 | 10.2 :1 | 10.2 :1 | 10.2 :1 | 16.5 :1 |
| Oil volume [l] | 7.0 | 7.0 | 5.25 | 5.25 | 5.25 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 250 [290 subject to a surcharge] | 250 [290 subject to a surcharge] | 230 [140 el.] | 230 [140 el.] | 230 [140 el.] | 226 |
| Acceleration 0–100 km/h [s] | 4.2 | 3.9 | 5.9 | 5,8 | 5,8 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 5.6 | 3.4 | - | - | - | - |
| City [l] | 15.6 | 14.6 | - | - | - | 5.6-5.2 |
| Out of town [l] | 8.0 | 7.6 | - | - | - | 4.1-3.8 |
| Combined [l] | 10.8 | 10.2 | 1,9-1,6 [15.4 -14.8 kWh] | 1,8-1,5 [14,8-13,9 kWh] | 2,0-1,7 [15,9-15,2 kWh] | 4.6-4.3 |
| CO2 emissions [g/km] | 248 | 234 | 43 -37 | 41-35 | 45-40 | 122-113 |
| Emission standard | Euro 6d | Euro 6d | EU6d-TEMP | Euro 6d | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 345 | 345 | 345 | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 10.43 kWh | Lithium-Ionen-Akkumulator, 11.15 kWh | Lithium-Ionen-Akkumulator, 11.15 kWh | - |
| Range with fully charged battery [km] | - | - | 59-66 | 56-60 | 55-60 | - |
| Charging time | - | - |
|
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1780 | 1805 | 1815 | 1845 | 1895 | 1520 |
| Overall weight [kg] | 2210 | 2210 | 2265 | 2300 | 2360 | 2075 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 750/750 | 750/1500 | 750/1500 | 745/1600 |
| Maximum front/rear axle load [kg] | 1080/1180 | 1080/ 1180 | 1035/1305 | - | - | 985/1180 |
| Maximum vertical load on the tow bar [kg] | - | - | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 375 | 375 | 375 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 40 | 40 | 40 | 40 [59 subject to a surcharge] |
| AdBlue tank volume [l] | - | - | - | - | - | 10,4 [18,9 subject to a surcharge] |
| Air resistance [Cd] | 0.33 | 0.33 | 0.25 | 0.25 | 0.25 | 0.23 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 275/40 ZR18 103Y XL | 275/40 ZR18 103Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 205/60 R16 96W XL |
| Tyre dimensions rear | 285/35 ZR19 103Y XL | 285/35 ZR19 103Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 205/60 R16 96W XL |
| Wheel size front | 9.5J x 18 | 9.5J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 6.5J x 16 |
| Wheel size rear | 10.5J x 19 | 10.5J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/- | 12.2/- | 11.4 /- | 11.4 /- | 11.4 /- | 11.4 /- |
| Overall length [mm] | 4794 | 4794 | 4709 | 4709 | 4709 | 4709 |
| Overall width without/including mirrors [mm] | 1903/2068 | 1903/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 |
| Overall height [mm] | 1433 | 1433 | 1444 | 1444 | 1444 | 1435 |
| Wheelbase [mm] | 2857 | 2857 | 2851 | 2851 | 2851 | 2851 |
| Front wheel track [mm] | 1617 | 1617 | 1573 | 1573 | 1573 | 1589 |
| Rear wheel track [mm] | 1605 | 1605 | 1569 | 1569 | 1569 | 1604 |
| Forward overhang [mm] | 860 | 860 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 1077 | 1077 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 120 | 120 | 147 | 147 | 147 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 961 | 961 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- |
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 318d | 320d | 320d | 320d xDrive | 330d | 330d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2020 | from to 2020 | from to 2020 | from to 2020 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 110/4000 | 140/4000 | 140/4000 | 140/4000 | 195/4000 | 195/4000 |
| Maximum torque [Nm/min-1] | 320/1500- 3000 | 400/1750- 2500 | 400/1750- 2500 | 400/1750- 2500 | 580/1750- 2750 | 580/1750- 2750 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 |
| Oil volume [l] | 5.5 | 5.5 | 5.5 | 5.5 | 6.5 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 224 | 240 | 240 | 233 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.3 | 7.1 | 6.8 | 6.9 | 5.5 | 5.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.0-4.7 | 5.7-5.4 | 5.1-4.9 | 5.5-5.2 | 6.3-6.1 | 6.4-6.4 |
| Out of town [l] | 4.2-3.8 | 4.1-3.8 | 4.1-3.8 | 4.4-4.1 | 4.6-4.3 | 4.7-4.4 |
| Combined [l] | 4.5-4.2 | 4.7-4.4 | 4.5-4.2 | 4.8-4.5 | 5.2-5.0 | 5.4-5.1 |
| CO2 emissions [g/km] | 118-109 | 122-115 | 117-110 | 125-118 | 138-130 | 140-134 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1530 | 1525 | 1530 | 1615 | 1665 | 1735 |
| Overall weight [kg] | 2085 | 2075 | 2085 | 2170 | 2185 | 2255 |
| Maximum trailer weight unbraked/braked [kg] | undefined/750 | 745/1600 | undefined/750 | 750/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 985/1180 | 970/1180 | 970/1180 | 1055/1195 | 1075/1210 | 1105/1230 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 59 | 59 |
| AdBlue tank volume [l] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 18,9 | 18,9 |
| Air resistance [Cd] | 0.23 | 0.23 | 0.23 | 0.25 | 0.24 | 0.25 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 205/60 R16 96W XL | 205/60 R16 96W XL | 205/60 R16 96W XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL |
| Tyre dimensions rear | 205/60 R16 96W XL | 205/60 R16 96W XL | 205/60 R16 96W XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4 /- | 11.4 /- | 11.4 /- | 11.95 /- | 11.4 /- | 12.0 /- |
| Overall length [mm] | 4709 | 4709 | 4709 | 4709 | 4709 | 4709 |
| Overall width without/including mirrors [mm] | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 |
| Overall height [mm] | 1435 | 1435 | 1435 | 1445 | 1435 | 1445 |
| Wheelbase [mm] | 2851 | 2851 | 2851 | 2851 | 2851 | 2851 |
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1604 | 1604 | 1604 | 1587 | 1569 | 1567 |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 136 | 136 | 136 | 135 | 136 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- |
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 316d | 318d | 318d | 320d | 320d xDrive | 330d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from 2020 to | from 2020 to | from 2020 to | from 2020 to | from 2020 to |
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 2993 |
| Maximum output / speed [kW/min-1] | 90/4000 | 110/4000 8 el. | 110/4000 8 el. | 140/4000 8 el. | 140/4000 8 el. | 210/4000 8 el. |
| Maximum torque [Nm/min-1] | 300/1500- 2500 | 320/1500- 3000 | 320/1500- 3000 | 400/1750-2500 | 400/1750-2500 | 650/1500-2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | 5.5 | 5.5 | 5.5 | 5.5 | 7.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 207 | 226 | 224 | 240 | 233 | 250 |
| Acceleration 0–100 km/h [s] | 9,8 | 8.4 | 8.2 | 6.8 | 6.9 | 5.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,0-4,8 | 5,4-5,2 | 4,7-4,4 | 4.6-4.5 | 5.0-5.0 | 5.7-5.4 |
| Out of town [l] | 4,0-3,7 | 4,0-3,6 | 3,7-3,4 | 3.8-3.7 | 4.1-4.0 | 4.2-3.9 |
| Combined [l] | 4,4-4,1 | 4,5-4,2 | 4,1-3,8 | 4.1-4.0 | 4.4-4.3 | 4.7-4.4 |
| CO2 emissions [g/km] | 115-108 | 119-110 | 107-99 | 107-105 | 117-114 | 125-116 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | 48 | 48 | 48 | 48 |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1580 | 1560 | 1615 | 1615 | 1695 | 1770 |
| Overall weight [kg] | 2080 | 2075 | 2120 | 2140 | 2205 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | 1000/ 1190 | 1085/1210 | 1085/ 1220 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 59 |
| AdBlue tank volume [l] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 18,9 |
| Air resistance [Cd] | - | 0.23 | 0.23 | 0.23 | 0.25 | 0.24 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 205/60 R16 96W XL | 205/60 R16 96W XL | 205/60 R16 96W XL | 205/60 R16 96W XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL |
| Tyre dimensions rear | 205/60 R16 96W XL | 205/60 R16 96W XL | 205/60 R16 96W XL | 205/60 R16 96W XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4 /- | 11.4 /- | 11.4 /- | 11.4/- | 12.0/- | 11.4/- |
| Overall length [mm] | 4709 | 4709 | 4709 | 4709 | 4709 | 4709 |
| Overall width without/including mirrors [mm] | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 |
| Overall height [mm] | 1435 | 1435 | 1435 | 1435 | 1445 | 1435 |
| Wheelbase [mm] | 2851 | 2851 | 2851 | 2851 | 2851 | 2851 |
| Front wheel track [mm] | 1589 | 1589 | 1589 | 1589 | 1573 | 1573 |
| Rear wheel track [mm] | 1604 | 1604 | 1604 | 1604 | 1567 | 1569 |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 136 | 136 | 136 | 136 | 135 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- |
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - | - |    | - | - |
| Clean Air Index | - | - | - | 6.0/10 | - | - |
| Energy Efficiency Index | - | - | - | 6.0/10 | - | - |
| GHG index | - | - | - | 0.6/10 | - | - |
| 330d xDrive | M340d xDrive | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | ||||
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2993 | 2993 | ||||
| Maximum output / speed [kW/min-1] | 210/4000 8 el. | 250/4400 8 el. | ||||
| Maximum torque [Nm/min-1] | 650/1500-2500 | 700/1750-2250 | ||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | ||||
| Compression ratio | 16.5:1 | 16.5:1 | ||||
| Oil volume [l] | 7.0 | 7.0 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5.0 | 4.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.1-5.8 | 7.7-7.3 | ||||
| Out of town [l] | 4.4-4.1 | 4.5-4.2 | ||||
| Combined [l] | 5.0-4.7 | 5.7-5.3 | ||||
| CO2 emissions [g/km] | 132-123 | 149-139 | ||||
| Emission standard | Euro 6d | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | 48 | 48 | ||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | ||||
| Range with fully charged battery [km] | - | - | ||||
| Charging time | - | - | ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 1840 | 1895 | ||||
| Overall weight [kg] | 2320 | 2325 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | ||||
| Maximum front/rear axle load [kg] | 1130/ 1240 | 1155/ 1255 | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 480 | 480 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 59 | 59 | ||||
| AdBlue tank volume [l] | 18,9 | 18,9 | ||||
| Air resistance [Cd] | 0.24 | 0.26 | ||||
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | ||||
| Rear suspension | five-link | five-link | ||||
| Tyre dimensions front | 225/50 R17 98Y XL | 225/45 R18 95Y XL | ||||
| Tyre dimensions rear | 225/50 R17 98Y XL | 255/40R18 99Y XL | ||||
| Wheel size front | 7.5J x 17 | 7.5J x 18 | ||||
| Wheel size rear | 7.5J x 17 | 8.5J x 18 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 12.0/- | 12.0/- | ||||
| Overall length [mm] | 4709 | 4713 | ||||
| Overall width without/including mirrors [mm] | 1827/2068 | 1827/2068 | ||||
| Overall height [mm] | 1445 | 1440 | ||||
| Wheelbase [mm] | 2851 | 2851 | ||||
| Front wheel track [mm] | 1573 | 1583 | ||||
| Rear wheel track [mm] | 1567 | 1567 | ||||
| Forward overhang [mm] | 799 | 799 | ||||
| Rear overhang [mm] | 1059 | 1059 | ||||
| Clearance [mm] | 135 | 130 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 993 | 993 | ||||
| Headroom rear [mm] | 957 | 957 | ||||
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | ||||
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate (Touring)
| 318i | 320i | 330i | 330i xDrive | M340i xDrive | 330e | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | - | - | - | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 2998 | 1998 |
| Maximum output / speed [kW/min-1] | 115/4500-6500 | 135/5000-6500 | 190/5000-6500 | 190/5000-6500 | 275/5500-6500 | 135/5000-6500 83/3170 el. 185 (215 XtraBoost) total |
| Maximum torque [Nm/min-1] | 250/1300-4300 | 300/1350- 4000 | 400/1550- 4400 | 400/1550- 4400 | 500/1850- 5000 | 300/1350- 4000 265/0-3170 el. 420 total |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0 :1 | 10.2 :1 | 10.2 :1 | 10.2 :1 | 10.2 :1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 6.5 | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 220 | 230 | 250 | 250 | 250 | 230 |
| Acceleration 0–100 km/h [s] | 8.7 | 7.5 | 6,0 | 5.9 | 4.6 | 5,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3-7.0 | 7.5-6.8 | 7.7 -7.2 | 7.9 -7.5 | 9.7-8,8 | - |
| Out of town [l] | 5.5-5.0 | 5.6-5.0 | 5.7 -5.1 | 5.9 -5.3 | 6.3-5.8 | - |
| Combined [l] | 6.2-5.7 | 6.1-5.7 | 6.4 -5,9 | 6.6 -6.1 | 7.6-6,9 | 1,9-1,7 [15,6-14,5 kWh] |
| CO2 emissions [g/km] | 140-130 | 140-130 | 146 -134 | 151-139 | 172-157 | 44-38 |
| Emission standard | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 345 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 11.15 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 56-61 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1645 | 1645 | 1650 | 1715 | 1845 | 1905 |
| Overall weight [kg] | 2135 | 2135 | 2185 | 2260 | 2365 | 2355 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1600 | 750/1600 | 750/1800 | 750/1800 | 750/1500 |
| Maximum front/rear axle load [kg] | 975/1260 | 975/1260 | 985/1280 | 1050/1295 | 1095/1345 | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1420 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.28 | 0.29 | - |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/45 R18 95Y XL | 225/50 R17 98Y XL |
| Tyre dimensions rear | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 255/40 R18 99Y XL | 225/50 R17 98Y XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 | 7,5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 12.0/- | 12.0/- | 11.4/- |
| Overall length [mm] | 4709 | 4709 | 4709 | 4709 | 4713 | 4709 |
| Overall width without/including mirrors [mm] | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 |
| Overall height [mm] | 1440 | 1440 | 1440 | 1445 | 1440 | 1440 |
| Wheelbase [mm] | 2851 | 2851 | 2851 | 2851 | 2851 | 2851 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1583 | 1573 |
| Rear wheel track [mm] | 1588 | 1588 | 1569 | 1567 | 1567 | 1569 |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 141 | 141 | 141 | 135 | 130 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- |
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 330e xDrive | 318d | 318d | 320d | 320d | 320d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from to 2020 | from to 2020 | from to 2020 | from to 2020 | from to 2020 |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 135/5000-6500 83/3170 el. 185 (215 XtraBoost) total | 110/4000 | 110/4000 | 140/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 300/1350- 4000 265/0-3170 el. 420 total | 320/1500- 3000 | 320/1500- 3000 | 400/1750- 2500 | 400/1750- 2500 | 400/1750- 2500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 10.2 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 |
| Oil volume [l] | - | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 225 | 217 | 215 | 229 | 230 | 225 |
| Acceleration 0–100 km/h [s] | 5,9 | 8.9 | 8.8 | 7.5 | 7.1 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 5.7-5.3 | 5.2-4.8 | 5.5 -5.4 | 5.3-4.8 | 5.4 -5.2 |
| Out of town [l] | - | 4.3-4.0 | 4.4-4.1 | 4.4 -4.0 | 4.5-4.2 | 4.7 -4.3 |
| Combined [l] | 2,2-1,9 [15,8-14,7 kWh] | 4.8 -4.5 | 4.7-4.4 | 4.8 -4.6 | 4.8-4.4 | 4.9 -4.6 |
| CO2 emissions [g/km] | 49-43 | 127-118 | 123-114 | 125 -119 | 125-115 | 129 -121 |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 345 | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11.15 kWh | - | - | - | - | - |
| Range with fully charged battery [km] | 52-57 | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1965 | 1650 | 1660 | 1640 | 1660 | 1715 |
| Overall weight [kg] | 2425 | 2160 | 2180 | 2180 | 2190 | 2255 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1600 | 750/1800 | 750/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | 980/1270 | 985/1280 | 985/1280 | 995/1285 | 1055/1300 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 410 | 500 | 500 | 500 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1420 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] |
| AdBlue tank volume [l] | - | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] |
| Air resistance [Cd] | - | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL |
| Tyre dimensions rear | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL |
| Wheel size front | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.0/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 12.0/- |
| Overall length [mm] | 4709 | 4709 | 4709 | 4709 | 4709 | 4709 |
| Overall width without/including mirrors [mm] | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 |
| Overall height [mm] | 1445 | 1440 | 1440 | 1440 | 1440 | 1445 |
| Wheelbase [mm] | 2851 | 2851 | 2851 | 2851 | 2851 | 2851 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1567 | 1588 | 1588 | 1569 | 1569 | 1567 |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 135 | 141 | 141 | 141 | 141 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- |
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 330d | 330d xDrive | 318d | 318d | 320d | 320d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from 2020 to | from 2020 to | from 2020 to | from 2020 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2993 | 2993 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 195/4000 | 195/4000 | 110/4000 8 el. | 110/4000 8 el. | 140/4000 8 el. | 140/4000 8 el. |
| Maximum torque [Nm/min-1] | 580/1750- 2750 | 580/1750- 2750 | 320/1500- 3000 | 320/1500- 3000 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 6.5 | 6.5 | - | - | 5.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 250 | 250 | 217 | 215 | 230 | 225 |
| Acceleration 0–100 km/h [s] | 5.6 | 5.4 | 8,9 | 8,7 | 7.1 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6-6.3 | 6.5 -6.4 | 5,7-5,2 | 4,9-4,5 | 4.7-4.6 | 5.2-5.1 |
| Out of town [l] | 4.8-4.6 | 5.1 -4.7 | 4,3-4,0 | 4,0-3,7 | 4.0-3.9 | 4.2-4.1 |
| Combined [l] | 5.5-5.2 | 5.6 -5.4 | 4,8-4,4 | 4,3-4,0 | 4.3-4.2 | 4.5-4.5 |
| CO2 emissions [g/km] | 144-136 | 146 -140 | 126-116 | 114-105 | 112 -109 | 119 -117 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | 48 | 48 | 48 |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1790 | 1820 | 1650 | 1705 | 1705 | 1765 |
| Overall weight [kg] | 2305 | 2350 | 2160 | 2215 | 2225 | 2290 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1600 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1075/1325 | 1105/1340 | - | - | 1025/ 1290 | 1095/1315 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 | -/1510 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] | 40 [59 subject to a surcharge] |
| AdBlue tank volume [l] | 18,9 | 18,9 | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] | 10,4 [18,9 subject to a surcharge] |
| Air resistance [Cd] | 0.28 | 0.27 | - | - | 0.27 | 0.27 |
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL |
| Tyre dimensions rear | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/50 R17 98Y XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 12.0/- | 11.4/- | 11.4/- | 11.4/- | 12.0/- |
| Overall length [mm] | 4709 | 4709 | 4709 | 4709 | 4709 | 4709 |
| Overall width without/including mirrors [mm] | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 | 1827/2068 |
| Overall height [mm] | 1440 | 1445 | 1440 | 1440 | 1440 | 1445 |
| Wheelbase [mm] | 2851 | 2851 | 2851 | 2851 | 2851 | 2851 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1588 | 1567 | 1588 | 1588 | 1569 | 1567 |
| Forward overhang [mm] | 799 | 799 | 799 | 799 | 799 | 799 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Clearance [mm] | 141 | 135 | 141 | 141 | 141 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- | 1456/- |
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 330d | 330d xDrive | M340d xDrive | ||||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | from 2020 to | |||
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2993 | 2993 | 2993 | |||
| Maximum output / speed [kW/min-1] | 210/4000 8 el. | 210/4000 8 el. | 250/4400 8 el. | |||
| Maximum torque [Nm/min-1] | 650/1500-2500 | 650/1500-2500 | 700/1750-2250 | |||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | |||
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | |||
| Oil volume [l] | 7.0 | 7.0 | 7.0 | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | 4x4 | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 5.5 | 5.2 | 4.8 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.7-5.5 | 6.1-5.9 | 7.8-7.3 | |||
| Out of town [l] | 4.3-3.9 | 4.6-4.2 | 4.7-4.3 | |||
| Combined [l] | 4.8-4.5 | 5.2-4.8 | 5.8-5.4 | |||
| CO2 emissions [g/km] | 128-119 | 136-127 | 153-143 | |||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| System voltage [V] | 48 | 48 | 48 | |||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | |||
| Range with fully charged battery [km] | - | - | - | |||
| Charging time | - | - | - | |||
| Number of modules/cells | - | - | - | |||
| Battery weight [kg] | - | - | - | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 1845 | 1905 | 1955 | |||
| Overall weight [kg] | 2330 | 2405 | 2415 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | |||
| Maximum front/rear axle load [kg] | 1110/ 1310 | 1160/ 1330 | 1155/1360 | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 500 | 500 | 500 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1510 | -/1510 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 59 | 59 | 59 | |||
| AdBlue tank volume [l] | 18,9 | 18,9 | 18,9 | |||
| Air resistance [Cd] | 0.27 | 0.27 | 0.28 | |||
| Front suspension | MacPherson, two separate lower arms | MacPherson, two separate lower arms | MacPherson, two separate lower arms | |||
| Rear suspension | five-link | five-link | five-link | |||
| Tyre dimensions front | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 225/45 R18 95Y XL | |||
| Tyre dimensions rear | 225/50 R17 98Y XL | 225/50 R17 98Y XL | 255/40 R18 99Y XL | |||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 | |||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.4/- | 12.0/- | 12.0/- | |||
| Overall length [mm] | 4709 | 4709 | 4713 | |||
| Overall width without/including mirrors [mm] | 1827/2068 | 1827/2068 | 1827/2068 | |||
| Overall height [mm] | 1440 | 1445 | 1440 | |||
| Wheelbase [mm] | 2851 | 2851 | 2851 | |||
| Front wheel track [mm] | 1573 | 1573 | 1583 | |||
| Rear wheel track [mm] | 1569 | 1567 | 1567 | |||
| Forward overhang [mm] | 799 | 799 | 799 | |||
| Rear overhang [mm] | 1059 | 1059 | 1059 | |||
| Clearance [mm] | 141 | 135 | 130 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1030 | 1030 | 1030 | |||
| Headroom rear [mm] | 953 | 953 | 953 | |||
| Front elbow/shoulder width [mm] | 1456/- | 1456/- | 1456/- | |||
| Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
