BMW 5
Date of manufacture
3/2010 – 2013 (Sedan)
10/2009 – 2013 (Liftback)

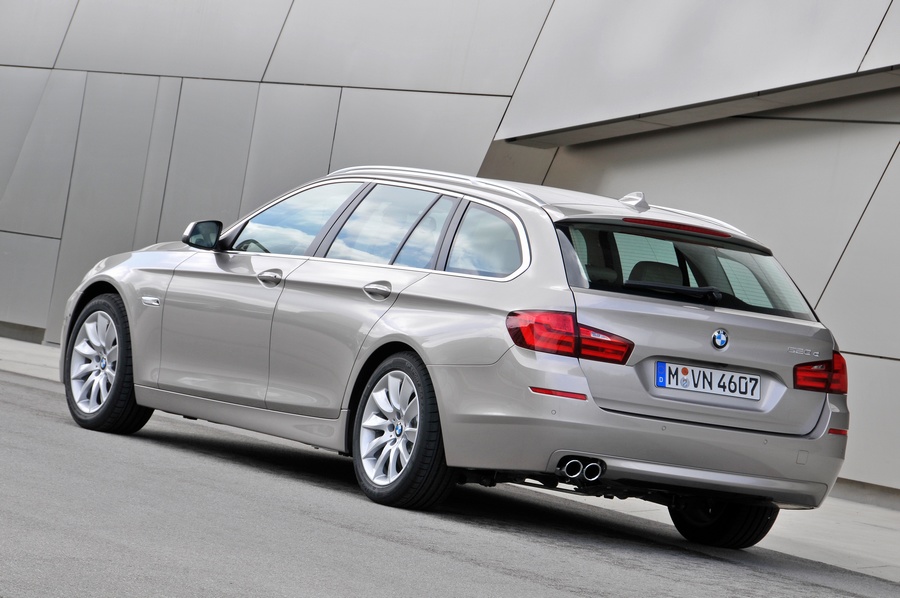

4/2010 – 2013 (Estate)
Platform
-
Manufacturing locations
Dingolfing, Germany
Designer
Jacek Fröhlich
Jean-Francois
Alexandre Huet
Tags
E-segment
German cars
The BMW 5 has been manufactured in a German plant since 2009 in three body styles - sedan, liftback and estate. The engine range includes petrol, diesel and hybrid power units. The most powerful model M5 has a maximum output of 412 kW and is the fastest car with a top speed of 250 km/h. The most efficient 520d EfficientDynamics Edition consumes 4.5 l/100 km with emissions of 119 g/km. The car has a boot capacity of 520 l (sedan), 560 l (estate) and 440-590 l (liftback). The BMW 5 has successfully passed the EURONCAP 2010 safety tests and achieved a rating of 5 out of 5.
Car body style
Sedan
Date of manufacture

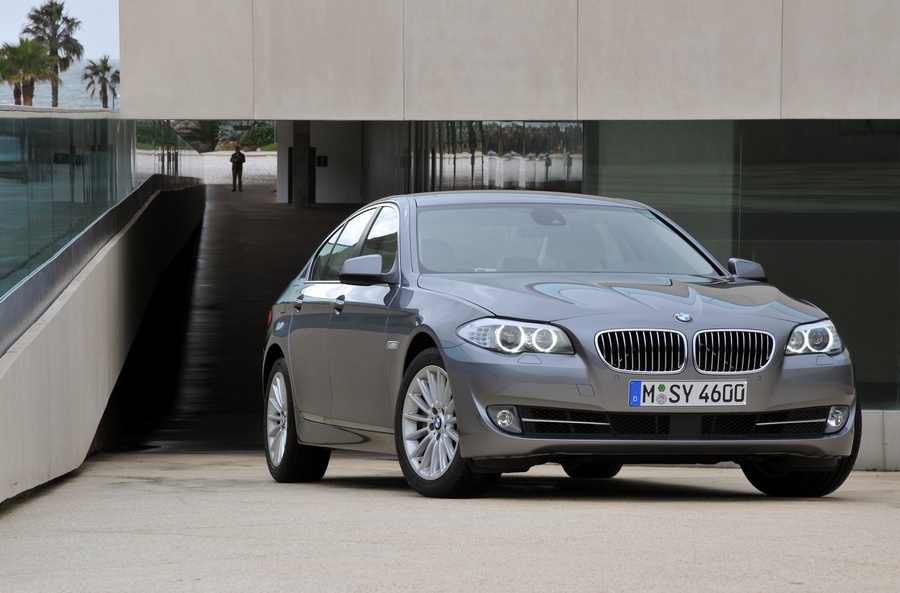

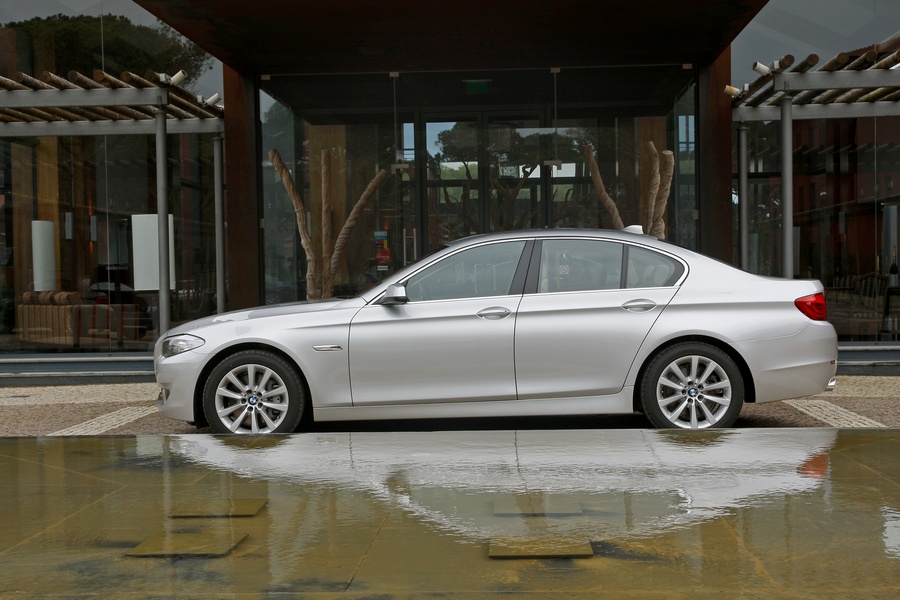

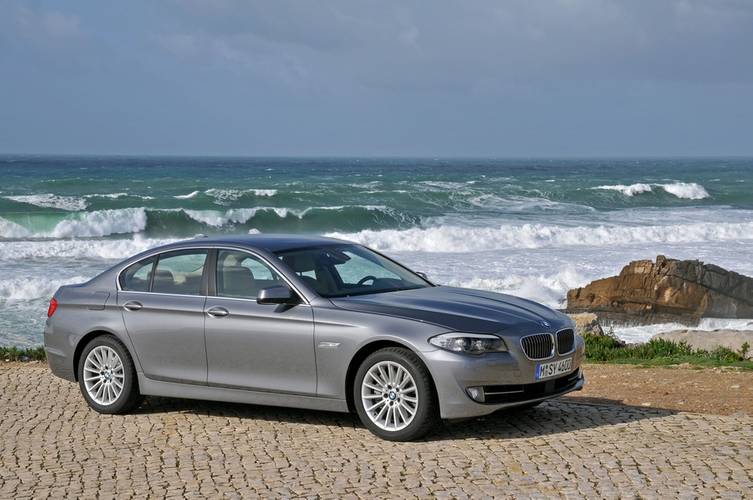

3/2010 – 2013Internal designation

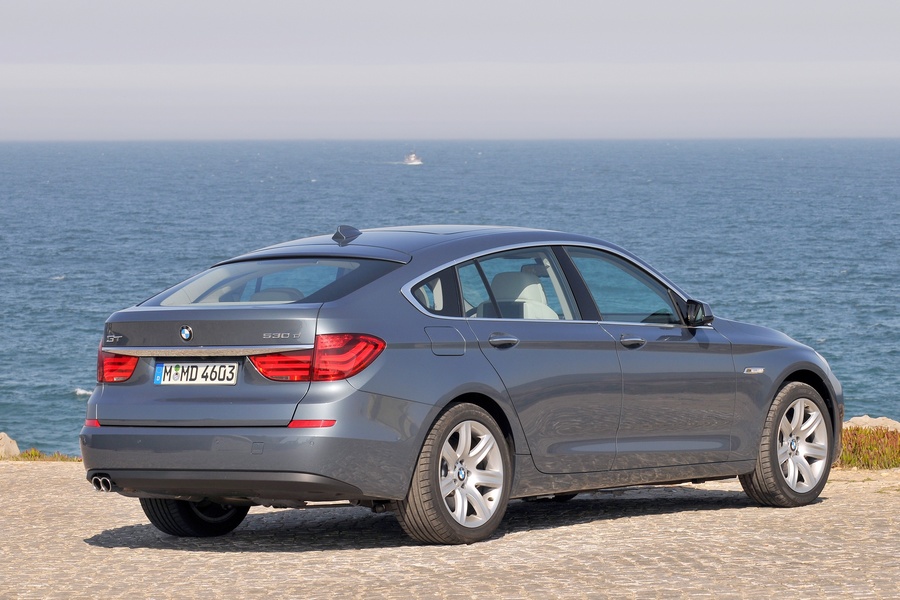

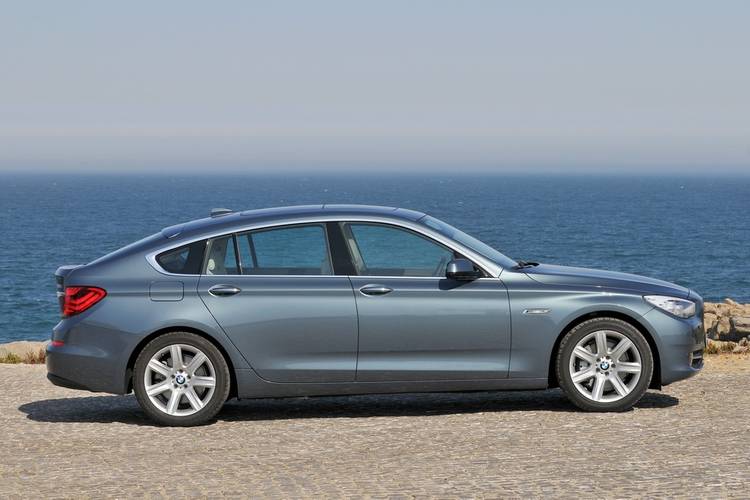

F10Liftback (Gran Turismo)
Date of manufacture
10/2009 – 2013Internal designation
F07
Technical data
Sedan
| 520i | 520i | 523i | 523i | 528i | 528i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 2996 | 2996 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 135/5000-6250 | 135/5000-6250 | 150/6100 | 150/6100 | 180/5000-6000 | 180/5000-6000 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 270/1500-4250 | 270/1500-4250 | 350/1250-4800 | 350/1250-4800 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 85,0 x 88,0 | 85,0 x 88,0 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 11,0:1 | 11,0:1 | 12,0:1 | 12,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 5.75 | 5.75 | - | - | 5.75 | 5.75 |
| Coolant volume [l] | 9,1 | 9,9 | - | - | 9,1 | 9,9 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 227 | 226 | 238 | 234 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.9 | 8.0 | 7.9 | 8.2 | 6.2 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.9-9.2 | 8.3-8.6 | 10.5 | 10.5 | 9.1-9.4 | 8.6-8.9 |
| Out of town [l] | 5.5-5.7 | 5.3-5.5 | 5.9 | 5.9 | 5.5-5.8 | 5.3-5.5 |
| Combined [l] | 6.8-7.0 | 6.4-6.7 | 7.6 | 7.6 | 6.8-7.1 | 6.5-6.8 |
| CO2 emissions [g/km] | 157-163 | 149-155 | 177 | 178 | 159-165 | 152-158 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1670 | 1685 | 1700 | 1725 | 1685 | 1695 |
| Overall weight [kg] | 2205 | 2220 | 2235 | 2260 | 2220 | 2230 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2000 | 750/1900 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1070 / 1280 | 1070 / 1280 | - | - | 1070 / 1280 | 1070 / 1280 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4899 | 4899 | 4899 | 4899 | 4899 | 4899 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 528i xDrive | 528i | 528i | 530i | 530i | 535i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1997 | 2996 | 2996 | 2996 | 2996 | 2979 |
| Maximum output / speed [kW/min-1] | 180/5000-6000 | 190/6600 | 190/6600 | 200/6100 | 200/6100 | 225/5800 |
| Maximum torque [Nm/min-1] | 350/1250-4800 | 210/2600-5000 | 210/2600-5000 | 310/1600-4250 | 310/1600-4250 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 84,0 x 89,6 |
| Compression ratio | 10,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 10,2:1 |
| Oil volume [l] | 5,75 | - | - | 6,5 | 6,5 | 6,5 |
| Coolant volume [l] | 10,1 | - | - | 7,8 | 8,1 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 246 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.5 | 6.6 | 6.7 | 6.5 | 6.6 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.2-9.5 | 10.4 | 10.4 | 10.2-10.4 | 10.1-10.3 | 11.8 |
| Out of town [l] | 5.7-5.9 | 6.3 | 6.0 | 6.1-6.3 | 5.9-6.0 | 6.6 |
| Combined [l] | 7.0-7.2 | 7.8 | 7.6 | 7.6-7.8 | 7.4-7.6 | 8.5 |
| CO2 emissions [g/km] | 162-168 | 182 | 178 | 177-182 | 173-178 | 199 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1780 | 1710 | 1730 | 1710 | 1730 | 1760 |
| Overall weight [kg] | 2305 | 2245 | 2265 | 2245 | 2265 | 2295 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100 / 1290 | - | - | 1070 / 1265 | 1070 / 1270 | 1100 / 1275 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.28 | 0.28 | 0.28 | 0.28 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 36 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4899 | 4899 | 4899 | 4899 | 4899 | 4899 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 535i | 535i | 535i | 535i xDrive | 550i | 550i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2979 | 2979 | 2979 | 2979 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 225/5800 | 225/5800 | 225/5800 | 225/5800 | 300/5500-6400 | 300/5500-6400 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 600/1750-4500 | 600/1750-4500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 6,5 | 6,5 | 6,5 | 6,5 | 8,5 | 8,5 |
| Coolant volume [l] | - | 9,0 | 9,3 | 10,5 | 11,4 | 11,4 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.1 | 5.8 | 5.9 | 5.8 | 5.0 | 4.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.9 | 11.1-11.4 | 10.4-10.7 | 10.8-11.0 | 15.4 | 16.4 |
| Out of town [l] | 6.4 | 6.3-6.5 | 6.0-6.2 | 6.3-6.5 | 7.5 | 7.9 |
| Combined [l] | 8.4 | 8.1-8.3 | 7.6-7.9 | 8.0-8.2 | 10.4 | 11.0 |
| CO2 emissions [g/km] | 195 | 188-194 | 177-183 | 185-190 | 243 | 257 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1775 | 1760 | 1775 | 1840 | 1905 | 1975 |
| Overall weight [kg] | 2310 | 2295 | 2310 | 2380 | 2430 | 2500 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100 / 1275 | 1100 / 1275 | 1100 / 1275 | 1170/1310 | 1195/1310 | 1250/1320 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.3 | 0.3 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 245/45 R18 96Y RSC | 245/45 R18 96Y |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 245/45 R18 96Y RSC | 245/45 R18 96Y |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 18 | 8J x 18 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 18 | 8J x 18 |
| Brake dimensions front | 348 x 36 | 348 x 36 | 348 x 36 | 348 x 36 | 374 x 36 | 374 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4899 | 4899 | 4899 | 4899 | 4899 | 4899 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M5 | ActiveHybrid 5 | 520d | 520d EfficientDynamics Edition | 520d | 525d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 6/24 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 4395 | 2979 | 1995 | 1995 | 1995 | 2993 |
| Maximum output / speed [kW/min-1] | 412/6000-7000 | 225/5800 40 el. 250 total | 135/4000 | 135/4000 | 135/4000 | 150/4000 |
| Maximum torque [Nm/min-1] | 680/1500-5750 | 400/1200-5000 210 el. 450 total | 380/1900-2750 | 380/1900-2750 | 380/1900-2750 | 450/1750-2500 |
| Bore and stroke [mm x mm] | 89,0 x 88,3 | 84,0 x 89,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,0:1 | 10,2:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 8,4 | - | 5,2 | 5,2 | 5,2 | - |
| Coolant volume [l] | 18,5 | - | 7,0 | 7,0 | 7,0 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
| - | - |
| - |
| Top speed [km/h] | 250 | 250 | 227 | 231 | 225 | 236 |
| Acceleration 0–100 km/h [s] | 4.4 | 5.9 | 8.1 | 8.2 | 8.1 | 7.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4,6 | - | - | - | - | - |
| City [l] | 14.0 | 5.7 | 5.9 | 5.6 | 6.4 | 8.1 |
| Out of town [l] | 7.6 | 6.7 | 4.3 | 3,9 | 4.5 | 5.1 |
| Combined [l] | 9.9 | 6.4 | 4.9 | 4,5 | 5.2 | 6.2 |
| CO2 emissions [g/km] | 232 | 149 | 129 | 119 | 137 | 162 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 317 | - | - | - | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 13.5 kWh | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | -/96 | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1945 | 1925 | 1695 | 1695 | 1700 | 1765 |
| Overall weight [kg] | 2410 | 2400 | 2230 | 2230 | 2235 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | - | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1180 / 1260 | - | 1060/1275 | 1060/1275 | 1060/1275 | - |
| Maximum vertical load on the tow bar [kg] | 90 | - | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 375 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 67 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.28 | 0.28 | 0.27 | 0.28 | 0.28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 265/40 R19 102Y | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 295/35 R19 104Y | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 9J x 19 LM | 8J x 17 | 8J x17 | 8J x17 | 8J x17 | 8J x 17 |
| Wheel size rear | 10J x 19 LM | 8J x 17 | 8J x17 | 8J x17 | 8J x17 | 8J x 17 |
| Brake dimensions front | 400 x 36 | 348 x 36 | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 396 x 24 | 345 x 24 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.6 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4910 | 4899 | 4899 | 4899 | 4899 | 4899 |
| Overall width without/including mirrors [mm] | 1891/2119 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1456 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2964 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1627 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1582 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 836 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1110 | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 117 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 525d | 525d | 525d | 525d xDrive | 530d | 530d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2993 | 1995 | 1995 | 1995 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 150/3750 | 160/4400 | 160/4400 | 160/4400 | 180/4000 | 180/4000 |
| Maximum torque [Nm/min-1] | 450/1750-2500 | 450/1500-2500 | 450/1500-2500 | 450/1500-2500 | 540/1750-3000 | 540/1750-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | 5,2 | 5,2 | 5,2 | - | - |
| Coolant volume [l] | - | 8,0 | 8,0 | 8,0 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 236 | 243 | 239 | 234 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.2 | 7.0 | 7.0 | 7.0 | 6.3 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8 | 6.2-6.6 | 5.6-5.9 | 6.0-6.2 | 8.0 | 7.8 |
| Out of town [l] | 5.1 | 4.3-4.5 | 4.3-4.5 | 4.6-4.8 | 5.3 | 5.3 |
| Combined [l] | 6.1 | 5.0-5.3 | 4.8-5.0 | 5.1-5.3 | 6.3 | 6.2 |
| CO2 emissions [g/km] | 161 | 132-138 | 126-132 | 134-140 | 166 | 162 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1780 | 1720 | 1725 | 1795 | 1790 | 1795 |
| Overall weight [kg] | 2315 | 2255 | 2260 | 2320 | 2325 | 2330 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | 1100/1280 | 1100/1280 | 1170/1300 | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.29 | 0.28 | 0.28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x17 | 8J x17 | 8J x17 | 8J x 17 | 8j x 17 |
| Wheel size rear | 8J x 17 | 8J x17 | 8J x17 | 8J x17 | 8J x 17 | 8j x 17 |
| Brake dimensions front | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4899 | 4899 | 4899 | 4899 | 4899 | 4899 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 530d | 530d | 530d xDrive | 535d | 535d | 535d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 190/4000 | 190/4000 | 190/4000 | 220/4400 | 230/4400 | 230/4400 |
| Maximum torque [Nm/min-1] | 540/1500-3000 | 560/1500-3000 | 540/1500-3000 | 600/1750 | 630/1500-2500 | 630/1500-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 7,2 | 7,2 | 6,7 | 6,2 | 6,2 | 6,2 |
| Coolant volume [l] | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.1 | 6.0 | 6.0 | 5.7 | 5.5 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3-7.4 | 6.4-6.6 | 6.5-6.7 | 7.9 | 6.5-6.7 | 6.8-7.1 |
| Out of town [l] | 4.7-5.1 | 4.6-4.8 | 5.0-5.2 | 5.1 | 4.8-5.0 | 5.0-5.3 |
| Combined [l] | 5.7-5.9 | 5.3-5.5 | 5.5-5.8 | 6.1 | 5.4-5.6 | 5.7-5.9 |
| CO2 emissions [g/km] | 149-155 | 139-145 | 146-152 | 162 | 142-148 | 149-156 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1760 | 1770 | 1865 | 1825 | 1800 | 1870 |
| Overall weight [kg] | 2295 | 2035 | 2405 | 2360 | 2335 | 2395 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100 / 1290 | 1100 / 1290 | 1190/1310 | 1100 / 1310 | 1100 / 1310 | 1200/1330 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.29 | 0.29 | 0.28 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 36 | 348 x 36 | 348 x 36 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 345 x 24 | 345 x 24 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4899 | 4899 | 4899 | 4899 | 4899 | 4899 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M550d xDrive | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 280/4000-4400 | |||||
| Maximum torque [Nm/min-1] | 740/2000-3000 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 4.7 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.1 | |||||
| Out of town [l] | 5.8 | |||||
| Combined [l] | 6.3 | |||||
| CO2 emissions [g/km] | 165 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1970 | |||||
| Overall weight [kg] | 2475 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 90 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 520 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 70 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.31 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | Integral-V multilink axle | |||||
| Tyre dimensions front | 245/40 R19 94Y | |||||
| Tyre dimensions rear | 275/35 R19 96Y | |||||
| Wheel size front | 8.5J x 19 LM | |||||
| Wheel size rear | 9J x 19 LM | |||||
| Brake dimensions front | 374 x 36 | |||||
| Brake dimensions rear | 345 x 24 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | -/11.95 | |||||
| Overall length [mm] | 4910 | |||||
| Overall width without/including mirrors [mm] | 1860/2094 | |||||
| Overall height [mm] | 1454 | |||||
| Wheelbase [mm] | 2968 | |||||
| Front wheel track [mm] | 1594 | |||||
| Rear wheel track [mm] | 1599 | |||||
| Forward overhang [mm] | 836 | |||||
| Rear overhang [mm] | 1110 | |||||
| Clearance [mm] | 131 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1028 | |||||
| Headroom rear [mm] | 973 | |||||
| Front elbow/shoulder width [mm] | 1518/- | |||||
| Rear elbow/shoulder width [mm] | 1485/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Liftback (Gran Turismo)
| 535i | 535i xDrive | 535i | 535i xDrive | 550i | 550i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2979 | 2979 | 2979 | 2979 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 225/5800 | 225/5800 | 225/5800 | 225/5800 | 300/5500-6400 | 300/5500-6400 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 600/1750-4500 | 600/1750-4500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 6,5 | - | - | 6,5 | 8,5 | 8,5 |
| Coolant volume [l] | 9,3 | - | - | 9,3 | 11,4 | 11,4 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.3 | 6.3 | 6.3 | 6.3 | 5.5 | 5.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.3 | 12.8 | 10.9 | 11.3 | 16.2 | 16.9 |
| Out of town [l] | 6.9 | 7.2 | 6.6 | 6.9 | 8.3 | 8.8 |
| Combined [l] | 8.9 | 9.3 | 8.2 | 8.5 | 11.2 | 11.8 |
| CO2 emissions [g/km] | 209 | 216 | 192 | 199 | 263 | 275 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2015 | 2070 | 2015 | 2070 | 2135 | 2205 |
| Overall weight [kg] | 2570 | 2625 | 2570 | 2625 | 2690 | 2730 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | 1165 / 1470 | - | - | 1200 / 1480 | 1245 / 1500 | 1290 / 1500 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 440-590 | 440-590 | 440-590 | 440-590 | 440-590 | 440-590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.32 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 245/55 R18 100Y RSC | 245/55 R18 100Y RSC | 245/55 R18 100Y RSC | 245/55 R18 100Y RSC | 245/45 R19 98Y RSC | 245/45 R19 98Y RSC |
| Tyre dimensions rear | 245/55 R18 100Y RSC | 245/55 R18 100Y RSC | 245/55 R18 100Y RSC | 245/55 R18 100Y RSC | 275/40 R19 101Y RSC | 275/40 R19 101Y RSC |
| Wheel size front | 8J x18 | 8J x 18 | 8J x18 | 8J x 18 | 8.5J x 19 | 8.5J x 19 |
| Wheel size rear | 8J x18 | 8J x 18 | 8J x18 | 8J x 18 | 9.5 J x 19 | 9.5 J x 19 |
| Brake dimensions front | 348 x 36 | 348 x 36 | 348 x 36 | 348 x 36 | 374 x 36 | 374 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 370 x 24 | 370 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Overall length [mm] | 4998 | 4998 | 4998 | 4998 | 4998 | 4998 |
| Overall width without/including mirrors [mm] | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 |
| Overall height [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Wheelbase [mm] | 3070 | 3070 | 3070 | 3070 | 3070 | 3070 |
| Front wheel track [mm] | 1611 | 1611 | 1611 | 1611 | 1621 | 1621 |
| Rear wheel track [mm] | 1654 | 1654 | 1654 | 1654 | 1636 | 1636 |
| Forward overhang [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Rear overhang [mm] | 1090 | 1090 | 1090 | 1090 | 1090 | 1090 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | 1051 |
| Headroom rear [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 550i | 550i xDrive | 520d | 530d | 530d xDrive | 530d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 4395 | 4395 | 1995 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 330/5500 | 330/5500 | 135/4000 | 180/4000 | 180/4000 | 190/4000 |
| Maximum torque [Nm/min-1] | 650/2000-4500 | 650/2000-4500 | 380/1750 | 540/1750-3000 | 540/1750-3000 | 560/1500 |
| Bore and stroke [mm x mm] | 89,0 x 88,3 | 89,0 x 88,3 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | 7,2 | 6,7 | - |
| Coolant volume [l] | - | - | - | 8,9 | 8,9 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | Rear | 4x4 | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 213 | 240 | 235 | 245 |
| Acceleration 0–100 km/h [s] | 5.0 | 4.8 | 8.9 | 6.9 | 6.9 | 6.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.5 | 13.1 | 5.9 | 8.1 | 8.5 | 6.7 |
| Out of town [l] | 7.3 | 7.6 | 5.0 | 5.6 | 6.0 | 5.3 |
| Combined [l] | 9.2 | 9.6 | 5.3 | 6.5 | 6.9 | 5.8 |
| CO2 emissions [g/km] | 214 | 224 | 139 | 173 | 183 | 153 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2145 | 2215 | 1950 | 2035 | 2090 | 2015 |
| Overall weight [kg] | 2690 | 2750 | 2505 | 2590 | 2645 | 2570 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | 1180 / 1475 | 1220 / 1480 | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 440-590 | 440-590 | 440-590 | 440-590 | 440-590 | 440-590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 245/45 R19 98Y RSC | 245/45 R19 98Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC |
| Tyre dimensions rear | 275/40 R19 101Y RSC | 275/40 R19 101Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC |
| Wheel size front | 8.5J x 19 | 8.5J x 19 | 8J x18 | 8J x18 | 8J x 18 | 8J x18 |
| Wheel size rear | 9.5 J x 19 | 9.5 J x 19 | 8J x18 | 8J x18 | 8J x 18 | 8J x18 |
| Brake dimensions front | - | - | - | 348 x 36 | 348 x 36 | - |
| Brake dimensions rear | - | - | - | 345 x 24 | 345 x 24 | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Overall length [mm] | 4998 | 4998 | 4998 | 4998 | 4998 | 4998 |
| Overall width without/including mirrors [mm] | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 |
| Overall height [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Wheelbase [mm] | 3070 | 3070 | 3010 | 3010 | 3010 | 3010 |
| Front wheel track [mm] | 1621 | 1621 | 1611 | 1611 | 1611 | 1611 |
| Rear wheel track [mm] | 1636 | 1636 | 1654 | 1654 | 1654 | 1654 |
| Forward overhang [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Rear overhang [mm] | 1090 | 1090 | 1090 | 1090 | 1090 | 1090 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | 1051 |
| Headroom rear [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 530d xDrive | 535d | 535d xDrive | 535d | 535d xDrive | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 2993 | |
| Maximum output / speed [kW/min-1] | 190/4000 | 220/4400 | 220/4400 | 230/4300 | 230/4300 | |
| Maximum torque [Nm/min-1] | 560/1500 | 600/1500-2500 | 600/1500-2500 | 630/1500 | 630/1500 | |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | - | 7,2 | 6,7 | - | - | |
| Coolant volume [l] | - | 8,9 | 8,9 | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | Rear | 4x4 | Rear | 4x4 | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 242 | 250 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 6.2 | 6.1 | 6.0 | 5.7 | 5.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.1 | 8.3 | 8.9 | 6.9 | 7.5 | |
| Out of town [l] | 5.7 | 5.8 | 6.1 | 5.3 | 5.7 | |
| Combined [l] | 6.2 | 6.7 | 7.1 | 5.9 | 6.4 | |
| CO2 emissions [g/km] | 163 | 175 | 187 | 154 | 168 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 2085 | 2045 | 2110 | 2045 | 2115 | |
| Overall weight [kg] | 2640 | 2600 | 2635 | 2600 | 2660 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | |
| Maximum front/rear axle load [kg] | - | 1190 / 1475 | 1235 / 1480 | - | - | |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 440-590 | 440-590 | 440-590 | 440-590 | 440-590 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.3 | 0.31 | 0.31 | 0.31 | 0.31 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | |
| Tyre dimensions front | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | |
| Tyre dimensions rear | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | 245/50 R18 100Y RSC | |
| Wheel size front | 8J x18 | 8J x 18 | 8J x 18 | 8J x 18 | 8J x 18 | |
| Wheel size rear | 8J x18 | 8J x 18 | 8J x 18 | 8J x 18 | 8J x 18 | |
| Brake dimensions front | - | 348 x 36 | 348 x 36 | - | - | |
| Brake dimensions rear | - | 345 x 24 | 345 x 24 | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | |
| Overall length [mm] | 4998 | 4998 | 4998 | 4998 | 4998 | |
| Overall width without/including mirrors [mm] | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 | |
| Overall height [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | |
| Wheelbase [mm] | 3010 | 3070 | 3070 | 3070 | 3070 | |
| Front wheel track [mm] | 1611 | 1611 | 1611 | 1611 | 1611 | |
| Rear wheel track [mm] | 1654 | 1654 | 1654 | 1654 | 1654 | |
| Forward overhang [mm] | 838 | 838 | 838 | 838 | 838 | |
| Rear overhang [mm] | 1090 | 1090 | 1090 | 1090 | 1090 | |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | |
| Headroom rear [mm] | 991 | 991 | 991 | 991 | 991 | |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | |
| Rear elbow/shoulder width [mm] | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Estate (Touring)
| 520i | 520i | 523i | 523i | 528i | 528i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 2996 | 2996 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 135/5000-6250 | 135/5000-6250 | 150/6100 | 150/6100 | 180/5000-6000 | 180/5000-6000 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 270/1500-4250 | 270/1500-4250 | 350/1250-4800 | 350/1250-4800 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 85,0 x 88,0 | 85,0 x 88,0 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 11,0:1 | 11,0:1 | 12,0:1 | 12,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 5,75 | 5,75 | - | - | 5,75 | 5,75 |
| Coolant volume [l] | 9,1 | 9,9 | - | - | 9,1 | 9,9 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 220 | 220 | 231 | 227 | 244 | 244 |
| Acceleration 0–100 km/h [s] | 8.3 | 8.4 | 8.2 | 8.4 | 6.4 | 6.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.2-9.6 | 8.7-9.1 | 10.9 | 10.8 | 9.4-9.7 | 9.0-9.4 |
| Out of town [l] | 5.7-6.0 | 5.5-5.8 | 6.2 | 6.1 | 5.8-6.0 | 5.5-5.8 |
| Combined [l] | 7.0-7.3 | 6.7-7.0 | 7.8 | 7.9 | 7.1-7.4 | 6.8-7.1 |
| CO2 emissions [g/km] | 163-170 | 156-163 | 185 | 182 | 165-172 | 159-166 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1780 | 1790 | 1790 | 1805 | 1790 | 1800 |
| Overall weight [kg] | 2345 | 2355 | 2365 | 2380 | 2355 | 2365 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2000 | 750/1900 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1070 / 1410 | 1070 / 1410 | - | - | 1070 / 1410 | 1070 / 1410 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.31 | 0.31 | 0.32 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 528i xDrive | 528i | 528i | 530i | 530i | 535i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1997 | 2996 | 2996 | 2996 | 2996 | 2979 |
| Maximum output / speed [kW/min-1] | 180/5000-6000 | 190/6600 | 190/6600 | 200/6100 | 200/6100 | 225/5800 |
| Maximum torque [Nm/min-1] | 350/1250-4800 | 210/2600-5000 | 210/2600-5000 | 310/1600-4250 | 310/1600-4250 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 84,0 x 89,6 |
| Compression ratio | 10,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 10,2:1 |
| Oil volume [l] | 5,75 | - | - | 6,5 | 6,5 | 6,5 |
| Coolant volume [l] | 10,1 | - | - | 7,8 | 8,1 | 9,3 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 240 | 247 | 246 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.9 | 7.3 | 6.7 | 6.8 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5-9.9 | 10.8 | 10.6 | 10.5-10.9 | 10.3-10.7 | 11.9 |
| Out of town [l] | 5.9-6.2 | 6.4 | 6.2 | 6.3-6.6 | 6.0-6.3 | 6.7 |
| Combined [l] | 7.3-7.6 | 8.0 | 7.8 | 7.9-8.2 | 7.6-7.9 | 8.6 |
| CO2 emissions [g/km] | 169-176 | 188 | 182 | 183-190 | 177-184 | 201 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1880 | 1800 | 1820 | 1800 | 1820 | 1840 |
| Overall weight [kg] | 2445 | 2375 | 2395 | 2375 | 2395 | 2415 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100 / 1420 | - | - | 1070 / 1400 | 1070 / 1400 | 1100 / 1400 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 36 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 535i | 535i | 535i | 535i xDrive | 550i | 520d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 4/16 |
| Engine displacement [cm³] | 2979 | 2979 | 2979 | 2979 | 4395 | 1995 |
| Maximum output / speed [kW/min-1] | 225/5800 | 225/5800 | 225/5800 | 225/5800 | 300/5500-6400 | 135/4000 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 600/1750-4500 | 380/1900-2750 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,0:1 | 16,5:1 |
| Oil volume [l] | 6,5 | 6,5 | 6,5 | 6,5 | 8,5 | 5,2 |
| Coolant volume [l] | 9,3 | 9,3 | 9,3 | 10,5 | 11,4 | 7,0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 222 |
| Acceleration 0–100 km/h [s] | 6.1 | 5.8 | 5.9 | 5.9 | 5.1 | 8.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.9 | 11.2-11.6 | 10.4-10.8 | 11.2-11.5 | 15.8 | 5.9-6.2 |
| Out of town [l] | 6.5 | 6.4-6.6 | 6.1-6.3 | 6.7-6.8 | 7.7-7.8 | 4.4-4.6 |
| Combined [l] | 8.5 | 8.2-8.5 | 7.7-8.0 | 8.3-8.5 | 10.7 | 4.9-5.2 |
| CO2 emissions [g/km] | 197 | 190-197 | 179-186 | 194-199 | 249-150 | 130-137 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1845 | 1840 | 1845 | 1915 | 1975 | 1785 |
| Overall weight [kg] | 2420 | 2415 | 2420 | 2495 | 2540 | 2360 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100 / 1400 | 1100 / 1400 | 1100 / 1400 | 1140 / 1410 | 1195 / 1415 | 1060 / 1400 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.32 | 0.32 | 0.32 | 0.33 | 0.31 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 245/45 R18 96Y RSC | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 245/45 R18 96Y RSC | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 18 | 8J x17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 18 | 8J x17 |
| Brake dimensions front | 348 x 36 | 348 x 36 | 348 x 36 | 348 x 36 | 374 x 36 | 330 x 24 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 520d | 525d | 525d | 525d | 525d | 525d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 2993 | 2993 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 135/4000 | 150/4000 | 150/3750 | 160/4400 | 160/4400 | 160/4400 |
| Maximum torque [Nm/min-1] | 380/1900-2750 | 450/1750-2500 | 450/1750-2500 | 450/1500-2500 | 450/1500-2500 | 450/1500-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5,2 | - | - | 5,2 | 5,2 | 5,2 |
| Coolant volume [l] | 7,0 | - | - | 9,0 | 9,0 | 8,0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 220 | 232 | 230 | 236 | 233 | 228 |
| Acceleration 0–100 km/h [s] | 8.3 | 7.3 | 7.3 | 7.2 | 7.2 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9-6.3 | 8.0 | 7.8 | 6.6-6.9 | 6.0-6.3 | 6.4-6.7 |
| Out of town [l] | 4.3-4.5 | 5.3 | 5.2 | 4.5-4.7 | 4.6-4.8 | 4.9-5.1 |
| Combined [l] | 4.9-5.2 | 6.3 | 6.2 | 5.3-5.5 | 5.1-5.4 | 5.4-5.7 |
| CO2 emissions [g/km] | 129-136 | 164 | 162 | 138-145 | 135-142 | 143-150 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1790 | 1840 | 1845 | 1820 | 1825 | 1895 |
| Overall weight [kg] | 2365 | 2415 | 2420 | 2395 | 2400 | 2460 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1060 / 1400 | - | - | 1100 / 1410 | 1100 / 1410 | 1170 / 1410 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97Y |
| Wheel size front | 8J x17 | 8J x 17 | 8J x 17 | 8J x17 | 8J x17 | 8J x17 |
| Wheel size rear | 8J x17 | 8J x 17 | 8J x 17 | 8J x17 | 8J x17 | 8J x17 |
| Brake dimensions front | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 530d | 530d | 530d | 530d | 530d xDrive | 535d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 180/4000 | 180/4000 | 190/4000 | 190/4000 | 190/4000 | 220/4400 |
| Maximum torque [Nm/min-1] | 540/1750-3000 | 540/1750-3000 | 540/1500-3000 | 560/1500-3000 | 540/1500-3000 | 600/1750 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | 7,2 | 7,2 | 6,7 | - |
| Coolant volume [l] | - | - | 9,0 | 9,0 | 8,0 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 243 | 242 | 247 | 248 | 245 | 250 |
| Acceleration 0–100 km/h [s] | 6.4 | 6.3 | 6.2 | 6.1 | 6.2 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1 | 8.0 | 7.3-7.6 | 6.7-7.0 | 6.6-6.9 | 8.1 |
| Out of town [l] | 5.4 | 5.3 | 5.1-5.3 | 4.8-5.0 | 5.1-5.4 | 5.3 |
| Combined [l] | 6.4 | 6.3 | 5.9-6.2 | 5.5-5.8 | 5.7-5.9 | 6.3 |
| CO2 emissions [g/km] | 169 | 165 | 155-162 | 145-152 | 149-156 | 165 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1875 | 1880 | 1860 | 1870 | 1940 | 1915 |
| Overall weight [kg] | 2450 | 2455 | 2435 | 2445 | 2520 | 2490 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | 1100 / 1420 | 1100 / 1420 | 1160 / 1410 | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.32 | 0.31 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 36 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/11.95 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 535d | 535d xDrive | M550d xDrive | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2993 | 2993 | 2993 | |||
| Maximum output / speed [kW/min-1] | 230/4400 | 230/4400 | 280/4000-4400 | |||
| Maximum torque [Nm/min-1] | 630/1500-2500 | 630/1500-2500 | 740/2000-3000 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,0:1 | |||
| Oil volume [l] | 6,2 | 6,2 | - | |||
| Coolant volume [l] | 8,0 | 8,0 | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | 4x4 | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 5.5 | 5.5 | 4.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.7-7.1 | 7.1-7.5 | 7.2 | |||
| Out of town [l] | 4.8-5.0 | 5.3-5.5 | 6.0 | |||
| Combined [l] | 5.6-5.9 | 5.9-6.2 | 6.4 | |||
| CO2 emissions [g/km] | 148-155 | 156-163 | 169 | |||
| Emission standard | EU5 | EU5 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1900 | 1970 | 2065 | |||
| Overall weight [kg] | 2475 | 2535 | 2570 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | |||
| Maximum front/rear axle load [kg] | 1100 / 1420 | 1200 / 1420 | - | |||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 560 | 560 | 560 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 70 | 70 | 70 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.31 | 0.32 | 0.32 | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | |||
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 245/40 R19 98Y | |||
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 245/40 R19 98Y | |||
| Wheel size front | 8J x 17 | 8J x 17 | 8.5J x 19 LM | |||
| Wheel size rear | 8J x 17 | 8J x 17 | 8.5J x 19 LM | |||
| Brake dimensions front | 348 x 36 | 348 x 36 | 374 x 36 | |||
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | |||
| Overall length [mm] | 4907 | 4907 | 4910 | |||
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | |||
| Overall height [mm] | 1462 | 1462 | 1462 | |||
| Wheelbase [mm] | 2968 | 2968 | 2968 | |||
| Front wheel track [mm] | 1600 | 1600 | 1594 | |||
| Rear wheel track [mm] | 1626 | 1626 | 1626 | |||
| Forward overhang [mm] | 832 | 832 | - | |||
| Rear overhang [mm] | 1107 | 1107 | 1107 | |||
| Clearance [mm] | 141 | 141 | 131 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1028 | 1028 | 1028 | |||
| Headroom rear [mm] | 993 | 993 | 993 | |||
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | |||
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
