BMW 5
Date of manufacture
2020 – to this day (Sedan)
2020 – to this day (Estate)
Platform
Cluster Architecture (CLAR)
Manufacturing locations
Dingolfing, Germany
Graz, Austria
Designer
Karim Hab
Tags
E-segment
German cars
The BMW 5 is the newest addition to the BMW car family. Production began in 2020 and it is available in two body versions - sedan and estate. The vehicle has Germany or Austria as its country of origin and is built on the Cluster Architecture (CLAR) platform. Gasoline, hybrid and plug-in hybrid engines are available. The most powerful model M5 F90 Competition delivers 460 kW and has a top speed of 250 km/h. The most fuel-efficient variant is the 530e with a combined fuel consumption of 1.8 l/100 km and CO2 emissions of 42 g/km. The trunk volume of the sedan is 530 l and 560 l for the estate. The model successfully passed the EURONCAP safety tests in 2017 and scored 5 out of 5.

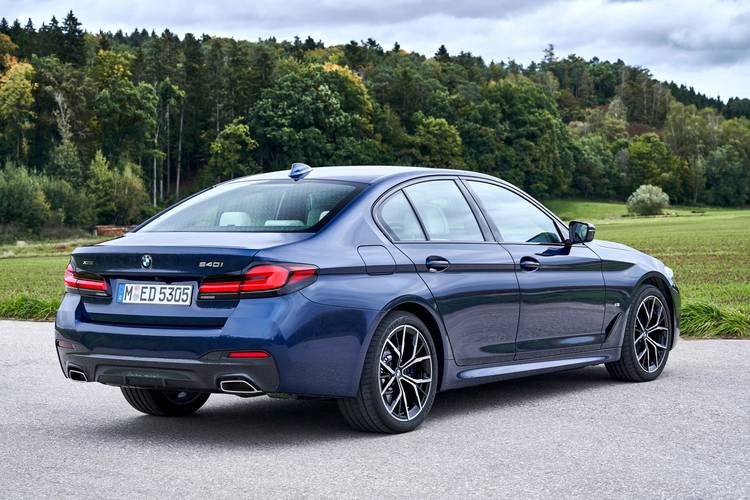

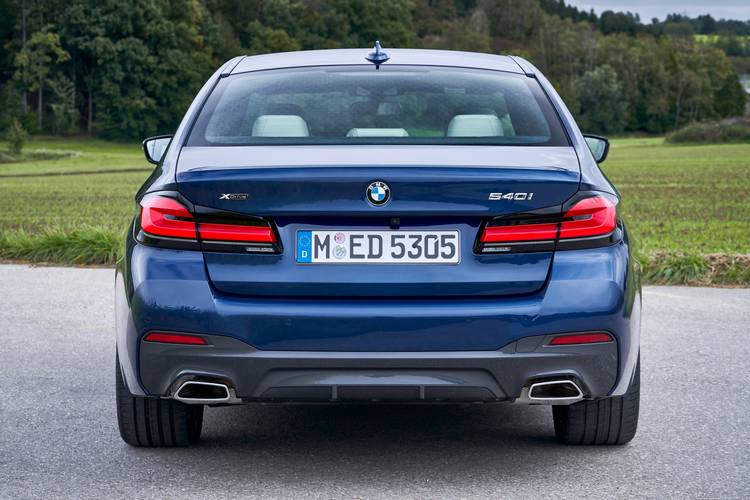

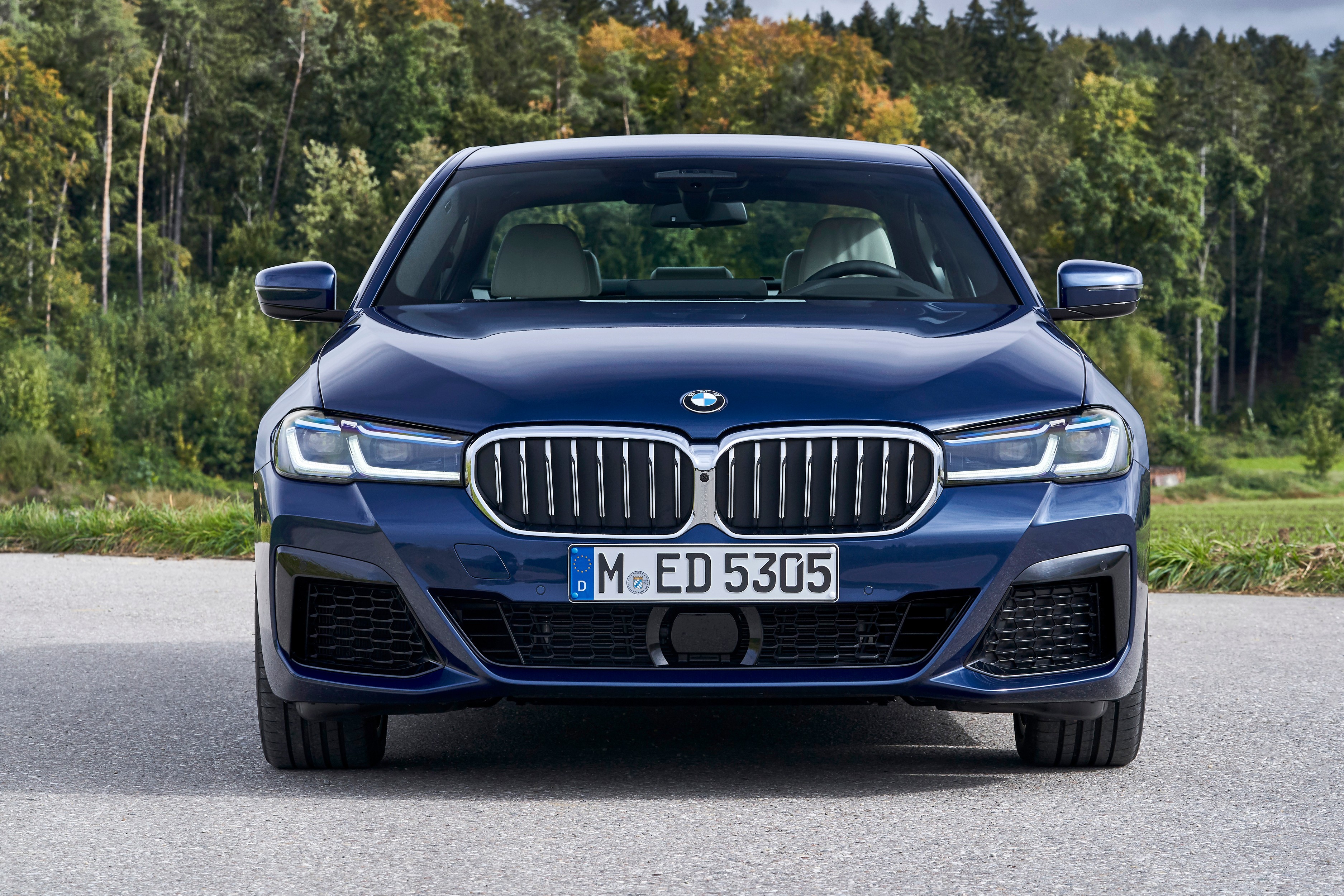

Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
G30Engine size

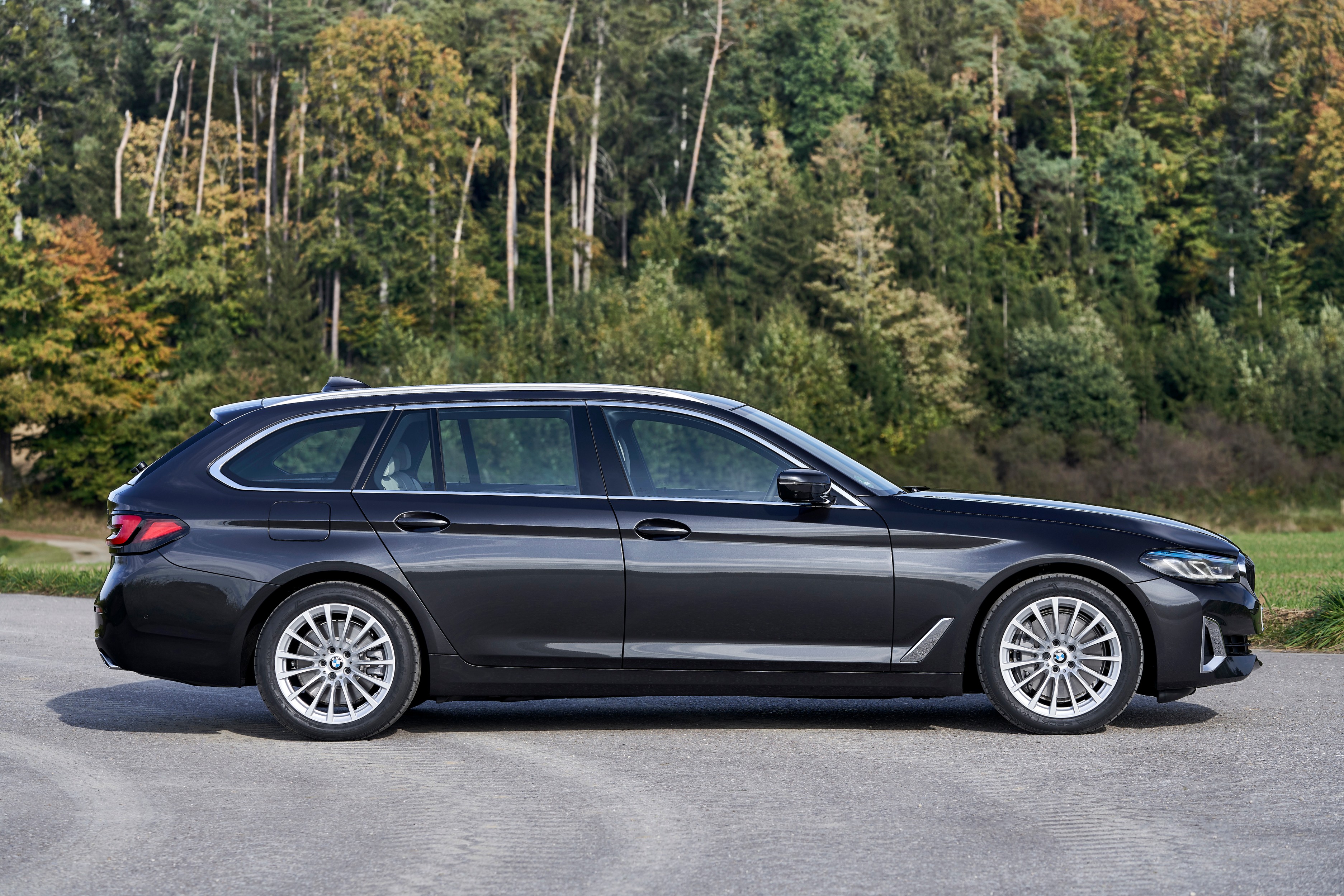

Estate (Touring)
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
G31Engine size
Petrol + ElectricDiesel + Electric
Technical data
Sedan
| M550i xDrive | M5 F90 | M5 F90 Competition | 520i | 530i | 530i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 4395 | 4395 | 4395 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 390/5500-6000 | 441/6000 | 460/6000 | 135/5000-6500 8 el. | 185/5200-6500 8 el. | 185/5200-6500 8 el. |
| Maximum torque [Nm/min-1] | 750/1800-4600 | 750/1800-5600 | 750/1800-5860 | 290/1350-4250 | 350/1450-4800 | 350/1450-4800 |
| Bore and stroke [mm x mm] | 89.0 x 88.3 | 89.0 x 88.3 | 89.0 x 88.3 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 10.5:1 | 10.0:1 | 10.0:1 | 11.0:1 | 10.2:1 | 10.2:1 |
| Oil volume [l] | 10.5 | 10.0 | 10.0 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250/305 | 250/305 | 235 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 3.8 | 3.4 | 3.3 | 7.9 | 6.4 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.2-13.7 | 15.6-15.4 | 15.6-15.3 | 6.8-6.5 | 6.8-6.6 | 7.6-7.4 |
| Out of town [l] | 8.6-8.5 | 7.7 | 7.8-7.7 | 4.7-4.6 | 4.8-4.5 | 5.2-5.0 |
| Combined [l] | 10.7-10.4 | 10.6-10.5 | 10.6-10.5 | 5.5-5.3 | 5.5-5.3 | 6.1-5.9 |
| CO2 emissions [g/km] | 243-238 | 242-239 | 242-239 | 125-120 | 126-121 | 140-135 |
| Emission standard | Euro 6d | EU6d-TEMP | EU6d-TEMP | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 48 | 48 | 48 |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1990 | 1970 | 1970 | 1685 | 1700 | 1755 |
| Overall weight [kg] | 2560 | 2440 | 2440 | 2285 | 2305 | 2360 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1260/1365 | 1215/1260 | 1215/1260 | 1080/1280 | 1090/1300 | 1140/1310 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 68 | 68 | 68 | 68 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.75 | 0.77 | 0.23 | 0.23 | 0.24 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 245/40 R19 98Y XL | 275/40 ZR19 105Y XL | 275/35 ZR20 102Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL |
| Tyre dimensions rear | 275/35 R19 100Y XL | 285/40 ZR19 107Y XL | 285/35 ZR20 104Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL |
| Wheel size front | 8J x 19 | 9.5J x 19 | 9.5J x 20 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 8J x 19 | 10.5J x 19 | 10.5J x 20 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering M Servotronic | Electro-mechanical power steering M Servotronic | Electro-mechanical power steering M Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/- | 12.6/- | 12.6/- | 12.0/- | 12.0/- | 12.4/- |
| Overall length [mm] | 4972 | 4983 | 4983 | 4963 | 4963 | 4963 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1903/2126 | 1903/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1467 | 1473 | 1469 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 2975 | 2982 | 2982 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1600 | 1626 | 1625 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1597 | 1594 | 1594 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 882 | 882 | 882 | 882 | 882 | 882 |
| Rear overhang [mm] | 1106 | 1106 | 1106 | 1106 | 1106 | 1106 |
| Clearance [mm] | 131 | 133 | 128 | 144 | 144 | 139 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 540i | 540i xDrive | 530e | 530e xDrive | 545e xDrive | 518d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 6/24 | 4/16 |
| Engine displacement [cm³] | 2998 | 2998 | 1998 | 1998 | 2998 | 1995 |
| Maximum output / speed [kW/min-1] | 245/5500-6250 8 el. | 245/5500-6250 8 el. | 135/5000-6500 80/3140 el. 215 total | 135/5000-6500 80/3140 el. 215 total | 210/5000-6000 80/3140 el. 290 total | 110/4000 8 el. |
| Maximum torque [Nm/min-1] | 450/1600-4800 | 450/1600-4800 | 300/1350-4000 265/100-2500 el. 420 total | 300/1350-4000 265/100-2500 el. 420 total | 450/1600-3500 265/100-2500 el. 600 total | 350/1750-2500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 84.0 x 90.0 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 16.5:1 |
| Oil volume [l] | 6.5 | 6.5 | 5.25 | 5.25 | 6.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 230 [140 el.] | 235 [140 el.] | 250 [140 el.] | 220 |
| Acceleration 0–100 km/h [s] | 5.2 | 4.9 | 5.9 | 5.9 | 4.6 | 8,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.5-8.3 | 8.8-8.7 | - | - | - | 4,8-4,7 |
| Out of town [l] | 5.4-5.2 | 5.7-5.5 | - | - | - | 3,9-3,8 |
| Combined [l] | 6.5-6.3 | 6.8-6.7 | 2.1-2.0 [16.5-15.9 kWh] | 2.1-2.0 [16.5-15.9 kWh] | 2.3-2.2 [16.3-15.8 kWh] | 4,3-4,1 |
| CO2 emissions [g/km] | 150-145 | 156-153 | 49-46 | 43-39 | 53-49 | 112-108 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 354 | 354 | 354 | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11.15 kWh | Lithium-Ionen-Akkumulator, 11.15 kWh | Lithium-Ionen-Akkumulator, 11.15 kWh | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | 62-66 | 55-58 | 48-57 | - |
| Charging time | - | - |
|
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1760 | 1820 | 1910 | 1970 | 2020 | 1745 |
| Overall weight [kg] | 2395 | 2455 | 2505 | 2560 | 2605 | 2340 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1155/1320 | 1200/1330 | 1120/1450 | 1170/1455 | 1205/1455 | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 80 | 80 | 80 | 90 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100/- | 100/- | 100/- | 100 /- |
| Boot volume [l] | 530 | 530 | 410 | 410 | 410 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 68 | 46 | 46 | 46 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | 21,5 |
| Air resistance [Cd] | 0.23 | 0.24 | 0,23 | 0,24 | 0.24 | 0.23 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL |
| Tyre dimensions rear | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.0/- | 12.4/- | 12.0/- | 12.4/- | 12.4/- | 12.0/- |
| Overall length [mm] | 4963 | 4963 | 4963 | 4963 | 4963 | 4963 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1479 | 1479 | 1483 | 1483 | 1483 | 1479 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1605 | 1605 | 1604 | 1604 | 1604 | 1605 |
| Rear wheel track [mm] | 1630 | 1630 | 1631 | 1631 | 1631 | 1630 |
| Forward overhang [mm] | 882 | 882 | 882 | 882 | 882 | 882 |
| Rear overhang [mm] | 1106 | 1106 | 1106 | 1106 | 1106 | 1106 |
| Clearance [mm] | 144 | 139 | 150 | 146 | 146 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 520d | 520d xDrive | 530d | 530d xDrive | 540d xDrive | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 1995 | 1995 | 2993 | 2993 | 2993 | |
| Maximum output / speed [kW/min-1] | 140/4000 8 el. | 140/4000 8 el. | 210/4000 8 el. | 210/4000 8 el. | 250/4400 8 el. | |
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 650/1500-2500 | 650/1500-2500 | 700/1750-2250 | |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | |
| Oil volume [l] | 5.5 | 5.5 | 7.0 | 7.0 | 7.0 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 235 | 232 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 7.2 | 7.2 | 5.6 | 5.4 | 4.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.0-4.8 | 5.2-5.1 | 5.9-5.8 | 6.3-6.1 | 6.6-6.5 | |
| Out of town [l] | 3.9-3.7 | 4.1-3.9 | 3.9-3.7 | 4.2-4.0 | 4.3-4.2 | |
| Combined [l] | 4.3-4.1 | 4.5-4.3 | 4.7-4.5 | 5.0-4.8 | 5.2-5.0 | |
| CO2 emissions [g/km] | 112-108 | 118-114 | 123-118 | 131-126 | 136-132 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | 48 | 48 | 48 | 48 | 48 | |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1750 | 1810 | 1835 | 1895 | 1925 | |
| Overall weight [kg] | 2345 | 2405 | 2440 | 2505 | 2525 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | |
| Maximum front/rear axle load [kg] | 1100/1320 | 1150/1330 | 1200/1350 | 1250/1360 | 1270/1360 | |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- | |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | |
| AdBlue tank volume [l] | 21,5 | 21,5 | 21,5 | 21,5 | 21,5 | |
| Air resistance [Cd] | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | |
| Tyre dimensions front | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | |
| Tyre dimensions rear | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 12.0/- | 12.4/- | 12.0/- | 12.4/- | 12.4/- | |
| Overall length [mm] | 4963 | 4963 | 4963 | 4963 | 4963 | |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | |
| Forward overhang [mm] | 882 | 882 | 882 | 882 | 882 | |
| Rear overhang [mm] | 1106 | 1106 | 1106 | 1106 | 1106 | |
| Clearance [mm] | 144 | 139 | 144 | 139 | 139 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Estate (Touring)
| 520i | 530i | 530i xDrive | 540i xDrive | 530e | 530e xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 2998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000-6500 8 el. | 185/5200-6500 8 el. | 185/5200-6500 8 el. | 245/5500-6250 8 el. | 135/5000-6500 80/3140 el. 215 total | 135/5000-6500 80/3140 el. 215 total |
| Maximum torque [Nm/min-1] | 290/1350-4250 | 350/1450-4800 | 350/1450-4800 | 450/1600-4800 | 300/1350-4000 265/100-2500 el. 420 total | 300/1350-4000 265/100-2500 el. 420 total |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82,0 x 94,6 | 82,0 x 94,6 |
| Compression ratio | 11.0:1 | 10.2:1 | 10.2:1 | 11.0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 6.5 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 225 | 250 | 250 | 250 | 225 [140 el.] | 225 [140 el.] |
| Acceleration 0–100 km/h [s] | 8.3 | 6.7 | 6.6 | 5.2 | 6.1 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0-6.7 | 7.0-6.8 | 7.9-7.6 | 9.2-9.1 | - | - |
| Out of town [l] | 5.0-4.8 | 5.1-4.8 | 5.6-5.4 | 6.0-5.8 | - | - |
| Combined [l] | 5.7-5.5 | 5.8-5.6 | 6.4-6.2 | 7.2-7.0 | 2.0-1.8 [16,1-15,4 kWh] | 2.4-2.2 [16,7-16.1 kWh] |
| CO2 emissions [g/km] | 131-126 | 133-127 | 147-142 | 164-160 | 46-42 | 54-50 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | 48 | 354 | 354 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11.15 kWh | Lithium-Ionen-Akkumulator, 11.15 kWh |
| Range with fully charged battery [km] | - | - | - | - | 52-57 | 48-53 |
| Charging time | - | - | - | - |
|
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1790 | 1805 | 1865 | 1925 | 1975 | 2035 |
| Overall weight [kg] | 2410 | 2425 | 2490 | 2535 | 2550 | 2610 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/1700 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100/1410 | 1120/1430 | 1170/1440 | 1240/1450 | 1090/1540 | 1140/ 1550 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1560 | -/1560 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 68 | 68 | 68 | 46 | 46 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.29 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 245/45 R18 100Y XL | 245/45 R18 100Y XL |
| Tyre dimensions rear | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 245/45 R18 100Y XL | 245/45 R18 100Y XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.0/- | 12.0/- | 12.4/- | 12.4/- | 12.0/- | 12.0/- |
| Overall length [mm] | 4963 | 4963 | 4963 | 4963 | 4963 | 4963 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1498 | 1498 | 1498 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 882 | 882 | 882 | 882 | 882 | 882 |
| Rear overhang [mm] | 1106 | 1106 | 1106 | 1106 | 1106 | 1106 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 518d | 520d | 520d xDrive | 530d | 530d xDrive | 540d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 110/4000 8 el. | 140/4000 8 el. | 140/4000 8 el. | 210/4000 8 el. | 210/4000 8 el. | 250/4400 8 el. |
| Maximum torque [Nm/min-1] | 350/1750-2500 | 400/1750-2500 | 400/1750-2500 | 650/1500-2500 | 650/1500-2500 | 700/1750-2250 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.5 | 5.5 | 5.5 | 7.0 | 7.0 | 7.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 212 | 225 | 222 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 9,2 | 7.6 | 7.6 | 5.7 | 5.6 | 4.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,9-4,7 | 5.1-4.9 | 5.4-5.3 | 6.1-5.9 | 6.5-6.4 | 6.8-6.6 |
| Out of town [l] | 4,0-3,8 | 4.2-3.9 | 4.3-4.2 | 4.2-4.0 | 4.5-4.3 | 4.7-4.5 |
| Combined [l] | 4,3-4,2 | 4.5-4.3 | 4.7-4.6 | 4.9-4.7 | 5.2-5.1 | 5.4-5.3 |
| CO2 emissions [g/km] | 114-109 | 119-113 | 124-120 | 129-124 | 137-133 | 143-139 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | 48 | 48 | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1830 | 1855 | 1915 | 1940 | 2000 | 2000 |
| Overall weight [kg] | 2450 | 2470 | 2530 | 2550 | 2610 | 2615 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | 1125/1455 | 1180/1455 | 1210/1455 | 1260/1455 | 1270/1455 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | 21,5 | 21,5 | 21,5 | 21,5 | 21,5 | 21,5 |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL |
| Tyre dimensions rear | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.0/- | 12.0/- | 12.4/- | 12.0/- | 12.4/- | 12.4/- |
| Overall length [mm] | 4963 | 4963 | 4963 | 4963 | 4963 | 4963 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1498 | 1498 | 1498 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 882 | 882 | 882 | 882 | 882 | 882 |
| Rear overhang [mm] | 1106 | 1106 | 1106 | 1106 | 1106 | 1106 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

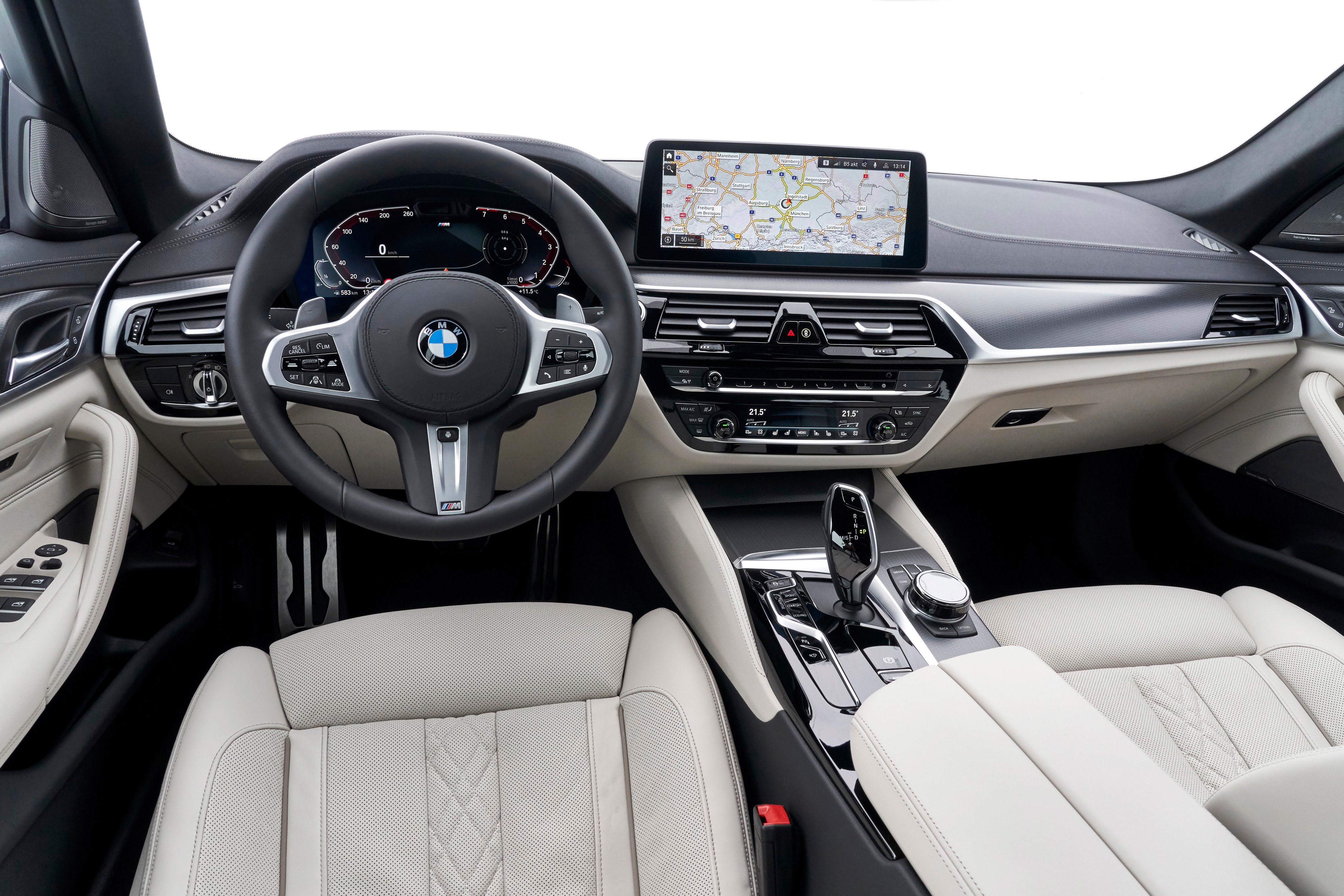

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
