BMW 6
Date of manufacture
2015 – 9/2018 (Sedan)
2015 – 10/2017 (Coupé)
2015 – 5/2018 (Convertible)
Platform
-
Manufacturing locations
Dingolfing, Germany
Designer
Nader Faghihzadeh
Tags
E-segment
S-segment
German cars
The BMW 6 has been produced in three body styles - sedan, coupe and convertible - since 2015. All these versions are manufactured in Germany and offer both petrol and diesel engines. The most powerful model is the M6 Competition with a maximum output of 442 kW, the fastest version reaches a speed of 250 km/h. The most economical engine is the 640d with a combined consumption of 5.4 l/100 km and CO2 emissions of 143 g/km. The trunk of the coupe has a capacity of 460 l, the same size for the sedan and 300-350 l for the convertible.
Car body style
Sedan (Gran Coupe)
after upgrade (facelift)
Date of manufacture
2015 – 9/2018Internal designation
F06Engine size
Coupé
after upgrade (facelift)
Date of manufacture
2015 – 10/2017Internal designation
F13Engine size

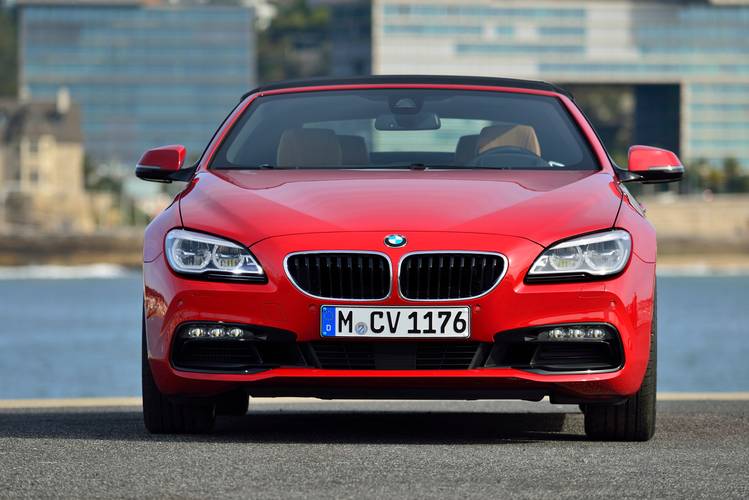

Convertible
after upgrade (facelift)
Date of manufacture
2015 – 5/2018Internal designation
F12 Engine size
Technical data
Sedan (Gran Coupe)
| 640i | 640i xDrive | 650i | 650i xDrive | M6 | M6 Competition | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/24 | 8/24 | 8/24 | 8/24 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 4395 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 235/5800-6000 | 235/5800-6000 | 330/5500 | 330/5500 | 412/6000-7000 | 442/6000-7000 |
| Maximum torque [Nm/min-1] | 450/1300-4500 | 450/1300-4500 | 650/2000-4500 | 650/2000-4500 | 680/1500-5750 | 700/1500-6000 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 6.5 | 6.5 | 8.0 | 8.0 | 8.4 | 8.4 |
| Coolant volume [l] | 10.0 | 10.0 | 14.4 | 14.4 | 18.5 | 18.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.4 | 5.3 | 4.6 | 4.4 | 4.2 | 3.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.9-10.7 | 11.5-11.3 | 12.3-11.9 | 13.1-12.9 | 13,9 | 13,9 |
| Out of town [l] | 6.0-5.8 | 6.3-6.2 | 6.8-6.6 | 7.2-7.1 | 7.6 | 7.6 |
| Combined [l] | 7.8-7.6 | 8.2-8.1 | 8.8-8.6 | 9.4-9.2 | 9.9 | 9.9 |
| CO2 emissions [g/km] | 182-178 | 192-188 | 206-199 | 219-215 | 232 | 232 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1825 | 1900 | 1940 | 2015 | 1950 | 1950 |
| Overall weight [kg] | 2360 | 2430 | 2465 | 2550 | 2410 | 2410 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | - | - |
| Maximum front/rear axle load [kg] | 1130/1295 | - | 1210/1315 | 1260 / 1325 | 1180 / 1260 | 1180 / 1260 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1265 | -/1265 | -/1265 | -/1265 | -/1265 | -/1265 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.32 | 0.29 | 0.31 | 0.33 | 0.33 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 265/35 ZR20 | 265/35 ZR20 |
| Tyre dimensions rear | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 295/30 ZR20 | 295/30 ZR20 |
| Wheel size front | 8 J x 18 | 8 J x 18 | 8 J x 18 | 8 J x 18 | 9.5J x 20 | 9.5J x 20 |
| Wheel size rear | 8 J x 18 | 8 J x 18 | 8 J x 18 | 8 J x 18 | 10.5 J x 20 | 10.5 J x 20 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 374 x 36 | 374 x 36 | 400 x 36 | 400 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 396 x 24 | 396 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/12.5 | -/12.5 |
| Overall length [mm] | 5007 | 5007 | 5007 | 5007 | 5011 | 5011 |
| Overall width without/including mirrors [mm] | 1894/2081 | 1894/2081 | 1894/2081 | 1894/2081 | 1899/- | 1899/- |
| Overall height [mm] | 1392 | 1392 | 1392 | 1392 | 1393 | 1393 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2964 | 2964 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1631 | 1631 |
| Rear wheel track [mm] | 1665 | 1665 | 1665 | 1665 | 1612 | 1612 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 945 | 945 |
| Rear overhang [mm] | 1098 | 1098 | 1098 | 1098 | 1102 | 1102 |
| Clearance [mm] | 126 | 126 | 126 | 126 | 107 | 107 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 941 | 941 | 941 | 941 | 941 | 941 |
| Front elbow/shoulder width [mm] | 1517/- | 1517/- | 1517/- | 1517/- | 1517/- | 1517/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 640d | 640d xDrive | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2993 | 2993 | ||||
| Maximum output / speed [kW/min-1] | 230/4000 | 230/4000 | ||||
| Maximum torque [Nm/min-1] | 630/1500-2500 | 630/1500-2500 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | 7.2 | 7.2 | ||||
| Coolant volume [l] | 8.0 | 8.0 | ||||
| Technical specifications |
|
| ||||
| Drive axle | Rear | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5.4 | 5.2 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.6-6.4 | 6.8-6.7 | ||||
| Out of town [l] | 5.2-5.0 | 5.5-5.3 | ||||
| Combined [l] | 5.7-5.5 | 6.0-5.8 | ||||
| CO2 emissions [g/km] | 152-147 | 158-153 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1885 | 1945 | ||||
| Overall weight [kg] | 2410 | 2470 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | ||||
| Maximum front/rear axle load [kg] | 1140/1305 | 1210 /1315 | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 460 | 460 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1265 | -/1265 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 70 | 70 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.31 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | ||||
| Tyre dimensions front | 245/45 R 18 Y | 245/45 R 18 Y | ||||
| Tyre dimensions rear | 245/45 R 18 Y | 245/45 R 18 Y | ||||
| Wheel size front | 8 J x 18 | 8 J x 18 | ||||
| Wheel size rear | 8 J x 18 | 8 J x 18 | ||||
| Brake dimensions front | 348 x 36 | 348 x 30 | ||||
| Brake dimensions rear | 345 x 24 | 345 x 24 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | ||||
| Overall length [mm] | 5007 | 5007 | ||||
| Overall width without/including mirrors [mm] | 1894/2081 | 1894/2081 | ||||
| Overall height [mm] | 1392 | 1392 | ||||
| Wheelbase [mm] | 2968 | 2968 | ||||
| Front wheel track [mm] | 1600 | 1600 | ||||
| Rear wheel track [mm] | 1665 | 1665 | ||||
| Forward overhang [mm] | 941 | 941 | ||||
| Rear overhang [mm] | 1098 | 1098 | ||||
| Clearance [mm] | 126 | 126 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1030 | 1030 | ||||
| Headroom rear [mm] | 941 | 941 | ||||
| Front elbow/shoulder width [mm] | 1517/- | 1517/- | ||||
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Coupé
| 640i | 640i xDrive | 650i | 650i xDrive | M6 | M6 Competition | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/24 | 8/24 | 8/24 | 8/24 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 4395 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 235/5800-6000 | 235/5800-6000 | 330/5500 | 330/5500 | 412/6000-7000 | 442/6000-7000 |
| Maximum torque [Nm/min-1] | 450/1300-4500 | 450/1300-4500 | 650/2000-4500 | 650/2000-4500 | 680/1500-5750 | 700/1500-6000 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 6.5 | 6.5 | 9.0 | 9.0 | 8.4 | 8.4 |
| Coolant volume [l] | 10.2 | 9.9 | 14.4 | 14.4 | 18.5 | 18.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.3 | 5.2 | 4.6 | 4.4 | 4.2 | 3.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.7-10.5 | 11.3-11.1 | 12.3-11.9 | 13.0-12.7 | 13.9 | 13.9 |
| Out of town [l] | 6.0-5.9 | 6.4-6.3 | 6.8-6.6 | 7.1-7.0 | 7.6 | 7.6 |
| Combined [l] | 7.8-7.6 | 8.2-8.0 | 8.8-8.6 | 9.3-9.1 | 9.9 | 9.9 |
| CO2 emissions [g/km] | 181-177 | 191-188 | 206-199 | 217-213 | 231 | 231 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1760 | 1840 | 1870 | 1930 | 1925 | 1925 |
| Overall weight [kg] | 2210 | 2265 | 2310 | 2365 | 2350 | 2350 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | 1180 / 1220 | 1180 / 1220 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 265/40 R19 102Y | 265/40 R19 102Y |
| Tyre dimensions rear | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 295/35 R19 104Y | 295/35 R19 104Y |
| Wheel size front | 8J x 18 | 8J x 18 | 8J x 18 | 8J x 18 | 9.5J x 19 | 9.5J x 19 |
| Wheel size rear | 8J x 18 | 8J x 18 | 8J x 18 | 8J x 18 | 10.5 J x19 | 10.5 J x19 |
| Brake dimensions front | 348 x 30 | 348 x 30 | - | - | 400 x 36 | 400 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | - | - | 396 x 24 | 396 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.7 | -/11.7 | -/11.7 | -/11.7 | -/12.1 | -/12.1 |
| Overall length [mm] | 4894 | 4894 | 4894 | 4894 | 4898 | 4898 |
| Overall width without/including mirrors [mm] | 1894/- | 1894/- | 1894/- | 1894/- | 1899/- | 1899/- |
| Overall height [mm] | 1369 | 1369 | 1369 | 1369 | 1374 | 1374 |
| Wheelbase [mm] | 2855 | 2855 | 2855 | 2855 | 2851 | 2851 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1631 | 1631 |
| Rear wheel track [mm] | 1665 | 1665 | 1665 | 1665 | 1612 | 1612 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 945 | 945 |
| Rear overhang [mm] | 1098 | 1098 | 1098 | 1098 | 1102 | 1102 |
| Clearance [mm] | 124 | 124 | 124 | 124 | 106 | 106 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Headroom rear [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Front elbow/shoulder width [mm] | 1531/- | 1531/- | 1531/- | 1531/- | 1531/- | 1531/- |
| Rear elbow/shoulder width [mm] | 1338/- | 1338/- | 1338/- | 1338/- | 1338/- | 1338/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 640d | 640d xDrive | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2993 | 2993 | ||||
| Maximum output / speed [kW/min-1] | 230/4000 | 230/4000 | ||||
| Maximum torque [Nm/min-1] | 630/1500-2500 | 630/1500-2500 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | 7.2 | 7.2 | ||||
| Coolant volume [l] | 8.0 | 8.0 | ||||
| Technical specifications |
|
| ||||
| Drive axle | Rear | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5.3 | 5.1 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.3-6.2 | 6.7-6.5 | ||||
| Out of town [l] | 5.1-4.9 | 5.3-5.1 | ||||
| Combined [l] | 5.5-5.4 | 5.8-5.6 | ||||
| CO2 emissions [g/km] | 147-143 | 154-149 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1815 | 1870 | ||||
| Overall weight [kg] | 2255 | 2315 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 460 | 460 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 70 | 70 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.3 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | ||||
| Tyre dimensions front | 245/45 R 18 Y | 245/45 R 18 Y | ||||
| Tyre dimensions rear | 245/45 R 18 Y | 245/45 R 18 Y | ||||
| Wheel size front | 8J x 18 | 8J x 18 | ||||
| Wheel size rear | 8J x 18 | 8J x 18 | ||||
| Brake dimensions front | 348 x 36 | 348 x 36 | ||||
| Brake dimensions rear | 345 x 24 | 345 x 24 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.7 | -/11.7 | ||||
| Overall length [mm] | 4894 | 4894 | ||||
| Overall width without/including mirrors [mm] | 1894/- | 1894/- | ||||
| Overall height [mm] | 1369 | 1365 | ||||
| Wheelbase [mm] | 2855 | 2855 | ||||
| Front wheel track [mm] | 1600 | 1600 | ||||
| Rear wheel track [mm] | 1665 | 1665 | ||||
| Forward overhang [mm] | 941 | 941 | ||||
| Rear overhang [mm] | 1098 | 1098 | ||||
| Clearance [mm] | 124 | 124 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1017 | 1017 | ||||
| Headroom rear [mm] | 908 | 908 | ||||
| Front elbow/shoulder width [mm] | 1531/- | 1531/- | ||||
| Rear elbow/shoulder width [mm] | 1338/- | 1338/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Convertible
| 640i | 640i xDrive | 650i | 650i xDrive | M6 | M6 Competition | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/24 | 8/24 | 8/24 | 8/24 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 4395 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 235/5800-6000 | 235/5800-6000 | 330/5500 | 330/5500 | 412/6000-7000 | 442/6000-7000 |
| Maximum torque [Nm/min-1] | 450/1300-4500 | 450/1300-4500 | 650/2000-4500 | 650/2000-4500 | 680/1500-5750 | 700/1500-6000 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 6.5 | 6.5 | 9.0 | 9.0 | 8.4 | 8.4 |
| Coolant volume [l] | 10.2 | 9.9 | 14.4 | 14.4 | 18.5 | 18.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.5 | 5.4 | 4.6 | 4.5 | 4.3 | 4.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.0-10.7 | 11.7-11.4 | 12.7-12.4 | 13.2-13.0 | 14.2 | 14.2 |
| Out of town [l] | 6.1-5.9 | 6.4-6.3 | 7.0-6.9 | 7.3-7.1 | 7.9 | 7.9 |
| Combined [l] | 6.4-6.3 | 8.4-8.2 | 9.1-8.9 | 9.5-9.3 | 10.3 | 10.3 |
| CO2 emissions [g/km] | 184-179 | 195-191 | 208-213 | 221-217 | 239 | 239 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1895 | 1965 | 2005 | 2055 | 2055 | 2055 |
| Overall weight [kg] | 2325 | 2390 | 2425 | 2480 | 2410 | 2410 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | 1200 / 1260 | 1200 / 1260 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.32 | 0.32 | 0.33 | 0.33 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 265/40 R19 102Y | 265/40 R19 102Y |
| Tyre dimensions rear | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 245/45 R 18 Y | 295/35 R19 104Y | 295/35 R19 104Y |
| Wheel size front | 8 J x 18 | 8 J x 18 | 8 J x 18 | 8 J x 18 | 9.5J x 19 | 9.5J x 19 |
| Wheel size rear | 8 J x 18 | 8 J x 18 | 8 J x 18 | 8 J x 18 | 10.5 J x19 | 10.5 J x19 |
| Brake dimensions front | 348 x 30 | 348 x 30 | - | - | 400 x 36 | 400 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | - | - | 396 x 24 | 396 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.7 | -/11.7 | -/11.7 | -/11.7 | -/12.1 | -/12.1 |
| Overall length [mm] | 4894 | 4894 | 4894 | 4894 | 4898 | 4898 |
| Overall width without/including mirrors [mm] | 1894/- | 1894/- | 1894/- | 1894/- | 1899/- | 1899/- |
| Overall height [mm] | 1365 | 1365 | 1365 | 1365 | 1368 | 1368 |
| Wheelbase [mm] | 2855 | 2855 | 2855 | 2855 | 2851 | 2851 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1631 | 1631 |
| Rear wheel track [mm] | 1665 | 1665 | 1665 | 1665 | 1612 | 1612 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 945 | 945 |
| Rear overhang [mm] | 1098 | 1098 | 1098 | 1098 | 1102 | 1102 |
| Clearance [mm] | 123 | 123 | 123 | 123 | 107 | 107 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1531/- | 1531/- | 1531/- | 1531/- | 1531/- | 1531/- |
| Rear elbow/shoulder width [mm] | 1338/- | 1338/- | 1338/- | 1338/- | 1338/- | 1338/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 640d | 640d xDrive | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2993 | 2993 | ||||
| Maximum output / speed [kW/min-1] | 230/4000 | 230/4000 | ||||
| Maximum torque [Nm/min-1] | 630/1500-2500 | 630/1500-2500 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | 7.2 | 7.2 | ||||
| Coolant volume [l] | 8.0 | 8.0 | ||||
| Technical specifications |
|
| ||||
| Drive axle | Rear | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5.5 | 5.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.7-6.5 | 6.8-6.7 | ||||
| Out of town [l] | 5.3-5.1 | 5.5-5.3 | ||||
| Combined [l] | 6.8-6.5 | 6.0-5.8 | ||||
| CO2 emissions [g/km] | 153-149 | 158-154 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1935 | 2005 | ||||
| Overall weight [kg] | 2365 | 2440 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | 1180/1320 | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 300-350 | 300-350 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 70 | 70 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.31 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | ||||
| Tyre dimensions front | 245/45 R 18 Y | 245/45 R 18 Y | ||||
| Tyre dimensions rear | 245/45 R 18 Y | 245/45 R 18 Y | ||||
| Wheel size front | 8 J x 18 | 8 J x 18 | ||||
| Wheel size rear | 8 J x 18 | 8 J x 18 | ||||
| Brake dimensions front | 348 x 36 | 348 x 36 | ||||
| Brake dimensions rear | 345 x 24 | 345 x 24 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.7 | -/11.7 | ||||
| Overall length [mm] | 4894 | 4894 | ||||
| Overall width without/including mirrors [mm] | 1894/- | 1894/- | ||||
| Overall height [mm] | 1365 | 1365 | ||||
| Wheelbase [mm] | 2855 | 2855 | ||||
| Front wheel track [mm] | 1600 | 1600 | ||||
| Rear wheel track [mm] | 1665 | 1665 | ||||
| Forward overhang [mm] | 941 | 941 | ||||
| Rear overhang [mm] | 1098 | 1098 | ||||
| Clearance [mm] | 123 | 123 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1023 | 1023 | ||||
| Headroom rear [mm] | 927 | 927 | ||||
| Front elbow/shoulder width [mm] | 1531/- | 1531/- | ||||
| Rear elbow/shoulder width [mm] | 1338/- | 1338/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
