BMW 7
Date of manufacture
7/2015 – 2019 (Sedan)
Platform
-
Manufacturing locations
Dingolfing, Germany
Designer
-
Tags
F-segment
German cars

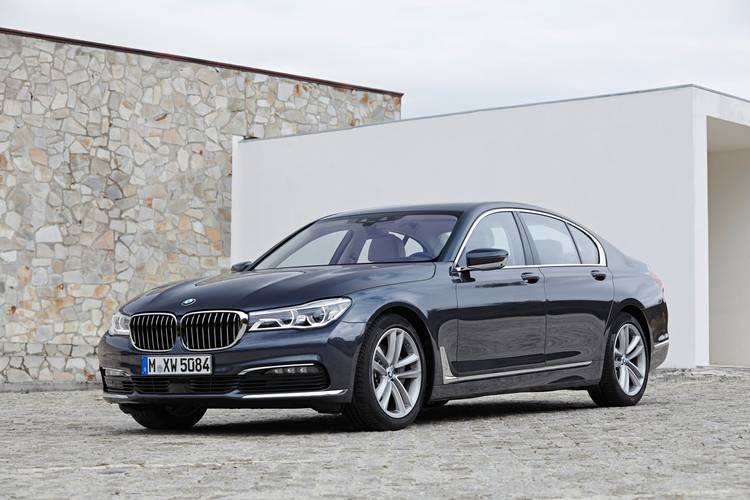

The BMW 7 is a sedan that has been produced since 2015. It is manufactured in Germany and is available in hybrid and plug-in hybrid variants. The engine range includes petrol, diesel and hybrid engines. The most powerful model is the M760Li xDrive with 441 kW, the fastest version has a top speed of 250 km/h. The most fuel-efficient vehicle is the 740e iPerformance with a combined fuel consumption of 2.3 l/100 km and CO2 emissions of 51 g/km. The luggage compartment volume is 420 l.
Car body style
Sedan
Date of manufacture
7/2015 – 2019Internal designation
G11Technical data
Sedan
| 740i | 740Li | 740Li xDrive | 750i | 750Li | 750i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from to 9/2018 | from to 9/2018 | from to 9/2018 | from to 9/2018 | from to 9/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2998 | 2998 | 2998 | 4395 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 240/5500-6500 | 240/5500-6500 | 240/5500-6500 | 330/5500-6000 | 330/5500-6000 | 330/5500-6000 |
| Maximum torque [Nm/min-1] | 450/1380-5000 | 450/1380-5000 | 450/1380-5000 | 650/1800-4500 | 650/1800-4500 | 650/1800-4500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 89.0 x 88.3 | 89.0 x 88.3 | 89.0 x 88.3 |
| Compression ratio | 11.0 :1 | 11.0 :1 | 11.0 :1 | 10.5 :1 | 10.5 :1 | 10.5 :1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 9.5 | 9.5 | 9.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.5 | 5.6 | 5.2 | 4.7 | 4.7 | 4.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.7-9.1 | 9.7-9.1 | 10.3-9.6 | 11.4-11.1 | 11.6-11.3 | 11.6-11.4 |
| Out of town [l] | 5.5-5.2 | 5.5-5.2 | 5.8-5.5 | 6.2-6.1 | 6.3-6.2 | 6.4-6.2 |
| Combined [l] | 7.0-6.6 | 7.0-6.6 | 7.5-7.0 | 8.1-7.9 | 8.3-8.0 | 8.3-8.1 |
| CO2 emissions [g/km] | 164-154 | 164-154 | 174-164 | 189-184 | 192-187 | 194-189 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1800 | 1845 | 1900 | 1895 | 1940 | 1945 |
| Overall weight [kg] | 2400 | 2445 | 2500 | 2515 | 2555 | 2575 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2300 | 750/2100 | 750/2100 | 750/2300 |
| Maximum front/rear axle load [kg] | 1135/1320 | 1155/1340 | 1210/ 1350 | 1225/ 1345 | 1235/1375 | 1270/1355 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- |
| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4/5 | 4/5 | 5 | 4/5 | 5 |
| Fuel tank volume [l] | 78 | 78 | 78 | 78 | 78 | 78 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.24 | 0.24 | 0.25 | 0.26 | 0.26 | 0.27 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y |
| Tyre dimensions rear | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 | 8J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.3/- | 12.8/- | 12.9/- | 12,3/- | 12,8/- | 12,5/- |
| Overall length [mm] | 5098 | 5238 | 5238 | 5098 | 5238 | 5098 |
| Overall width without/including mirrors [mm] | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 |
| Overall height [mm] | 1478 | 1485 | 1485 | 1478 | 1485 | 1478 |
| Wheelbase [mm] | 3070 | 3210 | 3210 | 3070 | 3210 | 3070 |
| Front wheel track [mm] | 1618 | 1618 | 1618 | 1612 | 1612 | 1611 |
| Rear wheel track [mm] | 1646 | 1646 | 1646 | 1640 | 1640 | 1640 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1148 | 1148 | 1148 | 1148 | 1148 | 1148 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1043 | 1013 | 1013 | 1043 | 1013 | 1043 |
| Headroom rear [mm] | 980 | 989 | 989 | 980 | 989 | 980 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 750Li xDrive | M760Li xDrive | 740e iPerformance | 740Le iPerformance | 740Le xDrive iPerformance | 730d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 3/2016 to 9/2018 | from 7/2016 to | from 7/2016 to | from 7/2016 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 12/48 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 4395 | 6592 | 1998 | 1998 | 1998 | 2993 |
| Maximum output / speed [kW/min-1] | 330/5500-6000 | 441/5500 | 190/5000-6500 83/3170 el. 240 total | 190/5000-6500 83/3170 el. 240 total | 190/5000-6500 83/3170 el. 240 total | 195/4000 |
| Maximum torque [Nm/min-1] | 650/1800-4500 | 800/1500 | 400/1550-4400 250/0-3170 el. 500 total | 400/1550-4400 250/0-3170 el. 500 total | 400/1550-4400 250/0-3170 el. 500 total | 620/2000-2500 |
| Bore and stroke [mm x mm] | 89.0 x 88.3 | 89.0 x 88.3 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 |
| Compression ratio | 10.5 :1 | 10.0:1 | 10.2:1 | 10.2:1 | 10.2:1 | 16.5 :1 |
| Oil volume [l] | 9.5 | 9.5 | 5.25 | 5.25 | 5.25 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 [305 subject to a surcharge] | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 4.5 | 3.9 | 5.4 | 5.5 | 5.3 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.9-11.6 | - | - | - | - | 6.4-5.3 |
| Out of town [l] | 6.5-6.3 | - | - | - | - | 5.0-4.0 |
| Combined [l] | 8.5-8.3 | 12.6 | 2.5-2.3 | 2.5-2.3 | 2.9-2.8 | 5.5-4.5 |
| CO2 emissions [g/km] | 197-192 | 294 | 56-51 | 57-52 | 65-64 | 145-119 |
| Emission standard | EU6 | EU6 - EU6c | EU6-EU6d-TEMP | EU6-EU6d-TEMP | EU6-EU6d-TEMP | EU6 - EU6c |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 351 | 351 | 351 | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 9.2 kWh | Lithium-Ionen-Akkumulator, 9.2 kWh | Lithium-Ionen-Akkumulator, 9.2 kWh | - |
| Range with fully charged battery [km] | - | - | 44-45 | 44-45 | 41-42 | - |
| Charging time | - | - |
|
|
| - |
| Number of modules/cells | - | - | 6/96 | 6/96 | 6/96 | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1990 | 2255 | 1975 | 2015 | 2075 | 1830-1845 |
| Overall weight [kg] | 2615 | - | 2585 | 2600 | 2655 | 2450 |
| Maximum trailer weight unbraked/braked [kg] | 750/2300 | 750/2300 | - | - | - | 750/2100 |
| Maximum front/rear axle load [kg] | 1285/1385 | - | 1170/ 1490 | 1185/1490 | 1235/1490 | 1175/1340 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | - | - | - | 100 |
| Maximum load on roof/carrier [kg] | 100 /- | 100/- | 100/- | 100/- | 100/- | 100 /- |
| Boot volume [l] | 515 | 515 | 420 | 420 | 420 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4/5 | 4/5 | 5 | 4/5 | 4/5 | 5 |
| Fuel tank volume [l] | 78 | 78 | 46 | 46 | 46 | 78 |
| AdBlue tank volume [l] | - | - | - | - | - | 20 |
| Air resistance [Cd] | 0.27 | 0.27 | 0.25 | 0.25 | 0.25 | 0.24 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 245/50 R18 100Y | 245/40 R20 90Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y |
| Tyre dimensions rear | 245/50 R18 100Y | 275/35 R20 102Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y |
| Wheel size front | 8J x 18 | 8.5J x 20 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 8J x 18 | 10J x 20 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12,9/- | 12.9/- | 12.3/- | 12.8/- | 12.9/- | 12.3/- |
| Overall length [mm] | 5238 | 5238 | 5098 | 5238 | 5238 | 5098 |
| Overall width without/including mirrors [mm] | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 |
| Overall height [mm] | 1485 | 1485 | 1467 | 1479 | 1479 | 1478 |
| Wheelbase [mm] | 3210 | 3210 | 3070 | 3210 | 3210 | 3070 |
| Front wheel track [mm] | 1611 | 1611 | 1617 | 1617 | 1617 | 1618 |
| Rear wheel track [mm] | 1640 | 1640 | 1646 | 1646 | 1646 | 1646 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1148 | 1148 | 1148 | 1148 | 1148 | 1148 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1043 | 1013 | 1013 | 1043 |
| Headroom rear [mm] | 989 | 989 | 980 | 989 | 989 | 980 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 730Ld | 730d xDrive | 730Ld xDrive | 740d xDrive | 740Ld xDrive | 750d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 195/4000 | 195/4000 | 195/4000 | 235/4000 | 235/4000 | 294/4400 |
| Maximum torque [Nm/min-1] | 620/2000-2500 | 620/2000-2500 | 620/2000-2500 | 680/1750-2250 | 680/1750-2250 | 760/2000-3000 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.5 :1 | 16.0:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.2 | 5.8 | 5.9 | 5.2 | 5.3 | 4.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5-5.5 | 6.9-5.7 | 6.9-5.7 | 7.6-6.2 | 7.8-6.3 | 8.3-7.6 |
| Out of town [l] | 5.1-4.1 | 5.2-4.3 | 5.1-4.3 | 5.2-4.2 | 5.2-4.3 | 5.4-5.4 |
| Combined [l] | 5.6-4.6 | 5.8-4.8 | 5.8-4.8 | 6.1-4.9 | 6.2-5.0 | 6.4-6.2 |
| CO2 emissions [g/km] | 148-132 | 152-137 | 153-137 | 160-129 | 163-132 | 169-164 |
| Emission standard | EU6 - EU6c | EU6 - EU6c | EU6 - EU6c | EU6 - EU6c | EU6 - EU6c | EU6c |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1870-1895 | 1900-1920 | 1945-1955 | 1935-1945 | 1975-1990 | 2025 |
| Overall weight [kg] | 2490 | 2540 | 2580 | 2530 | 2570 | 2630 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2300 | 750/2300 | 750/2300 |
| Maximum front/rear axle load [kg] | 1195/1360 | 1220/1370 | 1240/1395 | 1250/1340 | 1270/1360 | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- | 100/- |
| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4/5 | 5 | 4/5 | 5 | 4/5 | 5 |
| Fuel tank volume [l] | 78 | 78 | 78 | 78 | 78 | 78 |
| AdBlue tank volume [l] | 20 | 20 | 20 | 20 | 20 | 20 |
| Air resistance [Cd] | 0.24 | 0.25 | 0.25 | 0.25 | 0.25 | 0.26 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R1799Y | 225/60 R17 99Y | 225/60 R17 99Y | 245/50 R18 100Y |
| Tyre dimensions rear | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R1799Y | 225/60 R17 99Y | 225/60 R17 99Y | 245/50 R18 100Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.8/- | 12.5/- | 12.9/- | 12.5/- | 12.9/- | 12.9/- |
| Overall length [mm] | 5238 | 5098 | 5238 | 5098 | 5238 | 5098 |
| Overall width without/including mirrors [mm] | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 |
| Overall height [mm] | 1485 | 1478 | 1485 | 1478 | 1485 | 1479 |
| Wheelbase [mm] | 3210 | 3070 | 3210 | 3070 | 3210 | 3070 |
| Front wheel track [mm] | 1618 | 1617 | 1617 | 1617 | 1617 | 1611 |
| Rear wheel track [mm] | 1646 | 1646 | 1646 | 1646 | 1646 | 1640 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Rear overhang [mm] | 1148 | 1148 | 1148 | 1148 | 1148 | 1148 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1043 | 1013 | 1043 | 1013 | 1043 |
| Headroom rear [mm] | 989 | 980 | 989 | 980 | 989 | 980 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 750Ld xDrive | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 294/4400 | |||||
| Maximum torque [Nm/min-1] | 760/2000-3000 | |||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | |||||
| Compression ratio | 16.0:1 | |||||
| Oil volume [l] | 6.5 | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 4.7 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 8.4-7.7 | |||||
| Out of town [l] | 5.4-5.4 | |||||
| Combined [l] | 6.5-6.3 | |||||
| CO2 emissions [g/km] | 170-165 | |||||
| Emission standard | EU6c | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 2055 | |||||
| Overall weight [kg] | 2670 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2300 | |||||
| Maximum front/rear axle load [kg] | 1310/1420 | |||||
| Maximum vertical load on the tow bar [kg] | 100 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 515 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 4/5 | |||||
| Fuel tank volume [l] | 78 | |||||
| AdBlue tank volume [l] | 20 | |||||
| Air resistance [Cd] | 0.26 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | five-link | |||||
| Tyre dimensions front | 245/50 R18 100Y | |||||
| Tyre dimensions rear | 245/50 R18 100Y | |||||
| Wheel size front | 8J x 18 | |||||
| Wheel size rear | 8J x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical power steering Servotronic | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.9/- | |||||
| Overall length [mm] | 5238 | |||||
| Overall width without/including mirrors [mm] | 1902/2169 | |||||
| Overall height [mm] | 1479 | |||||
| Wheelbase [mm] | 3210 | |||||
| Front wheel track [mm] | 1611 | |||||
| Rear wheel track [mm] | 1640 | |||||
| Forward overhang [mm] | 880 | |||||
| Rear overhang [mm] | 1148 | |||||
| Clearance [mm] | 135 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1013 | |||||
| Headroom rear [mm] | 989 | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
