BMW X2
Date of manufacture
11/2017 – to this day (Medium SUV)
Platform
UKL2 platform
Manufacturing locations
Regensburg, Germany
Designer
-
Tags
Compact SUV
German cars

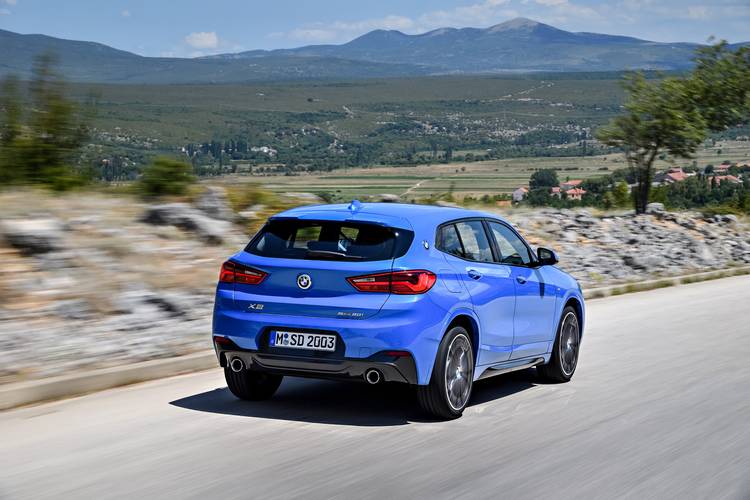

The BMW X2 is a mid-size SUV that was introduced in 2017. The vehicle is built on the UKL2 platform and is manufactured in Germany. It is offered with petrol, diesel and hybrid engines, with the most powerful model being the X2 M35i with 225 kW. The fastest version reaches a top speed of 250 km/h and the most fuel-efficient X2 xDrive25e has a fuel consumption of 1.9 l/100 km and emissions of 43 g/km. The vehicle's trunk offers a capacity of 410 l. In terms of safety, EURONCAP rated this model 5 out of 5 in 2015.
Car body style
Medium SUV
Date of manufacture
11/2017 – to this dayInternal designation
F39
Technical data
Medium SUV
| X2 sDrive18i | X2 sDrive18i | X2 sDrive18i | X2 sDrive18i | X2 sDrive20i | X2 xDrive20i | |
|---|---|---|---|---|---|---|
| Date of sale | from 11/2020 to | from 11/2020 to | from 3/2018 to 11/2020 | from 3/2018 to 11/2020 | from 11/2020 to | from 11/2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 100/4500-6500 | 100/4500-6500 | 103/4600-6500 | 103/4600-6500 | 131/5000-5500 | 131/5000-5500 |
| Maximum torque [Nm/min-1] | 220/1500-4100 | 220/1500-4100 | 220/1480-4200 | 220/1480-4200 | 280/1350-4200 | 280/1350-4200 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 205 | 205 | 205 | 205 | 227 | 224 |
| Acceleration 0–100 km/h [s] | 9.6 | 9.6 | 9.6 | 9.6 | 7.6 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2-7.1 | 7.0-6.6 | 6.9-6.9 | 7.0-6.9 | 7.5-7.0 | 7.9-7.6 |
| Out of town [l] | 5.2-4.7 | 5.1-4.7 | 5.1-4.9 | 5.1-4.9 | 5.3-5.0 | 5.9-5.5 |
| Combined [l] | 6.0-5.6 | 5.8-5.4 | 5.8-5.6 | 5.8-5.6 | 6.1-5.8 | 6.6-6.3 |
| CO2 emissions [g/km] | 137-128 | 133-124 | 132-129 | 133-129 | 140-132 | 152-143 |
| Emission standard | EU6d | EU6d | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6d | EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1485 | 1505 | 1470 | 1490 | 1545 | 1640 |
| Overall weight [kg] | 1985 | 2005 | 1985 | 2005 | 2055 | 2145 |
| Maximum trailer weight unbraked/braked [kg] | 740/1700 | 750/1700 | 725/1700 | 725/1700 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | 1000/ 1020 | 1020/1020 | 1000/ 1020 | 1020/1020 | 1055/ 1030 | 1085/ 1090 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |

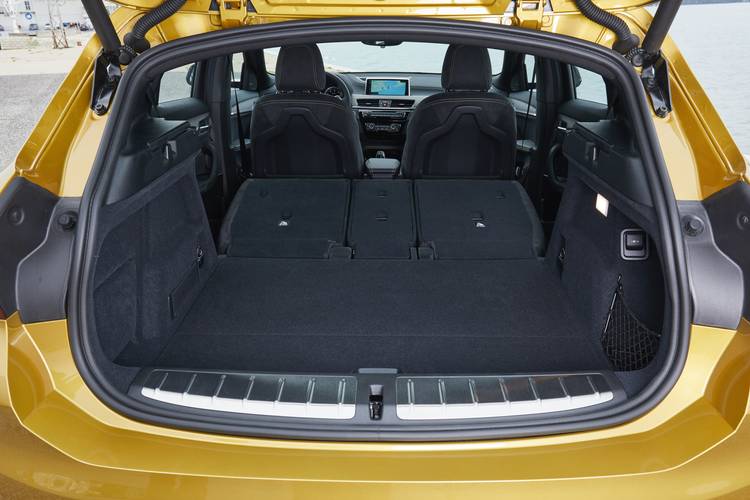

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1355 | -/1355 | -/1355 | -/1355 | -/1355 | -/1355 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5Jx 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5Jx 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4360 | 4360 | 4360 | 4360 | 4360 | 4360 |
| Overall width without/including mirrors [mm] | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 |
| Overall height [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 182 | 182 | 182 | 182 | 182 | 182 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| X2 sDrive20i | X2 xDrive20i | X2 M35i | X2 xDrive25e | X2 sDrive18d | X2 sDrive18d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 11/2020 | from to 11/2020 | from 3/2019 to | from 5/2020 to | from 3/2018 to | from 3/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1499 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 141/5000-6000 | 141/5000-6000 | 225/5000-6250 | 92/5000-5500 70/8200 el. 162 total | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 280/1350-4600 | 280/1350-4600 | 450/1750-4500 | 220/1500-3800 165/100-3000 el. 385 total | 350/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11.0:1 | 11.0:1 | 9.5:1 | 11.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 4.25 | 5.0 | 5.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 227 | 224 | 250 | 195 | 207 | 207 |
| Acceleration 0–100 km/h [s] | 7.7 | 7.4 | 5.0 | 6.8 | 9.3 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5-6.8 | 7.7-7.5 | 8.7-8.3 | - | 5.3-5.0 | 5.3-5.0 |
| Out of town [l] | 5.1-4.8 | 5.4-5.2 | 6.1-6.1 | - | 4.2-4.0 | 4.4-4.0 |
| Combined [l] | 6.0-5.5 | 6.2-6.1 | 7.1-6.9 | 1.9 [13.7 el.] | 4.6-4.3 | 4.7-4.3 |
| CO2 emissions [g/km] | 136-126 | 142-138 | 161-158 | 43 | 122-114 | 124-114 |
| Emission standard | EU6 - EU6d-TEMP | EU6 | EU6d-TEMP | EU6d | EU6 - EU6d-TEMP - EU6d | EU6 - EU6d-TEMP - EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 295 | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 10.0 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 57 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1535 | 1615 | 1685 | 1805 | 1575-1580 | 1610-1615 |
| Overall weight [kg] | 2055 | 2145 | 2190 | 2300 | 2080 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | -/ | -/ | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1055/ 1030 | 1085/ 1090 | 1120/ 1095 | 1120/1250 | 1060/ 1050 | 1100/ 1050 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | - | - | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 470 | 470 | 470 | 410 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1355 | -/1355 | -/1355 | -/1290 | -/1355 | -/1355 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 61 | 61 | 36 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | 20.5 | 20.5 |
| Air resistance [Cd] | 0.29 | 0.29 | - | 0.29 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/45 R1992W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/45 R1992W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7.5J x 17 | 7.5Jx 17 | 8J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5Jx 17 | 8J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.4/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4360 | 4360 | 4360 | 4360 | 4360 | 4360 |
| Overall width without/including mirrors [mm] | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 |
| Overall height [mm] | 1526 | 1526 | 1526 | 1512 | 1526 | 1526 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1563 | 1563 | 1575 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1562 | 1562 | 1572 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 182 | 182 | 182 | 147 | 182 | 182 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| X2 xDrive18d | X2 xDrive18d | X2 sDrive20d | X2 xDrive20d | X2 xDrive25d | X2 xDrive25d | |
|---|---|---|---|---|---|---|
| Date of sale | from 3/2018 to | from 3/2018 to | from 3/2018 to | from 3/2018 to | from to 9/2018 | from 9/2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 140/4000 | 140/4000 | 170/4400 | 170/4400 |
| Maximum torque [Nm/min-1] | 350/1750-2500 | 350/1750-2500 | 400/1750-2500 | 400/1750-2500 | 450/1500-3000 | 450/1500-3000 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5 :1 | 16.5 :1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 206 | 206 | 224 | 221 | 237 | 237 |
| Acceleration 0–100 km/h [s] | 9.2 | 9.4 | 7.9 | 7.7 | 6.7 | 6.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1-5.6 | 5.5-5.1 | 5.4-4.8 | 5.7-5.3 | 5.9-5.7 | 5.8-5.5 |
| Out of town [l] | 4.7-4.4 | 4.6-4.3 | 4.3-4.0 | 4.6-4.3 | 4.9-4.7 | 4.7-4.5 |
| Combined [l] | 5.2-4.9 | 4.9-4.6 | 4.7-4.4 | 5.0-4.6 | 5.3-5.1 | 5.1-4.8 |
| CO2 emissions [g/km] | 137-128 | 129-121 | 123-115 | 131-122 | 139-133 | 135-127 |
| Emission standard | EU6 - EU6d-TEMP - EU6d | EU6 - EU6d-TEMP - EU6d | EU6 - EU6d-TEMP - EU6d | EU6 - EU6d-TEMP - EU6d | EU6 | EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1655-1660 | 1675-1680 | 1615 | 1675-1680 | 1660 | 1695 |
| Overall weight [kg] | 2160 | 2180 | 2125 | 2190 | 2180 | 2170 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100/ 1095 | - | - | 1120/ 1100 | 1125/1085 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1355 | -/1355 | -/1355 | -/1355 | -/1355 | -/1355 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | 12.5 | 12.5 | 12.5 | 12.5 | - | 12.5 |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4360 | 4360 | 4360 | 4360 | 4360 | 4360 |
| Overall width without/including mirrors [mm] | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 | 1824/2098 |
| Overall height [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2760 | 2760 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 182 | 182 | 182 | 182 | 182 | 182 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

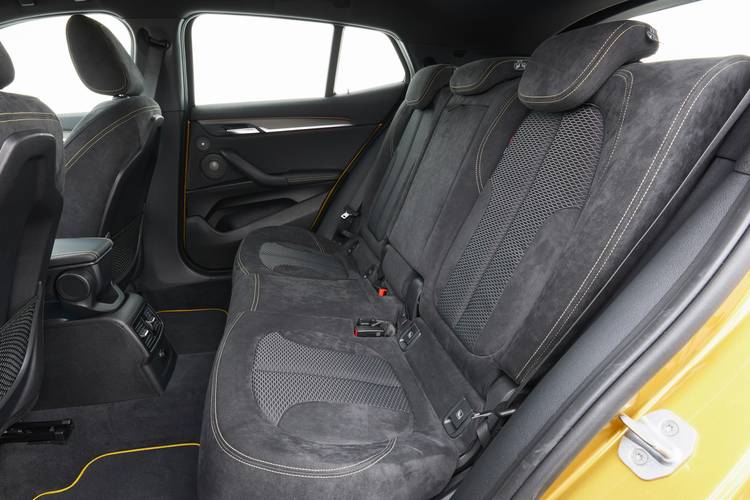

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
