BMW X3
Date of manufacture
2017 – to this day (Medium SUV)
Platform
CLAR platform
Manufacturing locations
Greer, South Carolina, USA
Designer
Calvin Luk
Tags
Compact SUV
German cars
The BMW X3 is a mid-size SUV that has been produced since 2017 in the United States. It is available on the CLAR platform and is available in a plug-in hybrid version. Gasoline, diesel, hybrid and electric powertrains are available with the highest power output of 375 kW in the X3 M F97 Competition model. This model has a top speed of 250 km/h. The most fuel-efficient variant is the X3 xDrive30e with a combined fuel consumption of 2.1 l/100 km and CO2 emissions of 48 g/km. The trunk has a capacity of 450 liters. The car passed EURONCAP safety tests in 2017 and received a rating of 5 out of 5.
Car body style
Medium SUV
Date of manufacture
2017 – to this dayInternal designation
G01Engine size
PetrolPetrol + ElectricElectric
Technical data
Medium SUV
| X3 xDrive20i | X3 xDrive30i | X3 M40i | X3 M F97 | X3 M F97 Competition | X3 xDrive30e | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 4/2019 to | from 4/2019 to | from 12/2019 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 2998 | 2993 | 2993 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000-6500 | 185/5200 -6500 | 265/5500-6500 | 353/6250 | 375/6250 | 135/5000-6500 80/3170 el. 215 total |
| Maximum torque [Nm/min-1] | 290/1350-4250 | 350/1450-4800 | 500/1520-4800 | 600/2600-5600 | 600/2600-5950 | 300/1350-4000 300/1350-4000 el. 420 total |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 10.2:1 | 11.0:1 | 9.3:1 | 9.3:1 | 11.0:1 |
| Oil volume [l] | 5.25 | 5.25 | 6.5 | 7.0 | 7.0 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 215 | 240 | 250 | 250 [285 subject to a surcharge] | 250 [285 subject to a surcharge] | 210 [135 el.] |
| Acceleration 0–100 km/h [s] | 8.3 | 6.3 | 4.8 | 4,2 | 4,1 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8-7.8 | 8.5-7.8 | 11,5-9.8 | 13.6-12.9 | 13.5-12.8 | - |
| Out of town [l] | 6.5-5.9 | 6.7-5.9 | 7,8-6,7 | 9.1-8.7 | 9.1-8.8 | - |
| Combined [l] | 7.3-6.6 | 7.3-6.6 | 9,1-7.9 | 10.5 | 10.5 | 2.4-2.1 [16.9-16.3 kWh] |
| CO2 emissions [g/km] | 168-151 | 168-151 | 207-179 | 239 | 239 | 54-48 |
| Emission standard | EU6 - EU6d-TEMP - EU6d | EU6 - EU6d-TEMP - EU6d | EU6 - EU6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | EU6d-TEMP- EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 354 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 11.45 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 43-51 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1790-1810 | 1790-1830 | 1885 | 2045 | 2045 | 2065 |
| Overall weight [kg] | 2400 | 2400 | 2455 | 2500 | 2500 | 2620 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2400 | 750/2400 | 750/2400 | 750/2000 |
| Maximum front/rear axle load [kg] | 1140/ 1370 | 1140/1370 | 1190/1375 | 1185/1425 | 1185/1425 | 1200 / 1510 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100 /- | 100 /- | 100/- |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1500 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.33 | 0.36 | 0.36 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/60 R18 104W XL | 225/60 R18 104W XL | 245/45 R20 103W XL | 255/45 ZR20 105Y XL | 255/40 ZR21 102Y XL | 225/60 R18 104W XL |
| Tyre dimensions rear | 225/60 R18 104W XL | 225/60 R18 104W XL | 275/40 R20 106W XL | 265/45 ZR20 108Y XL | 265/40 ZR21 105Y XL | 225/60 R18 104W XL |
| Wheel size front | 7J x 18 | 7J x 18 | 8,0J x 20 | 9J x 20 | 9,5J x 21 | 7J x 18 |
| Wheel size rear | 7J x 18 | 7J x 18 | 9,5J x 20 | 10J x 20 | 10J x 21 | 7J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.0/- | 12.0/- | 12.1/- | 12.6/- | 12.6/- | 12.0/- |
| Overall length [mm] | 4708 | 4708 | 4716 | 4726 | 4726 | 4708 |
| Overall width without/including mirrors [mm] | 1891/2138 | 1891/2138 | 1897/- | 1897/- | 1897/- | 1891/2138 |
| Overall height [mm] | 1676 | 1676 | 1676 | 1667 | 1669 | 1676 |
| Wheelbase [mm] | 2864 | 2864 | 2864 | 2864 | 2864 | 2864 |
| Front wheel track [mm] | 1620 | 1620 | 1610 | 1623 | 1617 | 1620 |
| Rear wheel track [mm] | 1636 | 1636 | 1594 | 1602 | 1602 | 1636 |
| Forward overhang [mm] | 856 | 856 | 856 | 864 | 864 | 856 |
| Rear overhang [mm] | 988 | 988 | 988 | 998 | 998 | 988 |
| Clearance [mm] | 204 | 204 | 204 | - | - | 204 |
| Wading depth [mm] | 500 | 500 | 500 | - | - | 500 |
| Approach angle front [°] | 25,6 | 25.6 | 25.0 | - | - | 25.6 |
| Approach angle rear [°] | 23.4 | 23.4 | 23.4 | - | - | 22.8 |
| Transition angle [°] | 20,0 | 20.0 | 20.0 | - | - | 20.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Headroom rear [mm] | 994 | 994 | 994 | 978 | 978 | 994 |
| Front elbow/shoulder width [mm] | 1522/- | 1522/- | 1522/- | 1522/- | 1522/- | 1522/- |
| Rear elbow/shoulder width [mm] | 1477/- | 1477/- | 1477/- | 1477/- | 1477/- | 1477/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| BMW iX3 G08 | X3 xDrive20d | X3 xDrive25d | X3 xDrive30d | X3 M40d | X3 xDrive20d | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2020 to | from to 2/2020 | from 4/2018 to 2019 | from to 8/2020 | from to 8/2020 | from 2/2020 to |
| Engine type | Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric |
| Number of cylinders/valves | - | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 |
| Engine displacement [cm³] | - | 1995 | 1995 | 2993 | 2993 | 1995 |
| Maximum output / speed [kW/min-1] | 210/6000 | 140/4000 | 170/4400 | 195/4000 | 240/4400 | 140/4000 8 el. |
| Maximum torque [Nm/min-1] | 400 | 400/1750-2500 | 500/2000 | 620/2000-2500 | 680/1750-2750 | 400/1750-2500 |
| Bore and stroke [mm x mm] | - | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | - | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | 5.0 | 5.0 | 6,5 | 6.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 1 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 180 | 213 | 230 | 240 | 250 | 213 |
| Acceleration 0–100 km/h [s] | 6.8 | 8.0 | 6.8 | 5.8 | 4.9 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 2.5 | - | - | - | - | - |
| City [l] | - | 6,3-4,9 | 6.3-6.2 | 6,9-6,3 | 7.4-7.2 | 5.5-5.2 |
| Out of town [l] | - | 5,2-3,7 | 5.3-5.1 | 5,7-5,3 | 6.1-5.8 | 4.8-4.5 |
| Combined [l] | 17.8-17.5 kWh | 5,6-5,0 | 5.7-5.5 | 6,0-5,7 | 6.5-6.4 | 5.1-4.8 |
| CO2 emissions [g/km] | - | 146-132 | 150-145 | 159-149 | 172-169 | 134-126 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 19.5-18.5 kWh | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | - | - | - | - |
| Emission standard | - | EU6 - EU6d-TEMP | EU6d-TEMP | EU6 - EU6d-TEMP | EU6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 400 | - | - | - | - | 48 |
| Battery type and capacity | Lithium-ion, 80 kWh (74 net) | - | - | - | - | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | 450-458 | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | 10/188 | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2260 | 1825 | 1840 | 1895 | 1970 | 1910 |
| Overall weight [kg] | 2725 | 2420 | 2435 | 2500 | 2550 | 2500 |
| Maximum trailer weight unbraked/braked [kg] | 750/750 | 750/2400 | 750/2400 | 750/2400 | 750/2400 | 750/2400 |
| Maximum front/rear axle load [kg] | 940/1040 | 1135/1395 | 1145/1400 | 1190/1415 | 1220/1425 | 1200/1430 |
| Maximum vertical load on the tow bar [kg] | 75 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100 /- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 510 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1560 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | 60-68 | 68 | 68 | 68 | 68 |
| AdBlue tank volume [l] | - | 20.5 | 20.5 | 20.5 | 20.5 | 21.8 |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.32 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/50 R19 105W XL | 225/60 R18 104W XL | 225/60 R18 104W XL | 225/60 R18 104W XL | 245/45 R20 103W XL | 225/60 R18 104W XL |
| Tyre dimensions rear | 245/50 R19 105W XL | 225/60 R18 104W XL | 225/60 R18 104W XL | 225/60 R18 104W XL | 275/40 R20 106W XL | 225/60 R18 104W XL |
| Wheel size front | 7.5J x 19 | 7,0J x 18 | 7J x 18 | 7,0J x 18 | 8J x 20 | 7J x 18 |
| Wheel size rear | 7.5J x 19 | 7,0J x 18 | 7J x 18 | 7,0J x 18 | 9,5J x 20 | 7J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.1/- | 12.0/- | 12.0/- | 12.0/- | 12.1/- | 12.0/- |
| Overall length [mm] | 4734 | 4708 | 4708 | 4708 | 4716 | 4708 |
| Overall width without/including mirrors [mm] | 1891/- | 1891/2138 | 1891/2138 | 1891/2138 | 1897/- | 1891/2138 |
| Overall height [mm] | 1668 | 1676 | 1676 | 1676 | 1676 | 1676 |
| Wheelbase [mm] | 2864 | 2864 | 2864 | 2864 | 2864 | 2864 |
| Front wheel track [mm] | 1600 | 1620 | 1620 | 1620 | 1615 | 1620 |
| Rear wheel track [mm] | 1616 | 1636 | 1636 | 1636 | 1594 | 1636 |
| Forward overhang [mm] | 860 | 856 | 856 | 856 | 856 | 856 |
| Rear overhang [mm] | 1010 | 988 | 988 | 988 | 988 | 988 |
| Clearance [mm] | 179 | 204 | 204 | 204 | 204 | 204 |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 23.1 | 25.6 | 25.6 | 25.6 | 25.0 | 25.6 |
| Approach angle rear [°] | 20.9 | 23.4 | 23.4 | 23.4 | 23.4 | 23.4 |
| Transition angle [°] | 14.8 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1033 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Headroom rear [mm] | 978 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1462/- | 1522/- | 1522/- | 1522/- | 1522/- | 1522/- |
| Rear elbow/shoulder width [mm] | 1423/- | 1477/- | 1477/- | 1477/- | 1477/- | 1477/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| X3 xDrive30d | X3 M40d | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 8/2020 to | from 8/2020 to | ||||
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2993 | 2993 | ||||
| Maximum output / speed [kW/min-1] | 210/4000 8 el. | 250/4400 8 el. | ||||
| Maximum torque [Nm/min-1] | 650/1500-2500 | 700/1750-2250 | ||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | ||||
| Compression ratio | 16.5:1 | 16.5:1 | ||||
| Oil volume [l] | 7.0 | 7.0 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 245 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5.7 | 4.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.7-6.4 | 7.2-6.9 | ||||
| Out of town [l] | 5.0-4.6 | 5.2-4.9 | ||||
| Combined [l] | 5.6-5.2 | 6.0-5.6 | ||||
| CO2 emissions [g/km] | 147-137 | 157-148 | ||||
| Emission standard | Euro 6d | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | 48 | 48 | ||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | ||||
| Range with fully charged battery [km] | - | - | ||||
| Charging time | - | - | ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 2005 | 2095 | ||||
| Overall weight [kg] | 2550 | 2560 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | ||||
| Maximum front/rear axle load [kg] | 1200/1415 | 1240/1425 | ||||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 550 | 550 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 68 | 68 | ||||
| AdBlue tank volume [l] | 21.8 | 21.8 | ||||
| Air resistance [Cd] | 0.30 | 0.31 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/60 R18 104WXL | 245/45 R20 103WXL | ||||
| Tyre dimensions rear | 225/60 R18 104WXL | 275/40 R20 106WXL | ||||
| Wheel size front | 7J x 18 | 8J x 20 | ||||
| Wheel size rear | 7J x 18 | 9,5J x 20 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 12.0/- | 12.1/- | ||||
| Overall length [mm] | 4708 | 4716 | ||||
| Overall width without/including mirrors [mm] | 1891/2138 | 1897/- | ||||
| Overall height [mm] | 1676 | 1676 | ||||
| Wheelbase [mm] | 2864 | 2864 | ||||
| Front wheel track [mm] | 1620 | 1615 | ||||
| Rear wheel track [mm] | 1636 | 1594 | ||||
| Forward overhang [mm] | 856 | 856 | ||||
| Rear overhang [mm] | 988 | 988 | ||||
| Clearance [mm] | 204 | 204 | ||||
| Wading depth [mm] | 500 | 500 | ||||
| Approach angle front [°] | 25.6 | 25.6 | ||||
| Approach angle rear [°] | 23.4 | 23.4 | ||||
| Transition angle [°] | 20.0 | 20.0 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1045 | 1045 | ||||
| Headroom rear [mm] | 994 | 994 | ||||
| Front elbow/shoulder width [mm] | 1522/- | 1522/- | ||||
| Rear elbow/shoulder width [mm] | 1477/- | 1477/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

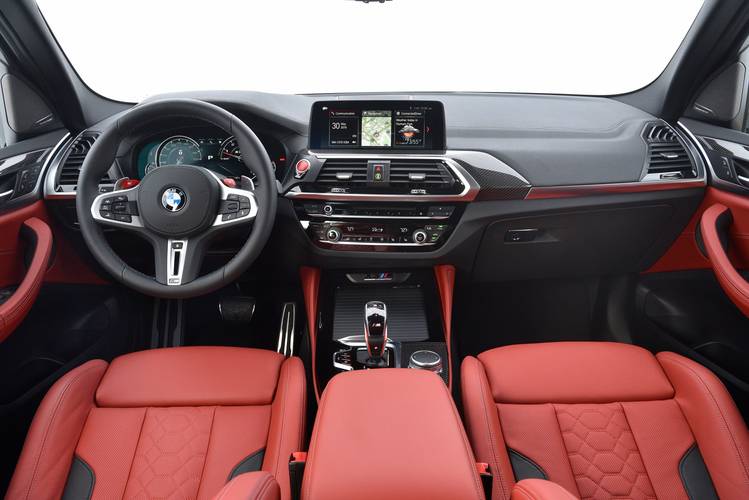

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
