BMW X5
Date of manufacture
2018 – to this day (Large SUV)
Platform
CLAR platform
Manufacturing locations
Greer, South Carolina, USA
Designer
-
Tags
Large SUV
German cars
The BMW X5 is a large SUV that was released in 2018. The vehicle is manufactured in the United States and built on the CLAR platform. Plug-in hybrid vehicles, gasoline, diesel and hybrid engines are available. The most powerful version of the X5 M F95 Competition reaches 460 kW and a top speed of 250 km/h. The most economical version of the X5 xDrive45e has a combined consumption of 1.6 l/100 km with CO2 emissions of 37 g/km. The size of the luggage compartment is 500 l. The BMW X5 has been tested in the EURONCAP safety area and has achieved a rating of 5 out of 5.
Car body style
Large SUV
Date of manufacture
2018 – to this dayInternal designation
G05Engine size
PetrolPetrol + ElectricDiesel
Technical data
Large SUV
| X5 xDrive40i | X5 xDrive50i | X5 M50i | X5 M F95 | X5 M F95 Competition | X5 xDrive40i | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2019 | from to 2019 | from 8/2019 to | from 10/2019 to | from 10/2019 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 6 /24 | 8 /32 | 8/32 | 8/32 | 8/32 | 6/24 |
| Engine displacement [cm³] | 2998 | 4395 | 4395 | 4395 | 4395 | 2998 |
| Maximum output / speed [kW/min-1] | 250/5500 -6500 | 340/5250-6000 | 390/5500 -6000 | 441/6000 | 460/6000 | 245/5500-6250 8 el. |
| Maximum torque [Nm/min-1] | 450/1500-5200 | 650/1500-4750 | 750/1800-4600 | 750/1800-5600 | 750/1800-5800 | 450/1600-4800 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 89.0 x 88.3 | 89.0 x 88.3 | 89.0 x 88.3 | 89.0 x 88.3 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 10.5:1 | 10.5:1 | 10.0:1 | 10.0:1 | 11.0:1 |
| Oil volume [l] | 6.51 | 10.5 | 10.5 | 10.0 | 10.0 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 243 | 250 | 250 | 250 [290 subject to a surcharge] | 250 [290 subject to a surcharge] | 243 |
| Acceleration 0–100 km/h [s] | 5.5 | 4.7 | 4.3 | 3.9 | 3.8 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.6-10.4 | 15.6 | 14.2-13.8 | 17.2-16.5 | 17.2-16.5 | 10.1-9.5 |
| Out of town [l] | 7.5-7.4 | 9.2 | 8.7-8.5 | 11.0-10.5 | 11.0-10.5 | 7.4-6.7 |
| Combined [l] | 8.7-8.5 | 11.6 | 10.7-10.5 | 13.0-12.8 | 13.0-12.8 | 8.4-7.7 |
| CO2 emissions [g/km] | 197-193 | 264 | 243-238 | 296-291 | 296-291 | 192-176 |
| Emission standard | EU6d-TEMP | EU6d-TEMP | EU6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 48 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2135 [2210 seven seats] | 2361 | 2325 | 2385 | 2385 | 2175 |
| Overall weight [kg] | 2800 [3010 seven seats] | 2930 | 2995 | 3000 | 3000 | 2840 |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 | 750/2700 | 750/2700 | 750/3000 | 750/3000 | 750/3500 |
| Maximum front/rear axle load [kg] | 1280/1580 [1315/1825 seven seats] | 1410/1605 | 1430/1645 | 1410/1630 | 1410/1630 | - |
| Maximum vertical load on the tow bar [kg] | 140 | 140 | 140 | 140 | 140 | 140 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- |
| Boot volume [l] | 650 | 645 | 650 | 650 | 650 | 650 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1870 | -/1860 | -/1870 | -/1870 | -/1870 | -/1870 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5/7 | 5/7 | 5 | 5 | 5 | 5/7 |
| Fuel tank volume [l] | 83 | 83 | 83 | 83 | 83 | 83 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.35 | 0.38 | 0.38 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 255/55 R18 109W XL | 265/50 R19 110W XL | 275/40 R21 107Y XL | 295/35 ZR21 107Y XL | 295/35 ZR21 107Y XL | 255/55 R18 109W XL |
| Tyre dimensions rear | 255/55 R18 109W XL | 265/50 R19 110W XL | 315/35 R21 111Y XL | 315/35 ZR21 111Y XL | 315/30 ZR22 107Y XL | 255/55 R18 109W XL |
| Wheel size front | 8.5J x 18 | 9J x 19 | 9,5J x 21 | 10,5J x 21 | 10,5J x 21 | 8.5J x 18 |
| Wheel size rear | 8.5J x 18 | 9J x 19 | 10,5J x 21 | 11,5J x 21 | 11,5J x 22 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering M Servotronic | Electro-mechanical power steering M Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.6/- | 12.6/- | 12.6/- | 12.8/- | 12.8/- | 12.6/- |
| Overall length [mm] | 4922 | 4922 | 4922 | 4938 | 4938 | 4922 |
| Overall width without/including mirrors [mm] | 2004/2218 | 2004/2218 | 2004/2218 | 2015/- | 2015/- | 2004/2218 |
| Overall height [mm] | 1745 | 1745 | 1745 | 1747 | 1748 | 1745 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2972 | 2972 | 2975 |
| Front wheel track [mm] | 1666 | 1678 | 1680 | 1699 | 1699 | 1666 |
| Rear wheel track [mm] | 1685 | 1697 | 1688 | 1688 | 1688 | 1685 |
| Forward overhang [mm] | 874 | 874 | 874 | - | - | 874 |
| Rear overhang [mm] | 1073 | 1073 | 1073 | - | - | 1073 |
| Clearance [mm] | 214 | 214 | 214 | 212 | 212 | 214 |
| Wading depth [mm] | 500 | 500 | 500 | - | - | 500 |
| Approach angle front [°] | 25.2 | 25.2 | 25.2 | - | - | 25.2 |
| Approach angle rear [°] | 22.3 | 22.3 | 22.3 | - | - | 22.3 |
| Transition angle [°] | 20.2 | 20.2 | 20.2 | - | - | 20.2 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Headroom rear [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Front elbow/shoulder width [mm] | 1560/- | 1560/- | 1560/- | 1560/- | 1560/- | 1560/- |
| Rear elbow/shoulder width [mm] | 1525/- | 1525/- | 1525/- | 1525/- | 1525/- | 1525/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| X5 xDrive45e | X5 xDrive25d | X5 xDrive30d | X5 M50d | X5 xDrive30d | X5 xDrive40d | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2020 to | from to 8/2020 | from to 2019 | from 8/2020 to | from 2/2020 to |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 4/16 | 6 /24 | 6 /24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2998 | 1995 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 210/5000-6000 83/3170 el. 290 total | 170/4400 | 195/4000 | 294/4400 | 210/4000 8 el. | 250/4400 8 el. |
| Maximum torque [Nm/min-1] | 450/1500-3500 265/0-2700 el. 600 total | 450/1500-3000 | 620/2000-2500 | 760/2000-3000 | 650/1500-2500 | 700/1750-2250 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11,0:1 | 16.5 :1 | 16.5:1 | 16.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 6.5 | - | 6.51 | 6.51 | 7.0 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 235 [135 el.] | 222 | 230 | 250 | 235 | 245 |
| Acceleration 0–100 km/h [s] | 5.6 | 7.5 | 6.5 | 7,7 | 6.1 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 6.5-6.0 | 7.5-6.8 | 8.1-7.6 | 7.3-6.7 | 7.8-7.2 |
| Out of town [l] | - | 6.0-5.3 | 6.2-5.6 | 6.7-6.3 | 5.6-5.1 | 5.6-5.1 |
| Combined [l] | 2.1-1.6 [25.2-23.5 kWh] | 6.2-5.6 | 6.7-6.0 | 7.2-6.8 | 6.2-5.7 | 6.4-5.9 |
| CO2 emissions [g/km] | 47-37 | 163-147 | 175-158 | 189-179 | 164-150 | 167-154 |
| Emission standard | Euro 6d-TEMP | EU6d-TEMP | EU6d-TEMP | EU6d-TEMP | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 354 | - | - | - | 48 | 48 |
| Battery type and capacity | Lithium-ion, 24.0 kWh (20.9 net) | - | - | - | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | 77-88 | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2510 | 2145 | 2185 [2260 seven seats] | 2350 [2425 seven seats] | 2265 | 2275 |
| Overall weight [kg] | 3150 | 2820 | 2860 [3090 seven seats] | 3010 [3160 seven seats] | 2940 | 2940 |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 | 750/2700 | 750/2700 | 750/2700 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | 1390/1810 | - | 1320/1615 [1340/1870 seven seats] | 1395/1670 [1405/1865 seven seats] | 1375/ 1665 | 1375/ 1635 |
| Maximum vertical load on the tow bar [kg] | 140 | 140 | 140 | 140 | 140 | - |
| Maximum load on roof/carrier [kg] | 100 /- | 100/- | 100 /- | 100 /- | 100 /- | -/- |
| Boot volume [l] | 500 | 650 | 650 | 650 | 650 | 650 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1720 | -/1870 | -/1870 | -/1870 | -/1870 | -/1870 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5/7 | 5/7 | 5 | 5/7 | 5/7 |
| Fuel tank volume [l] | 69 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | 22 | 22 | 22 | 22 | 22 |
| Air resistance [Cd] | 0.32 | 0.31 | 0.31 | 0.32 | 0.32 | 0.31 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 265/50 R19 110W XL | 255/55 R18 109W XL | 255/55 R18 109W XL | 275/40 R21 107Y XL | 255/55 R18 109W XL | 255/55 R18 109W XL |
| Tyre dimensions rear | 265/50 R19 110W XL | 255/55 R18 109W XL | 255/55 R18 109W XL | 315/35 R21 111Y XL | 255/55 R18 109W XL | 255/55 R18 109W XL |
| Wheel size front | 9J × 19 | 8.5J x 18 | 8.5J x 18 | 9.5J x 21 | 8.5J x 18 | 8.5J x 18 |
| Wheel size rear | 9J × 19 | 8.5J x 18 | 8.5J x 18 | 10.5J x 21 | 8.5J x 18 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.6/- | 12.6/- | 12.6/- | 12.6/- | 12.6/- | 12.6/- |
| Overall length [mm] | 4922 | 4922 | 4922 | 4922 | 4922 | 4922 |
| Overall width without/including mirrors [mm] | 2004/2218 | 2004/2218 | 2004/2218 | 2004/2218 | 2004/2218 | 2004/2218 |
| Overall height [mm] | 1745 | 1745 | 1745 | 1745 | 1745 | 1745 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1678 | 1666 | 1666 | 1680 | 1666 | 1666 |
| Rear wheel track [mm] | 1698 | 1685 | 1685 | 1687 | 1685 | 1685 |
| Forward overhang [mm] | 874 | 874 | 874 | 874 | 874 | 874 |
| Rear overhang [mm] | 1073 | 1073 | 1073 | 1073 | 1073 | 1073 |
| Clearance [mm] | 214 | 214 | 214 | 214 | 214 | 214 |
| Wading depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach angle front [°] | 25.2 | 25.2 | 25.2 | 25,2 | 25.2 | 25.2 |
| Approach angle rear [°] | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 |
| Transition angle [°] | 20.2 | 20.2 | 20.2 | 20.2 | 20.2 | 20.2 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Headroom rear [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Front elbow/shoulder width [mm] | 1560/- | 1560/- | 1560/- | 1560/- | 1560/- | 1560/- |
| Rear elbow/shoulder width [mm] | 1525/- | 1525/- | 1525/- | 1525/- | 1525/- | 1525/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

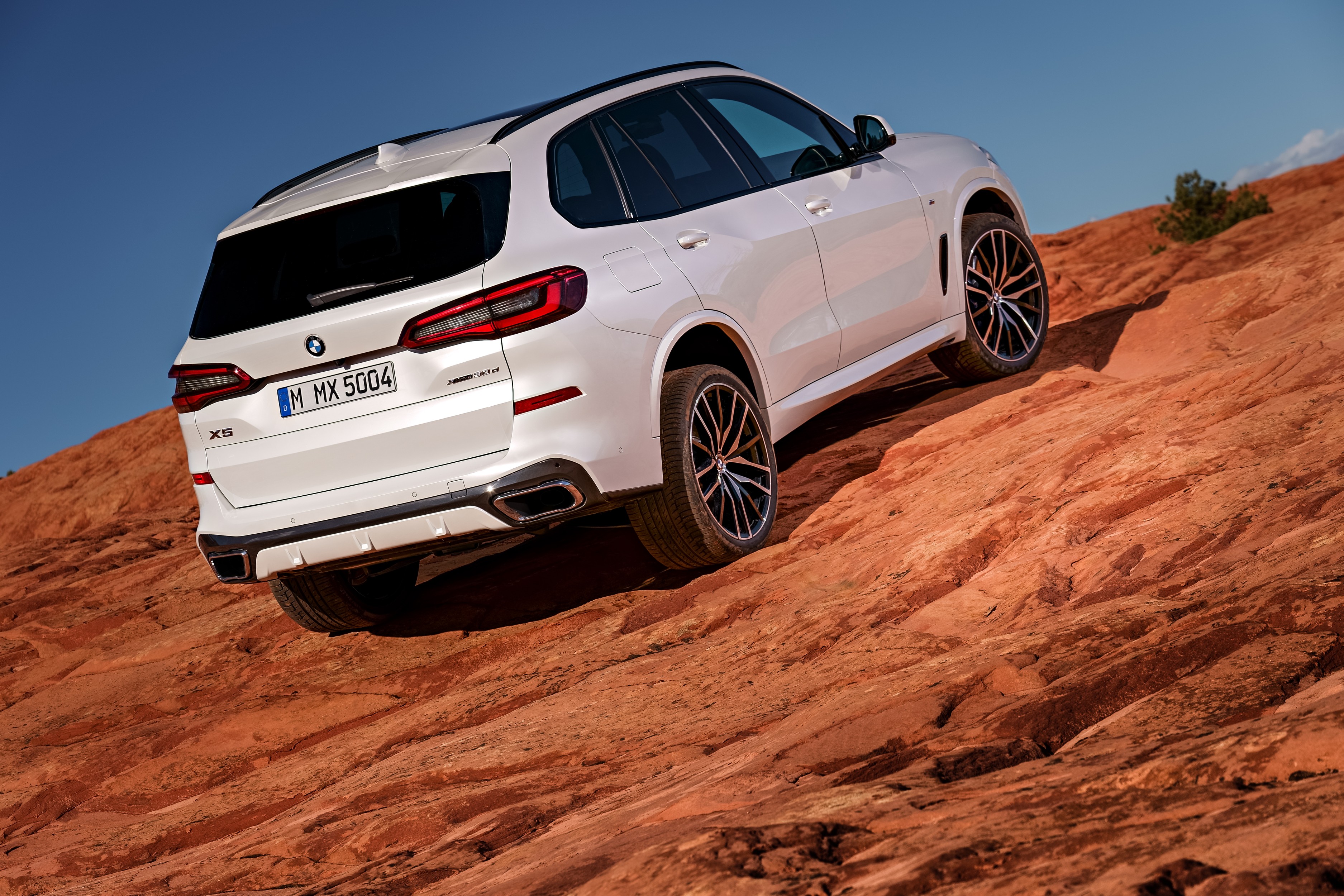

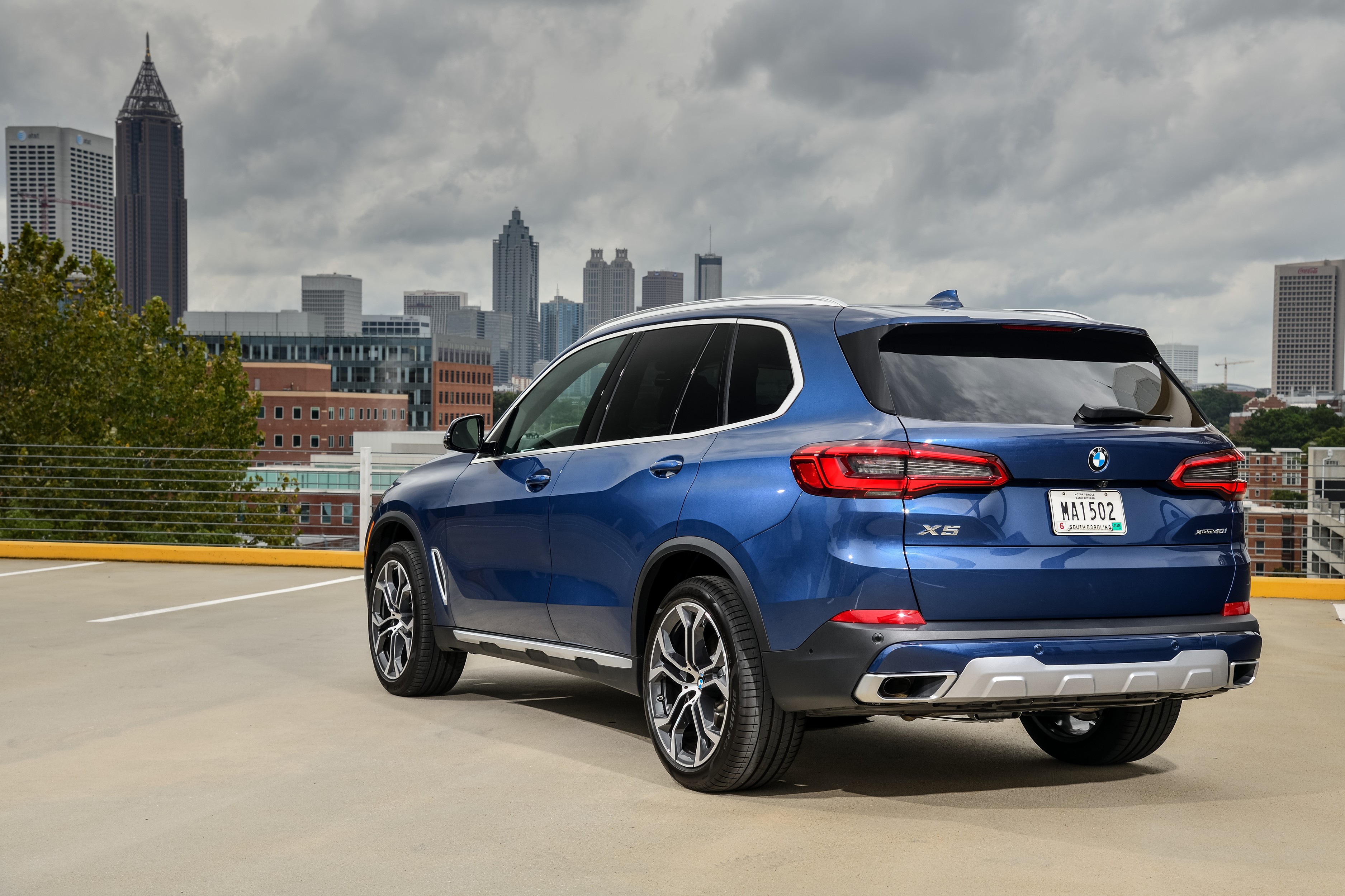

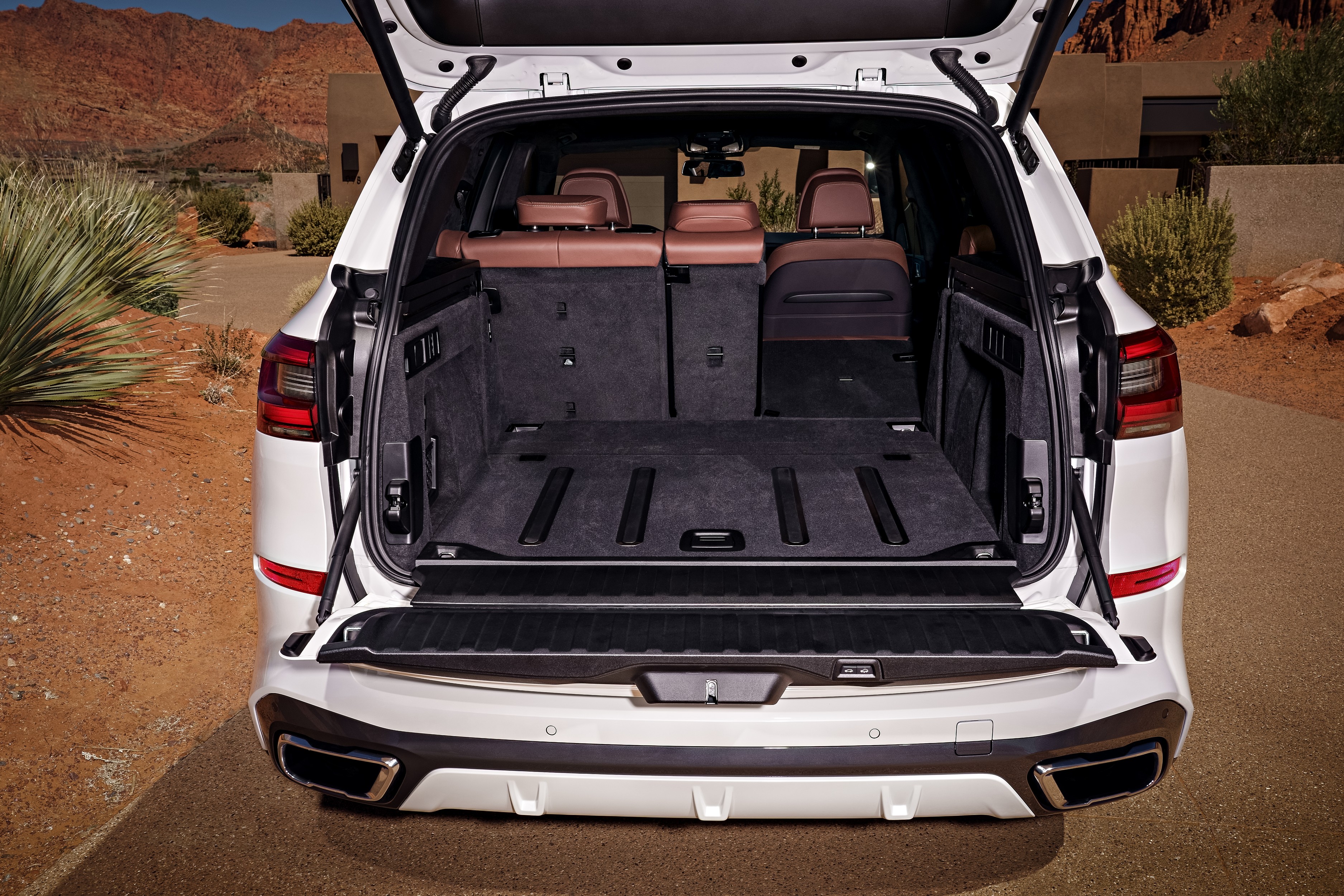

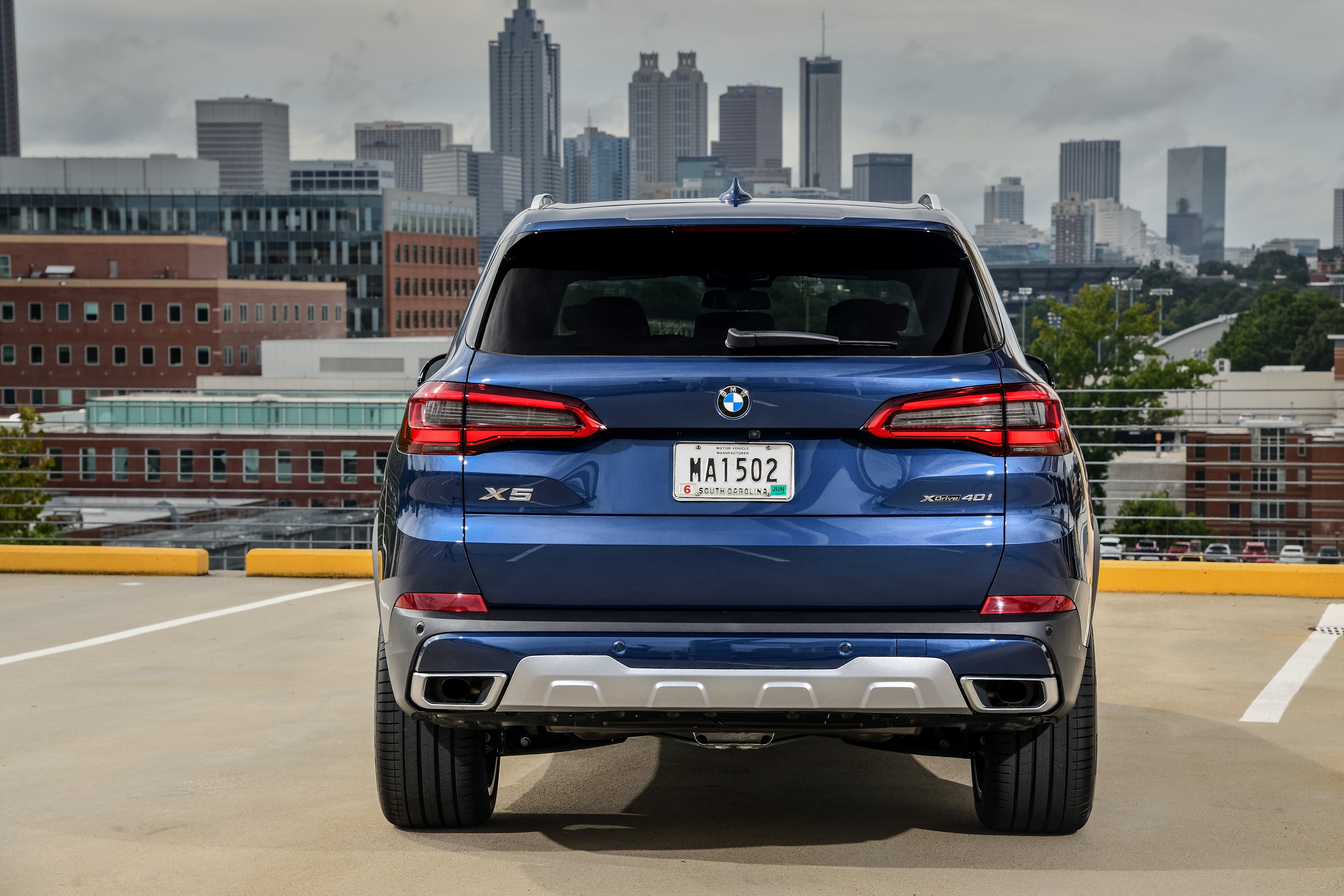

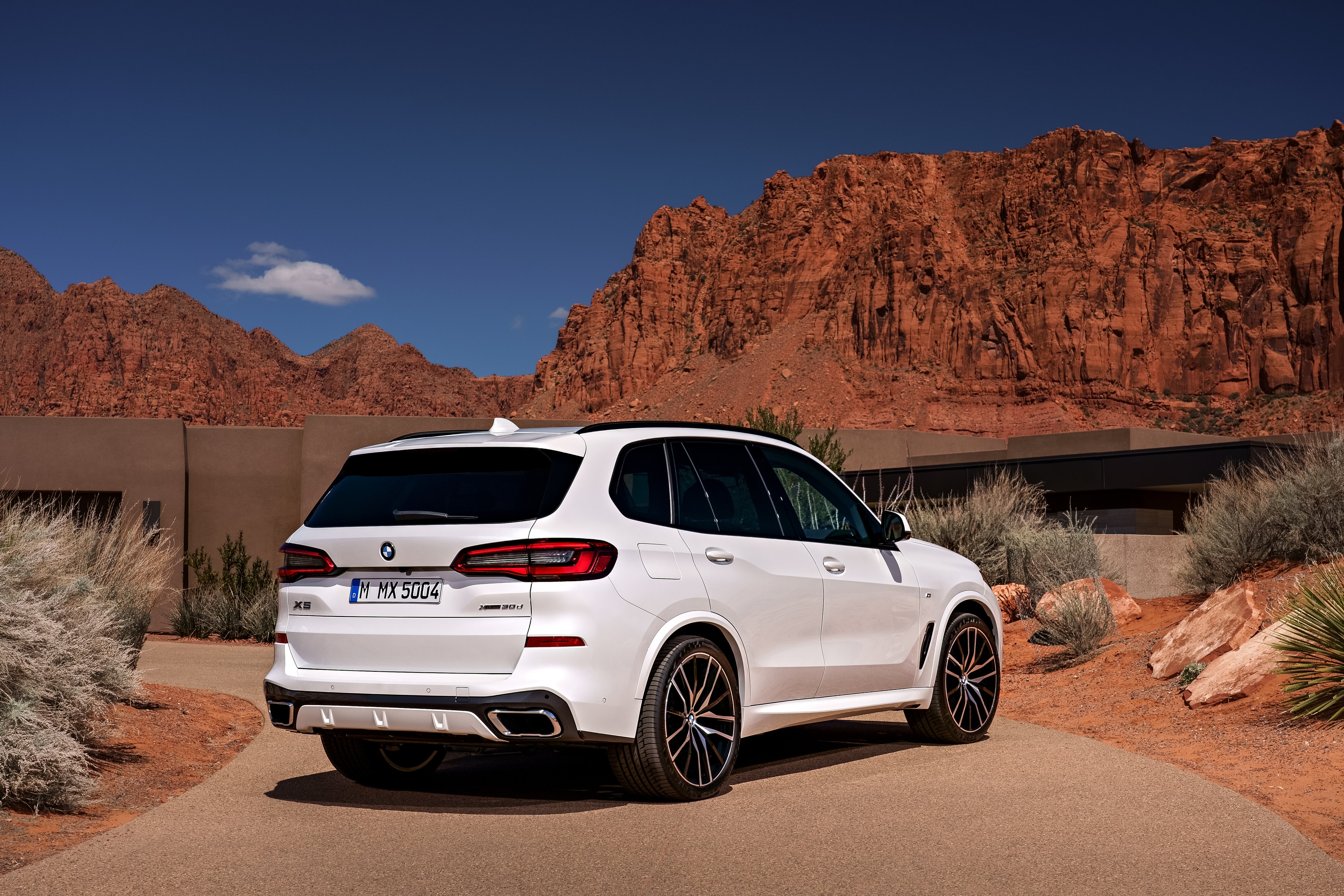

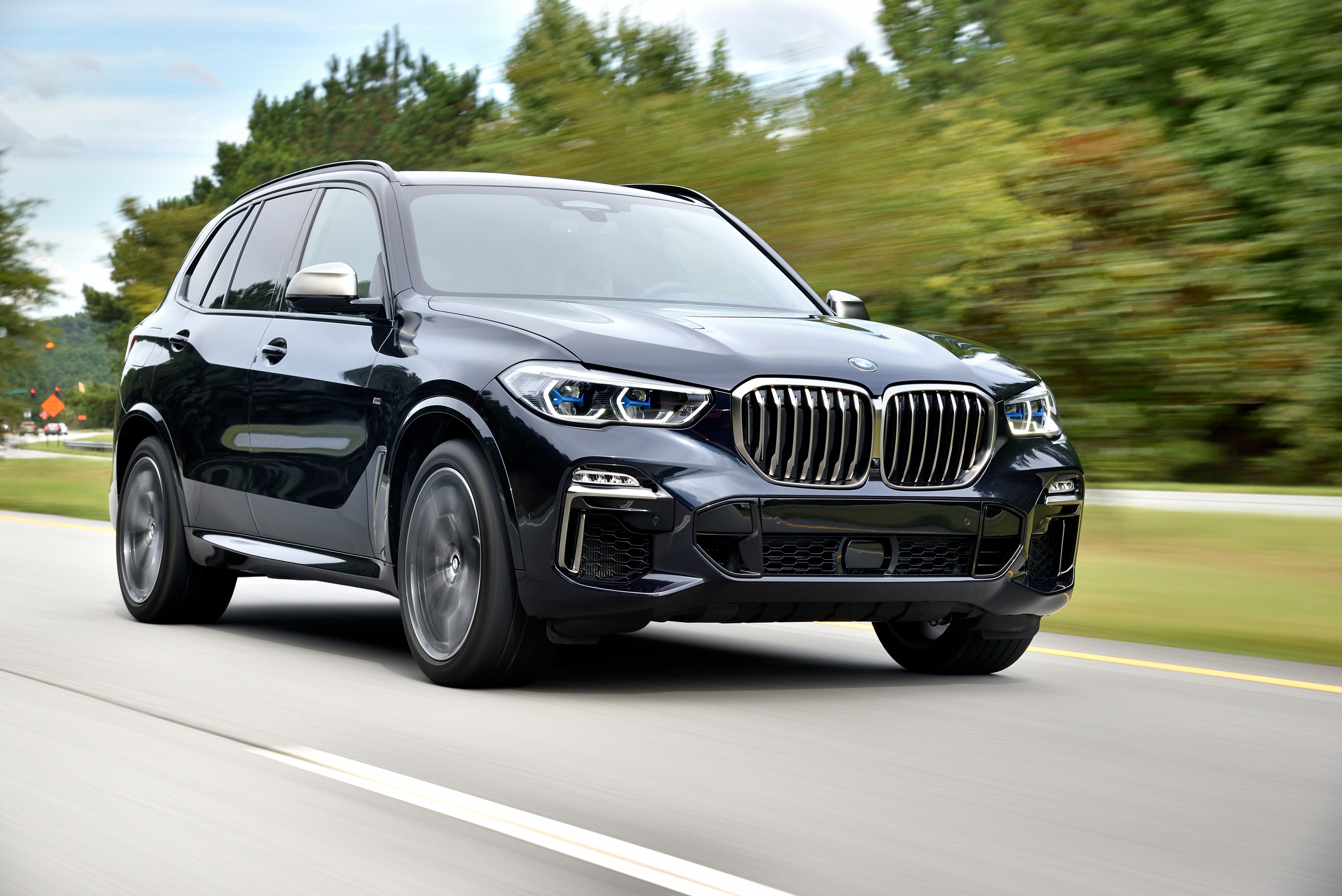

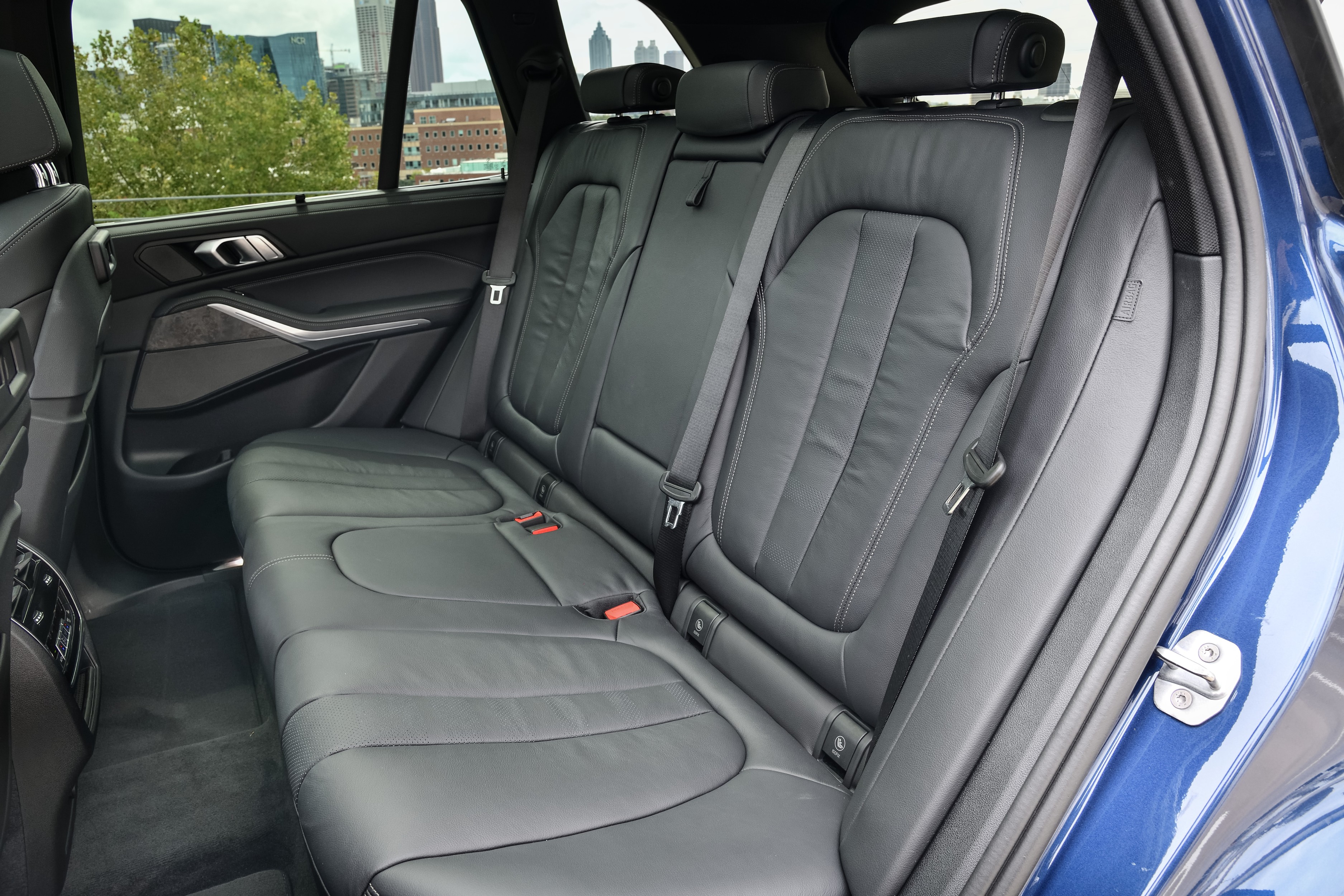

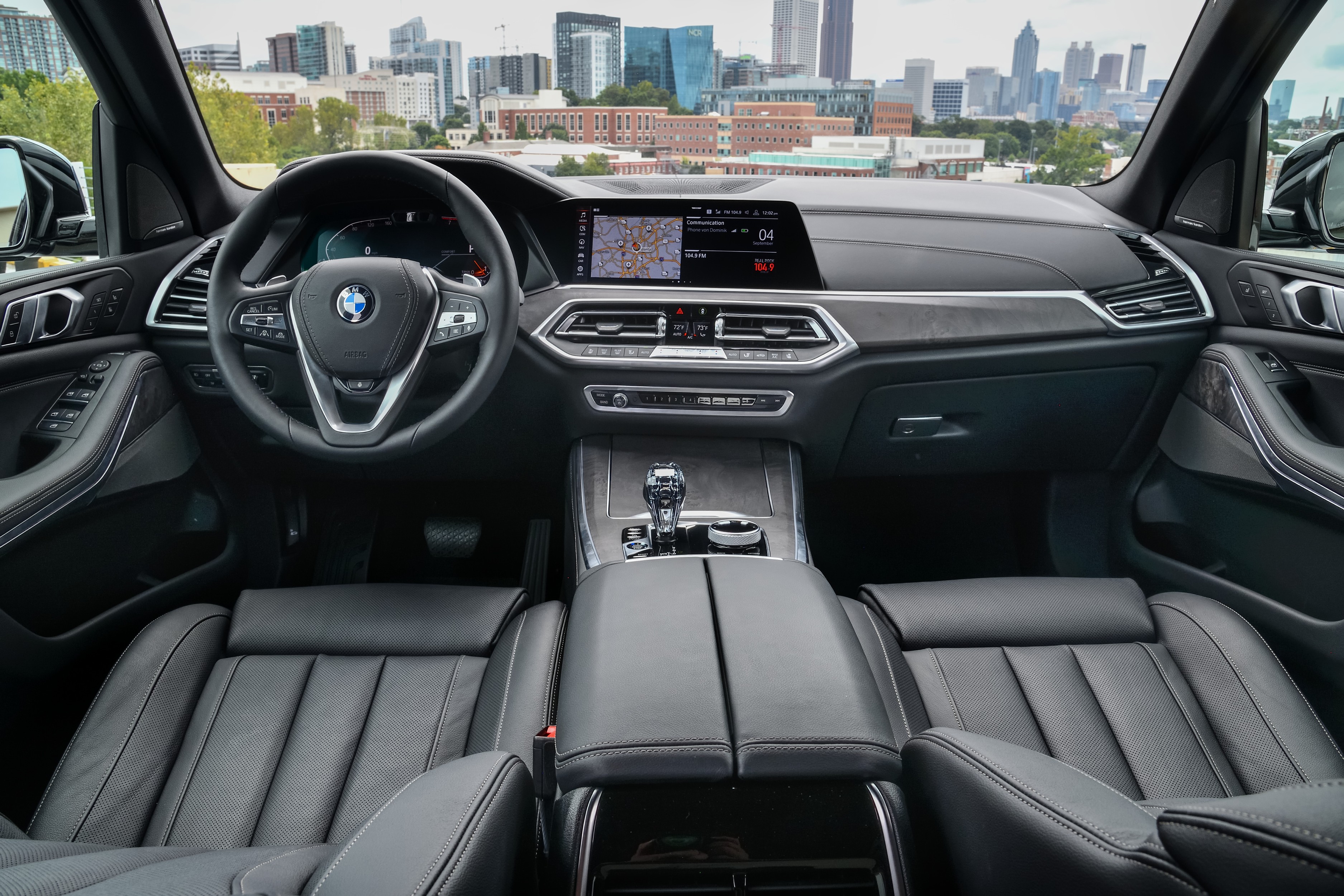

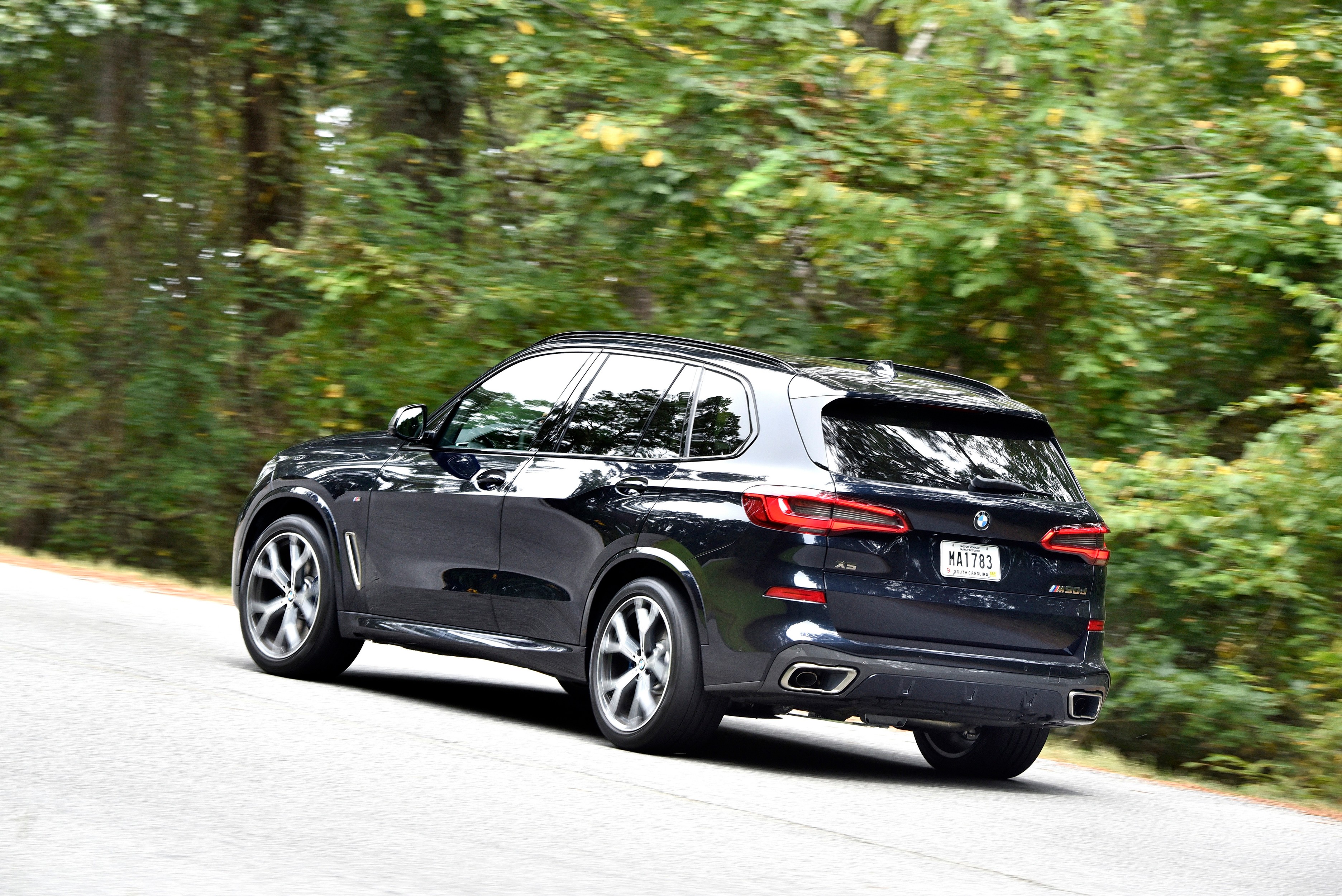

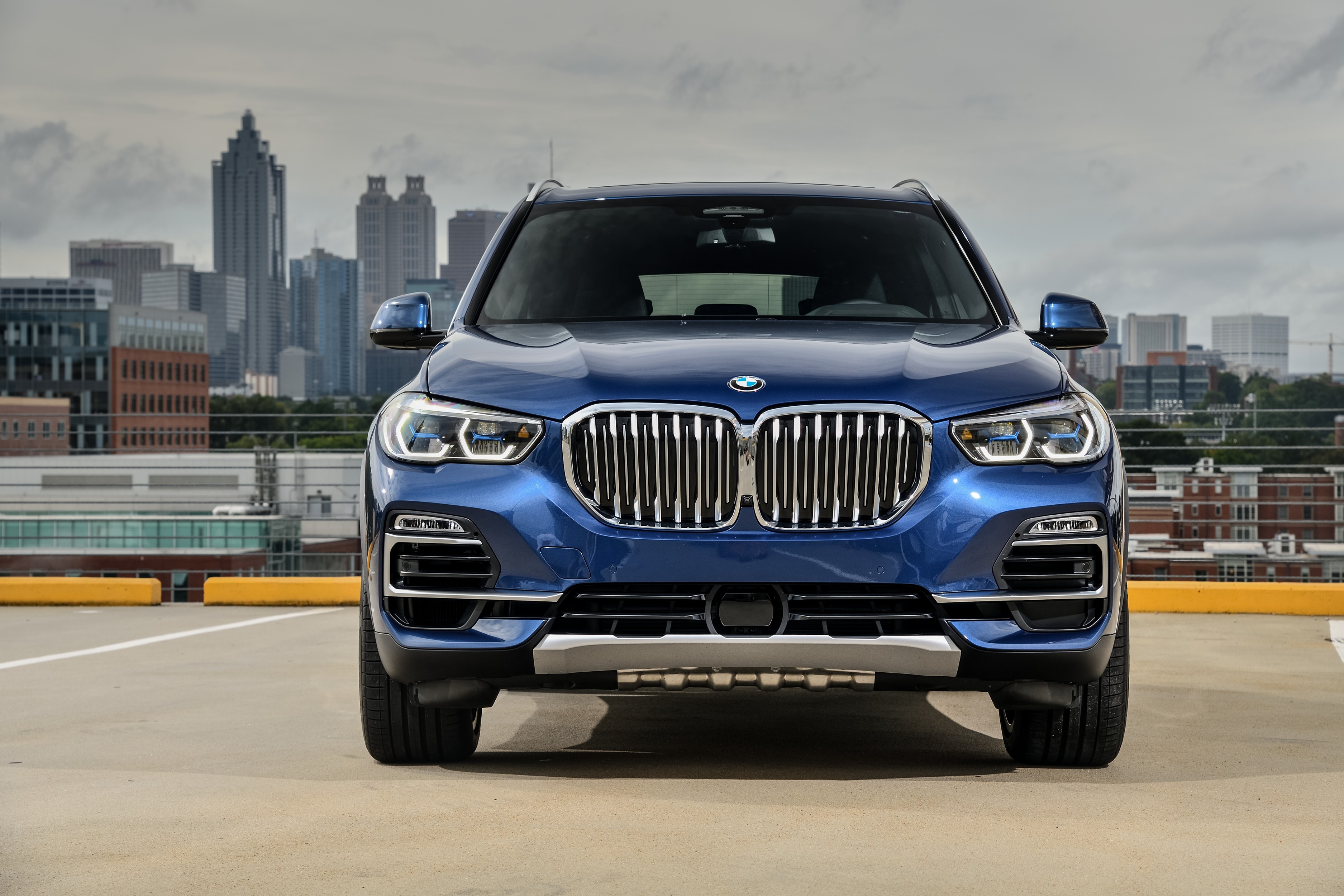

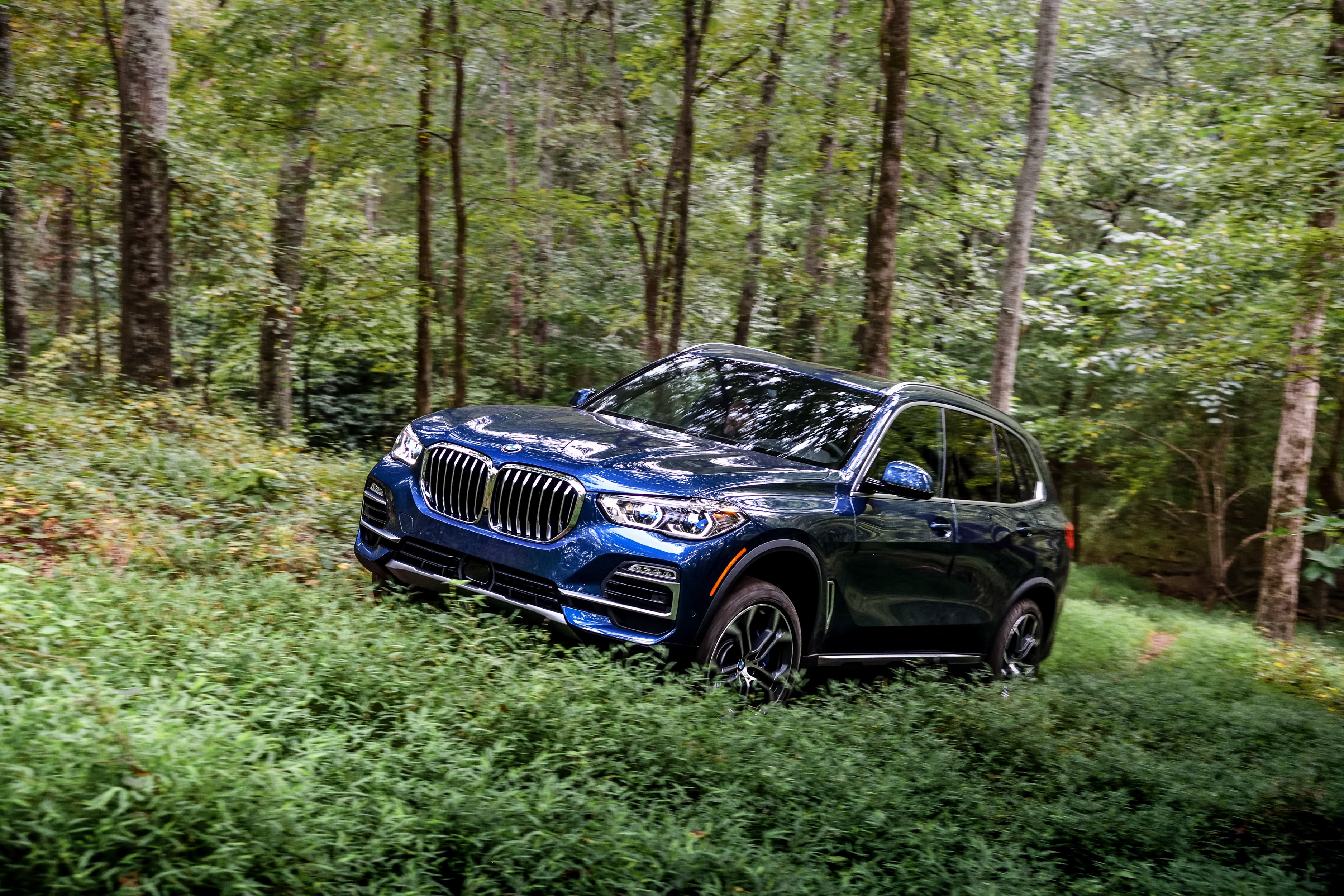

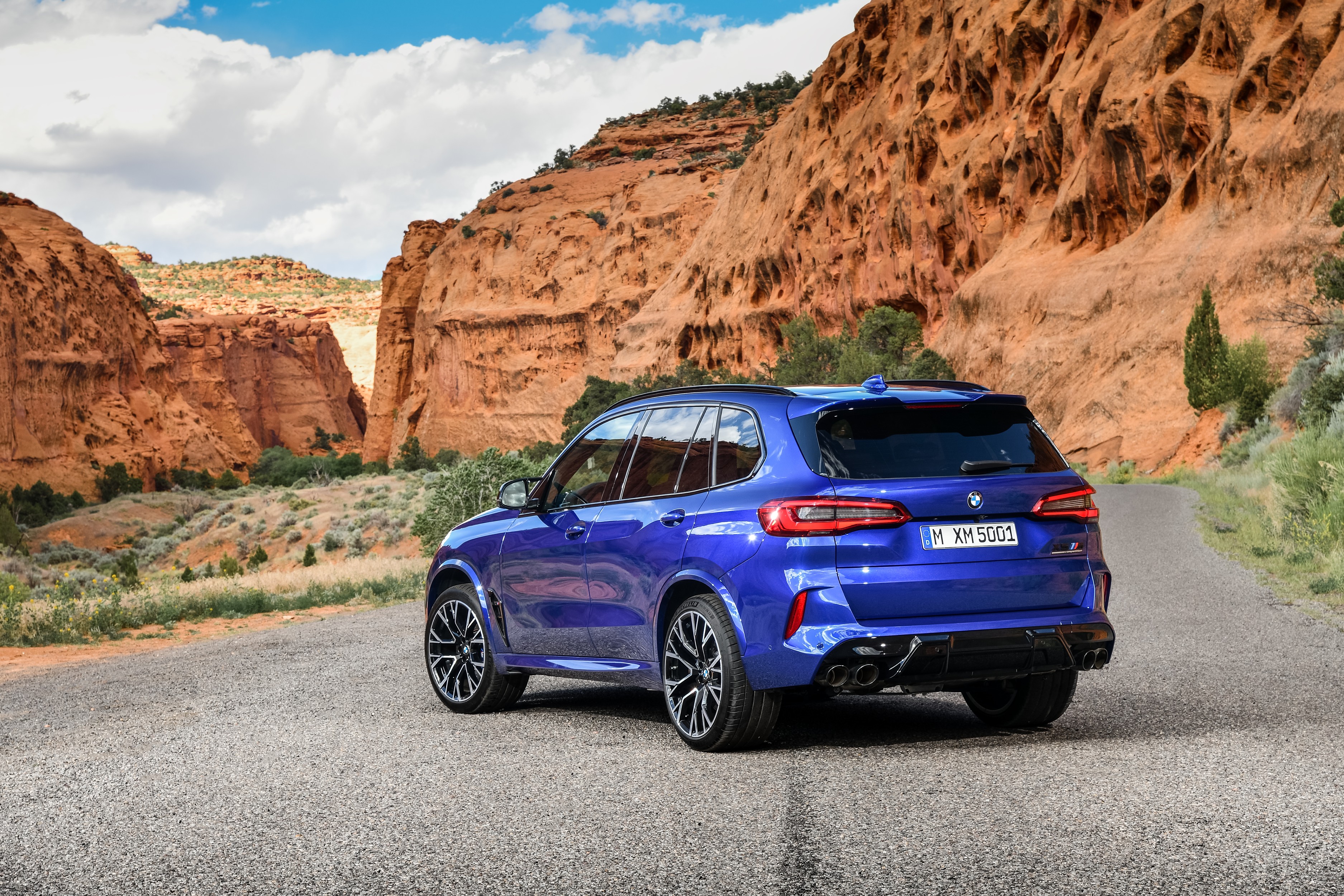

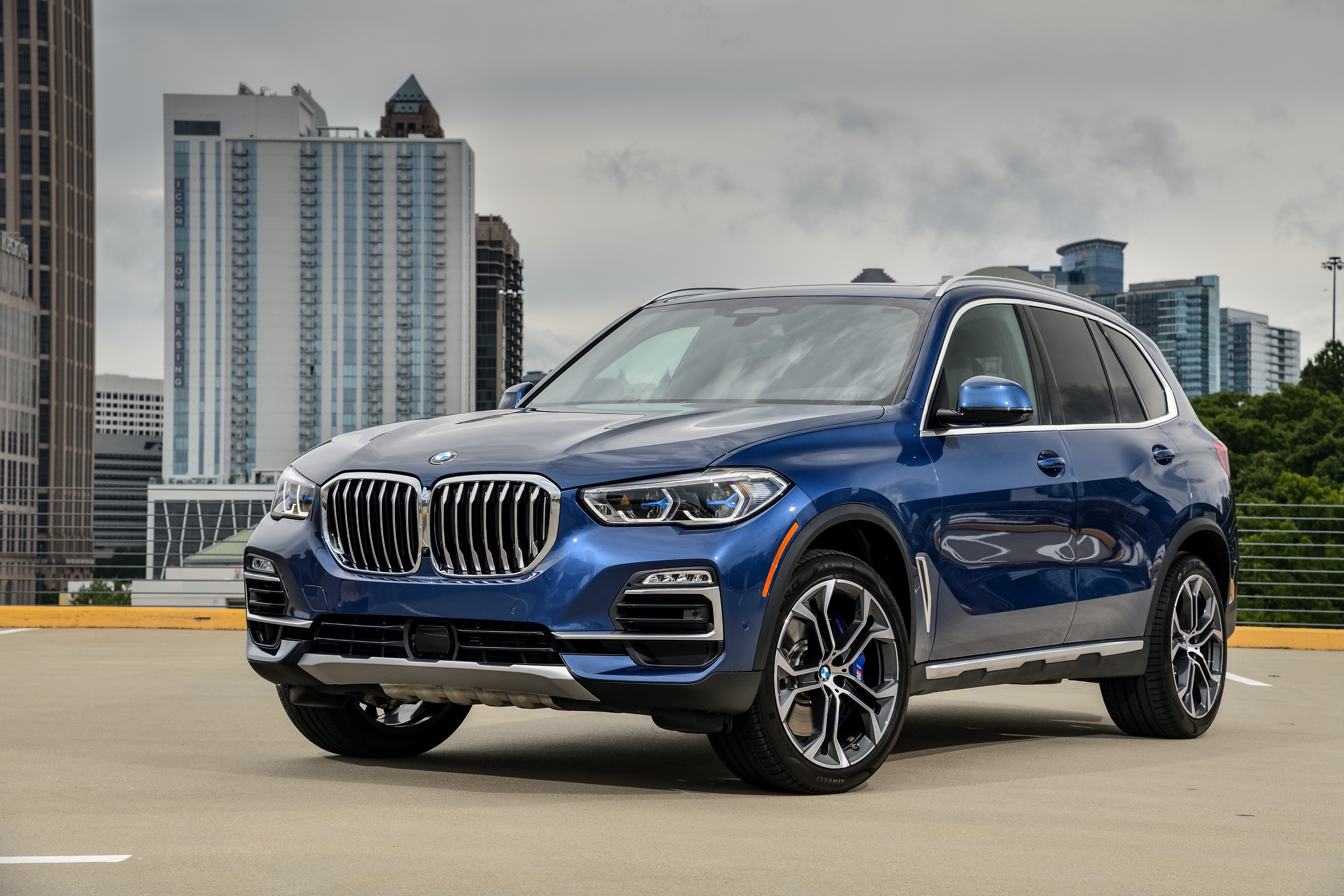

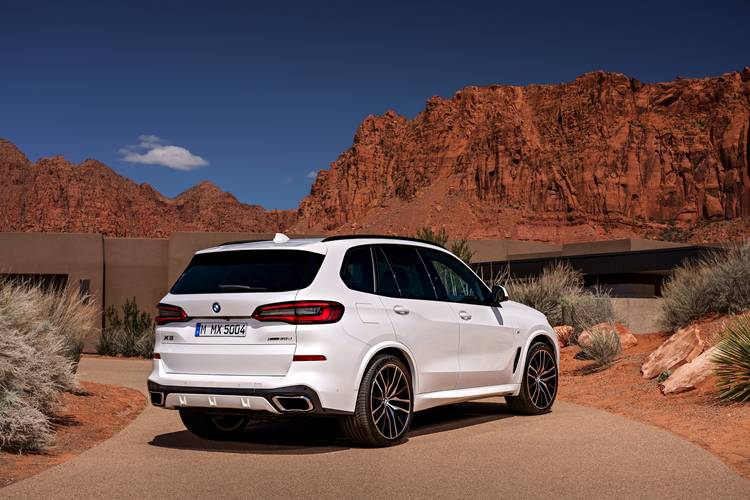

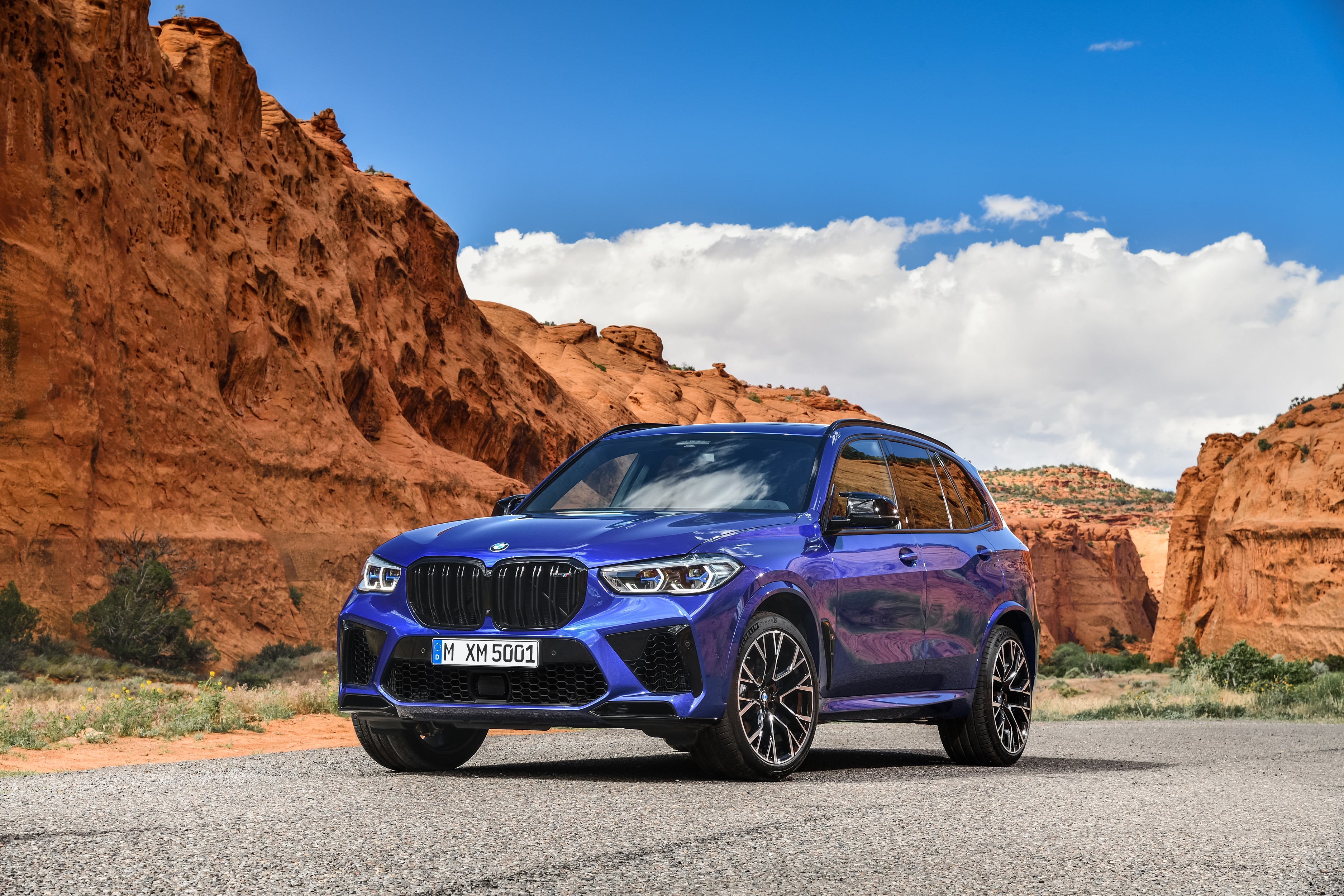

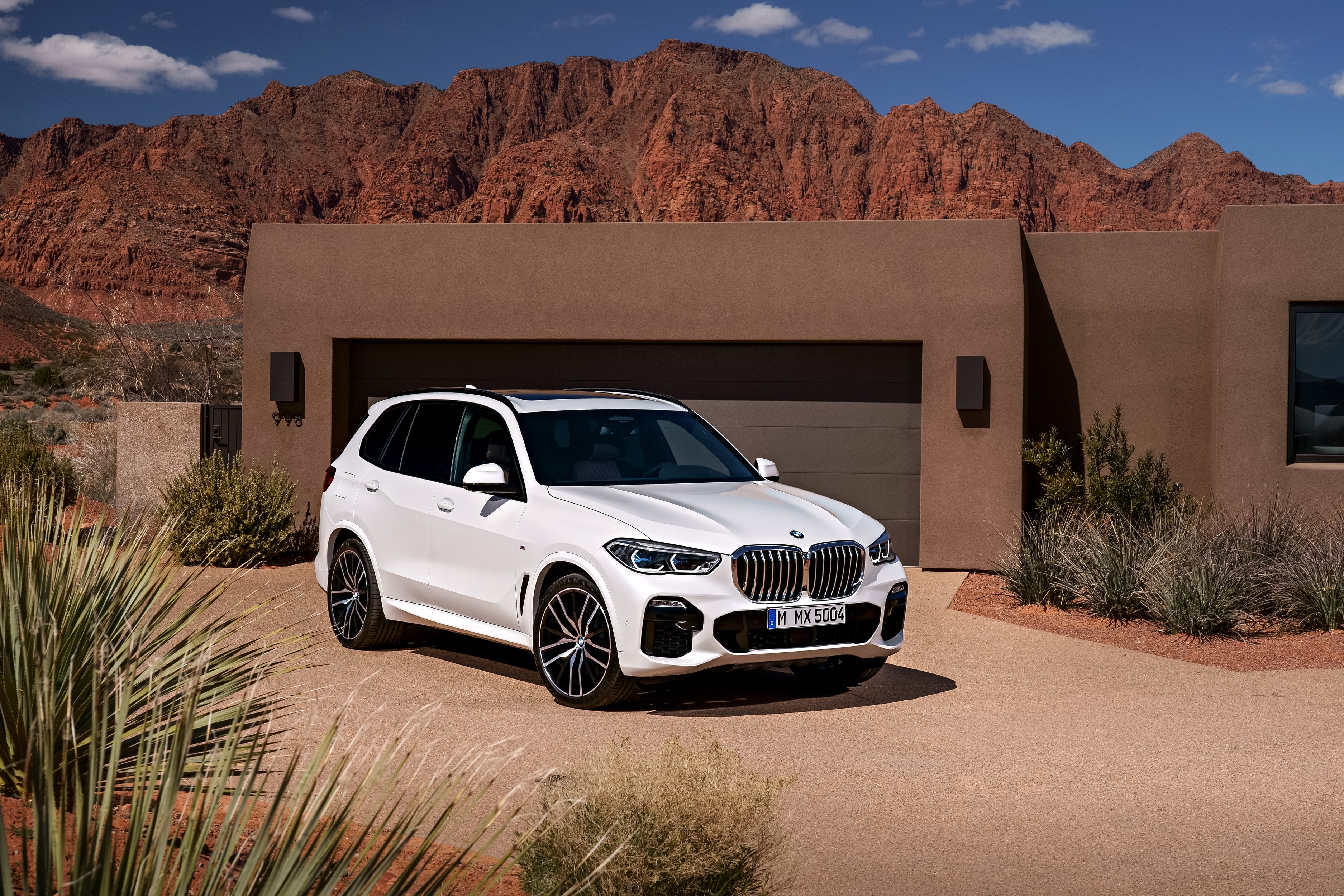

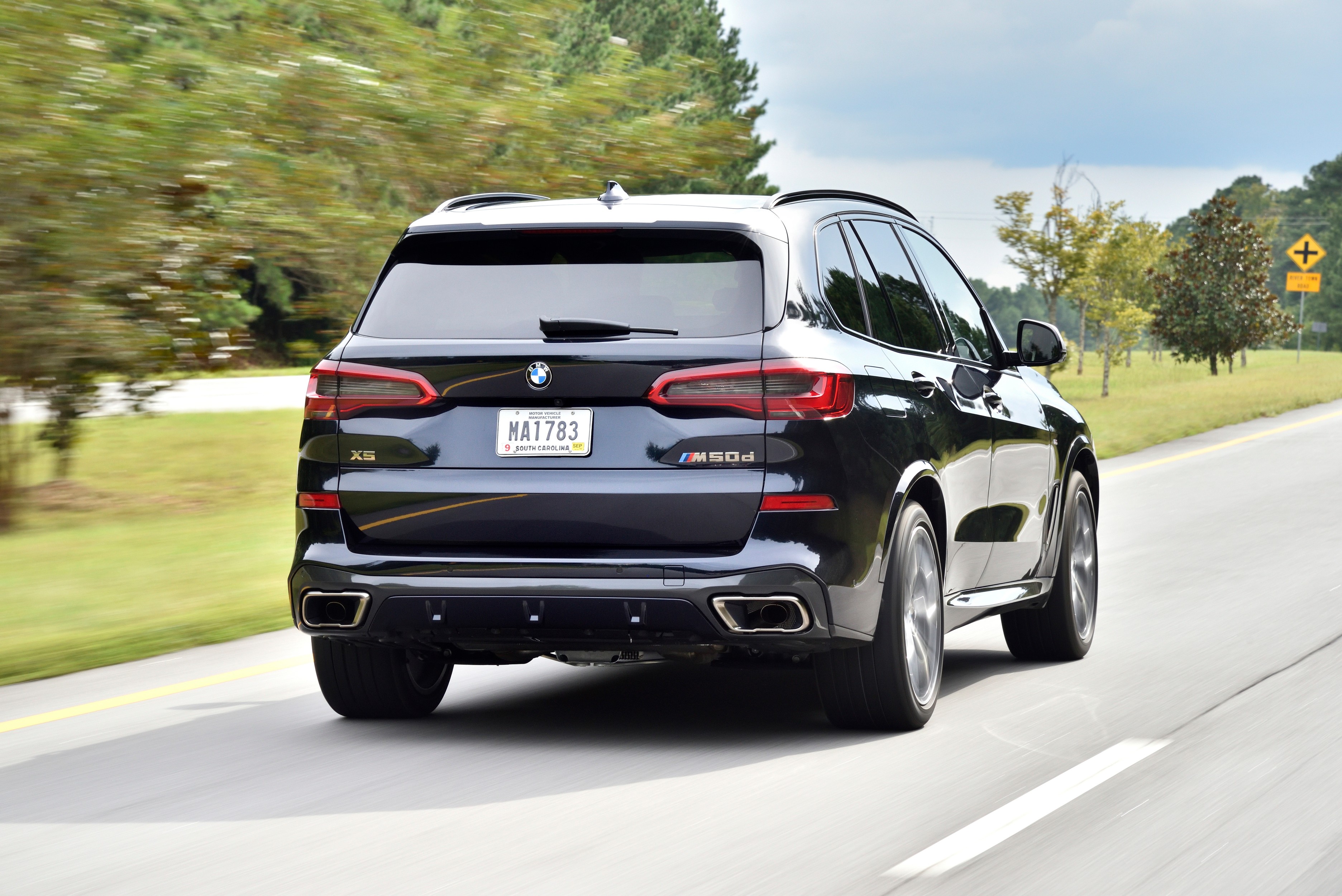

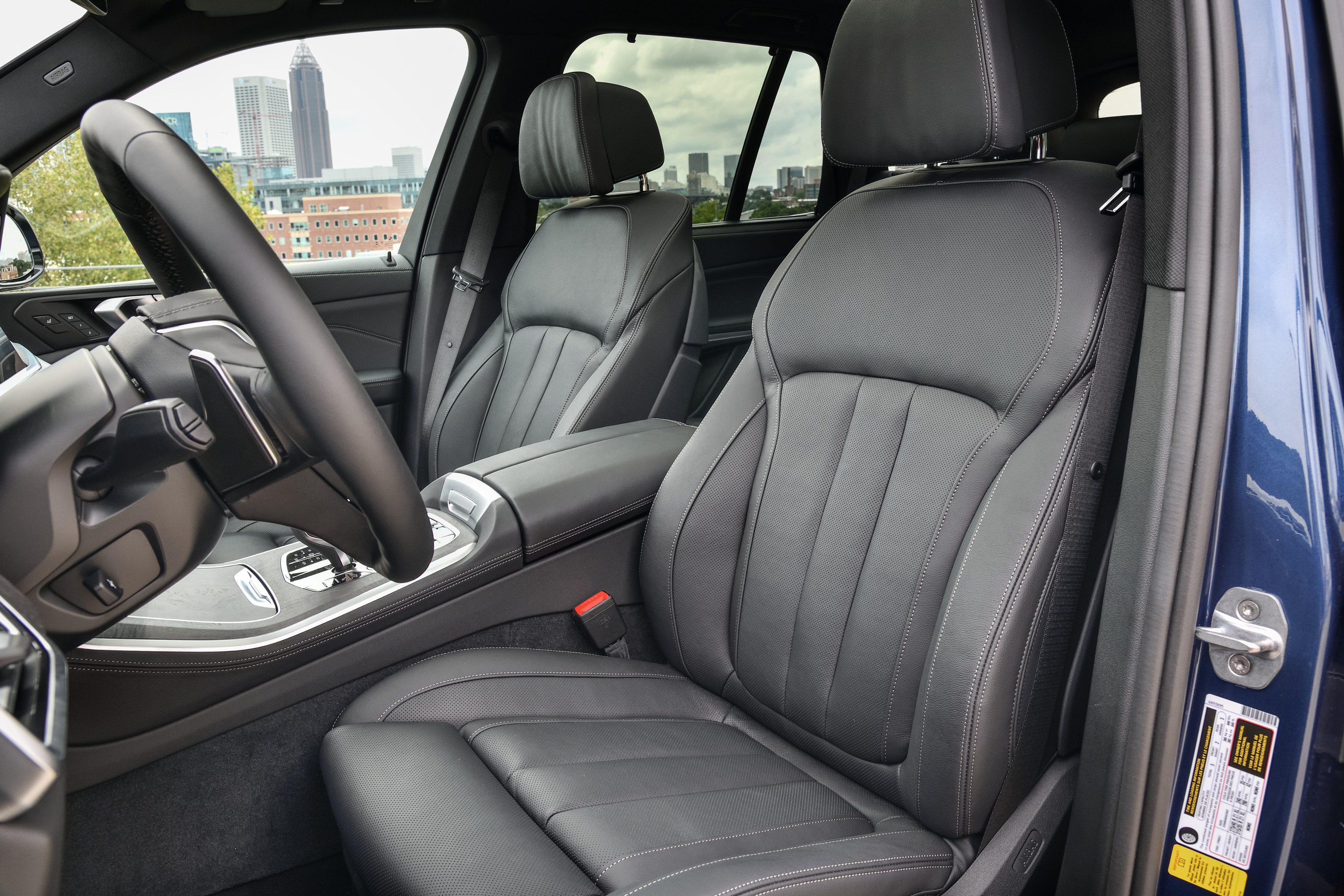

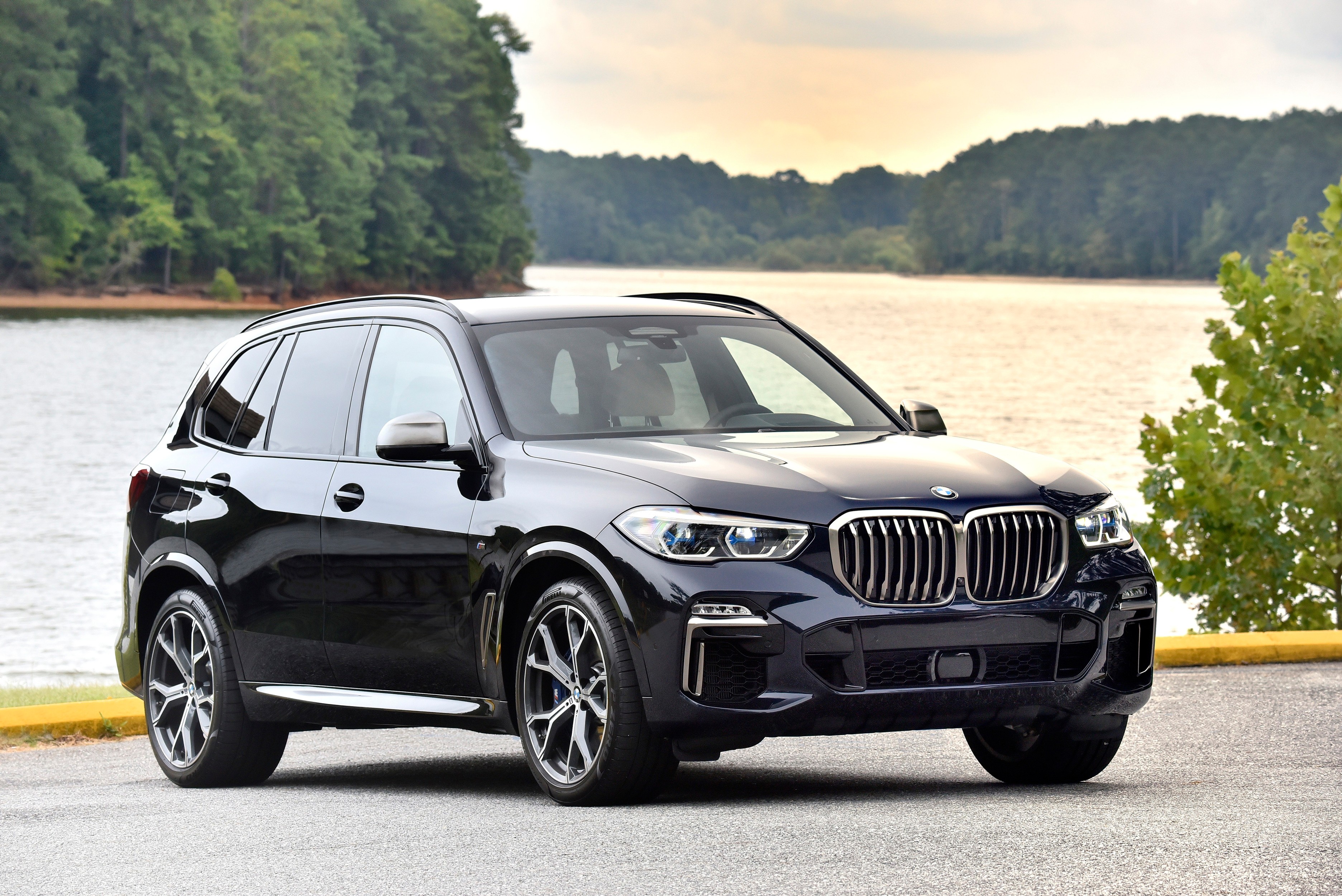

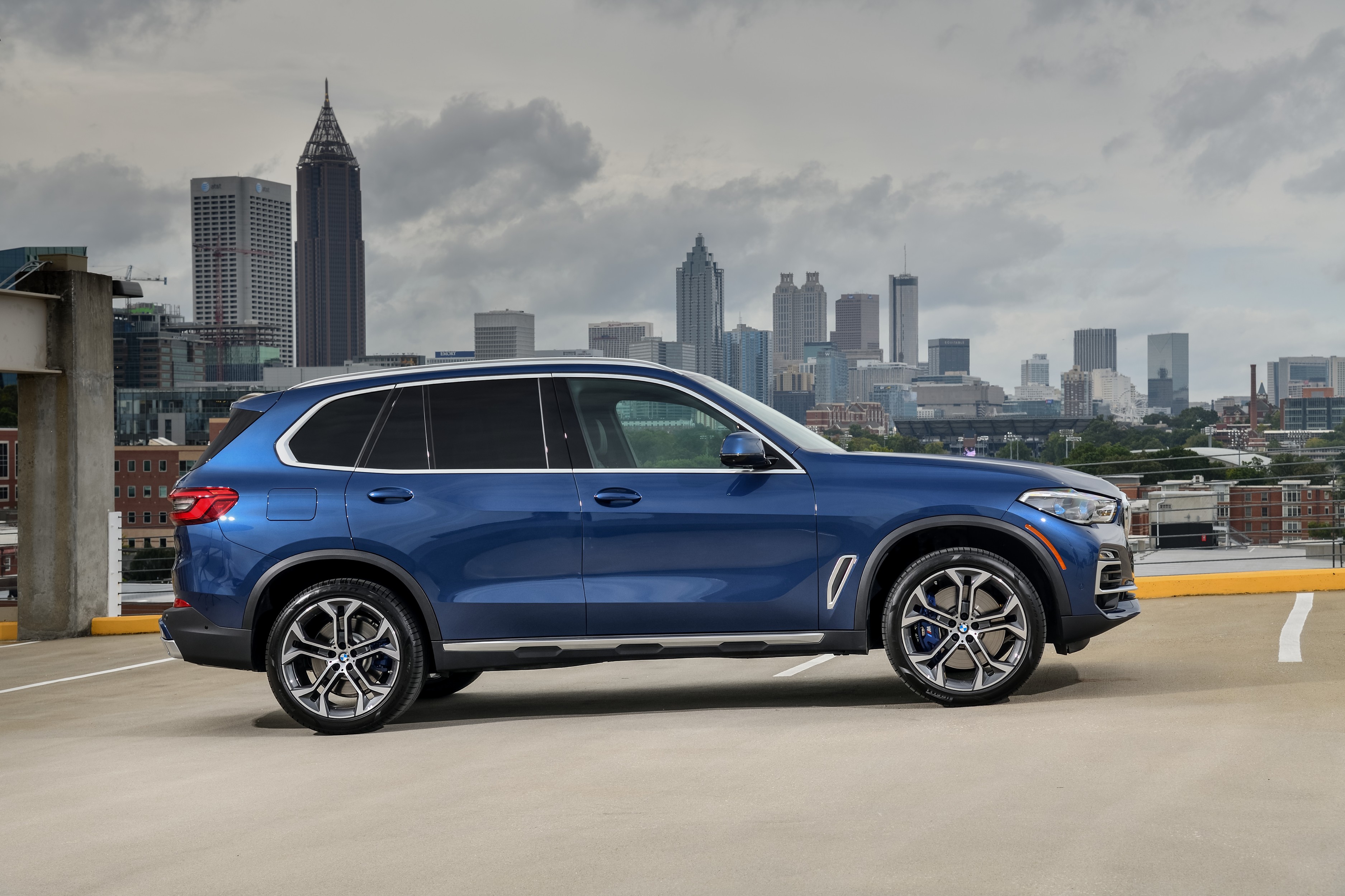

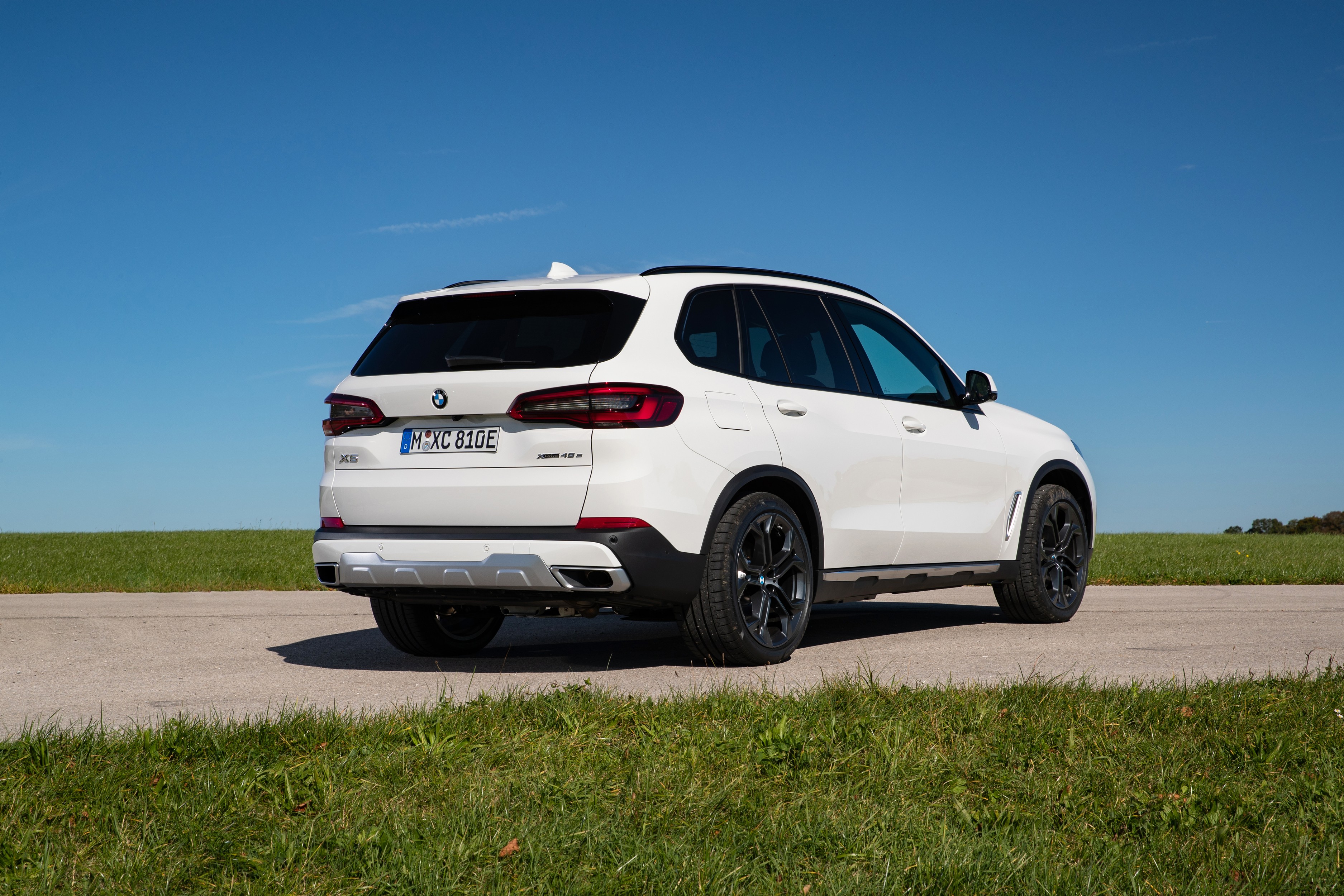

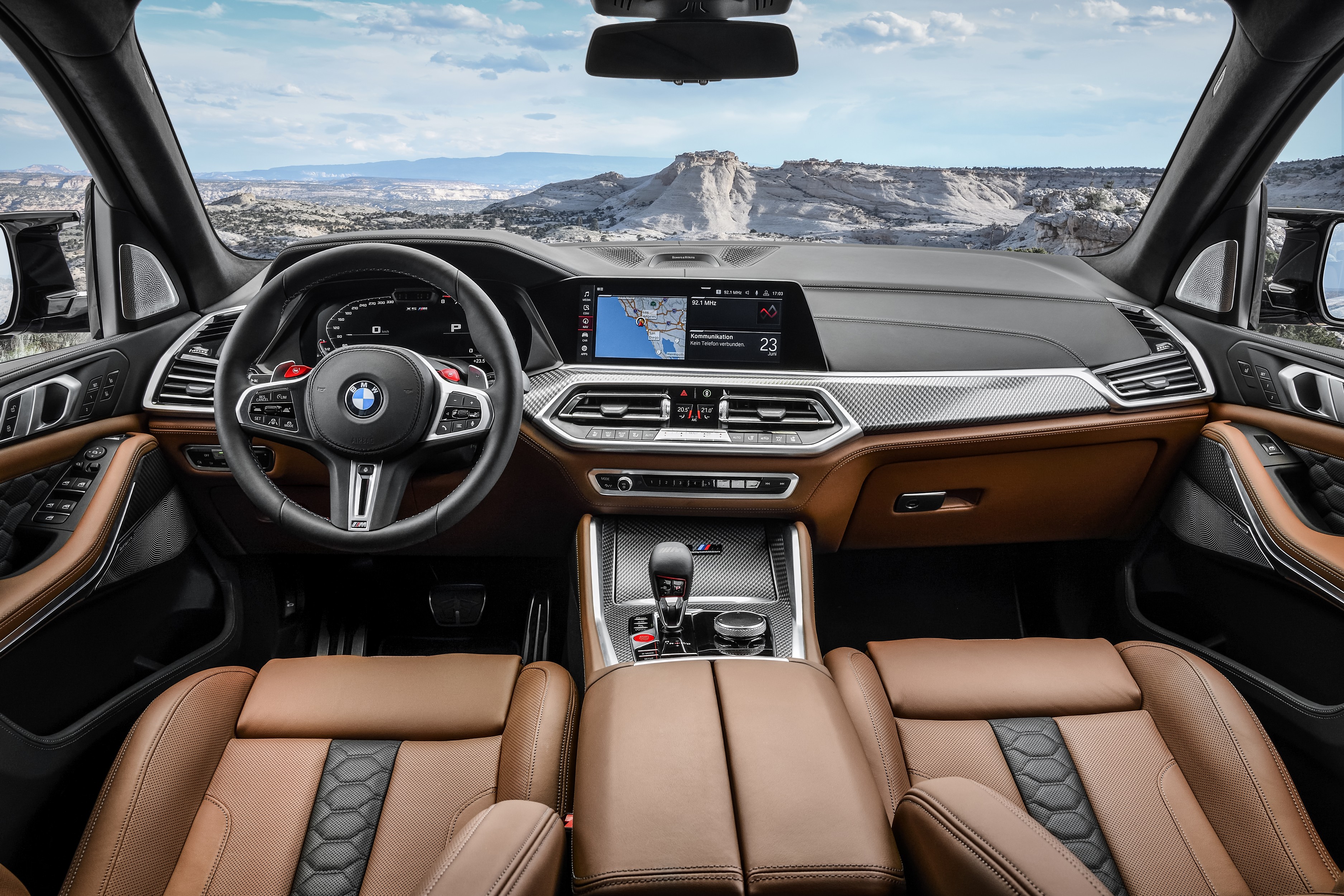

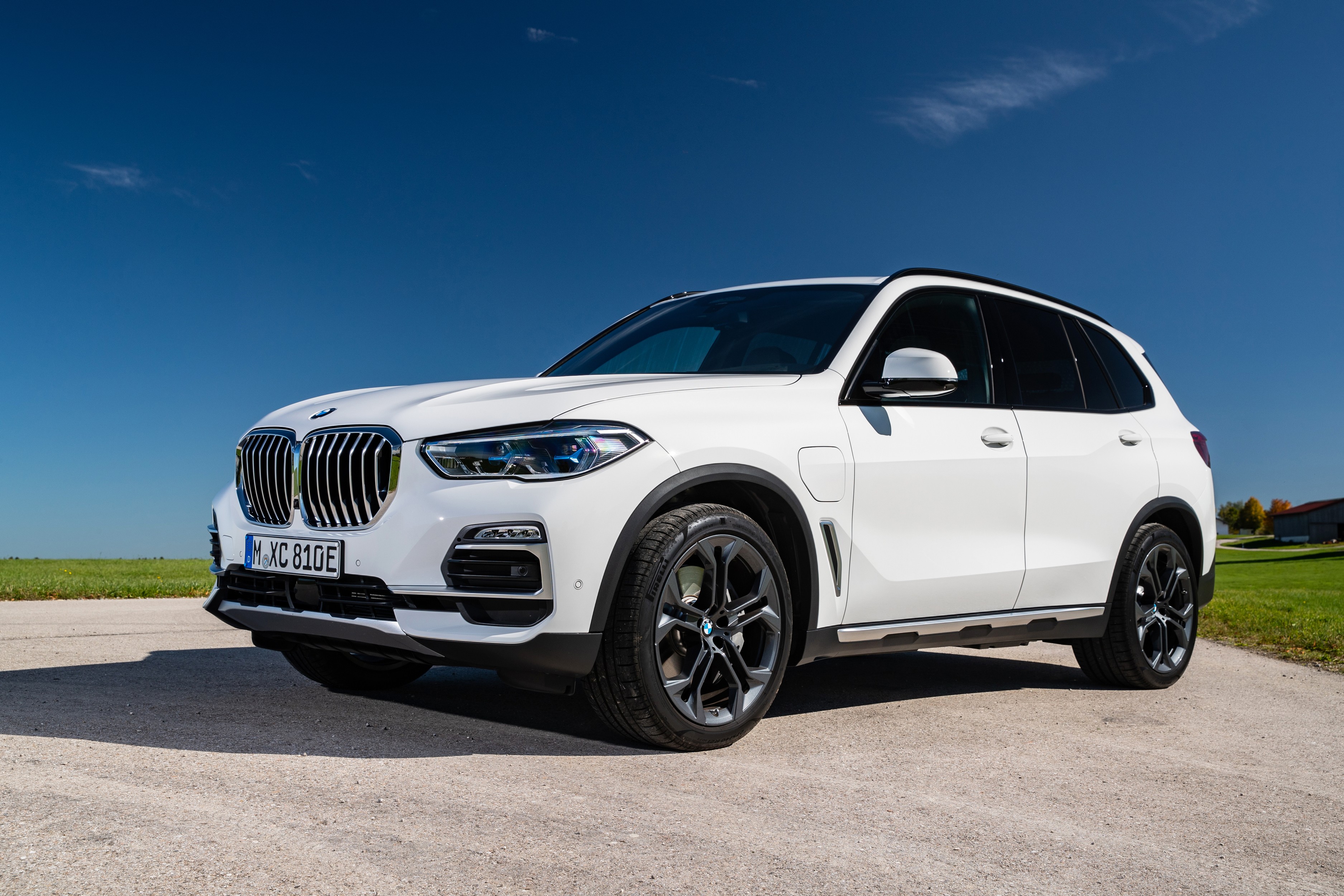

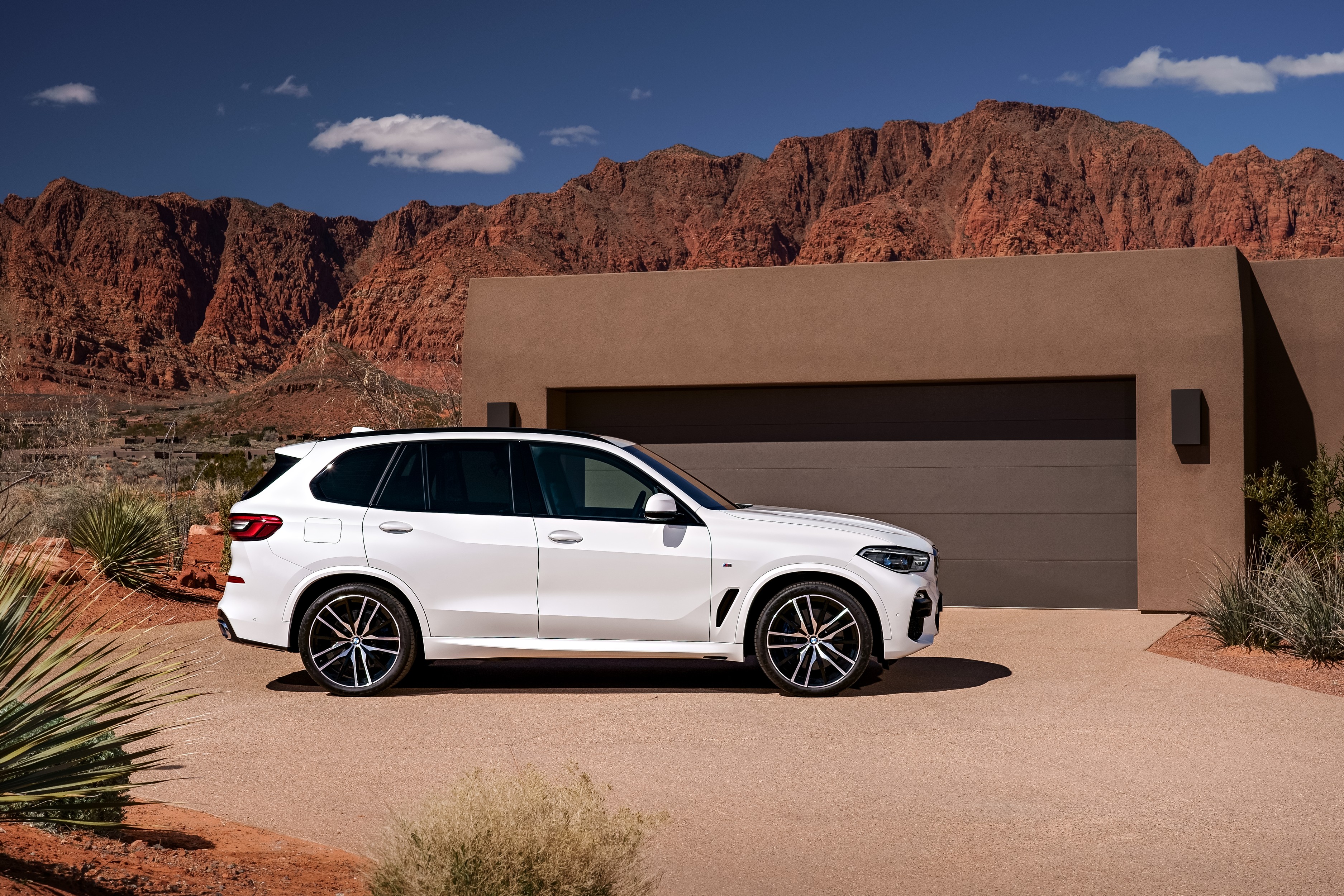

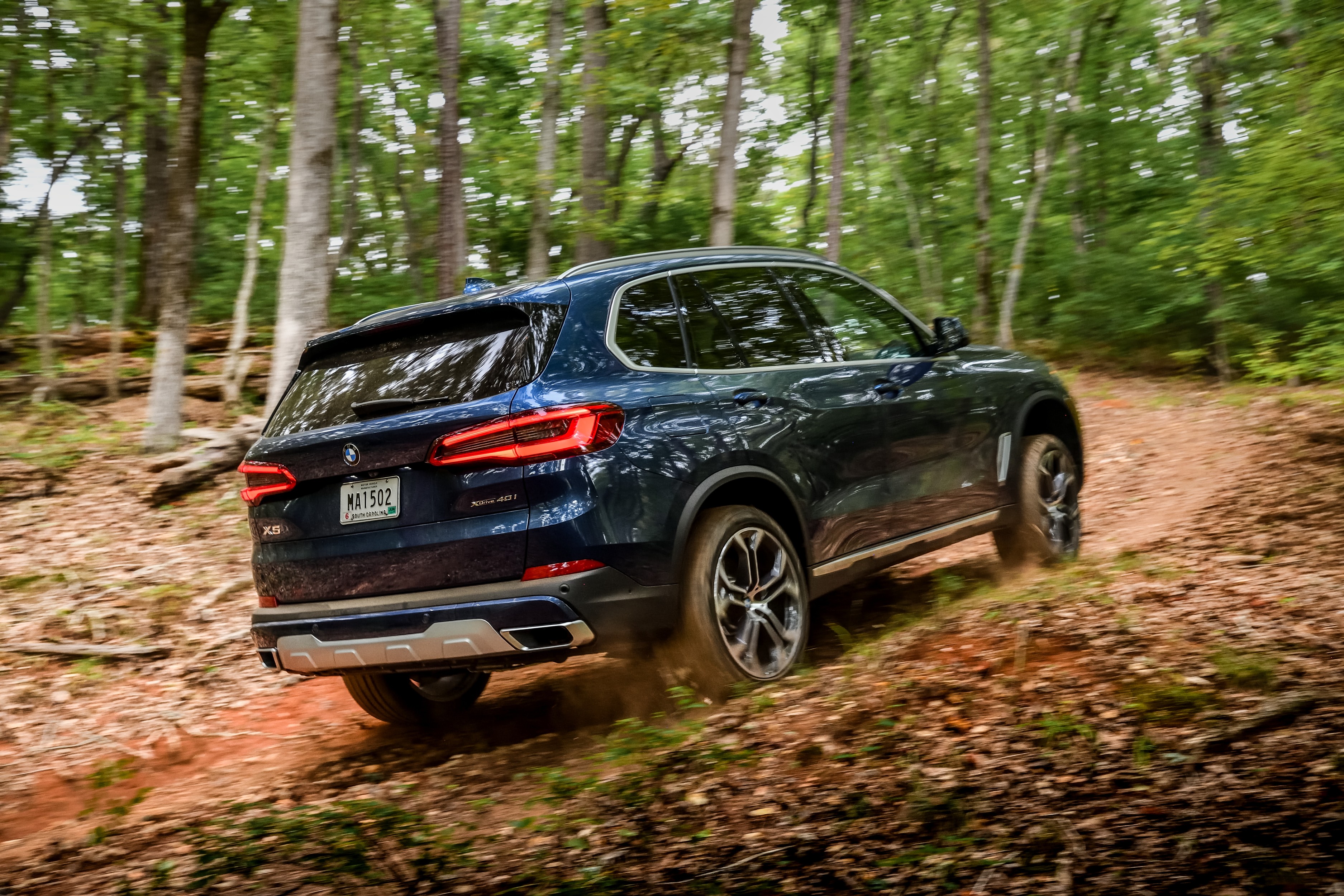

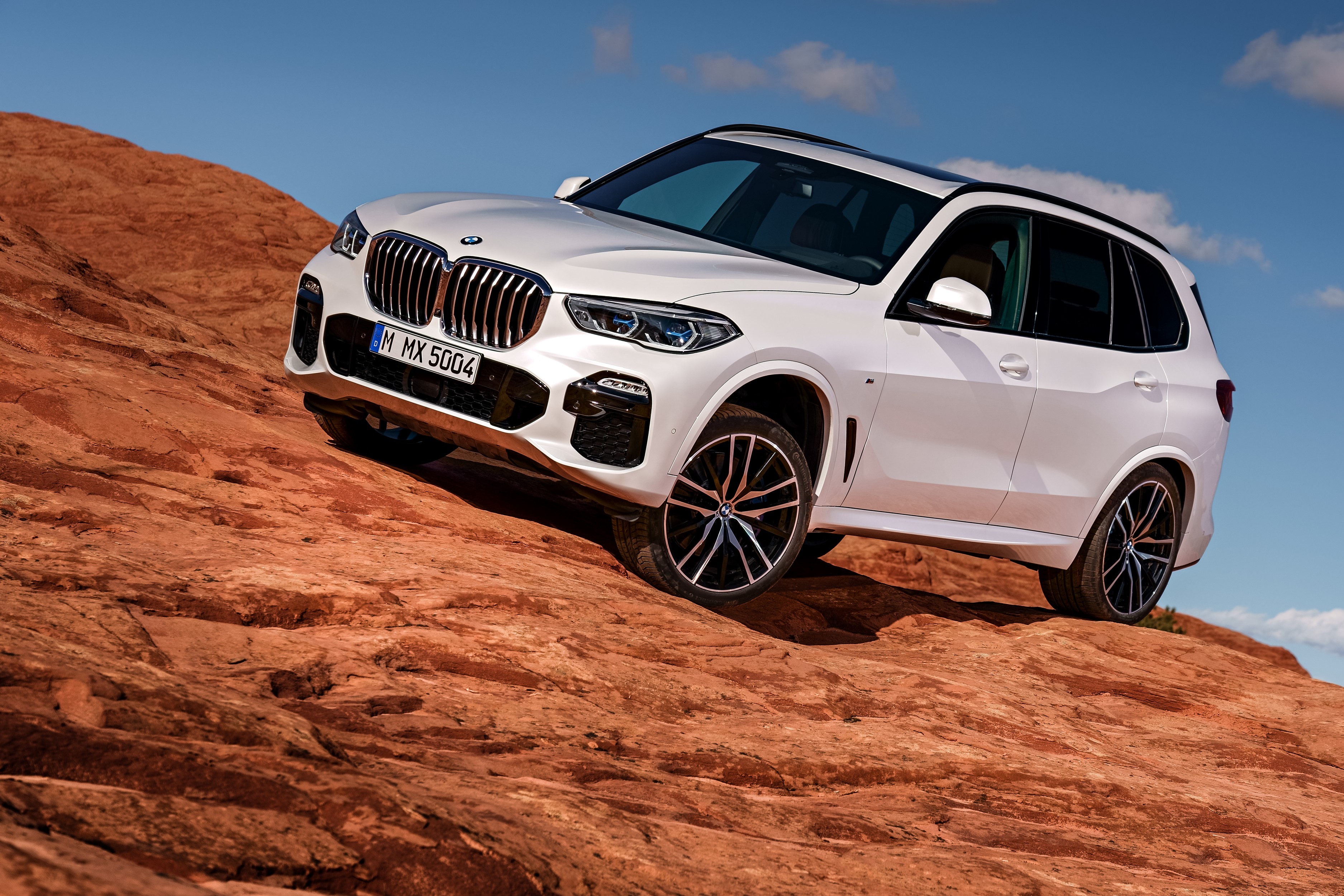

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
