Chevrolet Aveo
Date of manufacture
3/2011 – 2016 (Five-door hatchback)
3/2011 – 2016 (Sedan)
Platform
GM Gamma II platform
Manufacturing locations
Incheon, South Korea
Designer
Ondrej Koromhaz
Tags
B-segment
Korean cars
The Chevrolet Aveo has been produced since 2011 and is based on the GM Gamma II platform. It is available in two body styles - a five-door hatchback and a sedan. The list of engines includes petrol and diesel versions, the most powerful engine being the 1.6 with 85 kW, the fastest model being the 1.6 with a maximum speed of 183 km/h. The most economical is also the lowest in CO2 emissions - the 1.3D model has a consumption of 3.6 l/100 km and emissions of 95 g/km. In terms of safety, the EURONCAP model received a rating of 5 out of 5 in 2011. The hatchback offers a trunk size of 290 l, the sedan 502 l. The Chevrolet Aveo is manufactured in South Korea.
Car body style
Technical data

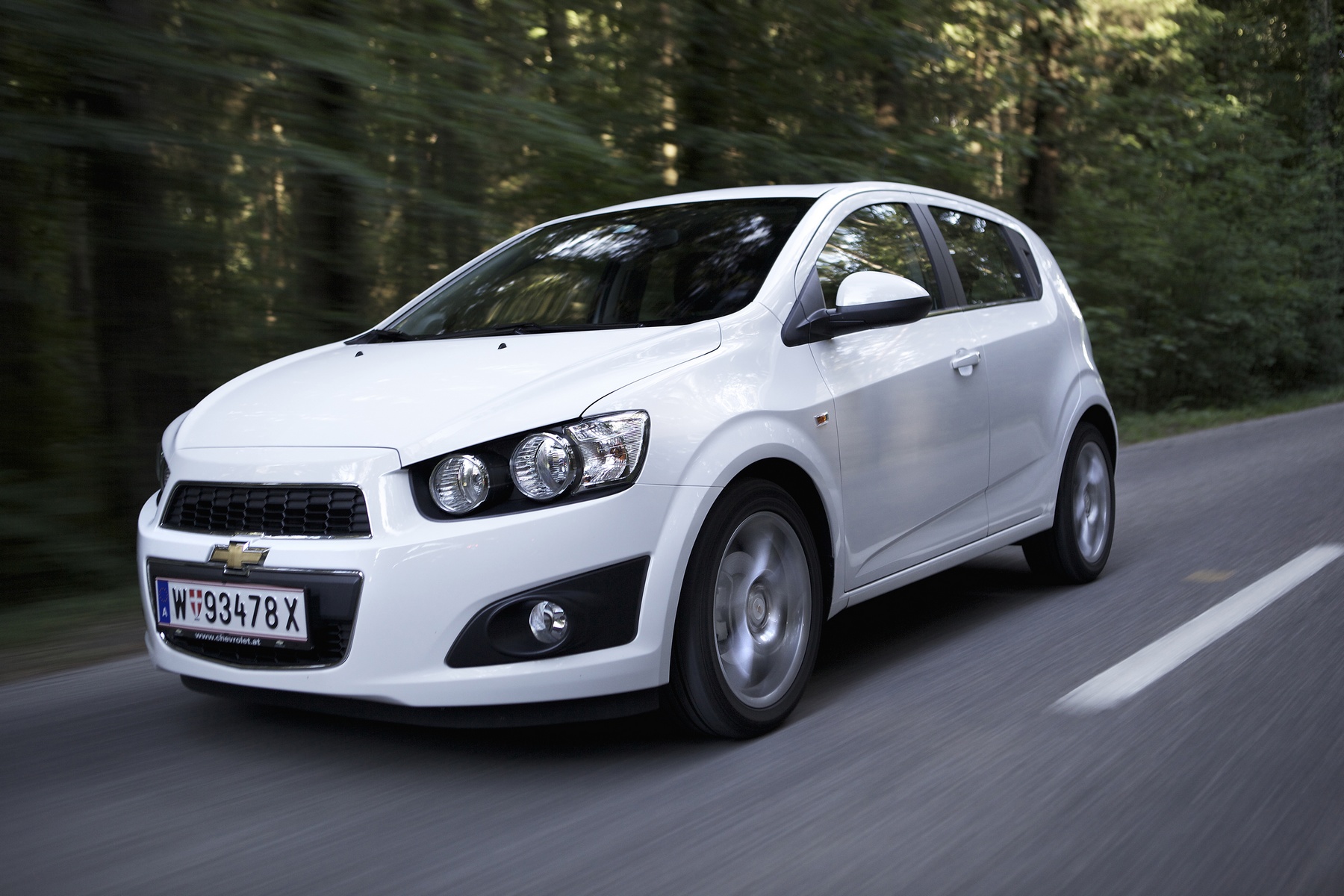

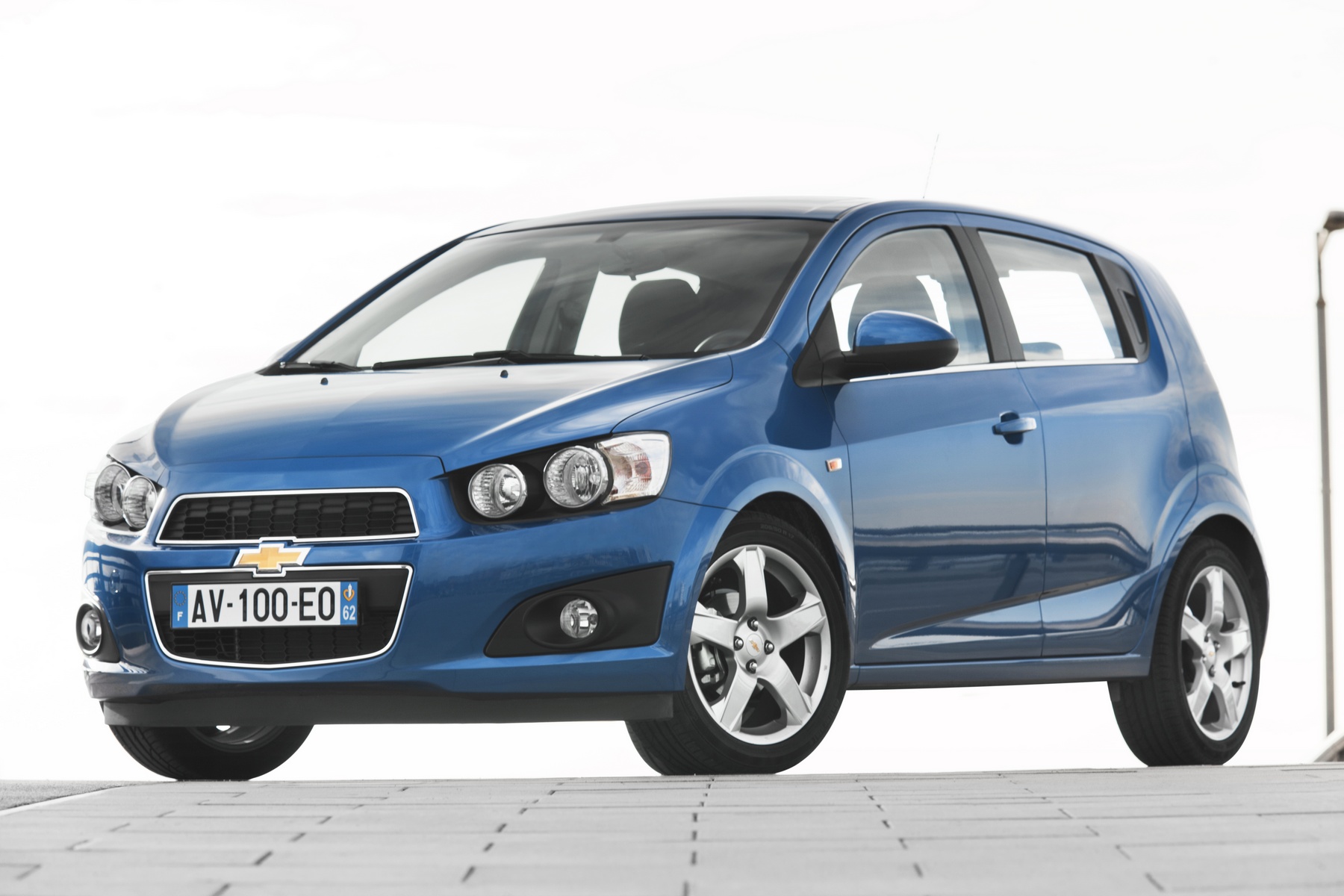

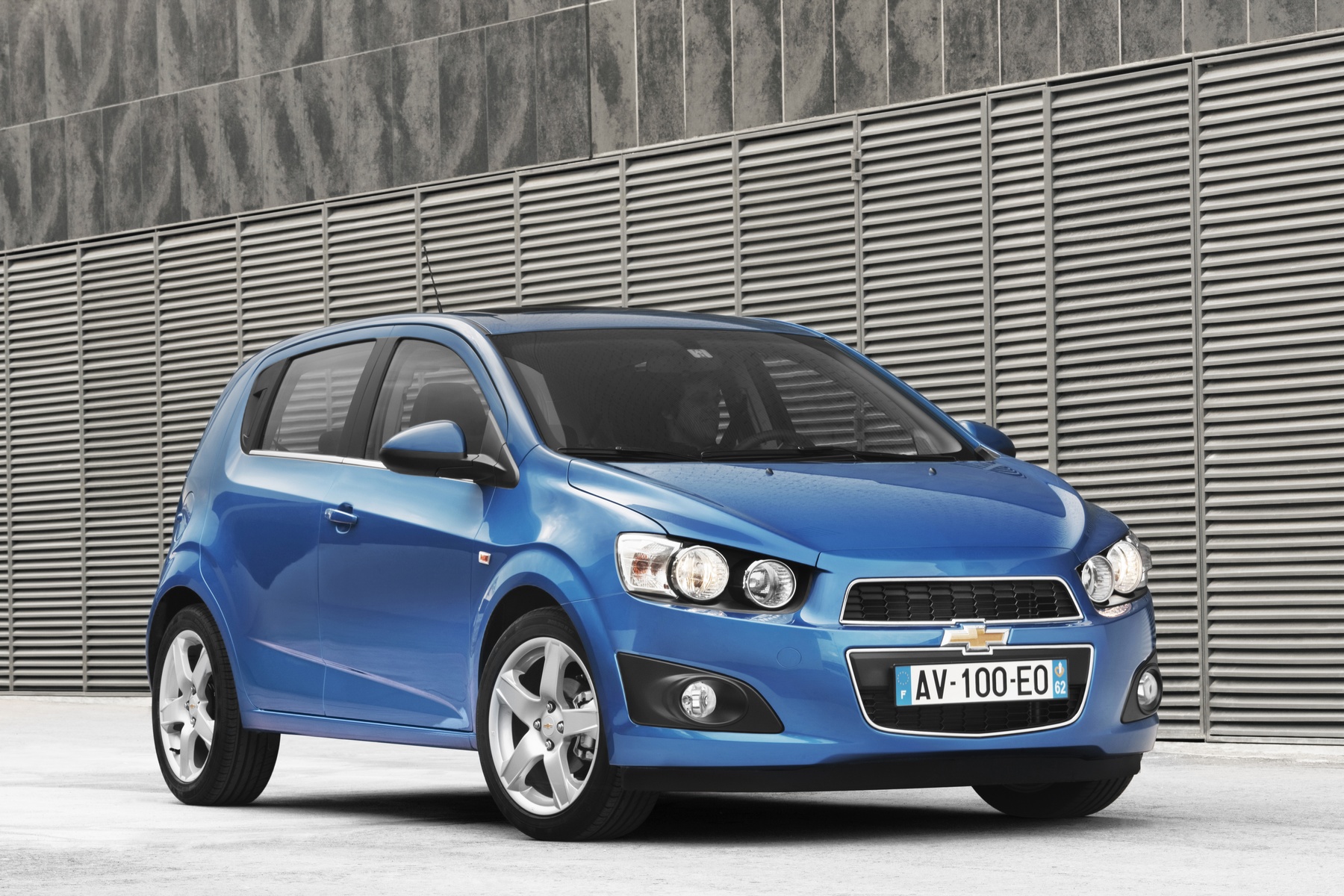

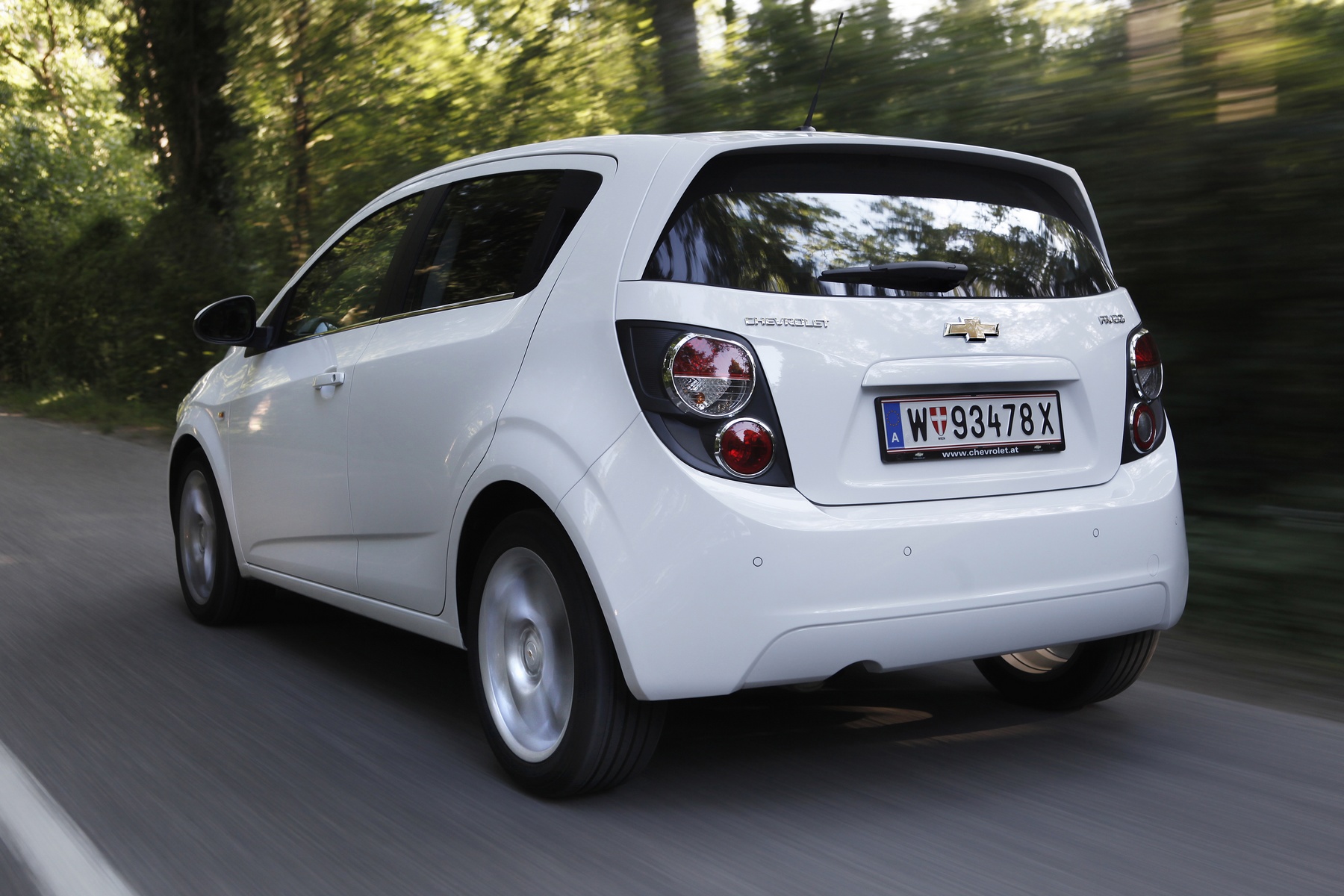

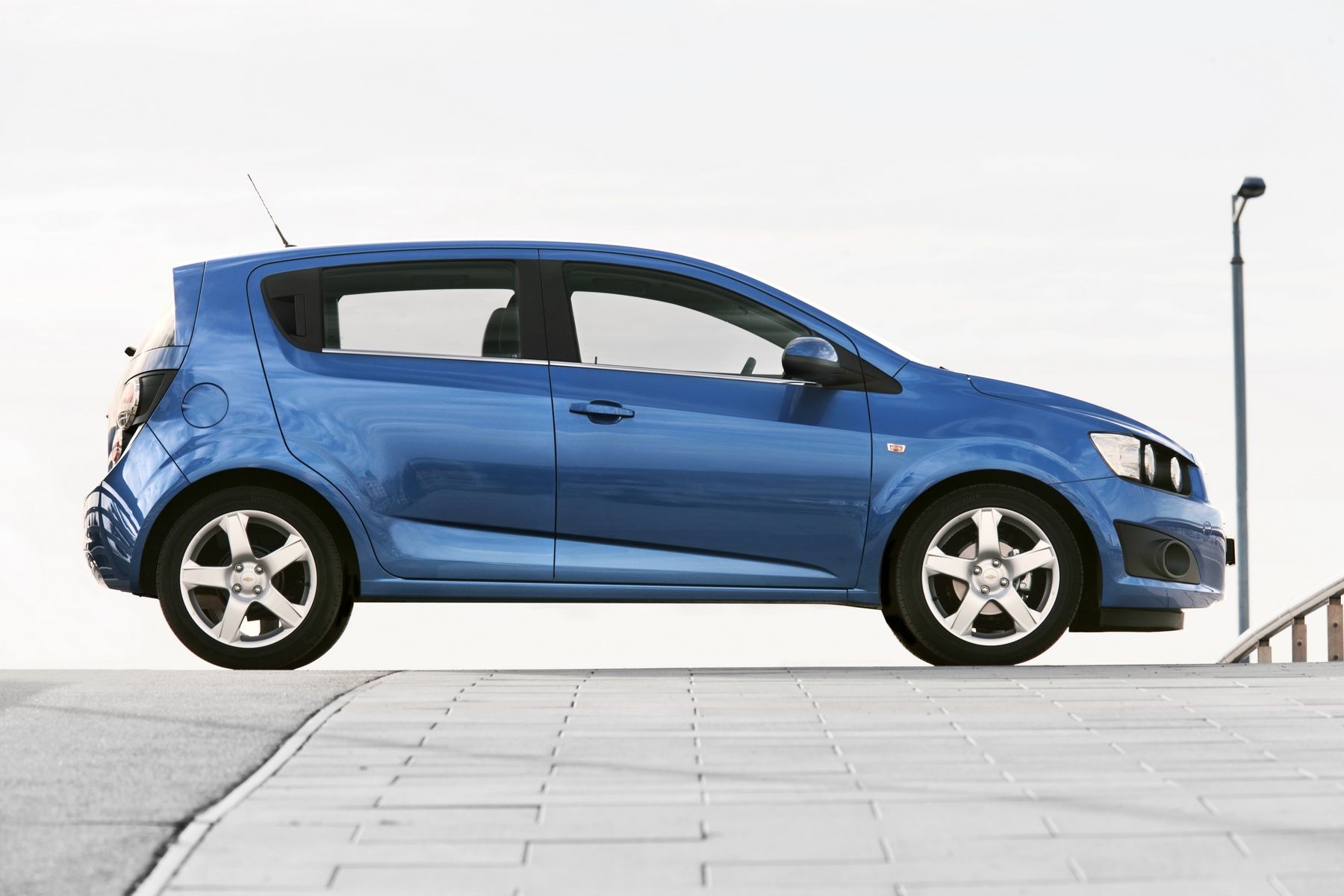

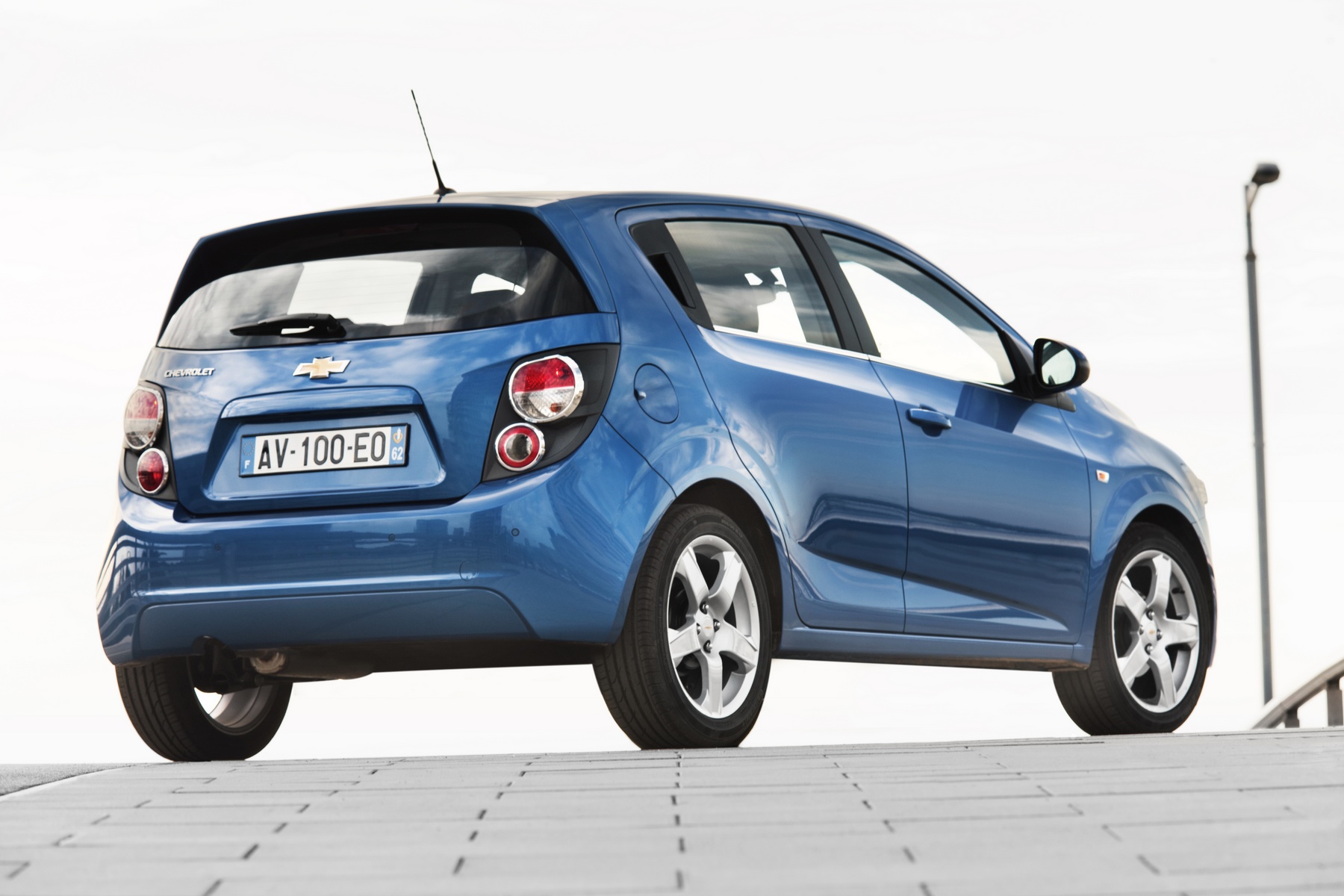

Five-door hatchback
| 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1229 | 1229 | 1398 | 1398 | 1398 | 1598 |
| Maximum output / speed [kW/min-1] | 51/5600 | 63/5600 | 74/6000 | 74/6000 | 74/6000 | 85/6000 |
| Maximum torque [Nm/min-1] | 115/4000 | 115/4000 | 130/4000 | 130/4000 | 130/4000 | 155/4000 |
| Bore and stroke [mm x mm] | 73,4 x 72,6 | 73,4 x 72,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 79,0 x 81,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 162 | 171 | 174 | 174 | 175 | 183 |
| Acceleration 0–100 km/h [s] | 14.3 | 13.4 | 12.2 | 12.2 | 13.1 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 7.1 | 7.7 | 6.8 | 8.4-9.0 | 8.9 |
| Out of town [l] | 4.8 | 4.6 | 4.9 | 4.5 | 4.9-5.4 | 5.3 |
| Combined [l] | 5.9 | 5.5 | 5.9 | 5.3 | 6.2-6.8 | 6.6 |
| CO2 emissions [g/km] | 138 | 129 | 139 | 125 | 145-159 | 156 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1145-1209 | 1145-1209 | 1158-1253 | 1164-1256 | 1185-1284 | 1222-1278 |
| Overall weight [kg] | 1530 | 1530 | 1566 | 1569 | 1593-1597 | 1592 |
| Maximum trailer weight unbraked/braked [kg] | 500/850 | 500/850 | 500/1000 | 500/1000 | 500/1000 | 500/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |

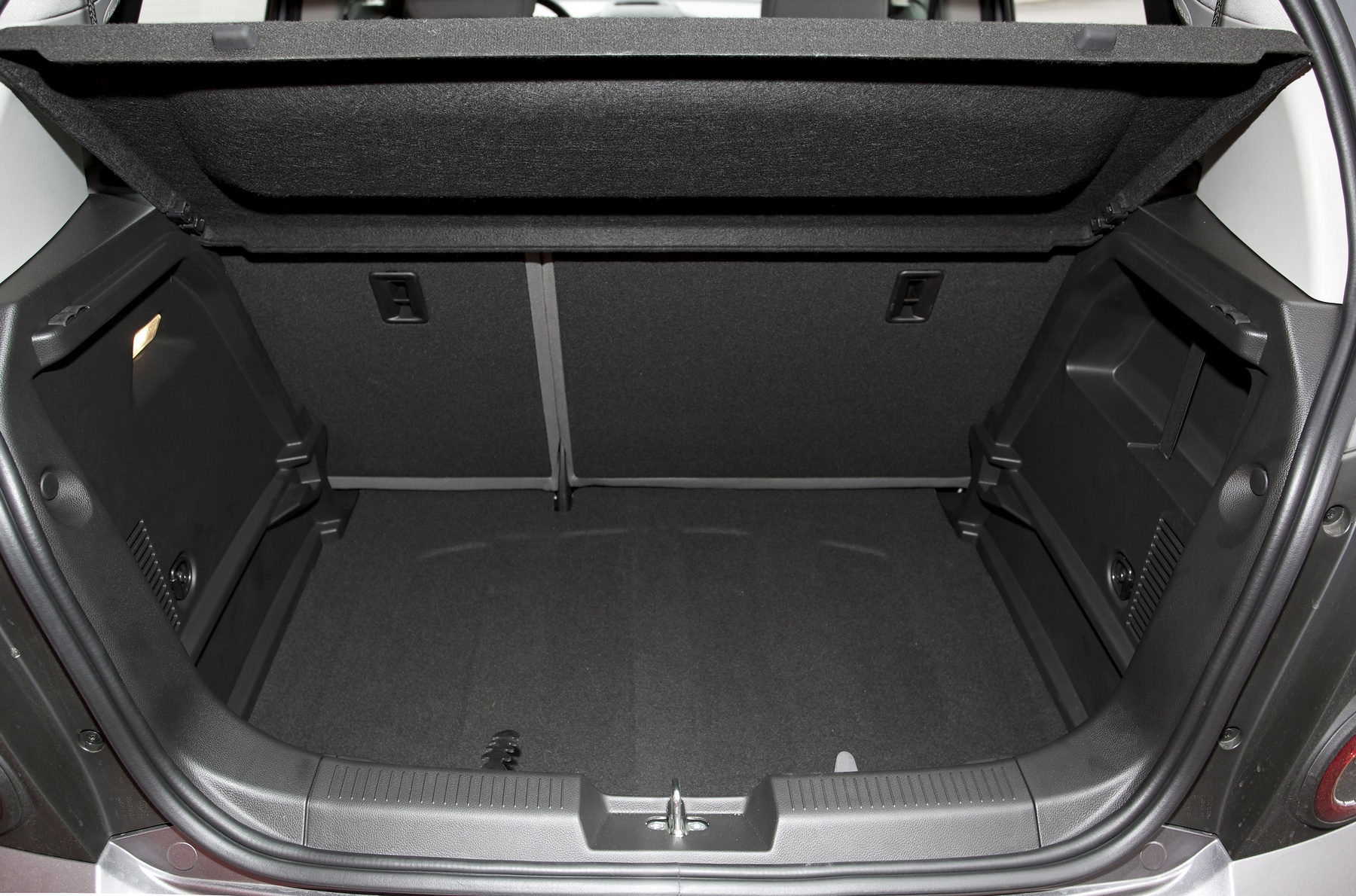

| Boot volume [l] | 290 | 290 | 290 | 290 | 290 | 290 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 46 | 46 | 46 | 46 | 46 | 46 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.357 | 0.357 | 0.357 | 0.357 | 0.357 | 0.357 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 205/55 R6 |
| Tyre dimensions rear | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 205/55 R6 |
| Wheel size front | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 16 |
| Wheel size rear | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 16 |
| Brake dimensions front | 256 | 256 | 256 | 256 | 256 | 256 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Hydraulic power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.06/- | 10.06/- | 10.06/- | 10.06/- | 10.06/- | 10.06/- |
| Overall length [mm] | 4039 | 4039 | 4039 | 4039 | 4039 | 4039 |
| Overall width without/including mirrors [mm] | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 |
| Overall height [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | 1517 |
| Wheelbase [mm] | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 |
| Front wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Headroom rear [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Front elbow/shoulder width [mm] | -/1358 | -/1358 | -/1358 | -/1358 | -/1358 | -/1358 |
| Rear elbow/shoulder width [mm] | -/1347 | -/1347 | -/1347 | -/1347 | -/1347 | -/1347 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 | 1.6 | 1.3D | 1.3D | 1.3D | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1598 | 1598 | 1248 | 1248 | 1248 | |
| Maximum output / speed [kW/min-1] | 85/6000 | 85/6000 | 55/4000 | 70/4000 | 70/4000 | |
| Maximum torque [Nm/min-1] | 155/4000 | 155/4000 | 190/1750 | 190/1750 | 210/1750 | |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | |
| Compression ratio | 10,8:1 | 10,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 6 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual | |
| Drive specifications | - |
| - | - | - | |
| Top speed [km/h] | 183 | 178 | 163 | 174 | 174 | |
| Acceleration 0–100 km/h [s] | 11.3 | 11.7 | 14.2 | 11.7 | 12.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.7 | 8.9-10.0 | 4.3 | 4.2 | 4.8 | |
| Out of town [l] | 5.0 | 5.2-5.6 | 3.4 | 3.3 | 3.6 | |
| Combined [l] | 6.0 | 6.6-7.2 | 3.8 | 3.6 | 4.1 | |
| CO2 emissions [g/km] | 141 | 155-169 | 99 | 95 | 108 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1229-1296 | 1243-1312 | 1247-1333 | 1240-1330 | 1260-1346 | |
| Overall weight [kg] | 1610 | 1613-1626 | 1658 | 1634 | 1686 | |
| Maximum trailer weight unbraked/braked [kg] | 500/1100 | 500/1100 | 500/1000 | 500/1000 | 500/1000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 290 | 290 | 290 | 290 | 290 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 46 | 46 | 46 | 46 | 46 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.357 | 0.357 | 0.357 | 0.357 | 0.357 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 205/55 R6 | 205/55 R16 | 195/65 R15 91H | 195/65 R15 91H | 205/55R16 | |
| Tyre dimensions rear | 205/55 R6 | 205/55 R16 | 195/65 R15 91H | 195/65 R15 91H | 205/55R16 | |
| Wheel size front | 6J x 16 | 6J x 16 | 6J x 15 | 6J x 15 | 6J x 16 | |
| Wheel size rear | 6J x 16 | 6J x 16 | 6J x 15 | 6J x 15 | 6J x 16 | |
| Brake dimensions front | 256 | 256 | 256 | 256 | 256 | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.06/- | 10.06/- | 10.06/- | 10.06/- | 10.06/- | |
| Overall length [mm] | 4039 | 4039 | 4039 | 4039 | 4039 | |
| Overall width without/including mirrors [mm] | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 | |
| Overall height [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | |
| Wheelbase [mm] | 2525 | 2525 | 2525 | 2525 | 2525 | |
| Front wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 995 | 995 | 995 | 995 | 995 | |
| Headroom rear [mm] | 978 | 978 | 978 | 978 | 978 | |
| Front elbow/shoulder width [mm] | -/1358 | -/1358 | -/1358 | -/1358 | -/1358 | |
| Rear elbow/shoulder width [mm] | -/1347 | -/1347 | -/1347 | -/1347 | -/1347 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

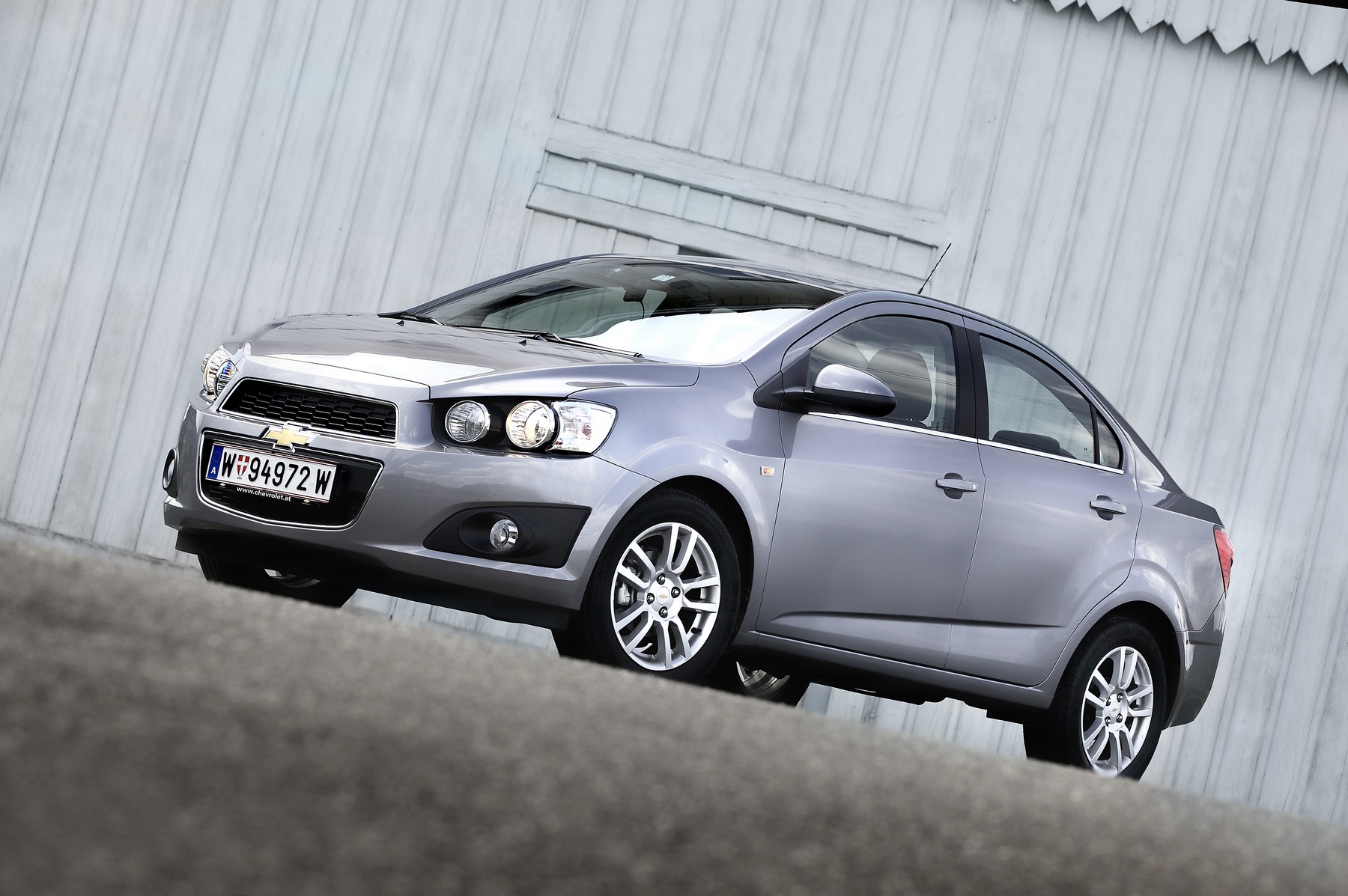

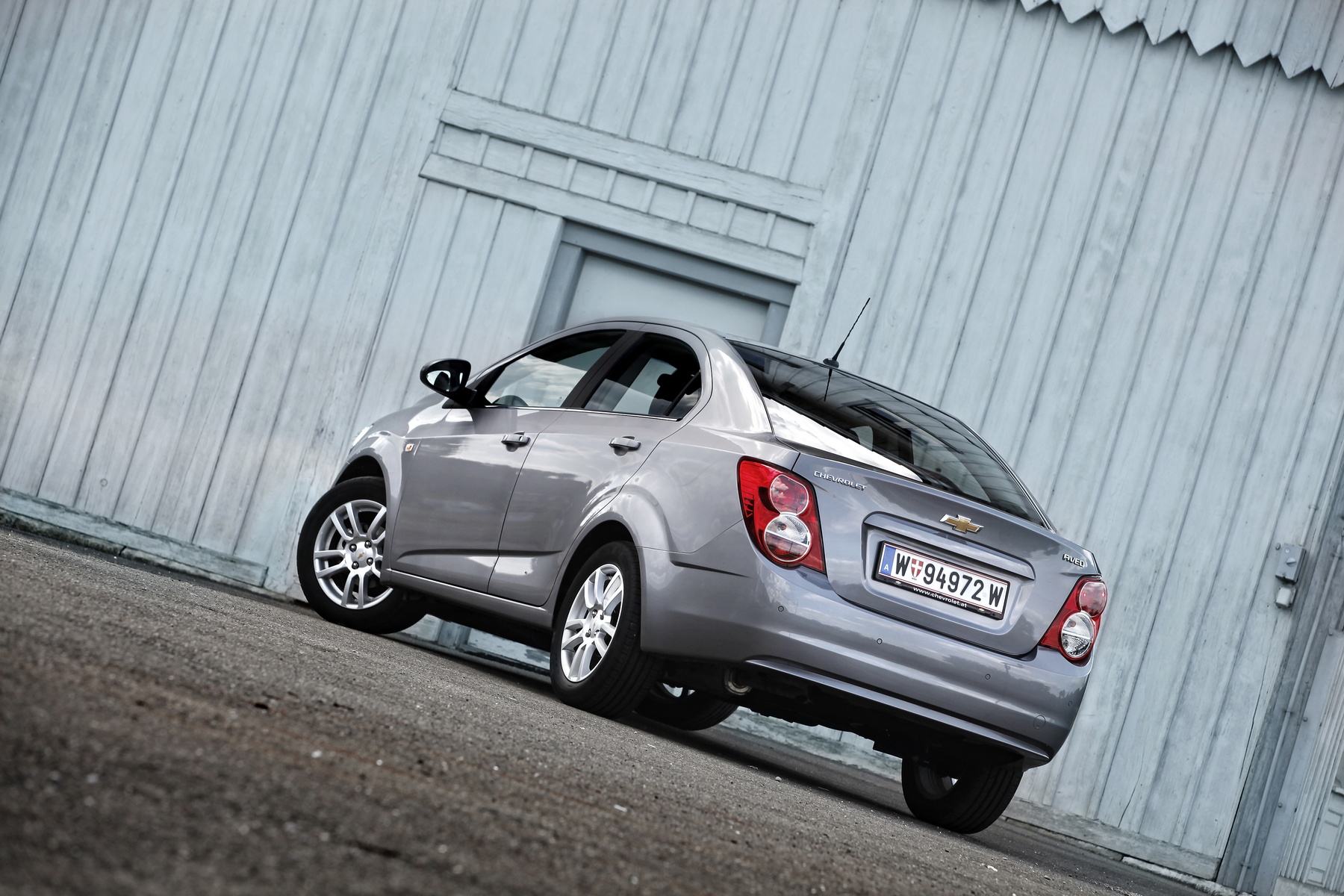

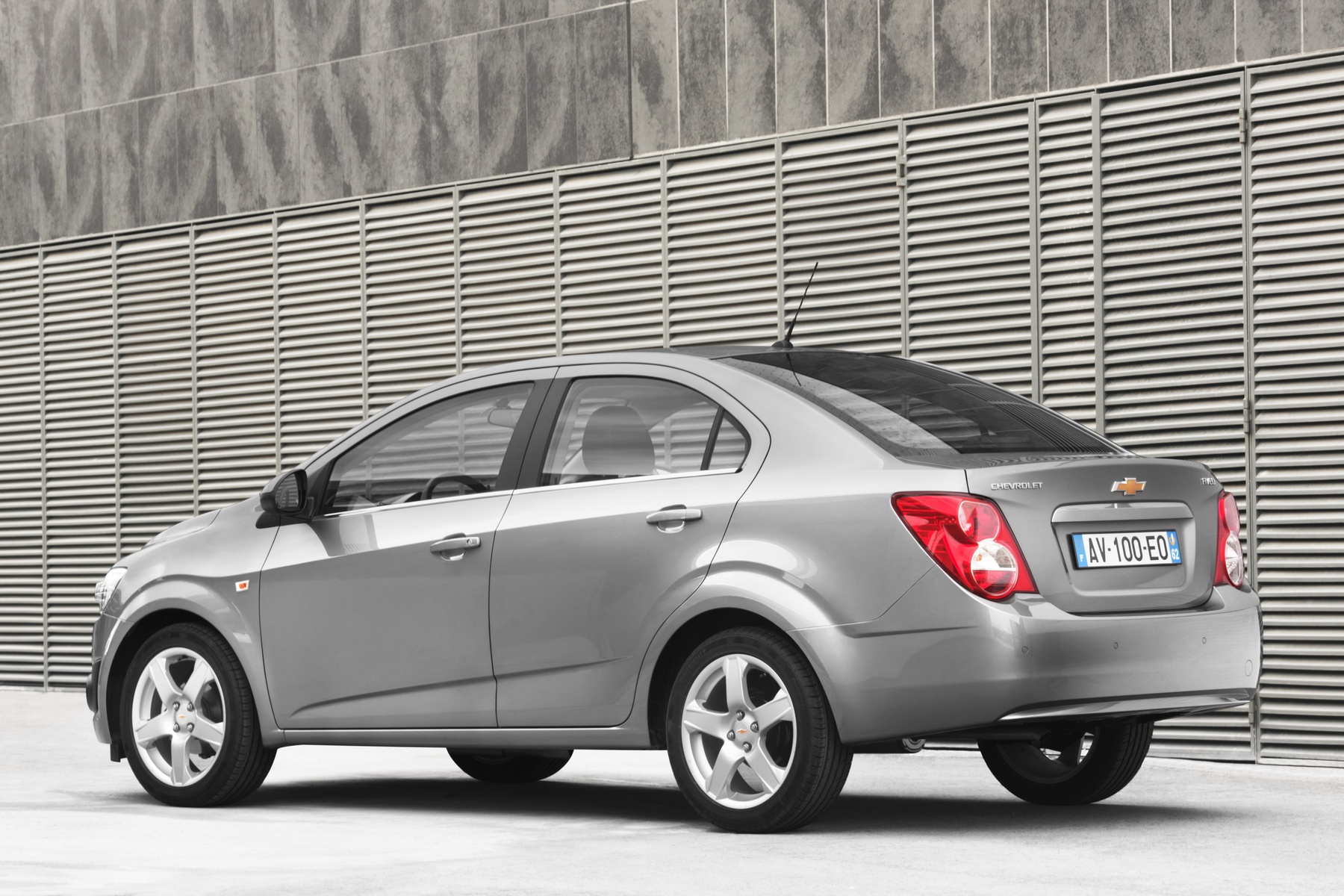

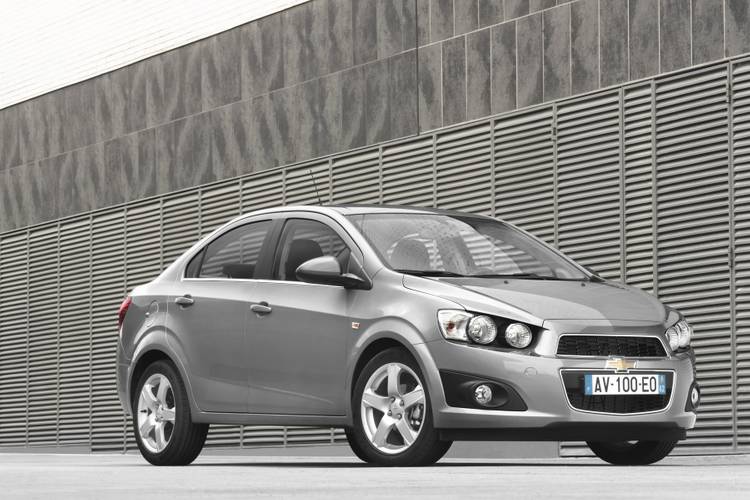

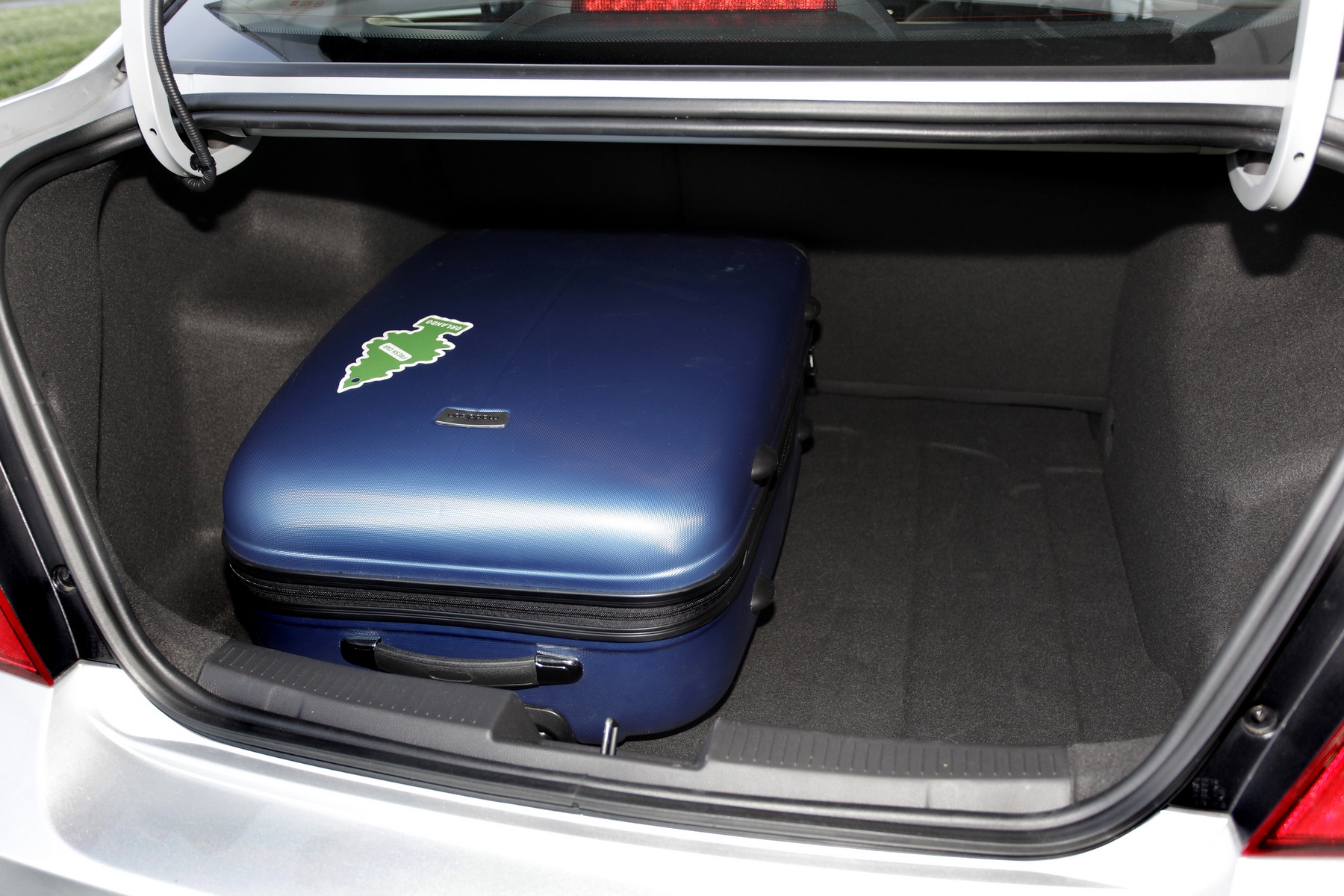

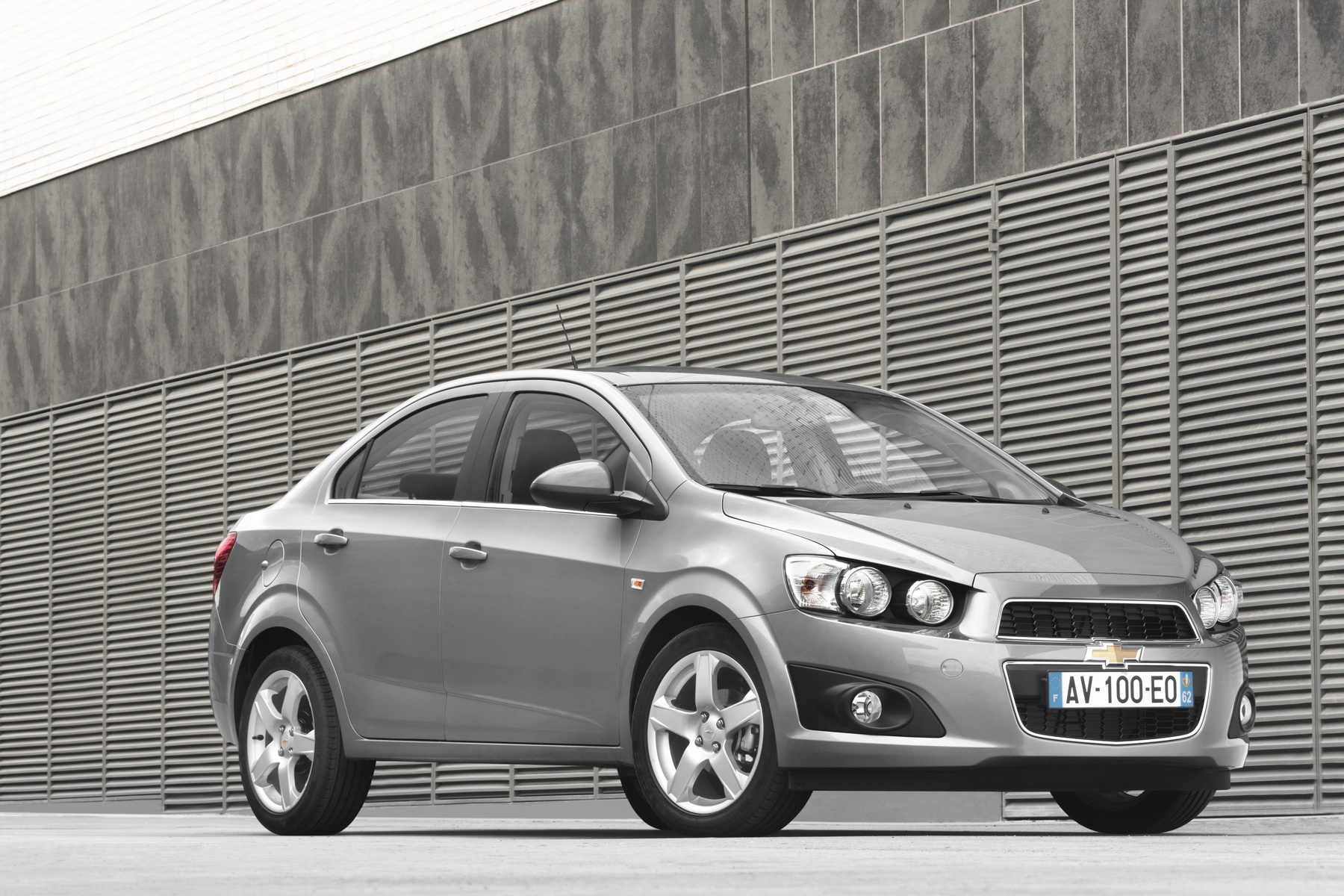

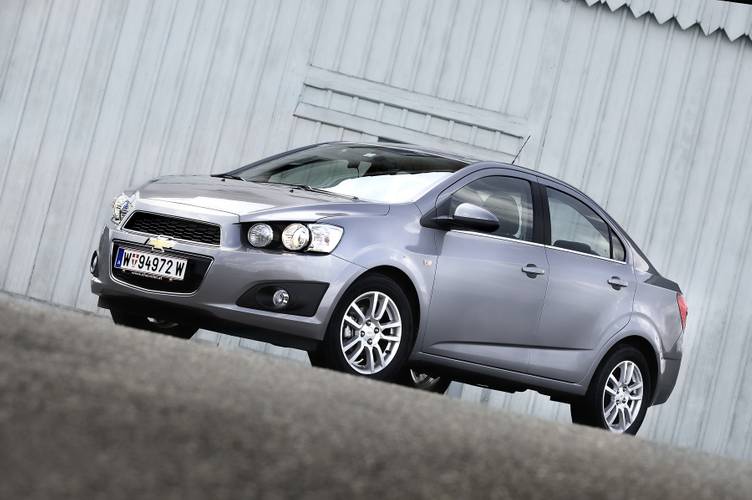

Sedan
| 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1229 | 1229 | 1398 | 1398 | 1398 | 1598 |
| Maximum output / speed [kW/min-1] | 51/5600 | 63/5600 | 74/6000 | 74/6000 | 74/6000 | 85/6000 |
| Maximum torque [Nm/min-1] | 115/4000 | 115/4000 | 130/4000 | 130/4000 | 130/4000 | 155/4000 |
| Bore and stroke [mm x mm] | 73,4 x 72,6 | 73,4 x 72,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 79,0 x 81,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 162 | 171 | 174 | 174 | 175 | 183 |
| Acceleration 0–100 km/h [s] | 14.3 | 13.4 | 12.2 | 12.2 | 13.1 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 7.1 | 7.7 | 6.8 | 8.4-8.8 | 8.9 |
| Out of town [l] | 4.8 | 4.6 | 4.9 | 4.4 | 4.8-5.3 | 5.3 |
| Combined [l] | 5.9 | 5.5 | 5.9 | 5.3 | 6.1-6.6 | 6.6 |
| CO2 emissions [g/km] | 138 | 129 | 139 | 125 | 143-156 | 156 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1160-1224 | 1160-1251 | 1173-1268 | 1184-1276 | 1200-1296 | 1237-1293 |
| Overall weight [kg] | 1539 | 1566 | 1573 | 1581 | 1600-1601 | 1598 |
| Maximum trailer weight unbraked/braked [kg] | 500/850 | 500/850 | 500/1000 | 500/1000 | 500/1000 | 500/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 502 | 502 | 502 | 502 | 502 | 502 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 46 | 46 | 46 | 46 | 46 | 46 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.357 | 0.357 | 0.357 | 0.357 | 0.357 | 0.357 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 205/55 R6 |
| Tyre dimensions rear | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 195/65 R15 91H | 205/55 R6 |
| Wheel size front | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 16 |
| Wheel size rear | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 16 |
| Brake dimensions front | 256 | 256 | 256 | 256 | 256 | 256 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Hydraulic power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.06/- | 10.06/- | 10.06/- | 10.06/- | 10.06/- | 10.06/- |
| Overall length [mm] | 4399 | 4399 | 4399 | 4399 | 4399 | 4399 |
| Overall width without/including mirrors [mm] | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 |
| Overall height [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | 1517 |
| Wheelbase [mm] | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 |
| Front wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | -/1358 | -/1358 | -/1358 | -/1358 | -/1358 | -/1358 |
| Rear elbow/shoulder width [mm] | -/1347 | -/1347 | -/1347 | -/1347 | -/1347 | -/1347 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 | 1.6 | 1.3D | 1.3D | 1.3D | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1598 | 1598 | 1248 | 1248 | 1248 | |
| Maximum output / speed [kW/min-1] | 85/6000 | 85/6000 | 55/4000 | 70/4000 | 70/4000 | |
| Maximum torque [Nm/min-1] | 155/4000 | 155/4000 | 190/1750 | 190/1750 | 210/1750 | |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | |
| Compression ratio | 10,8:1 | 10,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 6 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual | |
| Drive specifications | - |
| - | - | - | |
| Top speed [km/h] | 183 | 178 | 163 | 174 | 174 | |
| Acceleration 0–100 km/h [s] | 11.3 | 11.7 | 14.2 | 11.7 | 12.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.7 | 8.9-10.0 | 4.2 | 4.3 | 4.8 | |
| Out of town [l] | 4.8 | 5.0-5.6 | 3.3 | 3.2 | 3.6 | |
| Combined [l] | 5.9 | 6.5-7.2 | 3.7 | 3.6 | 4.1 | |
| CO2 emissions [g/km] | 139 | 153-169 | 97 | 95 | 107 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1245-1312 | 1258-1326 | 1262-1348 | 1278-1345 | 1275-1361 | |
| Overall weight [kg] | 1617 | 1619-1631 | 1668 | 1649 | 1696 | |
| Maximum trailer weight unbraked/braked [kg] | 500/1100 | 500/1100 | 500/1000 | 500/1000 | 500/1000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 502 | 502 | 502 | 502 | 502 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 46 | 46 | 46 | 46 | 46 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.357 | 0.357 | 0.357 | 0.357 | 0.357 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 205/55 R6 | 205/55 R16 | 195/65 R15 91H | 195/65 R15 91H | 205/55R16 | |
| Tyre dimensions rear | 205/55 R6 | 205/55 R16 | 195/65 R15 91H | 195/65 R15 91H | 205/55R16 | |
| Wheel size front | 6J x 16 | 6J x 16 | 6J x 15 | 6J x 15 | 6J x 16 | |
| Wheel size rear | 6J x 16 | 6J x 16 | 6J x 15 | 6J x 15 | 6J x 16 | |
| Brake dimensions front | 256 | 256 | 256 | 256 | 256 | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.06/- | 10.06/- | 10.06/- | 10.06/- | 10.06/- | |
| Overall length [mm] | 4399 | 4399 | 4399 | 4399 | 4399 | |
| Overall width without/including mirrors [mm] | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 | 1735/2004 | |
| Overall height [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | |
| Wheelbase [mm] | 2525 | 2525 | 2525 | 2525 | 2525 | |
| Front wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 995 | 995 | 995 | 995 | 995 | |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | |
| Front elbow/shoulder width [mm] | -/1358 | -/1358 | -/1358 | -/1358 | -/1358 | |
| Rear elbow/shoulder width [mm] | -/1347 | -/1347 | -/1347 | -/1347 | -/1347 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

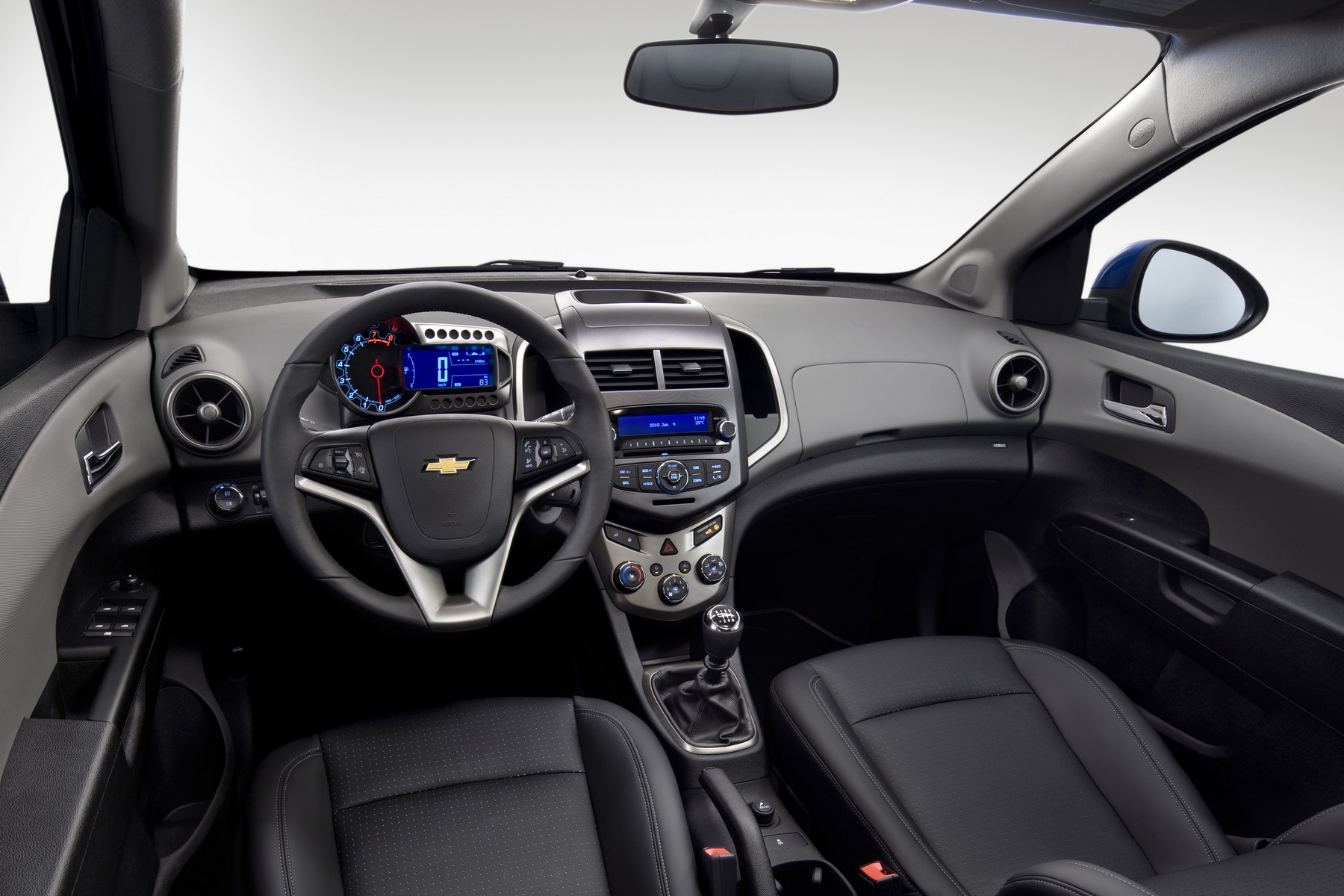

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
