Chevrolet Camaro

Date of manufacture

10/2015 – to this day (Coupé)

2015 – to this day (Convertible)

Platform

GM Alpha

Manufacturing locations

Lansing, Michigan, USA

Designer

Hwasup Lee

Car body style

Coupé

Date of manufacture

10/2015 – to this day

Internal designation

Engine size

2.0L TURBO

6.2L

Convertible

Date of manufacture

2015 – to this day

Internal designation

Engine size

2.0L TURBO

6.2L

Technical data

Coupé

	2.0L TURBO	6.2L	6.2L
Date of sale	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	8/16	8/16
Engine displacement [cm³]	1998	6162	6162
Maximum output / speed [kW/min-1]	202/5500	333/5700	333/5700
Maximum torque [Nm/min-1]	400/3000-4000	617/4600	617/4600
Bore and stroke [mm x mm]	86,0 x 86,0	103.25 x 92,0	103.25 x 92,0
Compression ratio	9.5:1	11.5:1	11.5:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection turbo-supercharged variable valve timing	direct injection	direct injection

Drive axle	Rear	Rear	Rear
Gearbox	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	eight-speed automatic gearbox	-	eight-speed automatic gearbox

Top speed [km/h]	240	290	290
Acceleration 0–100 km/h [s]	5.9	4.6	4.4
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	10.2	19.0	17.0
Out of town [l]	6.6	9.1	7.7
Combined [l]	8.0	12.8	11.1
CO2 emissions [g/km]	181	292	252

Emission standard	EU6b	EU6b	EU6b
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1614	1734	1734
Overall weight [kg]	2020	2120	2120
Maximum trailer weight unbraked/braked [kg]	-	-	-
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	257	257	257
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	2	2	2
Number of seats	4	4	4
Fuel tank volume [l]	72	72	72
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink
Tyre dimensions front	-	-	-
Tyre dimensions rear	-	-	-
Wheel size front	-	-	-
Wheel size rear	-	-	-
Brake dimensions front	320	345	345
Brake dimensions rear	315	338	338
Steering	-	-	-
Number of steering wheel turns	2,7	2,5	2,5
Turning diameter track/circumference [m]	11.7/-	11.7/-	11.7/-

Overall length [mm]	4786	4784	4784
Overall width without/including mirrors [mm]	1897/-	1897/-	1897/-
Overall height [mm]	1351	1340	1340
Wheelbase [mm]	2811	2812	2812
Front wheel track [mm]	1611	1610	1610
Rear wheel track [mm]	1637	1604	1604
Forward overhang [mm]	-	-	-
Rear overhang [mm]	-	-	-
Clearance [mm]	-	-	-
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	930	930	930
Headroom rear [mm]	868	870	870
Front elbow/shoulder width [mm]	-/1397	-/1397	-/1397
Rear elbow/shoulder width [mm]	-/1280	-/1282	-/1282
Legroom front knees/total [mm]	-/1082	-/1082	-/1082
Legroom rear knees/total [mm]	-/759	-/761	-/761

Convertible

	2.0L TURBO	6.2L	6.2L
Date of sale	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	8/16	8/16
Engine displacement [cm³]	1998	6162	6162
Maximum output / speed [kW/min-1]	202/5500	333/5700	333/5700
Maximum torque [Nm/min-1]	400/3000-4000	617/4600	617/4600
Bore and stroke [mm x mm]	86,0 x 86,0	103.25 x 92,0	103.25 x 92,0
Compression ratio	9.5:1	11.5:1	11.5:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection turbo-supercharged variable valve timing	direct injection	direct injection

Drive axle	Rear	Rear	Rear
Gearbox	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	eight-speed automatic gearbox	-	eight-speed automatic gearbox

Top speed [km/h]	240	250	250
Acceleration 0–100 km/h [s]	6.1	4.8	4.6
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	10.3	18.3	17.5
Out of town [l]	6.7	9.0	7.9
Combined [l]	8.1	12.5	11.5
CO2 emissions [g/km]	184	285	260

Emission standard	EU6b	EU6b	EU6b
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1734	1844	1844
Overall weight [kg]	2100	2200	2200
Maximum trailer weight unbraked/braked [kg]	-	-	-
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	208 [72 folded roof]	208 [72 folded roof]	208 [72 folded roof]
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	2	2	2
Number of seats	4	4	4
Fuel tank volume [l]	72	72	72
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink
Tyre dimensions front	-	-	-
Tyre dimensions rear	-	-	-
Wheel size front	-	-	-
Wheel size rear	-	-	-
Brake dimensions front	320	345	345
Brake dimensions rear	315	338	338
Steering	-	-	-
Number of steering wheel turns	2,7	2,5	2,5
Turning diameter track/circumference [m]	11.7/-	11.7/-	11.7/-

Overall length [mm]	4786	4784	4784
Overall width without/including mirrors [mm]	1897/-	1897/-	1897/-
Overall height [mm]	1351	1340	1340
Wheelbase [mm]	2811	2812	2812
Front wheel track [mm]	1611	1610	1610
Rear wheel track [mm]	1637	1604	1604
Forward overhang [mm]	-	-	-
Rear overhang [mm]	-	-	-
Clearance [mm]	-	-	-
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	-	-	-
Headroom rear [mm]	-	-	-
Front elbow/shoulder width [mm]	-	-	-
Rear elbow/shoulder width [mm]	-	-	-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

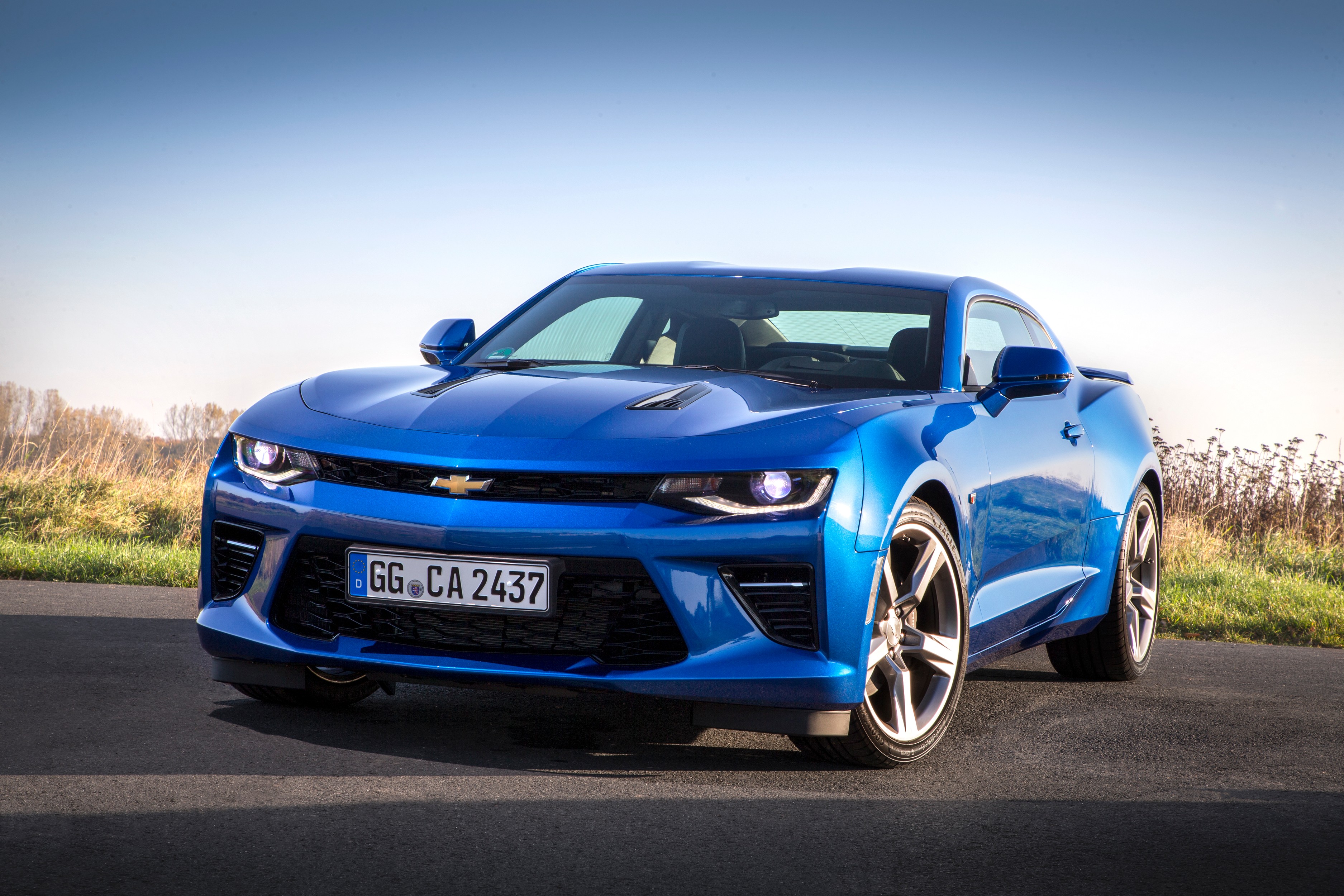

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
