Chevrolet Captiva

Date of manufacture

2006 – 2010 (SUV)

Platform

GM Theta platform

Manufacturing locations

Incheon, South Korea

Designer

Car body style

SUV

Date of manufacture

2006 – 2010

Internal designation

C100

Engine size

Petrol

2.4 16V

3.2 V6

Diesel

2.0 VCDI

Euro NCAP

Technical data

SUV

	2.4 16V	2.4 16V	2.4 16V	3.2 V6	2.0 VCDI	2.0 VCDI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	6/24	4/16	4/16
Engine displacement [cm³]	2405	2405	2405	3195	1991	1991
Maximum output / speed [kW/min-1]	100/5000	100/5000	100/5000	169/6600	93/4000	93/4000
Maximum torque [Nm/min-1]	220/2200	220/2200	220/2200	297/3200	295/2000	295/2000
Bore and stroke [mm x mm]	87,5 x 100,0	87,5 x 100,0	87,5 x 100,0	89,0 x 85,6	83,0 x 92,0	83,0 x 92,0
Compression ratio	9,6:1	9,6:1	9,6:1	10,3:1	17,5:1	17,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	-	-	-	direct injection turbo-supercharged particulate filter	direct injection turbo-supercharged particulate filter

Drive axle	Front	4x4	4x4	4x4	Front	4x4
Gearbox	5 gear manual	5 gear manual	5 gear automatic	5 gear automatic	5 gear manual	5 gear manual
Drive specifications	all-wheel drive AWD	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	automatic gearbox	-	all-wheel drive AWD

Top speed [km/h]	185	183	178	204	181	179
Acceleration 0–100 km/h [s]	11.0	11.5	12.5	8.8	11.7	12.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.6	12.6	14.6	16.4	8.7	8.7
Out of town [l]	6.8	7.3	8.0	8.6	6.3	6.3
Combined [l]	8.9	9.3	10.4	11.5	7.2	7.2
CO2 emissions [g/km]	217	222	249	264	190	190

Emission standard	EU4	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1730	1835	1845	1880-1965	1845	1845
Overall weight [kg]	2180	2395	2405	2440	2505	2505
Maximum trailer weight unbraked/braked [kg]	750/1500	750/1500	750/1500	750/2000	750/2000	750/2000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	465	465	465	465	465	465
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1565	-/1565	-/1565	-/1565	-/1565	-/1565
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	7	5-7	7	5	5
Fuel tank volume [l]	65	65	65	65	65	65
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.38	0.38	0.38	0.38	0.38	0.38
Front suspension	-	-	-	-	-	-
Rear suspension	-	-	-	-	-	-
Tyre dimensions front	235/60 R17	235/60 R17	235/60 R17	235/55 R18	215/70 R16	215/70 R16
Tyre dimensions rear	235/60 R17	235/60 R17	235/60 R17	235/55 R18	215/70 R16	215/70 R16
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 18	6.5J x 16	6.5J x 16
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 18	6.5J x 16	6.5J x 16
Brake dimensions front	296	296	296	296	296	296
Brake dimensions rear	303	303	303	303	303	303
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.5/12.1	11.5/12.1	11.5/12.1	11.5/12.1	11.5/12.1	11.5/12.1

Overall length [mm]	4635	4635	4635	4635	4635	4635
Overall width without/including mirrors [mm]	1849/-	1849/-	1849/-	1849/-	1849/-	1849/-
Overall height [mm]	1720	1720	1720	1720	1720	1720
Wheelbase [mm]	2707	2707	2707	2707	2707	2707
Front wheel track [mm]	1562	1562	1562	1562	1562	1562
Rear wheel track [mm]	1572	1572	1572	1572	1572	1572
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1025	1025	1025	1025	1025	1025
Headroom rear [mm]	1020	1020	1020	1020	1020	1020
Front elbow/shoulder width [mm]	-/1455	-/1455	-/1455	-/1455	-/1455	-/1455
Rear elbow/shoulder width [mm]	-/1455	-/1455	-/1455	-/1455	-/1455	-/1455
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 VCDI	2.0 VCDI
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1991	1991
Maximum output / speed [kW/min-1]	110/4000	110/4000
Maximum torque [Nm/min-1]	320/2000	320/2000
Bore and stroke [mm x mm]	83,0 x 92,0	83,0 x 92,0
Compression ratio	17,5:1	17,5:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection turbo-supercharged particulate filter	direct injection turbo-supercharged particulate filter

Drive axle	4x4	4x4
Gearbox	5 gear manual	5 gear automatic
Drive specifications	all-wheel drive AWD	all-wheel drive AWD automatic gearbox

Top speed [km/h]	182	180
Acceleration 0–100 km/h [s]	10.9	12.2
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	8.9	10.7
Out of town [l]	6.6	7.3
Combined [l]	7.4	8.6
CO2 emissions [g/km]	197	233

Emission standard	EU4	EU4
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1845-1895	1865-1910
Overall weight [kg]	2505	2505
Maximum trailer weight unbraked/braked [kg]	750/2000	750/2000
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	100/-	100/-

Boot volume [l]	465	465
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1565	-/1565
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5-7	5-7
Fuel tank volume [l]	65	65
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.38	0.38
Front suspension	-	-
Rear suspension	-	-
Tyre dimensions front	235/60 R17	235/60 R17
Tyre dimensions rear	235/60 R17	235/60 R17
Wheel size front	7.0J x 17	7.0J x 17
Wheel size rear	7.0J x 17	7.0J x 17
Brake dimensions front	296	296
Brake dimensions rear	303	303
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	11.5/12.1	11.5/12.1

Overall length [mm]	4635	4635
Overall width without/including mirrors [mm]	1849/-	1849/-
Overall height [mm]	1720	1720
Wheelbase [mm]	2707	2707
Front wheel track [mm]	1562	1562
Rear wheel track [mm]	1572	1572
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1025	1025
Headroom rear [mm]	1020	1020
Front elbow/shoulder width [mm]	-/1455	-/1455
Rear elbow/shoulder width [mm]	-/1455	-/1455
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

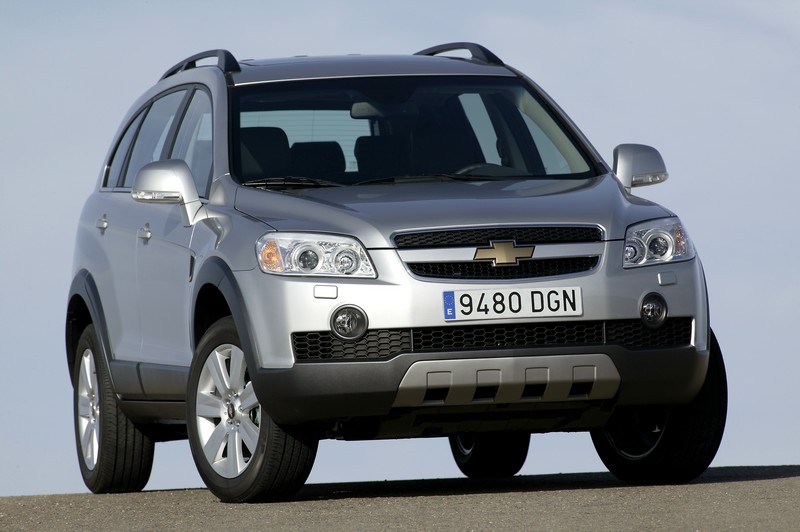

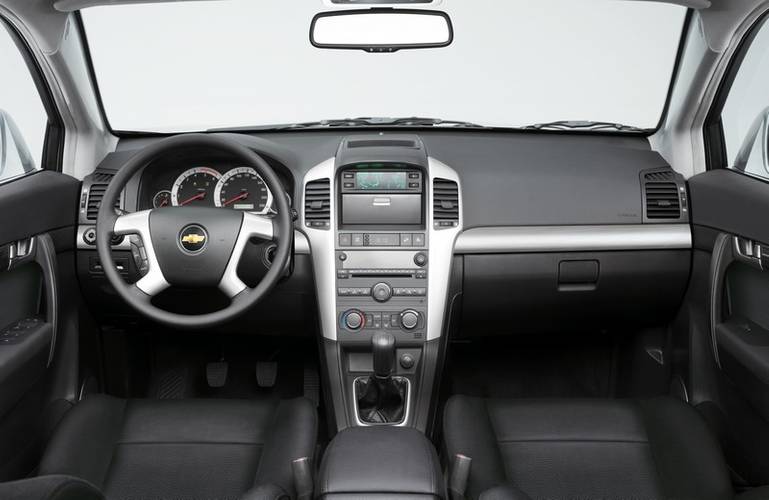

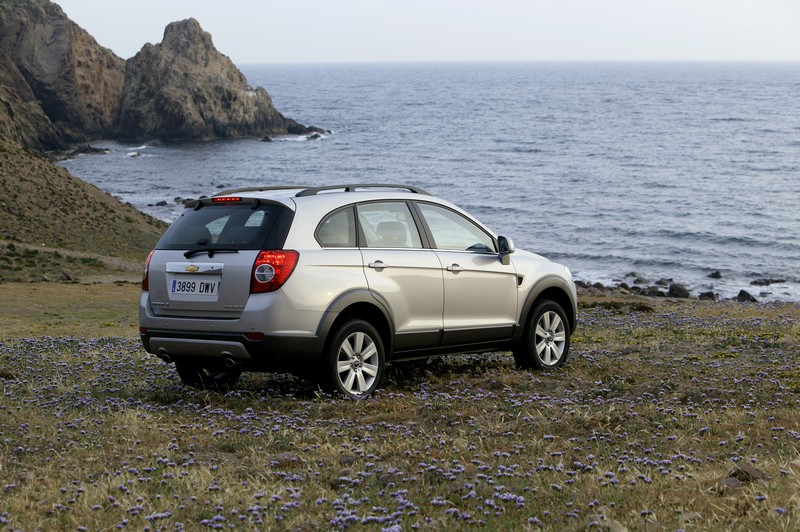

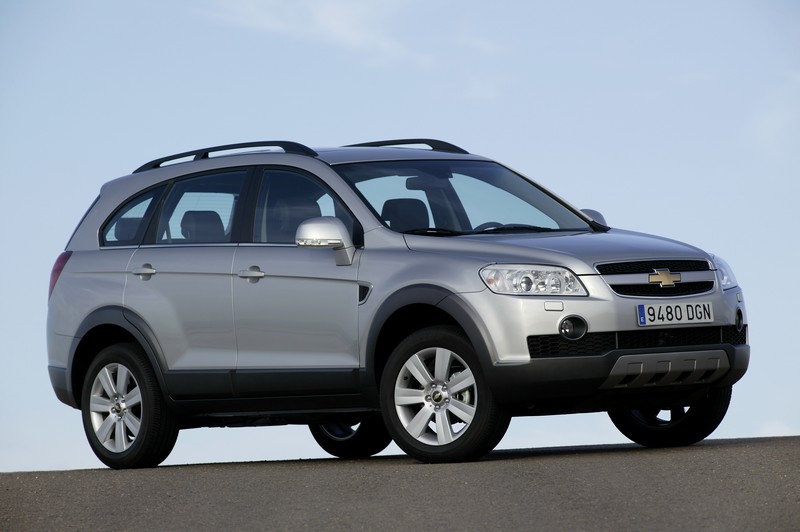

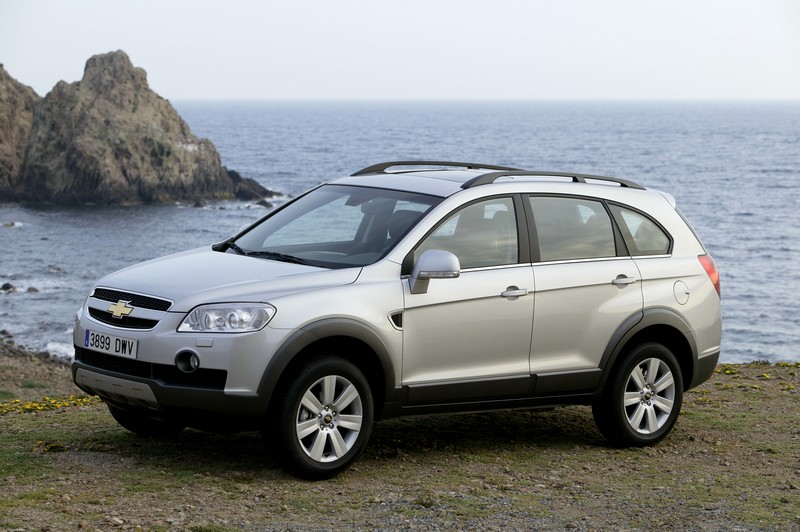

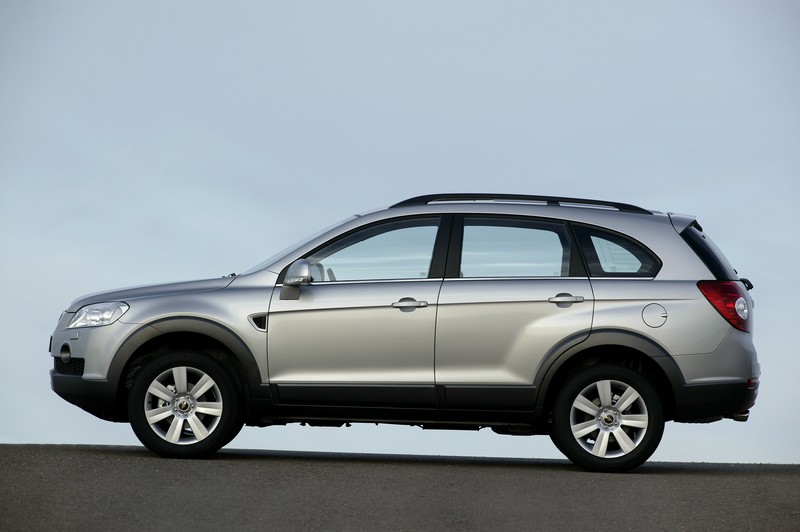

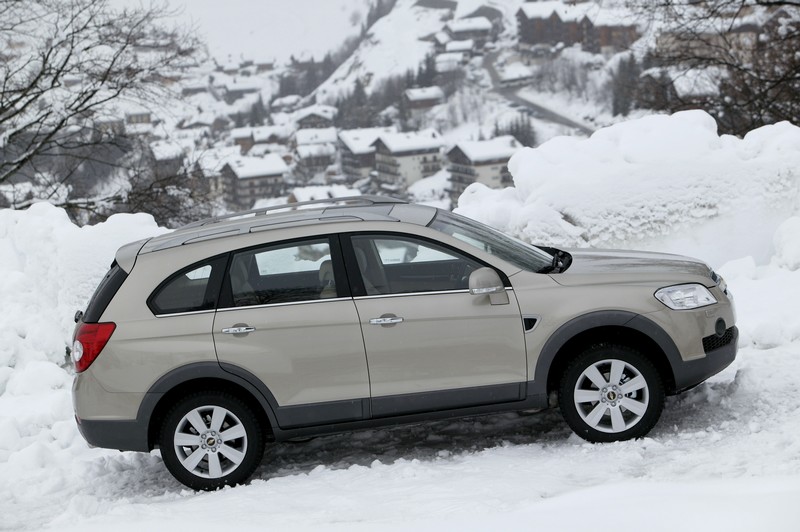

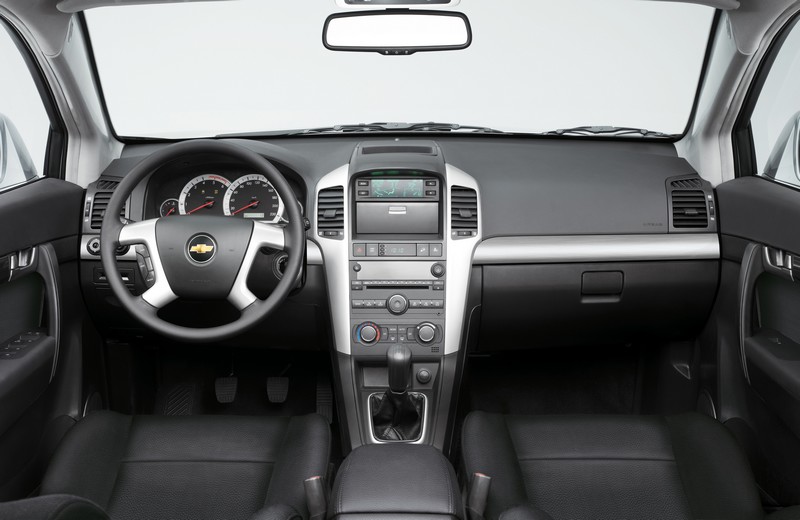

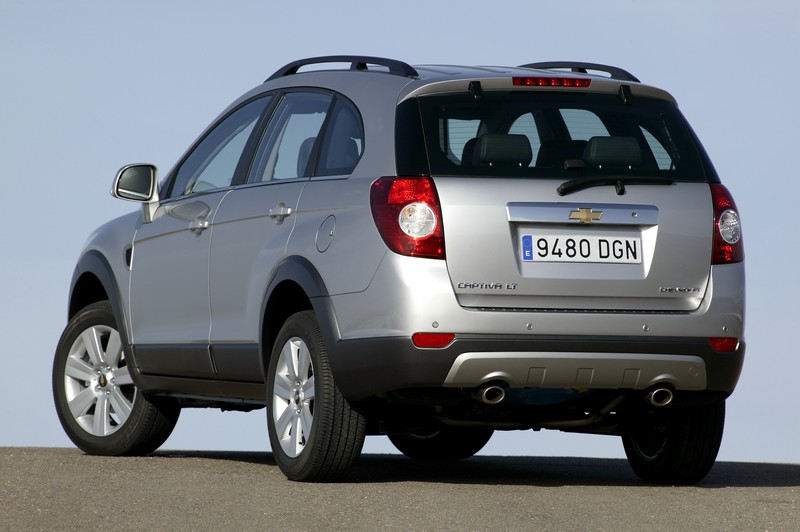

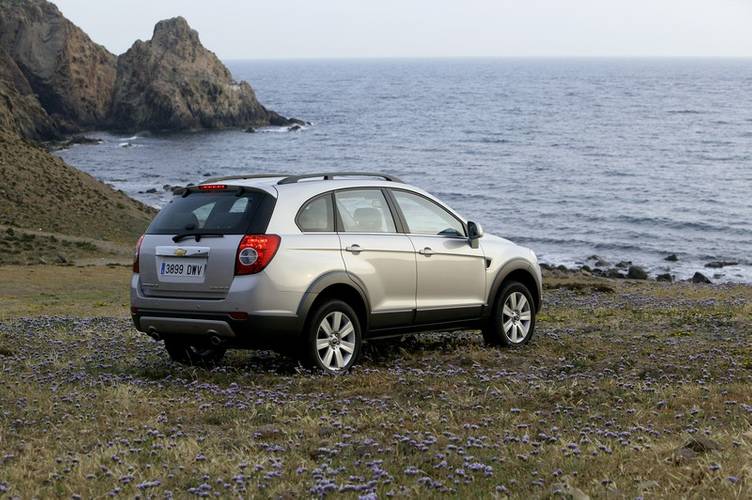

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
