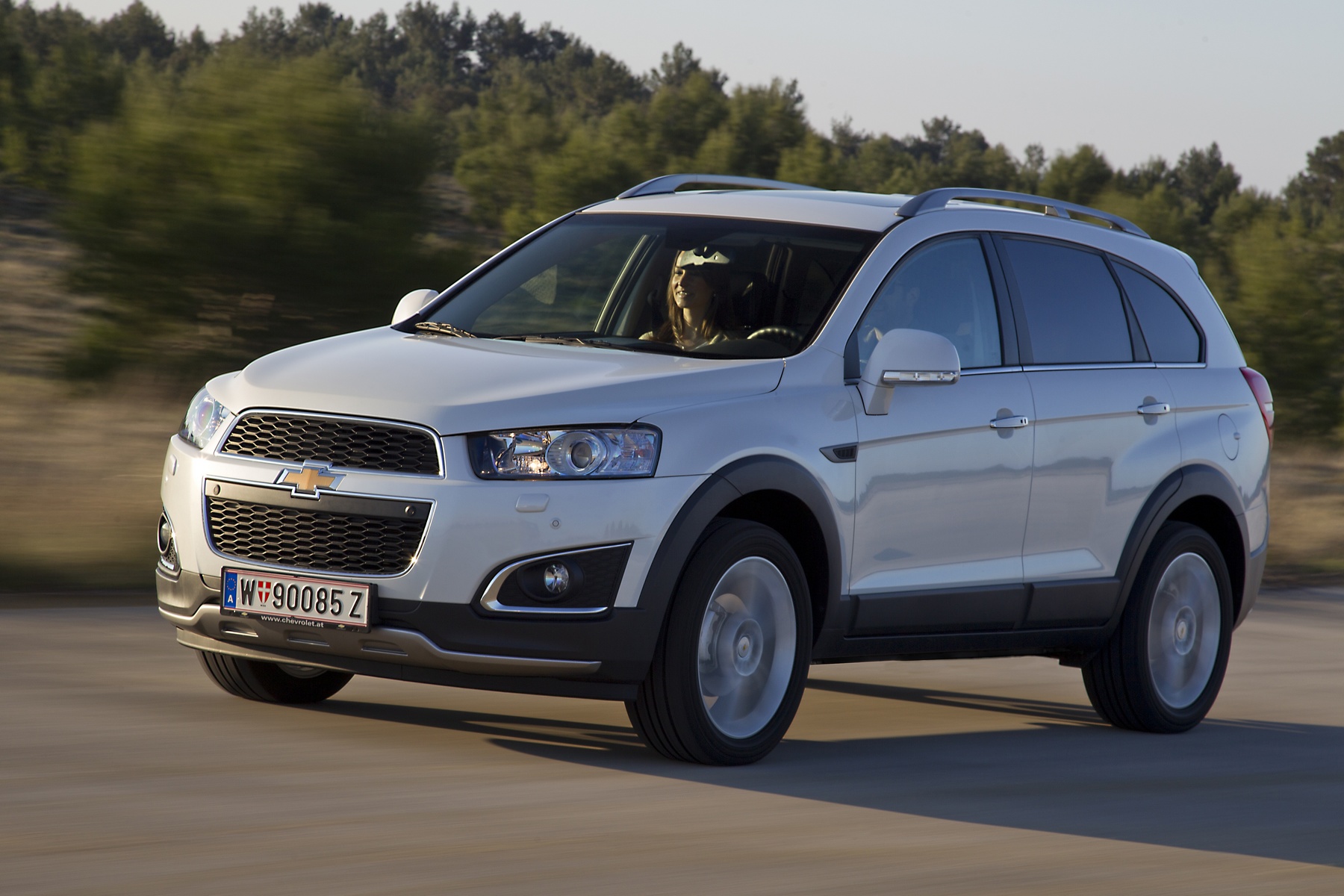

Chevrolet Captiva

Date of manufacture

2011 – 2014 (SUV)

Platform

GM Theta platform

Manufacturing locations

Incheon, South Korea

Designer

Car body style

SUV

after upgrade (facelift)

Date of manufacture

2011 – 2014

Internal designation

C140

Engine size

Petrol

2.4 DOHC

3.0 DOHC V6

Diesel

2.2 D

Euro NCAP

Technical data

SUV

	2.4 DOHC	2.4 DOHC	2.4 DOHC	3.0 DOHC V6	2.2 D	2.2 D
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	6/24	4/16	4/16
Engine displacement [cm³]	2384	2384	2384	2997	2231	2231
Maximum output / speed [kW/min-1]	123/5600	123/5600	123/5600	190/6900	120/3800	120/3800
Maximum torque [Nm/min-1]	230/4600	230/4600	230/4600	288/5800	350/2000	350/2000
Bore and stroke [mm x mm]	88,0 x 98,0	88,0 x 98,0	88,0 x 98,0	89,0 x 80,3	86,0 x 96,0	86,0 x 96,0
Compression ratio	10,4:1	10,4:1	10,4:1	11,7:1	16,3:1	16,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing CVVT	variable valve timing CVVT	variable valve timing CVVT	direct injection variable valve timing CVVT	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	4x4	4x4	4x4	Front	4x4
Gearbox	6 gear manual	6 gear manual	6 gear automatic	6 gear automatic	6 gear manual	6 gear manual
Drive specifications	-	all-wheel drive AWD automatic gearbox	all-wheel drive AWD automatic gearbox	all-wheel drive AWD automatic gearbox	-	all-wheel drive AWD

Top speed [km/h]	190	186	175	198	189	188
Acceleration 0–100 km/h [s]	10.5	11.1	11.1	8.6	9.9	9.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.7	12.2	12.8	15.5	8.4	8.5
Out of town [l]	7.4	7.6	7.4	8.0	5.3	5.5
Combined [l]	8.9	9.3	9.3	10.7	6.4	6.6
CO2 emissions [g/km]	210	219	217	252	170	174

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1843	1943	1968	1968	1928-1953	2003-2028
Overall weight [kg]	2229	2427	2452	2452	2505	2505-2513
Maximum trailer weight unbraked/braked [kg]	750/1500	750/1500	750/1500	750/1700	750/2000	750/2000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	477	477	477	477	477	477
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1577	-/1577	-/1577	-/1577	-/1577	-/1577
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	7	7	7	5-7	5-7
Fuel tank volume [l]	65	65	65	65	65	65
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.38	0.38	0.38	0.38	0.38	0.38
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	four-link	four-link	four-link	four-link	four-link	four-link
Tyre dimensions front	235/60 R17	235/60 R17	235/55 R18	235/50 R19	235/60 R17	235/60 R17
Tyre dimensions rear	235/60 R17	235/60 R17	235/55 R18	235/50 R19	235/60 R17	235/60 R17
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 18	7.0J x 19	7.0J x 17	7.0J x 17
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 18	7.0J x 19	7.0J x 17	7.0J x 17
Brake dimensions front	296	296	296	296	296	296
Brake dimensions rear	303	303	303	303	303	303
Steering	Rack & pinion with variable effect hydraulic power steering	Rack & pinion with variable effect hydraulic power steering	Rack & pinion with variable effect hydraulic power steering	Rack & pinion with variable effect hydraulic power steering	Rack & pinion with variable effect hydraulic power steering	Rack & pinion with variable effect hydraulic power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.87/12.27	11.87/12.27	11.87/12.27	11.87/12.27	11.87/12.27	11.87/12.27

Overall length [mm]	4673	4673	4673	4673	4673	4673
Overall width without/including mirrors [mm]	1849/-	1849/-	1849/-	1849/-	1849/-	1849/-
Overall height [mm]	1727	1727	1727	1727	1727	1727
Wheelbase [mm]	2707	2707	2707	2707	2707	2707
Front wheel track [mm]	1569	1569	1569	1569	1569	1569
Rear wheel track [mm]	1576	1576	1576	1576	1576	1576
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	171	171	175	178	171	171
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	19.4	19.4	19.4	19.4	19.4	19.4
Approach angle rear [°]	19.5	19.5	19.5	19.5	19.5	19.5
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	1017	1017	1017	1017	1017	1017
Front elbow/shoulder width [mm]	-/1455	-/1455	-/1455	-/1455	-/1455	-/1455
Rear elbow/shoulder width [mm]	-/1455	-/1455	-/1455	-/1455	-/1455	-/1455
Legroom front knees/total [mm]	-/1036	-/1036	-/1036	-/1036	-/1036	-/1036
Legroom rear knees/total [mm]	-/946	-/946	-/946	-/946	-/946	-/946

	2.2 D	2.2 D
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	2231	2231
Maximum output / speed [kW/min-1]	135/3800	135/3800
Maximum torque [Nm/min-1]	400/2000	400/2000
Bore and stroke [mm x mm]	86,0 x 96,0	86,0 x 96,0
Compression ratio	16,3:1	16,3:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	4x4	4x4
Gearbox	6 gear manual	6 gear automatic
Drive specifications	all-wheel drive AWD	all-wheel drive AWD automatic gearbox

Top speed [km/h]	200	191
Acceleration 0–100 km/h [s]	9.6	10.1
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	8.5	10.0
Out of town [l]	5.5	6.4
Combined [l]	6.6	7.7
CO2 emissions [g/km]	174	203

Emission standard	EU5	EU5
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	2028	2053
Overall weight [kg]	2513	2538
Maximum trailer weight unbraked/braked [kg]	750/2000	750/1700
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	100/-	100/-

Boot volume [l]	477	477
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1577	-/1577
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	7	7
Fuel tank volume [l]	65	65
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.38	0.38
Front suspension	MacPherson	MacPherson
Rear suspension	four-link	four-link
Tyre dimensions front	235/60 R17	235/60 R17
Tyre dimensions rear	235/60 R17	235/60 R17
Wheel size front	7.0J x 17	7.0J x 17
Wheel size rear	7.0J x 17	7.0J x 17
Brake dimensions front	296	296
Brake dimensions rear	303	303
Steering	Rack & pinion with variable effect hydraulic power steering	Rack & pinion with variable effect hydraulic power steering
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	11.87/12.27	11.87/12.27

Overall length [mm]	4673	4673
Overall width without/including mirrors [mm]	1849/-	1849/-
Overall height [mm]	1727	1727
Wheelbase [mm]	2707	2707
Front wheel track [mm]	1569	1569
Rear wheel track [mm]	1576	1576
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	171	171
Wading depth [mm]	-	-
Approach angle front [°]	19.4	19.4
Approach angle rear [°]	19.5	19.5
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1026	1026
Headroom rear [mm]	1017	1017
Front elbow/shoulder width [mm]	-/1455	-/1455
Rear elbow/shoulder width [mm]	-/1455	-/1455
Legroom front knees/total [mm]	-/1036	-/1036
Legroom rear knees/total [mm]	-/946	-/946

Gallery

Chevrolet Captiva C140 Facelift 2010 interior
