Chevrolet Corvette

Date of manufacture

9/2013 – 2019 (Coupé)

9/2013 – 2019 (Roadster)

Platform

Y-body

Manufacturing locations

Bowling Green, Kentucky, USA

Designer

Ed Welburn

Kirk Bennion

Tom Peters

Car body style

Coupé

Date of manufacture

9/2013 – 2019

Internal designation

Engine size

6.2 V8 LT1 Stingray

6.2 V8 LT4 Z06

6.2 V8 LT4 Z07 Package

Roadster

Date of manufacture

9/2013 – 2019

Internal designation

Engine size

6.2 V8 LT1 Stingray

6.2 V8 LT4 Z06

Technical data

Coupé

	6.2 V8 LT1 Stingray	6.2 V8 LT4 Z06	6.2 V8 LT4 Z06	6.2 V8 LT4 Z07 Package	6.2 V8 LT4 Z07 Package
Date of sale	-	from 2015 to	from 2015 to	from 2015 to	from 2015 to
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	8/16	8/16	8/16	8/16	8/16
Engine displacement [cm³]	6162	6162	6162	6162	6162
Maximum output / speed [kW/min-1]	343/6000	485/6400	485/6400	485/6400	485/6400
Maximum torque [Nm/min-1]	630/4600	881/3600	881/3600	881/3600	881/3600
Bore and stroke [mm x mm]	103,25 x 92,0	103,25 x 92,0	103,25 x 92,0	103,25 x 92,0	103,25 x 92,0
Compression ratio	11,5:1	10.0:1	10.0:1	10.0:1	10.0:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	direct injection variable valve timing Active Fuel Management (automatic cylinder shutdown at partial load)	direct injection supercharging by mechanical compressor variable valve timing Active Fuel Management (automatic cylinder shutdown at partial load)	direct injection supercharging by mechanical compressor variable valve timing Active Fuel Management (automatic cylinder shutdown at partial load)	direct injection supercharging by mechanical compressor variable valve timing Active Fuel Management (automatic cylinder shutdown at partial load)	direct injection supercharging by mechanical compressor variable valve timing Active Fuel Management (automatic cylinder shutdown at partial load)

Drive axle	Rear	Rear	Rear	Rear	Rear
Gearbox	7 gear manual	7 gear manual	8 gear automatic	7 gear manual	8 gear automatic
Drive specifications	electronic self-locking differential manual gearbox with Active Rev Matching	manual gearbox with Active Rev Matching	eight-speed automatic gearbox	manual gearbox with Active Rev Matching	eight-speed automatic gearbox

Top speed [km/h]	290	300	315	300	300
Acceleration 0–100 km/h [s]	4.2	3.8	3.7	3.8	3.4
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	19.1	18.6	22.0	18.6	22.0
Out of town [l]	7.8	9.3	9.5	9.3	9.5
Combined [l]	12.0	12.7	14.1	12.7	14.1
CO2 emissions [g/km]	279	291	322	291	322

Emission standard	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1539	1659	1659	1659	1659
Overall weight [kg]	1840	1734	1734	1734	1734
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-

Boot volume [l]	287	287	287	287	287
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	2	2	2	2	2
Number of seats	2	2	2	2	2
Fuel tank volume [l]	70.4	70.4	70.4	70.4	70.4
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	245/35 ZR19	285/30 ZR19	285/30 ZR19	285/30 ZR19	285/30 ZR19
Tyre dimensions rear	285/30 ZR20	335/25 ZR20	335/25 ZR20	335/25 ZR20	335/25 ZR20
Wheel size front	8.5J x 19	-	-	-	-
Wheel size rear	10.0J x 20	-	-	-	-
Brake dimensions front	345 x 30	371 × 33	371 × 33	394 x 36	394 x 36
Brake dimensions rear	338 x 26	365 × 25	365 × 25	388 x 33	388 x 33
Steering	Electric variable power steering	Electric variable power steering	Electric variable power steering	Electric variable power steering	Electric variable power steering
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	11.5/-	11.5/-	11.5/-	11.5/-	11.5/-

Overall length [mm]	4493	4514	4514	4514	4514
Overall width without/including mirrors [mm]	1877/-	1965/-	1965/-	1965/-	1965/-
Overall height [mm]	1239	1239	1239	1239	1239
Wheelbase [mm]	2710	2710	2710	2710	2710
Front wheel track [mm]	1600	1633	1633	1633	1633
Rear wheel track [mm]	1568	1607	1607	1617	1617
Forward overhang [mm]	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-
Clearance [mm]	-	127	127	127	127
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	18.5	18.5	18.5	18.5
Approach angle rear [°]	-	18.5	18.5	18.5	18.5
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	962	-	-	-	-
Headroom rear [mm]	-	-	-	-	-
Front elbow/shoulder width [mm]	1371/1397	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Roadster

	6.2 V8 LT1 Stingray	6.2 V8 LT4 Z06	6.2 V8 LT4 Z06
Date of sale	-	from 2015 to	from 2015 to
Engine type	Petrol	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	8/16	8/16	8/16
Engine displacement [cm³]	6162	6162	6162
Maximum output / speed [kW/min-1]	343/6000	485/6400	485/6400
Maximum torque [Nm/min-1]	630/4600	881/3600	881/3600
Bore and stroke [mm x mm]	103,25 x 92,0	103,25 x 92,0	103,25 x 92,0
Compression ratio	11,5:1	10.0:1	10.0:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection variable valve timing Active Fuel Management (automatic cylinder shutdown at partial load)	direct injection supercharging by mechanical compressor variable valve timing Active Fuel Management (automatic cylinder shutdown at partial load)	direct injection supercharging by mechanical compressor variable valve timing Active Fuel Management (automatic cylinder shutdown at partial load)

Drive axle	Rear	Rear	Rear
Gearbox	7 gear manual	7 gear manual	8 gear automatic
Drive specifications	electronic self-locking differential manual gearbox with Active Rev Matching	manual gearbox with Active Rev Matching	eight-speed automatic gearbox

Top speed [km/h]	282	300	315
Acceleration 0–100 km/h [s]	4.2	3.8	3.7
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	19.1	18.6	22.0
Out of town [l]	8.1	9.3	9.5
Combined [l]	12.2	12.7	14.1
CO2 emissions [g/km]	283	291	322

Emission standard	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1589	1659	1659
Overall weight [kg]	1840	1734	1734
Maximum trailer weight unbraked/braked [kg]	-	-	-
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	171-243	243 [171 folded roof]	243 [171 folded roof]
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	2	2	2
Number of seats	2	2	2
Fuel tank volume [l]	70.4	70.4	70.4
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone
Rear suspension	double wishbone	double wishbone	double wishbone
Tyre dimensions front	245/35 ZR19	285/30 ZR19	285/30 ZR19
Tyre dimensions rear	285/30 ZR20	335/25 ZR20	335/25 ZR20
Wheel size front	8.5J x 19	-	-
Wheel size rear	10.0J x 20	-	-
Brake dimensions front	345 x 30	371 × 33	371 × 33
Brake dimensions rear	338 x 26	365 × 25	365 × 25
Steering	Electric variable power steering	Electric variable power steering	Electric variable power steering
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	11.5/-	11.5/-	11.5/-

Overall length [mm]	4493	4514	4514
Overall width without/including mirrors [mm]	1877/-	1965/-	1965/-
Overall height [mm]	1243	1243	1243
Wheelbase [mm]	2710	2710	2710
Front wheel track [mm]	1600	1633	1633
Rear wheel track [mm]	1568	1607	1607
Forward overhang [mm]	-	-	-
Rear overhang [mm]	-	-	-
Clearance [mm]	-	127	127
Wading depth [mm]	-	-	-
Approach angle front [°]	-	18.5	18.5
Approach angle rear [°]	-	18.5	18.5
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	962	-	-
Headroom rear [mm]	-	-	-
Front elbow/shoulder width [mm]	1371/1397	-	-
Rear elbow/shoulder width [mm]	-	-	-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

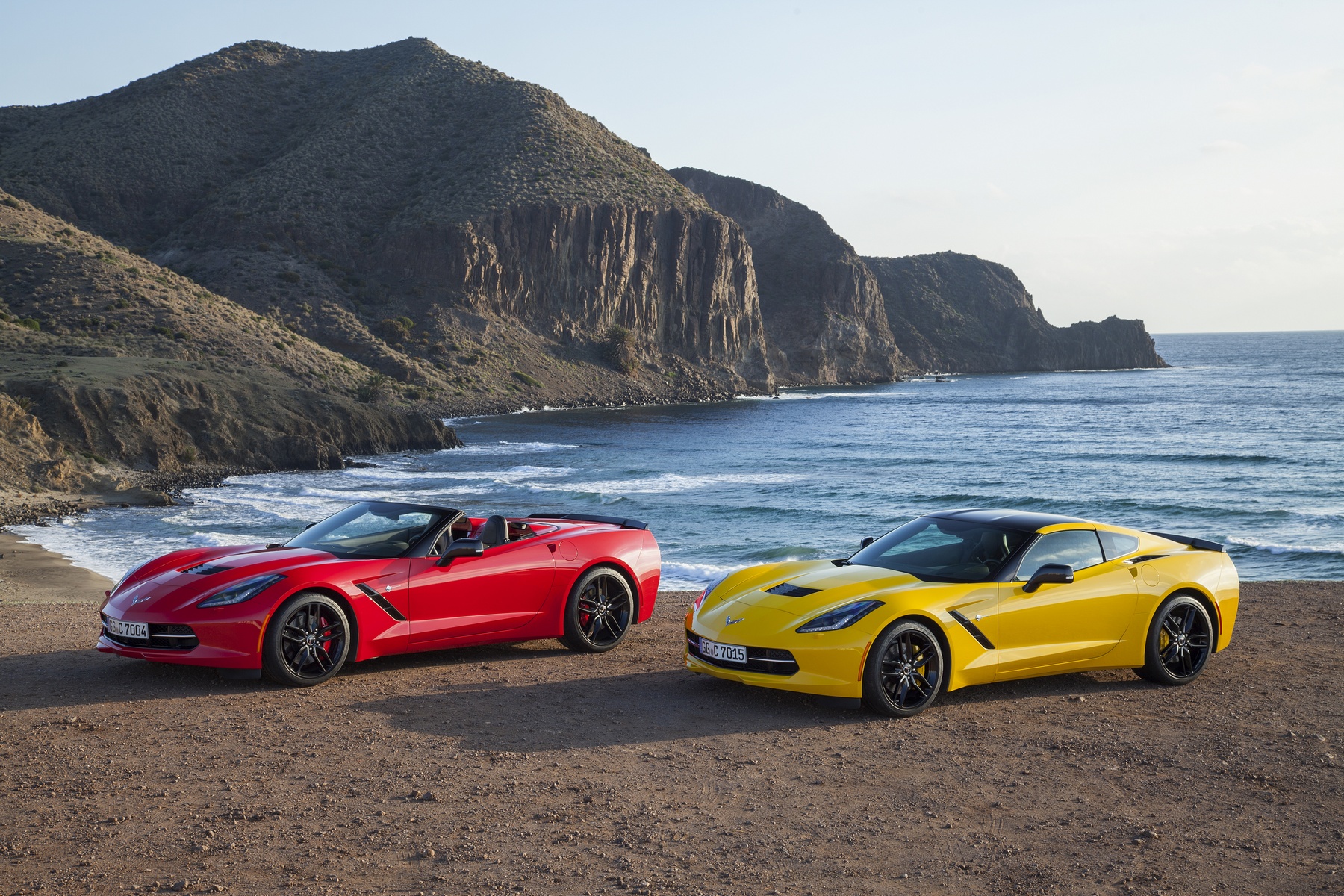

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
