Chevrolet Cruze
Date of manufacture
2013 – 2014 (Five-door hatchback)
2013 – 2014 (Sedan)

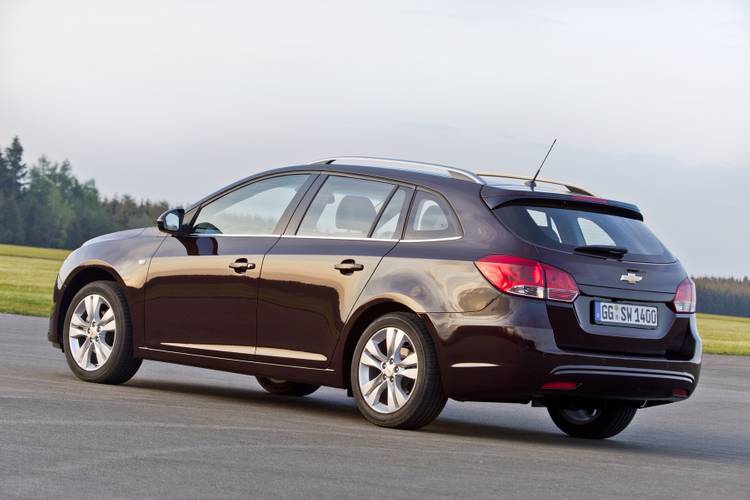

2012 – 2014 (Estate)
Platform
Delta II platform
Manufacturing locations
Gunsan, South Korea
Designer
David Lyon
Tags
C-segment
The Chevrolet Cruze is available in five body styles - hatchback, sedan and estate. The car was first produced in 2012 in South Korea on the Delta II platform. The engine range includes petrol and diesel engines with the highest power of 120 kW for the 2.0 D model. The top speed of this car reaches 209 km/h and the lowest fuel consumption of 3.7 l/100 km applies to the 1.7 D model with CO2 emissions of 99 g/km. The sedan has a boot capacity of 469 l, the hatchback 413 l and the estate 500 l. The Chevrolet Cruze successfully passed the EURONCAP safety tests in 2009 and received a rating of 5 out of 5.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2013 – 2014Internal designation
J300 Sedan
after upgrade (facelift)
Date of manufacture
2013 – 2014Internal designation
J300
Technical data
Five-door hatchback
| 1.6 | 1.6 | 1.4 Turbo | 1.4 Turbo | 1.8 | 1.8 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1362 | 1362 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 86/6200 | 91/6200 | 103/4900-6000 | 103/4900-6000 | 104/6200 | 104/6200 |
| Maximum torque [Nm/min-1] | 157/4000 | 155/4200 | 200/1850-4900 | 200/1850-4900 | 176/3800 | 176/3800 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 72,5 x 82,6 | 72,5 x 82,6 | 70,5 x 88,2 | 70,5 x 88,2 |
| Compression ratio | 11,0:1 | 11,0:1 | 9,5:1 | 9,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | 5 gear manual | 6 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 185 | 185 | 195 | 204 | 195 | 190 |
| Acceleration 0–100 km/h [s] | 12.8 | 12.8 | 9.3 | 10.5 | 11.3 | 11.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 9.0 | 7.5 | 8.6 | 8.7 | 10.1 |
| Out of town [l] | 5.3 | 5.3 | 4.8 | 5.1 | 5.1 | 5.4 |
| Combined [l] | 6.9 | 6.6 | 5.8 | 6.4 | 6.4 | 7.1 |
| CO2 emissions [g/km] | 157 | 155 | 134 | 149 | 151 | 166 |
| Emission standard | EU5b+ | EU5b+ | EU5b+ | EU5b+ | EU5b+ | EU5b+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1385-1480 | 1380 | 1394-1464 | 1425-1520 | 1390-1485 | 1420-1515 |
| Overall weight [kg] | 1828 | 1819 | 1837 | 1868 | 1833 | 1863 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 695/1200 | 695/1200 | 695/1200 | 695/1200 | 695/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 45/- | 45/- | 45/- | 45/- | 45/- | 45/- |
| Boot volume [l] | 413 | 413 | 413 | 413 | 413 | 413 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1254 | -/1254 | -/1254 | -/1254 | -/1254 | -/1254 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.352 | 0.352 | 0.352 | 0.352 | 0.352 | 0.352 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/50 R17 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/50 R17 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 276 | 276 | 276 | 276 | 276 | 276 |
| Brake dimensions rear | 268 | 268 | 268 | 268 | 268 | 268 |
| Steering | Hydraulic power steering | Hydraulic power steering | Electric power steering | Electric power steering | Hydraulic power steering | Hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
| Overall length [mm] | 4514 | 4514 | 4514 | 4514 | 4514 | 4514 |
| Overall width without/including mirrors [mm] | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 |
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
| Front elbow/shoulder width [mm] | -/1391 | -/1391 | -/1391 | -/1391 | -/1391 | -/1391 |
| Rear elbow/shoulder width [mm] | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 |
| Legroom front knees/total [mm] | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 |
| Legroom rear knees/total [mm] | -/917 | -/917 | -/917 | -/917 | -/917 | -/917 |
| 1.7 D | 1.7 D | 2.0 D | 2.0 D | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1686 | 1686 | 1998 | 1998 | ||
| Maximum output / speed [kW/min-1] | 81/4000 | 96/4000 | 120/3800 | 120/3800 | ||
| Maximum torque [Nm/min-1] | 280/1750-2500 | 300/2000-2500 | 360/1750-2750 | 360/1750-2750 | ||
| Bore and stroke [mm x mm] | 79,0 x 86,0 | 79,0 x 86,0 | 86,0 x 86,0 | 86,0 x 86,0 | ||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - | - | - |
| ||
| Top speed [km/h] | 180 | 200 | 200 | 200 | ||
| Acceleration 0–100 km/h [s] | 12.5 | 10.2 | 9.2 | 9.5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.7 | 5.5 | 6.8 | 8.3 | ||
| Out of town [l] | 3.5 | 3.9 | 4.3 | 5.0 | ||
| Combined [l] | 3.9 | 4.5 | 5.2 | 6.2 | ||
| CO2 emissions [g/km] | 104 | 117 | 138 | 164 | ||
| Emission standard | EU5b+ | EU5b+ | EU5b+ | EU5b+ | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1504-1599 | 1504-1599 | 1555-1650 | 1585-1680 | ||
| Overall weight [kg] | 1947 | 1947 | 1998 | 2028 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 750/1200 | 750/1200 | 750/1200 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 45/- | 45/- | 45/- | 45/- | ||
| Boot volume [l] | 413 | 413 | 413 | 413 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1254 | -/1254 | -/1254 | -/1254 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.352 | 0.352 | 0.352 | 0.352 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 205/60 R16 | 225/50 R17 | 205/60 R16 | 225/50 R17 | ||
| Tyre dimensions rear | 205/60 R16 | 225/50 R17 | 205/60 R16 | 225/50 R17 | ||
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 7.0J x 17 | ||
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 7.0J x 17 | ||
| Brake dimensions front | 300 | 300 | 300 | 300 | ||
| Brake dimensions rear | 292 | 292 | 292 | 292 | ||
| Steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | ||
| Overall length [mm] | 4514 | 4514 | 4514 | 4514 | ||
| Overall width without/including mirrors [mm] | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | ||
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | ||
| Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | ||
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | ||
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 145 | 145 | 145 | 145 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 999 | 999 | 999 | 999 | ||
| Headroom rear [mm] | 974 | 974 | 974 | 974 | ||
| Front elbow/shoulder width [mm] | -/1391 | -/1391 | -/1391 | -/1391 | ||
| Rear elbow/shoulder width [mm] | -/1370 | -/1370 | -/1370 | -/1370 | ||
| Legroom front knees/total [mm] | -/1074 | -/1074 | -/1074 | -/1074 | ||
| Legroom rear knees/total [mm] | -/917 | -/917 | -/917 | -/917 |
Sedan
| 1.6 | 1.6 | 1.4 Turbo | 1.4 Turbo | 1.8 | 1.8 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1362 | 1362 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 86/6200 | 91/6200 | 103/4900-6000 | 103/4900-6000 | 104/6200 | 104/6200 |
| Maximum torque [Nm/min-1] | 157/4000 | 155/4200 | 200/1850-4900 | 200/1850-4900 | 176/3800 | 176/3800 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 72,5 x 82,6 | 72,5 x 82,6 | 70,5 x 88,2 | 70,5 x 88,2 |
| Compression ratio | 11,0:1 | 11,0:1 | 9,5:1 | 9,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | 5 gear manual | 6 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 190 | 190 | 200 | 204 | 200 | 195 |
| Acceleration 0–100 km/h [s] | 12.8 | 12.8 | 9.3 | 10.4 | 11.3 | 11.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 | 9.0 | 7.5 | 8.6 | 8.7 | 10.1 |
| Out of town [l] | 5.3 | 5.3 | 4.7 | 5.0 | 5.1 | 5.4 |
| Combined [l] | 6.6 | 6.6 | 5.7 | 6.3 | 6.4 | 7.1 |
| CO2 emissions [g/km] | 155 | 155 | 132 | 147 | 151 | 166 |
| Emission standard | EU5b+ | EU5b+ | EU5b+ | EU5b+ | EU5b+ | EU5b+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1375 | 1375 | 1410-1505 | 1420-1515 | 1385-1480 | 1415-1510 |
| Overall weight [kg] | 1834 | 1834 | 1873 | 1883 | 1848 | 1878 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 695/1200 | 695/1200 | 695/1200 | 695/1200 | 695/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 45/- | 45/- | 45/- | 45/- | 45/- | 45/- |
| Boot volume [l] | 469 | 469 | 469 | 469 | 469 | 469 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.309 | 0.309 | 0.309 | 0.309 | 0.309 | 0.309 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/50 R17 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/50 R17 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 276 | 276 | 276 | 276 | 276 | 276 |
| Brake dimensions rear | 268 | 268 | 268 | 268 | 268 | 268 |
| Steering | Hydraulic power steering | Hydraulic power steering | Electric power steering | Electric power steering | Hydraulic power steering | Hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
| Overall length [mm] | 4603 | 4603 | 4603 | 4603 | 4603 | 4603 |
| Overall width without/including mirrors [mm] | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 |
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 963 | 963 | 963 | 963 | 963 | 963 |
| Front elbow/shoulder width [mm] | -/1391 | -/1391 | -/1391 | -/1391 | -/1391 | -/1391 |
| Rear elbow/shoulder width [mm] | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 |
| Legroom front knees/total [mm] | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 |
| Legroom rear knees/total [mm] | -/917 | -/917 | -/917 | -/917 | -/917 | -/917 |
| 1.7 D | 1.7 D | 2.0 D | 2.0 D | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1686 | 1686 | 1998 | 1998 | ||
| Maximum output / speed [kW/min-1] | 81/4000 | 96/4000 | 120/3800 | 120/3800 | ||
| Maximum torque [Nm/min-1] | 280/1750-2500 | 300/2000-2500 | 360/1750-2750 | 360/1750-2750 | ||
| Bore and stroke [mm x mm] | 79,0 x 86,0 | 79,0 x 86,0 | 86,0 x 86,0 | 86,0 x 86,0 | ||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - | - | - |
| ||
| Top speed [km/h] | 189 | 200 | 205 | 209 | ||
| Acceleration 0–100 km/h [s] | 12.2 | 10.0 | 8.5 | 9.5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.4 | 5.5 | 6.8 | 8.3 | ||
| Out of town [l] | 3.4 | 3.9 | 4.3 | 5.0 | ||
| Combined [l] | 3.7 | 4.5 | 5.2 | 6.2 | ||
| CO2 emissions [g/km] | 99 | 117 | 138 | 164 | ||
| Emission standard | EU5b+ | EU5b+ | EU5b+ | EU5b+ | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1500-1595 | 1500-1595 | 1535-1630 | 1565-1660 | ||
| Overall weight [kg] | 1963 | 1963 | 1998 | 2028 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 750/1200 | 750/1200 | 750/1200 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 45/- | 45/- | 45/- | 45/- | ||
| Boot volume [l] | 469 | 469 | 469 | 469 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.309 | 0.309 | 0.309 | 0.309 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 205/60 R16 | 225/50 R17 | 205/60 R16 | 225/50 R17 | ||
| Tyre dimensions rear | 205/60 R16 | 225/50 R17 | 205/60 R16 | 225/50 R17 | ||
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 7.0J x 17 | ||
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 7.0J x 17 | ||
| Brake dimensions front | 300 | 300 | 300 | 300 | ||
| Brake dimensions rear | 292 | 292 | 292 | 292 | ||
| Steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | ||
| Overall length [mm] | 4603 | 4603 | 4603 | 4603 | ||
| Overall width without/including mirrors [mm] | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | ||
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | ||
| Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | ||
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | ||
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 145 | 145 | 145 | 145 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 999 | 999 | 999 | 999 | ||
| Headroom rear [mm] | 963 | 963 | 963 | 963 | ||
| Front elbow/shoulder width [mm] | -/1391 | -/1391 | -/1391 | -/1391 | ||
| Rear elbow/shoulder width [mm] | -/1370 | -/1370 | -/1370 | -/1370 | ||
| Legroom front knees/total [mm] | -/1074 | -/1074 | -/1074 | -/1074 | ||
| Legroom rear knees/total [mm] | -/917 | -/917 | -/917 | -/917 |
Estate (SW)
| 1.6 | 1.6 | 1.4 Turbo | 1.4 Turbo | 1.8 | 1.8 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1362 | 1362 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 86/6200 | 91/6200 | 103/4900-6000 | 103/4900-6000 | 104/6200 | 104/6200 |
| Maximum torque [Nm/min-1] | 157/4000 | 155/4200 | 200/1850-4900 | 200/1850-4900 | 176/3800 | 176/3800 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 72,5 x 82,6 | 72,5 x 82,6 | 70,5 x 88,2 | 70,5 x 88,2 |
| Compression ratio | 11,0:1 | 11,0:1 | 9,5:1 | 9,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | 5 gear manual | 6 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 191 | 191 | 200 | 202 | 200 | 192 |
| Acceleration 0–100 km/h [s] | 12.8 | 12.6 | 9.5 | 10.8 | 11.5 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 | 8.7 | 7.5 | 8.6 | 9.2 | 10.4 |
| Out of town [l] | 5.1 | 5.2 | 4.8 | 5.1 | 5.3 | 5.6 |
| Combined [l] | 6.6 | 6.4 | 5.8 | 6.4 | 6.7 | 7.2 |
| CO2 emissions [g/km] | 151 | 151 | 136 | 149 | 156 | 166 |
| Emission standard | EU5b+ | EU5b+ | EU5b+ | EU5b+ | EU5b+ | EU5b+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1435-1505 | 1435 | 1480 | 1490-1560 | 1445-1515 | 1475-1545 |
| Overall weight [kg] | 1895 | 1895 | 1940 | 1950 | 1905 | 1935 |
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 750/1200 | 750/1200 | 750/1200 | 750/1200 | 750/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1478 | -/1478 | -/1478 | -/1478 | -/1478 | -/1478 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.343 | 0.343 | 0.343 | 0.343 | 0.343 | 0.343 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 276 | 276 | 276 | 276 | 276 | 276 |
| Brake dimensions rear | 268 | 268 | 268 | 268 | 268 | 268 |
| Steering | Hydraulic power steering | Hydraulic power steering | Electric power steering | Electric power steering | Hydraulic power steering | Hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
| Overall length [mm] | 4681 | 4681 | 4681 | 4681 | 4681 | 4681 |
| Overall width without/including mirrors [mm] | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Headroom rear [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Front elbow/shoulder width [mm] | -/1391 | -/1391 | -/1391 | -/1391 | -/1391 | -/1391 |
| Rear elbow/shoulder width [mm] | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 |
| Legroom front knees/total [mm] | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 |
| Legroom rear knees/total [mm] | -/917 | -/917 | -/917 | -/917 | -/917 | -/917 |
| 1.7 D | 1.7 D | 2.0 D | 2.0 D | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1686 | 1686 | 1998 | 1998 | ||
| Maximum output / speed [kW/min-1] | 81/4000 | 96/4000 | 120/3800 | 120/3800 | ||
| Maximum torque [Nm/min-1] | 280/1750-2500 | 300/2000-2500 | 360/1750-2750 | 360/1750-2750 | ||
| Bore and stroke [mm x mm] | 79,0 x 86,0 | 79,0 x 86,0 | 86,0 x 86,0 | 86,0 x 86,0 | ||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - | - | - |
| ||
| Top speed [km/h] | 185 | 200 | 200 | 198 | ||
| Acceleration 0–100 km/h [s] | 12.4 | 10.4 | 8.5 | 10.0 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.8 | 5.4 | 6.8 | 8.3 | ||
| Out of town [l] | 3.4 | 4.0 | 4.3 | 5.0 | ||
| Combined [l] | 3.9 | 4.5 | 5.2 | 6.2 | ||
| CO2 emissions [g/km] | 104 | 119 | 138 | 164 | ||
| Emission standard | EU5b+ | EU5b+ | EU5b+ | EU5b+ | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1550-1620 | 1550-1620 | 1595-1665 | 1614-1684 | ||
| Overall weight [kg] | 2010 | 2010 | 2055 | 2074 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 750/1200 | 750/1200 | 750/1200 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 500 | 500 | 500 | 500 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1478 | -/1478 | -/1478 | -/1478 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.343 | 0.343 | 0.343 | 0.343 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 205/60 R16 | 225/50 R17 | 215/60 R16 | 225/50 R17 | ||
| Tyre dimensions rear | 205/60 R16 | 225/50 R17 | 215/60 R16 | 225/50 R17 | ||
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 7.0J x 17 | ||
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 7.0J x 17 | ||
| Brake dimensions front | 300 | 300 | 300 | 300 | ||
| Brake dimensions rear | 292 | 292 | 292 | 292 | ||
| Steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | ||
| Overall length [mm] | 4681 | 4681 | 4681 | 4681 | ||
| Overall width without/including mirrors [mm] | 1797/2067 | 1797/2067 | 1797/2067 | 1797/2067 | ||
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | ||
| Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | ||
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | ||
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 145 | 145 | 145 | 145 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 998 | 998 | 998 | 998 | ||
| Headroom rear [mm] | 988 | 988 | 988 | 988 | ||
| Front elbow/shoulder width [mm] | -/1391 | -/1391 | -/1391 | -/1391 | ||
| Rear elbow/shoulder width [mm] | -/1370 | -/1370 | -/1370 | -/1370 | ||
| Legroom front knees/total [mm] | -/1370 | -/1370 | -/1370 | -/1370 | ||
| Legroom rear knees/total [mm] | -/917 | -/917 | -/917 | -/917 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
