Chevrolet HHR

Date of manufacture

2005 – 5/2011 (MPV)

Platform

GM Delta platform/GMT001

Manufacturing locations

Ramos Arizpe, Mexico

Designer

Bryan Nesbitt

Car body style

MPV

Date of manufacture

2005 – 5/2011

Internal designation

Engine size

2.4 16V

Technical data

MPV

	2.4 16V	2.4 16V
Date of sale	-	-
Engine type	Petrol	Petrol
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	2399	2399
Maximum output / speed [kW/min-1]	125/6200	125/6200
Maximum torque [Nm/min-1]	222/4800	222/4800
Bore and stroke [mm x mm]	88,00 x 98,00	88,00 x 98,00
Compression ratio	10,4:1	10,4:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	variable valve timing	variable valve timing

Drive axle	Front	Front
Gearbox	5 gear manual	4 gear automatic
Drive specifications	-	automatic gearbox

Top speed [km/h]	180	180
Acceleration 0–100 km/h [s]	9.1	10.0
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	11.7	12.0
Out of town [l]	6.8	7.3
Combined [l]	8.6	9.0
CO2 emissions [g/km]	207	214

Emission standard	EU4	EU4
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1530	1530
Overall weight [kg]	1893	1893
Maximum trailer weight unbraked/braked [kg]	-	-
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	638	638
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1634	-/1634
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5	5
Fuel tank volume [l]	61	61
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.354	0.354
Front suspension	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar
Tyre dimensions front	215/50 R17	215/50 R17
Tyre dimensions rear	215/50 R17	215/50 R17
Wheel size front	6.5J x 17	6.5J x 17
Wheel size rear	6.5J x 17	6.5J x 17
Brake dimensions front	296	296
Brake dimensions rear	-	-
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	11.5/-	11.5/-

Overall length [mm]	4475	4475
Overall width without/including mirrors [mm]	1755/-	1755/-
Overall height [mm]	1588	1588
Wheelbase [mm]	2631	2631
Front wheel track [mm]	1491	1491
Rear wheel track [mm]	1491	1491
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1006	1006
Headroom rear [mm]	991	991
Front elbow/shoulder width [mm]	-/1358	-/1358
Rear elbow/shoulder width [mm]	-/1339	-/1339
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

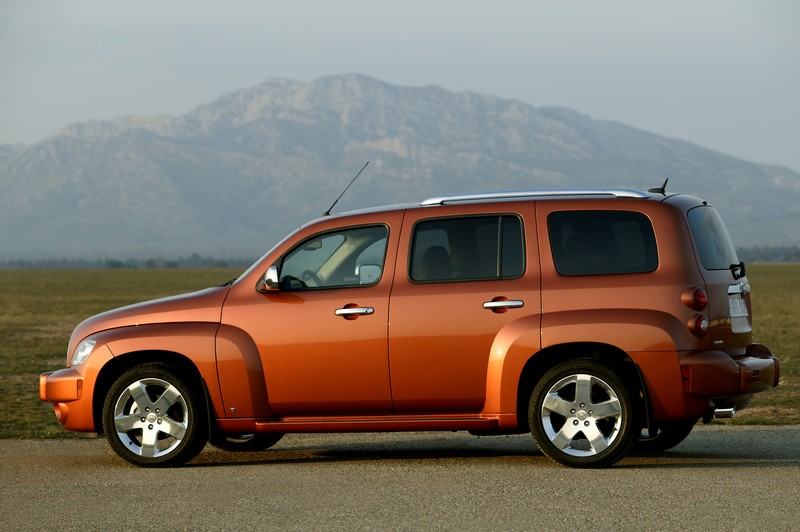

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
