Chevrolet Orlando

Date of manufacture

10/2010 – 2018 (MPV)

Platform

GM Delta II platform

Manufacturing locations

Gunsan, South Korea

Designer

Car body style

MPV

Date of manufacture

10/2010 – 2018

Internal designation

J309

Engine size

Petrol

1.4 TURBO

1.8

Diesel

2.0 VDCi

Euro NCAP

Technical data

MPV

	1.4 TURBO	1.4 TURBO	1.8	1.8	2.0 VDCi	2.0 VDCi
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1362	1362	1795	1795	1998	1998
Maximum output / speed [kW/min-1]	103/6000	103/6000	104/6200	104/6200	96/3800	120/3800
Maximum torque [Nm/min-1]	200/1850-4900	200/1850-4900	176/3800	176/3800	315/2000	360/2000
Bore and stroke [mm x mm]	72,5 x 82,5	72,5 x 82,5	80,5 x 88,2	80,5 x 88,2	86,0 x 86,0	86,0 x 86,0
Compression ratio	9,5:1	9,5:1	10,5:1	10,5:1	16,3:1	16,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	turbo-supercharged variable timing of intake and exhaust valves VVT start&stop system	turbo-supercharged variable timing of intake and exhaust valves VVT start&stop system	variable timing of intake and exhaust valves VVT	variable timing of intake and exhaust valves VVT	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear automatic	5 gear manual	6 gear automatic	6 gear manual	6 gear manual
Drive specifications	-	automatic gearbox	-	automatic gearbox	-	-

Top speed [km/h]	193	200	185	185	180	195
Acceleration 0–100 km/h [s]	11.0	11.2	11.6	11.8	10.3	10.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.1	9.0	9.2-9.7	11.1	7.9	7.9
Out of town [l]	5.5	5.8	5.7-5.9	6.1	4.9	4.9
Combined [l]	6.4	7.0	7.0-7.3	8.0	6.0	6.0
CO2 emissions [g/km]	149	164	164-172	184	159	159

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1539	1550	1528	1538	1655	1655
Overall weight [kg]	2189	2200	2178	2189	2305	2305
Maximum trailer weight unbraked/braked [kg]	750/1100	750/1300	750/1100	750/1300	750/1500	750/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	101	101	101	101	101	101
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1594	-/1594	-/1594	-/1594	-/1594	-/1594
Boot volume, third row of seats [l]	-	-	-	-	-	-
Boot volume, third row seats folded [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	7	7	7	7	7	7
Fuel tank volume [l]	60	60	64	64	64	64
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.325	0.325	0.325	0.325	0.327	0.327
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar
Tyre dimensions front	215/60 R16	225/50 R17	215/60 R16	215/60 R16	215/60 R16	215/60 R16
Tyre dimensions rear	215/60 R16	225/50 R17	215/60 R16	215/60 R16	215/60 R16	215/60 R16
Wheel size front	6.5J x 16	7.0J x 17	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	7.0J x 17	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	300	300	300	300	300	300
Brake dimensions rear	292	292	292	292	292	292
Steering	Electric power steering	Electric power steering	Electric power steering	Electric power steering	Electric power steering	Electric power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3/11.8	11.3/11.8	11.3/11.8	11.3/11.8	11.3/11.8	11.3/11.8

Overall length [mm]	4652	4652	4652	4652	4652	4652
Overall width without/including mirrors [mm]	1836/-	1836/-	1836/-	1836/-	1836/-	1836/-
Overall height [mm]	1633	1633	1633	1633	1633	1633
Wheelbase [mm]	2760	2760	2760	2760	2760	2760
Front wheel track [mm]	1584	1584	1584	1584	1584	1584
Rear wheel track [mm]	1588	1588	1588	1588	1588	1588
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1020	1020	1020	1020	1020	1020
Headroom rear [mm]	983	983	983	983	983	983
Front elbow/shoulder width [mm]	-/1450	-/1450	-/1450	-/1450	-/1450	-/1450
Rear elbow/shoulder width [mm]	-/1419	-/1419	-/1419	-/1419	-/1419	-/1419
Legroom front knees/total [mm]	-/1034	-/1034	-/1034	-/1034	-/1034	-/1034
Legroom rear knees/total [mm]	-/917	-/917	-/917	-/917	-/917	-/917
Third row of seats, headroom [mm]	753	753	753	753	753	753
Third row elbow/shoulder width [mm]	-/1307	-/1307	-/1307	-/1307	-/1307	-/1307

	2.0 VDCi	2.0 VDCi
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1998	1998
Maximum output / speed [kW/min-1]	120/3800	120/3800
Maximum torque [Nm/min-1]	360/2000	360/2000
Bore and stroke [mm x mm]	86,0 x 86,0	86,0 x 86,0
Compression ratio	16,3:1	16,3:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system

Drive axle	Front	Front
Gearbox	6 gear automatic	6 gear manual
Drive specifications	automatic gearbox	-

Top speed [km/h]	195	195
Acceleration 0–100 km/h [s]	11.0	10.3
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	9.3	6.4
Out of town [l]	5.7	4.7
Combined [l]	7.0	5.3
CO2 emissions [g/km]	186	139

Emission standard	EU5	EU5
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1659	1655
Overall weight [kg]	2309	2305
Maximum trailer weight unbraked/braked [kg]	750/1500	750/1500
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	100/-	100/-

Boot volume [l]	101	101
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1594	-/1594
Boot volume, third row of seats [l]	-	-
Boot volume, third row seats folded [l]	-	-
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	7	7
Fuel tank volume [l]	64	64
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.327	0.327
Front suspension	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar
Tyre dimensions front	215/60 R16	225/50 R17
Tyre dimensions rear	215/60 R16	225/50 R17
Wheel size front	6.5J x 16	7.0J x 17
Wheel size rear	6.5J x 16	7.0J x 17
Brake dimensions front	300	300
Brake dimensions rear	292	292
Steering	Electric power steering	Electric power steering
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	11.3/11.8	11.3/11.8

Overall length [mm]	4652	4652
Overall width without/including mirrors [mm]	1836/-	1836/-
Overall height [mm]	1633	1633
Wheelbase [mm]	2760	2760
Front wheel track [mm]	1584	1584
Rear wheel track [mm]	1588	1588
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1020	1020
Headroom rear [mm]	983	983
Front elbow/shoulder width [mm]	-/1450	-/1450
Rear elbow/shoulder width [mm]	-/1419	-/1419
Legroom front knees/total [mm]	-/1034	-/1034
Legroom rear knees/total [mm]	-/917	-/917
Third row of seats, headroom [mm]	753	753
Third row elbow/shoulder width [mm]	-/1307	-/1307

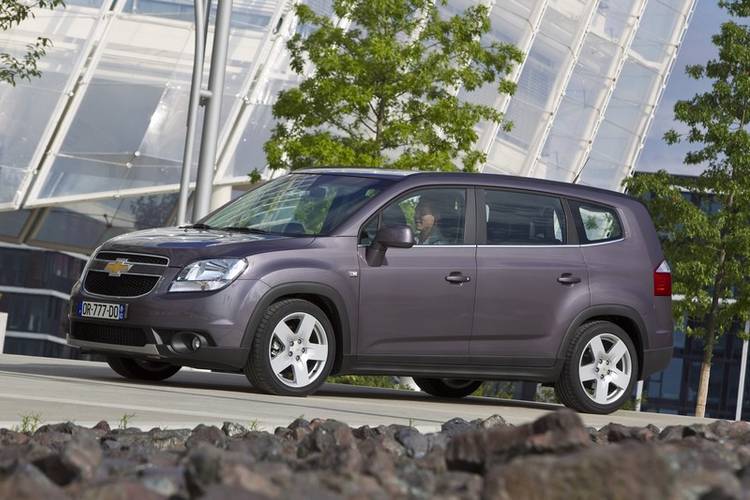

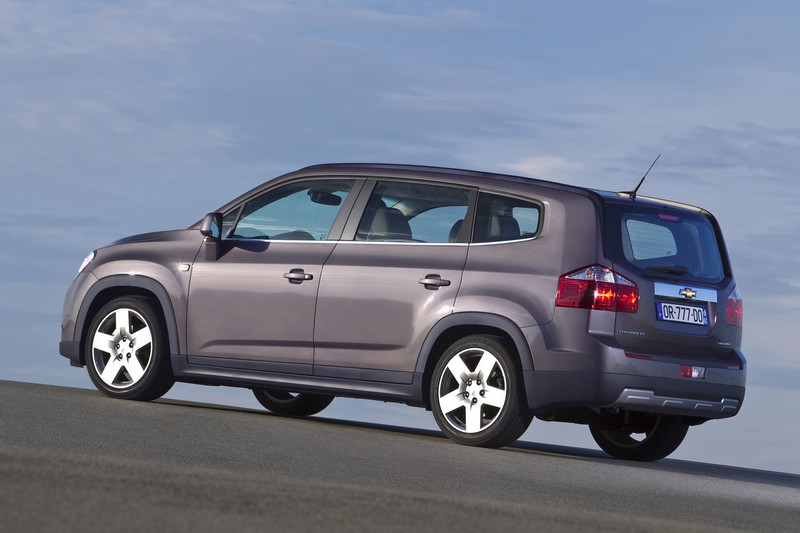

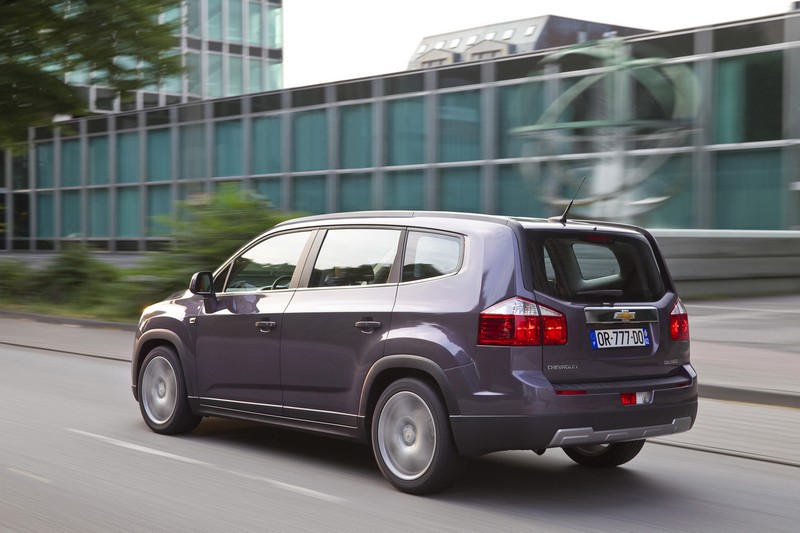

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
