Citroën C5
Date of manufacture
2010 – 2017 (Sedan)
2010 – 2017 (Estate)
Platform
PSA PF3 platform
Manufacturing locations
Rennes, France
Designer
Domagoj Djukec
Tags
D-segment
French cars
The Citroën C5 is a modern car manufactured in France since 2010. It is available as a sedan and estate with various engine options. The most powerful variant, the 3.0 HDI, has a power output of 177 kW and a top speed of 240 km/h. The most economical version, the 2.0 BlueHDI 150, consumes only 4.1 l/100 km and emits 106 g/km. The Citroën C5 is also very safe - it has passed the EURONCAP tests and has been rated 5 out of 5. The luggage compartment of the sedan model is 439 l, and the estate is 505 l.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2010 – 2017Internal designation

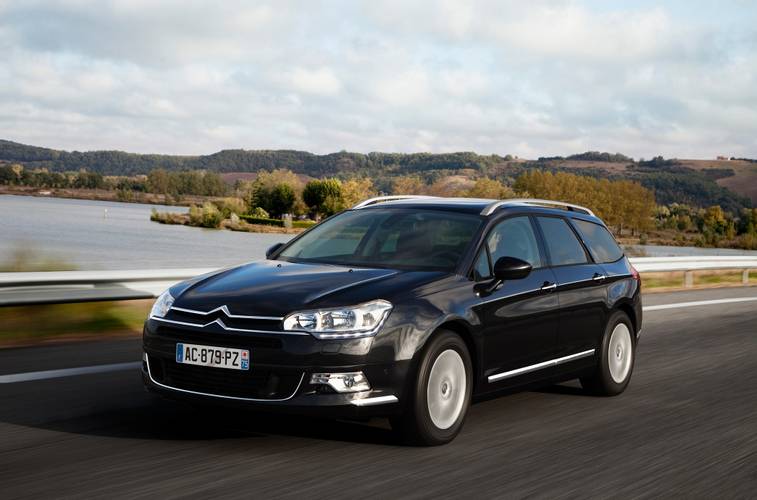

RD Estate
after upgrade (facelift)
Date of manufacture
2010 – 2017Internal designation
RD
Technical data
Sedan
| 1.6 THP | 1.6 THP | 1.6 HDI | 1.6 e-HDI Airdream | 1.6 HDI | 1.6 e-HDI Airdream | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2015 | from to 2015 | from to 2015 | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1560 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 115/6000 | 115/6000 | 82/3600 | 82/3600 | 84/3600 | 84/3600 |
| Maximum torque [Nm/min-1] | 240/1400-4000 | 240/1400-4000 | 240/1750 | 240/1750 | 240/1750 | 240/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 6 gear robotic manual | 5 gear manual | 5 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 210 | 210 | 190 | 190 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 8.6 | 9.8 | 11.6 | 12.6 | 11.6 | 13.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.3 | 10.5 | 6.0 | 5.5 | 5.3 | 4.7 |
| Out of town [l] | 5.1 | 5.6 | 4.4 | 4.1 | 4.2 | 4.0 |
| Combined [l] | 6.7 | 7.3 | 5.0 | 4.6 | 4.6 | 4.3 |
| CO2 emissions [g/km] | 153 | 169 | 129 | 120 | 120 | 111 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1595 | 1628 | 1619 | 1630 | 1619 | 1630 |
| Overall weight [kg] | 2065 | 2026 | 2041 | 2062 | 2041 | 2062 |
| Maximum trailer weight unbraked/braked [kg] | 750/1760 | 750/1710 | 750/1340 | 750/1340 | 750/1340 | 750/1340 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | -/80 | -/80 | -/80 | -/80 | -/80 | -/80 |
| Boot volume [l] | 439 | 439 | 439 | 439 | 439 | 439 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Boot length with rear seats folded [mm] | 1705 | 1705 | 1705 | 1705 | 1705 | 1705 |
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 71 | 71 | 71 | 71 | 71 | 71 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Overall length [mm] | 4779 | 4779 | 4779 | 4779 | 4779 | 4779 |
| Overall width without/including mirrors [mm] | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 |
| Overall height [mm] | 1451 | 1451 | 1458 | 1458 | 1458 | 1458 |
| Wheelbase [mm] | 2815 | 2815 | 2815 | 2815 | 2815 | 2815 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Rear overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Headroom rear [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Front elbow/shoulder width [mm] | 1524/- | 1524/- | 1524/- | 1524/- | 1524/- | 1524/- |
| Rear elbow/shoulder width [mm] | 1495/- | 1495/- | 1495/- | 1495/- | 1495/- | 1495/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 HDI | 2.0 BlueHDI 150 | 2.0 HDI | 2.0 HDI | 2.0 BlueHDI 180 | 2.2 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | 2178 |
| Maximum output / speed [kW/min-1] | 103/4000 | 110/4000 | 120/3750 | 120/3750 | 133/3750 | 150/3500 |
| Maximum torque [Nm/min-1] | 320/2000 | 370/2000 | 340/2000-3000 | 340/2000-3000 | 400/2000 | 450/2000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 205 | 214 | 210 | 210 | 222 | 230 |
| Acceleration 0–100 km/h [s] | 10.6 | 9.4 | 9.1 | 10.0 | 8.7 | 8.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0 | 4.5 | 6.4 | 8.2 | 5.2 | 8.0 |
| Out of town [l] | 4.2 | 3.8 | 4.1 | 5.1 | 3.8 | 4.7 |
| Combined [l] | 5.2 | 4.1 | 4.9 | 6.2 | 4.4 | 5.9 |
| CO2 emissions [g/km] | 135 | 106 | 129 | 163 | 114 | 155 |
| Emission standard | EU5 | EU6 | EU5 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1682 | 1615 | 1694 | 1720 | 1695 | 1766 |
| Overall weight [kg] | 2155 | 2160 | 2156 | 2190 | 2190 | 2231 |
| Maximum trailer weight unbraked/braked [kg] | 750/1840 | 750/1750 | 750/1750 | 750/1390 | 750/1350 | 750/1850 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | 73 | - | - | 73 | - |
| Maximum load on roof/carrier [kg] | -/80 | -/80 | -/80 | -/80 | -/80 | -/80 |
| Boot volume [l] | 439 | 439 | 439 | 439 | 439 | 439 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Boot length with rear seats folded [mm] | 1705 | 1705 | 1705 | 1705 | 1705 | 1705 |
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 71 | 71 | 71 | 71 | 71 | 71 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | - | 0.29 | 0.29 | - | 0.313 |
| Front suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Overall length [mm] | 4779 | 4779 | 4779 | 4779 | 4779 | 4779 |
| Overall width without/including mirrors [mm] | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 |
| Overall height [mm] | 1458 | 1458 | 1451 | 1451 | 1451 | 1451 |
| Wheelbase [mm] | 2815 | 2815 | 2815 | 2815 | 2815 | 2815 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Rear overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Headroom rear [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Front elbow/shoulder width [mm] | 1524/- | 1524/- | 1524/- | 1524/- | 1524/- | 1524/- |
| Rear elbow/shoulder width [mm] | 1495/- | 1495/- | 1495/- | 1495/- | 1495/- | 1495/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 HDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2992 | |||||
| Maximum output / speed [kW/min-1] | 177/3800 | |||||
| Maximum torque [Nm/min-1] | 450/1600-3600 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 240 | |||||
| Acceleration 0–100 km/h [s] | 7.9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 9.9 | |||||
| Out of town [l] | 5.7 | |||||
| Combined [l] | 7.2 | |||||
| CO2 emissions [g/km] | 189 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | - | |||||
| Overall weight [kg] | 2276 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1650 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | -/80 | |||||
| Boot volume [l] | 439 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | 1040 | |||||
| Boot length with rear seats folded [mm] | 1705 | |||||
| Boot width between wheels/max [mm] | -/1115 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 750 | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 71 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.313 | |||||
| Front suspension | multilink, stabiliser bar | |||||
| Rear suspension | multilink, stabiliser bar | |||||
| Tyre dimensions front | 225/55 R17 | |||||
| Tyre dimensions rear | 225/55 R17 | |||||
| Wheel size front | 7.0J x 17 | |||||
| Wheel size rear | 7.0J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.2 | |||||
| Overall length [mm] | 4779 | |||||
| Overall width without/including mirrors [mm] | 1860/2096 | |||||
| Overall height [mm] | 1451 | |||||
| Wheelbase [mm] | 2815 | |||||
| Front wheel track [mm] | 1587 | |||||
| Rear wheel track [mm] | 1560 | |||||
| Forward overhang [mm] | 1054 | |||||
| Rear overhang [mm] | 910 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 862 | |||||
| Headroom rear [mm] | 842 | |||||
| Front elbow/shoulder width [mm] | 1524/- | |||||
| Rear elbow/shoulder width [mm] | 1495/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate
| 1.6 THP | 1.6 THP | 1.6 HDI | 1.6 e-HDI Airdream | 1.6 HDI | 1.6 e-HDI Airdream | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2015 | from to 2015 | from to 2015 | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1560 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 115/6000 | 115/6000 | 82/3600 | 82/3600 | 84/3600 | 84/3600 |
| Maximum torque [Nm/min-1] | 240/1400-4000 | 240/1400-4000 | 240/1750 | 240/1750 | 240/1750 | 240/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 6 gear robotic manual | 5 gear manual | 5 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 210 | 210 | 190 | 190 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 9.0 | 10.2 | 11.9 | 12.8 | 11.9 | 14.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5 | 10.5 | 6.0 | 5.5 | 5.3 | 4.7 |
| Out of town [l] | 5.2 | 5.6 | 4.4 | 4.1 | 4.2 | 4.0 |
| Combined [l] | 6.8 | 7.3 | 5.0 | 4.6 | 4.6 | 4.3 |
| CO2 emissions [g/km] | 155 | 169 | 129 | 120 | 120 | 111 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1629 | 1662 | 1667 | 1670 | 1667 | 1670 |
| Overall weight [kg] | 2167 | 2200 | 2153 | 2174 | 2153 | 2174 |
| Maximum trailer weight unbraked/braked [kg] | 750/1790 | 750/1790 | 750/1300 | 750/1300 | 750/1300 | 750/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | -/80 | -/80 | -/80 | -/80 | -/80 | -/80 |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1462 | -/1462 | -/1462 | -/1462 | -/1462 | -/1462 |
| Boot length [mm] | 1058 | 1058 | 1058 | 1058 | 1058 | 1058 |
| Boot length with rear seats folded [mm] | 1723 | 1723 | 1723 | 1723 | 1723 | 1723 |
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 |
| Boot height to headliner/ceiling [mm] | -/851 | -/851 | -/851 | -/851 | -/851 | -/851 |
| Loading edge height [mm] | 602 | 602 | 602 | 602 | 602 | 602 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 71 | 71 | 71 | 71 | 71 | 71 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Overall length [mm] | 4829 | 4829 | 4829 | 4829 | 4829 | 4829 |
| Overall width without/including mirrors [mm] | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 |
| Overall height [mm] | 1491 | 1491 | 1495 | 1495 | 1495 | 1495 |
| Wheelbase [mm] | 2815 | 2815 | 2815 | 2815 | 2815 | 2815 |
| Front wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Rear wheel track [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Forward overhang [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Rear overhang [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Front elbow/shoulder width [mm] | 1524/- | 1524/- | 1524/- | 1524/- | 1524/- | 1524/- |
| Rear elbow/shoulder width [mm] | 1495/- | 1495/- | 1495/- | 1495/- | 1495/- | 1495/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 HDI | 2.0 BlueHDI 180 | 2.0 HDI | 2.0 HDI | 2.0 BlueHDI 180 | 2.2 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | 2178 |
| Maximum output / speed [kW/min-1] | 103/4000 | 110/4000 | 120/3750 | 120/3750 | 133/3750 | 150/3500 |
| Maximum torque [Nm/min-1] | 320/2000 | 370/2000 | 340/2000-3000 | 340/2000-3000 | 400/2000 | 450/2000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 200 | 211 | 210 | 208 | 219 | 225 |
| Acceleration 0–100 km/h [s] | 10.9 | 9.6 | 9.3 | 10.2 | 8.8 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 4.9 | 6.6 | 8.2 | 5.2 | 8.2 |
| Out of town [l] | 4.3 | 3.8 | 4.3 | 5.1 | 3.8 | 4.9 |
| Combined [l] | 5.1 | 4.2 | 5.1 | 6.2 | 4.4 | 6.1 |
| CO2 emissions [g/km] | 134 | 110 | 133 | 163 | 114 | 159 |
| Emission standard | EU5 | EU6 | EU5 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1736 | 1650 | 1729 | 1779 | 1730 | 1820 |
| Overall weight [kg] | 2276 | 2235 | 2238 | 2286 | 2290 | 2367 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1650 | 750/1670 | 750/1290 | 750/1250 | 750/1890 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | 67 | - | - | 67 | - |
| Maximum load on roof/carrier [kg] | -/80 | -/80 | -/80 | -/80 | -/80 | -/80 |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1462 | -/1462 | -/1462 | -/1462 | -/1462 | -/1462 |
| Boot length [mm] | 1058 | 1058 | 1058 | 1058 | 1058 | 1058 |
| Boot length with rear seats folded [mm] | 1723 | 1723 | 1723 | 1723 | 1723 | 1723 |
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 |
| Boot height to headliner/ceiling [mm] | -/851 | -/851 | -/851 | -/851 | -/851 | -/851 |
| Loading edge height [mm] | 602 | 602 | 602 | 602 | 602 | 602 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 71 | 71 | 71 | 71 | 71 | 71 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Overall length [mm] | 4829 | 4829 | 4829 | 4829 | 4829 | 4829 |
| Overall width without/including mirrors [mm] | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 | 1860/2096 |
| Overall height [mm] | 1495 | 1495 | 1491 | 1491 | 1491 | 1491 |
| Wheelbase [mm] | 2815 | 2815 | 2815 | 2815 | 2815 | 2815 |
| Front wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Rear wheel track [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Forward overhang [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Rear overhang [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Front elbow/shoulder width [mm] | 1524/- | 1524/- | 1524/- | 1524/- | 1524/- | 1524/- |
| Rear elbow/shoulder width [mm] | 1495/- | 1495/- | 1495/- | 1495/- | 1495/- | 1495/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 HDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2992 | |||||
| Maximum output / speed [kW/min-1] | 177/3800 | |||||
| Maximum torque [Nm/min-1] | 450/1600-3600 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 239 | |||||
| Acceleration 0–100 km/h [s] | 7.9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 9.9 | |||||
| Out of town [l] | 5.7 | |||||
| Combined [l] | 7.2 | |||||
| CO2 emissions [g/km] | 189 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | - | |||||
| Overall weight [kg] | 2347 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1570 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | -/80 | |||||
| Boot volume [l] | 505 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1462 | |||||
| Boot length [mm] | 1058 | |||||
| Boot length with rear seats folded [mm] | 1723 | |||||
| Boot width between wheels/max [mm] | -/1115 | |||||
| Boot height to headliner/ceiling [mm] | -/851 | |||||
| Loading edge height [mm] | 602 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 71 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.32 | |||||
| Front suspension | multilink, stabiliser bar | |||||
| Rear suspension | multilink, stabiliser bar | |||||
| Tyre dimensions front | 225/55 R17 | |||||
| Tyre dimensions rear | 225/55 R17 | |||||
| Wheel size front | 7.0J x 17 | |||||
| Wheel size rear | 7.0J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.2 | |||||
| Overall length [mm] | 4829 | |||||
| Overall width without/including mirrors [mm] | 1860/2096 | |||||
| Overall height [mm] | 1491 | |||||
| Wheelbase [mm] | 2815 | |||||
| Front wheel track [mm] | 1586 | |||||
| Rear wheel track [mm] | 1557 | |||||
| Forward overhang [mm] | 1054 | |||||
| Rear overhang [mm] | 960 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 984 | |||||
| Headroom rear [mm] | 1001 | |||||
| Front elbow/shoulder width [mm] | 1524/- | |||||
| Rear elbow/shoulder width [mm] | 1495/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
