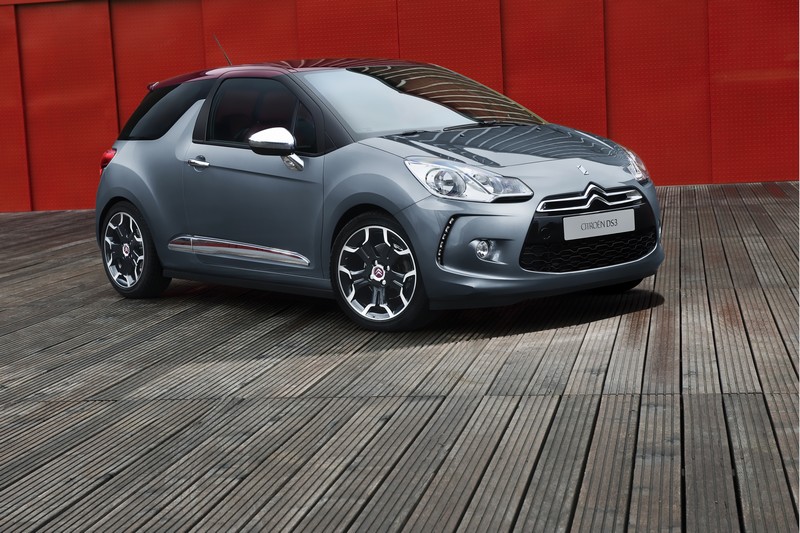

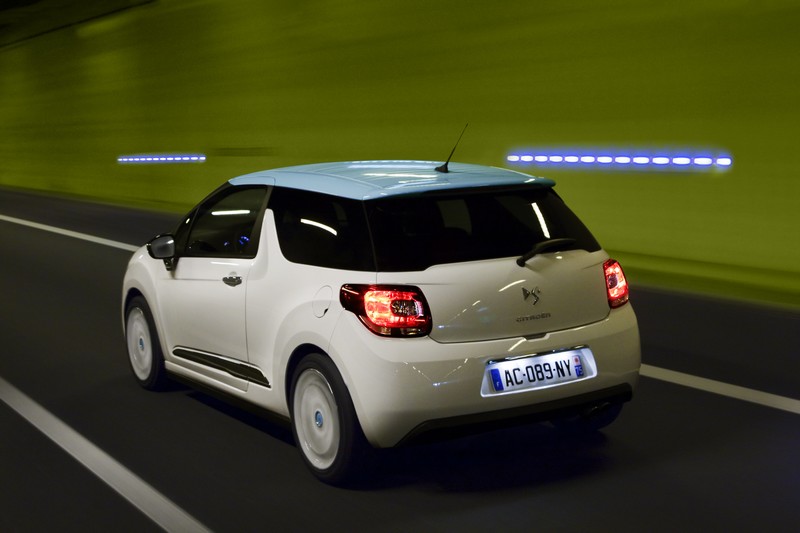

Citroën DS3
Date of manufacture
11/2009 – 2016 (Three-door hatchback)
1/2013 – 2016 (Convertible)
Platform
PSA PF1
Manufacturing locations
Poissy, France
Designer
Mark Lloyd
Tags
B-segment
French cars
The Citroën DS3 has a body style of three-door hatchback and cabriolet. The car has been manufactured since 2009. The country of production is France. The car is built on the PSA PF1 platform. The powertrain offering includes petrol and diesel engines. The highest power is achieved by the 1.6 THP Racing (152 kW). The highest speed of 235 km/h is achieved by the 1.6 THP Racing version. The 1.4 e-HDI Airdream has the lowest consumption of 3.4 l/100 km and emissions of 87 g/km. The car with the three-door hatchback body has a luggage compartment volume of 285 l. The model with the cabriolet body has a luggage compartment size of 245 l. The car underwent EURONCAP safety tests in 2009 and received a rating of 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
11/2009 – 2016Internal designation
Convertible
Date of manufacture
1/2013 – 2016Internal designation
Engine size
Technical data
Three-door hatchback
| 1.2 VTi | 1.2 e-VTi Airdream | 1.4 VTi | 1.4 VTi | 1.6 VTi | 1.6 VTi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1397 | 1397 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 60/5750 | 60/5750 | 70/6000 | 70/6000 | 88/6000 | 88/6000 |
| Maximum torque [Nm/min-1] | 118/2750 | 118/2750 | 136/4000 | 136/4000 | 160/4200 | 160/4200 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 77,0 x 75,0 | 77,0 x 75,0 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 4 gear automatic |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 174 | 176 | 184 | 184 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 12.3 | 14.4 | 10.6 | 13.2 | 8.9 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.5 | 4.5 | 7.6 | 7.6 | 7.5-7.9 | 9.3-9.6 |
| Out of town [l] | 3.9 | 3.9 | 4.8 | 4.8 | 4.5-4.8 | 4.9-5.3 |
| Combined [l] | 4.5 | 4.1 | 5.8 | 5.8 | 5.7-5.9 | 6.5-6.9 |
| CO2 emissions [g/km] | 104 | 95 | 134 | 134 | 132-136 | 150-158 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1045 | 1075 | - | 1140 | 1114 | 1145 |
| Overall weight [kg] | 1496 | 1523 | 1552 | 1558 | 1554 | 1587 |
| Maximum trailer weight unbraked/braked [kg] | 570/1150 | 570/1150 | 570/1150 | 570/1150 | 750/1150 | 570/1150 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | -/70 | -/70 | -/70 | -/70 | -/70 | -/70 |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers |
| Tyre dimensions front | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Tyre dimensions rear | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Wheel size front | 6J x 16 | 6J x 16 | 6J x 16 | 6J x 16 | 6J x 16 | 6J x 16 |
| Wheel size rear | 6J x 16 | 6J x 16 | 6J x 16 | 6J x 16 | 6J x 16 | 6J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Overall length [mm] | 3948 | 3948 | 3948 | 3948 | 3948 | 3948 |
| Overall width without/including mirrors [mm] | 1715/- | 1715/- | 1715/- | 1715/- | 1715/- | 1715/- |
| Overall height [mm] | 1458 | 1458 | 1458 | 1458 | 1458 | 1458 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1468 | 1468 | 1468 | 1468 | 1468 | 1468 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 824 | 824 | 824 | 824 | 824 | 824 |
| Rear overhang [mm] | 660 | 660 | 660 | 660 | 660 | 660 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 THP | 1.6 THP Racing | 1.4 HDI | 1.4 e-HDI Airdream | 1.6 HDI | 1.6 e-HDi Airdream | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1398 | 1398 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 115/6000 | 152/6000 | 50/4000 | 50/4000 | 68/4000 | 68/4000 |
| Maximum torque [Nm/min-1] | 240/1400 | 275/2000-4500 | 160/2000 | 160/2000 | 230/1750 | 230/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 73,7 x 82,0 | 73,7 x 82,0 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 210 | 235 | 163 | 165 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 7.3 | 6.5 | 13.5 | 16.2 | 11.3 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9-9.4 | 8.7 | 4.5 | 3.6 | 4.9 | 4.1-4.7 |
| Out of town [l] | 4.5-5.1 | 4.9 | 3.4 | 3.2 | 3.4 | 3.1-3.3 |
| Combined [l] | 5.8-6.7 | 6.4 | 3.8 | 3.4 | 4.0 | 3.5-3.8 |
| CO2 emissions [g/km] | 135-155 | 149 | 99 | 87 | 104 | 90-99 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1148 | 1165 | 1137 | 1130 | - | 1155 |
| Overall weight [kg] | 1590 | 1597 | 1553 | 1585 | 1584 | 1602 |
| Maximum trailer weight unbraked/braked [kg] | 570/1150 | - | 570/950 | 570/950 | 570/1150 | 570/1150 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | -/70 | - | -/70 | -/70 | -/70 | -/70 |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers |
| Tyre dimensions front | 205/45 R17 | 215/40 R18 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Tyre dimensions rear | 205/45 R17 | 215/40 R18 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Wheel size front | 7J x 17 | - | 6J x 16 | 6J x 16 | 6J x 16 | 6J x 16 |
| Wheel size rear | 7J x 17 | - | 6J x 16 | 6J x 16 | 6J x 16 | 6J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Overall length [mm] | 3948 | 3948 | 3948 | 3948 | 3948 | 3948 |
| Overall width without/including mirrors [mm] | 1715/- | 1715/- | 1715/- | 1715/- | 1715/- | 1715/- |
| Overall height [mm] | 1458 | 1458 | 1458 | 1458 | 1458 | 1458 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1468 | - | 1468 | 1468 | 1468 | 1468 |
| Rear wheel track [mm] | 1471 | - | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 824 | 824 | 824 | 824 | 824 | 824 |
| Rear overhang [mm] | 660 | 660 | 660 | 660 | 660 | 660 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 HDI | 1.6 e-HDI Airdream | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/8 | 4/8 | ||||
| Engine displacement [cm³] | 1560 | 1560 | ||||
| Maximum output / speed [kW/min-1] | 82/3600 | 84/3600 | ||||
| Maximum torque [Nm/min-1] | 270/1750 | 270/1750 | ||||
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 190 | 190 | ||||
| Acceleration 0–100 km/h [s] | 9.8 | 9.7 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.6 | 4.6 | ||||
| Out of town [l] | 3.9 | 3.4 | ||||
| Combined [l] | 4.5 | 4.8 | ||||
| CO2 emissions [g/km] | 118 | 99 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | - | 1181 | ||||
| Overall weight [kg] | 1612 | 1625 | ||||
| Maximum trailer weight unbraked/braked [kg] | 570/1150 | 570/1150 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | -/70 | -/70 | ||||
| Boot volume [l] | 285 | 285 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 48 | 48 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | ||||
| Tyre dimensions front | 205/45 R17 | 205/45 R17 | ||||
| Tyre dimensions rear | 205/45 R17 | 205/45 R17 | ||||
| Wheel size front | 7J x 17 | 7J x 17 | ||||
| Wheel size rear | 7J x 17 | 7J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.5 | 10.5 | ||||
| Overall length [mm] | 3948 | 3948 | ||||
| Overall width without/including mirrors [mm] | 1715/- | 1715/- | ||||
| Overall height [mm] | 1458 | 1458 | ||||
| Wheelbase [mm] | 2760 | 2760 | ||||
| Front wheel track [mm] | 1468 | 1468 | ||||
| Rear wheel track [mm] | 1471 | 1471 | ||||
| Forward overhang [mm] | 824 | 824 | ||||
| Rear overhang [mm] | 660 | 660 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Convertible
| 1.2 VTi | 1.6 VTi | 1.6 THP | 1.6 e-HDi Airdream | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Petrol | Petrol | Ignition supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/8 | ||
| Engine displacement [cm³] | 1199 | 1598 | 1598 | 1560 | ||
| Maximum output / speed [kW/min-1] | 60/5750 | 88/6000 | 115/6000 | 68/4000 | ||
| Maximum torque [Nm/min-1] | 118/2750 | 160/4200 | 240/1400 | 230/1750 | ||
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear robotic manual | ||
| Drive specifications | - | - | - |
| ||
| Top speed [km/h] | 173 | 190 | 210 | 180 | ||
| Acceleration 0–100 km/h [s] | 12.5 | 8.9 | 7.4 | 11.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.8 | 7.5 | 8.0 | 4.3 | ||
| Out of town [l] | 4.3 | 4.5 | 4.8 | 3.5 | ||
| Combined [l] | 4.9 | 5.7 | 5.9 | 3.8 | ||
| CO2 emissions [g/km] | 112 | 132 | 137 | 99 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1090 | 1140 | 1175 | 1155 | ||
| Overall weight [kg] | 1532 | 1575 | 1619 | 1639 | ||
| Maximum trailer weight unbraked/braked [kg] | 520/1100 | 750/1150 | 570/1150 | 570/1150 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 245 | 245 | 245 | 245 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 3 | 3 | 3 | 3 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 50 | 50 | 50 | 46 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | ||
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | ||
| Tyre dimensions front | 195/55 R16 | 195/55 R16 | 205/45 R17 | 195/55 R16 | ||
| Tyre dimensions rear | 195/55 R16 | 195/55 R16 | 205/45 R17 | 195/55 R16 | ||
| Wheel size front | 6J x 16 | 6J x 16 | 7J x 17 | 6J x 16 | ||
| Wheel size rear | 6J x 16 | 6J x 16 | 7J x 17 | 6J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.5 | 10.5 | 10.5 | 10.5 | ||
| Overall length [mm] | 3948 | 3948 | 3948 | 3948 | ||
| Overall width without/including mirrors [mm] | 1715/- | 1715/- | 1715/- | 1715/- | ||
| Overall height [mm] | 1458 | 1458 | 1458 | 1458 | ||
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | ||
| Front wheel track [mm] | 1468 | 1468 | 1468 | 1468 | ||
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | ||
| Forward overhang [mm] | 824 | 824 | 824 | 824 | ||
| Rear overhang [mm] | 660 | 660 | 660 | 660 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
