Citroën DS5

Date of manufacture

11/2011 – 2015 (Five-door hatchback)

Platform

PSA PF2

Manufacturing locations

Sochaux, France

Designer

Car body style

Five-door hatchback

Date of manufacture

11/2011 – 2015

Internal designation

Engine size

Petrol

Diesel

Diesel + Electric

Hybrid4 Airdream

Euro NCAP

Technical data

Five-door hatchback

	1.6 THP	1.6 THP	1.6 e-HDi Airdream	2.0 HDI	2.0 HDI	2.0 BlueHDI 180
Date of sale	-	-	-	-	-	from 2015 to
Engine type	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/8	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1560	1997	1997	1997
Maximum output / speed [kW/min-1]	115/6000	147/5800	84/3600	120/3750	120/3750	133/3750
Maximum torque [Nm/min-1]	240/1400	275/1700	270/1750	340/2000	340/2000	400/2000
Bore and stroke [mm x mm]	77,0 x 85,8	77,0 x 85,8	75,0 x 88,3	85,0 x 88,0	85,0 x 88,0	85,0 x 88,0
Compression ratio	-	-	-	-	-	-
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged Twin‐scroll variable timing of intake valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves variable lift of intake valves	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear automatic	6 gear manual	6 gear robotic manual	6 gear manual	6 gear automatic	6 gear automatic
Drive specifications	-	-	robotic gearbox ETG (automatic or manual mode)	-	-	six-speed automatic gearbox

Top speed [km/h]	202	235	191	215	212	220
Acceleration 0–100 km/h [s]	9.7	8.2	12.4	8.8	10.1	9.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	9.9	8.9	4.5	5.9	7.7	5.2
Out of town [l]	5.6	5.5	4.1	4.1	4.9	4.1-4.0
Combined [l]	7.1	6.7	4.3	4.8	5.9	4.5-4.4
CO2 emissions [g/km]	165	155	112	125	154	107-104

Emission standard	EU5	EU5	EU5	EU5	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1532	1512	1518	1614	1629	1725
Overall weight [kg]	2035	2050	2020	2130	2125	2125
Maximum trailer weight unbraked/braked [kg]	745/1500	750/1050	745/1400	750/1500	750/1500	750/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-/75	-/75	-/75	-/75	-/75	-/75

Boot volume [l]	468	468	468	468	468	468
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1288	-/1288	-/1288	-/1288	-/1288	-/1288
Boot length [mm]	820	820	820	820	820	820
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-/1202	-/1202	-/1202	-/1202	-/1202	-/1202
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.321	0.331	0.294	0.3	0.305	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	225/50 R17	235/45 R18	215/60 R16	225/50 R17	225/50 R17	225/50 R17
Tyre dimensions rear	225/50 R17	235/45 R18	215/60 R16	225/50 R17	225/50 R17	225/50 R17
Wheel size front	7.5 x 17	8.0 x 18	7.0 x 16	7.5 x 17	7.5 x 17	7.5 x 17
Wheel size rear	7.5 x 17	8.0 x 18	7.0 x 16	7.5 x 17	7.5 x 17	7.5 x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.2	11.2	11.2	11.2	11.2	11.2

Overall length [mm]	4530	4530	4530	4530	4530	4530
Overall width without/including mirrors [mm]	1871/2128	1871/2128	1871/2128	1871/2128	1871/2128	1871/2128
Overall height [mm]	1504	1504	1504	1504	1504	1504
Wheelbase [mm]	2727	2727	2727	2727	2727	2727
Front wheel track [mm]	1576	1576	1576	1576	1576	1576
Rear wheel track [mm]	1603	1603	1603	1603	1603	1603
Forward overhang [mm]	996	996	996	996	996	996
Rear overhang [mm]	807	807	807	807	807	807
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	882	882	882	882	882	882
Headroom rear [mm]	852	852	852	852	852	852
Front elbow/shoulder width [mm]	1504/-	1504/-	1504/-	1504/-	1504/-	1504/-
Rear elbow/shoulder width [mm]	1478/-	1478/-	1478/-	1478/-	1478/-	1478/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	Hybrid4 Airdream
Date of sale	-
Engine type	Diesel supercharged + Electric
Number of cylinders/valves	4/16
Engine displacement [cm³]	1997
Maximum output / speed [kW/min-1]	120/3850 27/2500 el. 147 total
Maximum torque [Nm/min-1]	300/1750 200 el.
Bore and stroke [mm x mm]	85,0 x 88,0
Compression ratio	-
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	Full Hybrid direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	4x4
Gearbox	6 gear robotic manual
Drive specifications	Electric motor for driving the rear wheels robotic gearbox ETG (automatic or manual mode)

Top speed [km/h]	211
Acceleration 0–100 km/h [s]	8.6
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	3.2
Out of town [l]	3.6
Combined [l]	3.5
CO2 emissions [g/km]	91

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1781
Overall weight [kg]	2265
Maximum trailer weight unbraked/braked [kg]	500/800
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-/75

Boot volume [l]	325
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1145
Boot length [mm]	820
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-/1202
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	60
AdBlue tank volume [l]	-
Air resistance [Cd]	0.3
Front suspension	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	twist beam axle with trailing arms
Tyre dimensions front	225/50 R17
Tyre dimensions rear	225/50 R17
Wheel size front	7.5 x 17
Wheel size rear	7.5 x 17
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	11.2

Overall length [mm]	4530
Overall width without/including mirrors [mm]	1871/2128
Overall height [mm]	1504
Wheelbase [mm]	2727
Front wheel track [mm]	1576
Rear wheel track [mm]	1603
Forward overhang [mm]	996
Rear overhang [mm]	807
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	882
Headroom rear [mm]	852
Front elbow/shoulder width [mm]	1504/-
Rear elbow/shoulder width [mm]	1478/-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

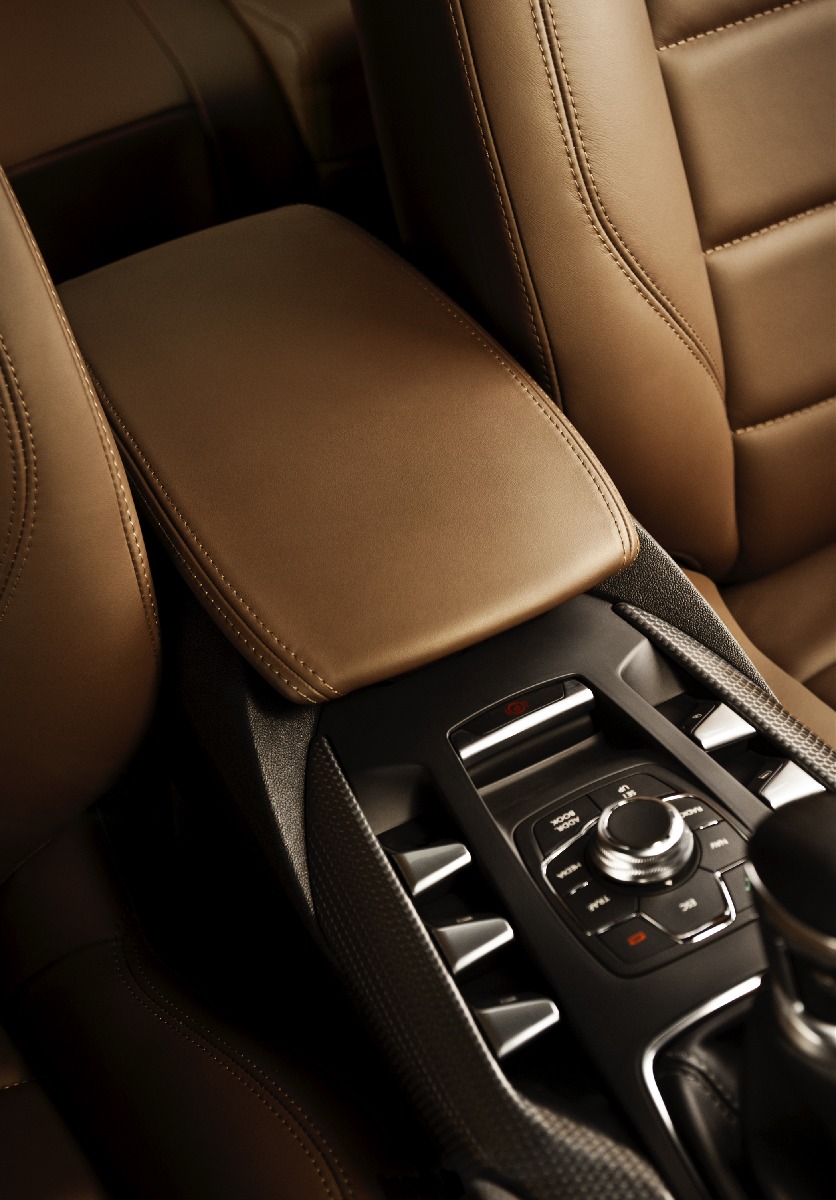

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
