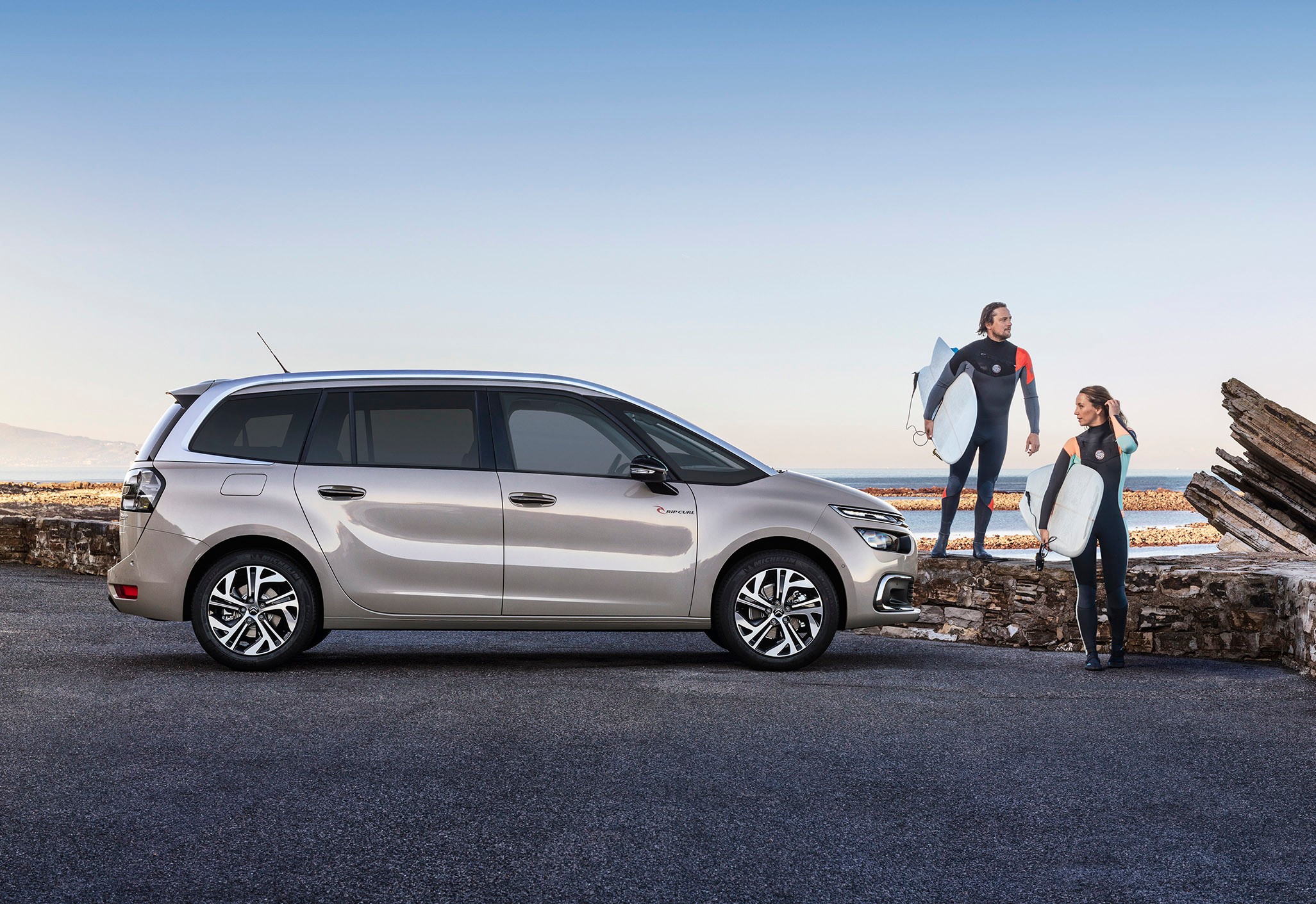

Citroën Grand C4 Picasso/SpaceTourer
Date of manufacture
2016 – 2020 (Medium MPV)
Platform
PSA EMP2 platform
Manufacturing locations
Vigo, Spain
Designer
Fréderic Soubirou
Tags
Mid-size MPV
French cars
The Citroën Grand C4 Picasso/SpaceTourer is a mid-sized MPV produced since 2016. The vehicle is built on the PSA EMP2 platform and offers petrol and diesel engines, with the highest power output of 121 kW for the 1.6 THP and a top speed of 210 km/h. The 1.6 BlueHDi 120 has the lowest combined fuel consumption of 4 l/100 km and CO2 emissions of 106 g/km. The boot offers a capacity of 575-704 l. The Citroën Grand C4 Picasso/SpaceTourer underwent EURONCAP safety tests in 2013, where it achieved a rating of 5 out of 5.
Car body style
Medium MPV
Date of manufacture
2016 – 2020Internal designation
-
Technical data
Medium MPV
| 1.2 PureTech 130 | 1.2 PureTech 130 | 1.6 THP | 1.6 BlueHDi 120 | 1.6 BlueHDi 120 | 1.5 BlueHDi 130 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | from to 2018 | from to 2018 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1598 | 1560 | 1560 | 1499 |
| Maximum output / speed [kW/min-1] | 96/5500 | 96/5500 | 121/6000 | 88/3500 | 88/3500 | 96/3750 |
| Maximum torque [Nm/min-1] | 230/1750 | 230/1750 | 240/1400 | 300/1750 | 300/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75 x 84,8 |
| Compression ratio | - | - | 10,5:1 | - | - | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
| - |
| Top speed [km/h] | 200 | 196 | 210 | 189 | 188 | 198 |
| Acceleration 0–100 km/h [s] | 11,2 | 11.2 | 8.7 | 11.6 | 11.5 | 12.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1 | 5.8 | 8.4-8.3 | 4.6-4.5 | 4.6 | 4.6 |
| Out of town [l] | 4.4 | 4.5 | 5.4-5.3 | 3.8-3.7 | 3.7 | 3.6 |
| Combined [l] | 5.0 | 5.0 | 6.5-6.4 | 4.0 | 4.0 | 3.9 |
| CO2 emissions [g/km] | 114 | 114 | 145-143 | 105-106 | 106 | 104 |
| Low speed [l] | 7.2-7.1 | 8.5 | - | - | - | 5.4-5.3 |
| Medium speed [l] | 6.2-6.1 | 6.7-6.6 | - | - | - | 4.8-4.7 |
| High speed [l] | 5.4-5.3 | 5.7-5.6 | - | - | - | 4.3-4.2 |
| Extra high speed [l] | 6.6-6.5 | 6.9-6.8 | - | - | - | 5.4-5.3 |
| Combined speed [l] | 6.2-6.1 | 6.7-6.6 | - | - | - | 5.0-4.9 |
| CO2 emissions [g/km] | 141-139 | 153-150 | - | - | - | 130-127 |
| Emission standard | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6 | EU6 | EU6 | EU6d-TEMP - EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395-1600 | 1479-1659 | 1500 | 1420 | 1432 | 1505-1685 |
| Overall weight [kg] | 1935 [2110 seven seats] | 2130 | 2100 [2150 seven seats] | 2100 [2175 seven seats] | 2125 [2205 seven seats] | 2015 [2190 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 680/1300 [680/1150 seven seats] | 680/1150 | 690/1550 [690/1500 seven seats] | 672/1550 [674/1500 seven seats] | 675/1500 [675/1500 seven seats] | 705/1550 [708/1500 seven seats] |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 70 | 70 | 70 | 70 | 70 | 70 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 575-704 | 575-704 | 575-704 | 575-704 | 575-704 | 575-704 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1843 | -/1843 | -/1843 | -/1843 | -/1843 | -/1843 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1178 [355 seven seats] | 1178 [355 seven seats] | 1178 [355 seven seats] | 1178 [355 seven seats] | 1178 [355 seven seats] | 1178 [355 seven seats] |
| Boot length with rear seats folded [mm] | 1960 | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 57 | 57 | 57 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | 17 | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | - | - | 205/60 R16 | 205/60 R16 | 205/60 R16 | - |
| Tyre dimensions rear | - | - | 205/60 R16 | 205/60 R16 | 205/60 R16 | - |
| Wheel size front | - | - | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | - |
| Wheel size rear | - | - | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4602 | 4602 | 4602 | 4602 | 4602 | 4602 |
| Overall width without/including mirrors [mm] | 1826/2117 | 1826/2117 | 1826/2117 | 1826/2117 | 1826/2117 | 1826/2117 |
| Overall height [mm] | 1638 | 1638 | 1638 | 1638 | 1638 | 1638 |
| Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
| Front wheel track [mm] | 1573-1587 | 1573-1587 | 1573-1587 | 1573-1587 | 1573-1587 | 1573-1587 |
| Rear wheel track [mm] | 1576-1590 | 1576-1590 | 1576-1590 | 1576-1590 | 1576-1590 | 1576-1590 |
| Forward overhang [mm] | 889 | 889 | 889 | 889 | 889 | 889 |
| Rear overhang [mm] | 873 | 873 | 873 | 873 | 873 | 873 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 936 | 936 | 936 | 936 | 936 | 936 |
| Headroom rear [mm] | 901 | 901 | 901 | 901 | 901 | 901 |
| Front elbow/shoulder width [mm] | 1490/- | 1490/- | 1490/- | 1490/- | 1490/- | 1490/- |
| Rear elbow/shoulder width [mm] | 1493/- | 1493/- | 1493/- | 1493/- | 1493/- | 1493/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 792 | 792 | 792 | 792 | 792 | 792 |
| Third row elbow/shoulder width [mm] | 1171/- | 1171/- | 1171/- | 1171/- | 1171/- | 1171/- |
| 1.5 BlueHDi 130 | 2.0 BlueHDI 150 | 2.0 BlueHDI 150 | 2.0 BlueHDi 160 | |||
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | from to 2018 | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1499 | 1997 | 1997 | 1997 | ||
| Maximum output / speed [kW/min-1] | 96/3750 | 110/4000 | 110/4000 | 120/3750 | ||
| Maximum torque [Nm/min-1] | 300/1750 | 370/2000 | 370/2000 | 400/2000 | ||
| Bore and stroke [mm x mm] | 75 x 84,8 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | ||
| Compression ratio | 16.5:1 | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear automatic | 8 gear automatic | ||
| Drive specifications |
| - |
|
| ||
| Top speed [km/h] | 198 | 210 | 207 | 210 | ||
| Acceleration 0–100 km/h [s] | 11.8 | 9.8 | 10.2 | 9.2 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.1 | 5.1-4.7 | 5.1-5.0 | 5.5 | ||
| Out of town [l] | 3.6 | 3.8-3.7 | 4.0-3.9 | 4.2 | ||
| Combined [l] | 3.7 | 4.3-4.1 | 4.4-4.3 | 4.7 | ||
| CO2 emissions [g/km] | 99 | 111-106 | 115-112 | 124 | ||
| Low speed [l] | 6.0-5.9 | - | - | 6.9-6.8 | ||
| Medium speed [l] | 5.1-5.0 | - | - | 5.9-5.8 | ||
| High speed [l] | 4.6-4.5 | - | - | 5.1-5.0 | ||
| Extra high speed [l] | 5.6-5.5 | - | - | 6.0 | ||
| Combined speed [l] | 5.2-5.1 | - | - | 5.8 | ||
| CO2 emissions [g/km] | 137-134 | - | - | 152-151 | ||
| Emission standard | EU6d-TEMP - EU6d | EU6 | EU6 | EU6d-TEMP - EU6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1505-1696 | 1503 | 1549 | 1615-1796 | ||
| Overall weight [kg] | 2210 | 2200 [2250 seven seats] | 2200 [2280 seven seats] | 2290 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1750 [750/1700 seven seats] | 750/1680 [750/1600 seven seats] | 750/1600 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 70 | 70 | 70 | 70 | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 575-704 | 575-704 | 575-704 | 575-704 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1843 | -/1843 | -/1843 | -/1843 | ||
| Boot volume, third row of seats [l] | - | - | - | - | ||
| Boot volume, third row seats folded [l] | - | - | - | - | ||
| Boot length [mm] | 1178 [355 seven seats] | 1178 [355 seven seats] | 1178 [355 seven seats] | 1178 [355 seven seats] | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 7 | 5-7 | 5-7 | 7 | ||
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | ||
| AdBlue tank volume [l] | 17 | 17 | 17 | 17 | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | - | 205/60 R16 | 205/55 R17 | - | ||
| Tyre dimensions rear | - | 205/60 R16 | 205/55 R17 | - | ||
| Wheel size front | - | 6,5J x 16 | 7.0J x 17 | - | ||
| Wheel size rear | - | 6,5J x 16 | 7.0J x 17 | - | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | - | - | - | - | ||
| Overall length [mm] | 4602 | 4602 | 4602 | 4602 | ||
| Overall width without/including mirrors [mm] | 1826/2117 | 1826/2117 | 1826/2117 | 1826/2117 | ||
| Overall height [mm] | 1638 | 1638 | 1638 | 1638 | ||
| Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | ||
| Front wheel track [mm] | 1573-1587 | 1573-1587 | 1573-1587 | 1573-1587 | ||
| Rear wheel track [mm] | 1576-1590 | 1576-1590 | 1576-1590 | 1576-1590 | ||
| Forward overhang [mm] | 889 | 889 | 889 | 889 | ||
| Rear overhang [mm] | 873 | 873 | 873 | 873 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 936 | 936 | 936 | 936 | ||
| Headroom rear [mm] | 901 | 901 | 901 | 901 | ||
| Front elbow/shoulder width [mm] | 1490/- | 1490/- | 1490/- | 1490/- | ||
| Rear elbow/shoulder width [mm] | 1493/- | 1493/- | 1493/- | 1493/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - | ||
| Third row of seats, headroom [mm] | 792 | 792 | 792 | 792 | ||
| Third row elbow/shoulder width [mm] | 1171/- | 1171/- | 1171/- | 1171/- |
