Citroën SpaceTourer
Date of manufacture
3/2016 – to this day (Large MPV)
Platform
PSA EMP2
Manufacturing locations
Lieu-Saint-Amand, France
Designer
-
Tags
Large MPV
French cars

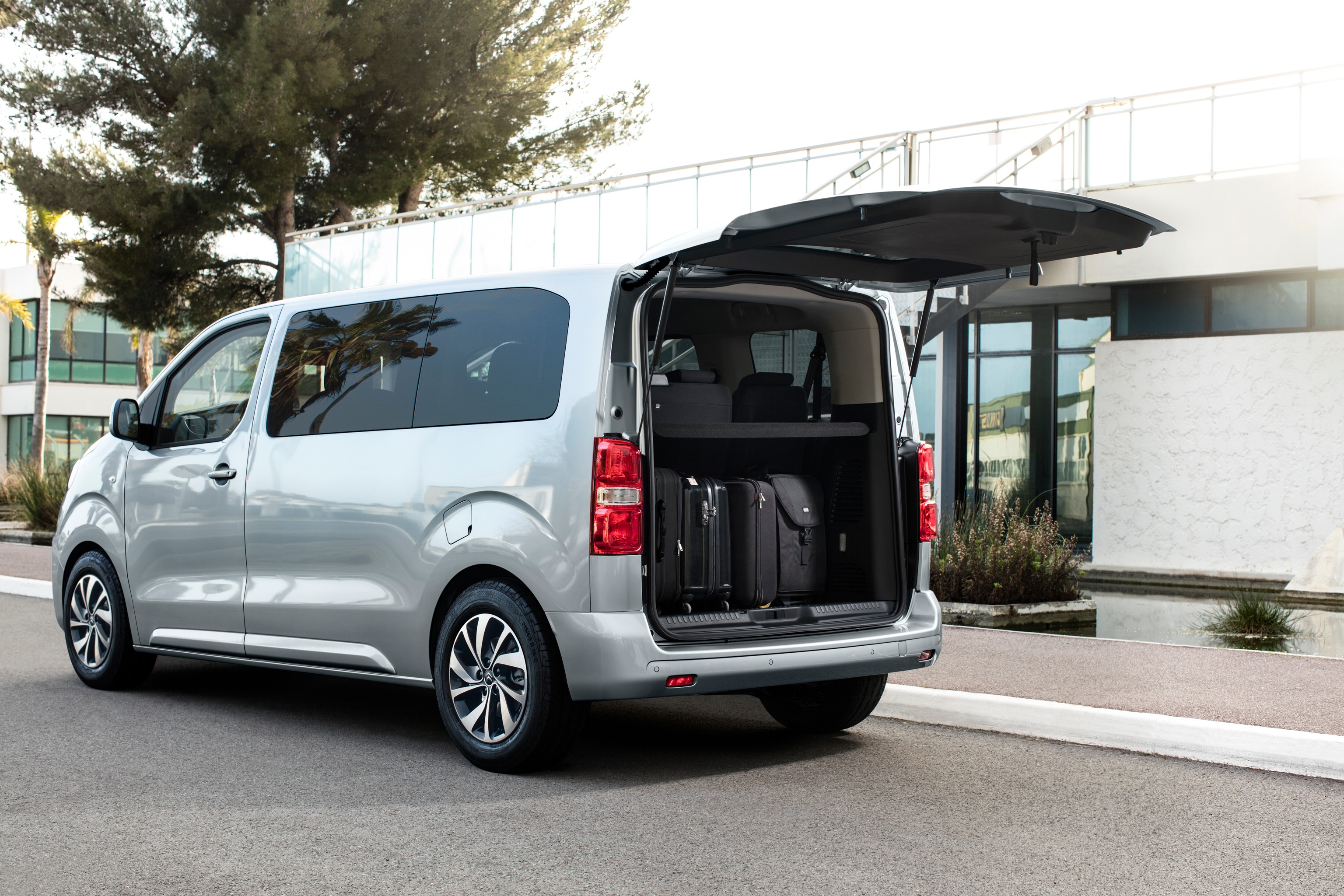

The Citroën SpaceTourer is a large MPV manufactured by the French carmaker since 2016. The vehicle is built on the PSA EMP2 platform and offers a wide range of diesel and electric powertrains. The most powerful model is the BlueHDi 180 XL with 130 kW of power, which reaches a top speed of 185 km/h. The most economical engine is the BlueHDi 145 M with a fuel consumption of 5 l/100 km and emissions of 140 g/km. The luggage compartment has a capacity of 1556 l. The vehicle underwent EURONCAP safety tests in 2015 and received a rating of 5 out of 5.
Car body style
Large MPV
Date of manufacture
3/2016 – to this dayInternal designation
-Engine size
ElectricDiesel
Technical data
Large MPV
| ë-SPACETOURER 50 kWh XS | ë-SPACETOURER 50 kWh M | ë-SPACETOURER 75 kWh M | ë-SPACETOURER 50 kWh XL | ë-SPACETOURER 75 kWh XL | BlueHDi 120 XS | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | from 2020 to | from 2020 to | from 2020 to | - |
| Engine type | Electric | Electric | Electric | Electric | Electric | Diesel supercharged |
| Number of cylinders/valves | - | - | - | - | - | 4/16 |
| Engine displacement [cm³] | - | - | - | - | - | 1499 |
| Maximum output / speed [kW/min-1] | 100 | 100 | 100 | 100 | 100 | 88/3500 |
| Maximum torque [Nm/min-1] | 260 | 260 | 260 | 260 | 260 | 300/1750 |
| Bore and stroke [mm x mm] | - | - | - | - | - | 75,0 x 84.8 |
| Compression ratio | - | - | - | - | - | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - | - | - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 1 gear automatic | 1 gear automatic | 1 gear automatic | 1 gear automatic | 1 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 130 | 130 | 130 | 130 | 130 | 160 |
| Acceleration 0–100 km/h [s] | - | - | - | - | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | - | 6.4 |
| Out of town [l] | - | - | - | - | - | 4.4 |
| Combined [l] | - | - | - | - | - | 5.1 |
| CO2 emissions [g/km] | - | - | - | - | - | 136 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 24.8 kWh | 26.2-25.2 kWh | 29,5 kWh | 26.5-25.4 kWh | 29,5 kWh | - |
| CO2 emissions [g/km] | - | - | - | - | - | - |
| Emission standard | - | - | - | - | - | EU6d-TEMP - EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 50 kWh | Lithium-Ionen-Akkumulator, 50 kWh | Lithium-Ionen-Akkumulator, 75 kWh | Lithium-Ionen-Akkumulator, 50 kWh | Lithium-Ionen-Akkumulator, 75 kWh | - |
| Range with fully charged battery [km] | 224 | 219-221 | 330 | 220-217 | 330 | - |
| Charging time |
|
|
|
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1932-2301 | 1969-2316 | 2140-2487 | 1989-2336 | 2167-2514 | 1715-2067 |
| Overall weight [kg] | 2855 | 2950 | 3100 | 2965 | 3100 | 2690 |
| Maximum trailer weight unbraked/braked [kg] | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 84 |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | 100-150/- |
| Boot volume [l] | 1172 | 1556 | 1556 | 1950 | 1950 | 1172 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 2625/3397 | 3061/3968 | 3061/3968 | 3497/4554 | 3497/4554 | 2625/3397 |
| Boot length [mm] | 1138 | 1488 | 1488 | 1838 | 1838 | 1138 |
| Boot length with rear seats folded [mm] | 2063 | 2413 | 2413 | 2763 | 2763 | 2063 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1618/1228 | 1618/1228 | 1228/1618 |
| Boot height to headliner/ceiling [mm] | -/1334 | -/1337 | -/1337 | -/1339 | -/1339 | -/1334 |
| Loading edge height [mm] | 587-610 | 584-653 | 584-653 | 584/664 | 584/664 | 587-610 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 |
| Fuel tank volume [l] | - | - | - | - | - | 69 |
| AdBlue tank volume [l] | - | - | - | - | - | 22.4 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/65 R16 C 106 T | 215/65 R16 C 106 T | 215/65 R16 C 106 T | 215/65 R16 C 106 T | 215/65 R16 C 106 T | 225/55 R17 XL 101W |
| Tyre dimensions rear | 215/65 R16 C 106 T | 215/65 R16 C 106 T | 215/65 R16 C 106 T | 215/65 R16 C 106 T | 215/65 R16 C 106 T | 225/55 R17 XL 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 12,4/- | 12,4/- | 12,4/- | 12,4/- | 11.3/- |
| Overall length [mm] | 4606 | 4956 | 4956 | 5306 | 5306 | 4606 |
| Overall width without/including mirrors [mm] | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 |
| Overall height [mm] | 1905 | 1890 | 1890 | 1890 | 1890 | 1905 |
| Wheelbase [mm] | 2925 | 3275 | 3275 | 3275 | 3275 | 2925 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 803 | 803 | 803 | 1153 | 1153 | 803 |
| Clearance [mm] | 157 | 157 | 157 | 157 | 157 | 157 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| BlueHDi 120 XS | BlueHDi 100 M | BlueHDi 120 M | BlueHDi 120 M | BlueHDi 145 M | BlueHDi 145 M | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 90/3750 | 75/3500 | 88/3500 | 90/3750 | 106/3700 | 106/3700 |
| Maximum torque [Nm/min-1] | 340/2000 | 270/1600 | 300/1750 | 340/2000 | 340/2000 | 340/2000 |
| Bore and stroke [mm x mm] | 75,0 x 84.8 | 75,0 x 84.8 | 75,0 x 84.8 | 75,0 x 84.8 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 170 | - | 160 | 170 | 185 | 185 |
| Acceleration 0–100 km/h [s] | 14.6 | - | - | 14.6 | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5-6.2 | - | 6.4 | 6.5-6.2 | 5.7 | 5.5 |
| Out of town [l] | 5.4-5.2 | - | 4.4 | 5.4-5.2 | 4.9 | 4.8 |
| Combined [l] | 5.8-5.6 | - | 5.1 | 5.8-5.6 | 5.2 | 5.0 |
| CO2 emissions [g/km] | 152-148 | - | 136 | 152-148 | 145 | 140 |
| Low speed [l] | 8.3-8.1 | 6.9 | - | 8.4-8.2 | - | - |
| Medium speed [l] | 7.3-6.8 | 6.3 | - | 7.3-7.0 | - | - |
| High speed [l] | 6.5-6.1 | 5.9 | - | 6.5-6.2 | - | - |
| Extra high speed [l] | 8.1-7.7 | 7.8 | - | 8.1-7.8 | - | - |
| Combined speed [l] | 7.4-7.1 | 6.8 | - | 7.5-7.2 | - | - |
| CO2 emissions [g/km] | 195-1896 | 178 | - | 196-189 | - | - |
| Emission standard | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1770 | 1734-2156 | 1734-2156 | - | 1793-2213 | 1839-2251 |
| Overall weight [kg] | 2820 | 2700 | 2700 | 2810-2900 | 2760 | 2800 |
| Maximum trailer weight unbraked/braked [kg] | 750/2300 | 750/1400 | 750/1400 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | 84 | 84 | 84 |
| Maximum load on roof/carrier [kg] | 100-150/- | 100-150/- | 100-150/- | 100-150/- | 100-150/- | 100-150/- |
| Boot volume [l] | 1172 | 1556 | 1556 | 1556 | 1556 | 1556 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 2625/3397 | 3061/3968 | 3061/3968 | 3061/3968 | 3061/3968 | 3061/3968 |
| Boot length [mm] | 1138 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Boot length with rear seats folded [mm] | 2063 | 2413 | 2413 | 2413 | 2413 | 2413 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 |
| Boot height to headliner/ceiling [mm] | -/1334 | -/1337 | -/1337 | -/1337 | -/1337 | -/1337 |
| Loading edge height [mm] | 587-610 | 584-653 | 584-653 | 584-653 | 584-653 | 584-653 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 |
| Fuel tank volume [l] | 69 | 69 | 69 | 69 | 69 | 69 |
| AdBlue tank volume [l] | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W |
| Tyre dimensions rear | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 12,4/- | 12,4/- | 12,4/- | 12,4/- |
| Overall length [mm] | 4606 | 4956 | 4956 | 4956 | 4956 | 4956 |
| Overall width without/including mirrors [mm] | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 |
| Overall height [mm] | 1905 | 1890 | 1890 | 1890 | 1890 | 1890 |
| Wheelbase [mm] | 2925 | 3275 | 3275 | 3275 | 3275 | 3275 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
| Clearance [mm] | 157 | 157 | 157 | 157 | 157 | 157 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| BlueHDi 150 M | BlueHDi 180 M | BlueHDi 120 XL | BlueHDi 120 XL | BlueHDi 145 XL | BlueHDi 145 XL | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1499 | 1499 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 110/4000 | 130/3750 | 88/3500 | 90/3750 | 106/3700 | 106/3700 |
| Maximum torque [Nm/min-1] | 370/2000 | 400/2000 | 300/1750 | 340/2000 | 340/2000 | 340/2000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 75,0 x 84.8 | 75,0 x 84.8 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | - | - | 16.5:1 | 16.5:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - | - | - |
|
| Top speed [km/h] | 184 | 185 | 160 | 170 | 185 | 185 |
| Acceleration 0–100 km/h [s] | 10.3 | - | - | 14.6 | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 5.4 | 6.4 | 6.5-6.3 | 5.7 | 5.5 |
| Out of town [l] | - | 4.8 | 4.5 | 5.4-5.3 | 5.0 | 4.8 |
| Combined [l] | - | 5.0 | 5.2 | 5.8-5.6 | 5.2 | 5.1 |
| CO2 emissions [g/km] | - | 140 | 136 | 152-148 | 145 | 140 |
| Low speed [l] | 8.0-7.6 | - | - | 8.4-8.2 | - | - |
| Medium speed [l] | 7.1-6.7 | - | - | 7.4-7.0 | - | - |
| High speed [l] | 6.6-6.2 | - | - | 6.5-6.2 | - | - |
| Extra high speed [l] | 8.3-8.0 | - | - | 8.1-7.9 | - | - |
| Combined speed [l] | 7.5-7.1 | - | - | 7.5-7.2 | - | - |
| CO2 emissions [g/km] | 196-187 | - | - | 197-190 | - | - |
| Emission standard | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | - | 1839-2251 | 1734-2159 | - | 1823-2246 | 1842-2257 |
| Overall weight [kg] | 2750-2810 | 2760-2870 | 2740 | 2820-2900 | 2790 | 2830 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | - | 750/1400 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | 84 | 84 | 84 |
| Maximum load on roof/carrier [kg] | 100-150/- | 100-150/- | 100-150/- | 100-150/- | 100-150/- | 100-150/- |
| Boot volume [l] | 1556 | 1556 | 1950 | 1950 | 1950 | 1950 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 3061/3968 | 3061/3968 | 3497/4554 | 3497/4554 | 3497/4554 | 3497/4554 |
| Boot length [mm] | 1488 | 1488 | 1838 | 1838 | 1838 | 1838 |
| Boot length with rear seats folded [mm] | 2413 | 2413 | 2763 | 2763 | 2763 | 2763 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1618/1228 | 1618/1228 | 1618/1228 | 1618/1228 |
| Boot height to headliner/ceiling [mm] | -/1337 | -/1337 | -/1339 | -/1339 | -/1339 | -/1339 |
| Loading edge height [mm] | 584-653 | 584-653 | 584/664 | 584/664 | 584/664 | 584/664 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 |
| Fuel tank volume [l] | 69 | 69 | 69 | 69 | 69 | 69 |
| AdBlue tank volume [l] | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W |
| Tyre dimensions rear | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12,4/- | 12,4/- | 12,4/- | 12,4/- | 12,4/- | 12,4/- |
| Overall length [mm] | 4956 | 4956 | 5306 | 5306 | 5306 | 5306 |
| Overall width without/including mirrors [mm] | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 |
| Overall height [mm] | 1890 | 1890 | 1890 | 1890 | 1890 | 1890 |
| Wheelbase [mm] | 3275 | 3275 | 3275 | 3275 | 3275 | 3275 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 803 | 803 | 1153 | 1153 | 1153 | 1153 |
| Clearance [mm] | 157 | 157 | 157 | 157 | 157 | 157 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| BlueHDi 150 XL | BlueHDi 150 XL | BlueHDi 180 XL | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | |||
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 130/3750 | |||
| Maximum torque [Nm/min-1] | 370/2000 | 370/2000 | 400/2000 | |||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | |||
| Drive specifications | - | - |
| |||
| Top speed [km/h] | 184 | 184 | 185 | |||
| Acceleration 0–100 km/h [s] | 10.3 | 10.3 | - | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | - | - | 5.4 | |||
| Out of town [l] | - | - | 4.9 | |||
| Combined [l] | - | - | 5.1 | |||
| CO2 emissions [g/km] | - | - | 140 | |||
| Low speed [l] | 7.7-7.3 | 8.2-7.8 | - | |||
| Medium speed [l] | 6.8-6.3 | 7.3-6.8 | - | |||
| High speed [l] | 6.4-6.0 | 6.7-6.3 | - | |||
| Extra high speed [l] | 8.2-7.8 | 8.4-8.1 | - | |||
| Combined speed [l] | 7.3-6.9 | 7.6-7.3 | - | |||
| CO2 emissions [g/km] | 190-180 | 200-190 | - | |||
| Emission standard | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | - | - | 1842-2257 | |||
| Overall weight [kg] | 2700 | 2785-2845 | 2730-2840 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 84 | 84 | 84 | |||
| Maximum load on roof/carrier [kg] | 100-150/- | 100-150/- | 100-150/- | |||
| Boot volume [l] | 1950 | 1950 | 1950 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 3497/4554 | 3497/4554 | 3497/4554 | |||
| Boot length [mm] | 1838 | 1838 | 1838 | |||
| Boot length with rear seats folded [mm] | 2763 | 2763 | 2763 | |||
| Boot width between wheels/max [mm] | 1618/1228 | 1618/1228 | 1618/1228 | |||
| Boot height to headliner/ceiling [mm] | -/1339 | -/1339 | -/1339 | |||
| Loading edge height [mm] | 584/664 | 584/664 | 584/664 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5-9 | 5-9 | 5-9 | |||
| Fuel tank volume [l] | 69 | 69 | 69 | |||
| AdBlue tank volume [l] | 22.4 | 22.4 | 22.4 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | |||
| Tyre dimensions rear | 225/55 R17 XL 101W | 225/55 R17 XL 101W | 225/55 R17 XL 101W | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 12,4/- | 12,4/- | 12,4/- | |||
| Overall length [mm] | 5306 | 5306 | 5306 | |||
| Overall width without/including mirrors [mm] | 1920/2204 | 1920/2204 | 1920/2204 | |||
| Overall height [mm] | 1890 | 1890 | 1890 | |||
| Wheelbase [mm] | 3275 | 3275 | 3275 | |||
| Front wheel track [mm] | 1627 | 1627 | 1627 | |||
| Rear wheel track [mm] | 1600 | 1600 | 1600 | |||
| Forward overhang [mm] | 878 | 878 | 878 | |||
| Rear overhang [mm] | 1153 | 1153 | 1153 | |||
| Clearance [mm] | 157 | 157 | 157 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
