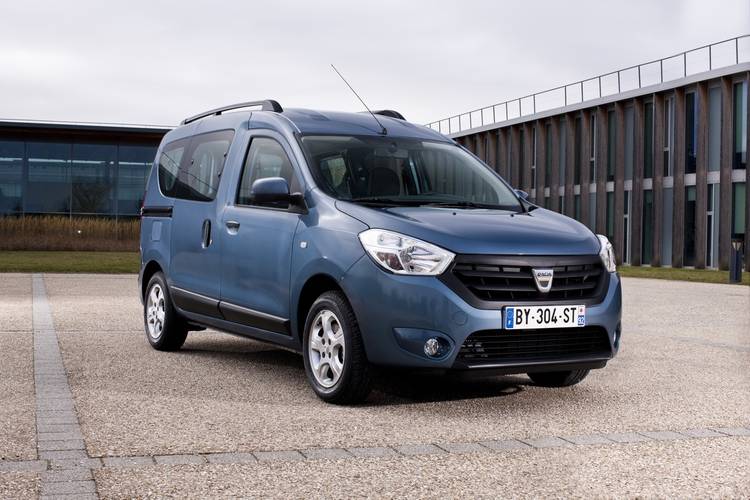

Dacia Dokker
Date of manufacture
11/2012 – 2017 (MPV)
Platform
Dacia M0 platform
Manufacturing locations
Tangier, Morocco
Designer
-
Tags
Small MPV
The Dacia Dokker is available as an MPV, which has been manufactured since 2012. This model built on the Dacia M0 platform is produced in Morocco and offers a wide range of engines - from petrol to diesel. The most powerful model is the 1.2 TCe 115 with 85 kW of power and a top speed of 175 km/h. The most economical variant is called the 1.5 dCi 75 with a combined consumption of 4.2 l/100 km and CO2 emissions of 108 g/km. The luggage compartment has a volume of 800 l.
Car body style
MPV
Date of manufacture
11/2012 – 2017Internal designation
Engine size
Technical data
MPV
| 1.6 | 1.6 | 1,6 SCe 75 | 1,6 SCe 75 | 1.2 TCe 115 | 1.2 TCe 115 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from to 2015 | from 2015 to |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1198 | 1198 |
| Maximum output / speed [kW/min-1] | 60,5/5000 | 60,5/5000 [59/5000 LPG] | 75/5500 | 75/5500 | 85/4500 | 85/4500 |
| Maximum torque [Nm/min-1] | 134/2800 | 134/2800 | 156/4000 | 156/4000 | 190/1750 | 190/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 72,2 x 73,2 | 72,2 x 73,2 |
| Compression ratio | 9,5:1 | 9,5:1 | 9.5:1 | 9.5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 159 | 159 [157 LPG] | 170 | 170 [167 LPG] | 175 | 175 |
| Acceleration 0–100 km/h [s] | 14.3 | 14.3 [14.9 LPG] | 12,7 | 12,7 [13.2 LPG] | 11,1 | 10,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.7 | 9.7 [11.7 LPG] | 7,7 | 7,9 [10.5 LPG] | 7,1 | 6,8 |
| Out of town [l] | 6.0 | 5.8 [7.5 LPG] | 5,3 | 5,4 [7.0 LPG] | 5.1 | 5.1 |
| Combined [l] | 7.3 | 7.2 [9.0 LPG] | 6,2 | 6,3 [8.2 LPG] | 5,8 | 5,7 |
| CO2 emissions [g/km] | 168 | 168 [144 LPG] | 140 | 143 [132 LPG] | 135 | 130 |
| Emission standard | EU5 | EU5 | Euro 6 | Euro 6 | EU5 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1065 | 1280 | 1239 | 1280 | 1280 | 1280 |
| Overall weight [kg] | 1768 | 1818 | 1764 | 1826 | 1823 | 1823-1826 |
| Maximum trailer weight unbraked/braked [kg] | 580/1200 | 580/1200 | 615/1200 | 635/1200 | 640/1200 | 640/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 70 | 70 | 70 | 70 | 70 | 70 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 800 | 800 | 800 | 800 | 800 | 800 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3000 | -/3000 | -/3000 | -/3000 | -/3000 | -/3000 |
| Boot length [mm] | 1164 | 1164 | 1164 | 1164 | 1164 | 1164 |
| Boot length with rear seats folded [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Boot width between wheels/max [mm] | 1170/- | 1170/- | 1170/- | 1170/- | 1170/- | 1170/- |
| Boot height to headliner/ceiling [mm] | 588/- | 588/- | 588/- | 588/- | 588/- | 588/- |
| Loading edge height [mm] | 570 | 570 | - | - | 570 | 570 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Boot opening width min/max [mm] | 1082/1189 | 1082/1189 | 1082/1189 | 1082/1189 | 1082/1189 | 1082/1189 |
| Number of doors | 5/6 | 5/6 | 5/6 | 5/6 | 5/6 | 5/6 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 [33.6 LPG] | 50 | 50 [33,6 LPG] | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T |
| Tyre dimensions rear | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 1082 | 1082 | 258 x 22 | 258 x 22 | 280 x 24 | 280 x 24 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 |
| Turning diameter track/circumference [m] | 11.1/11.6 | 11.1/11.6 | 11.1/11.6 | 11.1/11.6 | 11.1/11.6 | 11.1/11.6 |
| Overall length [mm] | 4363 | 4363 | 4363 | 4363 | 4363 | 4363 |
| Overall width without/including mirrors [mm] | 1751/2004 | 1751/2004 | 1751/2004 | 1751/2004 | 1751/2004 | 1751/2004 |
| Overall height [mm] | 1814 | 1814 | 1814 | 1814 | 1814 | 1814 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1490 | 1490 | 1490 | 1490 | 1490 | 1490 |
| Rear wheel track [mm] | 1478 | 1478 | 1478 | 1478 | 1478 | 1478 |
| Forward overhang [mm] | 822 | 822 | 822 | 822 | 822 | 822 |
| Rear overhang [mm] | 731 | 731 | 731 | 731 | 731 | 731 |
| Clearance [mm] | 190 | 190 | 190 | 190 | 190 | 190 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Headroom rear [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Front elbow/shoulder width [mm] | -/1401 | -/1401 | -/1401 | -/1401 | -/1401 | -/1401 |
| Rear elbow/shoulder width [mm] | -/1458 | -/1458 | -/1458 | -/1458 | -/1458 | -/1458 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 177/- | 177/- | 177/- | 177/- | 177/- | 177/- |
| 1.5 dCi 75 | 1.5 dCi 75 | 1.5 dCi 90 | 1.5 dCi 90 | |||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from to 2015 | from 2015 to | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | ||
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1461 | ||
| Maximum output / speed [kW/min-1] | 55/4000 | 55/4000 | 66/4000 | 66/4000 | ||
| Maximum torque [Nm/min-1] | 180/1750 | 200/1750 | 200/1750 | 220/1750 | ||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | ||
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | ||
| Drive specifications | - | - | - | - | ||
| Top speed [km/h] | 150 | 152 | 162 | 163 | ||
| Acceleration 0–100 km/h [s] | 15,9 | 15,5 | 13,9 | 13,3 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5,2 | 4,4 | 5,2 | 4,4 | ||
| Out of town [l] | 4.1 | 4.1 | 4.1 | 4.1 | ||
| Combined [l] | 4,5 | 4,2 | 4,5 | 4,2 | ||
| CO2 emissions [g/km] | 118 | 108 | 118 | 108 | ||
| Emission standard | EU5 | Euro 6 | EU5 | Euro 6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1277 | 1280 | 1280 | 1280 | ||
| Overall weight [kg] | 1818 | 1818 | 1854 | 1854 | ||
| Maximum trailer weight unbraked/braked [kg] | 640/1200 | 640/1200 | 640/1200 | 640/1200 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 70 | 70 | 70 | 70 | ||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | ||
| Boot volume [l] | 800 | 800 | 800 | 800 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3000 | -/3000 | -/3000 | -/3000 | ||
| Boot length [mm] | 1164 | 1164 | 1164 | 1164 | ||
| Boot length with rear seats folded [mm] | 1570 | 1570 | 1570 | 1570 | ||
| Boot width between wheels/max [mm] | 1170/- | 1170/- | 1170/- | 1170/- | ||
| Boot height to headliner/ceiling [mm] | 588/- | 588/- | 588/- | 588/- | ||
| Loading edge height [mm] | 570 | 570 | 570 | 570 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 1094 | 1094 | 1094 | 1094 | ||
| Boot opening width min/max [mm] | 1082/1189 | 1082/1189 | 1082/1189 | 1082/1189 | ||
| Number of doors | 5/6 | 5/6 | 5/6 | 5/6 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | ||
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | ||
| Tyre dimensions front | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | ||
| Tyre dimensions rear | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | ||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | ||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | ||
| Brake dimensions front | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | 3,3 | 3,3 | 3,3 | 3,3 | ||
| Turning diameter track/circumference [m] | 11.1/11.6 | 11.1/11.6 | 11.1/11.6 | 11.1/11.6 | ||
| Overall length [mm] | 4363 | 4363 | 4363 | 4363 | ||
| Overall width without/including mirrors [mm] | 1751/2004 | 1751/2004 | 1751/2004 | 1751/2004 | ||
| Overall height [mm] | 1814 | 1814 | 1814 | 1814 | ||
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | ||
| Front wheel track [mm] | 1490 | 1490 | 1490 | 1490 | ||
| Rear wheel track [mm] | 1478 | 1478 | 1478 | 1478 | ||
| Forward overhang [mm] | 822 | 822 | 822 | 822 | ||
| Rear overhang [mm] | 731 | 731 | 731 | 731 | ||
| Clearance [mm] | 190 | 190 | 190 | 190 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1037 | 1037 | 1037 | 1037 | ||
| Headroom rear [mm] | 1065 | 1065 | 1065 | 1065 | ||
| Front elbow/shoulder width [mm] | -/1401 | -/1401 | -/1401 | -/1401 | ||
| Rear elbow/shoulder width [mm] | -/1458 | -/1458 | -/1458 | -/1458 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | 177/- | 177/- | 177/- | 177/- |
