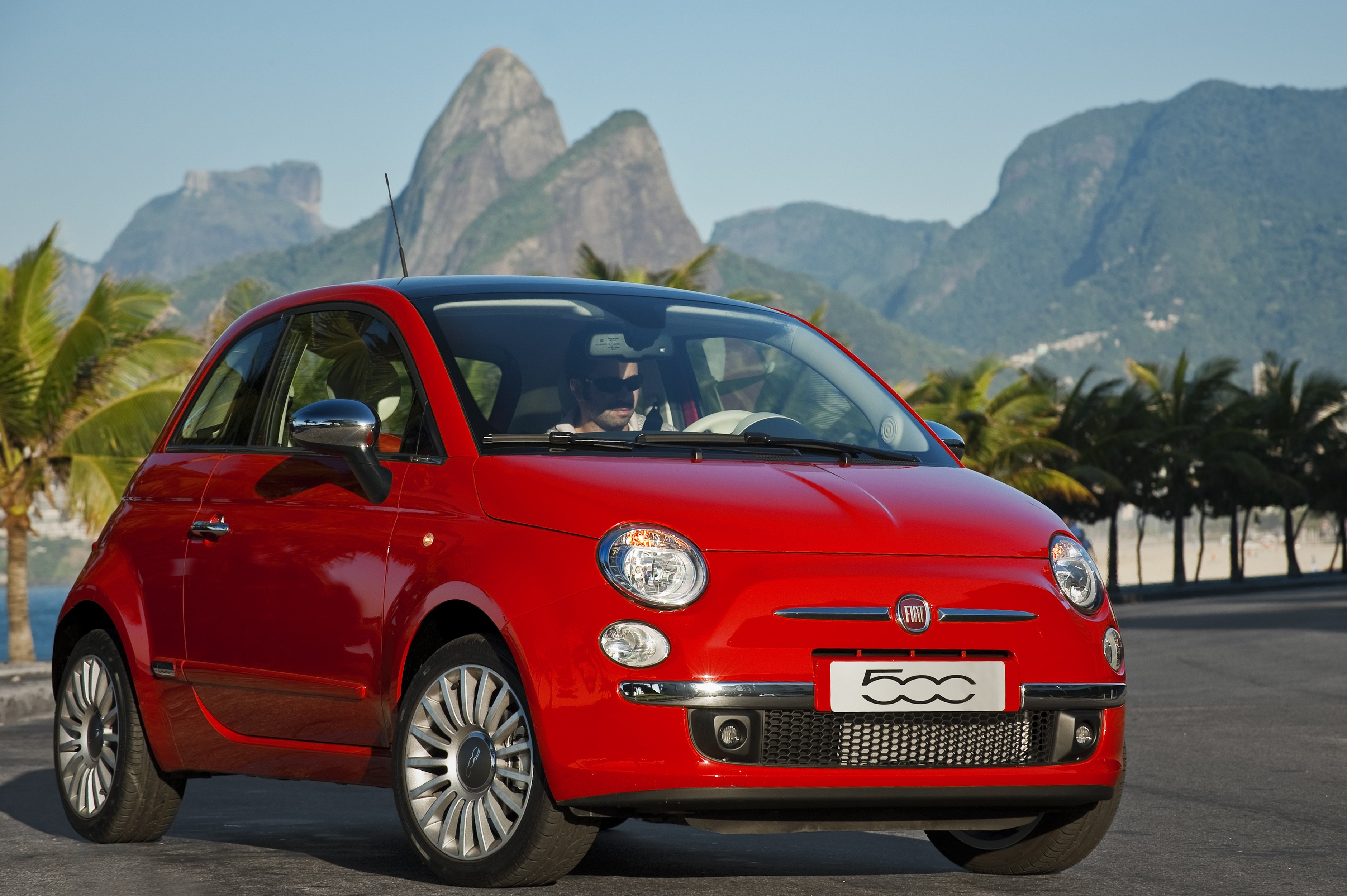

Fiat 500
Date of manufacture
2007 – 2015 (Three-door hatchback)
2009 – 2015 (Convertible)
Platform
Fiat Mini platform
Manufacturing locations
Tychy, Poland
Designer
Roberto Giolito
Tags
A-segment
Italian cars
The Fiat 500 has been produced since 2007 and is built on the Fiat Mini platform. This model offers petrol and diesel engines, reaching a maximum speed of 188 km/h. The most powerful variant, the 0.9 TwinAir Turbo, has 77 kW and the lowest fuel consumption of 3.7 l/100 km with CO2 emissions of 97 g/km. The car can be purchased as a three-door hatchback with a cargo volume of 185 l or as a convertible with a 182 l trunk. The safety of the vehicle was tested by EURONCAP and received a rating of 5 out of 5. Poland is the country of production of this car.
Car body style
Three-door hatchback
Date of manufacture
2007 – 2015Internal designation
312Convertible
Date of manufacture
2009 – 2015Internal designation
312Engine size
Technical data
Three-door hatchback
| 1.2 | 1.2 | 1.2 | 1.2 | 1.4 16v | 0.9 TwinAir Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | 2/8 |
| Engine displacement [cm³] | 1242 | 1242 | 1242 | 1242 | 1368 | 875 |
| Maximum output / speed [kW/min-1] | 51/5500 | 51/5500 | 51/5500 | 51/5500 | 73,5/6000 | 62/5500 |
| Maximum torque [Nm/min-1] | 102/3000 | 102/3000 | 102/3000 | 102/3000 | 131/4250 | 145/2000 |
| Bore and stroke [mm x mm] | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 72,0 x 84,0 | 80,5 x 86,0 |
| Compression ratio | 11,1:1 | 11,1:1 | 11,1:1 | 11,1:1 | 10,8:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
| - |
| - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear robotic manual | 6 gear manual | 5 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 160 | 160 | 160 | 160 | 182 | 173 |
| Acceleration 0–100 km/h [s] | 12.9 | 12.9 | 12.9 | 12.9 | 10.5 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 5.7 | 6.2 | 5.6 | 8.2 | 4.7 |
| Out of town [l] | 4.3 | 4.3 | 4.3 | 4.1 | 5.2 | 3.6 |
| Combined [l] | 5.1 | 4.8 | 5.0 | 4.7 | 6.3 | 4.0 |
| CO2 emissions [g/km] | 119 | 113 | 118 | 110 | 149 | 92 |
| Emission standard | EU4 - EU6 | EU5 - EU6 | EU4 - EU6 | EU4 - EU6 | EU4 | EU5 - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 865 | 865 | 900 | 900 | 930 | 930 |
| Overall weight [kg] | - | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 400/800 | 400/800 | 400/800 | 400/800 | 400/800 | 400/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 185 | 185 | 185 | 185 | 185 | 185 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | -/550 | -/550 | -/550 | -/550 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 35 | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 | 185/55 R15 |
| Tyre dimensions rear | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 | 185/55 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 240 | 240 | 240 | 240 | 257 | 257 |
| Brake dimensions rear | - | - | - | - | 240 | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | 9.3/- | 9.3/- | 10.6/- | 9.3/- |
| Overall length [mm] | 3546 | 3546 | 3546 | 3546 | 3546 | 3546 |
| Overall width without/including mirrors [mm] | 1627/- | 1627/- | 1627/- | 1627/- | 1627/- | 1627/- |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Front wheel track [mm] | 1413 | 1413 | 1413 | 1413 | 1413 | 1413 |
| Rear wheel track [mm] | 1407 | 1407 | 1407 | 1407 | 1407 | 1407 |
| Forward overhang [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Rear overhang [mm] | 543 | 543 | 543 | 543 | 543 | 543 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 0.9 TwinAir Turbo | 0.9 TwinAir Turbo | 1.3 Multijet | 1.3 Multijet | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 2/8 | 2/8 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 875 | 875 | 1248 | 1248 | ||
| Maximum output / speed [kW/min-1] | 62/5500 | 77/5500 | 55/4000 | 70/4000 | ||
| Maximum torque [Nm/min-1] | 145/2000 | 145/2000 | 145/1500 | 200/1500 | ||
| Bore and stroke [mm x mm] | 80,5 x 86,0 | 80,5 x 86,0 | 69,6 x 82,0 | 69,6 x 82,0 | ||
| Compression ratio | 10,0:1 | 10,0:1 | 17,6:1 | 16,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear robotic manual | 6 gear manual | 5 gear manual | 5 gear manual | ||
| Drive specifications |
| - | - | - | ||
| Top speed [km/h] | 173 | 188 | 165 | 180 | ||
| Acceleration 0–100 km/h [s] | 11.0 | 10.0 | 13.0 | 10.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.4 | 5.5 | 5.3 | 4.7 | ||
| Out of town [l] | 3.6 | 3.5 | 3.6 | 3.1 | ||
| Combined [l] | 3.9 | 4.2 | 4.2 | 3.7 | ||
| CO2 emissions [g/km] | 90 | 99 | 111 | 97 | ||
| Emission standard | EU5 - EU6 | EU6 | EU4 | EU5+ | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | - | 940 | 980 | 980 | ||
| Overall weight [kg] | - | - | - | - | ||
| Maximum trailer weight unbraked/braked [kg] | 400/800 | 400/800 | 400/800 | 400/800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 185 | 185 | 185 | 185 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | -/550 | -/550 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 3 | 3 | 3 | 3 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | ||
| Tyre dimensions front | 185/55 R15 | 185/55 R15 | 185/55 R15 | 185/55 R15 | ||
| Tyre dimensions rear | 185/55 R15 | 185/55 R15 | 185/55 R15 | 185/55 R15 | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 257 | 257 | 240 | 257 | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | 9.3/- | 10.8/- | ||
| Overall length [mm] | 3546 | 3546 | 3546 | 3546 | ||
| Overall width without/including mirrors [mm] | 1627/- | 1627/- | 1627/- | 1627/- | ||
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | ||
| Wheelbase [mm] | 2300 | 2300 | 2300 | 2300 | ||
| Front wheel track [mm] | 1413 | 1413 | 1413 | 1413 | ||
| Rear wheel track [mm] | 1407 | 1407 | 1407 | 1407 | ||
| Forward overhang [mm] | 703 | 703 | 703 | 703 | ||
| Rear overhang [mm] | 543 | 543 | 543 | 543 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Convertible
| 1.2 | 1.2 | 1.2 | 1.2 | 1.4 16v | 0.9 TwinAir Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | 2/8 |
| Engine displacement [cm³] | 1242 | 1242 | 1242 | 1242 | 1368 | 875 |
| Maximum output / speed [kW/min-1] | 51/5500 | 51/5500 | 51/5500 | 51/5500 | 73,5/6000 | 62/5500 |
| Maximum torque [Nm/min-1] | 102/3000 | 102/3000 | 102/3000 | 102/3000 | 131/4250 | 145/2000 |
| Bore and stroke [mm x mm] | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 72,0 x 84,0 | 80,5 x 86,0 |
| Compression ratio | 11,1:1 | 11,1:1 | 11,1:1 | 11,1:1 | 10,8:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
| - |
| - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear robotic manual | 6 gear manual | 5 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 160 | 160 | 160 | 160 | 182 | 173 |
| Acceleration 0–100 km/h [s] | 12.9 | 12.9 | 12.9 | 12.9 | 10.5 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 5.7 | 6.2 | 5.6 | 8.2 | 4.7 |
| Out of town [l] | 4.3 | 4.3 | 4.3 | 4.1 | 5.2 | 3.6 |
| Combined [l] | 5.1 | 4.8 | 5.0 | 4.7 | 6.3 | 4.0 |
| CO2 emissions [g/km] | 119 | 113 | 118 | 110 | 149 | 92 |
| Emission standard | EU4 - EU6 | EU5 - EU6 | EU4 - EU6 | EU4 - EU6 | EU4 | EU5 - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 865 | 865 | 900 | 900 | - | 930 |
| Overall weight [kg] | - | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 400/800 | 400/800 | 400/800 | 400/800 | 400/800 | 400/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 182 | 182 | 182 | 182 | 182 | 182 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | -/550 | -/550 | -/550 | -/550 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 35 | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 | 185/55 R15 |
| Tyre dimensions rear | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 | 185/55 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 240 | 240 | 240 | 240 | 257 | 257 |
| Brake dimensions rear | - | - | - | - | 240 | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | 9.3/- | 9.3/- | 10.6/- | 9.3/- |
| Overall length [mm] | 3546 | 3546 | 3546 | 3546 | 3546 | 3546 |
| Overall width without/including mirrors [mm] | 1627/- | 1627/- | 1627/- | 1627/- | 1627/- | 1627/- |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Front wheel track [mm] | 1413 | 1413 | 1413 | 1413 | 1413 | 1413 |
| Rear wheel track [mm] | 1407 | 1407 | 1407 | 1407 | 1407 | 1407 |
| Forward overhang [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Rear overhang [mm] | 543 | 543 | 543 | 543 | 543 | 543 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 0.9 TwinAir Turbo | 1.3 Multijet | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Ignition supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 2/8 | 4/16 | ||||
| Engine displacement [cm³] | 875 | 1248 | ||||
| Maximum output / speed [kW/min-1] | 62/5500 | 55/4000 | ||||
| Maximum torque [Nm/min-1] | 145/2000 | 145/1500 | ||||
| Bore and stroke [mm x mm] | 80,5 x 86,0 | 69,6 x 82,0 | ||||
| Compression ratio | 10,0:1 | 17,6:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear robotic manual | 5 gear manual | ||||
| Drive specifications |
| - | ||||
| Top speed [km/h] | 173 | 165 | ||||
| Acceleration 0–100 km/h [s] | 11.0 | 12.5 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.4 | 5.3 | ||||
| Out of town [l] | 3.6 | 3.6 | ||||
| Combined [l] | 3.9 | 4.2 | ||||
| CO2 emissions [g/km] | 90 | 111 | ||||
| Emission standard | EU5 - EU6 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | - | - | ||||
| Overall weight [kg] | - | - | ||||
| Maximum trailer weight unbraked/braked [kg] | 400/800 | 400/800 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 182 | 182 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 35 | 35 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | torsion bar | torsion bar | ||||
| Tyre dimensions front | 185/55 R15 | 185/55 R15 | ||||
| Tyre dimensions rear | 185/55 R15 | 185/55 R15 | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 257 | 240 | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | ||||
| Overall length [mm] | 3546 | 3546 | ||||
| Overall width without/including mirrors [mm] | 1627/- | 1627/- | ||||
| Overall height [mm] | 1488 | 1488 | ||||
| Wheelbase [mm] | 2300 | 2300 | ||||
| Front wheel track [mm] | 1413 | 1413 | ||||
| Rear wheel track [mm] | 1407 | 1407 | ||||
| Forward overhang [mm] | 703 | 703 | ||||
| Rear overhang [mm] | 543 | 543 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
