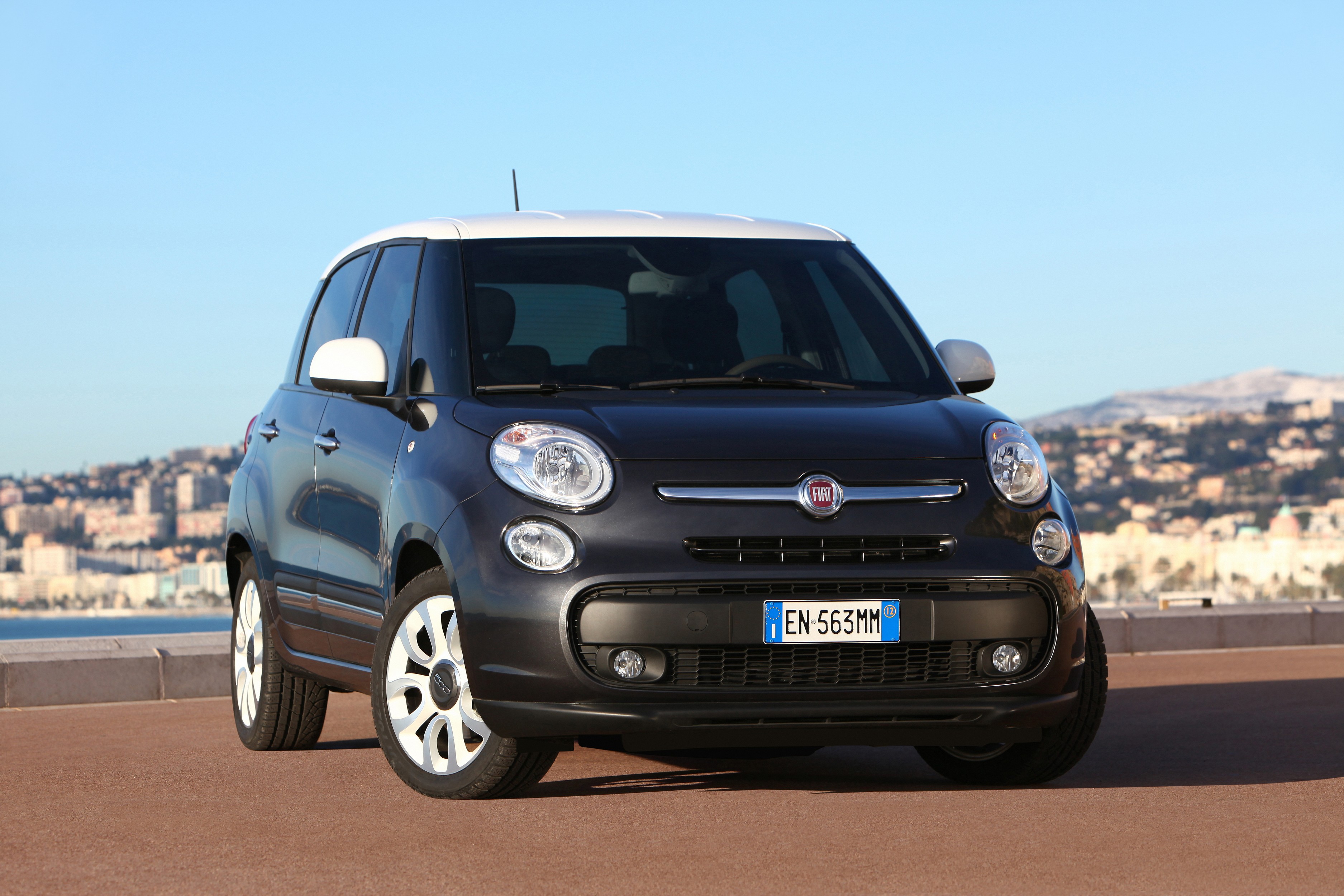

Fiat 500L
Date of manufacture
2012 – 2017 (MPV)
Platform
GM Fiat Small
Manufacturing locations
Kragujevac, Serbia
Designer
Roberto Giolito
Tags
Small MPV
Italian cars
The Fiat 500L is a popular MPV manufactured since 2012 in Serbia. The vehicle is built on the GM Fiat Small platform and offers a wide range of petrol and diesel engines. The most powerful version, the 1.6 MultiJet Living, produces 88 kW and has a top speed of 189 km/h. The most economical model is the 0.9 TwinAir CNG, with a consumption of 3.9 kg/100 km and emissions of 105 g/km. The boot size ranges from 412-455 l. The car has undergone EURONCAP safety tests, where it scored 5 out of 5.
Car body style
MPV
Date of manufacture
2012 – 2017Internal designation
L0 330Engine size
Petrol
Diesel
Technical data
MPV
| 1.4 | 1.4 Living | 0.9 TwinAir CNG | 0.9 TwinAir CNG Living | 0.9 TwinAir | 0.9 TwinAir Living | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 2/8 | 2/8 | 2/8 | 2/8 |
| Engine displacement [cm³] | 1368 | 1368 | 875 | 875 | 875 | 875 |
| Maximum output / speed [kW/min-1] | 70/6000 | 70/6000 | 63/5500 [59/5500 CNG] | 63/5500 [59/5500 CNG] | 77/5500 | 77/5500 |
| Maximum torque [Nm/min-1] | 127/4500 | 127/4500 | 145/2000 [140/2500 CNG] | 145/2000 [140/2500 CNG] | 145/2000 | 145/2000 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 80,5 x 86,0 | 80,5 x 86,0 | 80,5 x 86,0 | 80,5 x 86,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 178 | 178 | 167 [163 CNG] | 167 [163 CNG] | 180 | 180 |
| Acceleration 0–100 km/h [s] | 12.8 | 12.8 | 14.8 [15.7 CNG] | 14.8 [15.7 CNG] | 12.3 | 12.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3-8.1 | 8.3-8.1 | 7.2 [4.7 kg] | 7.2 [4.7 kg] | 5.7 | 5.7 |
| Out of town [l] | 5.0-5.0 | 5.0-5.0 | 5.2 [3.3 kg] | 5.2 [3.3 kg] | 4.3 | 4.3 |
| Combined [l] | 6.2-6.1 | 6.2-6.1 | 5.9 [3.9 kg] | 5.9 [3.9 kg] | 4.8 | 4.8 |
| CO2 emissions [g/km] | 145-143 | 145-143 | 105 | 105 | 112 | 112 |
| Emission standard | EU6 | EU6 | EU5+ | EU5+ | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1245 | 1245 | 1390 | 1420 | 1260 | 1290 |
| Overall weight [kg] | 1805 | 1805 | 1895 | - | 1820 | 1805 |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 412-455 | 560-638 | 412-455 | 416-493 | 412-455 | 560-638 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1708 | -/1480 | -/1509 | -/1480 | -/1708 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5-7 |
| Fuel tank volume [l] | 50 | 50 | 50 [14 kg] | 50 [14 kg] | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 |
| Wheel size rear | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 |
| Brake dimensions front | 284 | 284 | 284 | 284 | 284 | 284 |
| Brake dimensions rear | - | 251 | 251 | 251 | - | 251 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4147 | 4352 | 4147 | 4352 | 4147 | 4352 |
| Overall width without/including mirrors [mm] | 1784/- | 1784/- | 1784/- | 1784/- | 1784/- | 1784/- |
| Overall height [mm] | 1665 | 1667 | 1665 | 1667 | 1665 | 1667 |
| Wheelbase [mm] | 2612 | 2612 | 2612 | 2612 | 2612 | 2612 |
| Front wheel track [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Tjet | 1.4 Tjet LPG | 1.4 Tjet Trekking | 1.4 Tjet Living | 1.3 MultiJet | 1.3 MultiJet Living | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1368 | 1368 | 1248 | 1248 |
| Maximum output / speed [kW/min-1] | 88/5000 | 88/5000 | 88/5000 | 88/5000 | 62/3500 | 62/3500 |
| Maximum torque [Nm/min-1] | 215/2500 | 215/2500 | 215/2500 | 215/2500 | 200/1500 | 200/1500 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 69,6 x 82,0 | 69,6 x 82,0 |
| Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 189 | 189 | 183 | 189 | 165 | 165 |
| Acceleration 0–100 km/h [s] | 10.2 | 10.6 | 11.0 | 10.3 | 14.9 | 15.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1-8.8 | 9.1 [11.7 LPG] | 9.3-9.0 | 9.1 | 5.0 | 5.0 |
| Out of town [l] | 5.6-5.4 | 5.6 [7.2 LPG] | 5.7-5.4 | 5.6 | 3.7 | 3.7 |
| Combined [l] | 6.9-5.7 | 6.9 [8.9 LPG] | 7.0-6.7 | 6.9 | 4.2 | 4.2 |
| CO2 emissions [g/km] | 159-155 | 159 [144 LPG] | 163-157 | 159 | 110 | 110 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU5+ | EU5+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1290 | 1310 | 1300 | 1320 | 1295 | 1315 |
| Overall weight [kg] | 1850 | - | 1860 | 1880 | 1845 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 412-455 | 412-455 | 412-455 | 560-638 | 412-455 | 560-638 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1480 | -/1480 | -/1708 | -/1480 | -/1708 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5-7 | 5 | 5-7 |
| Fuel tank volume [l] | 50 | 50 [38.4 LPG] | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/45 R17 | 205/55 R16 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/45 R17 | 205/55 R16 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7J x 17 | 6.5J x 16 | 6J x 15 | 6J x 15 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7J x 17 | 6.5J x 16 | 6J x 15 | 6J x 15 |
| Brake dimensions front | 305 | 305 | 305 | 305 | 284 | 284 |
| Brake dimensions rear | 264 | 264 | 264 | 264 | - | 251 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4147 | 4147 | 4270 | 4352 | 4147 | 4352 |
| Overall width without/including mirrors [mm] | 1784/- | 1784/- | 1800/- | 1784/- | 1784/- | 1784/- |
| Overall height [mm] | 1665 | 1665 | 1679 | 1667 | 1665 | 1667 |
| Wheelbase [mm] | 2612 | 2612 | 2612 | 2612 | 2612 | 2612 |
| Front wheel track [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | 145 | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.3 MultiJet | 1.3 MultiJet Living | 1.3 MultiJet | 1.3 MultiJet | 1.3 MultiJet Living | 1.3 MultiJet Living | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1248 | 1248 | 1248 | 1248 | 1248 | 1248 |
| Maximum output / speed [kW/min-1] | 62/3500 | 62/3500 | 70/3750 | 70/3750 | 70/3750 | 70/3750 |
| Maximum torque [Nm/min-1] | 200/1500 | 200/1500 | 200/1500 | 200/1500 | 200/1500 | 200/1500 |
| Bore and stroke [mm x mm] | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 |
| Compression ratio | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear robotic manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 164 | 164 | 171 | 169 | 171 | 169 |
| Acceleration 0–100 km/h [s] | 15.1 | 16.0 | 13.9 | 14.8 | 14.1 | 15.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.5 | 4.5 | 4.9 | 4.5 | 4.9 | 4.5 |
| Out of town [l] | 3.7 | 3.7 | 3.6 | 3.6 | 3.6 | 3.6 |
| Combined [l] | 4.0 | 4.0 | 4.1 | 3.9 | 4.1 | 3.9 |
| CO2 emissions [g/km] | 110 | 110 | 107 | 104 | 107 | 104 |
| Emission standard | EU5+ | EU5+ | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1300 | 1320 | 1305 | 1305 | 1320 | 1320 |
| Overall weight [kg] | 1850 | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1100 | 400/1000 | 400/1100 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 412-455 | 560-638 | 412-455 | 412-455 | 560-638 | 560-638 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1708 | -/1480 | -/1480 | -/1708 | -/1708 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5-7 | 5 | 5 | 5-7 | 5-7 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6J x 15 | 6J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6J x 15 | 6J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 284 | 284 | 284 | 284 | 284 | 284 |
| Brake dimensions rear | - | 251 | 251 | 251 | 251 | 251 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4147 | 4352 | 4147 | 4147 | 4352 | 4352 |
| Overall width without/including mirrors [mm] | 1784/- | 1784/- | 1784/- | 1784/- | 1784/- | 1784/- |
| Overall height [mm] | 1665 | 1667 | 1665 | 1665 | 1667 | 1667 |
| Wheelbase [mm] | 2612 | 2612 | 2612 | 2612 | 2612 | 2612 |
| Front wheel track [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 MultiJet | 1.6 MultiJet Trekking | 1.6 MultiJet Living | 1.6 MultiJet | 1.6 MultiJet Trekking | 1.6 MultiJet Living | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 77/3700 | 77/3700 | 77/3700 | 88/3750 | 88/3750 | 88/3750 |
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | 320/1750 | 320/1750 | 320/1750 | 320/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 181 | 175 | 181 | 189 | 183 | 189 |
| Acceleration 0–100 km/h [s] | 11.3 | 12.0 | 11.8 | 10.7 | 11.5 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5.6 | 5.4 | 5.5-4.6 | 4.9-5.8 | 5.5-4.6 |
| Out of town [l] | 3.9 | 4.1 | 3.9 | 4.0-4.0 | 4.2-4.0 | 4.0-4.0 |
| Combined [l] | 4.5 | 4.7 | 4.5 | 4.6-4.2 | 4.8-4.3 | 4.6-4.2 |
| CO2 emissions [g/km] | 117 | 122 | 117 | 120-112 | 125-114 | 120-112 |
| Emission standard | EU5+ | EU5+ | EU5+ | EU5+ - EU6 | EU5+ - EU6 | EU5+ - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1365 | 1365 | 1395 | 1370 | 1370 | 1400-1410 |
| Overall weight [kg] | 1925 | 1925 | 1915 | 1920 | 1930 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1100 | 400/1100 | 400/1100 | 400/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 412-455 | 412-455 | 560-638 | 412-455 | 412-455 | 560-638 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1480 | -/1708 | -/1480 | -/1480 | -/1708 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5-7 | 5 | 5 | 5-7 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 284 | 284 | 284 | 305 | 305 | 305 |
| Brake dimensions rear | 251 | 251 | 251 | 264 | 264 | 264 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4147 | 4270 | 4352 | 4147 | 4147 | 4352 |
| Overall width without/including mirrors [mm] | 1784/- | 1800/- | 1784/- | 1784/- | 1784/- | 1784/- |
| Overall height [mm] | 1665 | 1679 | 1667 | 1665 | 1665 | 1667 |
| Wheelbase [mm] | 2612 | 2612 | 2612 | 2612 | 2612 | 2612 |
| Front wheel track [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
