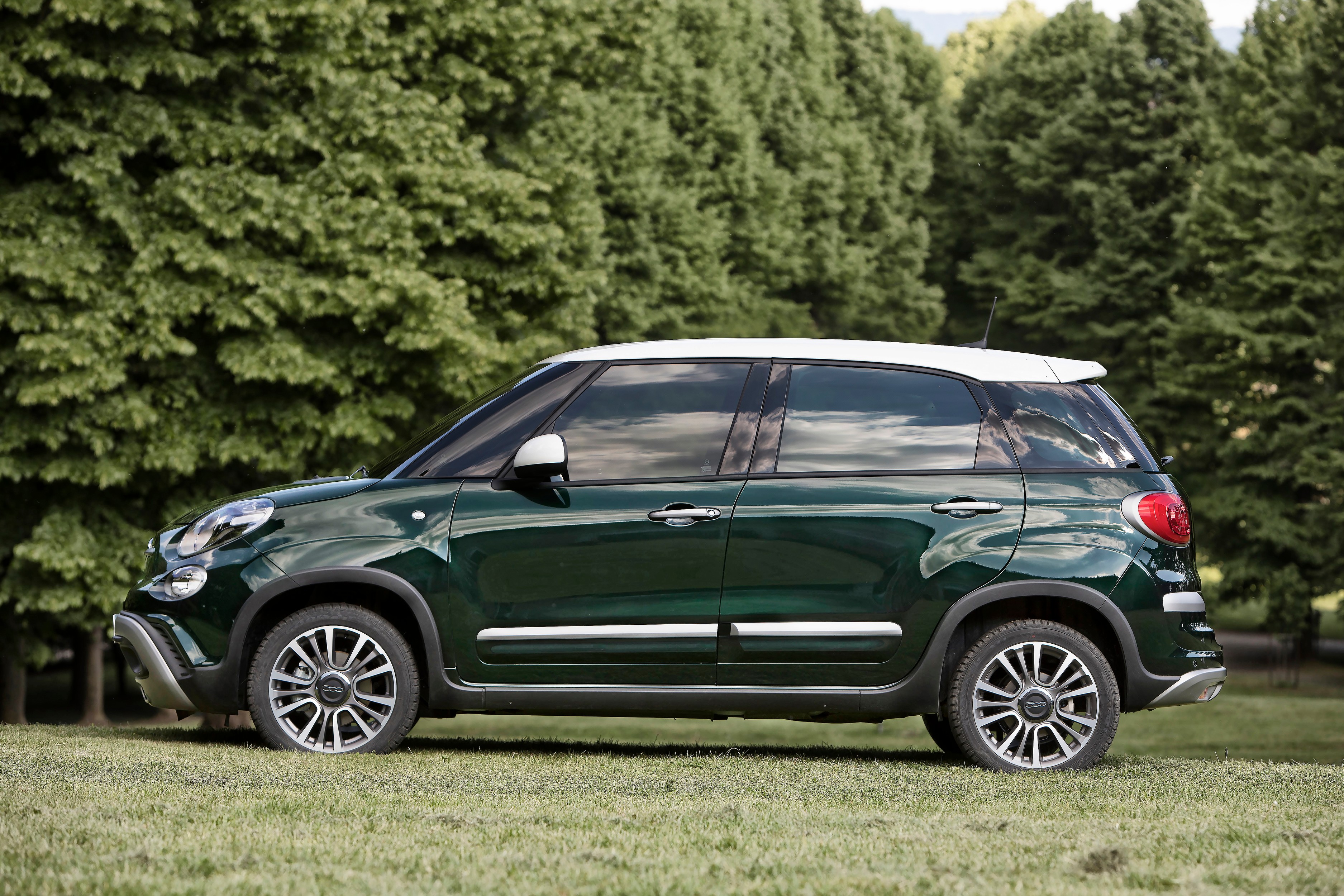

Fiat 500L
Date of manufacture
2017 – to this day (Small MPV)
Platform
GM Fiat Small
Manufacturing locations
Kragujevac, Serbia
Designer
Roberto Giolito
Tags
Small MPV
Italian cars
The Fiat 500L is available as a small MPV. The car has been manufactured since 2017. The country of manufacture of the car is Serbia. The car is built on the GM Fiat Small platform. The engine range has petrol and diesel engines. The most powerful car is the 1.6 MultiJet Cross with 88 kW of power. The fastest version is the 1.6 MultiJet Kombi. The maximum speed is 189 km/h. The 0.9 TwinAir CNG has the lowest consumption of 3.9 kg/100 km and emissions reach 105 g/km. The luggage compartment volume offers 330-396 l. During EURONCAP safety tests, the car received a rating of 5 out of 5. Tested according to the methodology of 2012.
Car body style
Small MPV
after upgrade (facelift)
Date of manufacture
2017 – to this dayInternal designation
L0 330
Technical data
Small MPV
| 1.4 | 0.9 TwinAir CNG | 0.9 TwinAir | 1.4 T-JET | 1.4 Wagon | 0.9 TwinAir Wagon | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 2/8 | 2/8 | 4/16 | 4/16 | 2/8 |
| Engine displacement [cm³] | 1368 | 875 | 875 | 1368 | 1368 | 875 |
| Maximum output / speed [kW/min-1] | 70/6000 | 63/5500 [59/5500 CNG] | 77/5500 | 88/5000 | 70/6000 | 77/5500 |
| Maximum torque [Nm/min-1] | 127/4500 | 145/2000 [140/2500 CNG] | 145/2000 | 215/2500 | 127/4500 | 145/2000 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 80,5 x 86,0 | 80,5 x 86,0 | 72,0 x 84,0 | 72,0 x 84,0 | 80,5 x 86,0 |
| Compression ratio | 10.8:1 | 10,0:1 | 10,0:1 | 9,8:1 | 10.8:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
| - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 176-178 | 167 [163 CNG] | 180 | 189 | 178 | 180 |
| Acceleration 0–100 km/h [s] | 12.8-13.9 | 14.8 [15.7 CNG] | 12.3 | 10.2 | 12.8 | 12.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4-8.1 | 7.2 [4.7 kg] | 5.7 | 8.8 | 8.1 | 5.7 |
| Out of town [l] | 6.5-5.0 | 5.2 [3.3 kg] | 4.2 | 5.4 | 6.0-5.0 | 4.2 |
| Combined [l] | 7.2-6.1 | 5.9 [3.9 kg] | 4.8 | 6.7 | 6.8-6.1 | 4.8 |
| CO2 emissions [g/km] | 164-143 | 137 [105 CNG] | 111 | 155 | 155-143 | 111 |
| Emission standard | EU6 - Euro 6d-Temp | EU6 | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1320-1395 | 1465 | 1335 | 1365 | 1320 | 1335 |
| Overall weight [kg] | 1800-1805 | 1895 | 1820 | 1850 | 1805 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | - | 400/1000 | 400/1000 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 412-455 | 330-396 | 412-455 | 412-455 | 560-638 | 560-638 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1380 | -/1480 | -/1480 | -/1704 | -/1704 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 [14 kg] | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 284 | 284 | 284 | 305 | 284 | 284 |
| Brake dimensions rear | 228 | 251 | 228 | 264 | 251 | 251 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4242 | 4242 | 4242 | 4242 | 4375 | 4375 |
| Overall width without/including mirrors [mm] | 1784/- | 1784/- | 1784/- | 1784/- | 1784/- | 1784/- |
| Overall height [mm] | 1658 | 1678 | 1658 | 1658 | 1667 | 1667 |
| Wheelbase [mm] | 2612 | 2612 | 2612 | 2612 | 2612 | 2612 |
| Front wheel track [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 T-JET Wagon | 1.4 Cross | 0.9 TwinAir Cross | 1.4 T-JET Cross | 1.3 MultiJet | 1.3 MultiJet | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 2/8 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 875 | 1368 | 1248 | 1248 |
| Maximum output / speed [kW/min-1] | 88/5000 | 70/6000 | 77/5500 | 88/5000 | 70/3750 | 70/3750 |
| Maximum torque [Nm/min-1] | 215/2500 | 127/4500 | 145/2000 | 215/2500 | 200/1500 | 200/1500 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 80,5 x 86,0 | 72,0 x 84,0 | 69,6 x 82,0 | 69,6 x 82,0 |
| Compression ratio | 9,8:1 | 10.8:1 | 10,0:1 | 9,8:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
| - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 189 | 162-165 | 173 | 183 | 171 | 169 |
| Acceleration 0–100 km/h [s] | 10.3 | 13.2-13.9 | 12.6 | 11.0 | 13.9 | 14.8-15.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8 | 8.4-8.2 | 5.8 | 9.0 | 4.9 | 5.2-4.5 |
| Out of town [l] | 5.4 | 6.5-5.0 | 4.3 | 5.4 | 3.6 | 4.8-3.6 |
| Combined [l] | 6.7 | 7.2-6.2 | 4.9 | 6.7 | 4.1 | 5.0-3.9 |
| CO2 emissions [g/km] | 155 | 164-144 | 113 | 157 | 107 | 131-104 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 - Euro 6d-Temp | EU6 - Euro 6d-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1365 | 1330-1395 | 1345 | 1375 | 1380 | 1380-1505 |
| Overall weight [kg] | 1850 | 1800 | 1815 | 1860 | 1845 | 1845-1915 |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 560-638 | 412-455 | 412-455 | 412-455 | 412-455 | 412-455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1704 | -/1480 | -/1480 | -/1480 | -/1480 | -/1480 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | MacPherson | MacPherson |
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 225/45 R17 | 225/45 R17 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 225/45 R17 | 225/45 R17 | 205/55 R16 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 305 | 284 | 284 | 305 | 284 | 284 |
| Brake dimensions rear | 264 | 251 | 251 | 264 | 228 | 228 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4375 | 4276 | 4276 | 4276 | 4242 | 4242 |
| Overall width without/including mirrors [mm] | 1784/- | 1800/- | 1800/- | 1800/- | 1784/- | 1784/- |
| Overall height [mm] | 1667 | 1679 | 1679 | 1679 | 1658 | 1658 |
| Wheelbase [mm] | 2612 | 2612 | 2612 | 2612 | 2612 | 2612 |
| Front wheel track [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 MultiJet | 1.3 MultiJet Wagon | 1.3 MultiJet Wagon | 1.6 MultiJet Wagon | 1.3 MultiJet Cross | 1.3 MultiJet Cross | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1248 | 1248 | 1598 | 1248 | 1248 |
| Maximum output / speed [kW/min-1] | 88/3750 | 70/3750 | 70/3750 | 88/3750 | 70/3750 | 70/3750 |
| Maximum torque [Nm/min-1] | 320/1750 | 200/1500 | 200/1500 | 320/1750 | 200/1500 | 200/1500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 69,6 x 82,0 | 69,6 x 82,0 | 79,5 x 80,5 | 69,6 x 82,0 | 69,6 x 82,0 |
| Compression ratio | 16,5:1 | 16,8:1 | 16,8:1 | 16,5:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 189 | 171 | 169 | 189 | 166 | 163-166 |
| Acceleration 0–100 km/h [s] | 10.7-11.5 | 13.9-14.1 | 14.8-15.7 | 10.7-10.9 | 14.3 | 15.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1-4.6 | 5.6-4.9 | 5.0-4.5 | 5.7-4.6 | 5.1 | 5.2-4.5 |
| Out of town [l] | 4.5-4.0 | 3.7-3.6 | 4.3-3.6 | 4.2-4.0 | 4.0 | 4.8-3.7 |
| Combined [l] | 5.1-4.2 | 4.4-4.1 | 4.6-3.9 | 4.7-4.2 | 4.2 | 5.0-4.0 |
| CO2 emissions [g/km] | 134-112 | 117-107 | 121-104 | 124-112 | 109 | 131-106 |
| Emission standard | EU6 - Euro 6d-Temp | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1455-1560 | 1380 | 1380 | 1455 | 1390 | 1390-1505 |
| Overall weight [kg] | 1920-1970 | 1845 | 1845 | 1920 | 1855 | 1855-1915 |
| Maximum trailer weight unbraked/braked [kg] | 400/1000-1100 | 400/1000 | 400/1000 | 400/1100 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 412-455 | 560-638 | 560-638 | 560-638 | 412-455 | 412-455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | -/1704 | -/1704 | -/1704 | -/1480 | -/1480 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5-7 | 5-7 | 5-7 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | MacPherson | MacPherson | twist beam axle with trailing arms | MacPherson | MacPherson |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 305 | 284 | 284 | 305 | 284 | 284 |
| Brake dimensions rear | 264 | 251 | 251 | 264 | 251 | 251 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4242 | 4375 | 4375 | 4375 | 4276 | 4276 |
| Overall width without/including mirrors [mm] | 1784/- | 1784/- | 1784/- | 1784/- | 1800/- | 1800/- |
| Overall height [mm] | 1658 | 1667 | 1667 | 1667 | 1679 | 1679 |
| Wheelbase [mm] | 2612 | 2612 | 2612 | 2612 | 2612 | 2612 |
| Front wheel track [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 MultiJet Cross | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1598 | |||||
| Maximum output / speed [kW/min-1] | 88/3750 | |||||
| Maximum torque [Nm/min-1] | 320/1750 | |||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 183 | |||||
| Acceleration 0–100 km/h [s] | 11.5 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.1-4.9 | |||||
| Out of town [l] | 4.5-4.0 | |||||
| Combined [l] | 5.1-4.3 | |||||
| CO2 emissions [g/km] | 134-114 | |||||
| Emission standard | EU6 - Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1465-1560 | |||||
| Overall weight [kg] | 1930-1970 | |||||
| Maximum trailer weight unbraked/braked [kg] | 400/1000-1100 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 412-455 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1480 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 50 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 225/45 R17 | |||||
| Tyre dimensions rear | 225/45 R17 | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | 305 | |||||
| Brake dimensions rear | 264 | |||||
| Steering | Rack & pinion with electric power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.1/- | |||||
| Overall length [mm] | 4276 | |||||
| Overall width without/including mirrors [mm] | 1800/- | |||||
| Overall height [mm] | 1679 | |||||
| Wheelbase [mm] | 2612 | |||||
| Front wheel track [mm] | 1522 | |||||
| Rear wheel track [mm] | 1519 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
