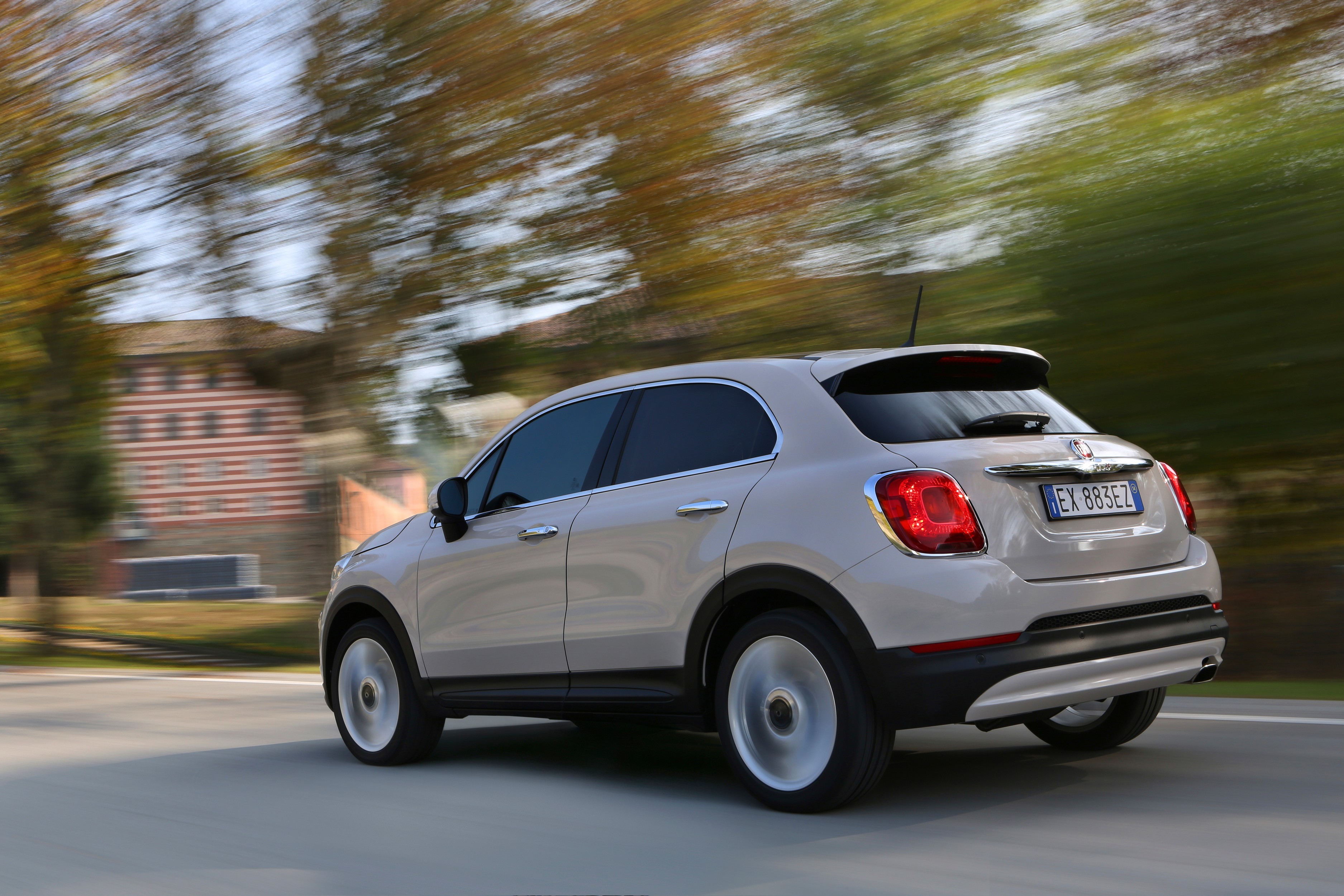

Fiat 500X
Date of manufacture
2014 – 2018 (SUV)
Platform
GM Fiat Small platform
Manufacturing locations
Melfi, Italy
Designer
Centro Stile Fiat
Roberto Giolito
Tags
Small SUV
Italian cars
The Fiat 500X can be purchased in the SUV body variant. The car has been manufactured since 2014. The country of manufacture of the car is Italy. The car is built on the GM Fiat Small platform. The list of engines includes petrol and diesel engines. The highest power is achieved by the 1.4 MultiAir Cross (125 kW). The 1.4 MultiAir Cross is the fastest version available. The top speed is 200 km/h. The lowest combined consumption is 4.1 l/100 km for the 1.3 MultiJet version. CO2 emissions are 107 g/km. The trunk has a capacity of 350 l. The car was tested in the safety area in 2015 and achieved an overall rating of 4 out of 5 according to EURONCAP.
Car body style
SUV
Date of manufacture
2014 – 2018Internal designation
334
Technical data
SUV
| 1.6 E-Torq | 1.6 E-Torq S&S | 1.4 MultiAir | 1.4 MultiAir | 1.4 MultiAir Cross | 1.4 MultiAir Cross | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1368 | 1368 | 1368 | 1368 |
| Maximum output / speed [kW/min-1] | 82/5500 | 81/5500 | 103/5000 | 103/5000 | 103/5000 | 103/5000 |
| Maximum torque [Nm/min-1] | 152/4500 | 152/4500 | 230/1750 | 230/1750 | 230/1750 | 230/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 |
| Compression ratio | 11,1:1 | 11,1:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 180 | 180 | 190 | 190 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 11.5 | 11.5 | 9.8 | 9.8 | 9.8 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7 | 7.8 | 7.8 | 7.2 | 7.8 | 7.2 |
| Out of town [l] | 5.0 | 5.0 | 5.0 | 4.9 | 5.0 | 4.9 |
| Combined [l] | 6.4 | 6.0 | 6.0 | 5.7 | 6.0 | 5.7 |
| CO2 emissions [g/km] | 147 | 139 | 139 | 133 | 139 | 133 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1350 | 1350 | 1395 | 1320 | 1395 | 1320 |
| Overall weight [kg] | 1875 | 1875 | 1875 | - | 1875 | - |
| Maximum trailer weight unbraked/braked [kg] | 600/800 | 600/800 | 600/1200 | 600/1200 | 600/1200 | 600/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 215/60 R16 95H | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V |
| Tyre dimensions rear | 215/60 R16 95H | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 281 x 26 | 281 x 26 | 281 x 26 | 281 x 26 | 281 x 26 | 281 x 26 |
| Brake dimensions rear | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/11.5 | 11.05/11.5 | 11.05/11.5 | 11.05/11.5 | 11.05/11.5 | 11.05/11.5 |
| Overall length [mm] | 4248 | 4248 | 4248 | 4248 | 4273 | 4273 |
| Overall width without/including mirrors [mm] | 1796/2025 | 1796/2025 | 1796/2025 | 1796/2025 | 1796/2025 | 1796/2025 |
| Overall height [mm] | 1600 | 1600 | 1600 | 1600 | 1608 | 1608 |
| Wheelbase [mm] | 2570 | 2570 | 2570 | 2570 | 2570 | 2570 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 162 | 162 | 162 | 162 | 162 | 162 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19.4 | 19.4 | 19.4 | 19.4 | 19.4 | 19.4 |
| Approach angle rear [°] | 22.1 | 22.1 | 22.1 | 22.1 | 22.1 | 22.1 |
| Transition angle [°] | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 MultiAir Cross | 1.3 MultiJet | 1.6 MultiJet | 1.6 MultiJet | 1.6 MultiJet Cross | 2.0 MultiJet Cross | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1248 | 1598 | 1598 | 1598 | 1956 |
| Maximum output / speed [kW/min-1] | 125/5500 | 70/3750 | 88/3750 | 88/3750 | 88/3750 | 103/4000 |
| Maximum torque [Nm/min-1] | 250/5500 | 200/1500 | 320/1750 | 320/1750 | 320/1750 | 350/1750 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 69,6 x 82,0 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 83,0 x 90,4 |
| Compression ratio | 10,0:1 | 16,8:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | 4x4 |
| Gearbox | 9 gear automatic | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 200 | 172 | 186 | 186 | 186 | 190 |
| Acceleration 0–100 km/h [s] | 8.6 | 12.9 | 10.5 | 10.5 | 10.5 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.5 | 4.6 | 4.7 | 4.8 | 4.7 | 5.8 |
| Out of town [l] | 5.7 | 3.8 | 3.8 | 4.0 | 3.8 | 4.4 |
| Combined [l] | 6.7 | 4.1 | 4.1 | 4.3 | 4.1 | 4.9 |
| CO2 emissions [g/km] | 157 | 107 | 109 | 113 | 109 | 130 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1395 | 1395 | 1395 | 1395 | 1505 |
| Overall weight [kg] | 2100 | 1875 | 1875 | 1875 | 1875 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1000 | 600/1200 | 600/900 | 600/1200 | 600/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | - | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 215/55 R17 94V | 215/60 R16 95H | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V |
| Tyre dimensions rear | 215/55 R17 94V | 215/60 R16 95H | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V | 215/55 R17 94V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 281 x 26 | 281 x 26 | 281 x 26 | 281 x 26 | 281 x 26 | 305 x 28 |
| Brake dimensions rear | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 | 278 x 12 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/11.5 | 11.05/11.5 | 11.05/11.5 | 11.05/11.5 | 11.05/11.5 | 11.05/11.5 |
| Overall length [mm] | 4273 | 4248 | 4248 | 4248 | 4273 | 4273 |
| Overall width without/including mirrors [mm] | 1796/2025 | 1796/2025 | 1796/2025 | 1796/2025 | 1796/2025 | 1796/2025 |
| Overall height [mm] | 1620 | 1600 | 1600 | 1600 | 1600 | 1620 |
| Wheelbase [mm] | 2570 | 2570 | 2570 | 2570 | 2570 | 2570 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 179 | 162 | 162 | 162 | 162 | 179 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 21.3 | 19.4 | 19.4 | 19.4 | 19.4 | 21.3 |
| Approach angle rear [°] | 22.3 | 22.1 | 22.1 | 22.1 | 22.1 | 22.3 |
| Transition angle [°] | 30.1 | 16.8 | 16.8 | 16.8 | 16.8 | 30.1 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 MultiJet Cross | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1956 | |||||
| Maximum output / speed [kW/min-1] | 103/4000 | |||||
| Maximum torque [Nm/min-1] | 350/1750 | |||||
| Bore and stroke [mm x mm] | 83,0 x 90,4 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 9 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 190 | |||||
| Acceleration 0–100 km/h [s] | 9.8 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.5 | |||||
| Out of town [l] | 4.9 | |||||
| Combined [l] | 5.5 | |||||
| CO2 emissions [g/km] | 144 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1570 | |||||
| Overall weight [kg] | 2100 | |||||
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 350 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1000 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 48 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.34 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | MacPherson | |||||
| Tyre dimensions front | 215/55 R17 94V | |||||
| Tyre dimensions rear | 215/55 R17 94V | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | 305 x 28 | |||||
| Brake dimensions rear | 278 x 12 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.05/11.5 | |||||
| Overall length [mm] | 4273 | |||||
| Overall width without/including mirrors [mm] | 1796/2025 | |||||
| Overall height [mm] | 1620 | |||||
| Wheelbase [mm] | 2570 | |||||
| Front wheel track [mm] | 1545 | |||||
| Rear wheel track [mm] | 1545 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 179 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 21.3 | |||||
| Approach angle rear [°] | 22.3 | |||||
| Transition angle [°] | 30.1 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
