Basic information Technical Specifications Gallery

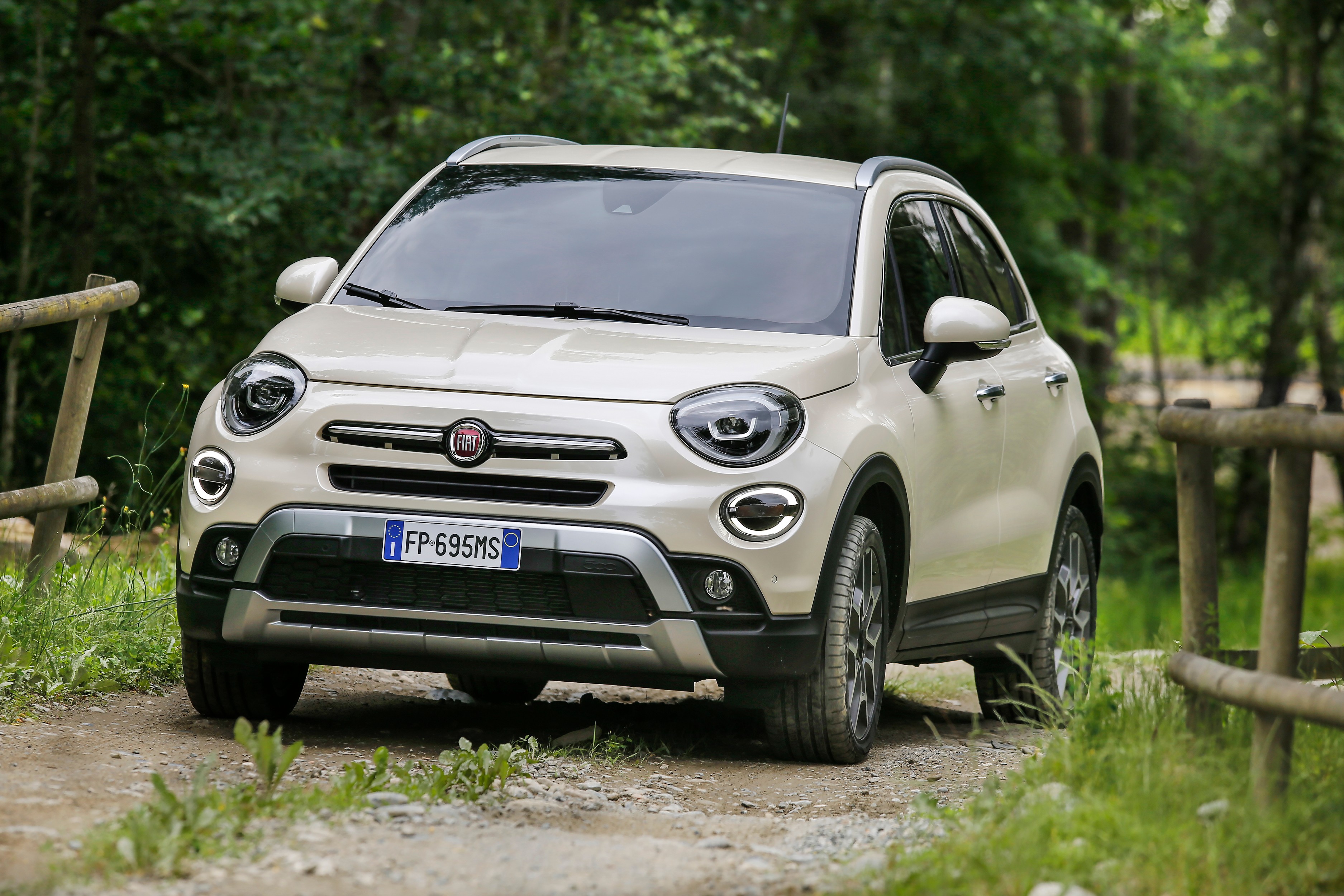

Fiat 500X

Date of manufacture

2018 – to this day (Small SUV)

Platform

GM Fiat Small platform

Manufacturing locations

Melfi, Italy

Designer

Centro Stile Fiat

Roberto Giolito

Car body style

Small SUV

after upgrade (facelift)

Date of manufacture

2018 – to this day

Internal designation

334

Engine size

Petrol

1.6 E-Torq S&S

1.0 FireFly Turbo 120

1.3 FireFly Turbo 150

Diesel

1.3 MultiJet

1.6 MultiJet

2.0 MultiJet

Euro NCAP

Test year 2015

pre-facelift version (2015)

Technical data

Small SUV

	1.6 E-Torq S&S	1.0 FireFly Turbo 120	1.3 FireFly Turbo 150	1.3 MultiJet	1.6 MultiJet	1.6 MultiJet
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	3/12	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	999	1332	1248	1598	1598
Maximum output / speed [kW/min-1]	81/5500	88/5750	110/5250	70/3750	88/3750	88/3750
Maximum torque [Nm/min-1]	152/4500	190/1750	270/1850	200/1500	320/1750	320/1750
Bore and stroke [mm x mm]	77,0 x 85,8	70.0 x 86,5	70.0 x 86,5	69,6 x 82,0	79,5 x 80,5	79,5 x 80,5
Compression ratio	11,1:1	10.5:1	10.5:1	16,8:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	start&stop system Gasoline Particulate Filter	direct injection FGT turbo-supercharged Gasoline Particulate Filter cGPF start&stop system	direct injection FGT turbo-supercharged Gasoline Particulate Filter cGPF start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear manual	6 gear automatic	5 gear manual	6 gear manual	6 gear automatic
Drive specifications	-	-	six-speed dual-clutch automatic gearbox DDCT	-	gearbox type C635	six-speed dual-clutch automatic gearbox DDCT

Top speed [km/h]	177	188	196	172	187	187
Acceleration 0–100 km/h [s]	11.5	10.9	9.1	13.5	10.7	10.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.4	7.8-7.4	7.4-7.3	5.7-5.3	6.1-5.9	5.6-5.4
Out of town [l]	5.9	5.3-5.1	5.8	4.0	4.6-4.5	4.8
Combined [l]	6.8	6.0	6.4-6.3	4.6	5.1-5.0	5.0
CO2 emissions [g/km]	156	138	145-144	122	134-133	132

Low speed [l]	-	-	-	-	-	-
Medium speed [l]	-	-	-	-	-	-
High speed [l]	-	-	-	-	-	-
Extra high speed [l]	-	-	-	-	-	-
Combined speed [l]	-	6.9-6.2	6.9-6.4	-	5.4-5.2	5.6-6.4
CO2 emissions [g/km]	-	163-149	165-151	144-121	155-143	162-150

Emission standard	Euro 6d‐Temp	Euro 6d‐Temp	Euro 6d‐Temp	Euro 6d‐Temp	Euro 6d‐Temp	Euro 6d‐Temp
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1395	1395	1395	1395	1485	1505
Overall weight [kg]	1840	1840	1880	1880	1940	1940
Maximum trailer weight unbraked/braked [kg]	600/800	600/1000	600/1200	600/1000	600/1200	600/900
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	350	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1000	-/1000	-/1000	-/1000	-/1000	-/1000
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	48	48	48	48	48	48
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Tyre dimensions front	215/60 R16	215/60 R16	215/60 R16	215/60 R16	215/60 R16	215/60 R16
Tyre dimensions rear	215/60 R16	215/60 R16	215/60 R16	215/60 R16	215/60 R16	215/60 R16
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.05/11.5	11.05/11.5	11.05/11.5	11.05/11.5	11.05/11.5	11.05/11.5

Overall length [mm]	4265	4265	4265	4265	4265	4265
Overall width without/including mirrors [mm]	1796/2025	1796/2025	1796/2025	1796/2025	1796/2025	1796/2025
Overall height [mm]	1596	1596	1596	1596	1596	1596
Wheelbase [mm]	2570	2570	2570	2750	2750	2750
Front wheel track [mm]	1545	1545	1545	1545	1545	1545
Rear wheel track [mm]	1545	1545	1545	1545	1545	1545
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	157	157	157	157	157	157
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 MultiJet
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1956
Maximum output / speed [kW/min-1]	110/4000
Maximum torque [Nm/min-1]	350/1500
Bore and stroke [mm x mm]	83,0 x 90,4
Compression ratio	16,5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	4x4
Gearbox	9 gear automatic
Drive specifications	permanent front axle drive with automatic rear axle engagement nine-speed automatic gearbox 948TE

Top speed [km/h]	196
Acceleration 0–100 km/h [s]	10.1
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	-
Out of town [l]	-
Combined [l]	-
CO2 emissions [g/km]	-

Emission standard	Euro 6d‐Temp
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1570
Overall weight [kg]	2100
Maximum trailer weight unbraked/braked [kg]	600/1200
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-

Boot volume [l]	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1000
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	48
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson
Rear suspension	MacPherson
Tyre dimensions front	215/60 R16
Tyre dimensions rear	215/60 R16
Wheel size front	-
Wheel size rear	-
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	11.05/11.5

Overall length [mm]	4265
Overall width without/including mirrors [mm]	1796/2025
Overall height [mm]	1596
Wheelbase [mm]	2750
Front wheel track [mm]	1545
Rear wheel track [mm]	1545
Forward overhang [mm]	-
Rear overhang [mm]	-
Clearance [mm]	174
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

Fiat 500X 334 facelift 2018 Sport interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
